Best Quality Automatic Air Stucco Exterior Wall Insulation Spray Plastering Machine Mortar Sprayer For Spraying
- Category: Engineering & Construction Machinery >>>
- Supplier: Henan,Yuandong,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

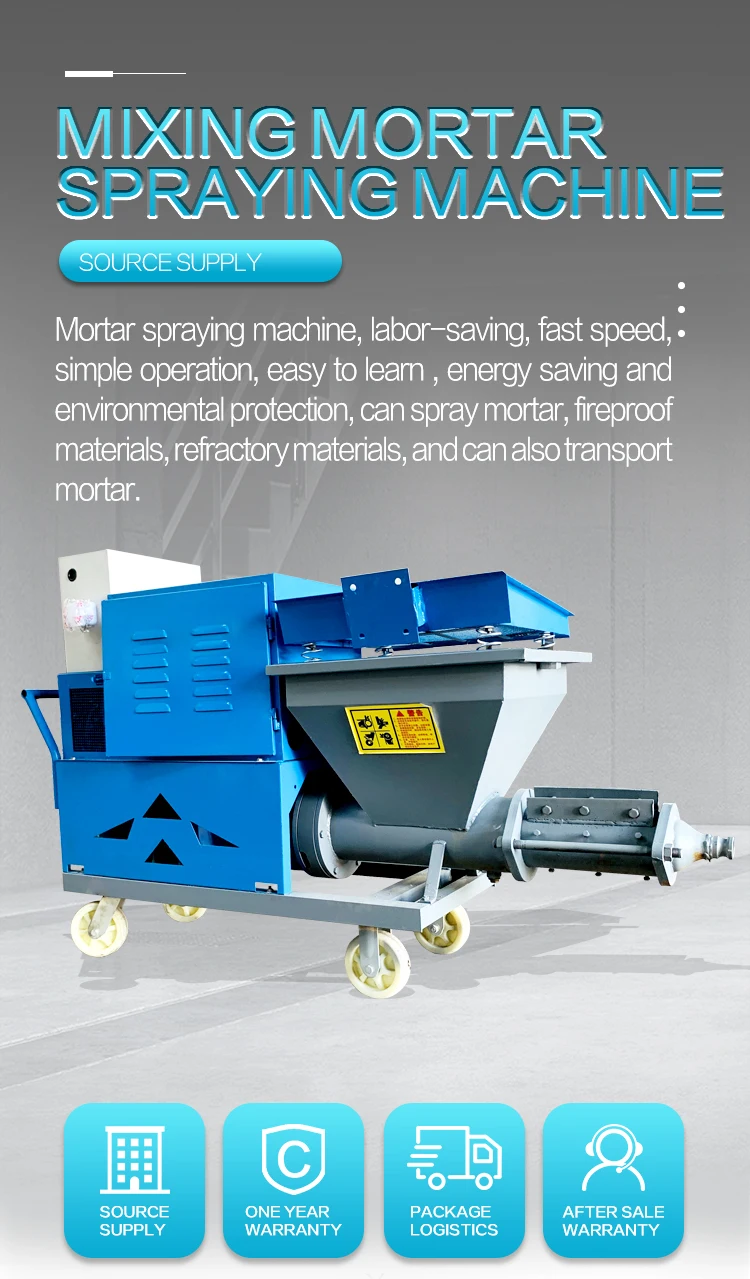

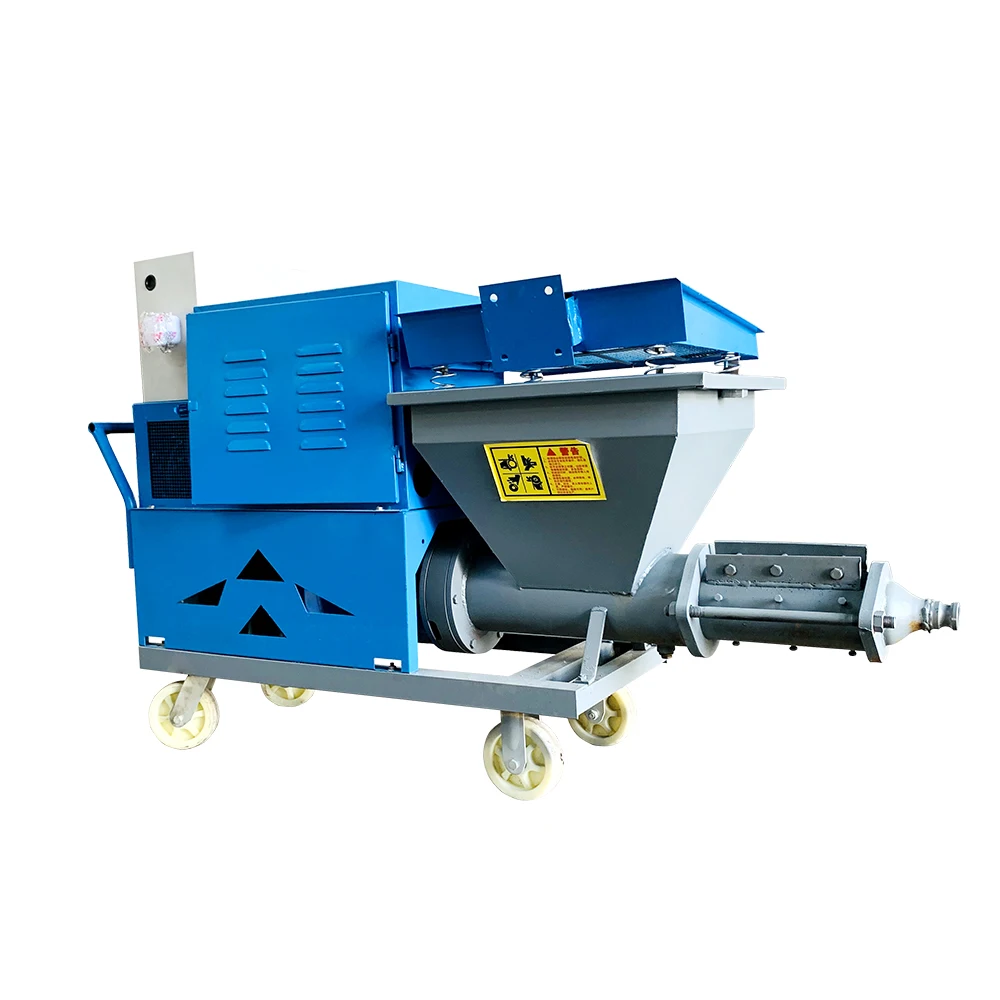

Mortar Spraying Machine
Mortar spraying machine is mainly used for building internal and external wall surface goods mixed mortar, putty powder, refractory coating and pressure grouting.Highway, railway tunnel, urban subway, hydraulic power station underground caverns, such as grouting engineering, can be used in dam, slope, soft rock reinforcement soil grouting engineering.Spray Plastering Machine For Mortar

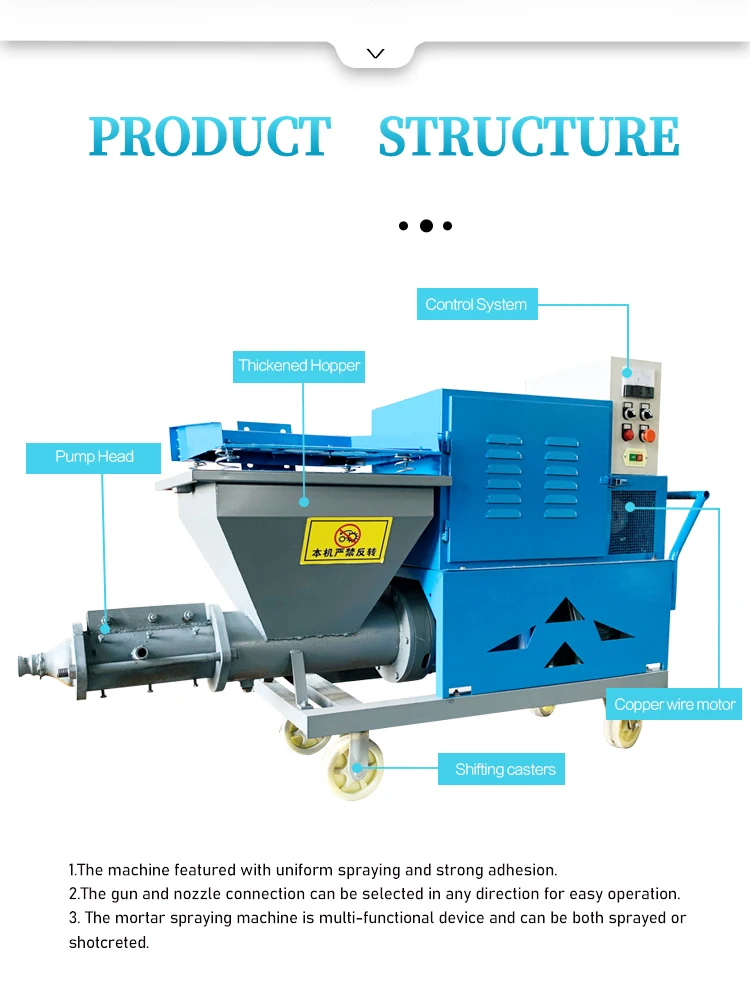

Structure
Features:
1.The machine featured with uniform spraying and strong adhesion.2.The gun and nozzle connection can be selected in any direction for easy operation.
3. The mortar spraying machine is multi-functional device and can be both sprayed or shotcreted.
Specification
We also supply the diesel engine power optional

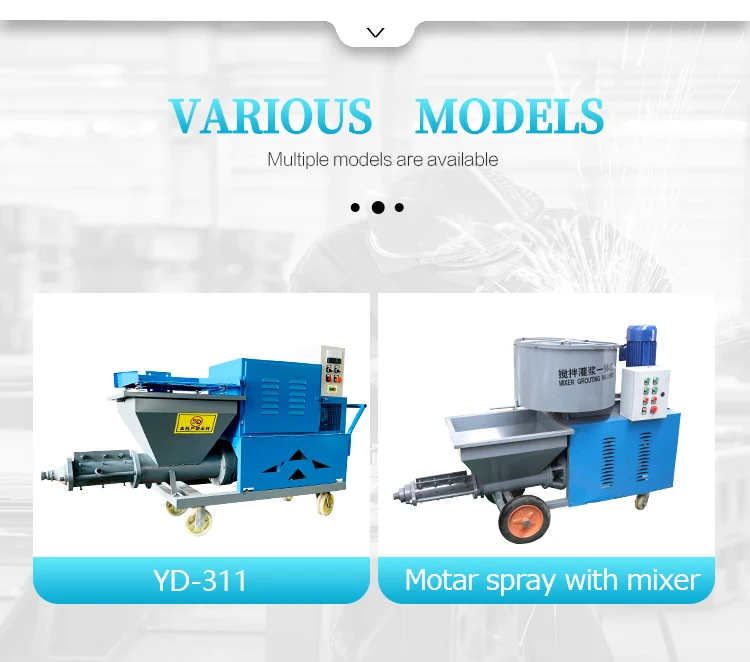

Model | 311(Z20) | 511 | 711 |
Conveying Pipe Diameter | 32mm | 38mm | 38mm |
Air Pump Power | 2.2kw | 2.2kw | 2.2kw |
Motor Power | 4kw | 7.5kw | 7.5kw |
Voltage | 380V Three Phase Electric/Diesel Engine | 380V Three Phase Electric/Diesel Engine | 380V Three Phase Electric/Diesel Engine |
Spraying Area | 150-170m²/h | 180-200m²/h | 220m²/h |
Working Pressure | 5-8mpa | 5-8mpa | 5-8mpa |
Conveying Flow | 3m³/h | 3m³/h | 4m³/h |
Water:Cement:Sand | 1:1:3 | 1:1:3 | 1:1:3 |
The Maximum Passing Particle | 4mm | 4mm | 4mm |
Maximum Vertical Distance | 10-15m | 15-20m | 20-25m |
Maximum Horizontal Distance | 25-35m | 30-40m | 40-50m |
Overall Dimensions | 1600*450*900mm | 1700*600*1100mm | 1800*650*1000mm |
Total Weight | 150kg | 300kg | 360kg |
Scope of Application | motar,putty,paint,etc | motar ,putty,paint,etc | motar ,putty,paint,etc |

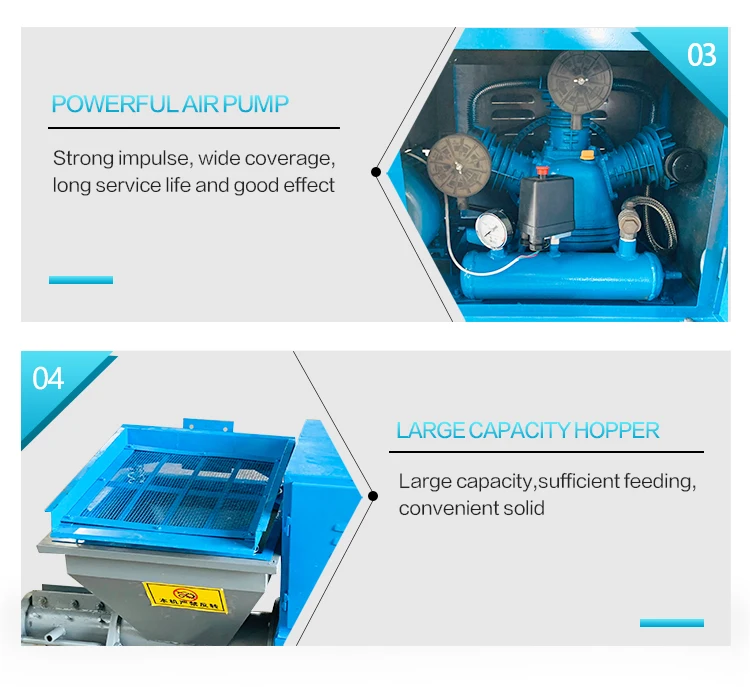

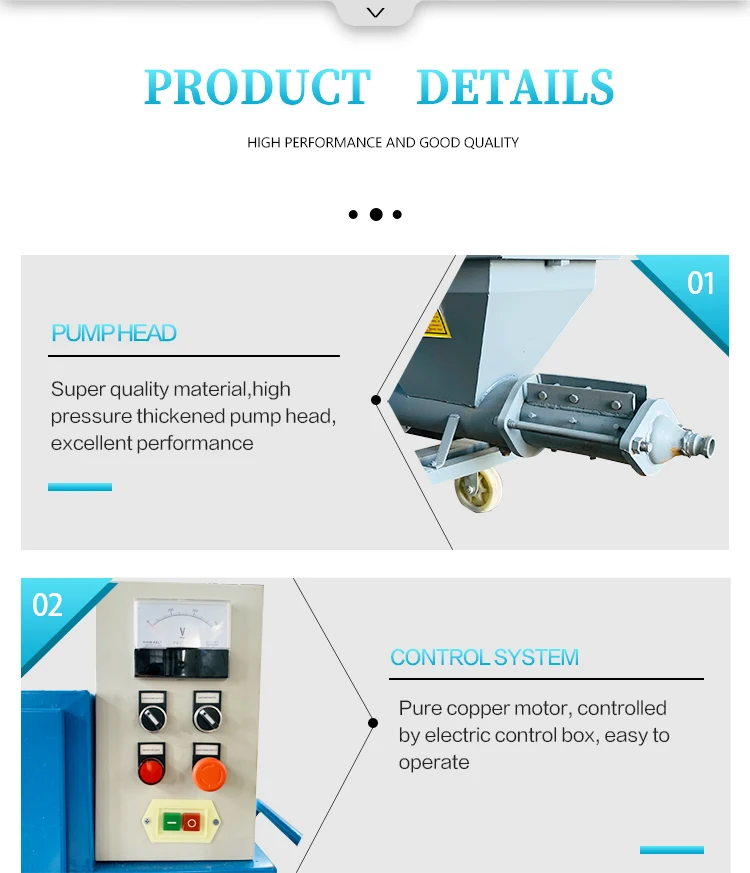

Product Details

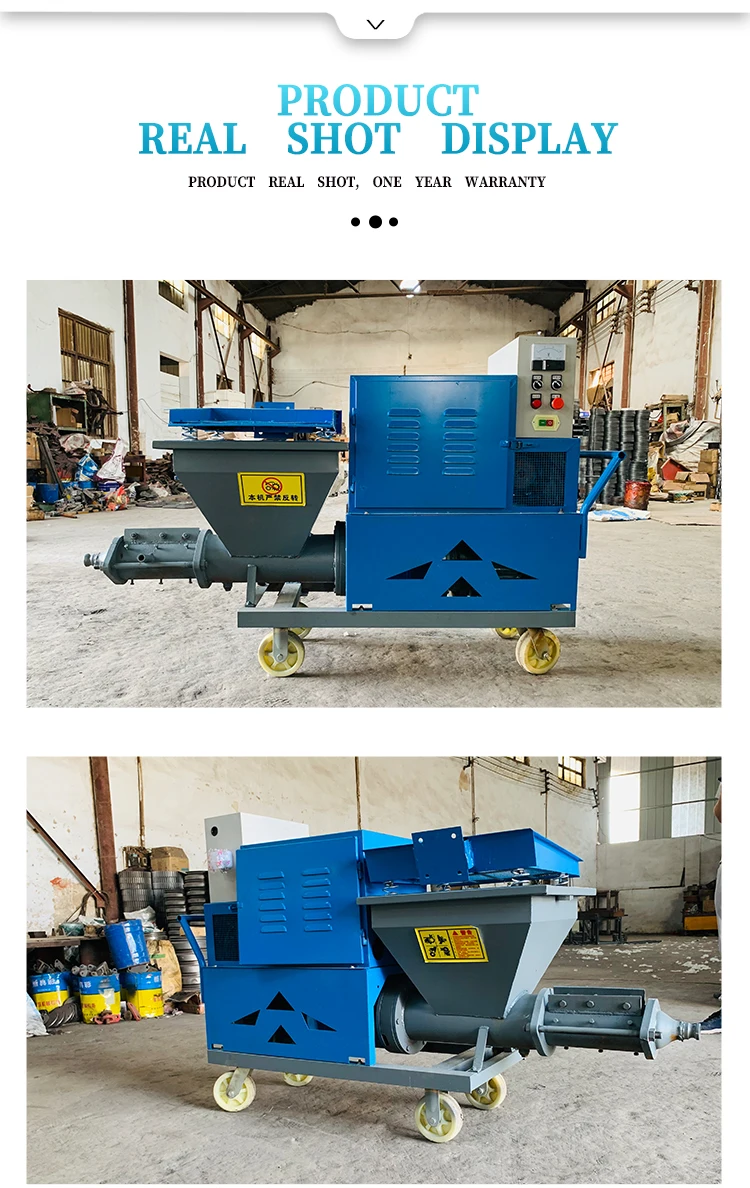

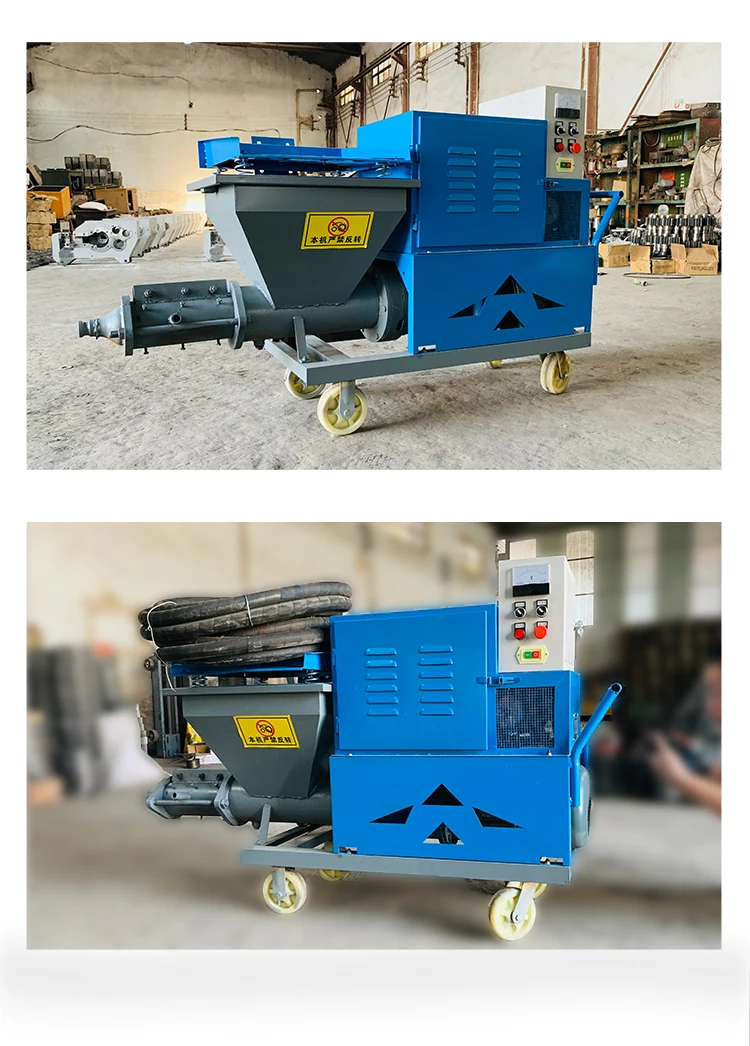

Product Display
Applications
Packing & Delivery
Company Profile
