Product Overview
Description
Product Overview
PE/PP/ABS/PS (RIGID FORM )
Bottle ,Bucket,Hollow Container Recycling Machine

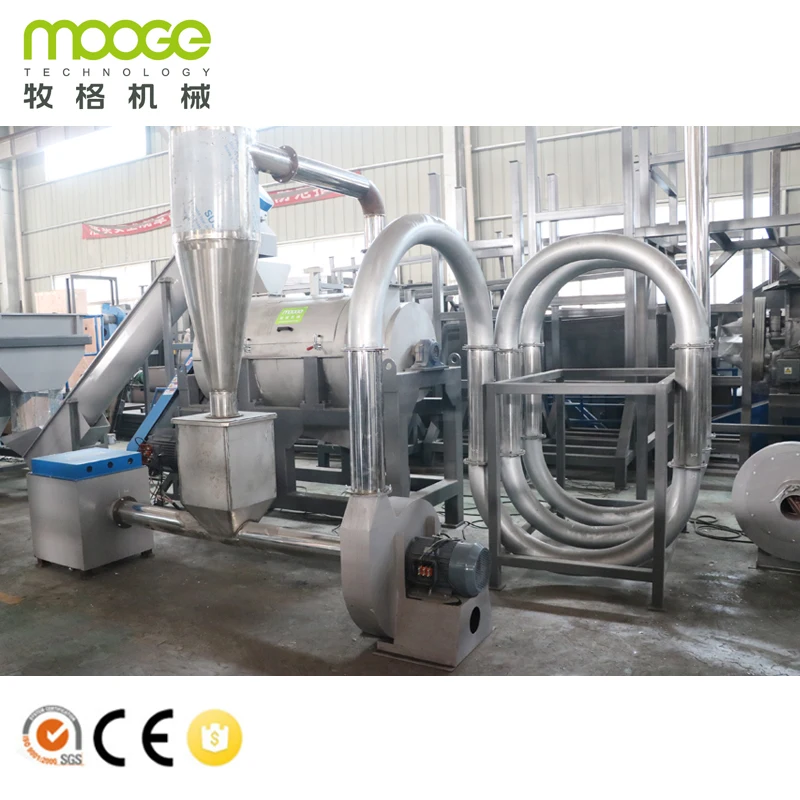

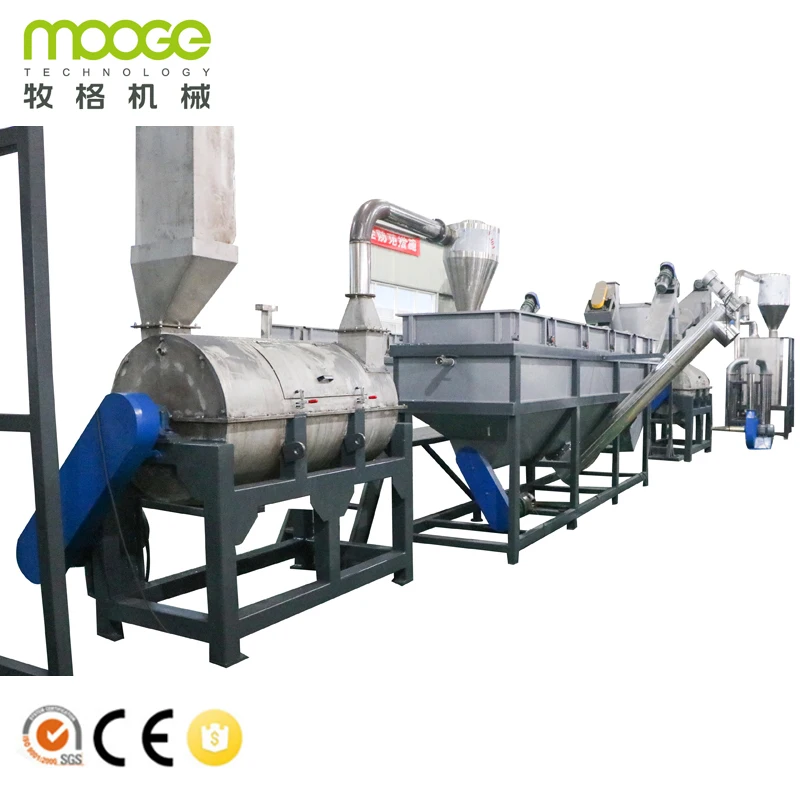

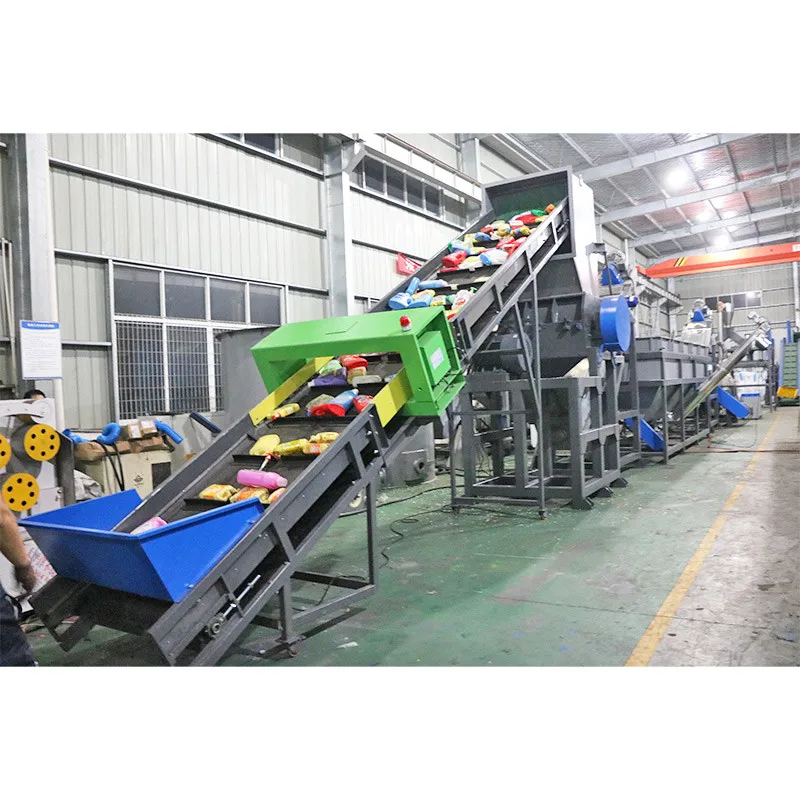

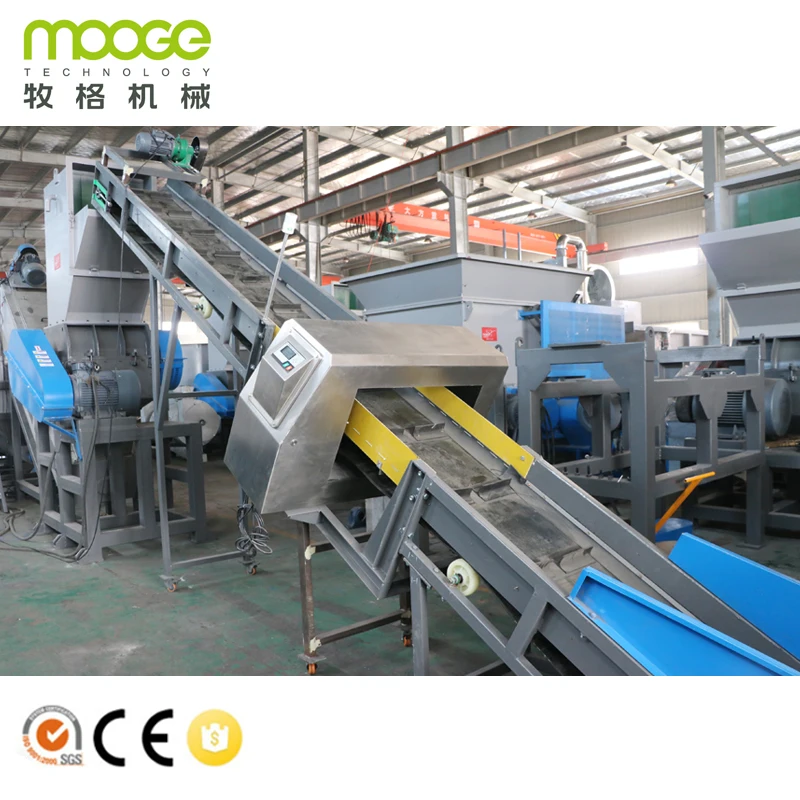

It used to recycling the waste HDPE/LDPE/PP Bottles and buckets,hollow container and so on.The production line including the conveyor belt,metal detector ,plastic wet crusher,floting washing tank,high speed friction washer,centrifugal dewatering machine; drying system and label separating machine,material collecting packing system.
After crushing and washing and drying,we can use it to pelletizing line.We also can customzed it for you according to your
requirement.
After crushing and washing and drying,we can use it to pelletizing line.We also can customzed it for you according to your
requirement.
Product Specification
Standard System

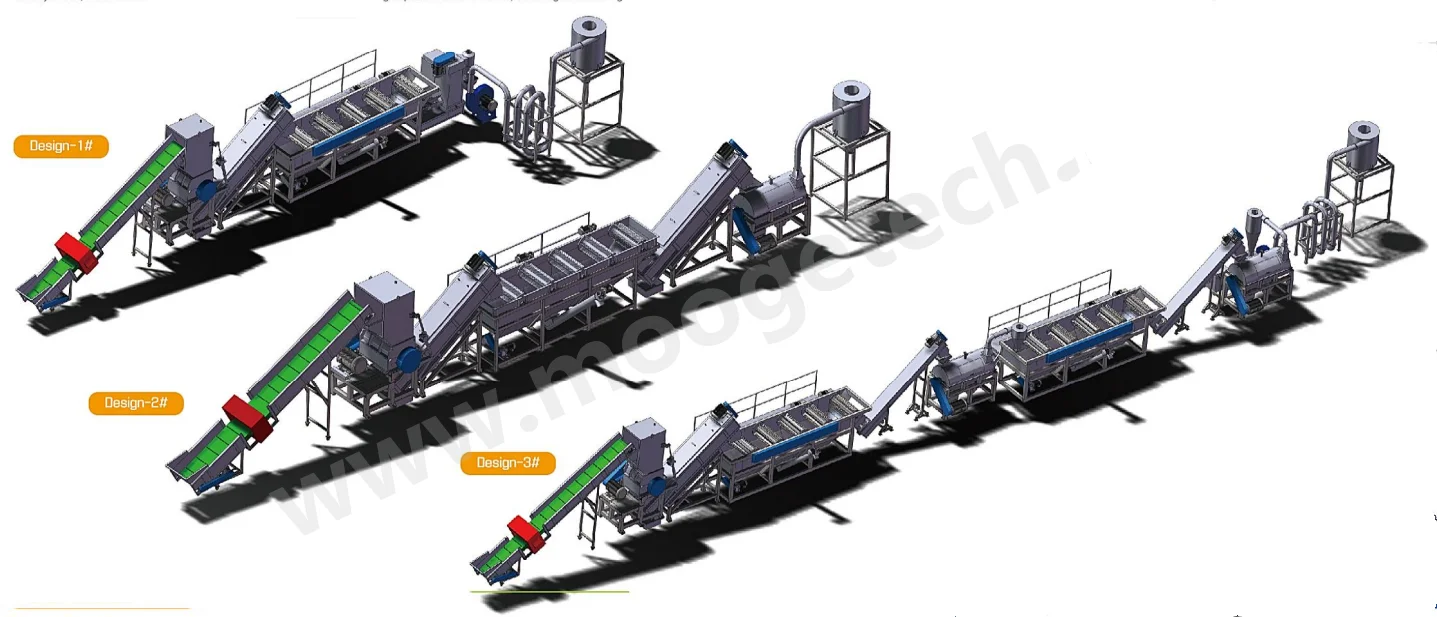

we can design the layout according to your requirements .
Model | Capacity | Installed Power | Water Supply | Area Required :m |
MEB-300 | 300kg/hr | 100KW | 4-5m³/hr | 20*4.5*5 |
MEB-500 | 500kg/hr | 115KW | 5-6m³/hr | 20*4.5*5 |
MEB-1000 | 1000kg/hr | 125KW | 7-8m³/hr | 23*5*5 |
MEB-1500 | 1500kg/hr | 180KW | 8-10m³/hr | 25*5*5 |
MEB-2000 | 2000kg/hr | 225KW | 10-15m³/hr | 28*5*5 |
Advanced System
we can design the layout according to your requirements .
Model | Capacity | Installed Power | Water Supply | Area Required:m |
MEB-300 | 300kg/hr | 130KW | 5-6m³/hr | 38*4.5*5 |
MEB-500 | 500kg/hr | 145KW | 7-8m³/hr | 38*4.5*5 |
MEB-1000 | 1000kg/hr | 190KW | 8-10m³/hr | 42*5*5 |
MEB-1500 | 1500kg/hr | 230KW | 10-15m³/hr | 45*5*5 |
MEB-2000 | 2000kg/hr | 280KW | 15-20m³/hr | 45*5*5 |

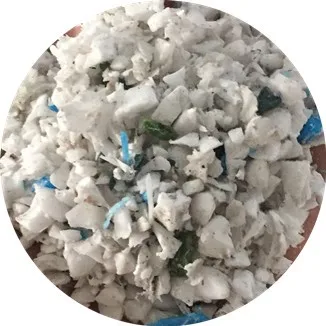

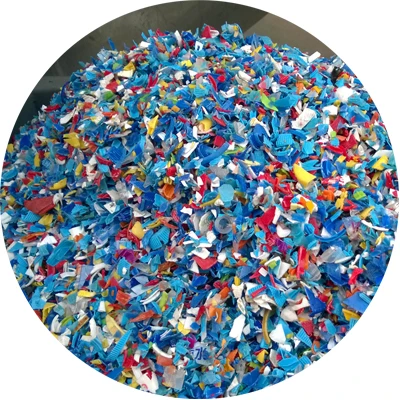

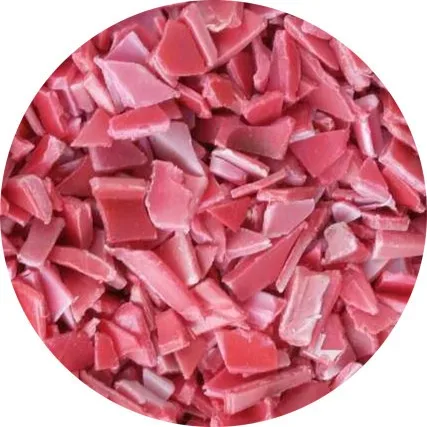

Final material
Clean crushed small flakes ...
Details Images

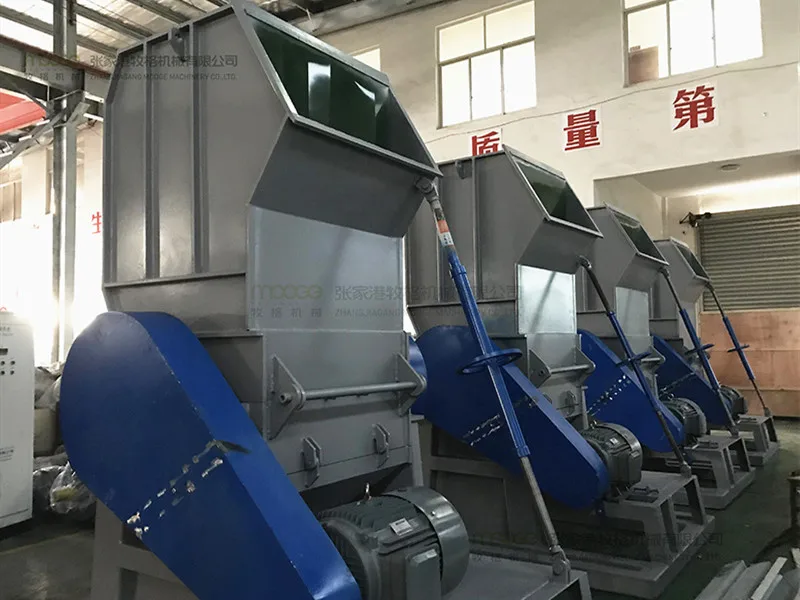

Plastic Crusher Machine
Function :crushing the material into flakes
With water inlet do wet crushing
This series blades are more wider, it will save
the blades cost
Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out
With water inlet do wet crushing
This series blades are more wider, it will save
the blades cost
Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out

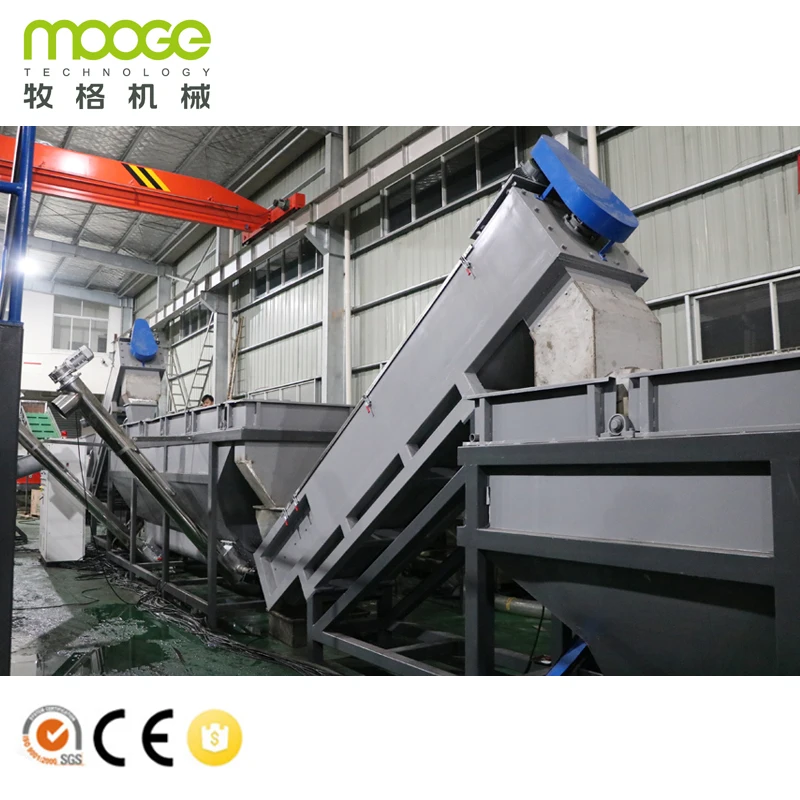

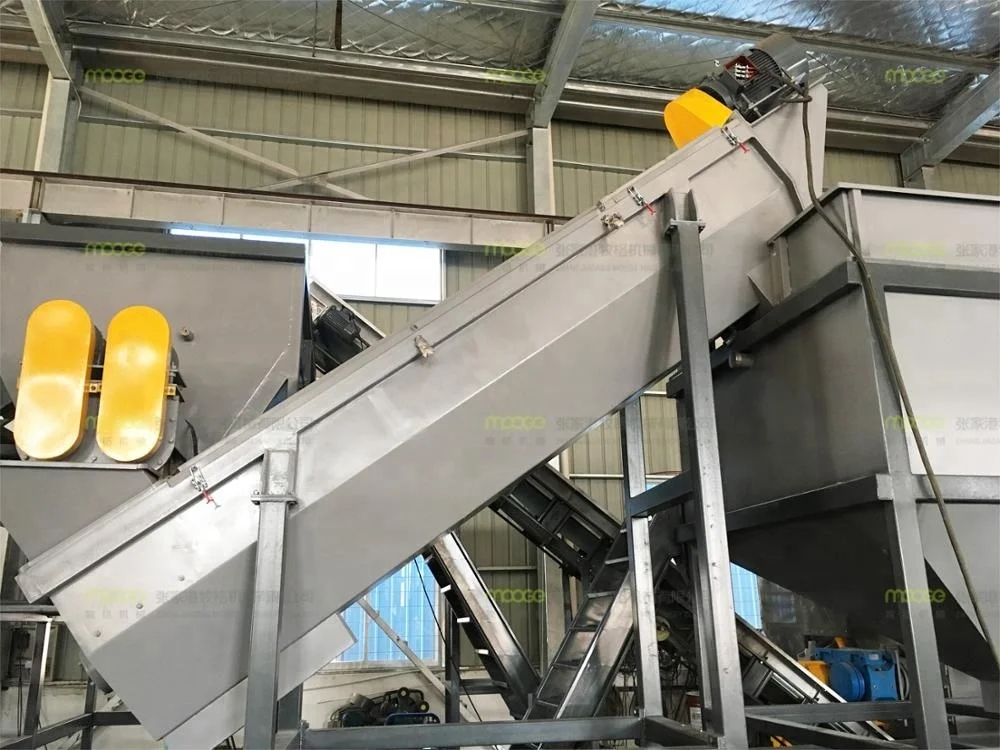

Friction washing loader
Function: Friction washing the material and loading up it
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing

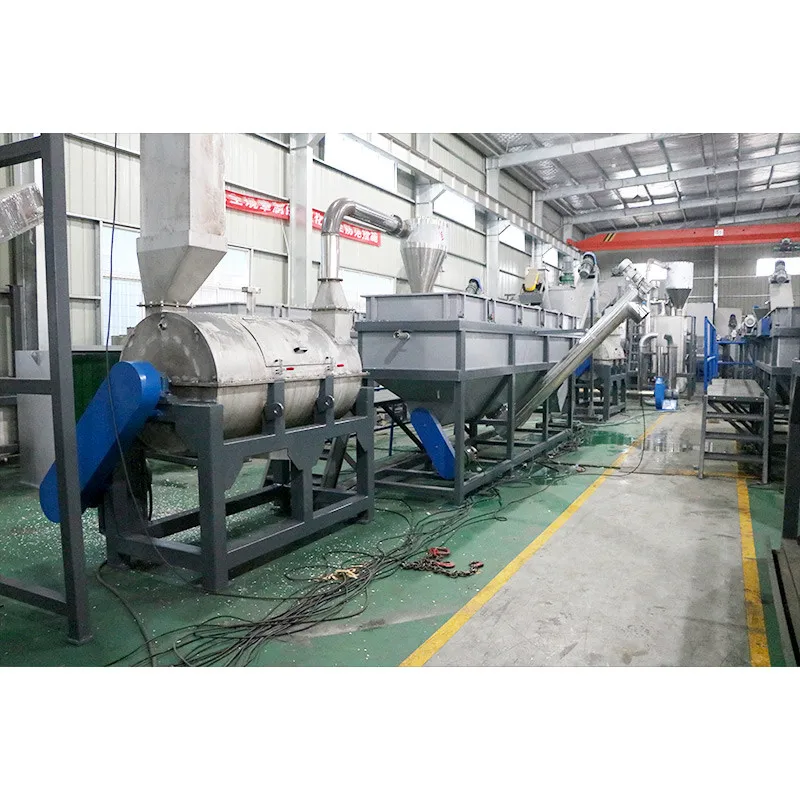

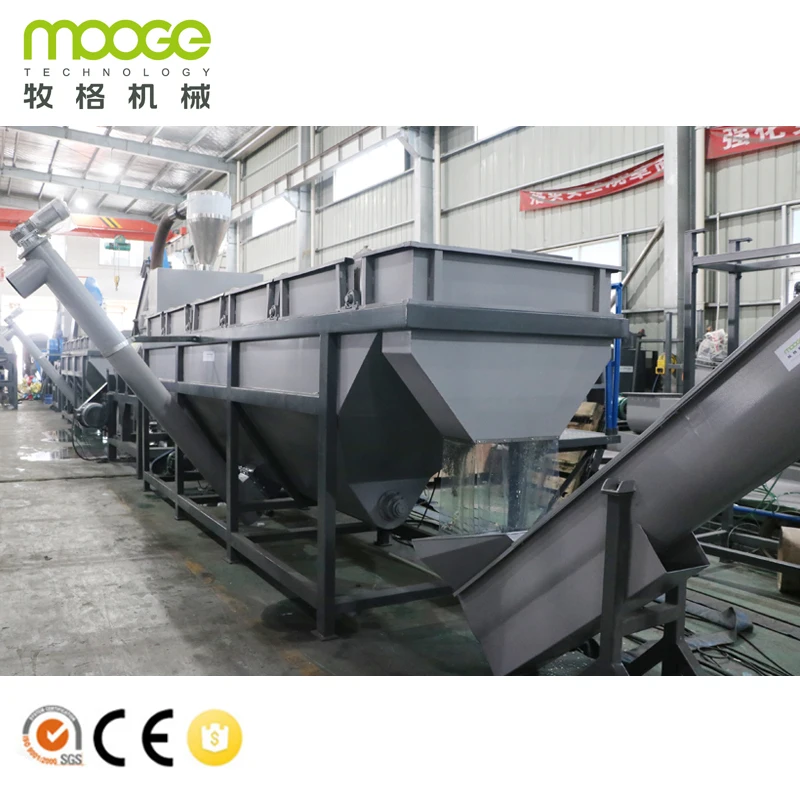

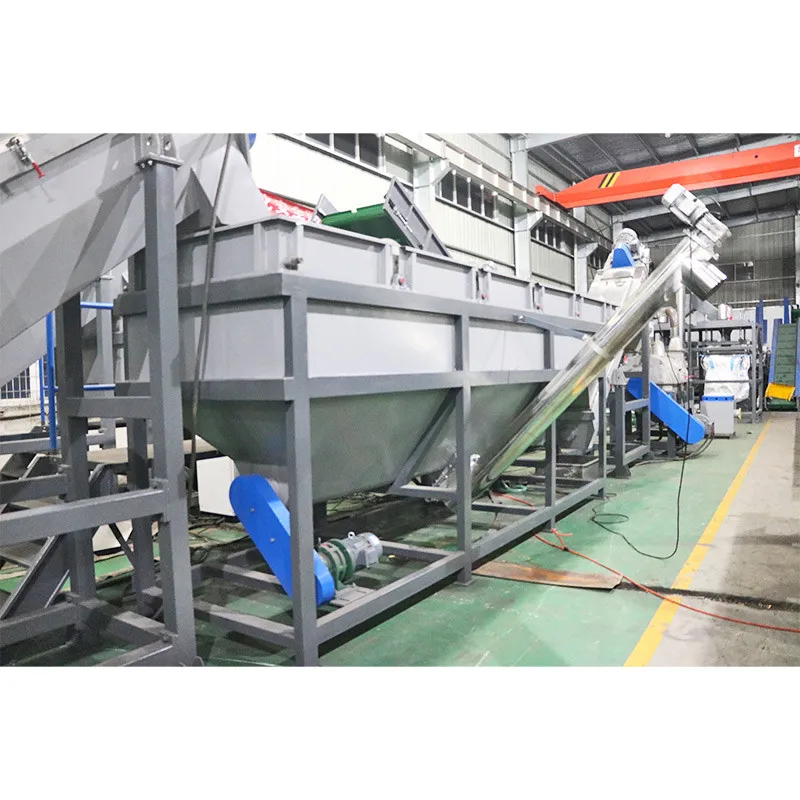

Floating washing tank
The roller is specially made can have more
washing for lakes but less water take out
Bottom with Positive and negative screw to pushingthe dirty into middle

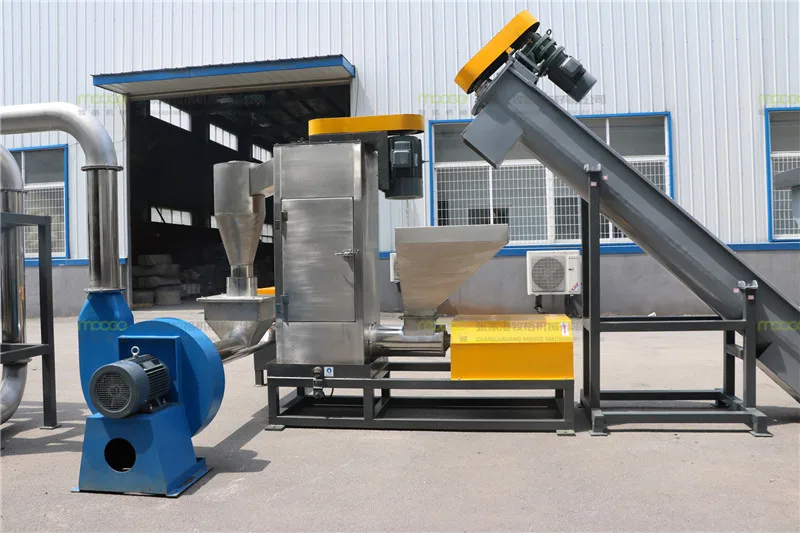

High speed dewater machine
Function: take out dirty and remover water
Inside with mesh layer, mesh diameter: 3mm
With water spray system to clean the mesh
With the roller bearing and fixed outside of
rotor for long use life
rotor for long use life
Inside with mesh layer, mesh diameter: 3mm
With water spray system to clean the mesh

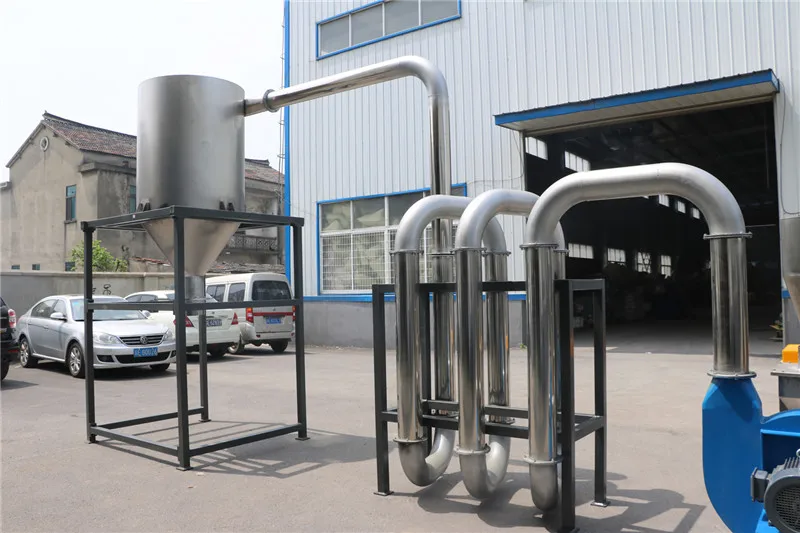

heating by electricity box
After Sale Service
• Pre-sale: we given client the details technician offer, sign the sales contract etc
• In-sales: we supply the details layout, installation instruction, technician support for the clients
• After sales: we arrange engineer to install the machinery and training the workers for client
• We have 24hours team to solve the after sales problem
• We have free spare parts with the machine
• We supply long term spare parts for every customer
• We always up date the new technology to every customer
• In-sales: we supply the details layout, installation instruction, technician support for the clients
• After sales: we arrange engineer to install the machinery and training the workers for client
• We have 24hours team to solve the after sales problem
• We have free spare parts with the machine
• We supply long term spare parts for every customer
• We always up date the new technology to every customer
Product packaging
by carton
by wooden box
by stretch film
