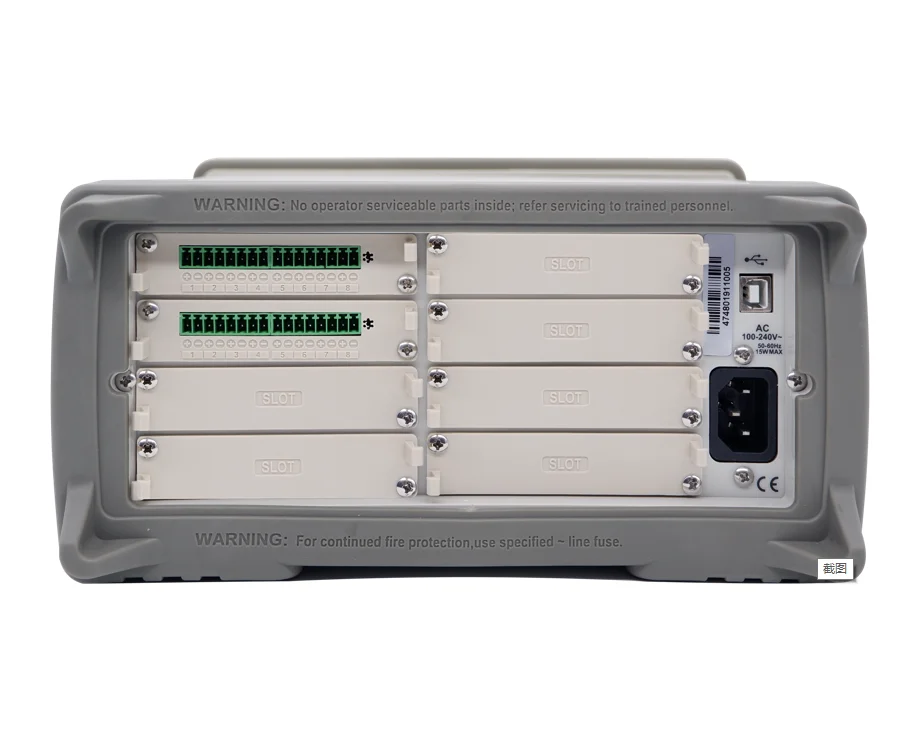

AT4716 350V Isolation Voltage Temperature Testing Meter
- Category: >>>
- Supplier: Changzhou Applent Instruments Ltd.
Share on (1600466129749):
Product Overview
Description
Product Description

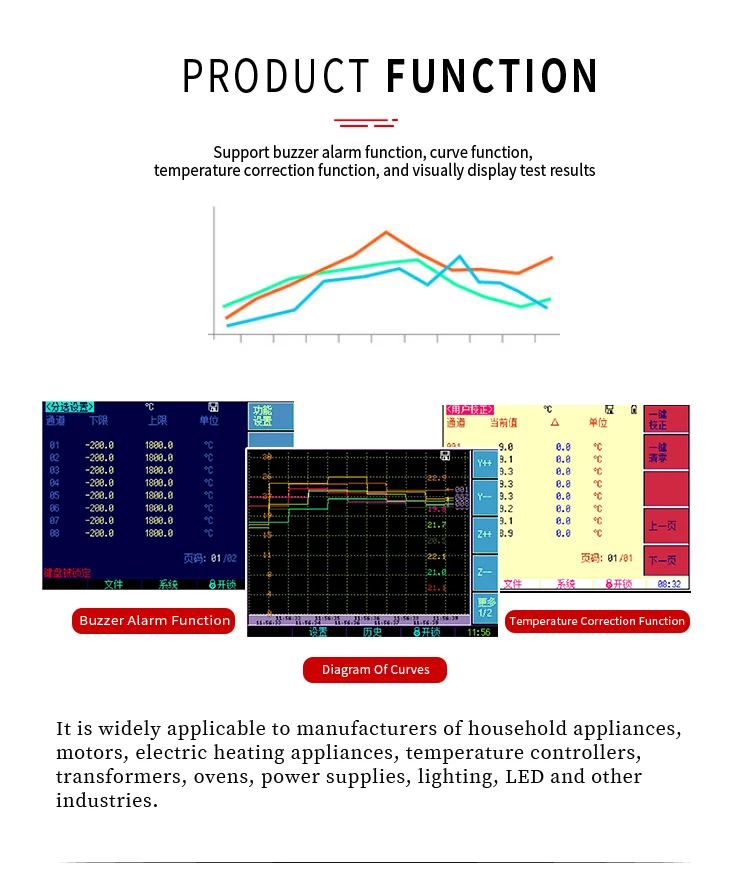

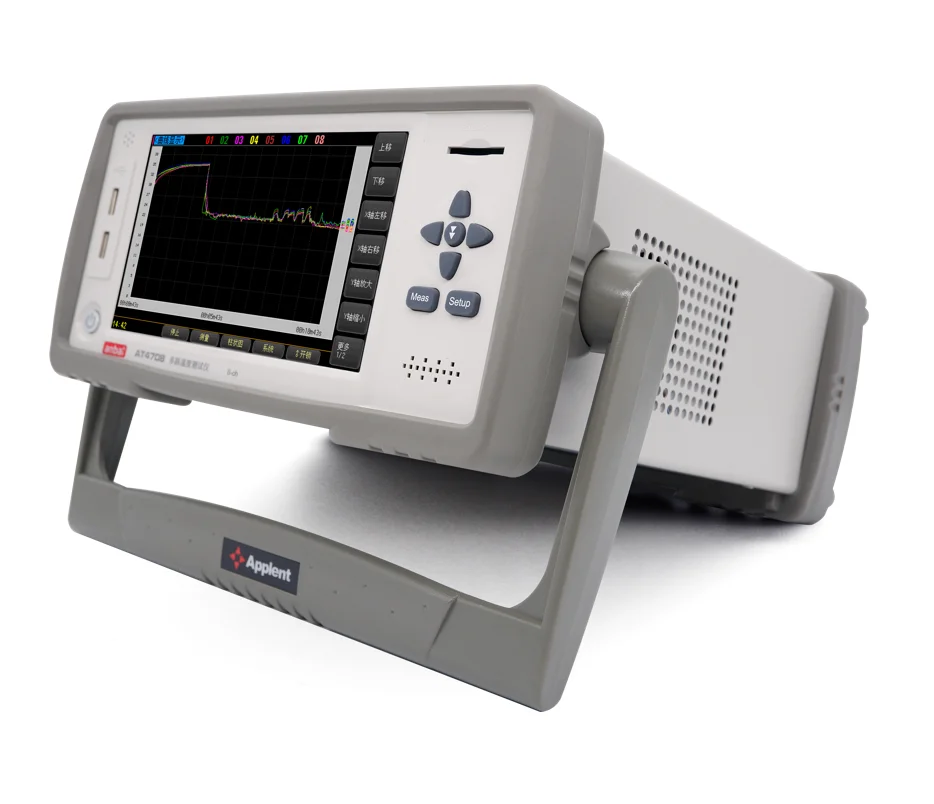

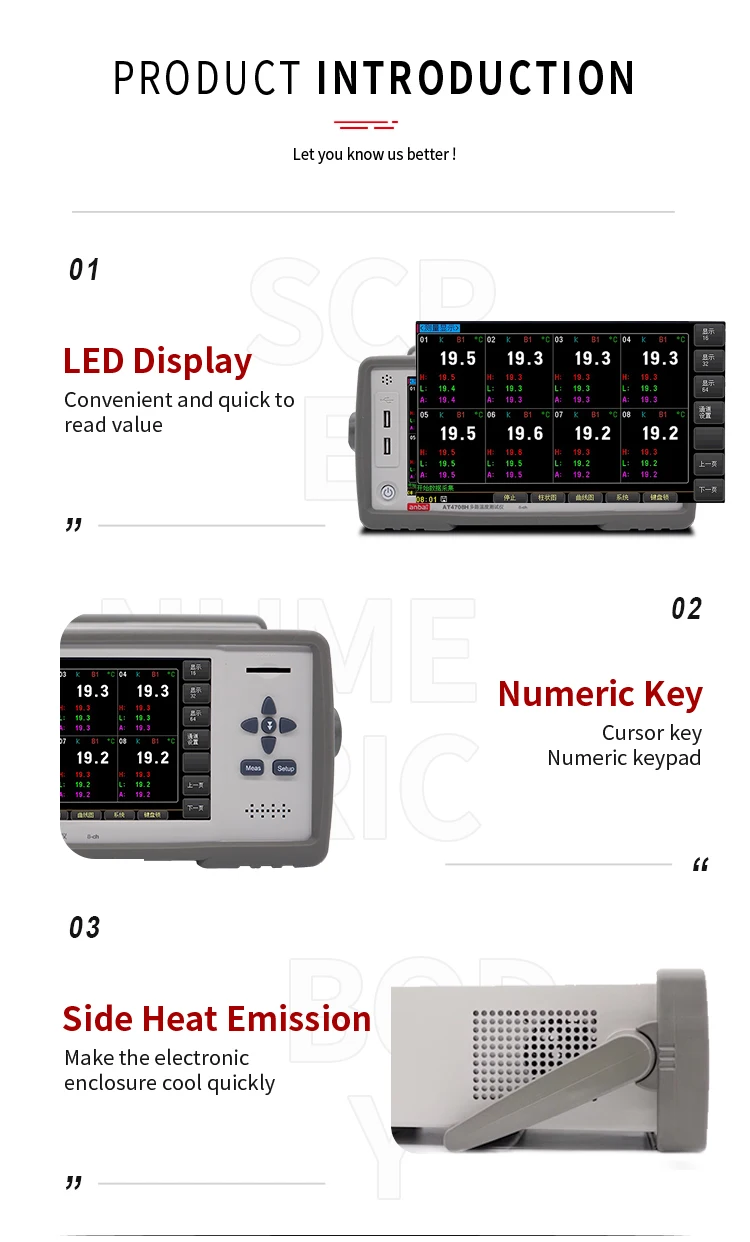

AT47 series multi - channel temperature meter adopt high preformance ARM micro processor control with 7 inch color LCD display & touch screen.it's convinence to check temperature values, temperature variation curve,bar graph etc. can collection multi-channel temperature data at the same time, upper/lower beep and communication transport.
AT47 series can collection 64 channel temperature data, compatible with a various of temperature sensors, fast response, stable data, with broken thermocouple check function. each channel can set up separately and correction indepentdently. Instrument support RS-232 communication, can data collection, analysis and printing by software of computer.
Support USB disk storage, store sampling data on real time. user can correction each channel of data indepentdently.
Product Effects
Product parameter
| SPECIFICATIONS | |
| AT4708~64 series | |
| Feature | scan measurement,the insulation voltage |
| peak value is 350 between channels | |
| graduation | thermocouple:J/K/T/E/S/N/B/R |
| Accuracy | ±0.2%±2 dgt ( not inculd thermocouple) |
| Range | -200℃ ~1300℃ |
| (varying depend on graduation) | |
| Resolution | 0.1℃ |
| Channel | AT4708 : 8 channel AT4716 :16 channel AT4724 :24 channel AT4732 :32 channel AT4740 :40 channel AT4748 :48 channel AT4756 :56 channel AT4764 :64 channel |
| scan speed | fast:500ms slow:1s |
| Adjustment | each channel error correct |
| Comparator | upper/lower |
| beep separately setting upper/lower value for each channel | |
| Interface | RS232C |
| U disc | |
| Software | ATS45 data collection software |
| Cold Junction | Accuracy:0.5℃ |
| Other | TFT-LCD color display |
| broken thermocouple check function | |
| histogram curve chart | |
| upper limit value lower limit value | |
| average value display | |
| Power supply | Voltage:85VAC ~ 260VAC |
| Frequency:50Hz/60Hz | |
| Power:10VA | |

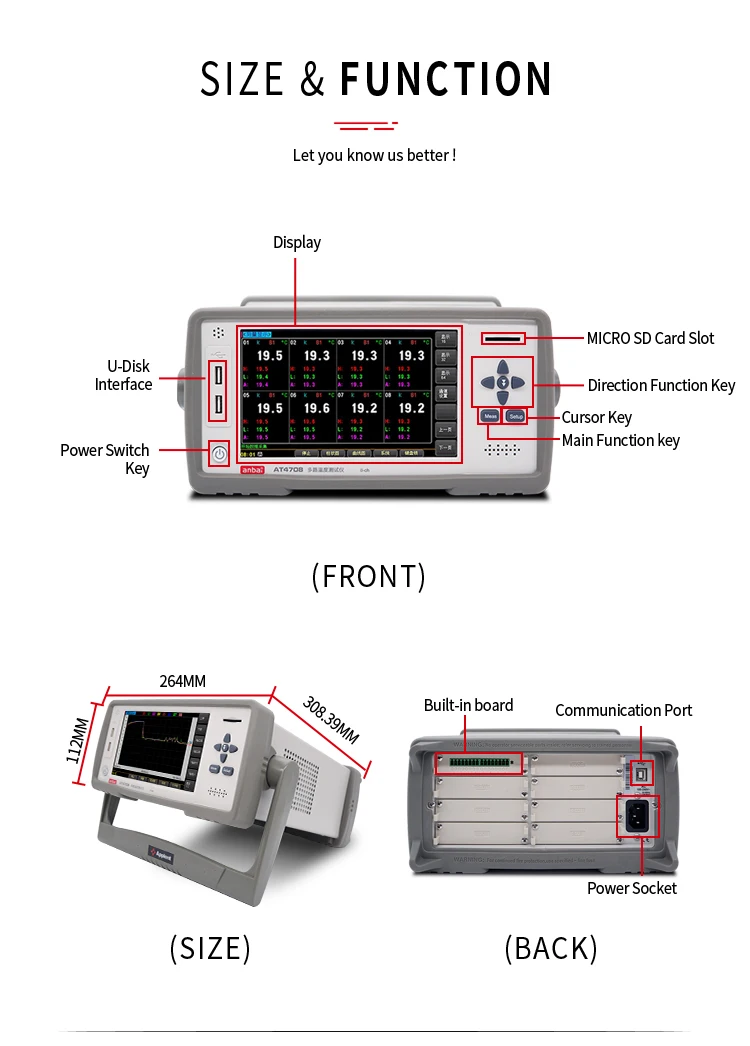

| Sizes Weight | 264 x112 x308.39mm |
| 3kg | |

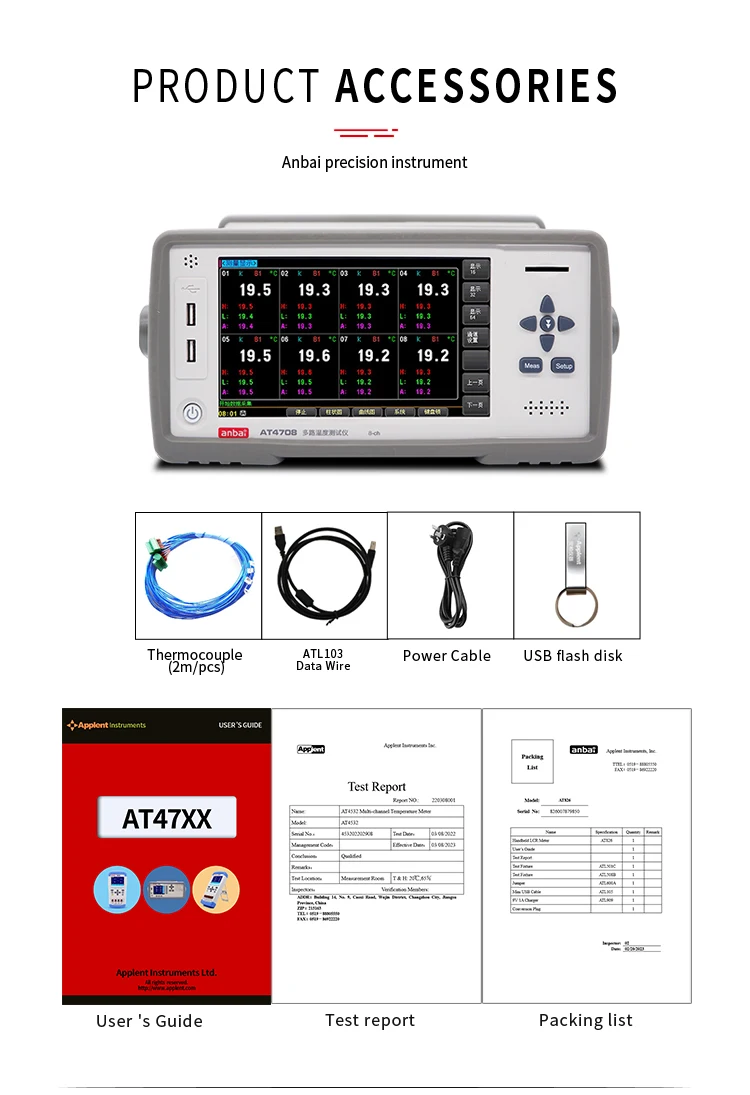

| Accessories | Thermocouple ( 2m/pcs) |
| U disc | |
| communication cable | |
| Data collection sotware | |
Accessories
Packaging & Shipping
Certifications
Trade Shows

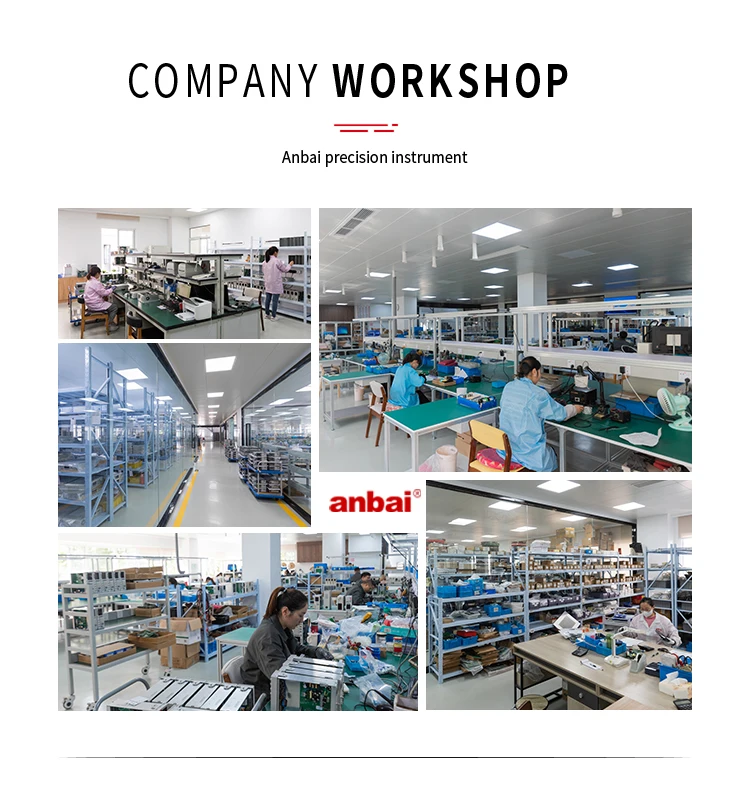

Company Information
