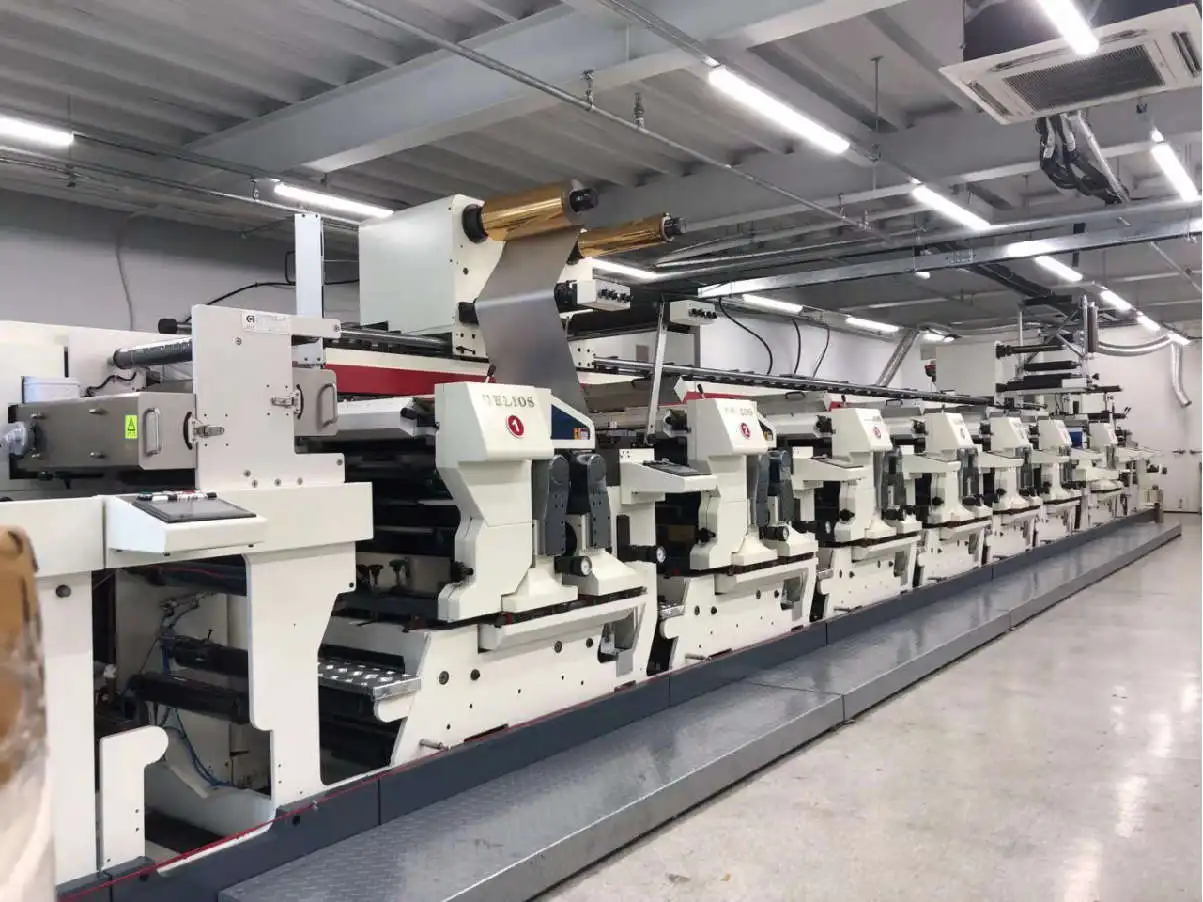

ZONTEN SMART high speed uv offset printing machine
ZONTEN SMART uv offset printing machine currently has three widths of 420mm /560mm /680mm for customers to choose from. In the near future, 850mm 1000mm and 1300mm will be developed. The printing field will include labels/cartons/soft bags, etc.
In response to the government's energy saving and emission reduction policy, our company equipped the SMART uv offset printing
machine with an LED UV dryer to ensure that it can reduce power and reduce polluting gas emissions before drying, which has been recognized and supported by many customers.
At the same time, we also provide many different brands of UV dryers for customers to choose from, and do our best to let
customers get the most satisfactory UVoffset printing machine configuration in an effective budget.
If you want to know more detailed UV offset printing machine information, please contact us
1. Servo Driver control
whole machine from unwinding -printing -die cutting -rewinding adopt servo driver technology to get more accurate tension and register control. printing tension using closed -loop tension control system which adopt independent servo driver. offset printing cylinder, blanket cylinder, impression cylinder, ink route and water route all use servo driver control to guarantee steady printing. high printing register and perfect printing quality.
2. automatic register system:
the register accuracy is 0.05mm. and cab be automatic adjust in axial direction and radial direction.
3. Pre-register system:
the printing cylinder will reach to the register zero point automatic after installing the printing plate and start work, it can achieve good register requirement without manual control which improve the working efficiency and save lots of material & labor cost.
4. Portable roller technology:
using magnalium printing cylinder and blanket cylinder with double pinch clamping technology for easily changing printing area and printing method, convenience operator and low maintenance cost.
5. Center control screen:
The machine parameters can be adjusted and stored at every work order by digital handles which also contain the machine best state in the printing time, the date can used to setting machine state when the work order is stored and recalled, and achieve the control to whole machine include the basic function turning on, turning off, speed adjustment, counting, etc. and also can carry out work storage and recall, automatic offset ink & water control, register control and timely inspection.
Model | SMART-420/560/680 |
Machine speed | 150m/min |
Max. Printing repeat length | 635mm |
Min. printing repeat length | 469.9mm |
Min. paper width | 200mm (paper), 300mm (film material) |
Max. print width | 410mm/550mm/670mm |
Substrate thickness | 0.04 -0.35mm |
Unwinding the largest diameter | 1000mm / 350Kg |
Winding the largest diameter | 1000mm / 350Kg |
Cold maximum income, unwinding diameter | 600mm / 40Kg |
Offset printing plate thickness | 0.3mm |
Flexographic printing plate thickness | 1.14mm |
Blanket thickness | 1.95mm |
Servo motor power | 16.2kw |
UV power | 6kw*6 |
voltage | 3p 380V±10% |
Control voltage | 220V |
frequency | 50hz |
Dimensions | 16000×2400×2280/7 color |
Machine net weight | Offset /flexo2270Kg |
Machine net weight | unwinding 1400Kg Die cutter&waste collection 1350Kg rewinder 920Kg |

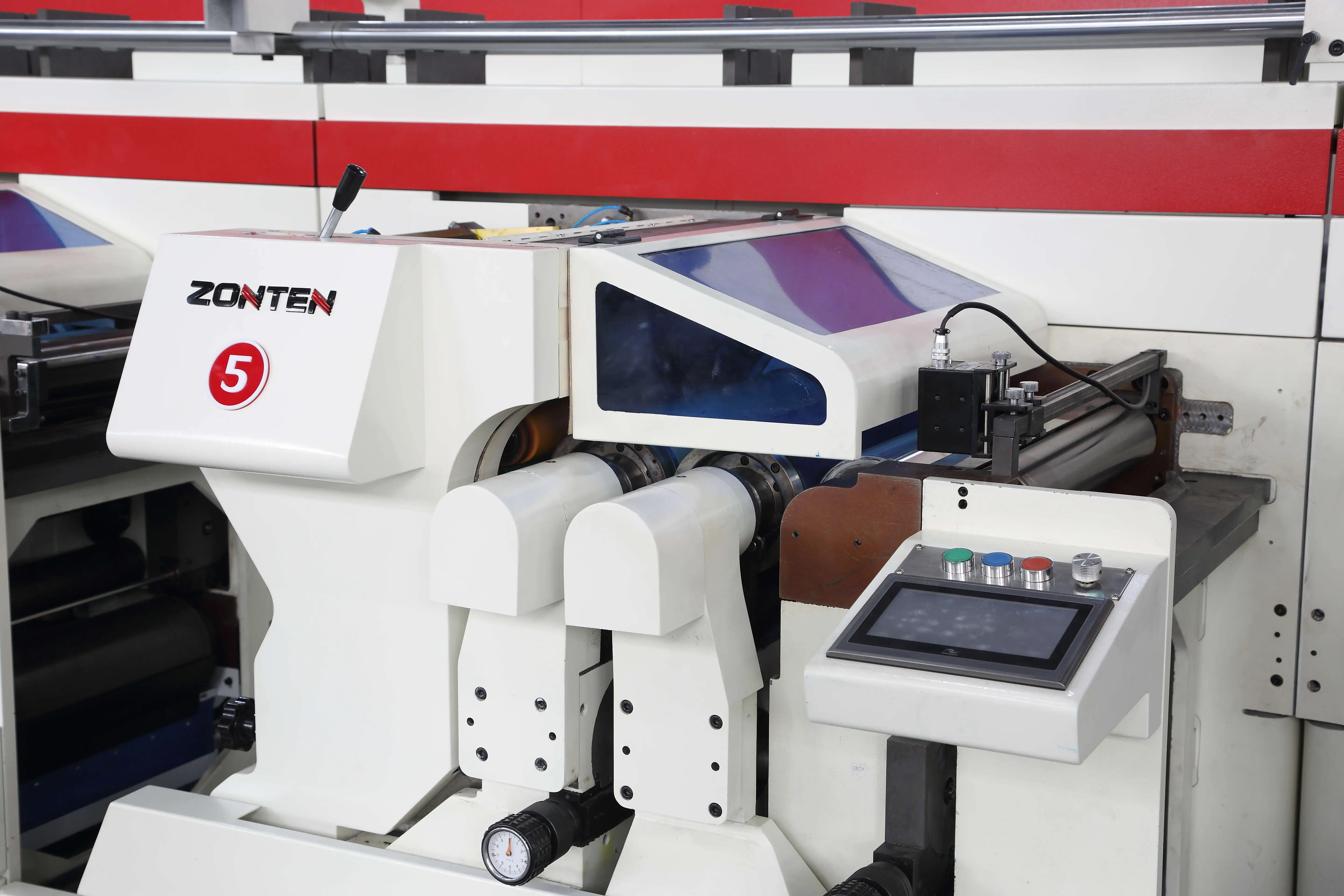

Offset unit : Double route inking system with 21 roller inside
every unit has 9 separated servo driver controled and B&R system.
Automatic register system
Shaftless printing cylinder and blanket cylinder : using magnalium printing cylinder and blanket cylinder with double -pinch clamping technology for easily changing printing area nad printing method , convenience operator and low maintanance cost
all the inking roller adpot Brottcher Germany to ensure high printing quality
Automatic inking control system accuary control the quantity of ink all the time
Ink remover guarantee the ink always flowing .
Ink remover guarantee the ink always flowing .
Moveable turn bar unit , support back side printing
Moveable cold foil unit , according to the different requirement of lables , cold foil unit can move to any position to complete the job.
Center control screen

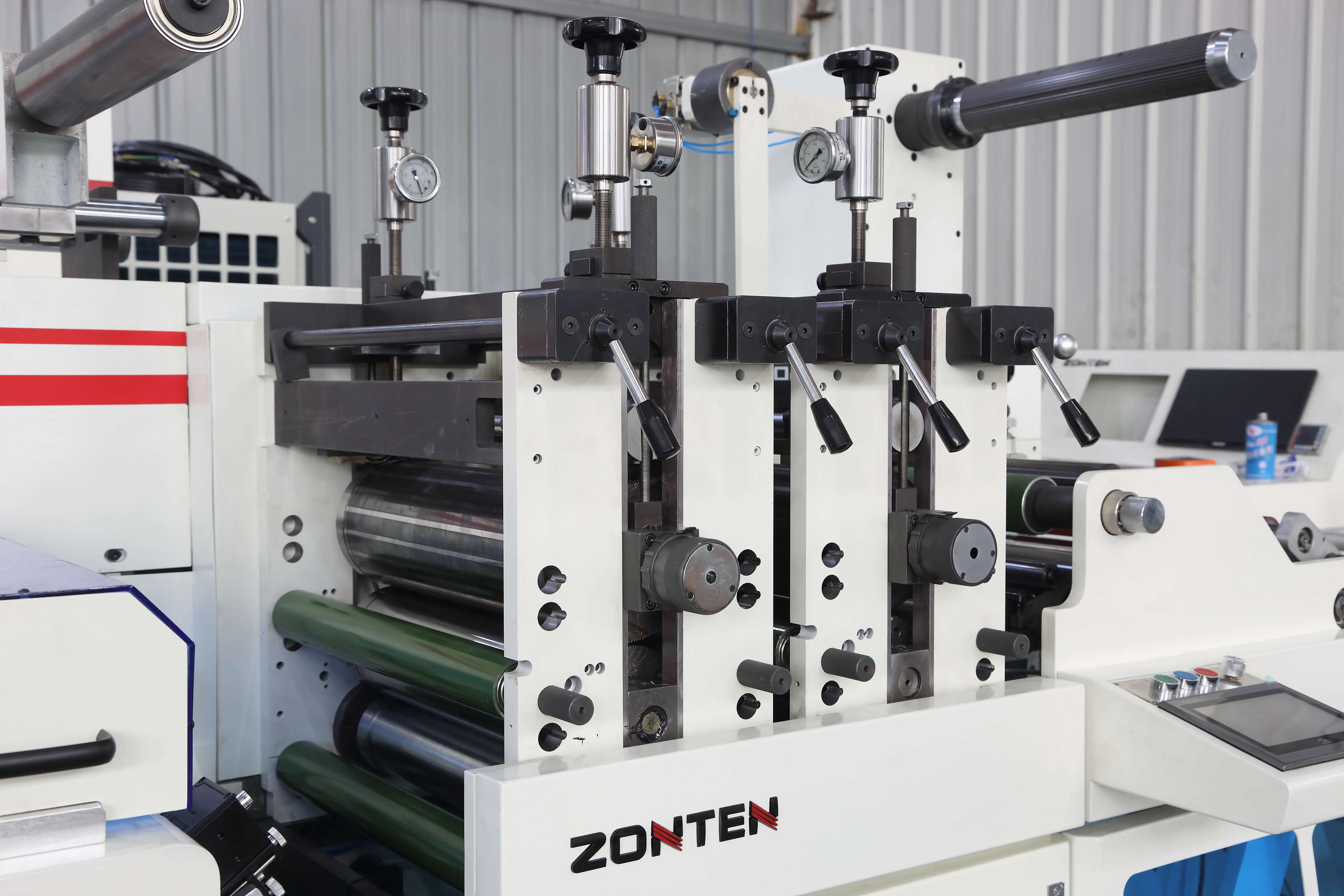

Basic 2 sets die cutting unit
support front and back side die cutter
Upon side is two corona treatment
Down side is the web cleaner
Down side is the web cleaner
Europe standard electrical box with CE safety certification
Europe standard electrical box with CE safety certification
Full Chilling drum system :
BST camera： Real-time monitoring of registration
Flexo plate mounting machine
offset plate bending machine
