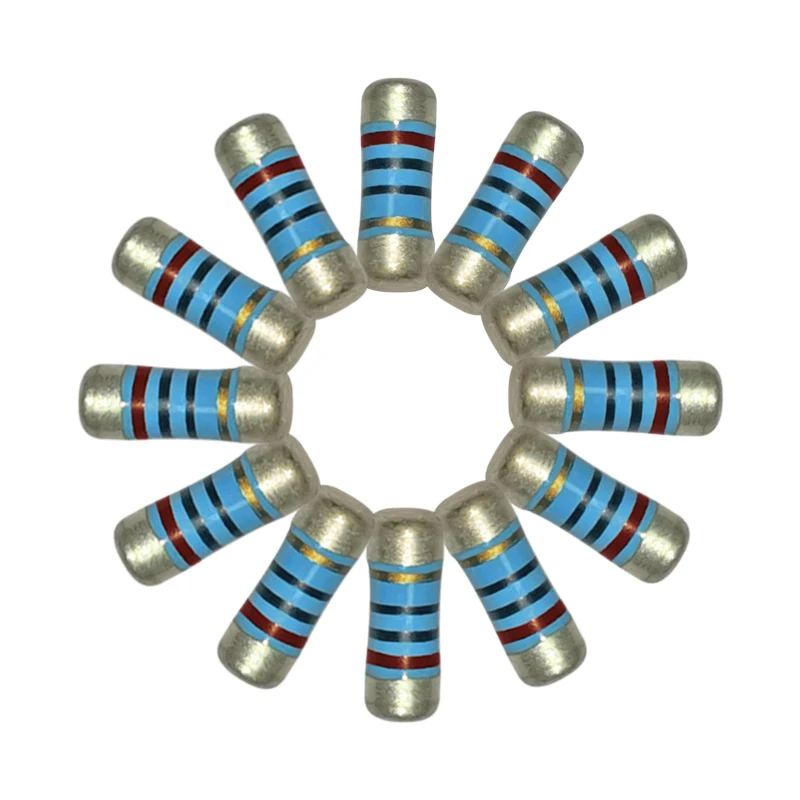

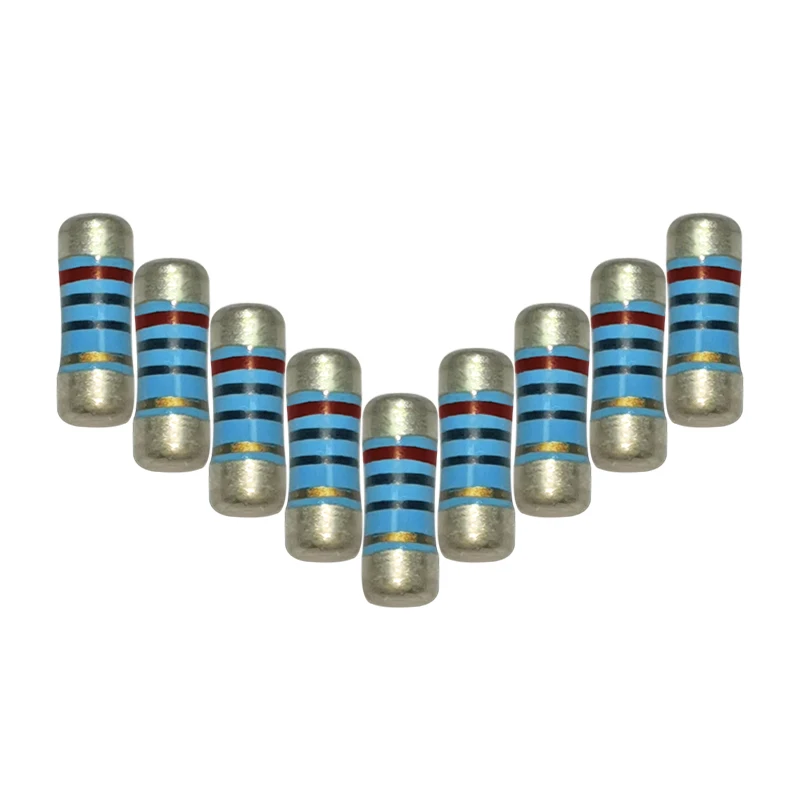

Manufacturers selling SMD metal film wafer resistors 0207 0309 0410 lightning strike 2KV

Product Overview

Description

Manufacturers selling SMD metal film

wafer resistors 0207 0309 0410 lightning strike 2KV

Feature

1. Advanced thin film technology;

2.Resistance tolerance can reach ±0.1% or less;

3. The low temperature coefficient can reach below 15PPM/℃;

4. The power range can reach more than 2W;

5. Can be used in automatic surface mount (SMD) assembly systems; they are suitable for automatic soldering through wave soldering and reflow soldering;

6.  Each resistor has passed the short-time overload test for 5 seconds (the load voltage is 2.5 times the rated working voltage or the maximum short-time overload voltage).

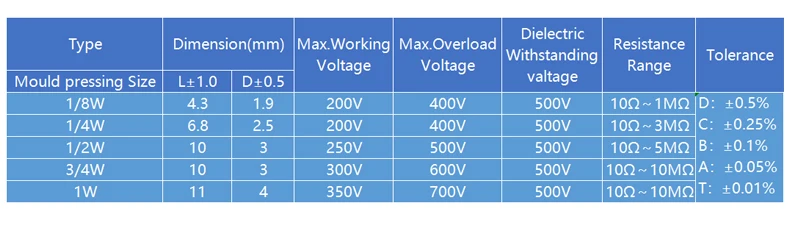

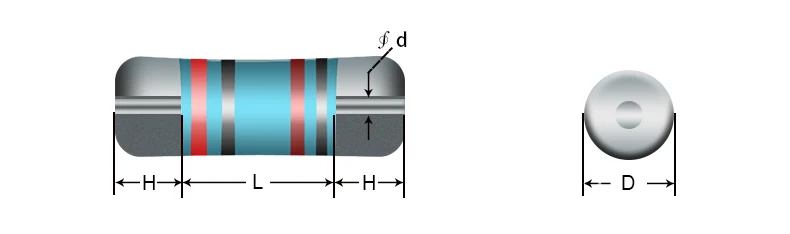

Structure size



Type	long L/mm	diameter D/mm	Cap width K(mm)min	Weight (g) (1000pcs)	Packaging
MFM0204	3.5	1.4	0.7	18.3	3000 EA
MFM0207	5.9	2.2	0.8	77.5	2000 EA
MFM0309	8.5	3.0	1.4	233.0	2500 EA
