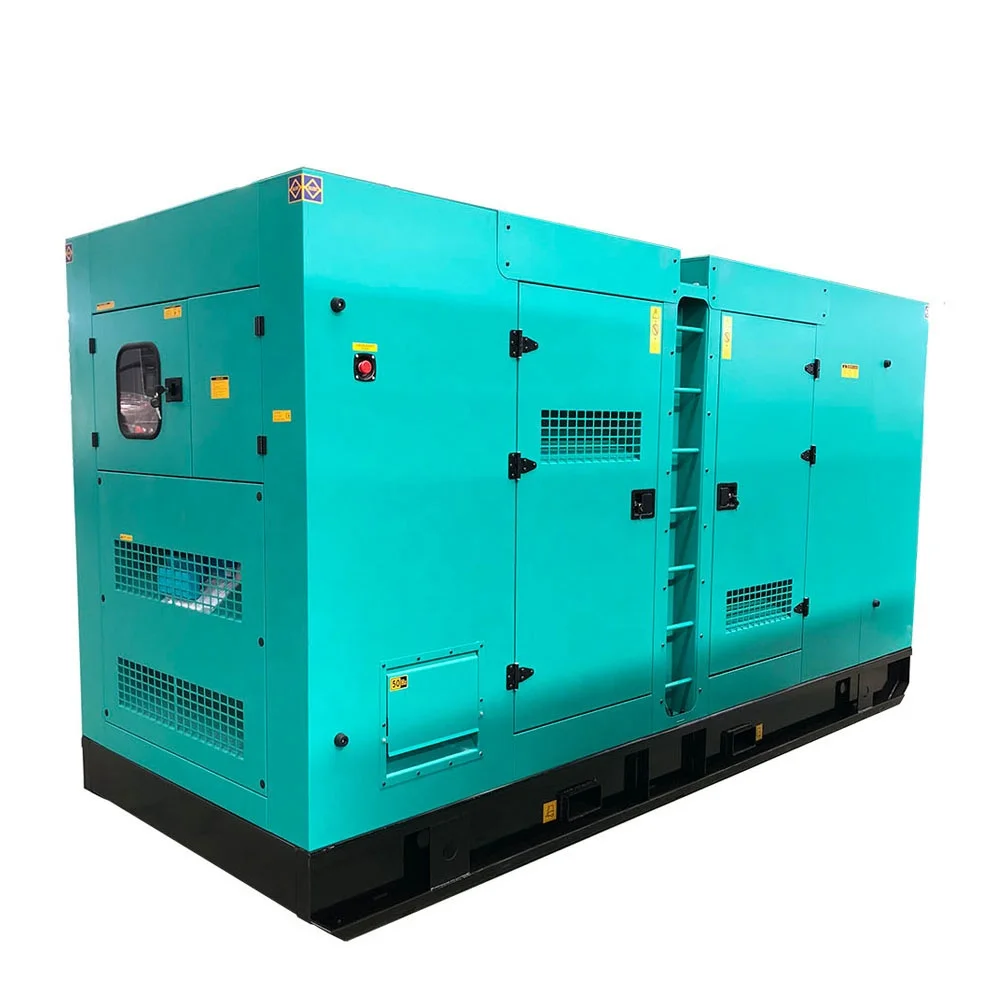

Diesel Generator Set Data Sheet | ||||||||
Generator Model | GF600YC | |||||||
Power | 600kw/750kva | |||||||
Rated Voltage | 400/230V | |||||||
Frequency | 50HZ | |||||||
Power Factor | 0.8(Lagging) | |||||||
Dimension(L*W*H) | 4000*1500*2100mm | |||||||
Weight | 6200kg | |||||||
Diesel Engine Data Sheet | ||||||||
Brand | Yuchai | |||||||
Model | YC6TD1000-D30 | |||||||
Number of Cylinder | 6 | |||||||
Speed | 1500RPM | |||||||
Cycle | Four Stroke | |||||||
Cooling Method | Water Cooling | |||||||
Bore*Stroke | 152*180mm | |||||||
Speed Governor | Electronic | |||||||
Power | 735kw | |||||||
Lubrication oil Capacity | / | |||||||
Fuel Consumption | ≤195g/kwh | |||||||
Starting Method | 24V Electrical Starting | |||||||
Alternator Data Sheet | ||||||||
Brand | NENJO | |||||||
Model | HJI-600 | |||||||
Power | 600kw/750kva | |||||||
Connecting Type | 3 Phase and 4 Wires | |||||||
Number of Bearing | Single | |||||||
Protection Grade | IP23 | |||||||
Insulation Class | H | |||||||
Exciter Type | Brushless, Self-excited, AVR Controller | |||||||
Altitude | ≤1000M | |||||||
Controller | ||||||||
Optional Controller Brand | Smartgen/Deepsea/ComAp etc. | |||||||
Brand: NENJO brand
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
Automatic controller
Brand: Smartgen, ComAp or Deepsea
- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.
- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running automatically;.
- Changeover between the mains supply and power generated by gen-set;
- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..
-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-40℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
