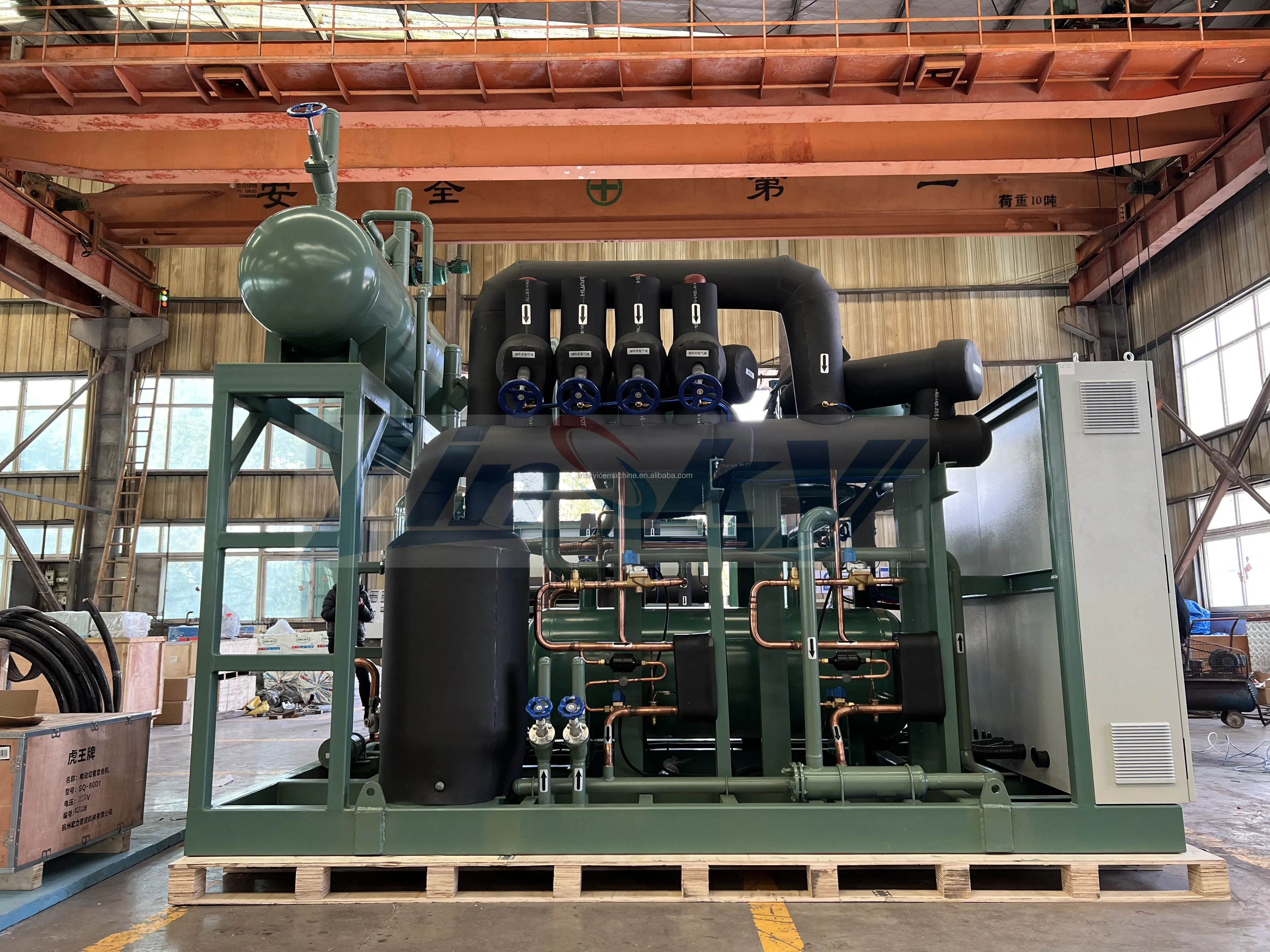

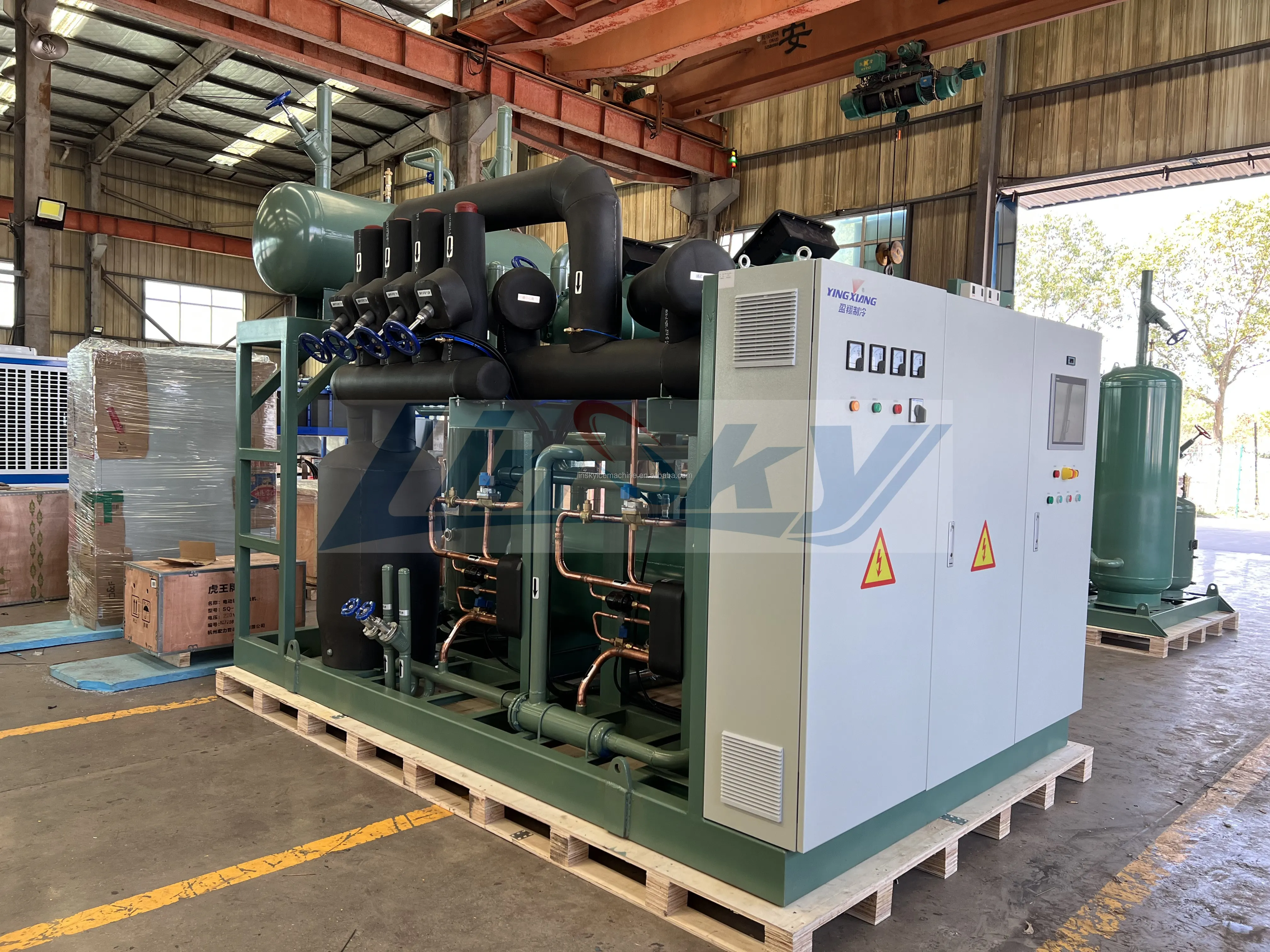

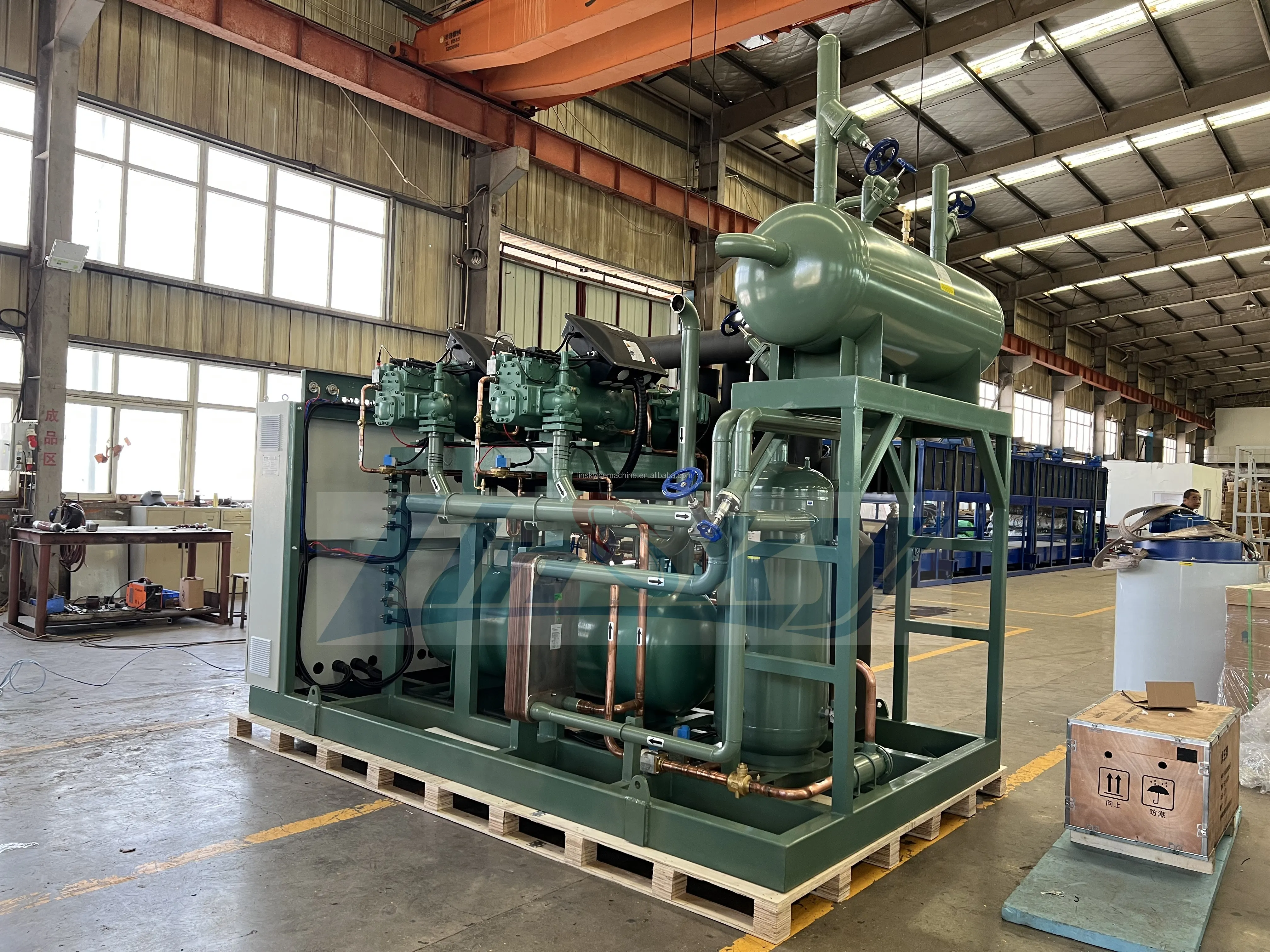

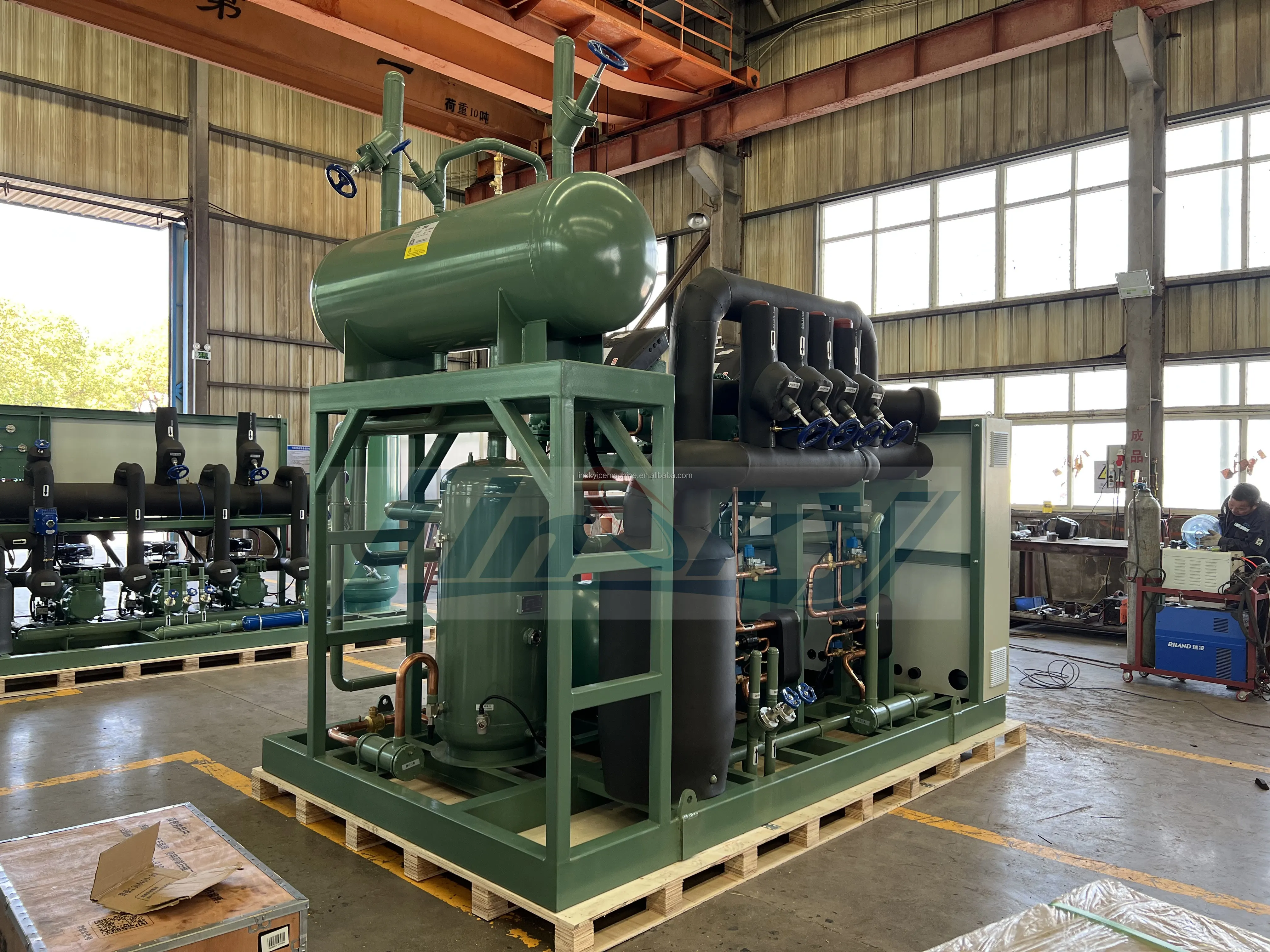

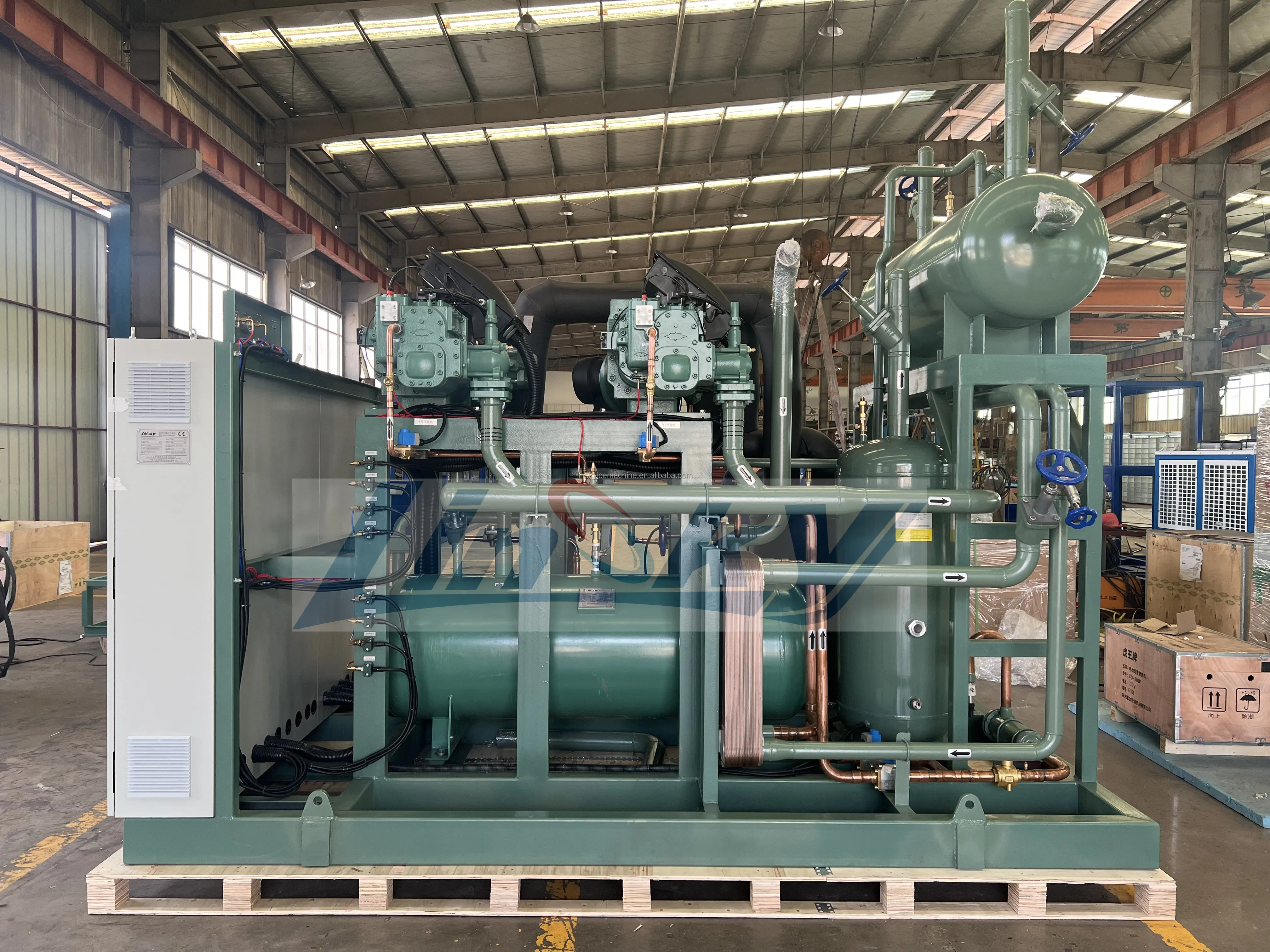

220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
- Category: >>>
- Supplier: Shanghai Snowdream Refrigeration Equipment Co. Ltd.
Share on (1600466188169):
Product Overview
Description
Compressor unit Description
220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room | ||

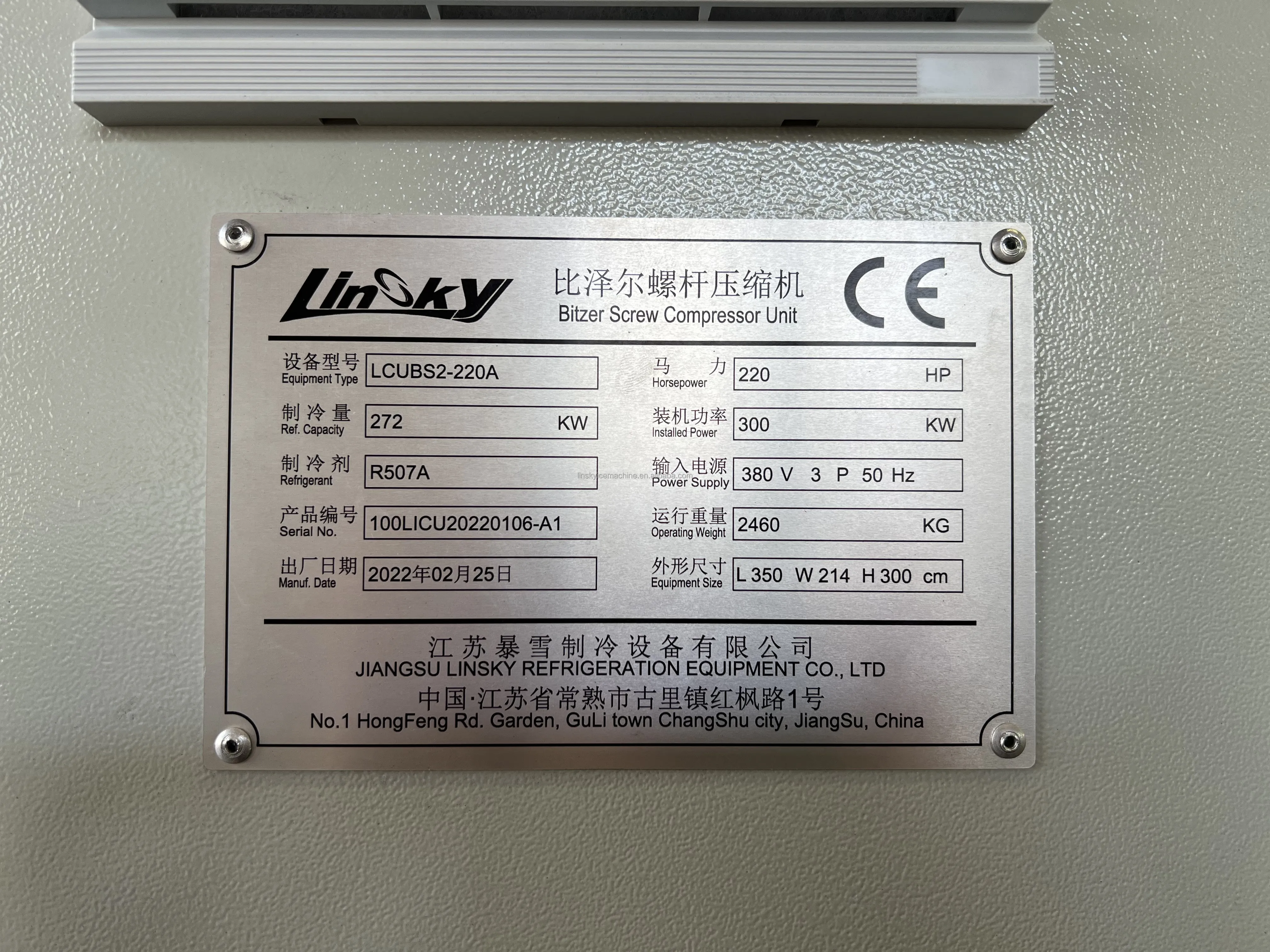

Model | LCUBS2-220A | |
Application | Cold Room/Cold Storage | |
Compressor brand | Bitzer (Germany) | |
Compressor type | Screw type | |
Compressor model | HSN8561-110-40P * 2 pieces | |
Horsepower | 220HP | |
Installed power | 300KW | |
Ref. capacity | 272KW | |
Power supply | 380V/50Hz/3P | |
Refrigerant | R22/R404A/R507A/R134a | |
Dimension | 3500mm*2140mm*3000mm | |
220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
Frozen meat storage is a scientific solution for preserving the perishability of meat foods. Meat foods lose their use value due to enzyme decomposition, oxidation and microbial growth and reproduction. Freezing can inactivate enzyme decomposition, slow down oxidation, and inhibit microbial growth. Make the meat food is dormant, and the original quality is maintained after several weeks or even months of product production before being consumed. Many countries have specified that frozen foods, manufactured goods and aquatic products must be transported at temperatures of -18 ° C or lower. Meat cold storage frozen meat products are: frozen meat, poultry, beef, lamb, pork, chicken, duck, goose, fish, seafood and other meat products.
Product features of refrigeration unit - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
1. Reliable system - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
The units are equipped the world-famous brand compressor and compressor and components, professional technical engineer following the latest design, to create a safe and reliable system.
The unit comes standard with a controller that can effectively avoid turning on/off the motor frequently as well as safety
protection modules including the following: phase loss protector, inverted sequence over voltage protector, undervoltage protector, oil pressure, high pressure, low pressure, motor overload.
Highly efficient oil separating system, when power is on it’s not need to add lubricate oil, the standard provides oil heater (for screw unit), oil temperature controller (for screw unit) and oil level switch (for screw unit), etc. Can protect the function.
It has a unique low environment condensing pressure monitor system which guarantees the stable functioning when there is a low ambient temperature, lack of oil feeding or oil flow warning.
The "Pressure vessel Certificate" approved reservoir is provided as well as the safety relief valve.
Fault isolation device is served so that when a certain compressor breaks down, the rest of the unit can keep running
appropriately, making sure that client has enough time for repair and replacement.
1. Reliable system - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
The units are equipped the world-famous brand compressor and compressor and components, professional technical engineer following the latest design, to create a safe and reliable system.
The unit comes standard with a controller that can effectively avoid turning on/off the motor frequently as well as safety
protection modules including the following: phase loss protector, inverted sequence over voltage protector, undervoltage protector, oil pressure, high pressure, low pressure, motor overload.
Highly efficient oil separating system, when power is on it’s not need to add lubricate oil, the standard provides oil heater (for screw unit), oil temperature controller (for screw unit) and oil level switch (for screw unit), etc. Can protect the function.
It has a unique low environment condensing pressure monitor system which guarantees the stable functioning when there is a low ambient temperature, lack of oil feeding or oil flow warning.
The "Pressure vessel Certificate" approved reservoir is provided as well as the safety relief valve.
Fault isolation device is served so that when a certain compressor breaks down, the rest of the unit can keep running
appropriately, making sure that client has enough time for repair and replacement.
2. High efficiency& energy saving - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
Because of a gauge demand difference between seasons for refrigerating capacity, the unit must have a high-level control for capacity, so that the unit can keep running under high efficiency mode. The average parallel unit efficiency, according to different refrigeration system is 35％ higher than single compressor unit.
Using multiple compressor parallel units can provide a multiple energy level control, the refrigeration output can be dynamically allocated more smoothly according to actual situation.
With high efficiency oil separator, only a small amount of lubricating oil enters the system, this largely brings up the heat exchanging efficiency.
The PLC controller monitors running compressor quantity it maintains a maximum use rate even when only parts of the compressors are functioning.
PLC controller can be set with the best running curve (maximum & minimum power consumption), to same as much electricity as possible.
With “modularization design” the risk during the construction can be largely reduced, construction period can be shorted, improve product quality controllability.
Because of a gauge demand difference between seasons for refrigerating capacity, the unit must have a high-level control for capacity, so that the unit can keep running under high efficiency mode. The average parallel unit efficiency, according to different refrigeration system is 35％ higher than single compressor unit.
Using multiple compressor parallel units can provide a multiple energy level control, the refrigeration output can be dynamically allocated more smoothly according to actual situation.
With high efficiency oil separator, only a small amount of lubricating oil enters the system, this largely brings up the heat exchanging efficiency.
The PLC controller monitors running compressor quantity it maintains a maximum use rate even when only parts of the compressors are functioning.
PLC controller can be set with the best running curve (maximum & minimum power consumption), to same as much electricity as possible.
With “modularization design” the risk during the construction can be largely reduced, construction period can be shorted, improve product quality controllability.
3. Variety of options - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
Screw type single- stage parallel unit (80HP-600HP), evaporation temperature 5℃ ~ -45℃
Screw type double-stage parallel unit (100HP-600HP), evaporation temperature - 30℃ ~ 65 ℃
Applicable to multiple refrigerant R404A/R507A/R22
4. Compact structure - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
Components such as compressor reservoir, gas-liquid separator, economizer, intake manifold, fluid supply manifold, electrical control equipment are all centralized, making sure every inch of the space is fully used.
The unit has a compact structure, the space saved during assembly can provide more space for commercial use, benefiting the end user with extra profit.
5. Easy operation - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
With PLC safety auto control, client can program with touch screen, the graphical control interface can intently show the running status, recording data, parameter and false alarming, easy for operation.
The reserved remote communication interface can help customer to monitor remotely.
Thanks to the print output interface, customer can print the running history data of the unit and the system.
Screw type single- stage parallel unit (80HP-600HP), evaporation temperature 5℃ ~ -45℃
Screw type double-stage parallel unit (100HP-600HP), evaporation temperature - 30℃ ~ 65 ℃
Applicable to multiple refrigerant R404A/R507A/R22
4. Compact structure - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
Components such as compressor reservoir, gas-liquid separator, economizer, intake manifold, fluid supply manifold, electrical control equipment are all centralized, making sure every inch of the space is fully used.
The unit has a compact structure, the space saved during assembly can provide more space for commercial use, benefiting the end user with extra profit.
5. Easy operation - 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
With PLC safety auto control, client can program with touch screen, the graphical control interface can intently show the running status, recording data, parameter and false alarming, easy for operation.
The reserved remote communication interface can help customer to monitor remotely.
Thanks to the print output interface, customer can print the running history data of the unit and the system.
Compressor unit application
Application: 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
Refrigeration industry,cold room project.
Agricultural,food,restaurant,chemical industry.
Refrigeration industry,cold room project.
Agricultural,food,restaurant,chemical industry.
Refrigeration industry,cold-room project.
Agricultural,food,restaurant,chemical industry.
Fit for central air conditioning mainframe equipment.
Agricultural,food,restaurant,chemical industry.
Fit for central air conditioning mainframe equipment.
Manufacturing Technique
220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
- High efficient forced air cooled type condenser, high heat exchanging capacity, low power cost- Suitable for medium/high temperature, low temperature, super low temperature
- Suitable for refrigerant R22, R134a, R404a, R507a
- Standard configure of standard forced air-cooled condensing unit: compressor, oil pressure relief valve(except series of semi hermetic recips) , air cooling condenser, stock solution device, drying filter equipment, instrument panel, b5.2 refrigeration oil, shielding gas; bipolar machine has intercooler.
- Unit with protective cover: protective cover is easy to installation and has beautiful outlook.
- The shield with well designed style can be installed conveniently and repaired and be used for a long term.
- Used in refrigeration or cold storage
- More than 20years' experience in manufacturing refrigeration equipment
- Manufacture according to client's requests
220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room
1.High efficiency .high cooling capacity with short time .2.Low noise
3.Perfect after-sales service /with 2 years Guarantee period .free turn back for quality problem .
4.The quantity is the more you buy ,the discount is bigger .

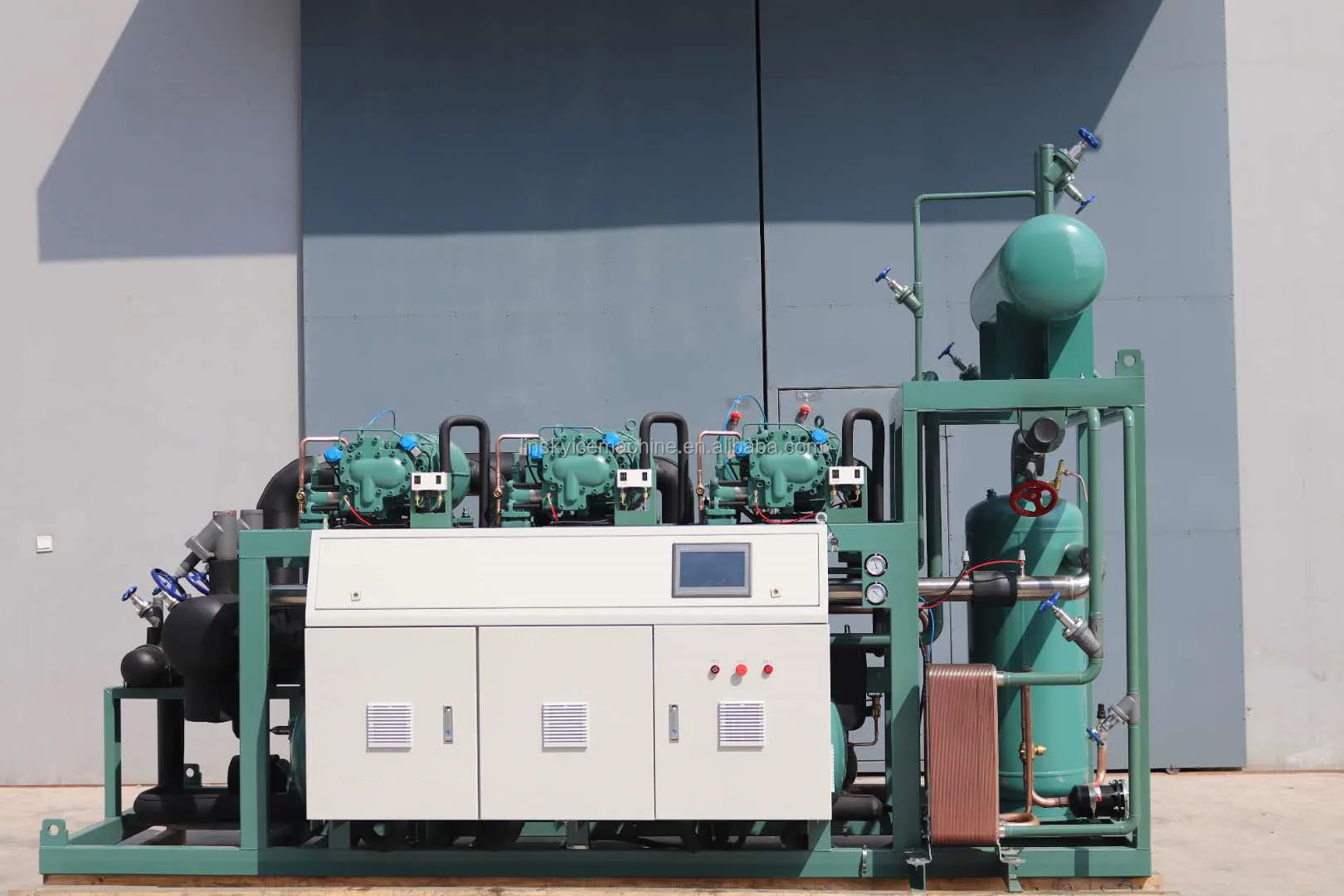

Main Structure
1.Parallel compressor unit assembly
Sturdy metal chassis; Lifting ring;Cushion

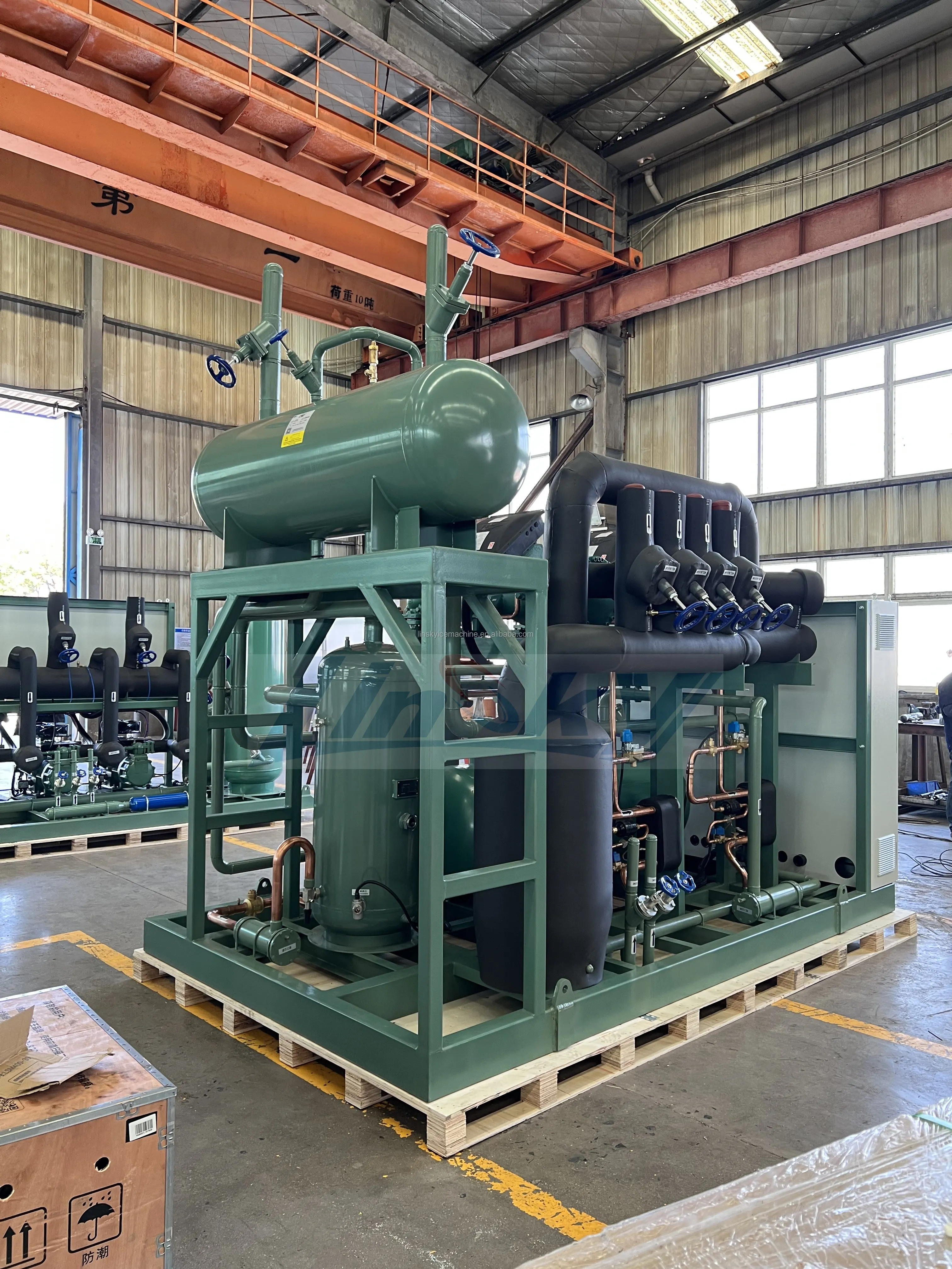

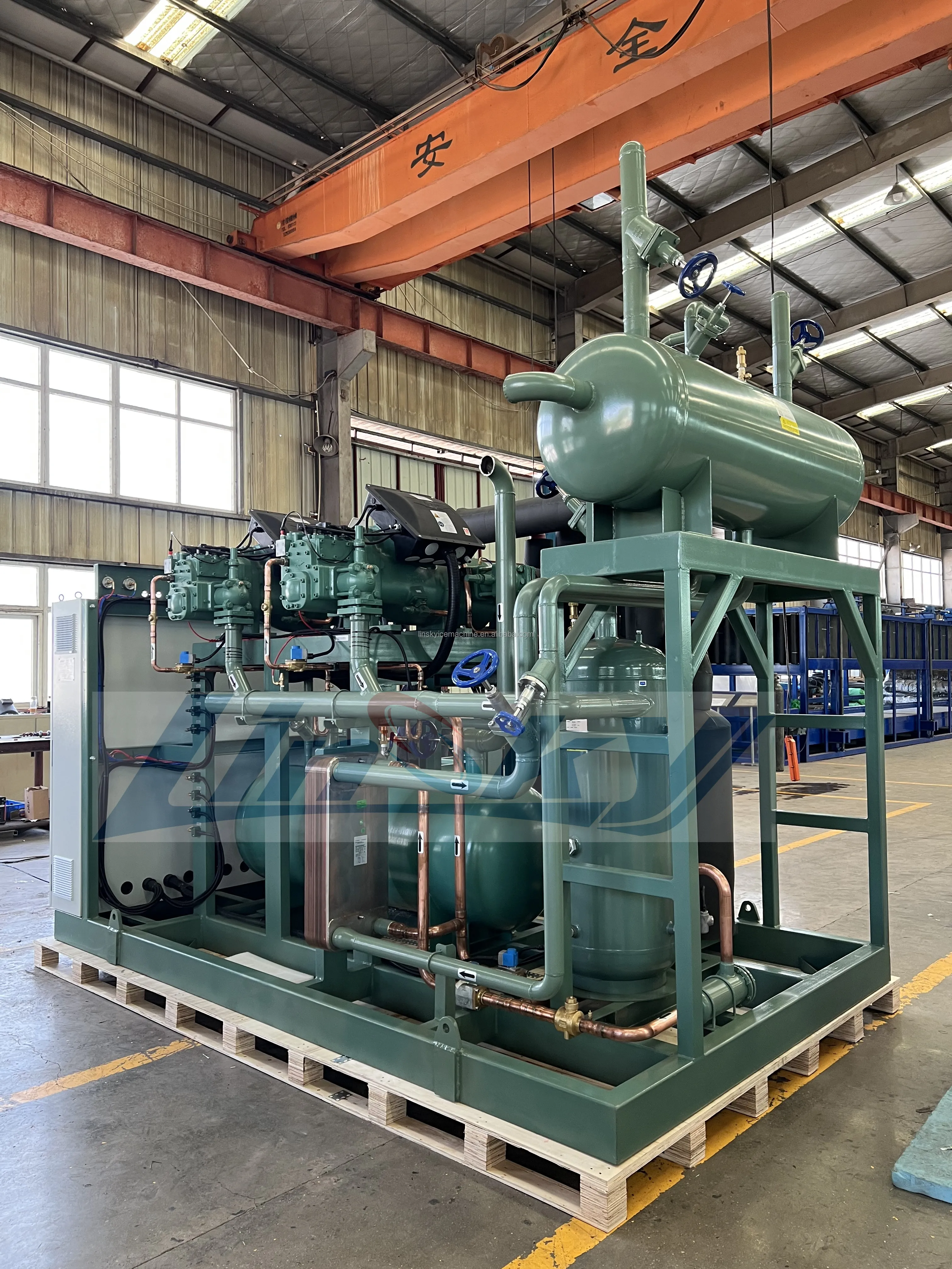

2.Reservoir assembly
1.Parallel compressor unit assembly
Sturdy metal chassis; Lifting ring;Cushion
2.Reservoir assembly
Reservoir has 28bar safety valve; Reservoir inlet/outlet off-valve; Pipeline liquid sight glass; Reservoir out filter barrel drier,contains filter; Filter drier barrel outlet has shut-off valve
3.Exhaust gas assembly
Oil separator; Oil separator outlet backstop shut-off valve
4.Oil line assembly
Oil reservoir (with oil sight glass); Oil reservoir inlet/outlet off valve; Oil outlet filter; Oil ball valve; Oil level controller
5.Single compressor assembly
Suction and discharge off-valve; Compressor cushion; Suction filter barrel,contains filter; Oil sight glass; Oil pressure controller(oil pump lubrication); Crankcase heater; Low temperature single stage compressor cylinder fan ; Low temperature single stage compressor liquid spray cooling
6.Sub cooler assembly(applies for single compressor double stage unit)
Sub cooler; Sub cooling expansion valve,sub cooling solenoid valve; Sub cooling liquid sight glass,sub cooling off-valve
7.Gas-liquid separator

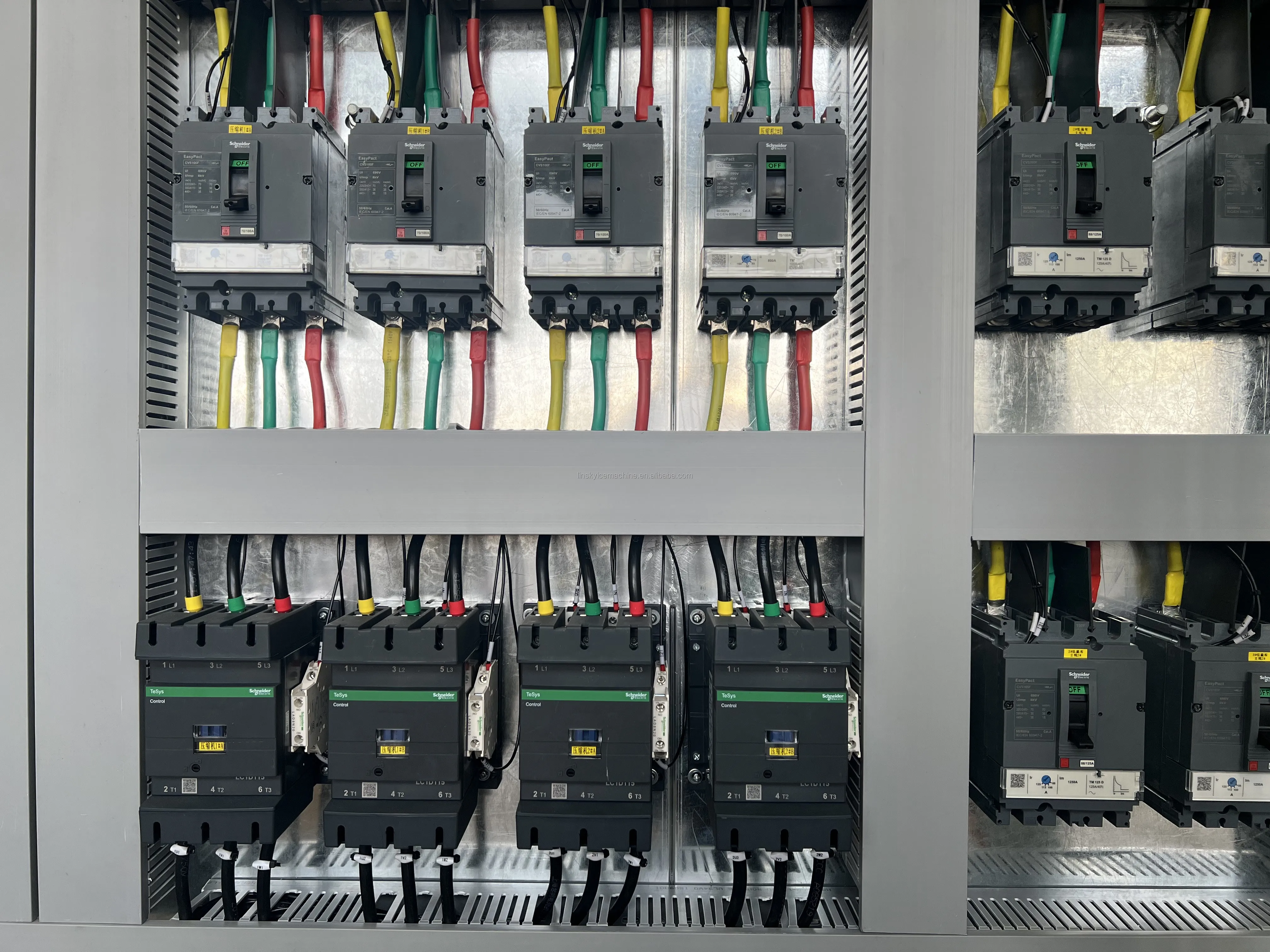

8.Compressor electronic controller and protection assembly
Compressor high/low pressure controller; Electronic over current protector; Low pressure sensor; Independent circuit breakers and thermal protector; PLC controller and color touch screen

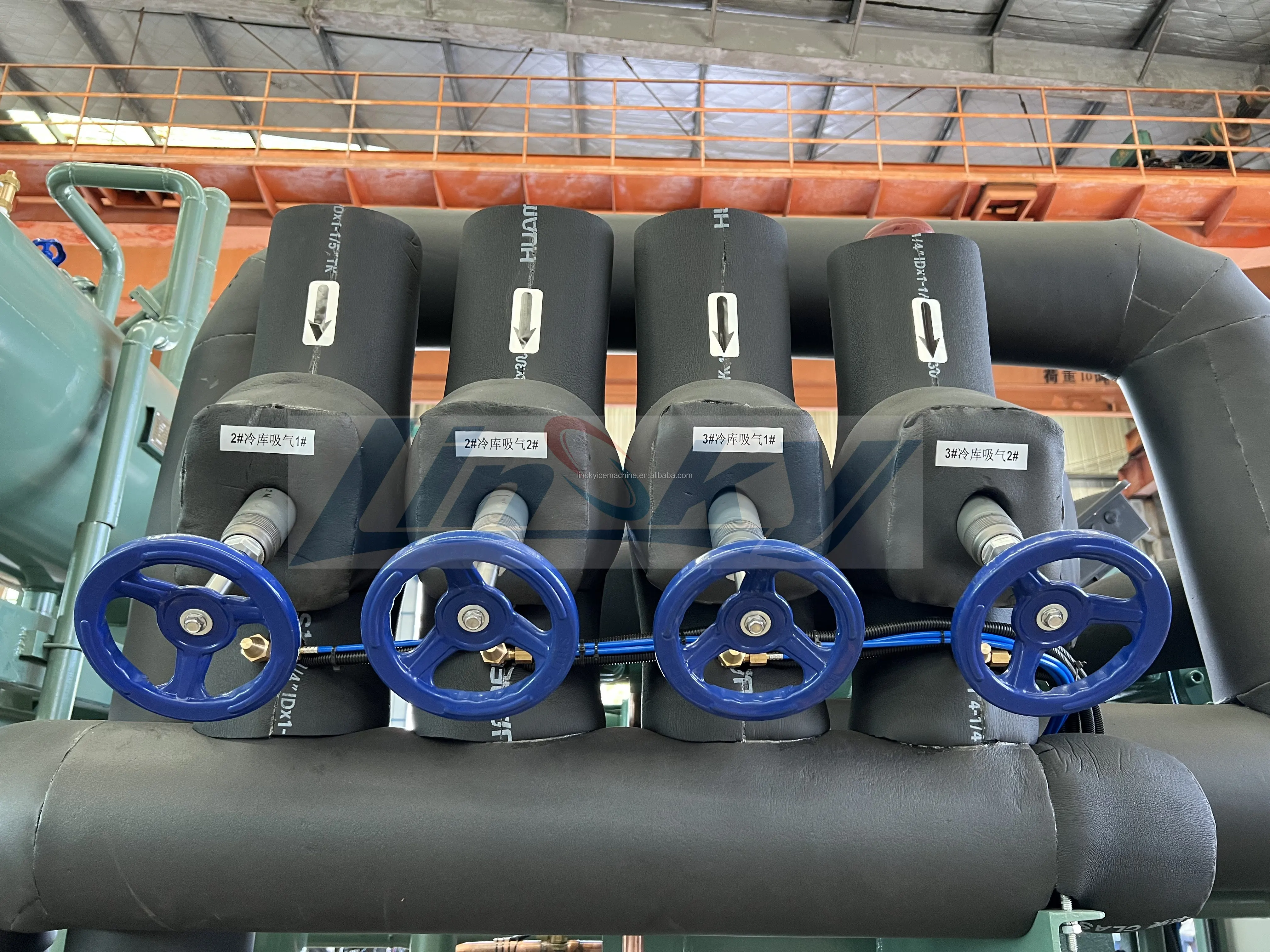

9.Fluid supply manifold and return manifold assembly
Fluid supply manifold and return manifold quantity in accordance with product catalog; Manifold adopts hard straight pipe
10.Other
Compressor pressure gauge; Repair valves are mounted on each manifold; Insulation materials for suction,economizer and cooling tube; Compressor unit suction off-valve
11.Optional configures
Refrigerant R22 or R404a; Reservoir can be vertical or horizontal; Fluid supply manifold shunt and return manifold shunt; Cooling type:air cooled,water cooled, evaporation cooled; Other brand compressor and configurations
12.Components that can be added
Compressor exhaust muffler; High pressure sensor; Head recovery device ; Hot gas defrost function; Frozen oil
3.Exhaust gas assembly
Oil separator; Oil separator outlet backstop shut-off valve
4.Oil line assembly
Oil reservoir (with oil sight glass); Oil reservoir inlet/outlet off valve; Oil outlet filter; Oil ball valve; Oil level controller
5.Single compressor assembly
Suction and discharge off-valve; Compressor cushion; Suction filter barrel,contains filter; Oil sight glass; Oil pressure controller(oil pump lubrication); Crankcase heater; Low temperature single stage compressor cylinder fan ; Low temperature single stage compressor liquid spray cooling
6.Sub cooler assembly(applies for single compressor double stage unit)
Sub cooler; Sub cooling expansion valve,sub cooling solenoid valve; Sub cooling liquid sight glass,sub cooling off-valve
7.Gas-liquid separator
8.Compressor electronic controller and protection assembly
Compressor high/low pressure controller; Electronic over current protector; Low pressure sensor; Independent circuit breakers and thermal protector; PLC controller and color touch screen
9.Fluid supply manifold and return manifold assembly
Fluid supply manifold and return manifold quantity in accordance with product catalog; Manifold adopts hard straight pipe
10.Other
Compressor pressure gauge; Repair valves are mounted on each manifold; Insulation materials for suction,economizer and cooling tube; Compressor unit suction off-valve
11.Optional configures
Refrigerant R22 or R404a; Reservoir can be vertical or horizontal; Fluid supply manifold shunt and return manifold shunt; Cooling type:air cooled,water cooled, evaporation cooled; Other brand compressor and configurations
12.Components that can be added
Compressor exhaust muffler; High pressure sensor; Head recovery device ; Hot gas defrost function; Frozen oil

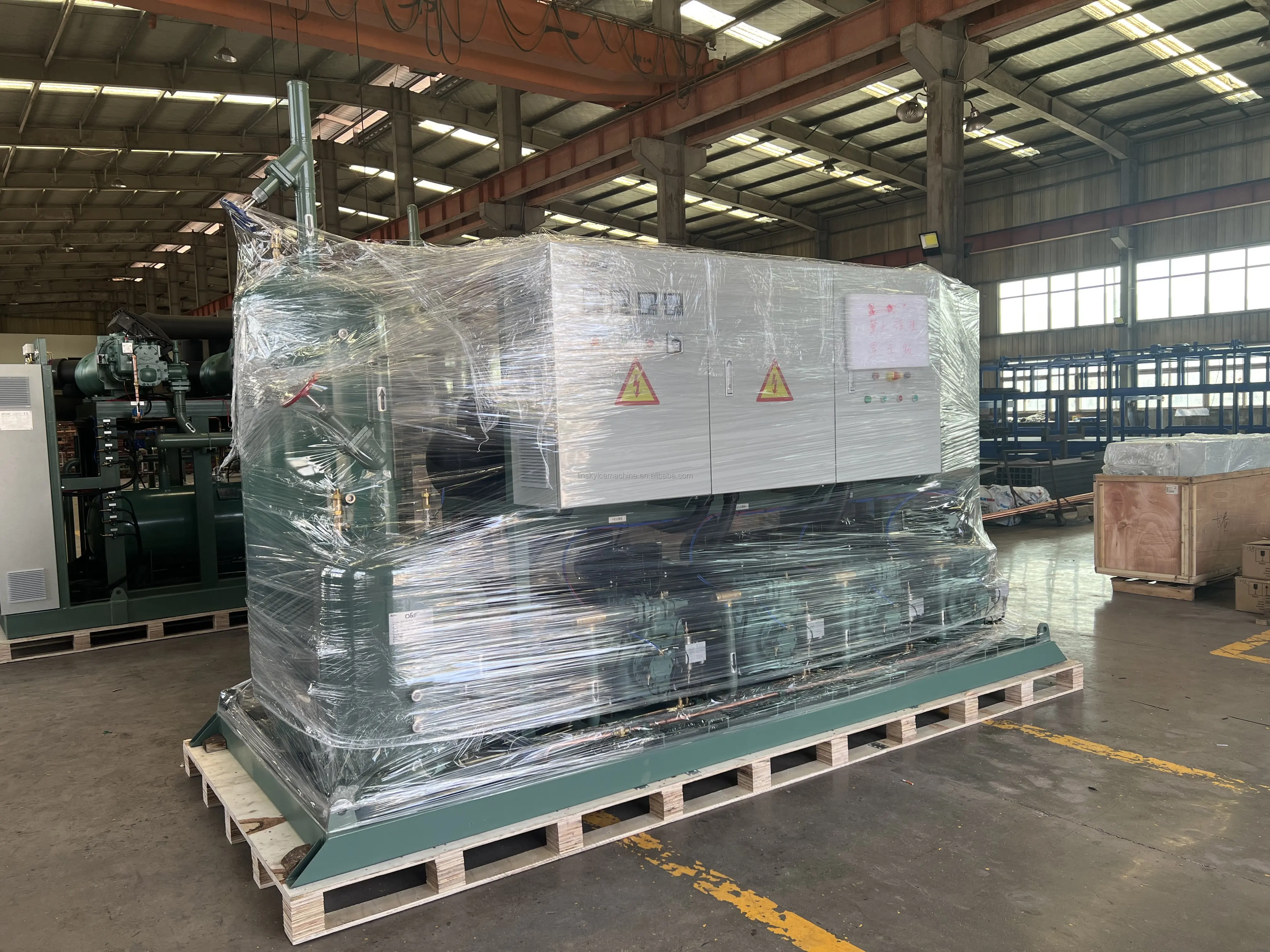

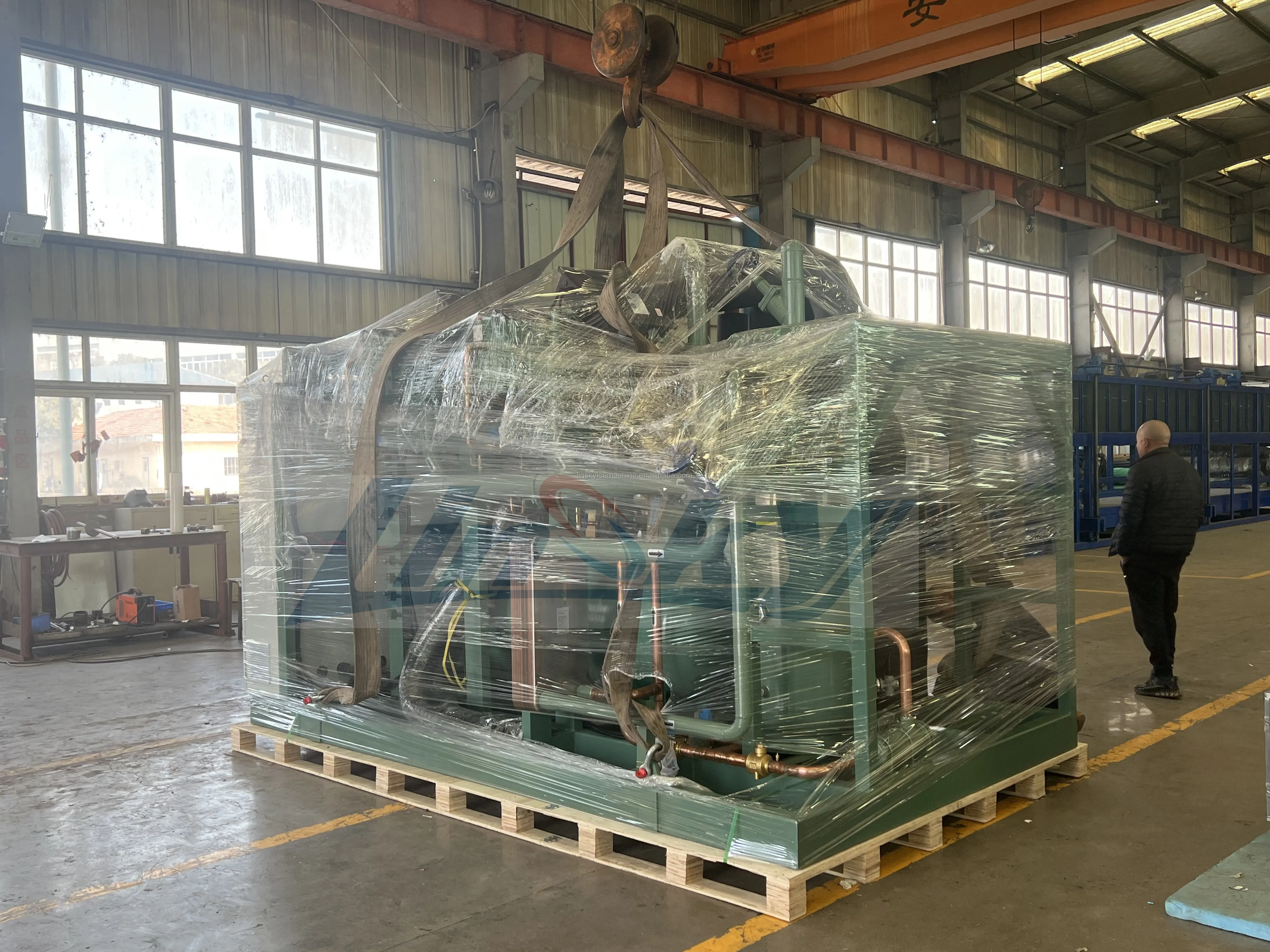

Compressor unit packaging&Shipping
For 220HP Two Parallel Screw Compressor Refrigeration Unit For Cold Room:
Use Standard export wooden box.
Linsky Factory Introduction
Shanghai Snowdream Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO 9001-2000.Brand is "Linsky".
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
FAQ
Q: What key information should I provide the supplier?
A: Room size: Length*Width*Height?
What kind of goods will put into the room (fresh or frozen)?Which country will you build the project? What’s the temperature in summer over there?How about voltage?
Q: Can the power supply be single phase?
A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it
needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.
Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power supply.
If you enquire cold room, please kindly confirm the following information:
1. what your cold room is used for;
2. what room temperature you required for;
3. what the cold room dimension is or how much food or other products will be put inside;
Please kinldy confirm the above information and we will reply you as soon as possible.
A: Room size: Length*Width*Height?
What kind of goods will put into the room (fresh or frozen)?Which country will you build the project? What’s the temperature in summer over there?How about voltage?
Q: Can the power supply be single phase?
A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it
needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.
Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power supply.
If you enquire cold room, please kindly confirm the following information:
1. what your cold room is used for;
2. what room temperature you required for;
3. what the cold room dimension is or how much food or other products will be put inside;
Please kinldy confirm the above information and we will reply you as soon as possible.
Recommend Products
1.Linsky Industrial ice machine:
(1)Block ice machine: From 1Ton/24h to 30Ton/24h
(2)Tube ice machine: From 1Ton/24h to 30Ton/24h
(3)Cube ice machine: From 1Ton/24h to 20Ton/24h
(4)Flake ice machine: From 0.3Ton/24h to 30Ton/24h
(5)Plate ice machine: From 1Ton/24h to 40Ton/24h
(6)Bag ice machine: From 1Ton/24h to 30Ton/24h
2.Linsky Commerial ice machine:
(1)Cube ice machine: From 50kg/24h to 1000kg/24h
(2)Snow ice machine: From 100kg/24h to 500kg/24h
(3)Crescent ice machine: From 210kg/24h to 270kg/24h
3.Linsky Refrigeration compressor unit:
(1)Bitzer compressor unit
(2)Hanbell compressor unit
4.Linsky Others:
(1)Ice crusher
(2)Ice packing machine
(3)Water chiller
(4)Ice storage
(5)Ice screw conveyor
(2)Tube ice machine: From 1Ton/24h to 30Ton/24h
(3)Cube ice machine: From 1Ton/24h to 20Ton/24h
(4)Flake ice machine: From 0.3Ton/24h to 30Ton/24h
(5)Plate ice machine: From 1Ton/24h to 40Ton/24h
(6)Bag ice machine: From 1Ton/24h to 30Ton/24h
2.Linsky Commerial ice machine:
(1)Cube ice machine: From 50kg/24h to 1000kg/24h
(2)Snow ice machine: From 100kg/24h to 500kg/24h
(3)Crescent ice machine: From 210kg/24h to 270kg/24h

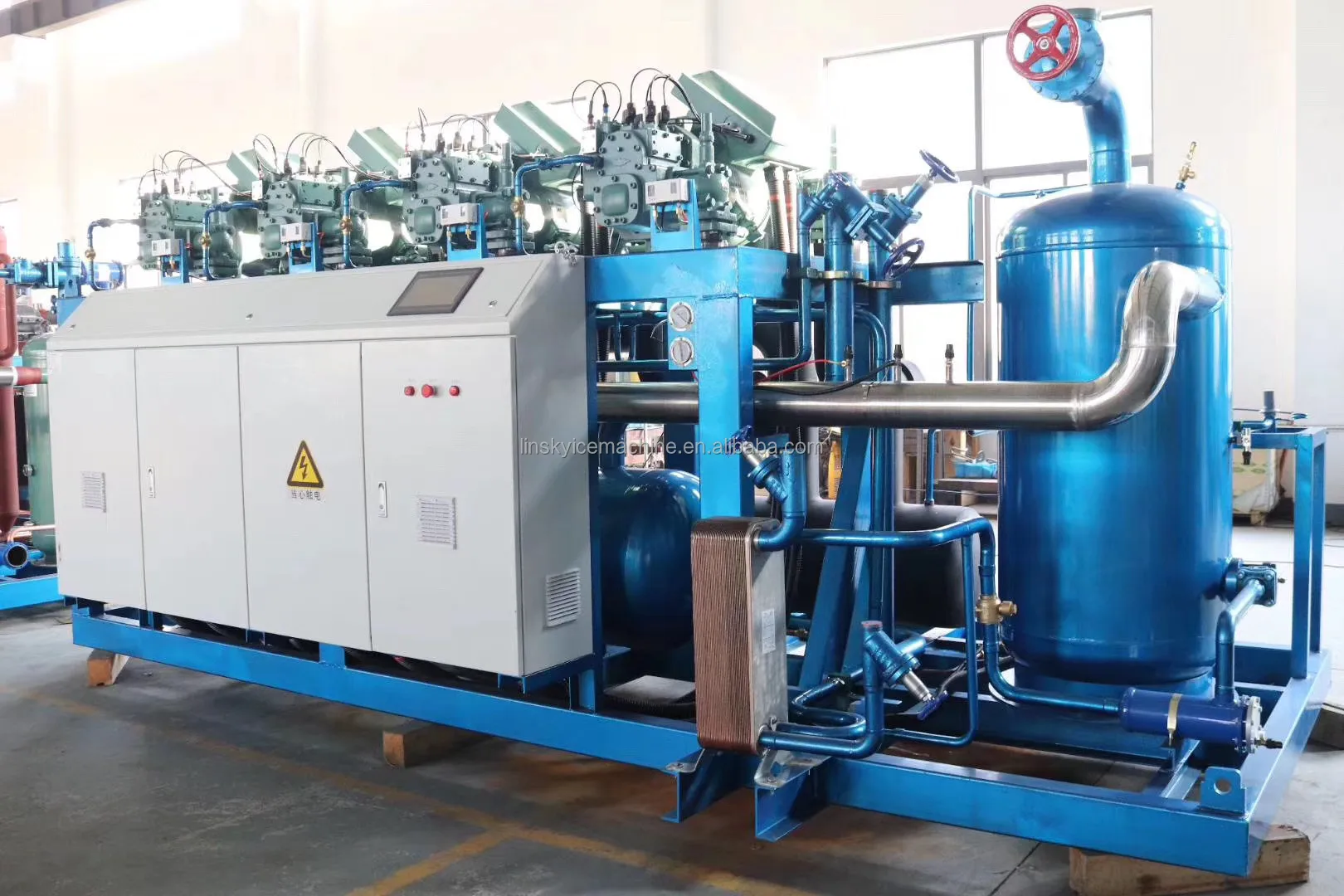

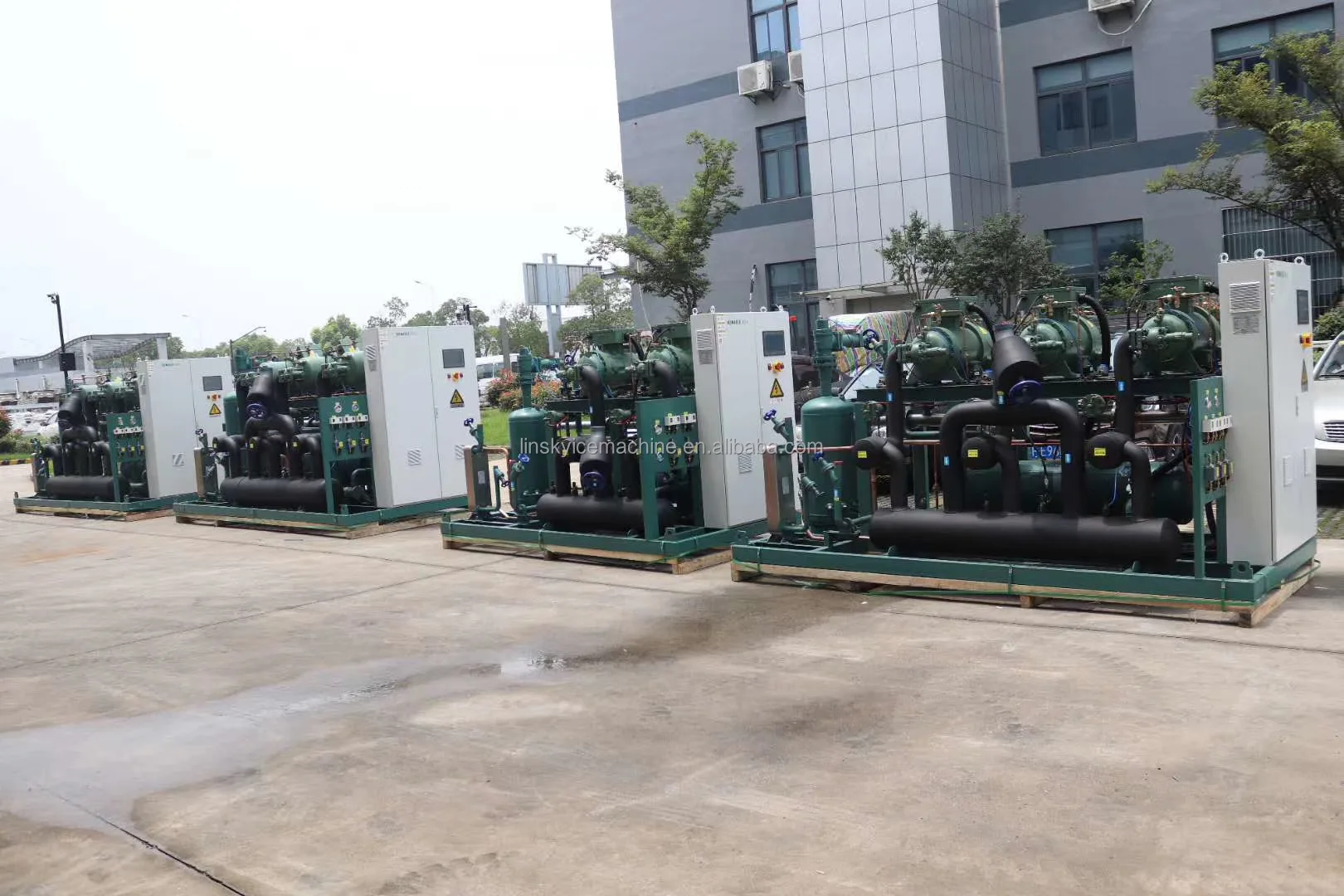

3.Linsky Refrigeration compressor unit:

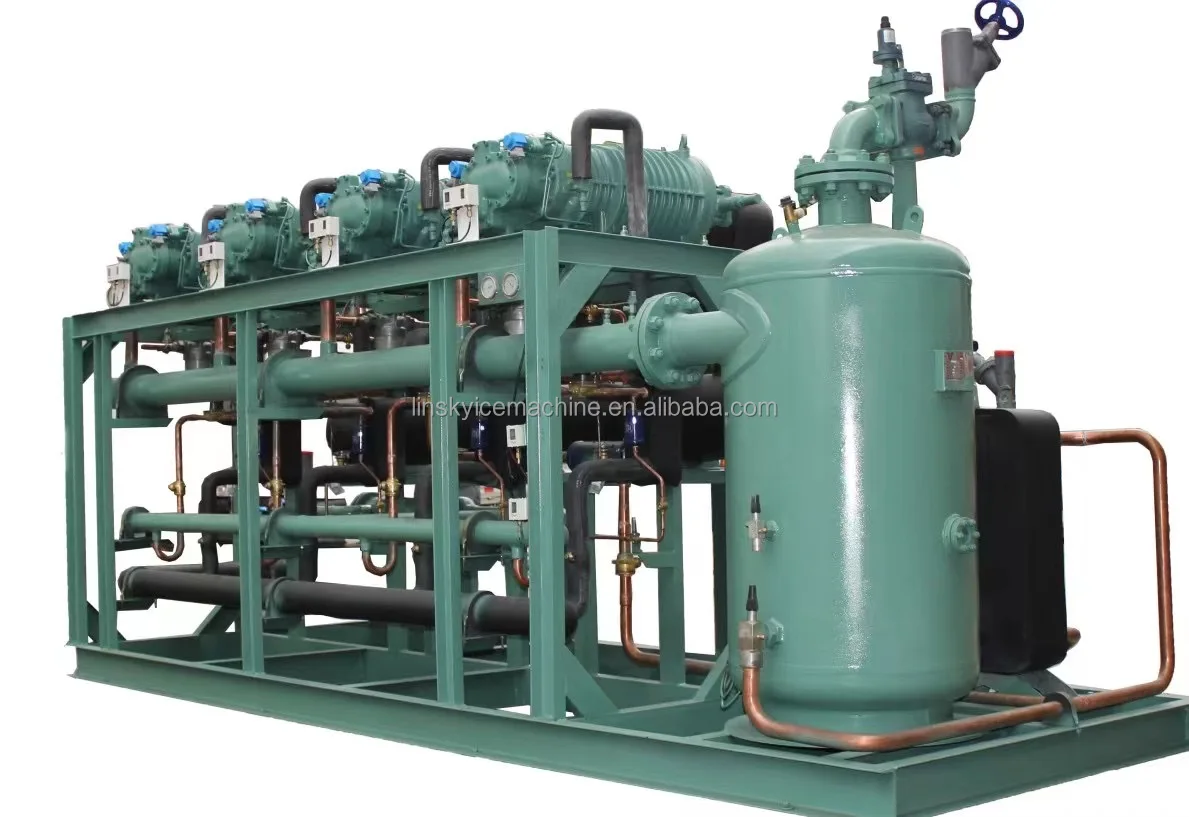

(1)Bitzer compressor unit

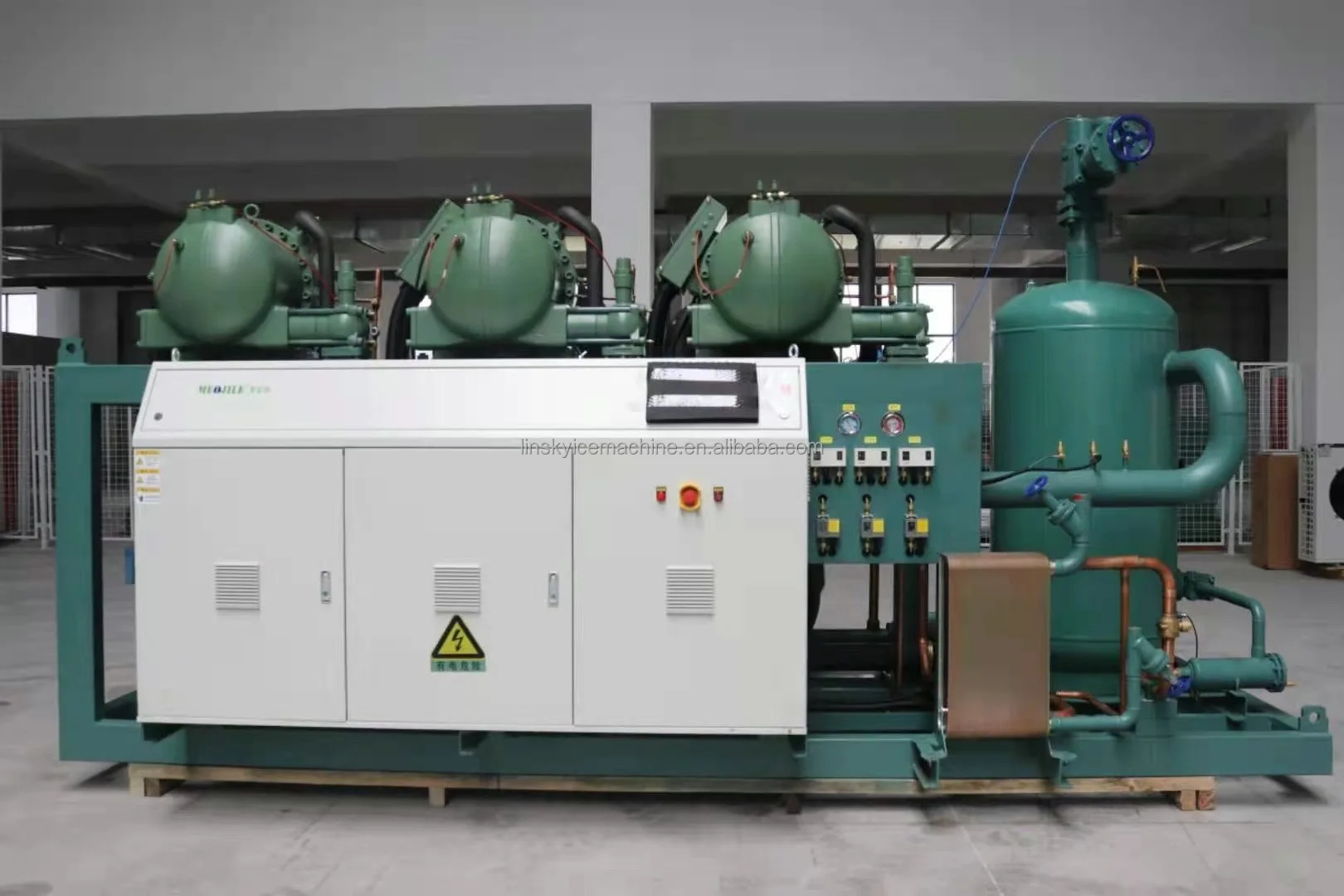

(2)Hanbell compressor unit
4.Linsky Others:
(1)Ice crusher
(2)Ice packing machine
(3)Water chiller
(4)Ice storage
(5)Ice screw conveyor
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be in service for you, as professional ice machine manufacturer in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
Yuna
We would be very glad to be in service for you, as professional ice machine manufacturer in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
Yuna
whatsapp: +86 13156526006
email: yuna.zhang@linskyice.com
wechat: +86 13156526006
email: yuna.zhang@linskyice.com
wechat: +86 13156526006
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
