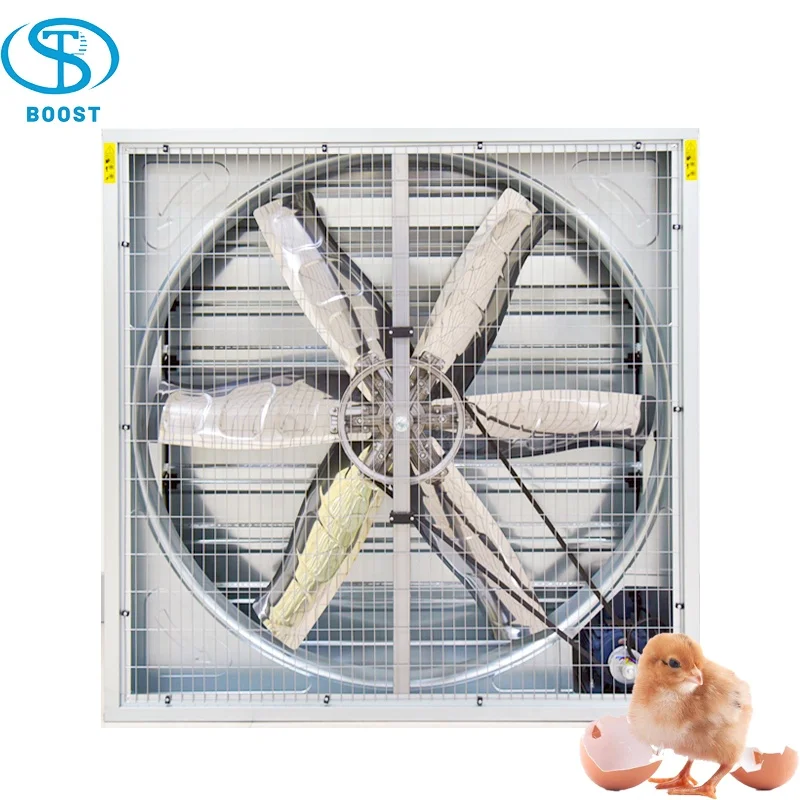

Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600466213139):
Product Overview
Description
Products Description

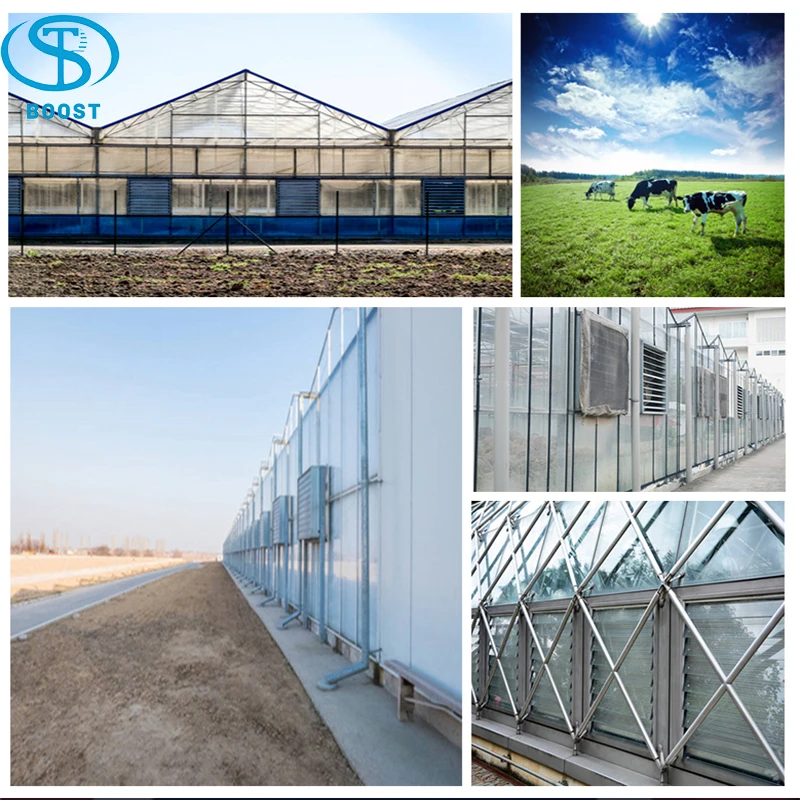

Application

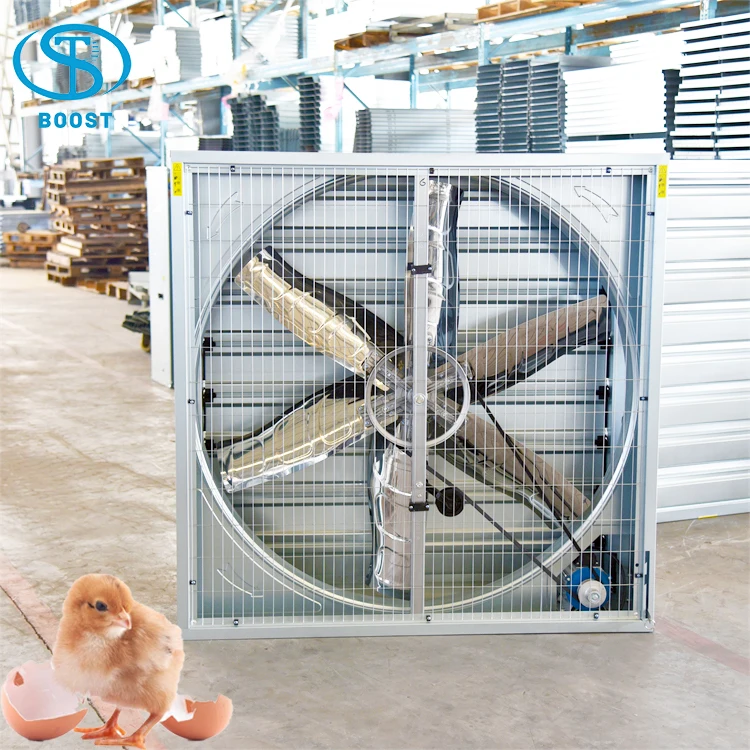

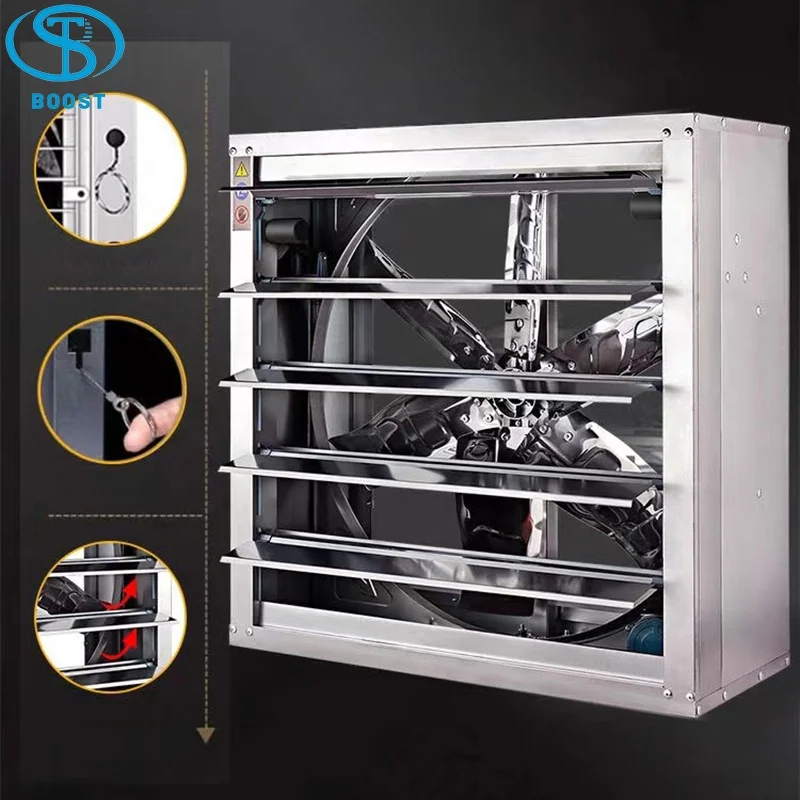

Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry
New type of plant ventilation and cooling equipment.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping
malls,and supermarkets,medicine,food,tea,vegetables,wooding ,and other industries.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping
malls,and supermarkets,medicine,food,tea,vegetables,wooding ,and other industries.
Model | BST1380 |
Blade diameter | 1270mm |
Blade rpm | 439rpm |
Motor rpm | 1400rpm |
Air flow | 44000m³/h |
Input power | 1100W |
Rated power | 220V/380V/Customized |
Size | 1380*1380*450mm |
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air flowm³/hr | Input power(W) | Noise(db) |
BST300 | Drive | 200 | 1400 | 1400 | 1000 | 120 | ＜70 |
BST400 | Drive | 300 | 1400 | 1400 | 2000 | 180 | ＜70 |
BST480 | Diect | 380 | 1400 | 1400 | 3000 | 180 | ＜70 |
BST600 | Direct | 500 (20inch) | 1400 | 1400 | 5700 | 370 | ＜70 |
BST800 | Belt | 710(28inch) | 660 | 1400 | 18000 | 370 | ＜65 |
BST900 | Belt | 750(30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900(36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000(40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100(44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
⭐BST1380 | Belt | 1270(50inch) | 439 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400(56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |
Detail Images

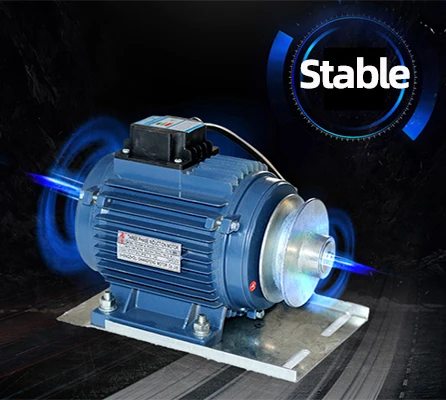

Motor
Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry
Brand: Chinese motor and Siemens motor Certificate: CCC Protection
class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

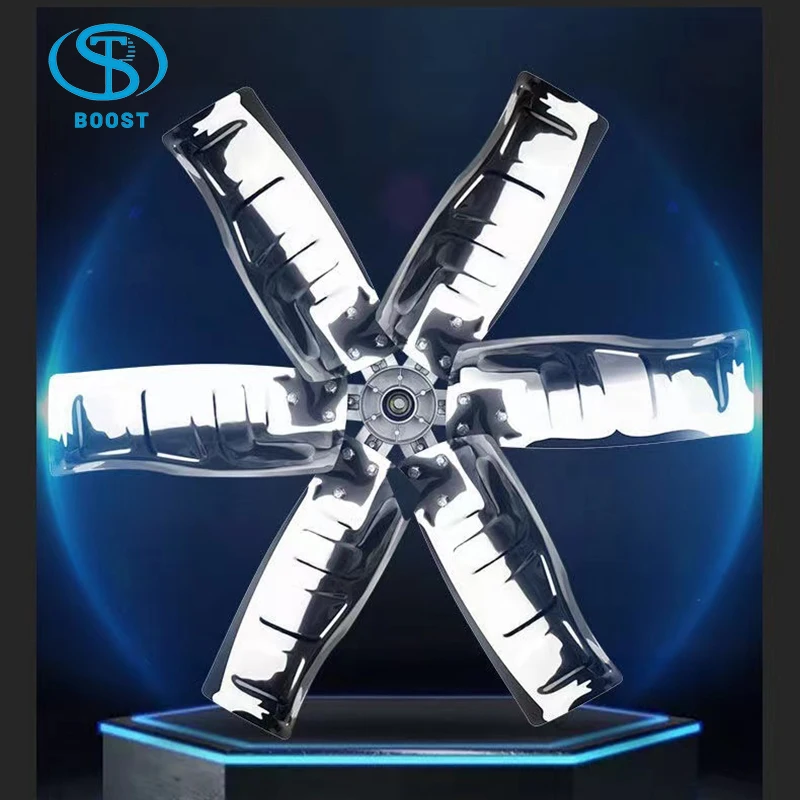

Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mmAdvantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry
1.Material:High quality Nylon PA66
2.Guide Rod:304 stainless steel with special material outside,high strength,no rust,reduce friction.3.Rivet:304 stainless steel,wear-resisting,no rust.
Advantage:

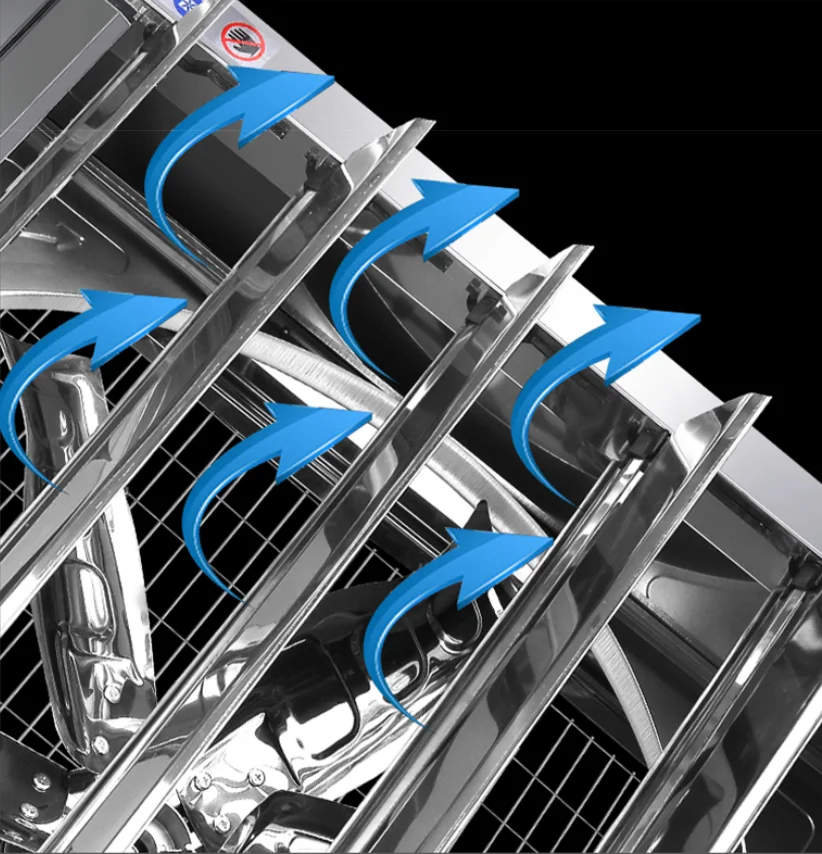

It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wear resisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing fiction,rust-resistant.
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wear resisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing fiction,rust-resistant.
Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry

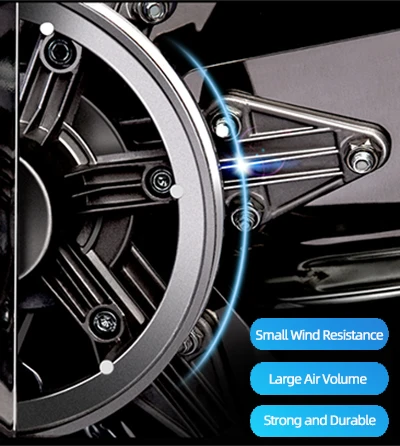

Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.Advantage:
Small wind resistance,Large air flow, attractive and durable.
Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry

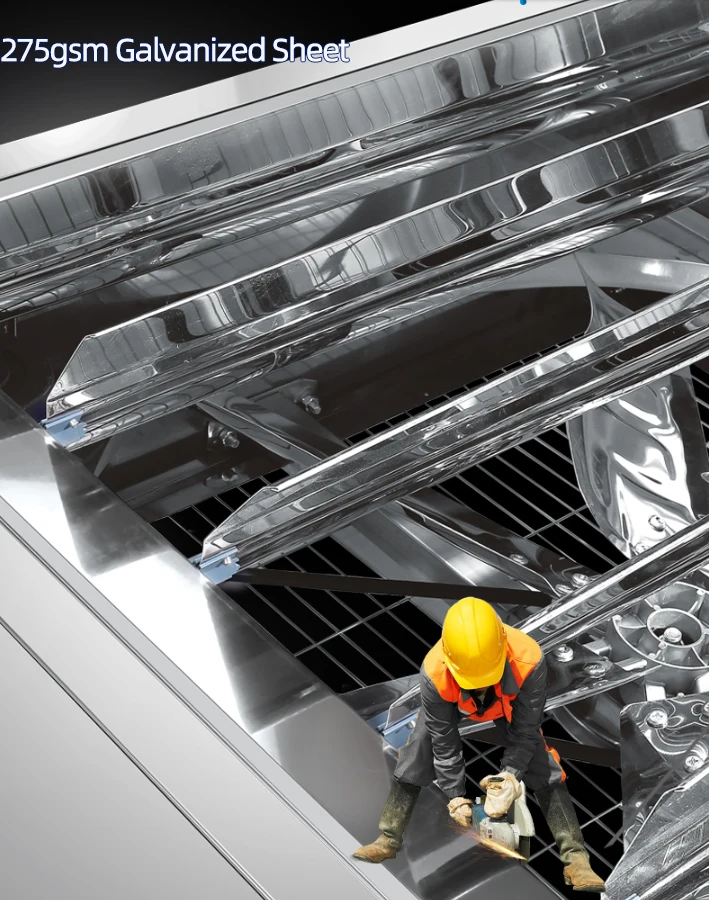

We has advanced production technology with automatic equipment. professional production line, NC-based professional equipment.Auto
punching and bending. Highly-accurate. Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance
Advantage:
High strength,Strong corrosion resistance

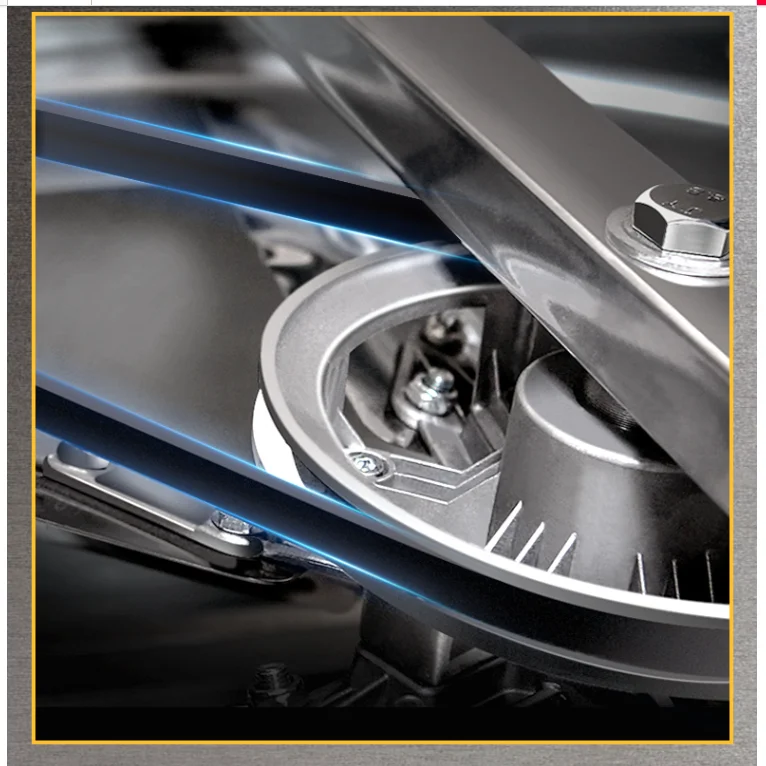

Belt
Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry
We have Chinese belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3 times than Type A

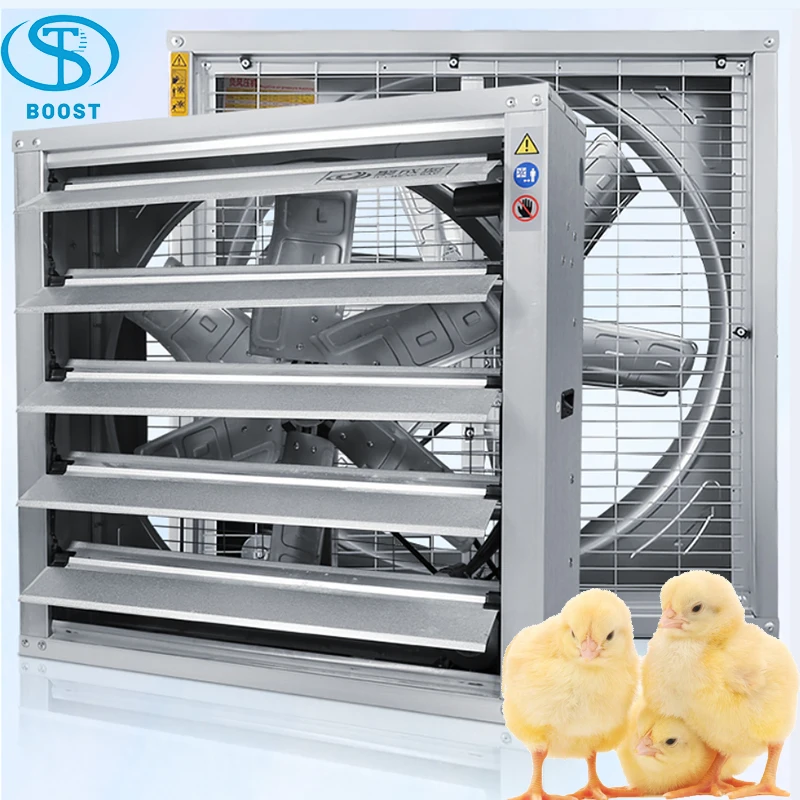

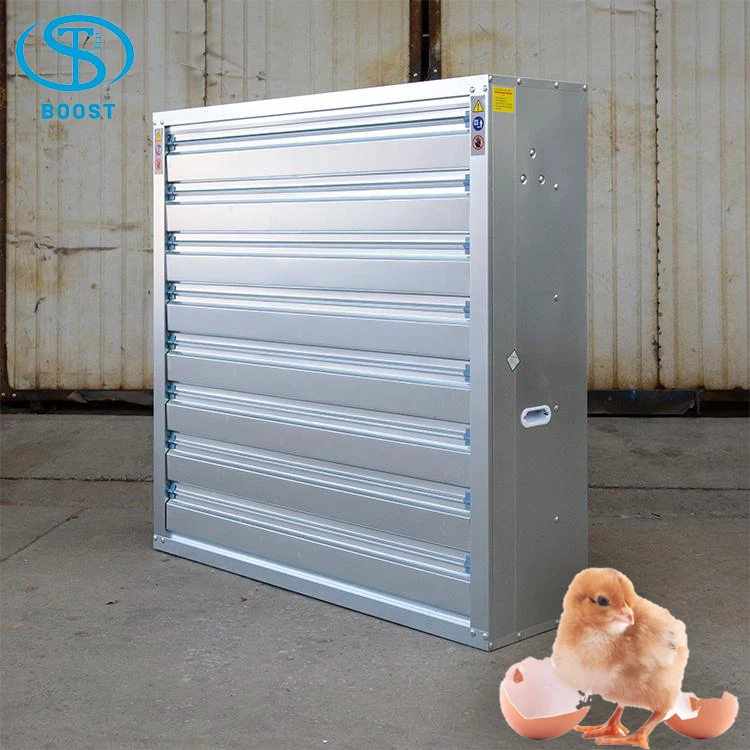

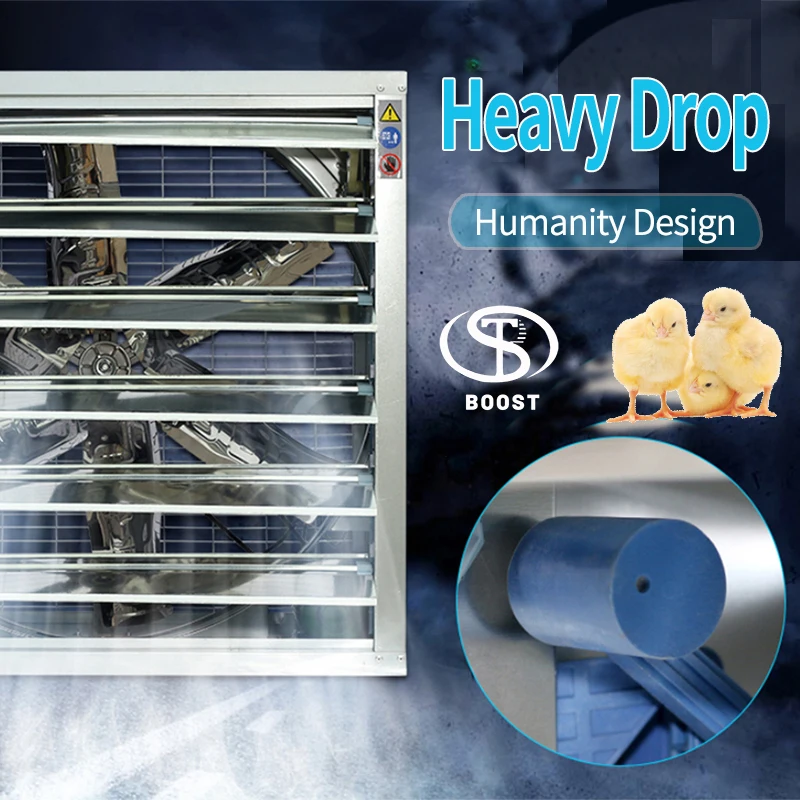

Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry

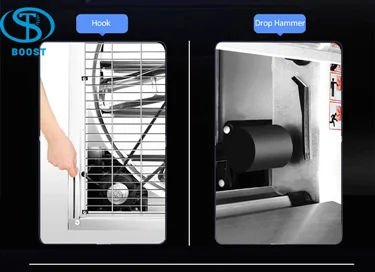

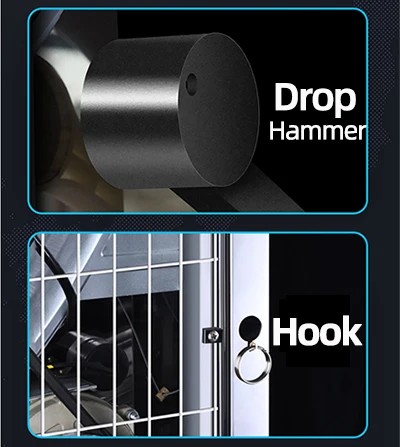

No electricity ventilation,Opening centrifugal push-pull system,then Shutters can open and close automatically.
Advantage:
Windproof ,Rainproof

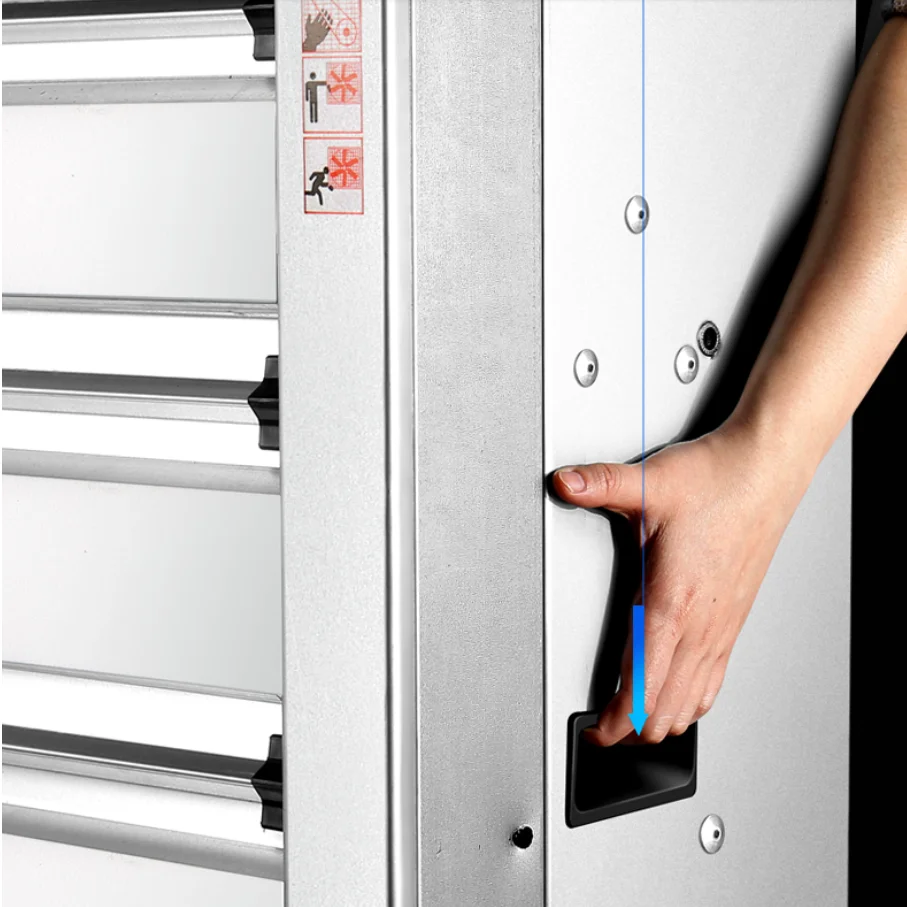

Handle design
Greenhouse Negative Press cooling Exhaust Fan 50inch for animal husbandry
More humanized design
Easy to move
Not to be broken
How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .

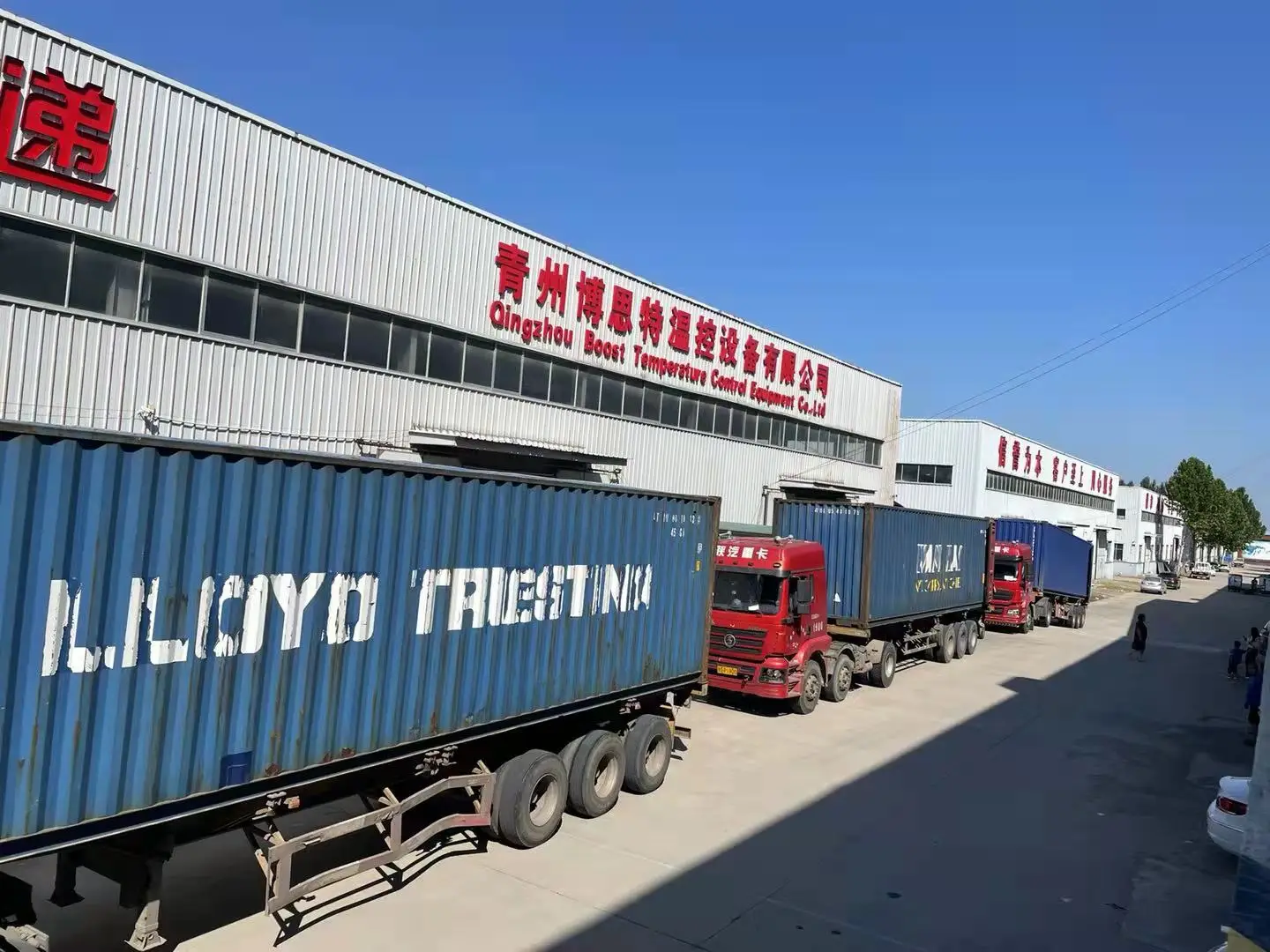

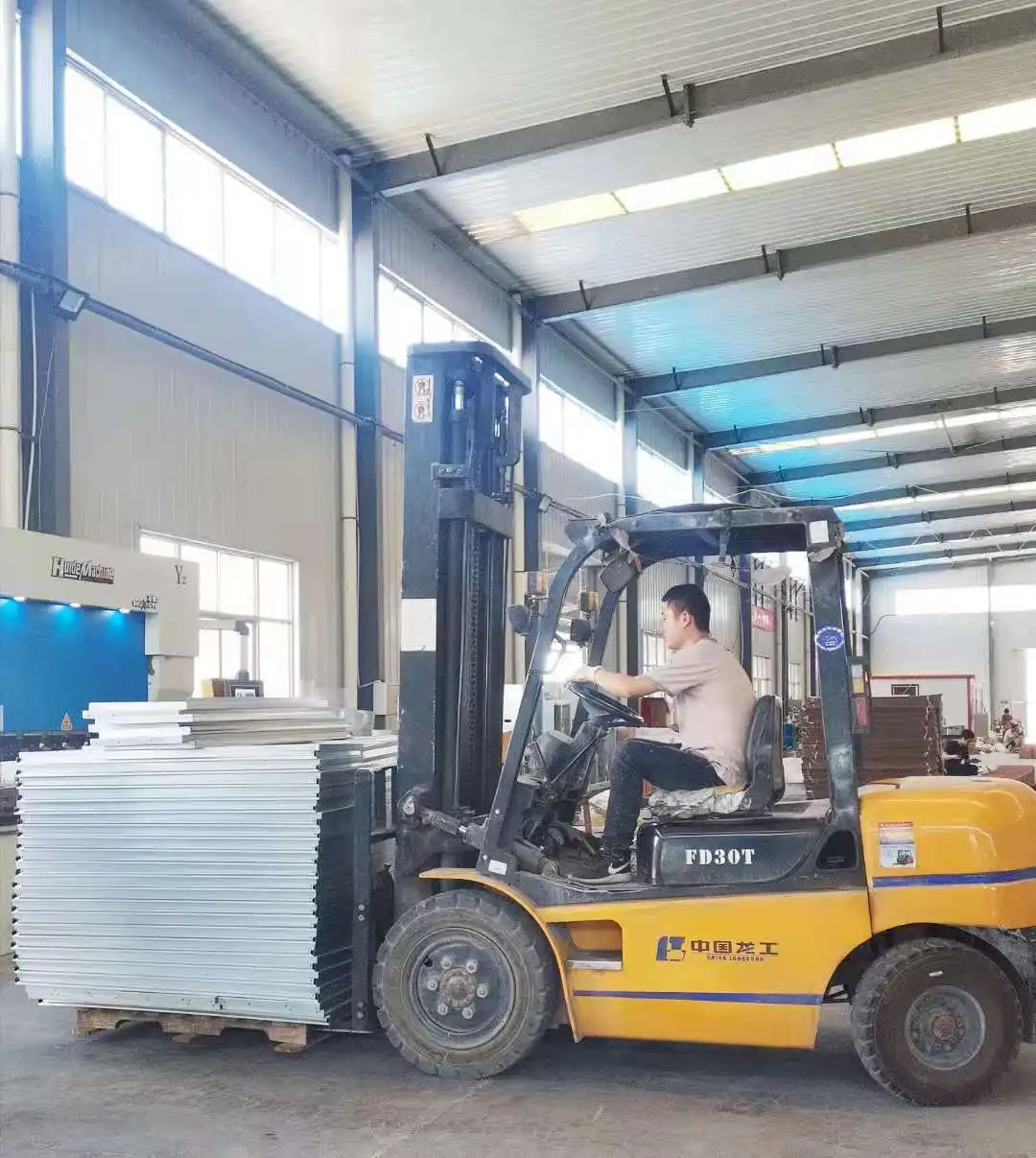

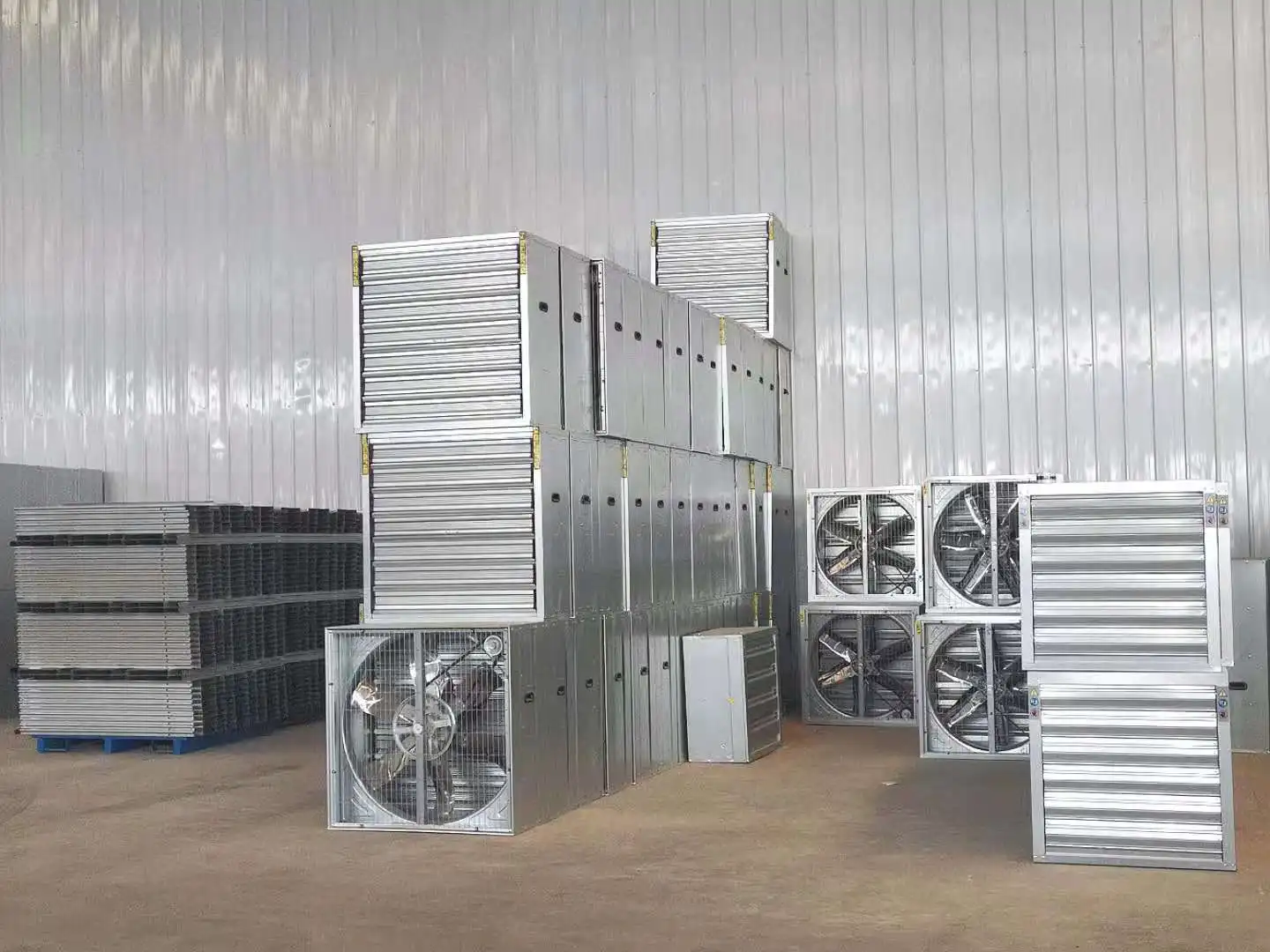

Factory&Workshop
Company profile
Qingzhou Boost Temperature Control Equipment Co., Ltd. is the pioneer and leader of new type of plant ventilation and cooling equipment, standardized livestock and poultry houses, horticultural greenhouse ventilation and cooling, and heating equipment.
It has produced more than 30 "Boost" brand products in six series. The main products are cooling pad, livestock fans,negative pressure fans, garden fans, circulation fans, automatic roof ventilators, axial fans, hot blast stoves, etc.
WHY CHOOSE BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
Certifications

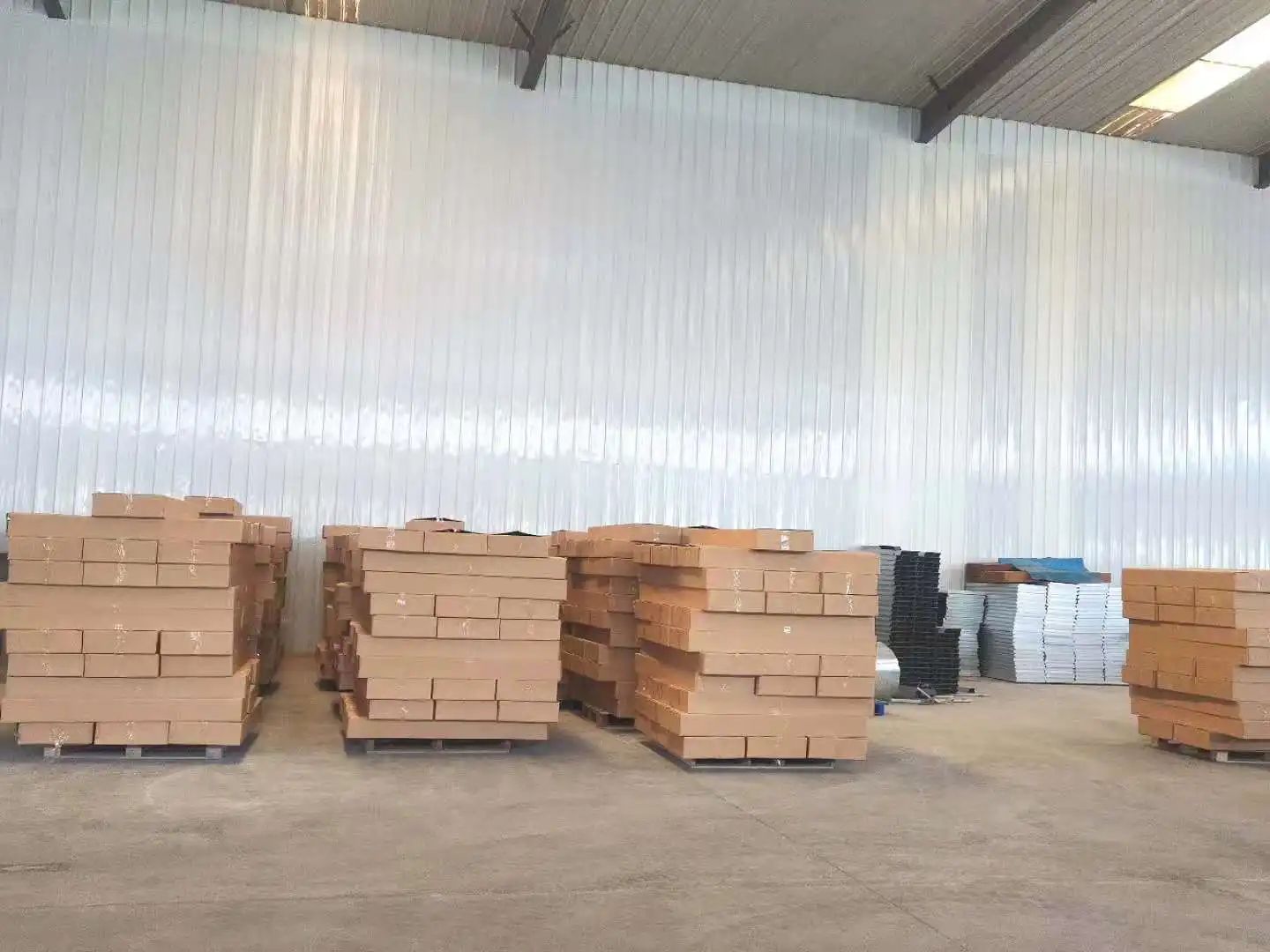

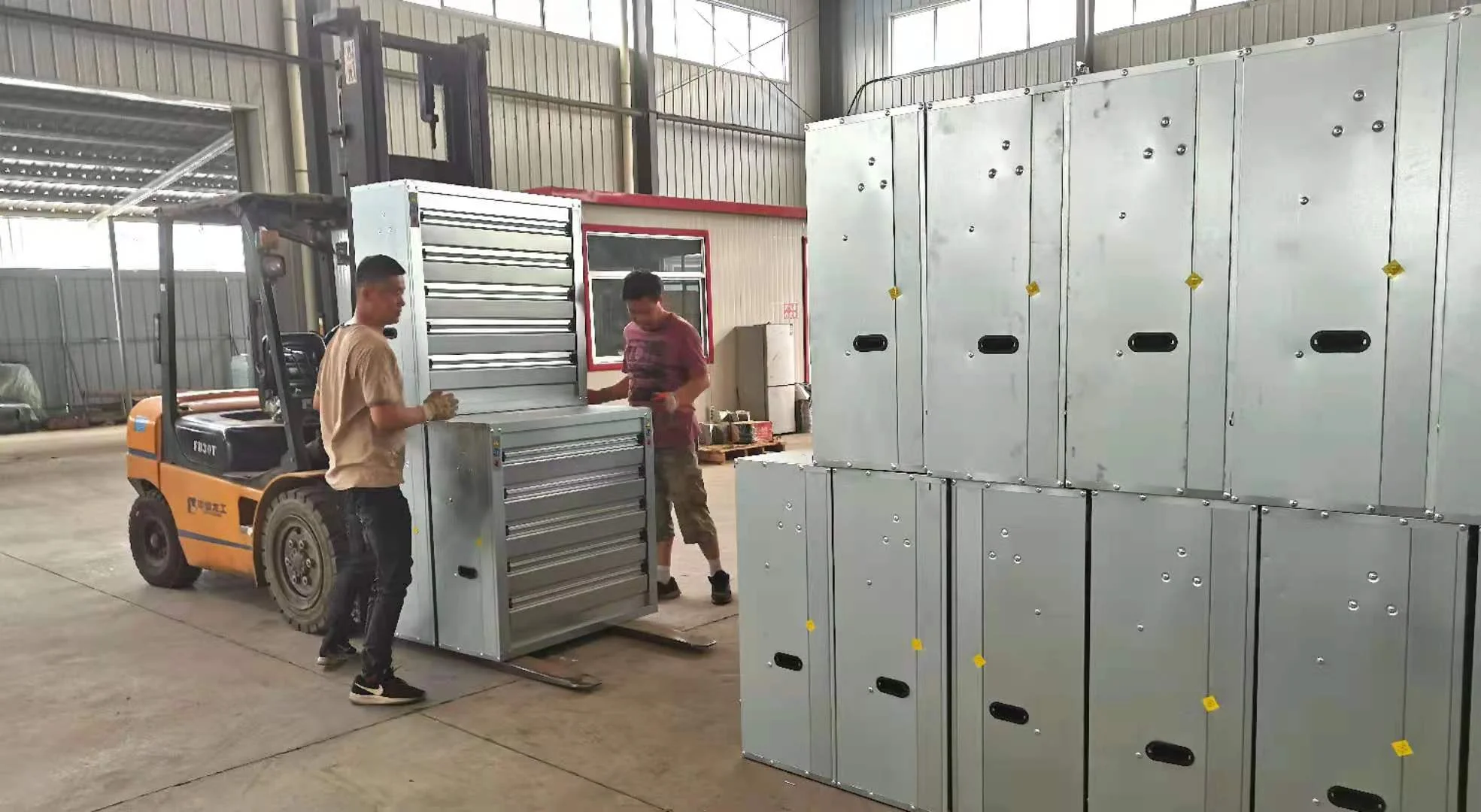

Packaging&Shipping
FAQ
After-sales service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas
