Product Description

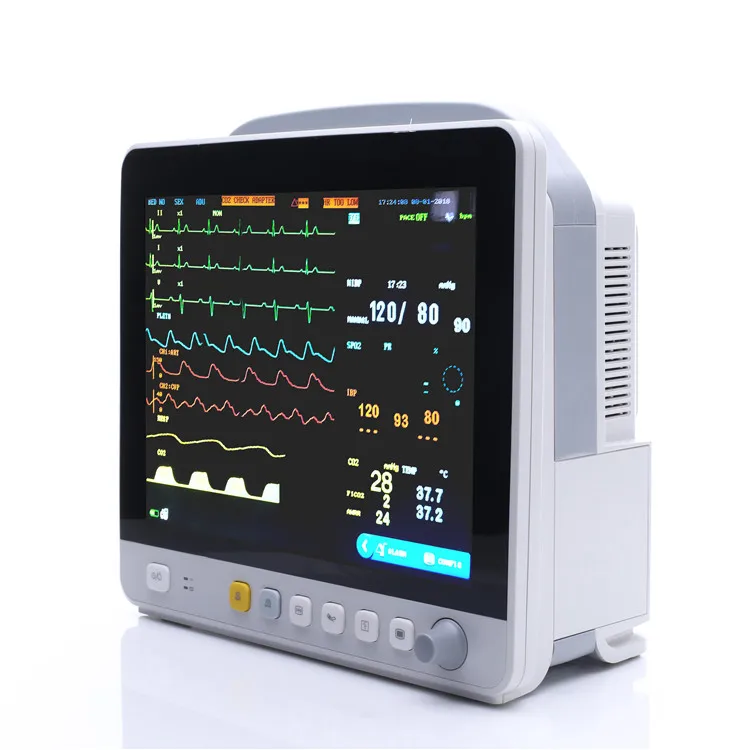

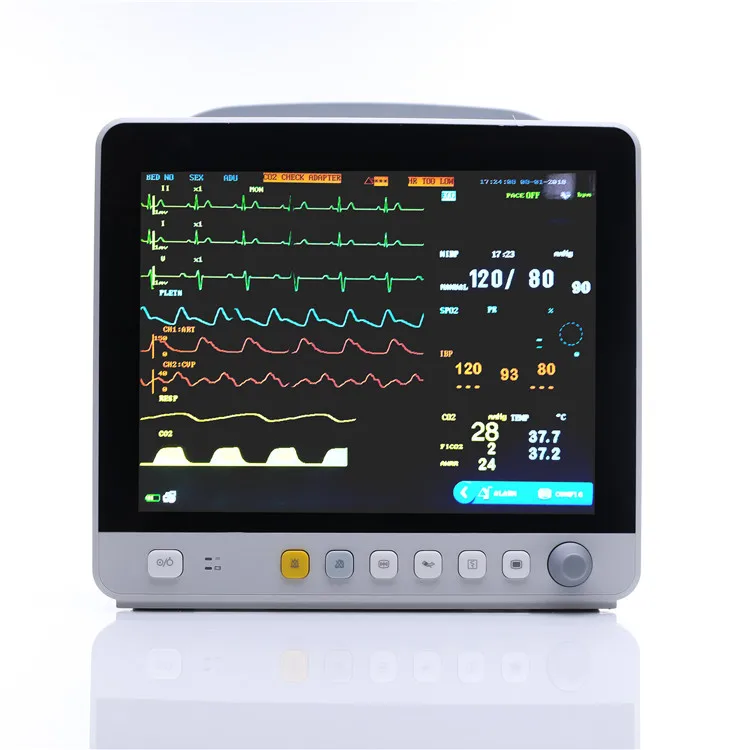

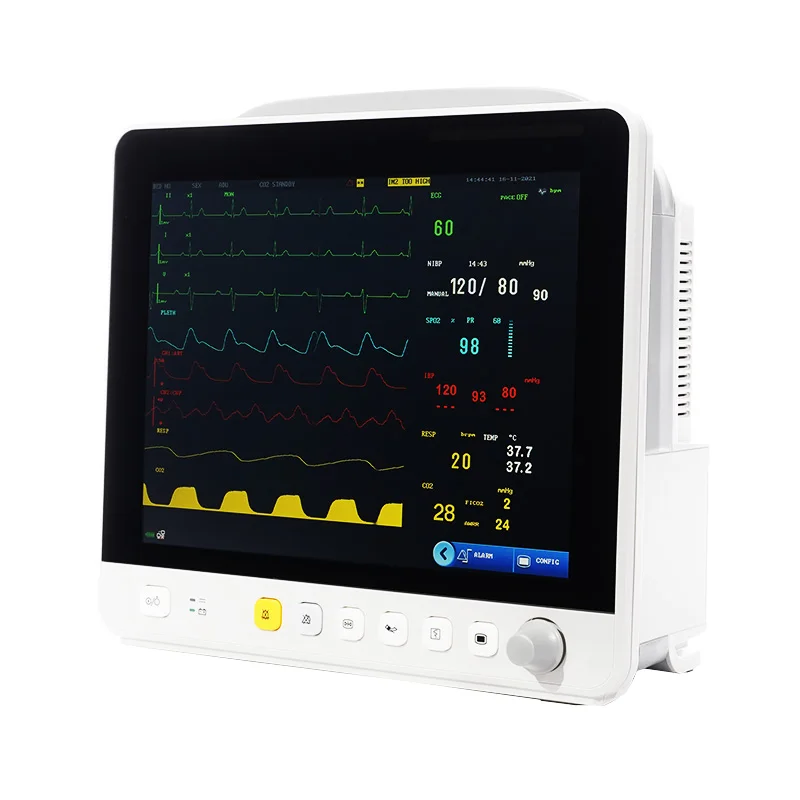

 Features:

* 12-inch high-resolution color TET LCD display.
* Thinner and lighter in design, convenient and portable for users.
* Real-time S-T segment analysis, pacemaker detection.
* Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen.
* 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife.
* Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall,
* 7-day trend chart in storage. Built-in rechargeable lithium battery,
* 2-hour working capability. Wireless central monitoring system applicable to ICU/CCU/OR


































Parameters &Specification







Size: 12 * 11.4 * 6.4 inch Weight: 5kg Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer


































































































































































TECHNICAL SPECIFICATIONS



ECG


NIBP



Input


3/5 wire ECG cable


Test method


Oscillometer


Lead section


I II III aVR, aVL, aVF, V


Philosophy


Adult, Pediatric and Neonate


Gain selection


*0.25, *0.5, *1, *2,Auto


Measurement type


Systolic Diastolic Mean


Sweep speed


6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s


Measurement parameter


Automatic, Continuous measurement


Heart rate range


15-30bpm





Measurement method Manual







mmHg or ±2%



Calibration


±1mv



Accuracy


±1bpm or ±1% (select the bigger data)



SPO2


2-Temperature (Rectal & Surface)



Display Type


Waveform, Data


Number of channels


2 channels


Measurement range


0-100%


Measurement range


0-50℃


Accuracy


±2% (between 70%-100%)


Accuracy


±0.1℃


Pulse rate range


20-300bpm


Display


T1, T2, T


Accuracy


±1bpm or ±2% (select the bigger data)


Unit


ºC/ºF selection


Resolution


1bpm


Refresh cycle


1s-2s


Respiration (Impedance & Nasal Tube)



Measurement type


0-150rpm



Accuracy


±1bm or ±5%, select the bigger data



Resolution


1rpm



Standard accessories



NIBP cuff & tube


ECG cable & electrodes


SpO2 sensor


TEMP probe


Lithium-ion battery


Power cable


Operator’s manual



Optional accessories

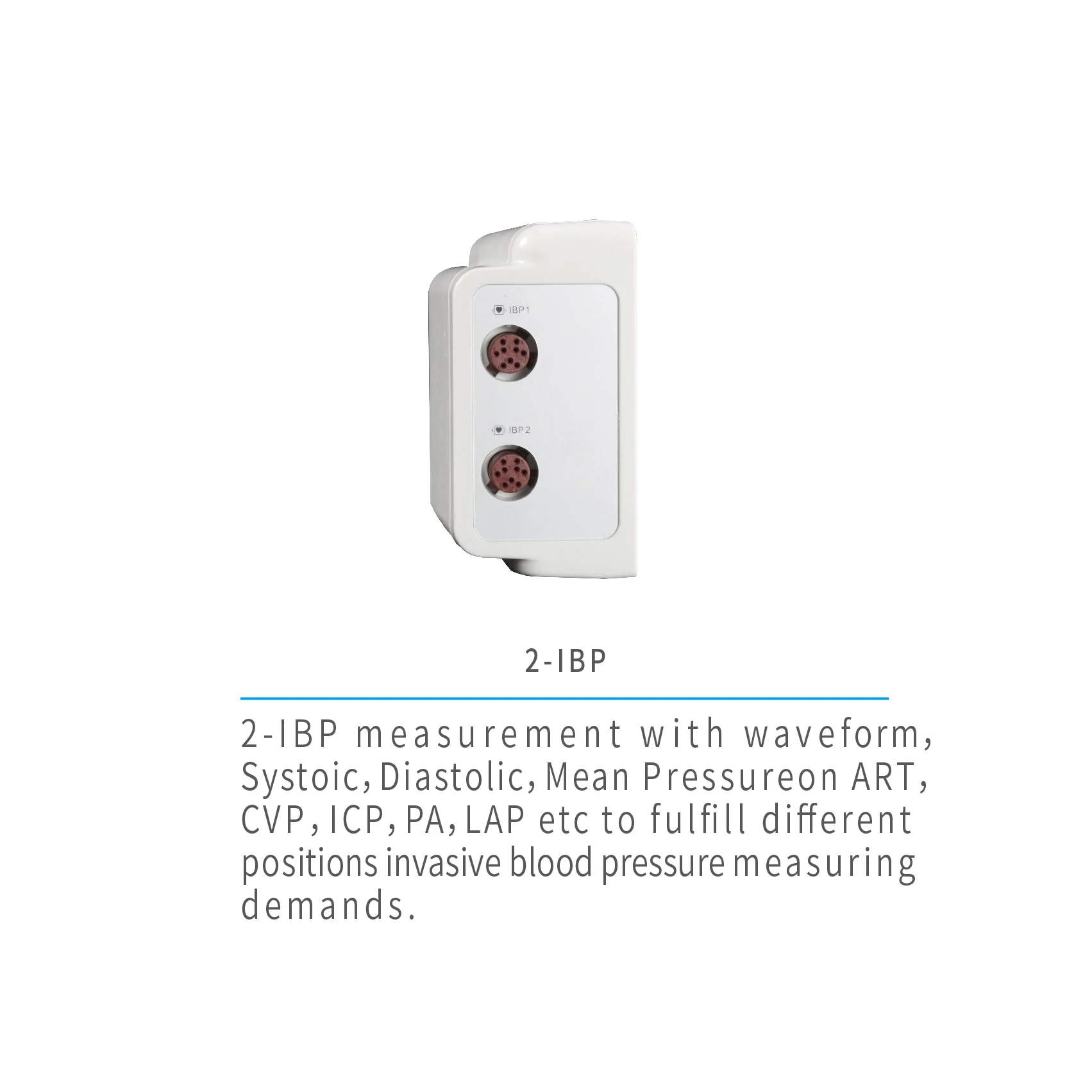

IBP

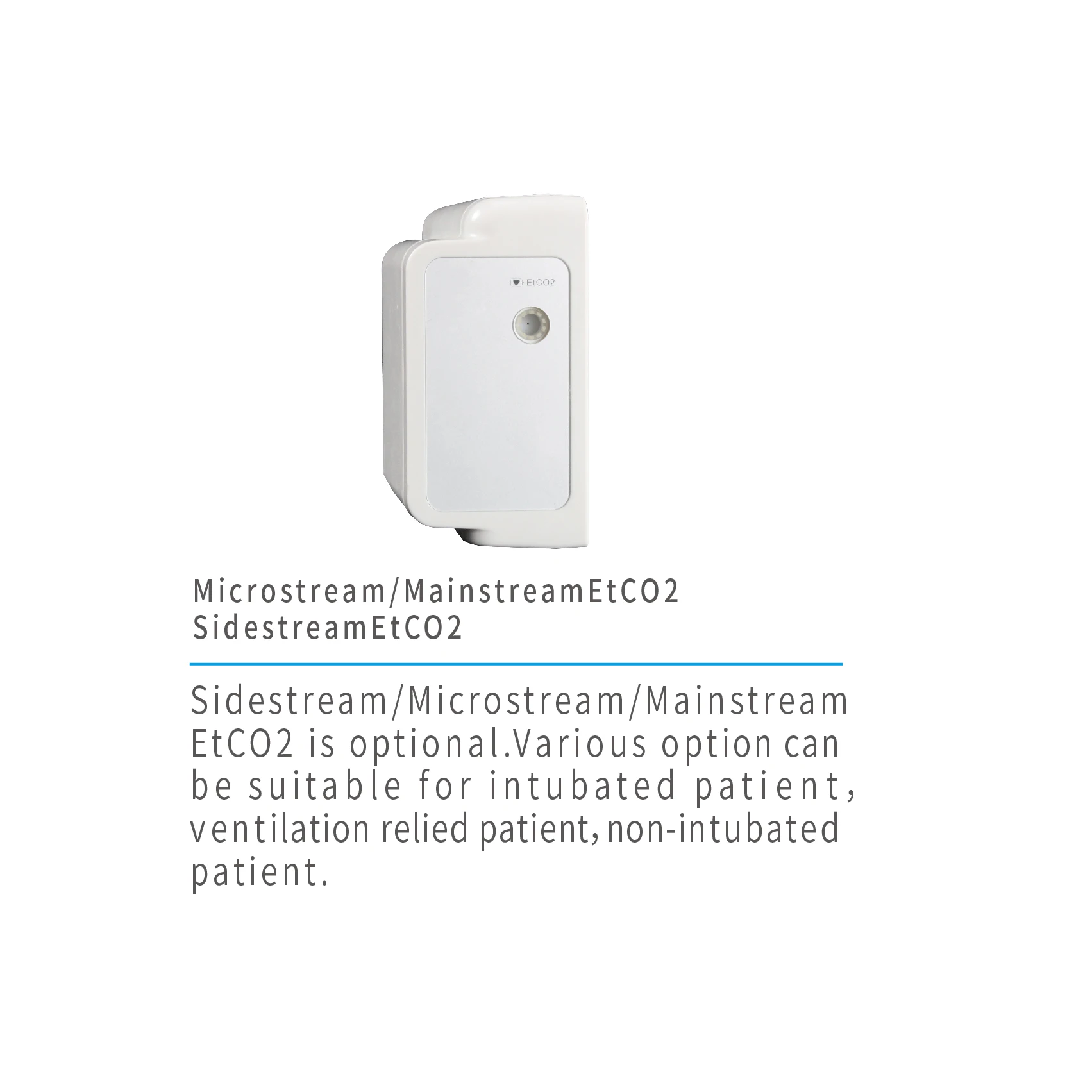

CO2


Nellcor SpO2


Printer











Certifications
