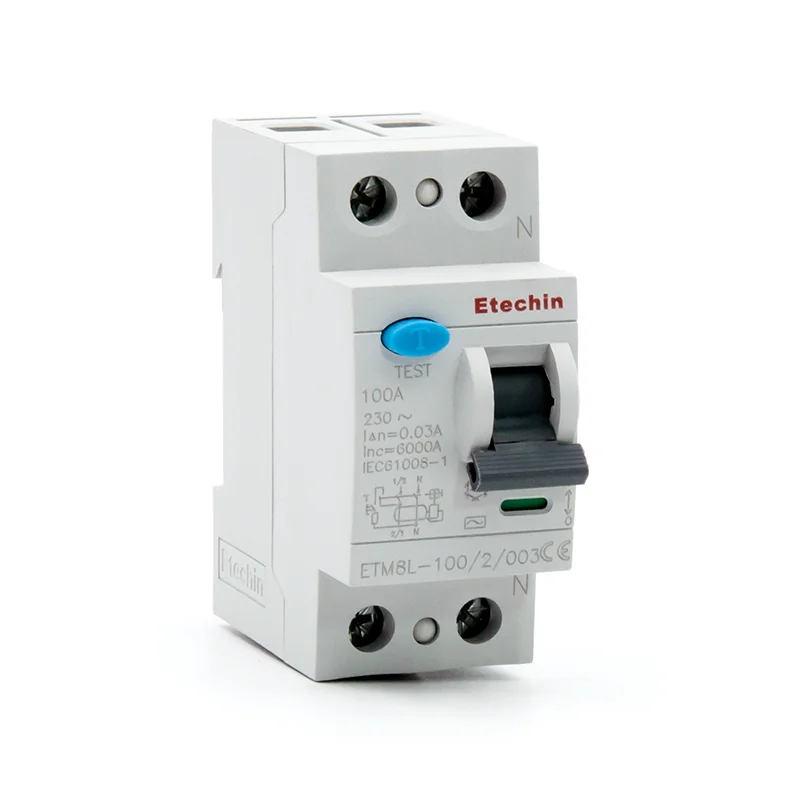

ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P N GFCI

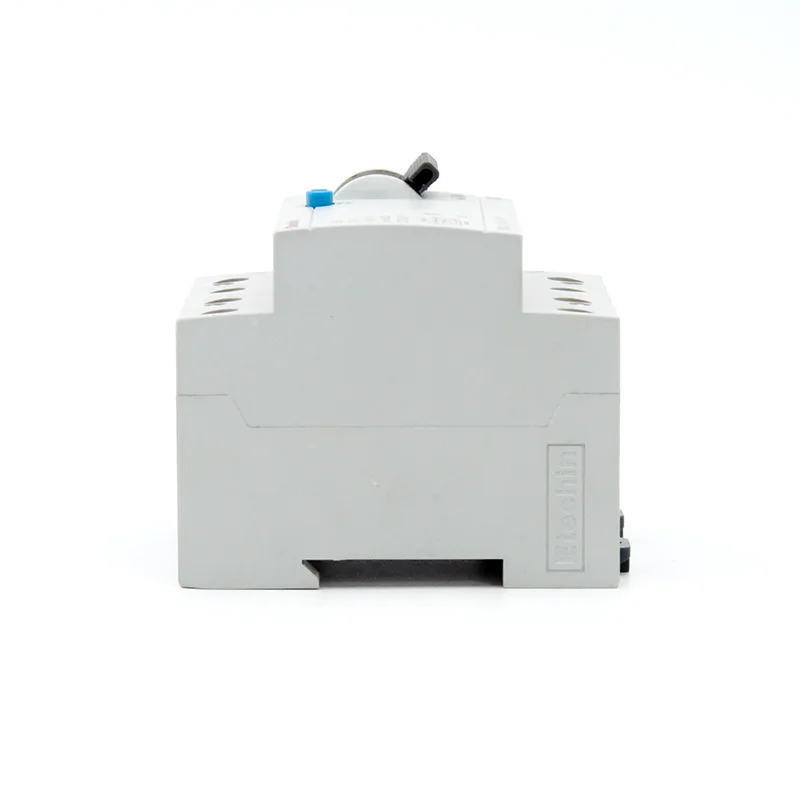

ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P + N GFCI

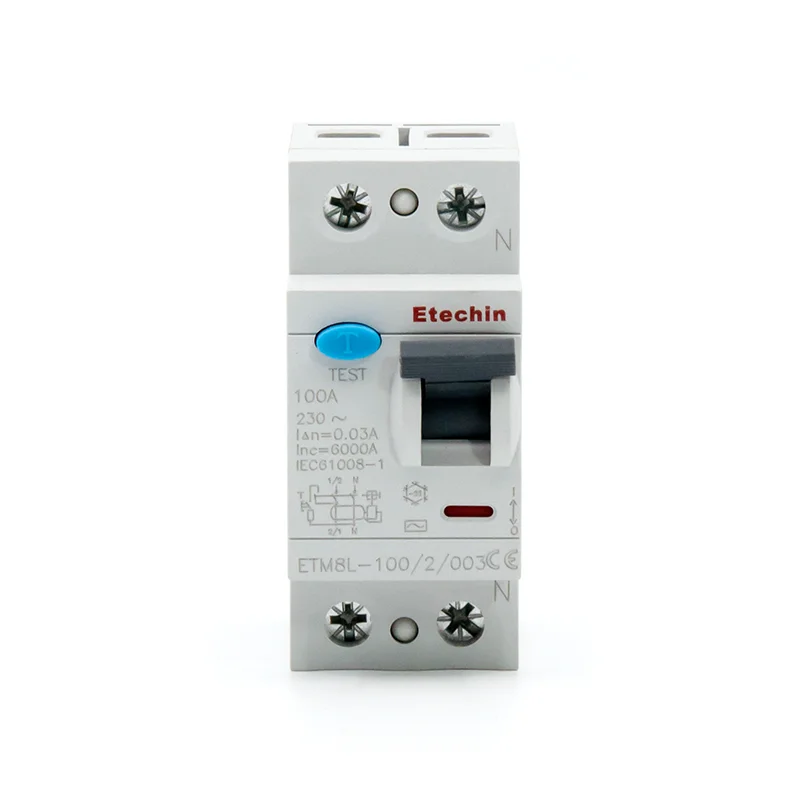

ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P + N GFCI

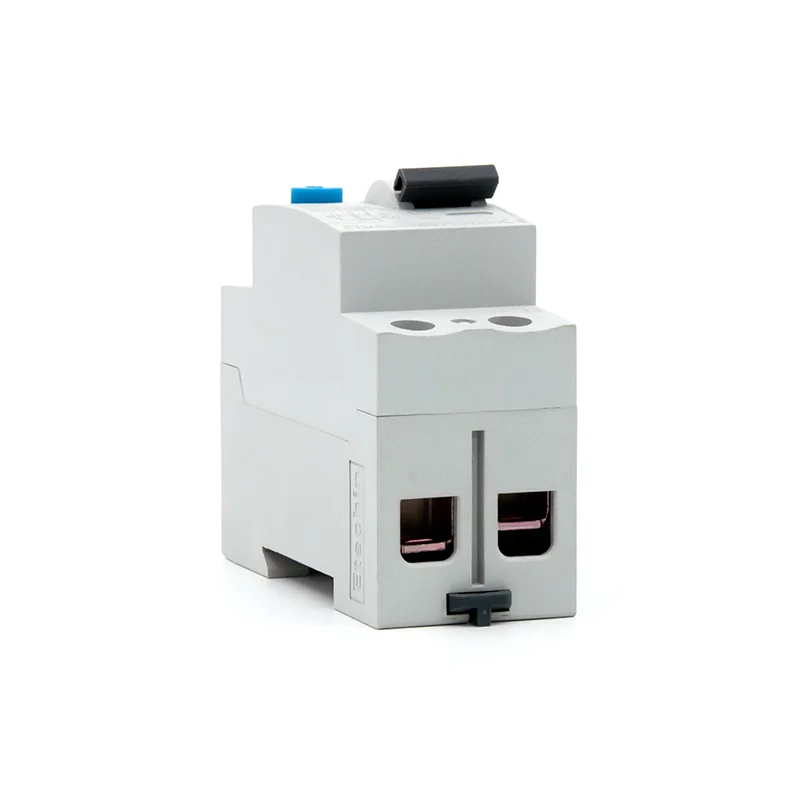

ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P + N GFCI

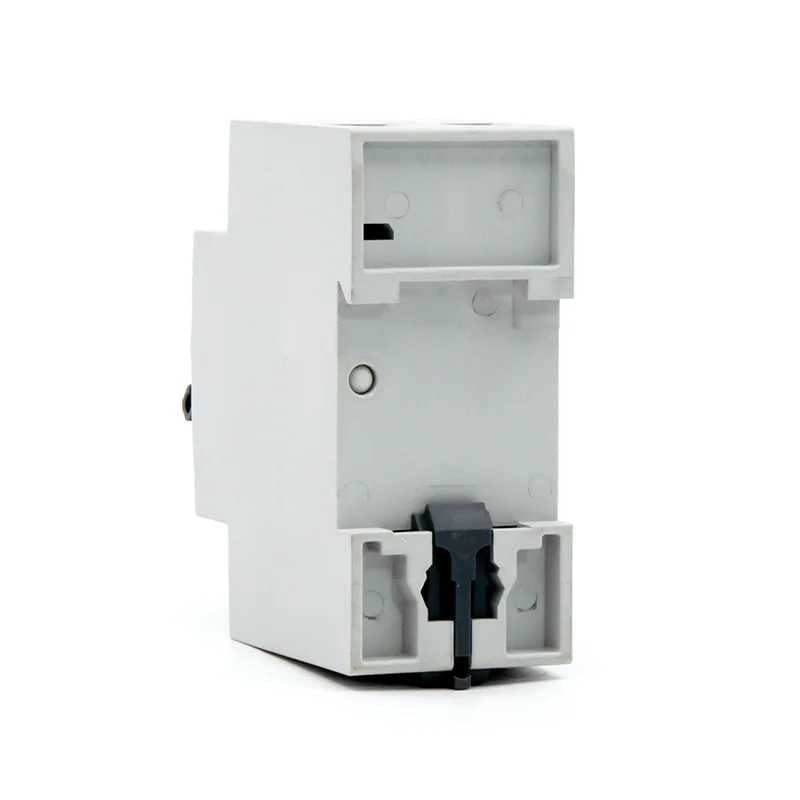

ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P + N GFCI

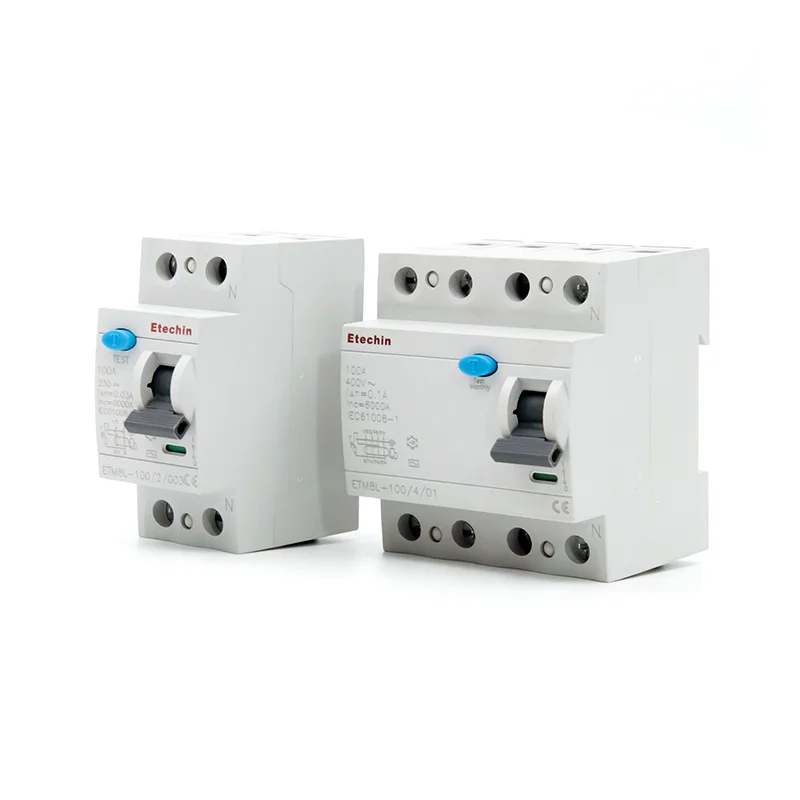

ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P + N GFCI
ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P + N GFCI

ETM8L 2 poles RCCB Residual Current Circuit Breaker Factory Sales Magnetic Electro magnetic Interruptores 30mA 10mA P N GFCI

Share on (1600466249209):


Price:

Quantity:


Product Overview

Description



Products Description




Miniature circuit breaker: ETM8L
Etechin Residual Current Circuit Breaker is applicable to electric circuits with rated voltage 230/400~240/415V AC, frequency 50/60Hz and rated current up to 100Amp.

1. Etechin RCCB with rated sensitivity up to 10mA could be used as supplementary protecting device in case other protecting device fails its protection against electric shock.
2. Etechin RCCB designed for household installation and other similar application, is for non-professional operation, and no maintenance is required.
3. Both Pin or Fork busbar connection.
4. Protection against fire hazard caused by insulation faults.
Protection against the effects of sinusoidal alternating earth fault currents.
Protection against indirect contacts and additional protection against direct contacts.
5. Used in residential building, non-residential building, energy sources, industry and infrastructure.
6. Switching and isolation function


SPECIFICATION
Standard
IEC/EN 60898-1
Electrical features
type(wave form of the earth leakage sensed)
AC,A,AC-G,A-G,AC-S,A-S,A-SI
Electrical
features
Rated current in
A
25,40,63,80,100
Poles
2P 4P
Rated voltage Ue
V
230/400,240/415
Rated sensitivity I△n
A
0.01 for 25A,0.03,0.1,0.3
Insulation coltage Ui
V
500
Rated residual making
A
500(In=250A/40A),1000(In=80A/100A)
and breaking capacity I △m
630(In=63A)
Short-Circuit current Inc=I △n
A
6000/10000
break time under I △n
S
≤0.1（Normal type),10ms~300ms(G type).150ms~500ms(S type)
Rated frequency
Hz
50/60Hz
Rated impulse withstand voltage (1.2/50)Uipm
V
6000
Dielectric test voltage at and ind.Freq.for 1min
KV
2.5
Pollution degree
2
Mechanical features
Electrical life
2000
Machanical life
2000
Fault current indicator
Yes
Protection degree
IP 20
Ambient temperature(with daily average≤35°C)
°C
-5~+40
Storage temperature
°C
-25...+70
Installation
Terminal connection type
Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable
mm²
50
AWG
18-3/18-2
Terminal size top/bottom for busbar
mm²
44485
AWG
18-8/18-5
Tightening torque
N*m
2.5
In-lbs.
22
Mounting
On DIN rail EN 60715(35mm)
by means of fast clip device
Connection
From top and bottom


Recommend Products
