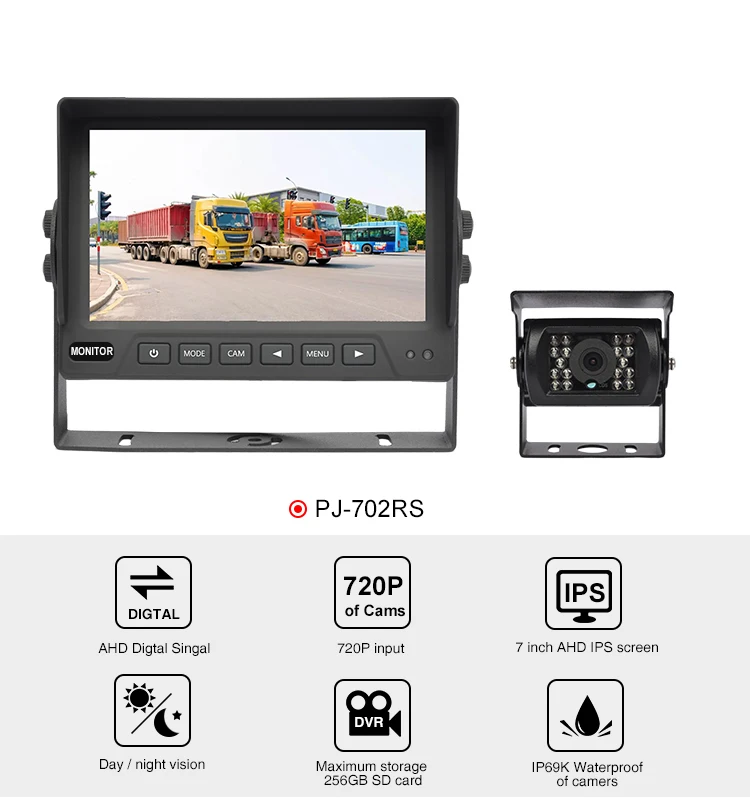

AHD 720P 1080P HD Rear View 7 inch IPS Car Vehicle Monitor Reversing Aid Backup Bus Truck Rearview Camera System
- Category: >>>
- Supplier: Guangzhou Pj-Auto Electronic Technology Limited
Share on (1600466249398):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Features:

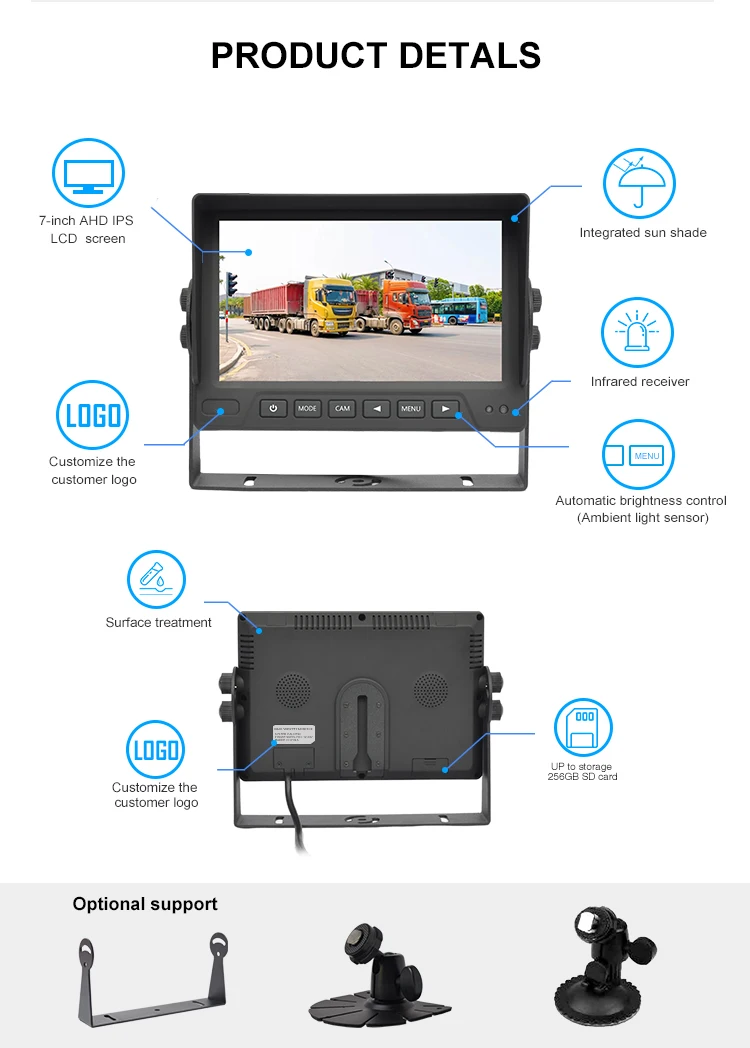

Monitor :
*Support mixing connection of cameras of different formats
*High brightness and high resolution display
*Fast boot up and fast switching by button or trigger
*DC12-36V wide voltage range, industrial level PCB design with protection against over-voltage, under-voltage, reverse polarity,static and surge, etc.
*4-pin aviation connector with waterproof cover
*Various brackets optional
*Up to 3 x video/audio/trigger inputs customizable for this series.

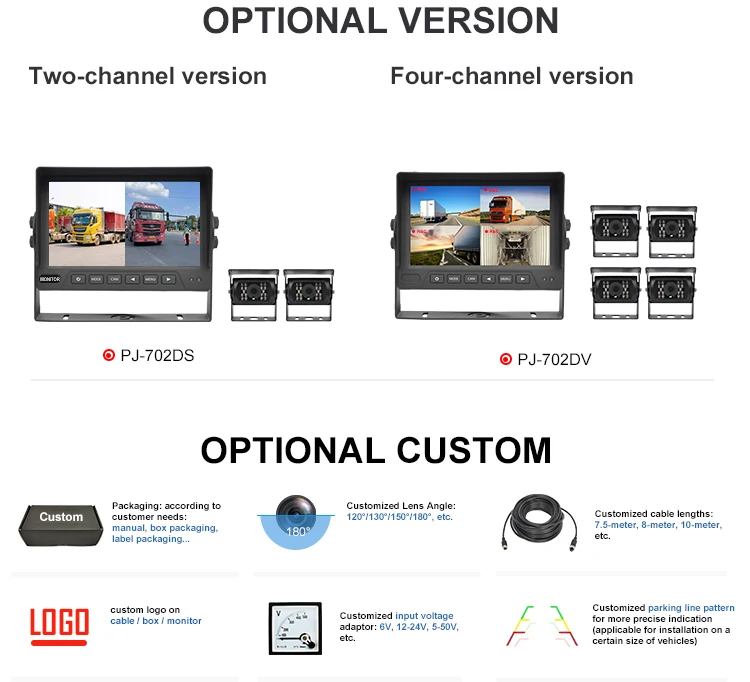

*1/2/3 x video inputs optional
*Rubber finish, integrated sunshade
*6 x electronic buttons with backlight

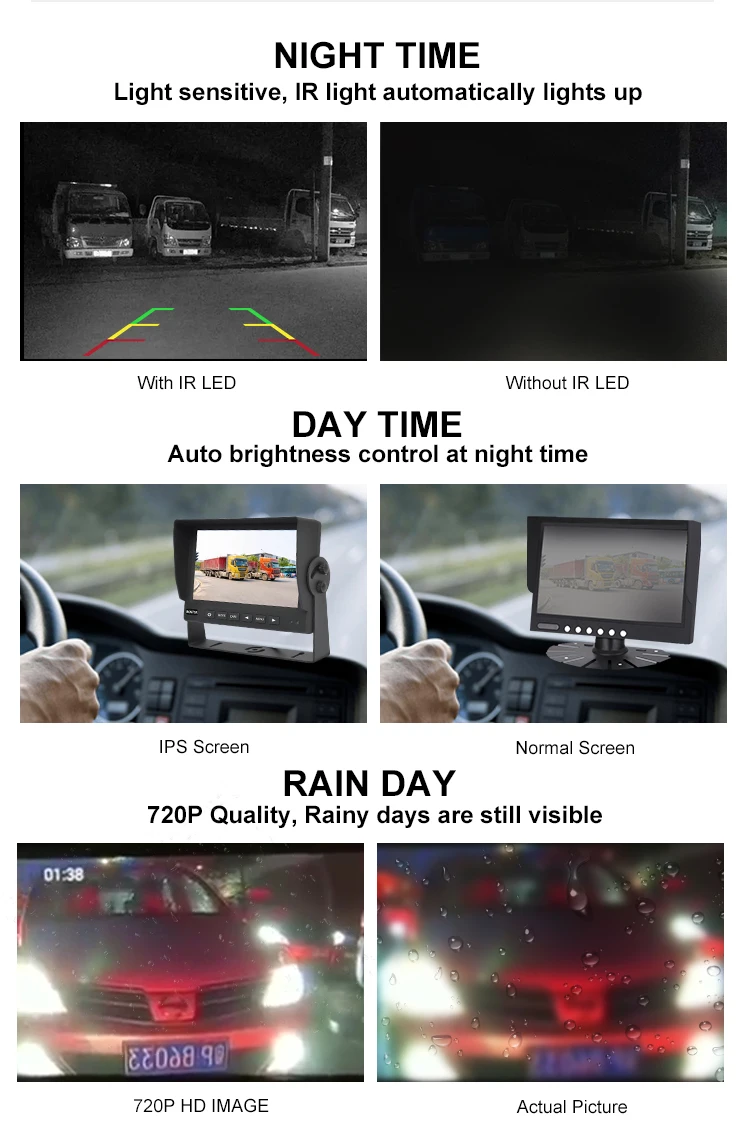

*Auto dim for night mode
*OSD menu for setting of language, mirror image, parking grid on/off, etc.
*Full compatibility with AHD 720P/1080P & CVBS (NTSC/PAL)
*Support mixing connection of cameras of different formats
*High brightness and high resolution display
*Fast boot up and fast switching by button or trigger
*DC12-36V wide voltage range, industrial level PCB design with protection against over-voltage, under-voltage, reverse polarity,static and surge, etc.
*4-pin aviation connector with waterproof cover
*Various brackets optional
*Up to 3 x video/audio/trigger inputs customizable for this series.
*1/2/3 x video inputs optional
*Rubber finish, integrated sunshade
*6 x electronic buttons with backlight
*Auto dim for night mode
*OSD menu for setting of language, mirror image, parking grid on/off, etc.

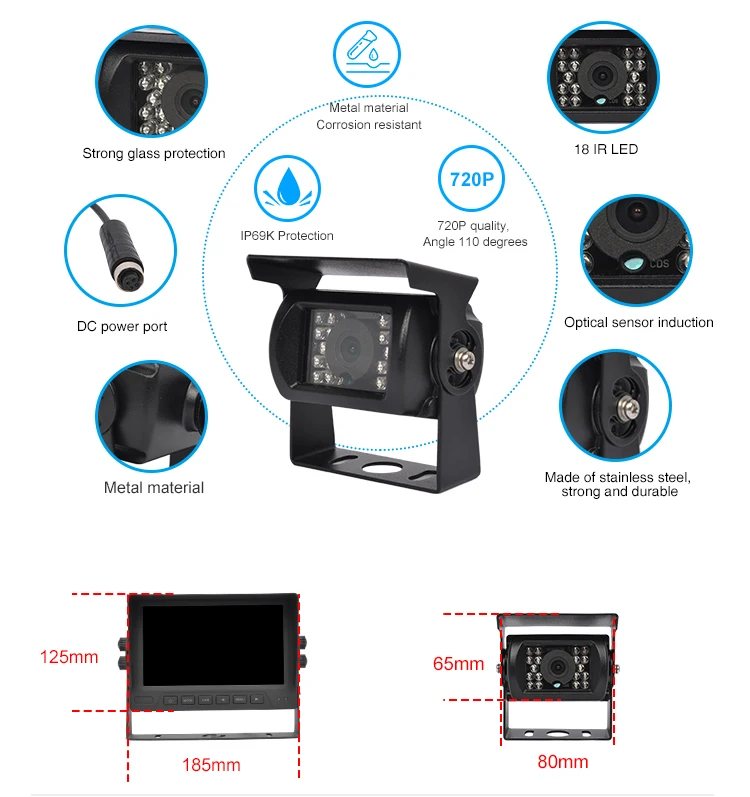

Camera :
*Zinc alloy body
*10G+ anti-vibration
*IP69K protection
*IR LED lights: 18pcs
*FOV: 120° digonal
*Audio optional
*Auto heating optional
*Color: Black (white optional)
*10G+ anti-vibration
*IP69K protection
*IR LED lights: 18pcs
*FOV: 120° digonal
*Audio optional
*Auto heating optional
*Color: Black (white optional)
Car Camera specifications
Image Device | 1/3” CMOS | Waterproof Grade | IP69K |
Frame Rate | 25fps /30fps | Effective Pixels | 1288 (H) x 976 (V) |
Pixel Size | 2.8 μm x 2.8 μm | Resolution | 720P |
Video Output | 1.0Vp-p, 75Ohm | AGC | Auto |
S/N Ratio | Better than 52dB | White Balance | Auto |
Operating Temperature | –20℃ ~ 65℃, RH95%MAX. | Storage Temperature | –30℃ ~ 80℃, RH95%MAX. |
Power Supply | DC12V / DC12~24V | Audio | Optional |
Viewing Angle | 120° | Image mode | Mirror/Normal image switch |
Minimum Illumination | 0 Lux (with IR) | Night vision distance | 8~10m |
Car Monitor specifications
Panel | 7’’ IPS | Aspect Ratio | 16:9 |
Resolution | 1024x3(RGB)x600 | Operating Temperature | -20~+70℃ |
Brightness | 500 cd/m² | Storage Temperature | -30~+80℃ |
Contrast | 700:1 | Power Consumption | Max.25W |
Viewing Angle | 85 /85 /85 /85 (L/R/U/D) | Power for Cameras | Max. 4×600mA, 12V |
Voltage Range | DC 12V-36V | Operating Pressure | 10~110g |
Standard Inputs | 3 x video OR 2 x video/audio | Initializing Time | 3 seconds |
TV System | PAL / NTSC | Switching Time | 1.5 seconds |
