XZKD95 3A Hydraulic underground core sample drilling machine for mineral exploration
- Category: >>>
- Supplier: Wuxi Xizuan Geological Drilling Equipment Co. Ltd.
Share on (1600466281013):
Product Overview
Description
Product Description

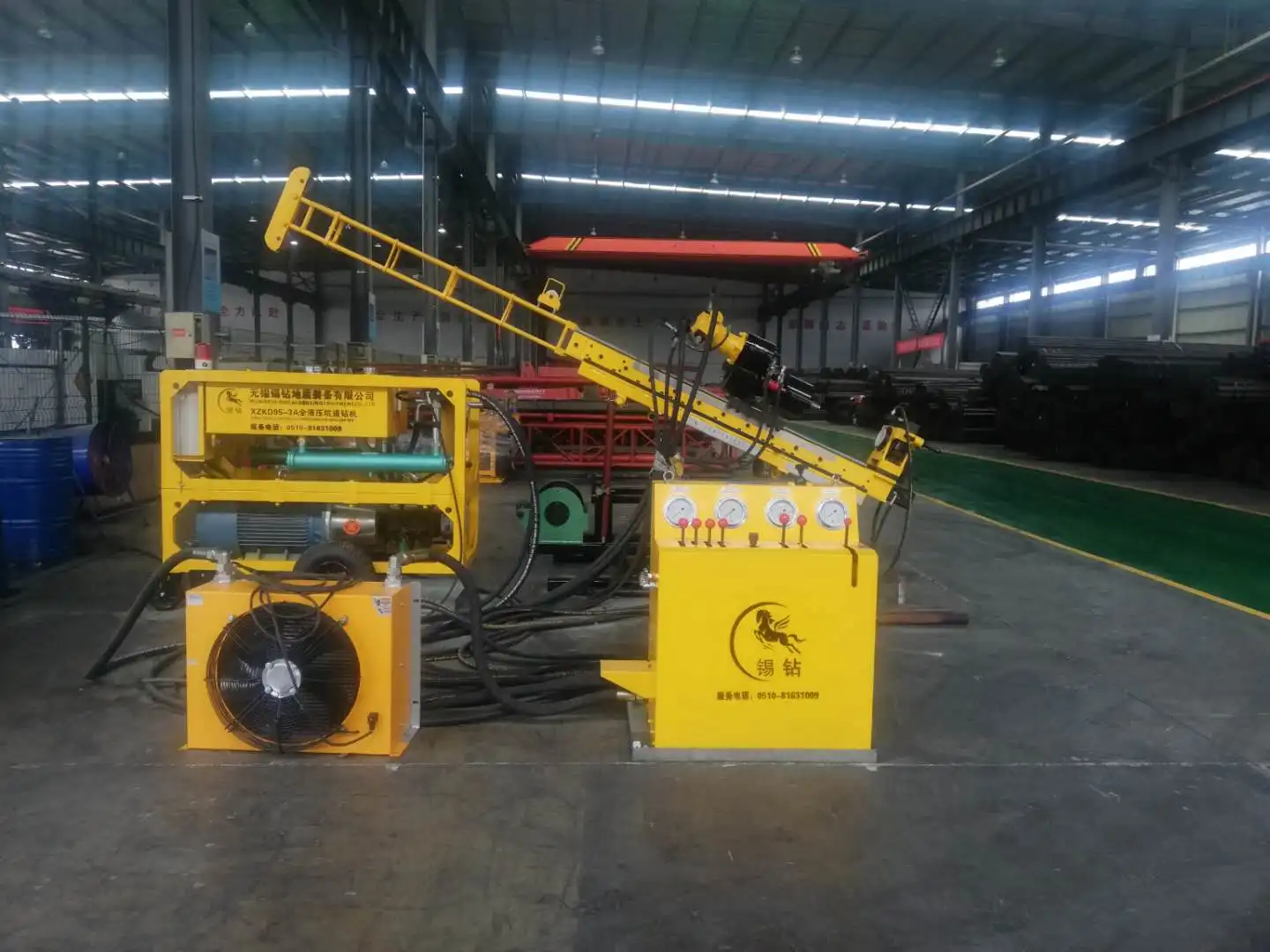

XZKD95-3 Hydraulic underground core drilling machine for mineral exploration
Hydraulic underground core drilling rig is suitable fro drilling holes for the purpose of mine exploring,also they could be used in surface coring,railway engineering,tunneling,construction and water conservancy project. You will sure benefited a lot by it excellent and reliable performance.
Features:
1.Oil pump drive the motor to rotate,hydraulic cylinder working without turret.
2.The core drilling machine system of oatation,feed,pumping and clamping relies on fluid drive;making your drilling work smooth than any competitor;
3.Fast drilling speed can drill holes from any angle in work tunnel by column,beat applocablity;
4.With V-guide, the rig provides the highest concentrivity about principal axis;
5.Easy to maintenance,repair,disassembly,installation and movement.
All hydraulic underground core drilling rig is composed of power unit,machine body,control panel,rotation unit,rod holder and mud pump.
Our underground core drilling rig ranges:XZKD95-1 XZKD95-2 XZKD95-3
XZKD95-3 Technical specification:
| Spindle Rotational Speed | 280-1200r/min | Spindle torque | 1050NM |
| Axial Pulling Force | >65KN | Axial Pulling Force | >85KN |
| Hydraulic System Working Pressure | 20MPa | Maximum Pressure | 25MPa |
| Main Pump Maximum Pressure | 31.5Mpa | Auxiliary Pump Maximum Pressure | 25MPa |
| Power Head Stroke | 1600MM | Surface Drilling Angle | 0°-90° |
| Underground Drilling Angle | 0°-360° | Azimuth Angle | 0°-360° |
| Motor Power | 75KW | Motor Rotational Speed | 1480RMP |
| Machine body /Size | 2620*600*750MM | Weight | 1335KG |
| Power Unit | 1770*1000*1420MM | Weight | 805KG |
| Control Pannel | 700*400*1100MM | Weight | 80KG |
Drilling Depth:
| Bit OD/ID (MM) | Drill Rod OD(MM) | Rod Material | Downward | Horizontal | Upward |
| 95(HQ) | 88.9x5.5 | XZ850 | 400 | 350 | 250 |
| 75(NQ) | 69.9x4.8 | XZ850 | 600 | 500 | 300 |
| 59(BQ) | 55.6x4.8 | XZ850 | 700 | 600 | 350 |
Working site:
Packaging & Shipping
Our Services
Ø Provide the technical solutions;
Ø Manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client’s requirements.
Company Information
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have builded up our company since 2008.
2. Where is your factory located?
Our factory address is : No122XizhangRoad,GushanTown,JiangyinCity
3. How can i get to your factory?
Our factory is near shanghai Airport, we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 pc. We can send small value free samples like, warmly welcome you to come visit our company.
6.Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on
superior product and service.
