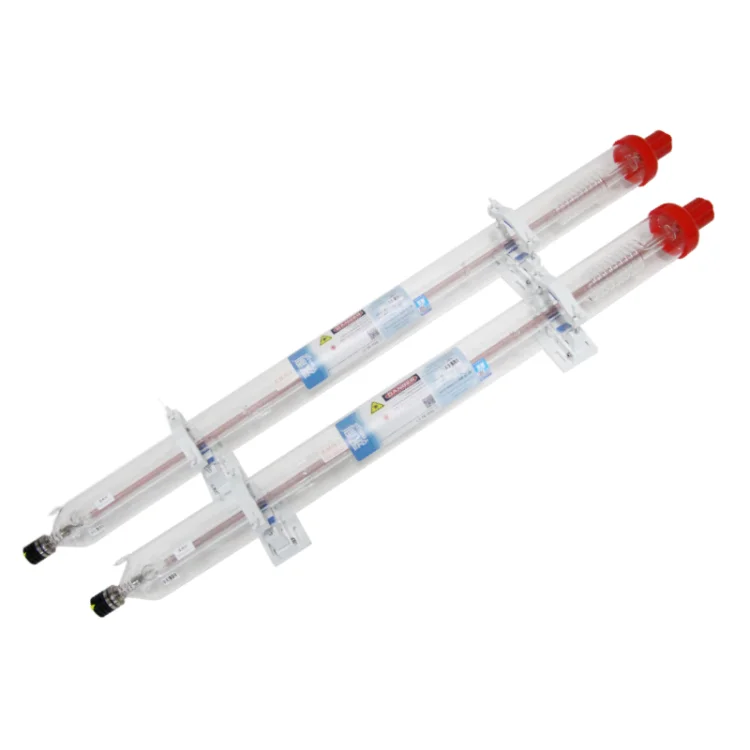

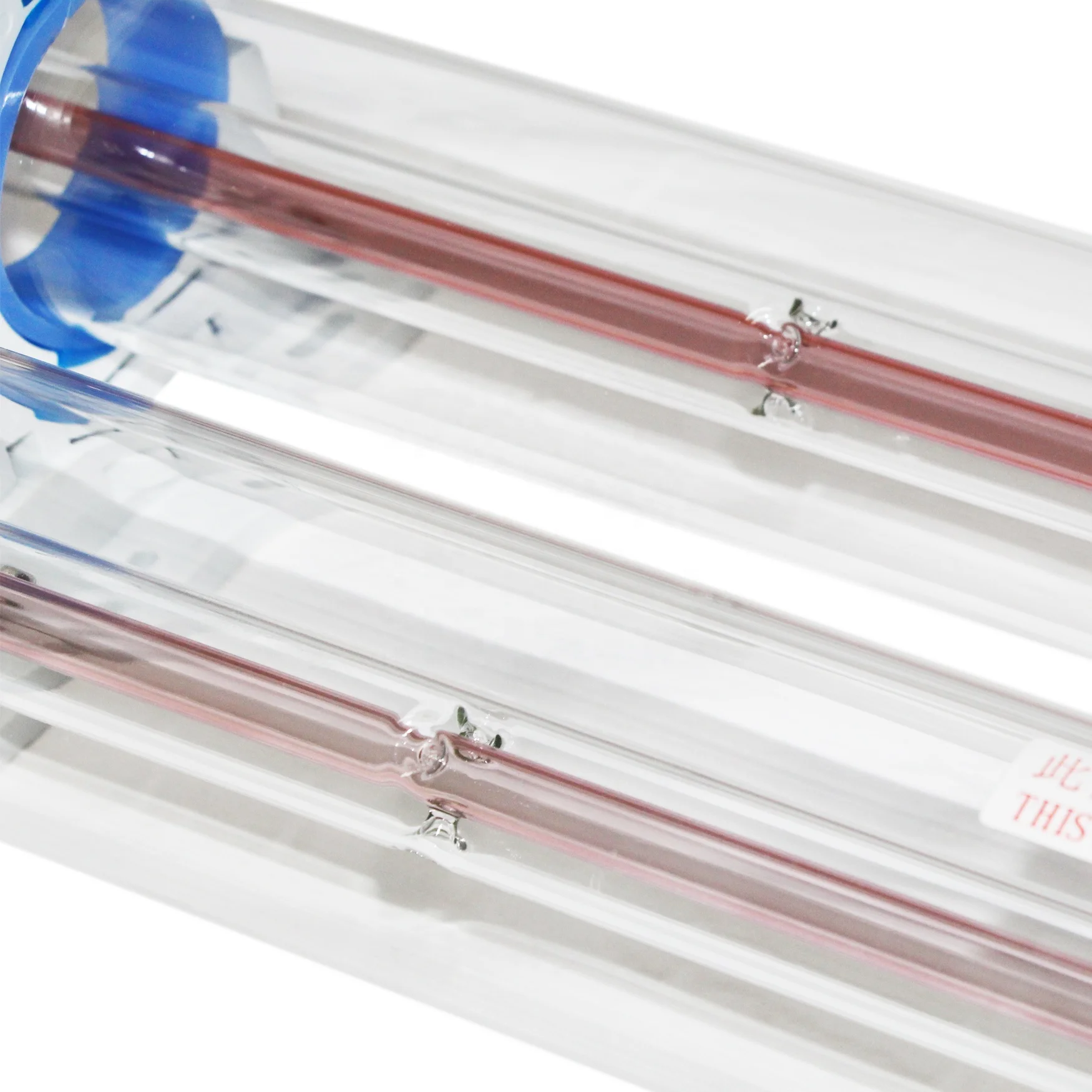

Sunlite Acrylic MDF foam board cutting A6s length 1650mm130w 150w co2 laser tube
- Category: >>>
- Supplier: Jilin Sunlite Laser Technology Co. Ltd.
Share on (1600466296212):
Product Overview
Description
Sunlite Acrylic MDF foam board cutting A6s length 1650mm130w 150w co2 laser tube
Products Description
Original Patented Manufacturing Process : YongLi As series 80W 90W 100W 130W 150W co2 laser tube are designed, engineered, and built with safety and reliability in mind. We use parts from the world’s leading suppliers and build the co2 laser tube to international standards. Using original Catalytic technology to get perfect laser spot, stable power rates, and long life span.
Worry Free Shipment: All As Co2 laser tubes for co2 laser cutting machine have commercial insurance before shipping to you, if
there is any broken in transport,we will send the new one free again depend on the broken photos and damage report from the courier.
High-Quality Optics: The YongLi co2 laser tubes for co2 Laser Engraver Cutter Engraving Machine are equipped with top-quality,
American II-VI lenses to achieve strong and stable output power and good laser beam mode. Imported tube ensures a Stable cavity structure.
High quality laser beam and high power output: Double laser cutting speed, service life is about 10000-12000 hours longer than
ordinary laser Glass Tube. We have 12 months warranty for YongLi As Series laser tube;
High Efficient Nano Catalyst Coated: Unique laser coating technology enhances the co2 laser tubes power and improves its service
life time, co2 laser cutting speed ,quality of laser beam, and last-longer than ordinary CO2 laser tubes
Worry Free Shipment: All As Co2 laser tubes for co2 laser cutting machine have commercial insurance before shipping to you, if
there is any broken in transport,we will send the new one free again depend on the broken photos and damage report from the courier.
High-Quality Optics: The YongLi co2 laser tubes for co2 Laser Engraver Cutter Engraving Machine are equipped with top-quality,
American II-VI lenses to achieve strong and stable output power and good laser beam mode. Imported tube ensures a Stable cavity structure.
High quality laser beam and high power output: Double laser cutting speed, service life is about 10000-12000 hours longer than
ordinary laser Glass Tube. We have 12 months warranty for YongLi As Series laser tube;
High Efficient Nano Catalyst Coated: Unique laser coating technology enhances the co2 laser tubes power and improves its service
life time, co2 laser cutting speed ,quality of laser beam, and last-longer than ordinary CO2 laser tubes
Product Details

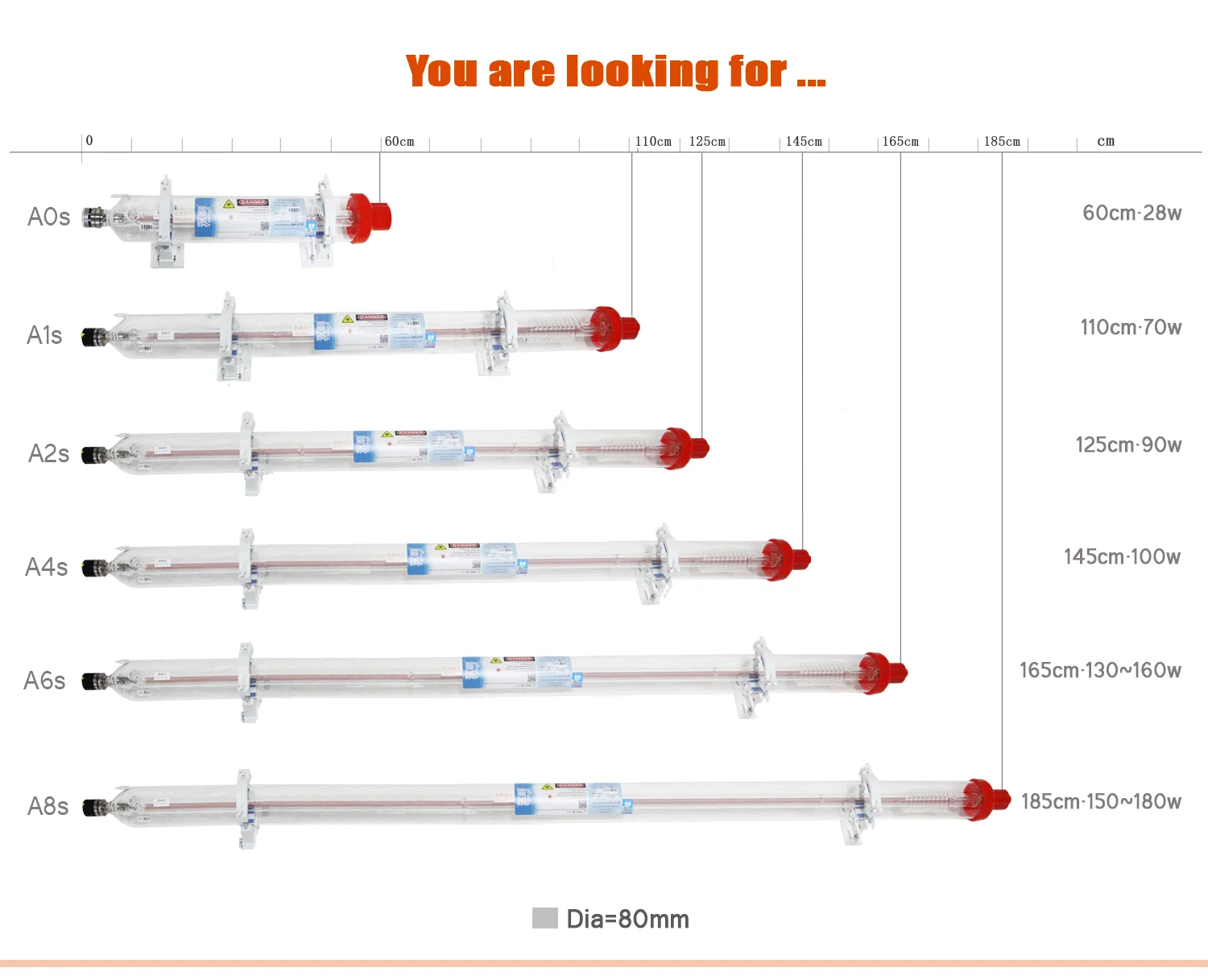

MODEL | A1s | A2s | A4s | A6s | A8s |
Tube Length | 3 ft. 7 in. (1100 mm) | 4 ft. 2 in. (1250 mm) | 4 ft. 9 in. (1450 mm) | 5 ft. 5 in. (1650 mm) | 6 ft. 1in. (1850 mm) |
Tube Diameter | φ80±2mm/3.1 in. | φ80±2mm/3.1 in. | φ80±2mm/3.1 in. | φ80±2mm/3.1 in. | φ80±2mm/3.1 in. |
Rated Power | 75 | 90 | 100 | 130 | 150 |
Peak Power | 90 | 100 | 130 | 160 | 180 |
Wavelength | 10.6μm | 10.6μm | 10.6μm | 10.6μm | 10.6μm |
Operating Voltage(Kv AC) | 15 kV AC | 18 kV AC | 19 kV AC | 21 kV AC | 22 kV AC |
Operating Current (mA) | 18 mA | 21 mA | 22 mA | 24 mA | 28 mA |
Operational Life (hr.) | 8000-10000 hr | 8000-10000 hr | 10000-12000 hr | 10000-12000 hr | 10000-12000 hr |
Warranty(Months) | 10 | 12 | 12 | 12 | 12 |
Applicable Material | Acrylic/Leather/Paper/Plywood/MDF | Acrylic/Leather/Paper/Plywood/MDF | Acrylic/Leather/Paper/Plywood/MDF | Acrylic/Leather/Plywood/MDF/Stainless steel/Carbon steel | Acrylic/Leather/Plywood/MDF/Stainless steel/Carbon steel |

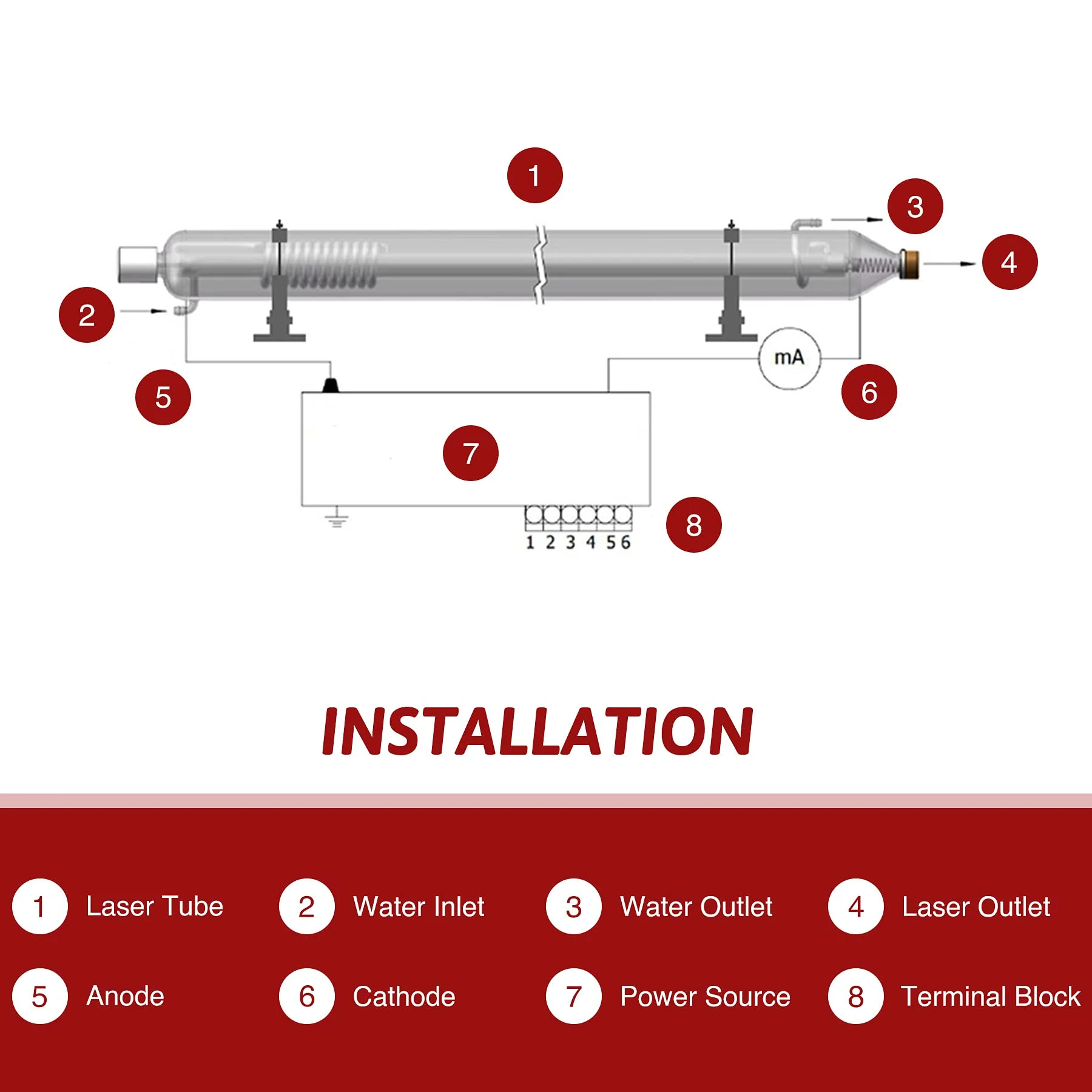

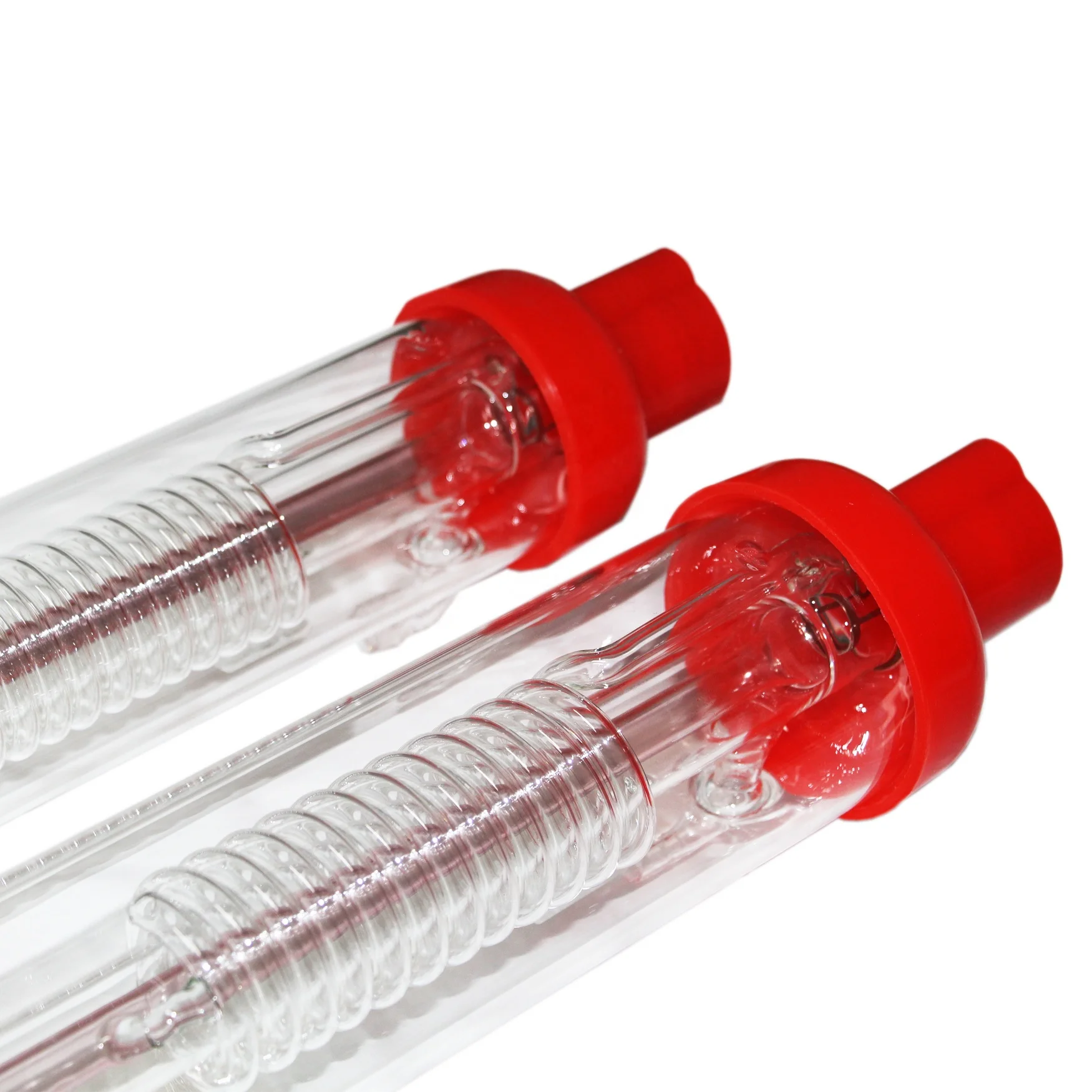

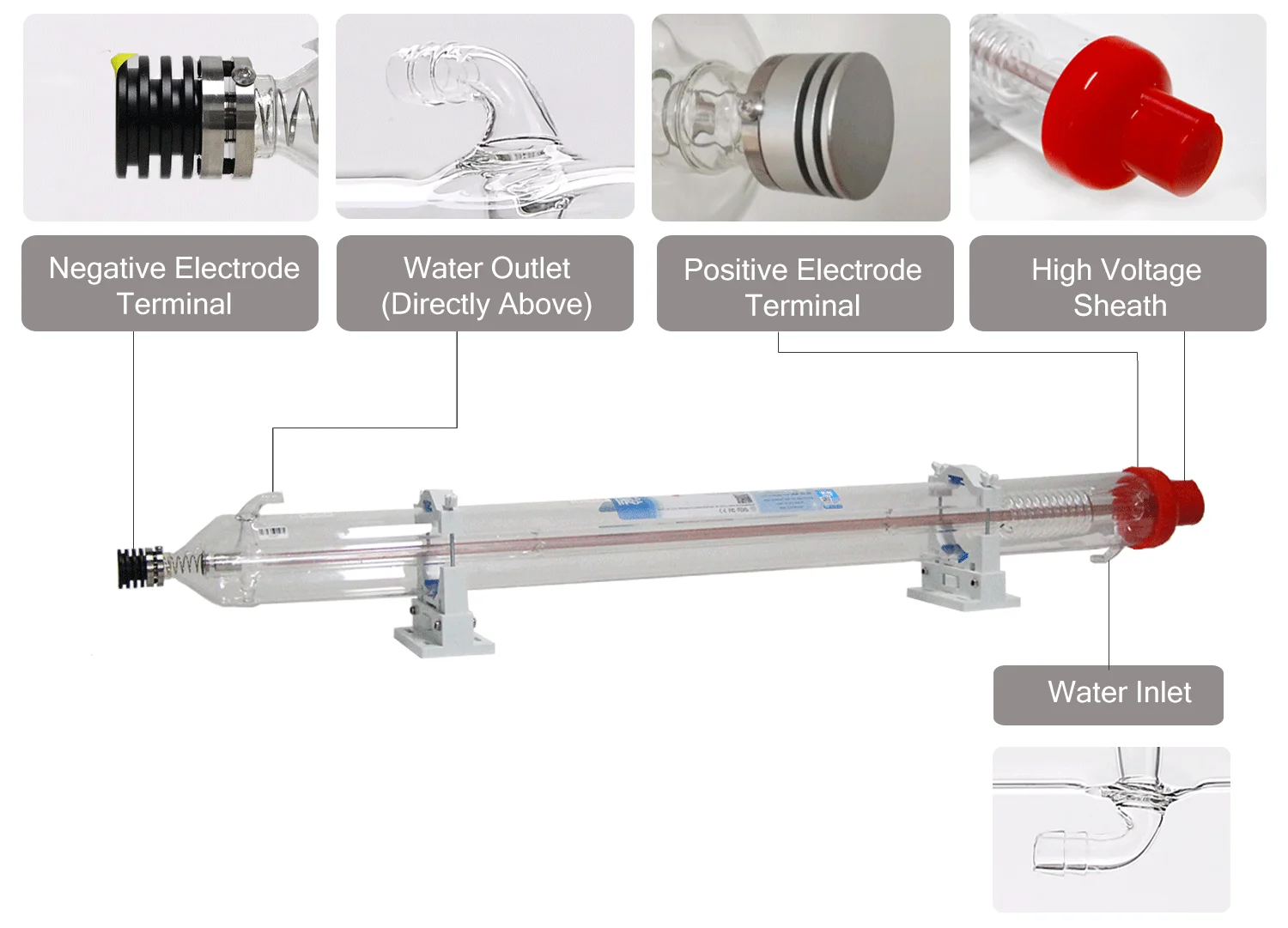

1. High voltage sheath: Seal the High pressure sheath with plastic wrap to prevent dust from entering and causing wet ignition.
2. Positive Electrode Terminal：Full Metal head structure, Special heat dissipation process to greatly reduce lens operating temperature. Adapting new unique screws wiring method, easy to connect and disassemble .
3. Water Inlet/Outlet:During installation,the water outlet mouth must upward, and always make sure that the water circulation is Low IN High OUT.

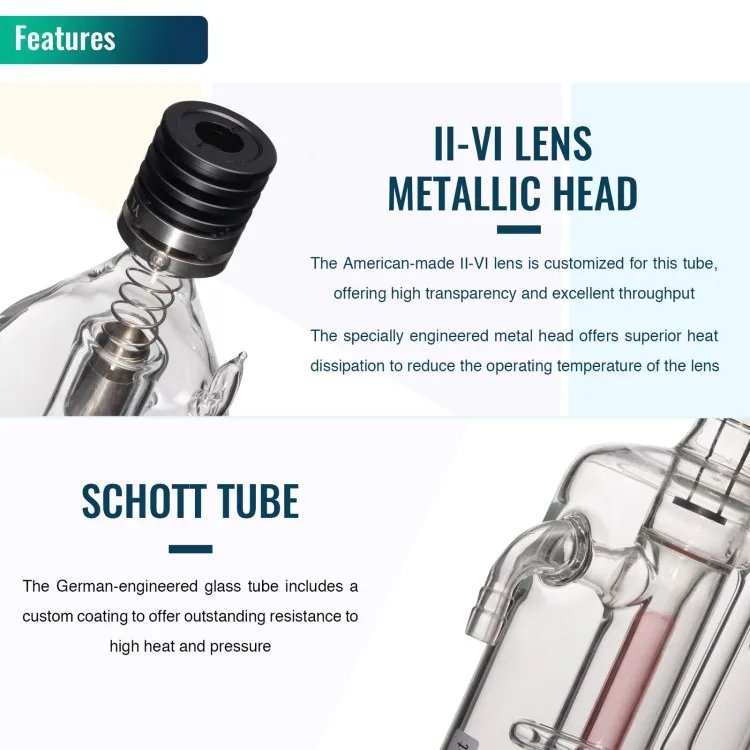

4. Negative Electrode Terminal: equipped with high quality, American II-VI lens to achieve strong and stable output power and best lase beam mode.
5. Extended Protection Tube for Output Lens Protection: The extended protection tube is recommended when Multi-layer plywood, PVC materials are to be cut. The extended protection tube should be installed to avoid laser lens damage or laser power reduction caused by dust contaminating or laser tube heads temperature increasing
2. Positive Electrode Terminal：Full Metal head structure, Special heat dissipation process to greatly reduce lens operating temperature. Adapting new unique screws wiring method, easy to connect and disassemble .
3. Water Inlet/Outlet:During installation,the water outlet mouth must upward, and always make sure that the water circulation is Low IN High OUT.
4. Negative Electrode Terminal: equipped with high quality, American II-VI lens to achieve strong and stable output power and best lase beam mode.
5. Extended Protection Tube for Output Lens Protection: The extended protection tube is recommended when Multi-layer plywood, PVC materials are to be cut. The extended protection tube should be installed to avoid laser lens damage or laser power reduction caused by dust contaminating or laser tube heads temperature increasing

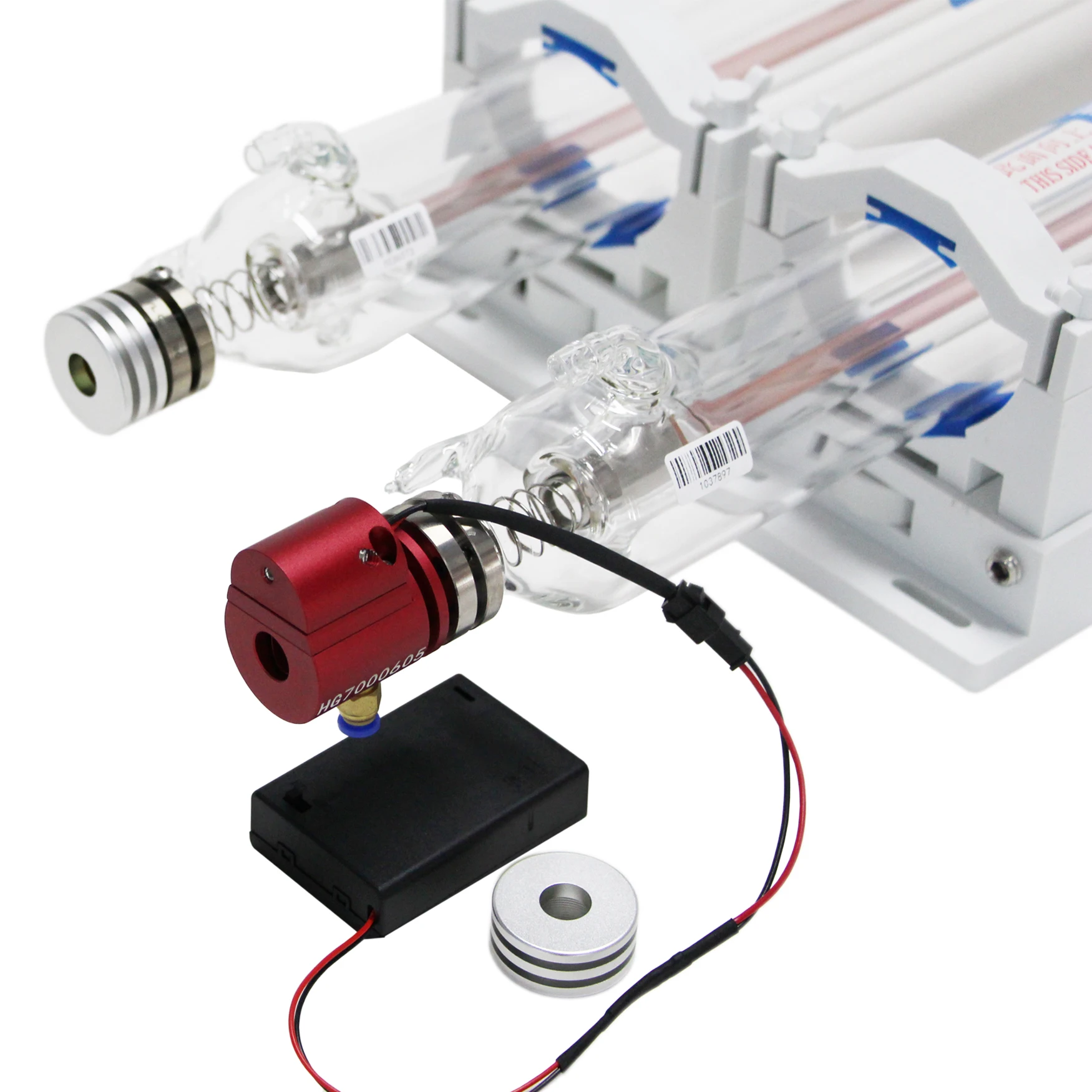

Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more
taping your mirrors!
Note: The Red Dot Laser Pointer is not universal model and it can not be compared with other brands laser tubes. It could only
work on YongLi As series Co2 Laser Tube and YongLi H series Co2 Laser Tubes.
taping your mirrors!
Note: The Red Dot Laser Pointer is not universal model and it can not be compared with other brands laser tubes. It could only
work on YongLi As series Co2 Laser Tube and YongLi H series Co2 Laser Tubes.

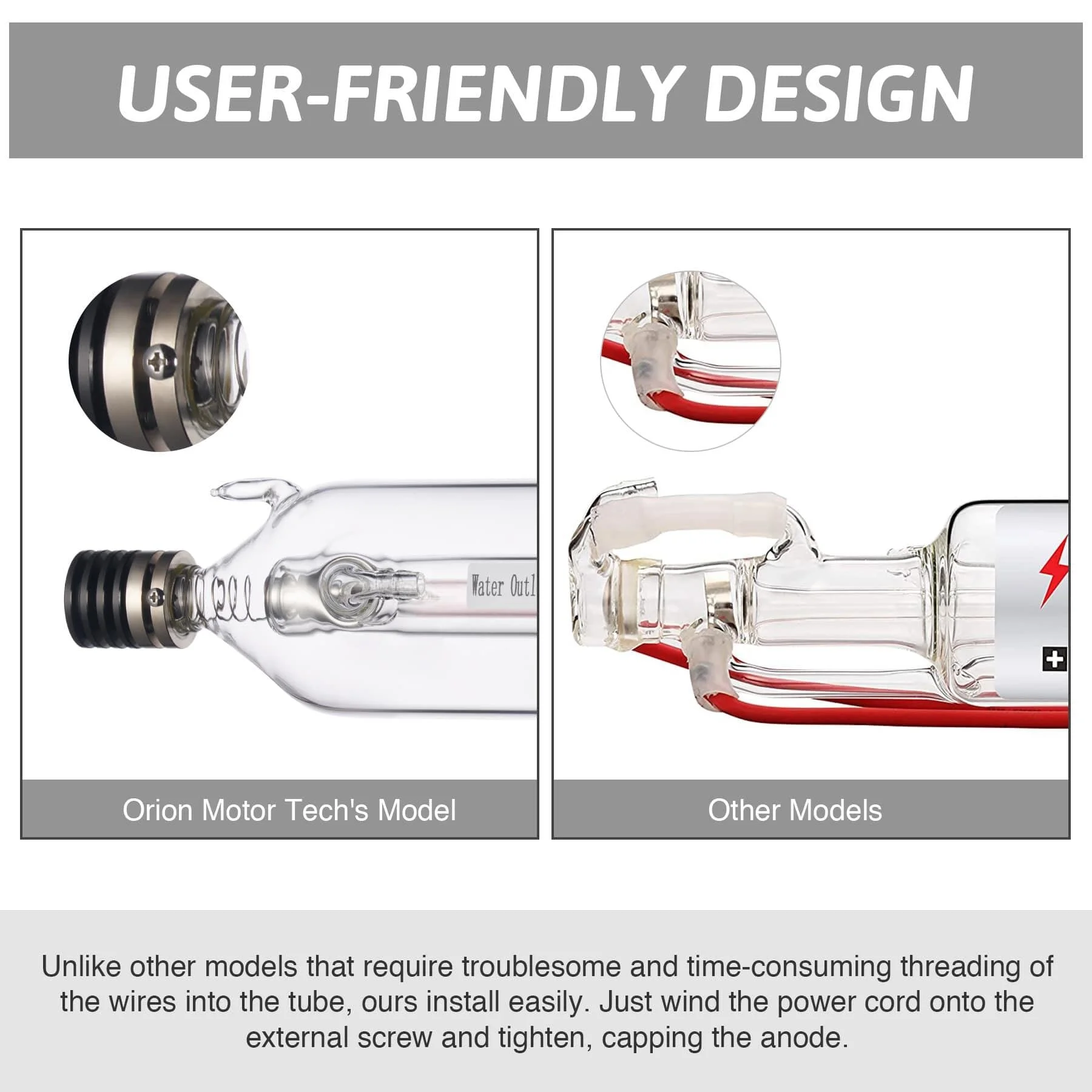

EASY TO INSTALL: The preinstalled YongLi cathode and anode terminal connections with a full metal structure allow safer and faster replacement. It installs quickly and easily: just wrap your power supply's connecting wires around the anode and cathode's connections and hook your water cooling system to the pipe fittings at either end.
SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.
SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.
YongLi Top Class As series Co2 Laser Tube is Universal model, it’s a great replacement for the same power or same length laser tube on the Laser Cutting Machine or Co2 Laser Engraving Machine.
No matter how well maintained, laser tubes—like light bulbs—are temporary parts that eventually burn out.
Replace your old tube with The High Qulity As Series laser tube. Made of tough German Schott imported glass raw, this durable long
service life As series CO2 laser tube leaves competitors behind. Designed for medium to large-sized CO2 laser cutting engraving
machines
Order today knowing your purchase is protected by YongLi good name, premium materials, and superior craftsmanship.
No matter how well maintained, laser tubes—like light bulbs—are temporary parts that eventually burn out.
Replace your old tube with The High Qulity As Series laser tube. Made of tough German Schott imported glass raw, this durable long
service life As series CO2 laser tube leaves competitors behind. Designed for medium to large-sized CO2 laser cutting engraving
machines
Order today knowing your purchase is protected by YongLi good name, premium materials, and superior craftsmanship.
Packaging & Shipping
Trusted Shipping
Our laser tube is carefully packed and tightly protected during shipment. If there's any flaw in the product, just tell us with a
photo and following confirmation we will get a new tube to you ASAP.
♦ Packing: Standard export packing, or customized packing as your request.
♦ Shipping: All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment.
♦ Professional transport company /shipping forwarder.

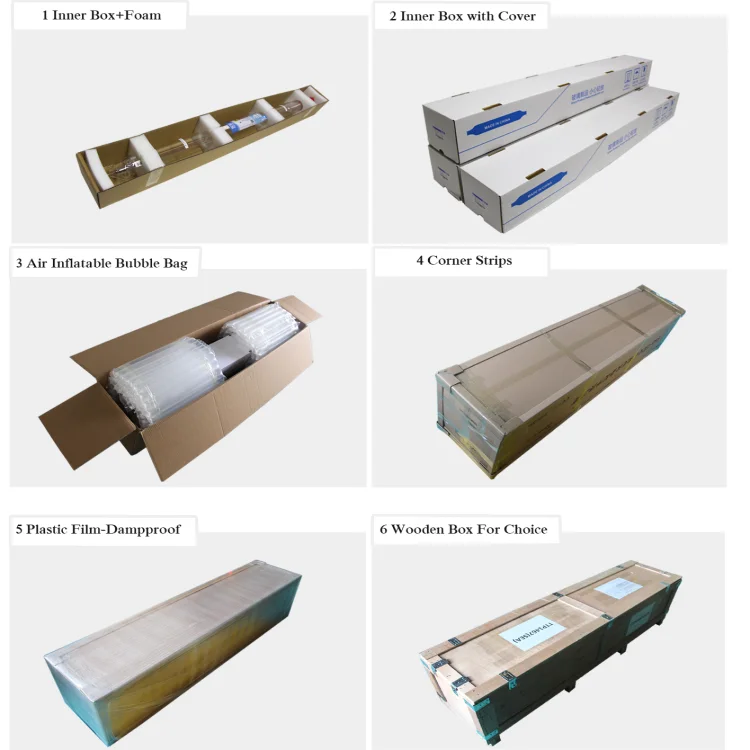

Following packing picture & dimensions for your reference, and if you have any questions about shipping can contact us at any time
Our laser tube is carefully packed and tightly protected during shipment. If there's any flaw in the product, just tell us with a
photo and following confirmation we will get a new tube to you ASAP.
♦ Packing: Standard export packing, or customized packing as your request.
♦ Shipping: All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment.
♦ Professional transport company /shipping forwarder.
Following packing picture & dimensions for your reference, and if you have any questions about shipping can contact us at any time
FAQ
Q: How would I know this tube compatible with my machine?
A: We suggest to refer the Accessories List of your machine first, to confirm the DIAMETER,
LENGTH and POWER of the tube. Size fits, compatible. Our Professional technicians are waiting to answer all your questions! Just
talk to us!!
Q: How does the product come packaged?
A: Tightly embrace the laser tube with high-density sponge. Double foam rubber, Double boxed.
We keep improving our packaging, listening patiently to the feedback form our customers. If
there any problem caused by transport, we will be responsible for it.
Q: Storage?
A: Laser tube is consumable, which means that a long-time storage may lead to power
attenuation. Thus, we recommend to buy it when need it. After receive the tube, test it first. If
there any problem, let us know in time, we will provide 3 months after-sales services for free.
Q: How to insulate the high-voltage end?
A: 1)After putting on the silicone tube, pour some glues inside. 2) Wrap a few more turns with
electrical tape.
Q: Beam does not exit Tube?
A: It may because of some incorrect operating of the laser machine. Feel free to let us know, and
get some professional support.
Q: Size of the water hose for inlet and outlet?
A: Tube of Diameter 7 mm x 11 mm (0711), or of Diameter 6 mm x 8 mm (0608). (0711 is better
because it’s thicker.)
Q: Why choose BlueTimes Laser Tube?
A: We have more than 30 years of solid experience in laser industry, and we are the earliest seller of
CO2 Laser Tube. Over the years, we keep improving our product quality, as well as its function,
according to customer’s feedback. Our goal is to create value for our customers and always be
responsible for the products we sell. We are your trusted partner for laser accessories.
A: We suggest to refer the Accessories List of your machine first, to confirm the DIAMETER,
LENGTH and POWER of the tube. Size fits, compatible. Our Professional technicians are waiting to answer all your questions! Just
talk to us!!
Q: How does the product come packaged?
A: Tightly embrace the laser tube with high-density sponge. Double foam rubber, Double boxed.
We keep improving our packaging, listening patiently to the feedback form our customers. If
there any problem caused by transport, we will be responsible for it.
Q: Storage?
A: Laser tube is consumable, which means that a long-time storage may lead to power
attenuation. Thus, we recommend to buy it when need it. After receive the tube, test it first. If
there any problem, let us know in time, we will provide 3 months after-sales services for free.
Q: How to insulate the high-voltage end?
A: 1)After putting on the silicone tube, pour some glues inside. 2) Wrap a few more turns with
electrical tape.
Q: Beam does not exit Tube?
A: It may because of some incorrect operating of the laser machine. Feel free to let us know, and
get some professional support.
Q: Size of the water hose for inlet and outlet?
A: Tube of Diameter 7 mm x 11 mm (0711), or of Diameter 6 mm x 8 mm (0608). (0711 is better
because it’s thicker.)
Q: Why choose BlueTimes Laser Tube?
A: We have more than 30 years of solid experience in laser industry, and we are the earliest seller of
CO2 Laser Tube. Over the years, we keep improving our product quality, as well as its function,
according to customer’s feedback. Our goal is to create value for our customers and always be
responsible for the products we sell. We are your trusted partner for laser accessories.
Company Profile
Our Company
Sunlite Laser Co.,Ltd is established in 2005 in ChangChun, CHINA. Sunlite is from a research
branch of University and has since then become a world leader in the field of laser technology. Sunlite develops, manufactures and markets laser spare parts for marking, cutting and engraving, as well as co2 laser core part- the co2 laser tubes. Sunlite sets new standards, serves customers in more than 90 countries and has more than 400 employees
Sunlite Laser Co.,Ltd is established in 2005 in ChangChun, CHINA. Sunlite is from a research
branch of University and has since then become a world leader in the field of laser technology. Sunlite develops, manufactures and markets laser spare parts for marking, cutting and engraving, as well as co2 laser core part- the co2 laser tubes. Sunlite sets new standards, serves customers in more than 90 countries and has more than 400 employees
Our Brand
With over 17 years of experience, we know CO2 lasers inside and out. From troubleshooting to innovation, we strive to bring you superior products and intelligent solutions that make working with your laser a joy. We believe that BlueTimes laser is among the best machines we have worked with and can't wait to show you why!
Our Commitment to You
With over 17 years of experience, we know CO2 lasers inside and out. From troubleshooting to innovation, we strive to bring you superior products and intelligent solutions that make working with your laser a joy. We believe that BlueTimes laser is among the best machines we have worked with and can't wait to show you why!
Our Commitment to You
New to CO2 lasers? Or looking to upgrade your existing CO2 laser cutter? Whatever your goals, we've helped thousands of people find the right products to fit their needs. We listen to our customers and provide them with the means to succeed. Learn more about the exclusive benefits we offer our customers
We work with the BEST.
Exhibitions
Sunlite Laser Co.,Ltd had attended over Hundreds Of exhibitions & Laser Industry EXPO, As a Global Trading
Company and Laser equipment industry leading company, our products has been exported to 88 countries all over the world and the trademark has been registered in 50 countries.And we have 43 distributors worldwide including Canada, USA, Korea, India, Brazil and Mexico.
Company and Laser equipment industry leading company, our products has been exported to 88 countries all over the world and the trademark has been registered in 50 countries.And we have 43 distributors worldwide including Canada, USA, Korea, India, Brazil and Mexico.
Certifications
At Sunlite Laser Co.,Ltd, we live and breathe fabrication technology. That’s just one of the reasons businesses who process products with co2 laser machine and fiber laser machine turn to us when they need new equipment. Our team has decades of experience working with small job shops and international manufacturers alike, and can specify, design, procure and install the perfect machine for just about any application. Read on to learn a little more about us, and contact us today to ask a question or request a quote on machinery for your business.
TOP BRANDS
We don’t represent every line of fabrication equipment out there, we only represent the lines we believe in. That means you can trust us to provide laser equipments that will work correctly, run consistently over the long term, and help your business increase productivity and efficiency.
We don’t represent every line of fabrication equipment out there, we only represent the lines we believe in. That means you can trust us to provide laser equipments that will work correctly, run consistently over the long term, and help your business increase productivity and efficiency.
EXCEPTIONAL SERVICE
Our team is fast and responsive. Whether you’re looking for quotion, products catalog, product dimensions, or something else, we pride ourselves on providing a high level of customer service day in and day out.
Our team is fast and responsive. Whether you’re looking for quotion, products catalog, product dimensions, or something else, we pride ourselves on providing a high level of customer service day in and day out.
GREAT PEOPLE!
We saved the best for last… we may be biased, but our team is a top-notch group of friendly pros. So whether you have a simple question or a complex manufacturing challenge, we’re here to help! Give us a call, stop by and see us, send us an email, and simply reach out and say “Hi.” We love to help our customers solve problems and implement solutions, so we look forward to hearing from you!
We saved the best for last… we may be biased, but our team is a top-notch group of friendly pros. So whether you have a simple question or a complex manufacturing challenge, we’re here to help! Give us a call, stop by and see us, send us an email, and simply reach out and say “Hi.” We love to help our customers solve problems and implement solutions, so we look forward to hearing from you!

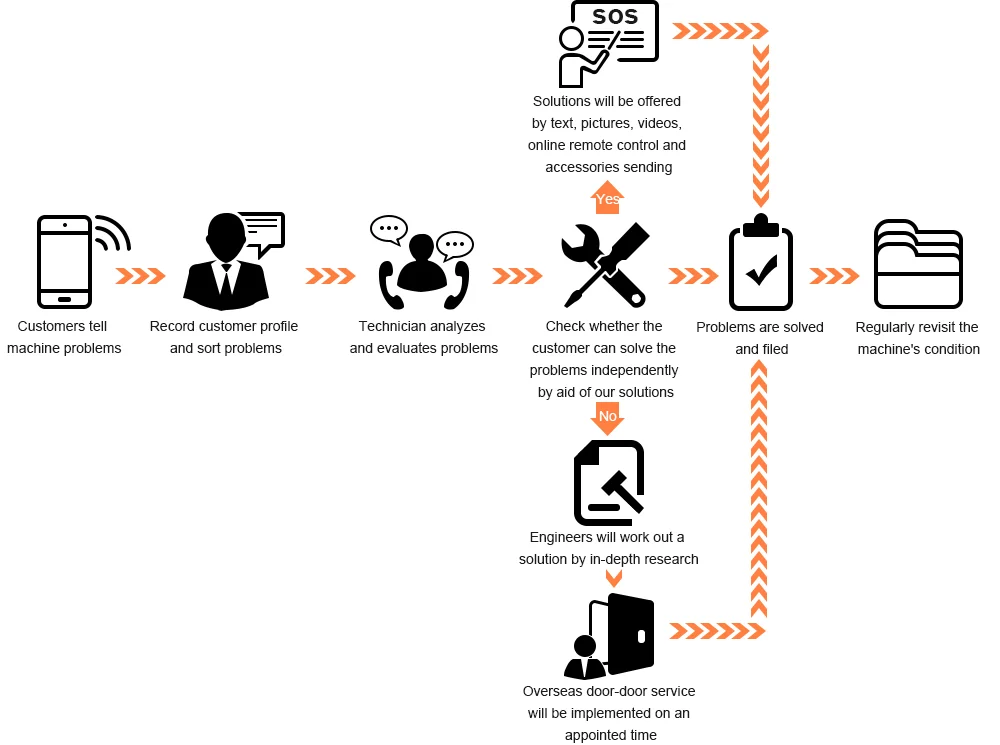

24H Online Service
