MPG 6099 Point source solution monitoring pH Turbidity TSS COD BOD TOC DO Amonia water quality multimeter
- Category: >>>
- Supplier: Shanghai Boqu Instrument Co. Ltd.
Share on (1600466296395):
Product Overview
Description

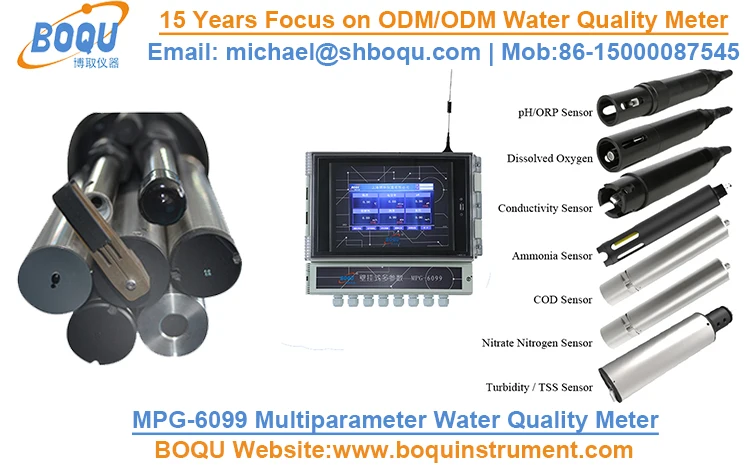

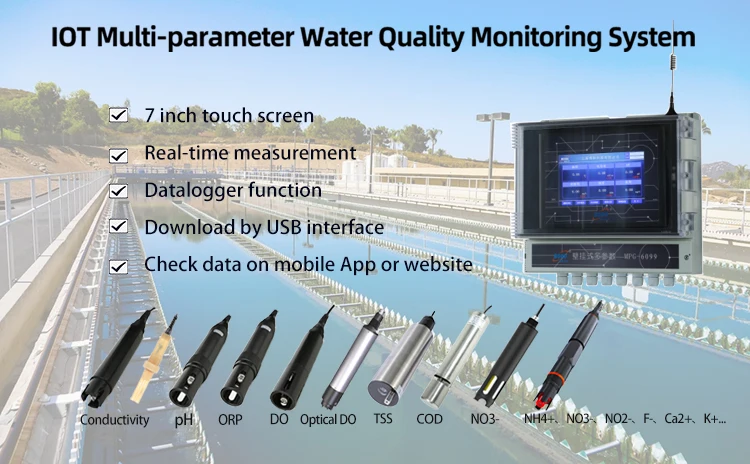

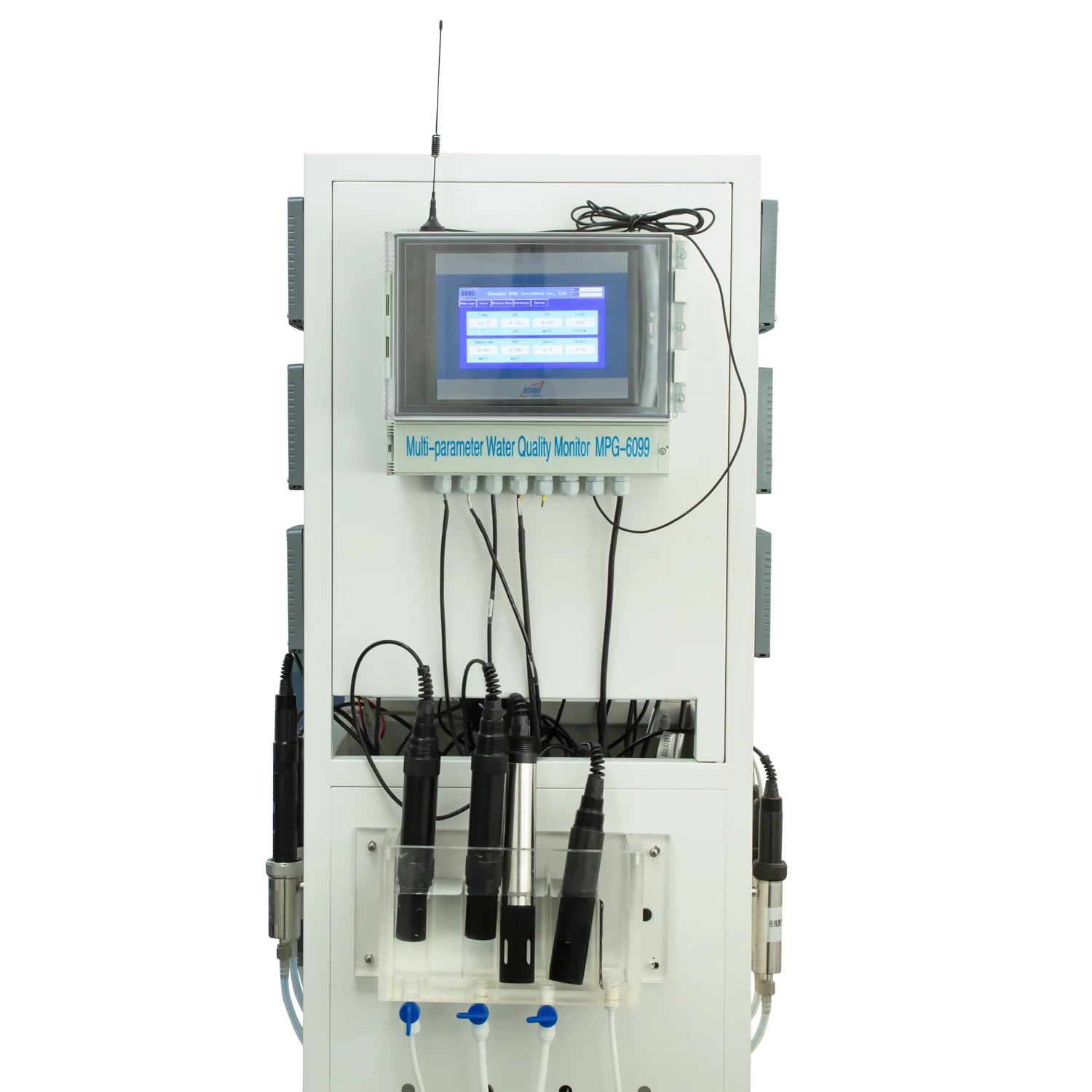

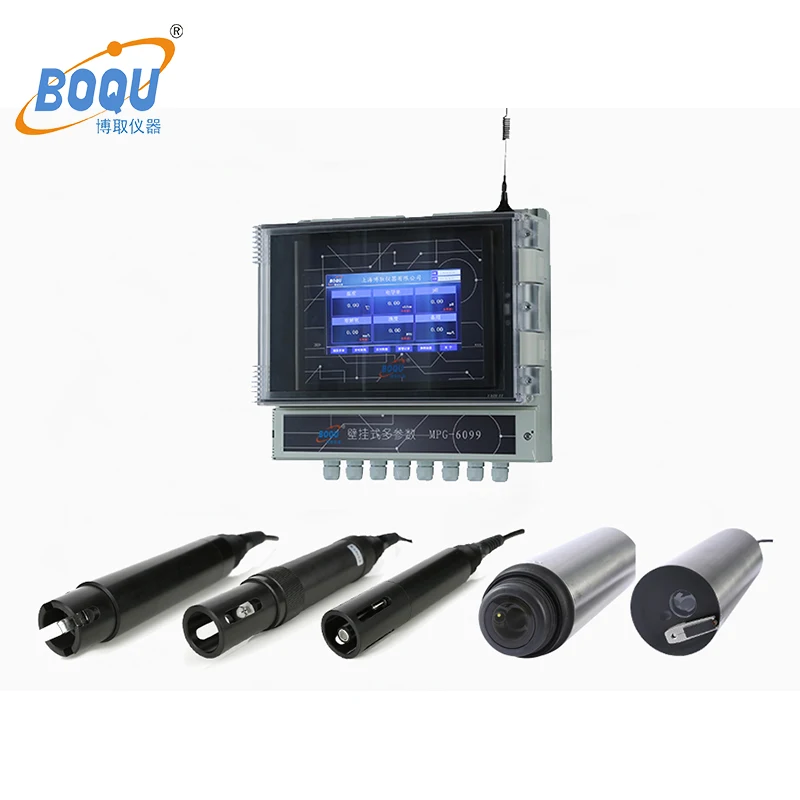

Wall-mounted Water Quality Multi-parameters Meter
Model: MPG-6099
Model: MPG-6099
Brief Introduction
The MPG-6099 multiparameter water quality meter is new generation water quality analyzer developed by BOQU Instrument,it’s can be designed to measure different water quality parameters as customers need, such as pH,ORP,Dissolved oxygen,Turbidity,Suspended solid(TSS,MLSS),COD,Ammonia nitrogen(NH3-N),BOD,Color,Hardness,Conductivity,TDS,Ammonium(NH4+),Nitrate(NO3-),Nitrate nitrogen(NO3-N) etc.
The MPG-6099 multiparameter water quality meter is new generation water quality analyzer developed by BOQU Instrument,it’s can be designed to measure different water quality parameters as customers need, such as pH,ORP,Dissolved oxygen,Turbidity,Suspended solid(TSS,MLSS),COD,Ammonia nitrogen(NH3-N),BOD,Color,Hardness,Conductivity,TDS,Ammonium(NH4+),Nitrate(NO3-),Nitrate nitrogen(NO3-N) etc.
Attention: the price is according to the water parameters that customer required.
Product Paramenters
Model | MPG-6099 Multi-parameters Water Quality Meter | ||
Power supply | 220V/24V power supply | ||
Signal output | RS485 signals , one external wireless transmission | ||
Wire less | Local SIM card and APP on mobile(optional) | ||
Data Logger | Yes | ||
Download | With USB interface | ||
Working condition | Temperature:（0-50）℃； | ||
Storage condition | Related humidity: ≤85% RH（without Condensation） | ||
Dimension | 320mmx270mmx121 mm | ||
Measurement configuration | pH,Conductivity,Dissolved oyxgen,COD,Turbidity,Suspended Solid,Ammonia (Note: the specific parameters to the actual ordering parameters prevail) etc | ||
Note | Other parameters can be customized based on requirements. | ||
Products Description
Technical features
★.Real-time water quality measurement.
★.All water quality sensor is RS485 Modbus ensure precision to collect data.
★.Easy operation,all operation will will in one touch screen.
★.Datalogger function,all measured data will be recorded.
★.Download,MPG-6099 multi-parameters water quality meter is
with USB interface, user can download report by excel type.
★.Wireless function for operation,users only need insert local SIM card,then user can check all data on mobile App or website.
★.All water quality sensor is RS485 Modbus ensure precision to collect data.
★.Easy operation,all operation will will in one touch screen.
★.Datalogger function,all measured data will be recorded.
★.Download,MPG-6099 multi-parameters water quality meter is
with USB interface, user can download report by excel type.
★.Wireless function for operation,users only need insert local SIM card,then user can check all data on mobile App or website.

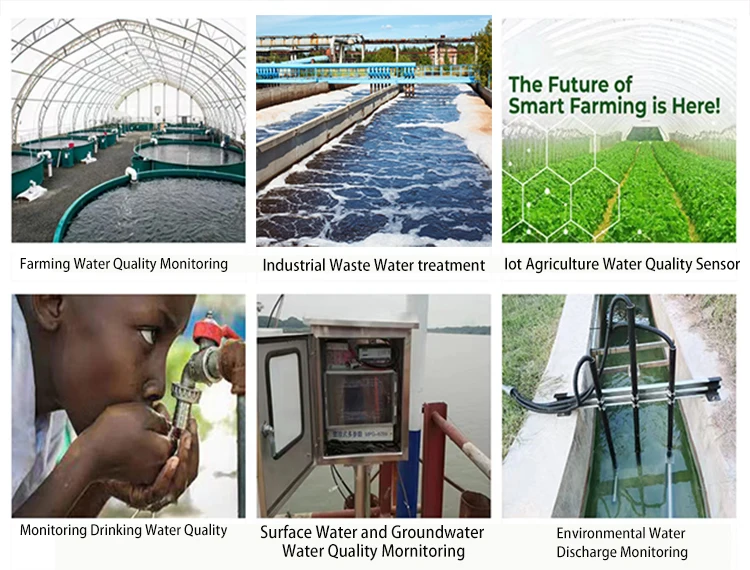

Mainly Application
★.Secondary water supply,
★Aquaculture Farming,
★River water quality monitoring,
★environmental water discharge monitoring,
★Point source solutionmonitoring,
★wastewater treatment works,
★diffuse pollution monitoring,
★Groundwater water quality monitoring etc

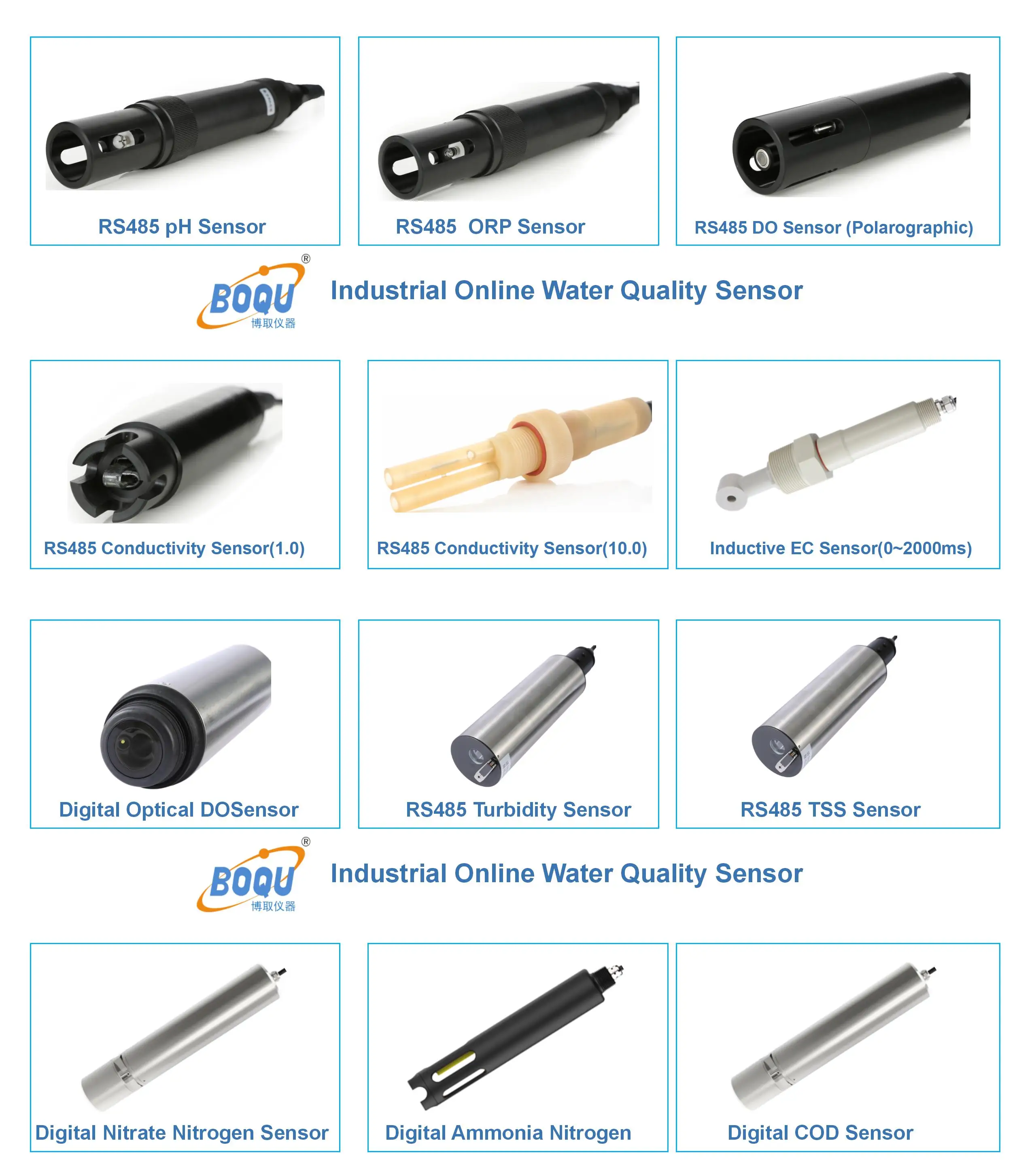

Digital Water Quality Sensor
Model | Parameter Sensor | Range |
BH-485-NH | Ammonia Nitrogen Sensor | 0~1000mg/L NH3-N |
BH-485-NO3-N | Nitrate Nitrogen Sensor | 0~1000mg/L NO3-N |
CODS-3000-01 | COD/BOD Sensor | 0~2000mg/L |
BH-485-pH | pH Sensor | 0~14pH |
BH-485-ORP | ORP Sensor | -2000mv~+2000mv |
BH-485-EC | Conductivity Sensor | 0~20ms/cm |
DDG-GY | Inductive Conductivity Sensor | 0~2000ms/cm |
DOG-209FYD | Optical Dissolved oxygen Sensor | 0~20mg/L |
BH-485-DO | Polarography Dissolved oxygen | 0~20mg/L |
ZDYG-2088-01 | Turbidity Sensor Sensor | 0~4000NTU |
ZDYG-2087-01 | Suspended solids Sensor | 0~120 000mg/L |
BH-485-WTS | Water Transparency Sensor | 2-100cm |
BH-485-CHA | Digital Chlorophyll A Sensor | 0-500 ug/L chlorophyll A |
BH-485-BAG | Online Blue-green Algae Sensor | 100—2,000,000cells/mL |
BH-485-OIW | Online OIW Sensor | 0-50ppm or 0-0.40FLU |
BH-485-ION(F-) | Digital Fluoride ion Sensor | 0~1000mg/L |
BH-485-ION(Cl-) | Digital Chloride ion Sensor | 0~1000mg/L |
BH-485-ION (Ca2+) | Digital Calcium ion Sensor | 0~1000mg/L |
BH-485-ION (NO3-) | Digital Nitrate ion Sensor | 0~1000mg/L |
BH-485-ION (NH4+) | Digital Ammonium ion Sensor | 0~1000mg/L |
BH-485-ION(K+) | Digital Potassium ion Sensor | 0~1000mg/L |

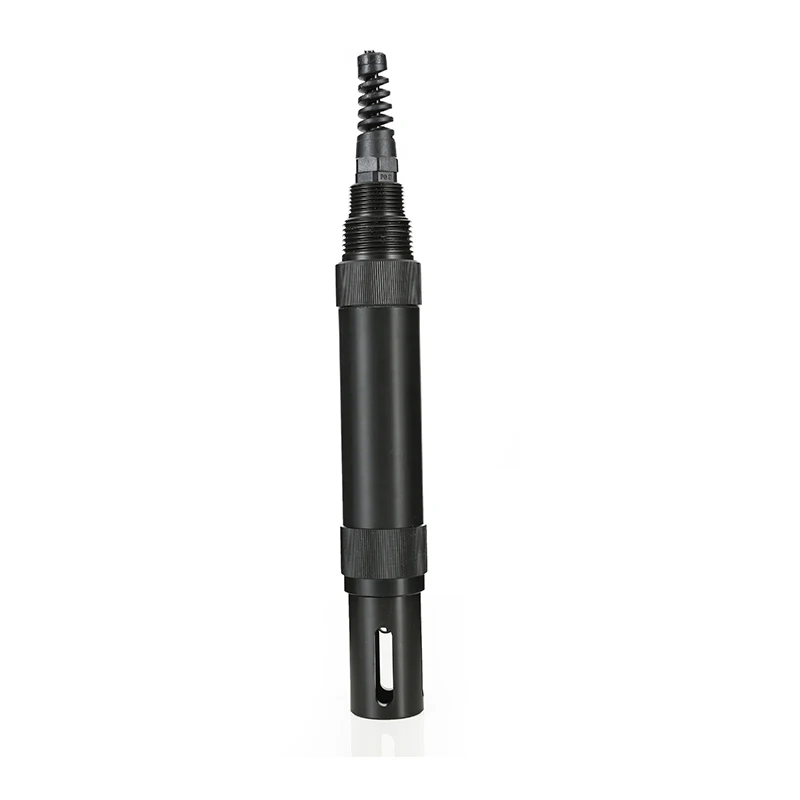

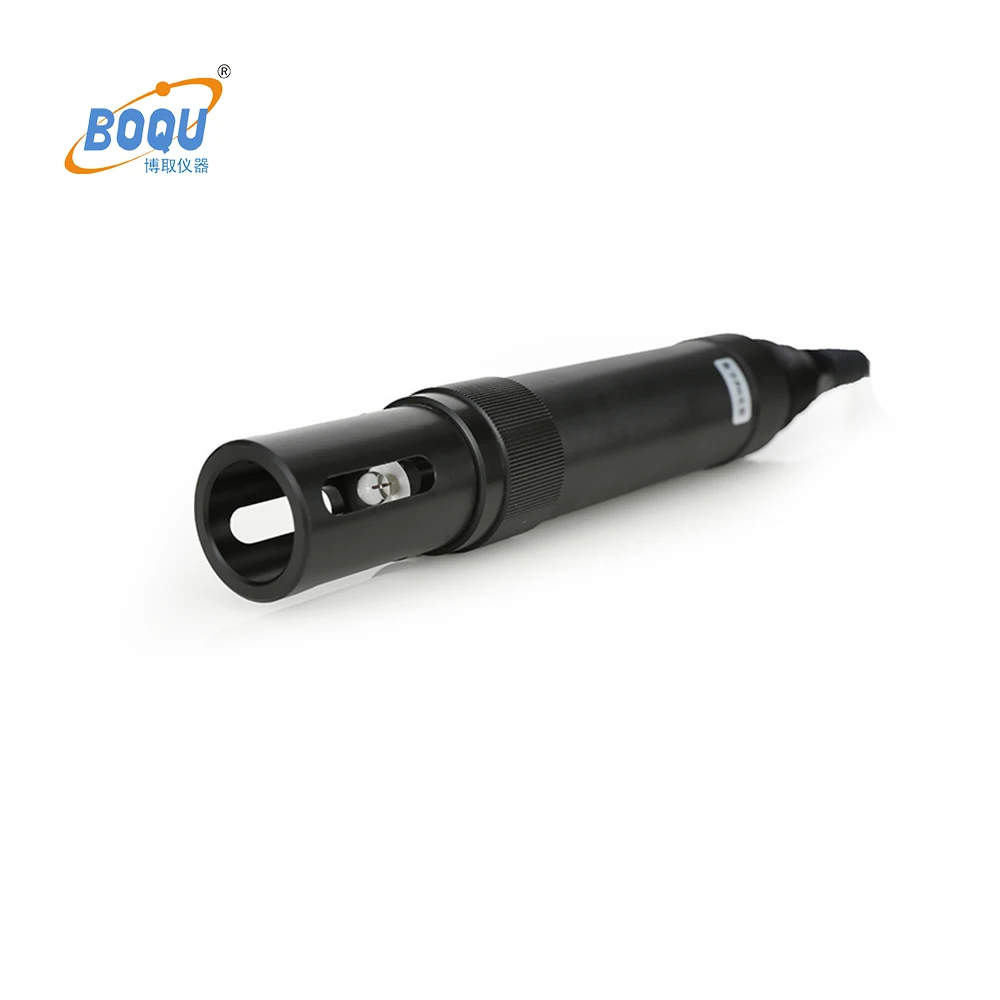

BH-485-pH Digital pH Sensor
Model: BH-485-pH
Parameter : pH,TemperatureMeasure range: pH: 0.0~14.0
\t Temp: 0~50.0℃
Accuracy: pH:±0.1pH
Temperature: ±0.5℃
Resolution: pH:0.01pH
Temperature: 0.1℃
Power supply: 12VDC
Power dissipation: 1W
communication mode:RS485(Modbus RTU)
Cable length: 10 meters water proof cable and it can be extended
Installation: Sinking type, pipeline, circulation type etc.
Overall size: 230mm×30mm
Housing material: ABS
BH-485-ORP Digital ORP Sensor
Model:BH-485-ORP
Parameter measurement: ORP,Temperature
Measure range: ORP: -2000mv~+2000mv
\t Temp:0~50.0℃
\t Temp:0~50.0℃
Accuracy: ORP:±0.1mv
\t Temperature:±0.5℃\\
\t Temperature:±0.5℃\\
Resolution: ORP:1mV
\t Temperature:0.1℃
\t Temperature:0.1℃
Power supply : 24V DC / 12VDC
Power dissipation: 1W
Communication mode: RS485(Modbus RTU)
Cable length: 10 meters water proof cable and it can be extended
Installation: Sinking type, pipeline, circulation type etc.
Overall size: 230mm×30mm
Housing material: ABS

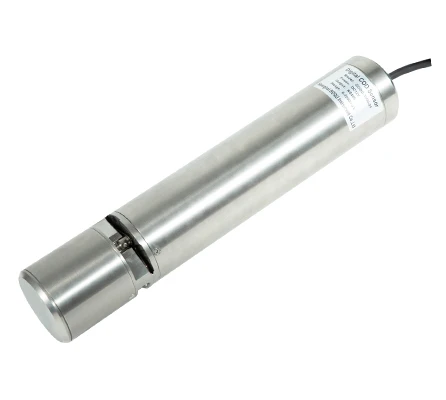

Digital COD/BOD Sensor
Model: CODS-3000-01
Parameter measurement:
COD:0~2000mg/l (2mm);0~1000mg/l (5mm);0~90mg/l (50mm)
BOD: 0~1500mg/l (2mm);0~750mg/l(5mm);0~60mg/l (50mm)
Accuracy: ±5%
Repeatability :±2%
Communication mode :RS485(Modbus RTU)
Power: 12VDC
Sensor material: SS316L
Working temperature: 0~50℃
Cable :10 meters water proof cable and it can be extended
Protection: IP68
Dimension: Dia*length 69mm*380mm

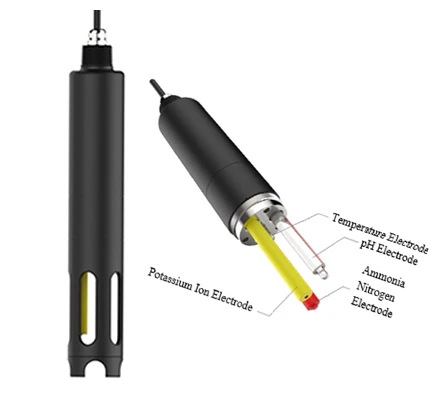

Digital Ammonia Nitrogen Sensor
Model: BH-485-NH
Parameter measurement:
NH3-N: 0.1-1000 mg/L;
K+: 0.5-1000 mg/L (Optional)
;pH: 5-10pH;
;pH: 5-10pH;
Temperature: 0-40℃
Resolution:
NH3-N: 0.01 mg/l;
K+: 0.01mg/l(Optional);
pH: 0.01;
Temperature: 0.1℃
Accuracy:
NH3-N:±5 % or ± 0.2 mg/L;
K+:±5 % of or ±0.2 mg/L;
pH:±0.1 pH;
Temperature:±0.1℃
Minimum Limit : 0.2mg/L
Communication mode : RS485(Modbus RTU)
Power: 12VDC
Dimension: 55mm×340mm(Diameter*Length)
Working temperature 0~50C
Cable:10 meters water proof cable and it can be extended
Protection: IP68

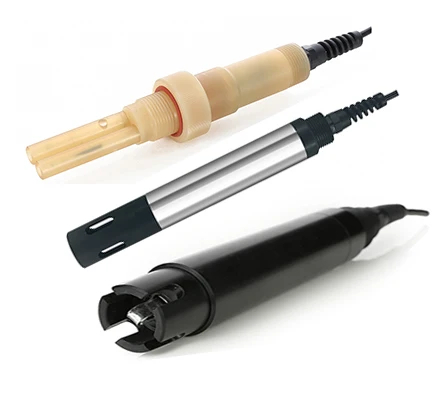

Digital Conductivity Sensor
Model : BH-485-EC
Parameter measurement: conductivity,Temperature
Measure range:\t
0~2000us/cm(K=1.0),
\t0~20 000us/cm(K=10.0)
\tTemperature:(0~50.0)℃
0~2000us/cm(K=1.0),
\t0~20 000us/cm(K=10.0)
\tTemperature:(0~50.0)℃
Accuracy:
conductivity:±0.1us/cm;
Temperature:±0.5℃
Resolution:Conductivity:0.1 us/cm
\t Temperature:0.1℃
\t Temperature:0.1℃
Power supply:12VDC or 24V DC
Power dissipation: 1W
communication mode: RS485(Modbus RTU)
Cable length:10 meters water proof cable and it can be extended
Installation: Sinking type, pipeline, circulation type etc.
Housing material :Polysulfone/Stainless steel/ABS
Note: if over 20000us/cm, then use DDG-GY Inductive Conductivity Sensor, max is 2000ms/cm
Digital Dissolved Oxygen Sensor
Model：DOG-209FYD
Principle： Optical
Measuring range:
Dissolved oxygen:0-20 mg/L
\tTemperature:0-45℃
\tTemperature:0-45℃
Accuracy: DO ±3%;
\t Temperature:±0.5℃
\t Temperature:±0.5℃
Communication: MODBUS RS485
Power Supply: 12VDC
Material: SS316L for fresh water
\t Titanium for sea water
\t Titanium for sea water
Storage temperature: -15℃~60℃
Working temperature: 0~50℃
Cable length: 10 meters water proof cable and it can be extended
Protection: IP68
Dimension: 55mmx342mm
Digital Ion Sensor
Model: BH-485-ION
Ions type: F-,Cl-,Ca2+,NO3-,NH4+,K+
Range: 0.02-1000ppm(mg/L)
Resolution: 0.01mg/L
Power: 12V (customized for 5V,24VDC)
Slope: 52~59mV/25℃
Accuracy: <±2% 25℃
Response time: <60s (90% right value)
Communication: Standard RS485 Modbus
Temp compensation: PT1000
Dimension: D:30mm L:250mm, cable:3meters(it can be extended)
Working environment: 0~45℃, 0~2bar

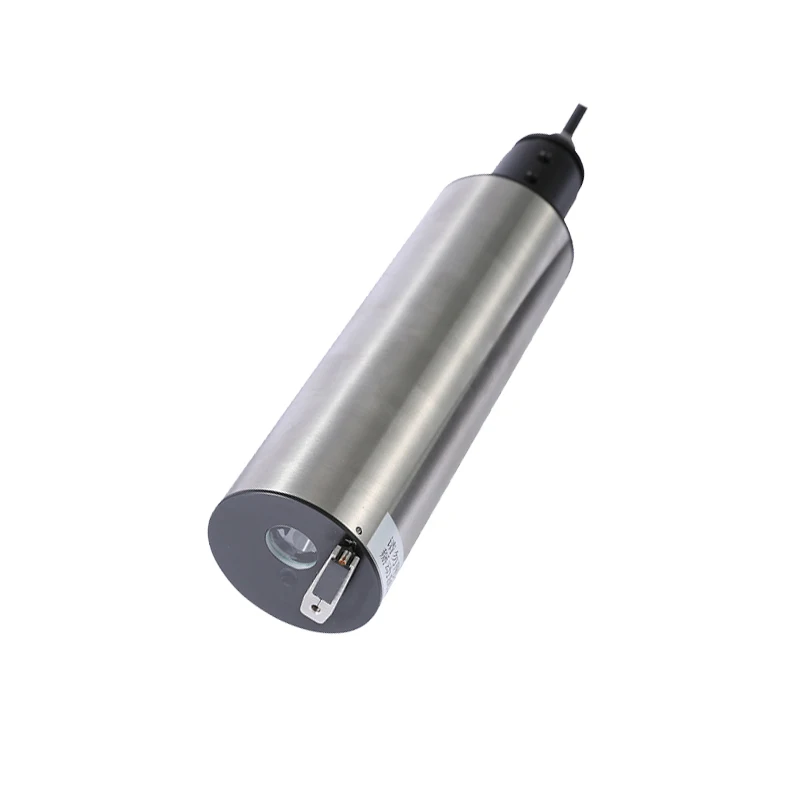

Digital Turbidity Sensor
Model : ZDYG-2088-01
Measurement Range: 0.01-100 NTU ,
\t 0.01－3000 NTU,
\t 0.01－3000 NTU
\t 0.01－3000 NTU,
\t 0.01－3000 NTU
Accuracy: ≤± 5%
Communication: RS485 Modbus
Power supply: 12VDC
Material: SS316L for fresh water
Titanium for sea water
Flow rate: ≤2.5m/s,8.2ft/s
Maintain: With Auto-clean brush
Protection: IP68
Cable length: 10 meters water proof cable and it can be extended
Dimension: Dia*length 60mm* 256mm
If need other parameters ,please contact BOQU Instrument to design it!

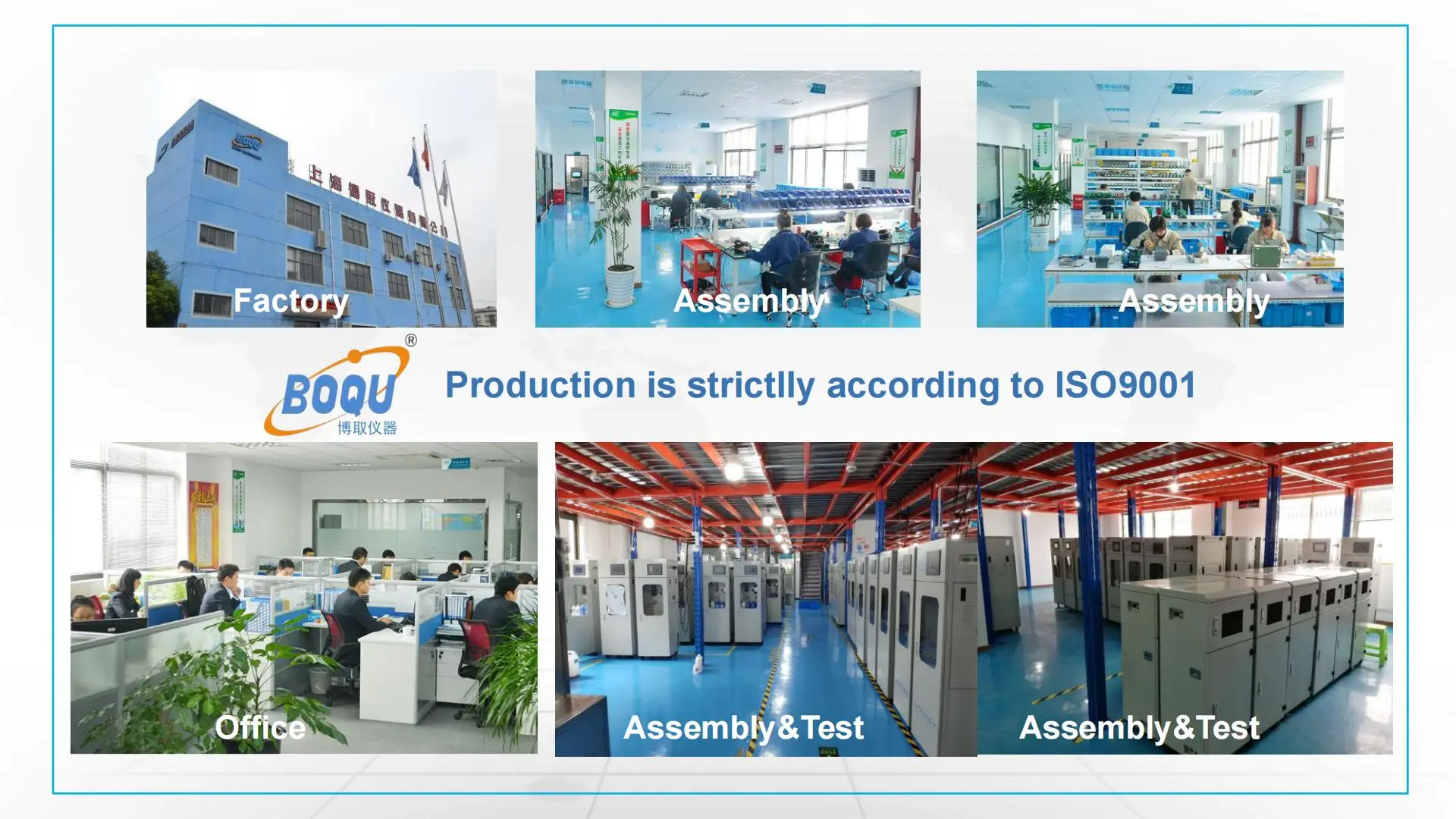

Company Profile
Shanghai BOQU Instrument Co., LTD
BOQU Instrument focuses on technological innovation in water quality analyzers and sensors since founded. Providing high precision instruments and expert-level service is our only pursuit. Now BOQU Instrument has obtained dozens of technology patents for water quality analyzers and water quality sensors. Our water quality analyzers and sensors meet or exceed world-class quality level. They have received good praise from customers in more than 80 countries. In today's world, our earth faces many environmental problems, especially in water quality. As a leading manufacturer in water quality analyzers, BOQU Instrument will use all technologies to solve problems related to human and earth survival and always to be the guardians of the earth's water quality.BOQU Instrument’s online water quality analyzer is mainly used to test pH, conductivity, TDS, dissolved oxygen, turbidity, residual chlorine, suspended solids, ammonia, hardness,water color, silica, phosphate, sodium, BOD, COD, heavy metals, etc. We are committed to providing the best water quality monitoring solutions for users in all areas of pure water, ultra-pure water, drinking water, municipal wastewater, industrial wastewater, industrial circulating water, environmental monitoring, and university research, etc.
Exhibition
Certifications

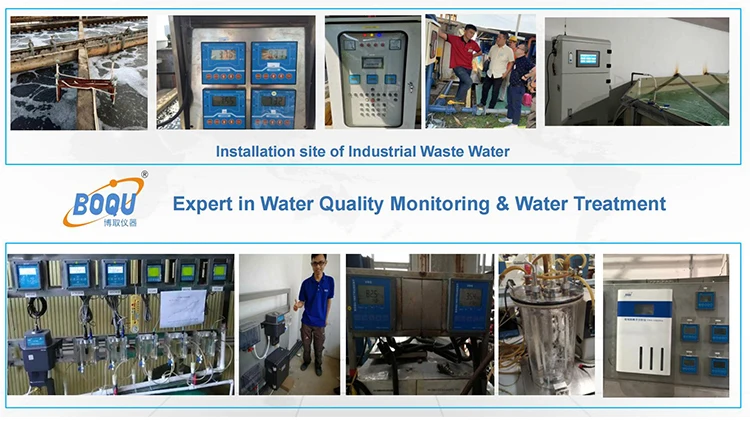

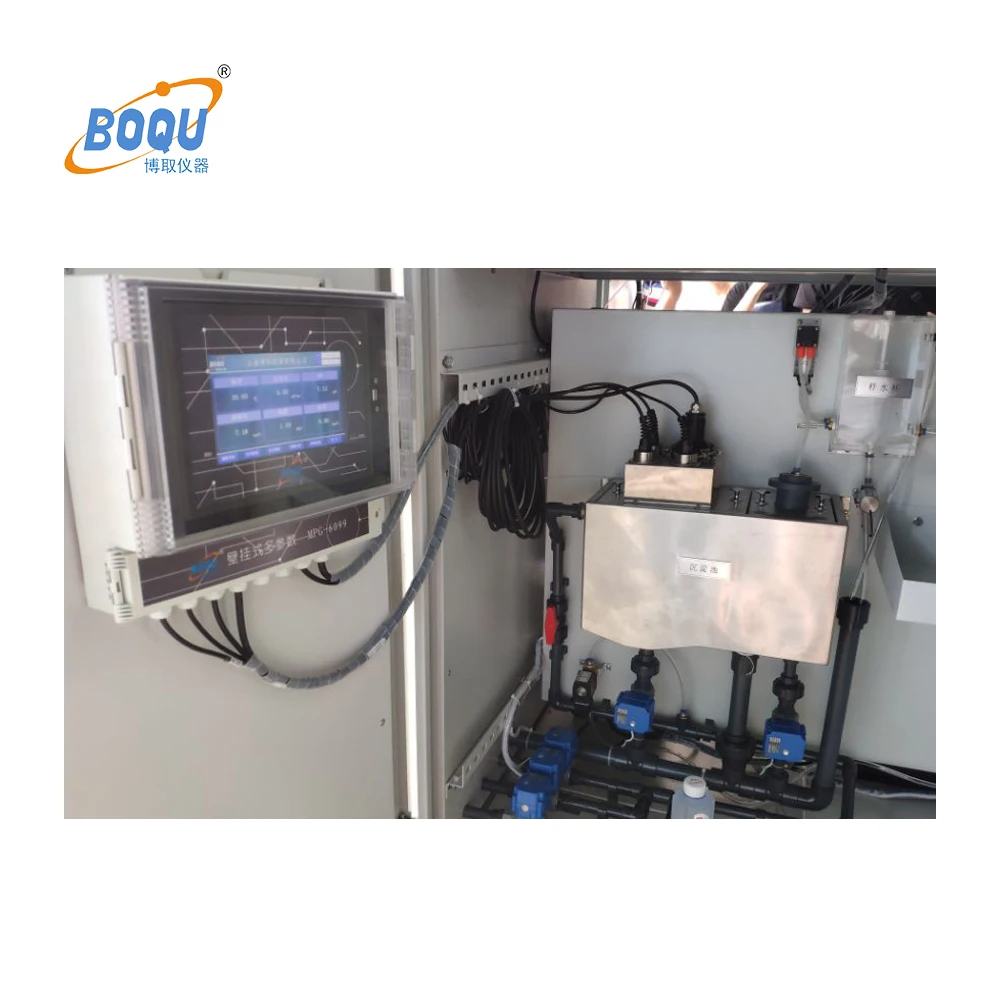

Installation Cases
Why to choose BOQU?
Why to Choose BOQU MPG-6099 Online Multiparameter Water Quality Analyzer?
1.National High-tech Enterprises Certificates
2.Instruments has been exported to over 100 countries.
3.Production over 100 000pcs for water quality analyzer and water quality sensor
4.BOQU Instrument has more 50+ Softwares property
5.100% QC inspection and clibration Before Shippment.
6. ISO,CE,SGS,CEP Certificate.
7.BOQU Instrument OEM and ODM for many international brand.
1.National High-tech Enterprises Certificates
2.Instruments has been exported to over 100 countries.
3.Production over 100 000pcs for water quality analyzer and water quality sensor
4.BOQU Instrument has more 50+ Softwares property
5.100% QC inspection and clibration Before Shippment.
6. ISO,CE,SGS,CEP Certificate.
7.BOQU Instrument OEM and ODM for many international brand.
Shanghai BOQU INSTRUMENT CO.,lTD
Conact: Michael Liu
Email: Michael（@shboqu.com
Web: www.boquinstrument.com
Whatsapp/Mob: 86-18955928790
Factory address: No.118 xiuyan road,pudong district ,shanghai china, zip code:201315
Conact: Michael Liu
Email: Michael（@shboqu.com
Web: www.boquinstrument.com
Whatsapp/Mob: 86-18955928790
Factory address: No.118 xiuyan road,pudong district ,shanghai china, zip code:201315
