20mm Diameter 20VC001 Single Phase 1 Wire Cylindrical Model Aluminum Semi Automatic High Speed 4mm Stroke Micro Voice Coil Motor
- Category: >>>
- Supplier: Ningbo Smooth Electric Manufacture Co. Ltd.
Share on (1600466305120):
Product Overview
Description
Features Of Smooth 20VC002 voice coil motor
*Small size, especially suitable for use in some small spaces.
*The response speed is fast, its own weight is small, it can achieve very high acceleration and can do high-speed oscillation reciprocating motion.
*The control is simple and reliable, no reversing device, long life, and can work continuously for a long time.
*It can carry out precise position, speed, acceleration and thrust control without backlash troubles.
*The response speed is fast, its own weight is small, it can achieve very high acceleration and can do high-speed oscillation reciprocating motion.
*The control is simple and reliable, no reversing device, long life, and can work continuously for a long time.
*It can carry out precise position, speed, acceleration and thrust control without backlash troubles.
Electrical Specifications
Genral features | Electrical parameters | ||
Turn-on time | 2.5-12ms | Operating Voltage | 3.7v |
Withstand voltage | 200vmin | Resistance | 9Ω±10% |
Insulation class | Class E | Rated current | 0.41A |
Weight | 0.025kg | Inductance | 1.8mH±10% |
Frequency range | 0-85HZ | Thrust | 0.11kg |
wiring

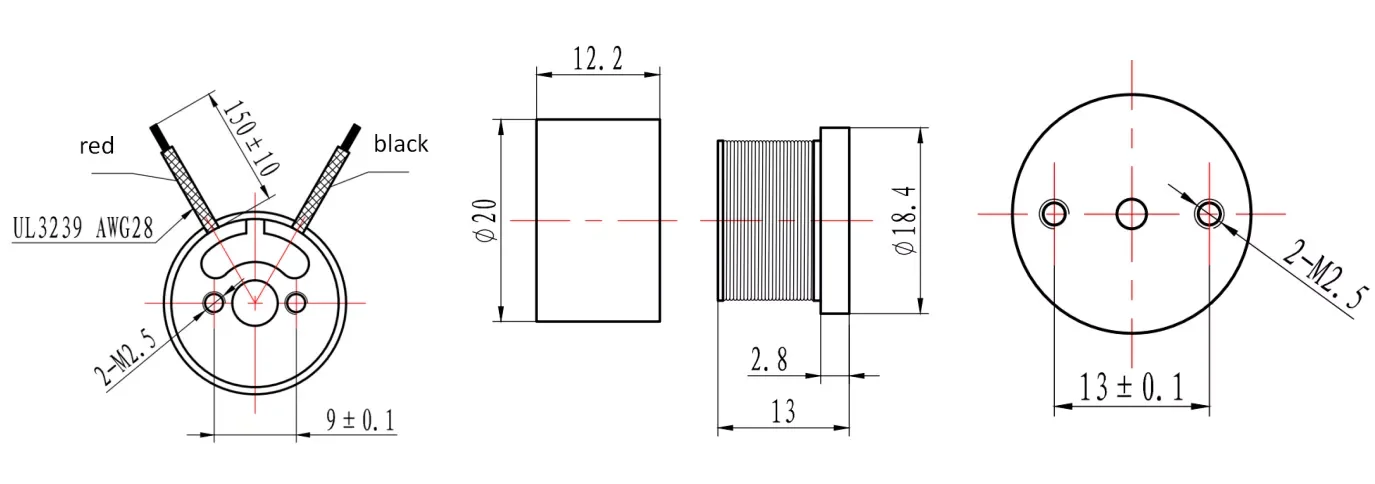

Dimensional Drawing
Applications
The Smooth Motor are ideal for applications requiring a combination of precise positioning, rapid motion and long life.
Stage Lighting | Medical Equipment | 3D Printer | Packing Machine |
Semicon Equipment | Sewing Machine | Robot | Engraving Machine |
Custom assembly
SMOOTH provide the custom service by combining the reliable stepper motor and precise mechanical parts for varies applications. more>>>
