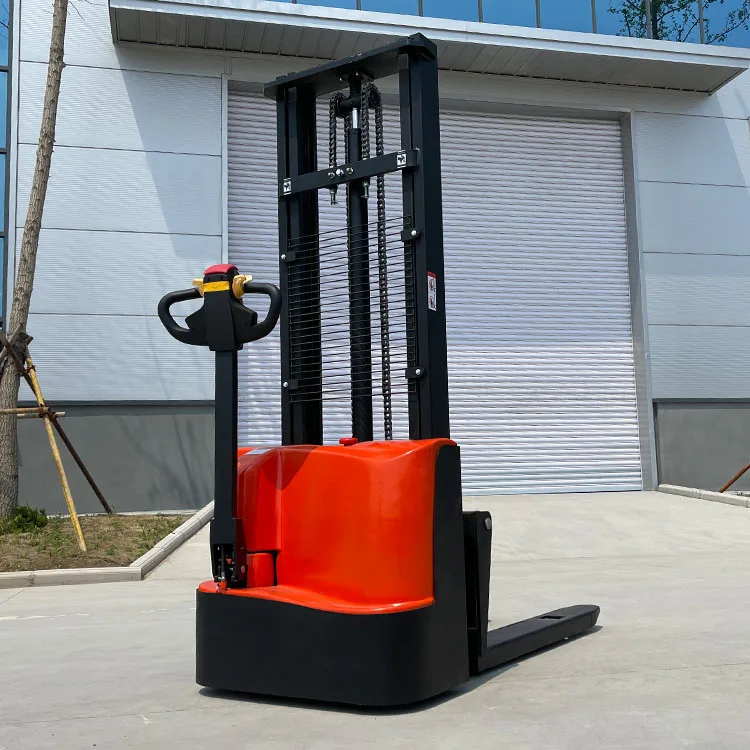

Super pedestrian electric stacker 1t 1.5t 2t Bias operated walkie stacker 3m 4m 5m
- Category: >>>
- Supplier: Shandong besla import and Export Co. Ltd
Share on (1600466308100):
Product Overview
Description
Model | unit | ES10/ES15/ES20 |
Capacity | kg | 1000/1500/2000 |
Lifting height | mm | 1600/2000/2500/3000/3500 |
Self height(fork is lowest) | mm | 2050/1580/1830/2080/2330 |
Self height(fork is highest) | mm | 2050/2500/3000/3500/4000 |
Min fork height | mm | 90 |
Overall length(Pedal opened) | mm | 2330 |
Overall length(Pedal closed) | mm | 1830 |
Overall width | mm | 850 |
Fork length | mm | 1000 |
Load center | mm | 500 |
Material of wheel | / | Polyurethane |
Driving motor | w | 1200 |
Lifting motor | w | 2200 |
Maximum adjustable outside width | mm | 680 |
Turning radius | mm | 1530 |
Battery capacity(oridinary battery) | v/ah | 24v/80ah |
Battery capacity(assembled battery) | v/ah | 24v/240ah |
Driving speed(full load) | km/h | 4 |
Driving speed(no load) | km/h | 6 |
Lifitng speed(full load) | mm/s | 80 |
Lifitng speed(no load) | mm/s | 130 |
Drop speed(full load) | mm/s | 110 |
Drop speed(no load) | mm/s | 90 |
Driving wheel size | mm | 250*80 |
Load wheel size | mm | 80*70 |
Steering wheel size | mm | 100*50 |
Gradability(full load) | % | 5 |
Gradability(no load) | % | 8 |
