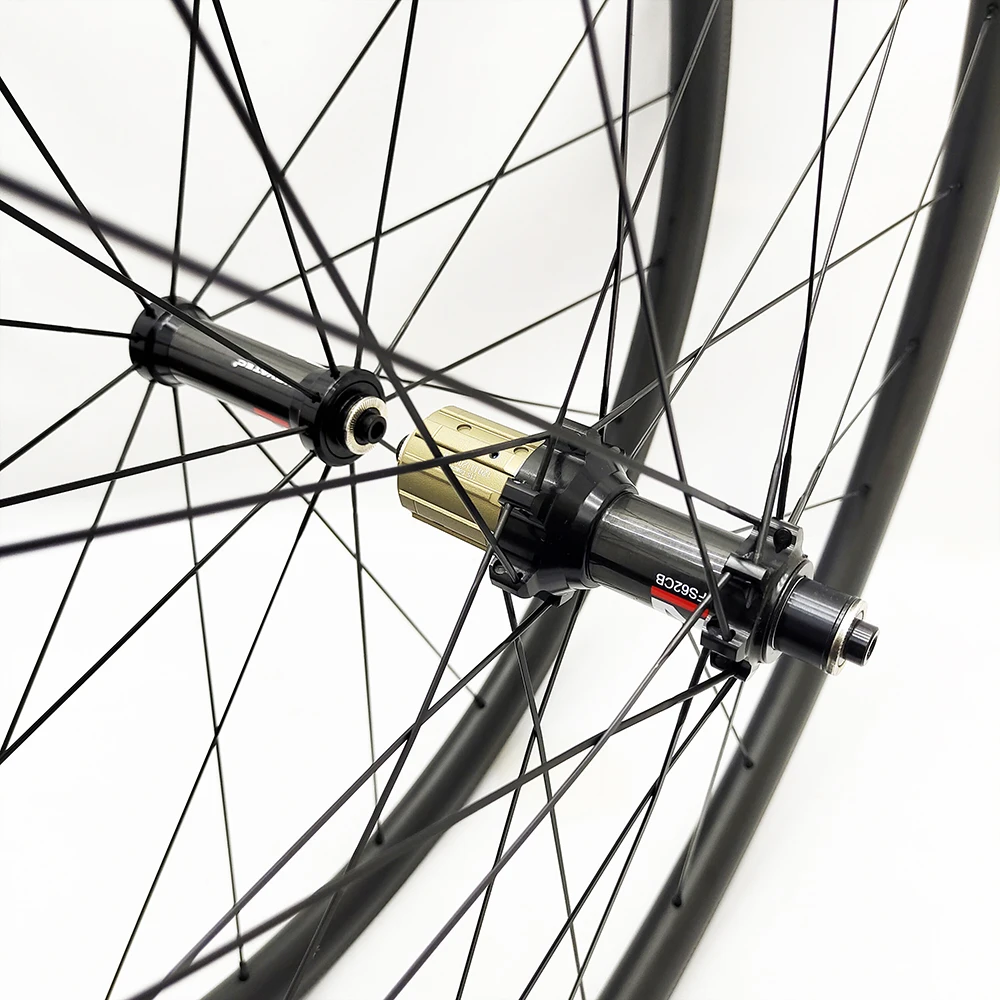

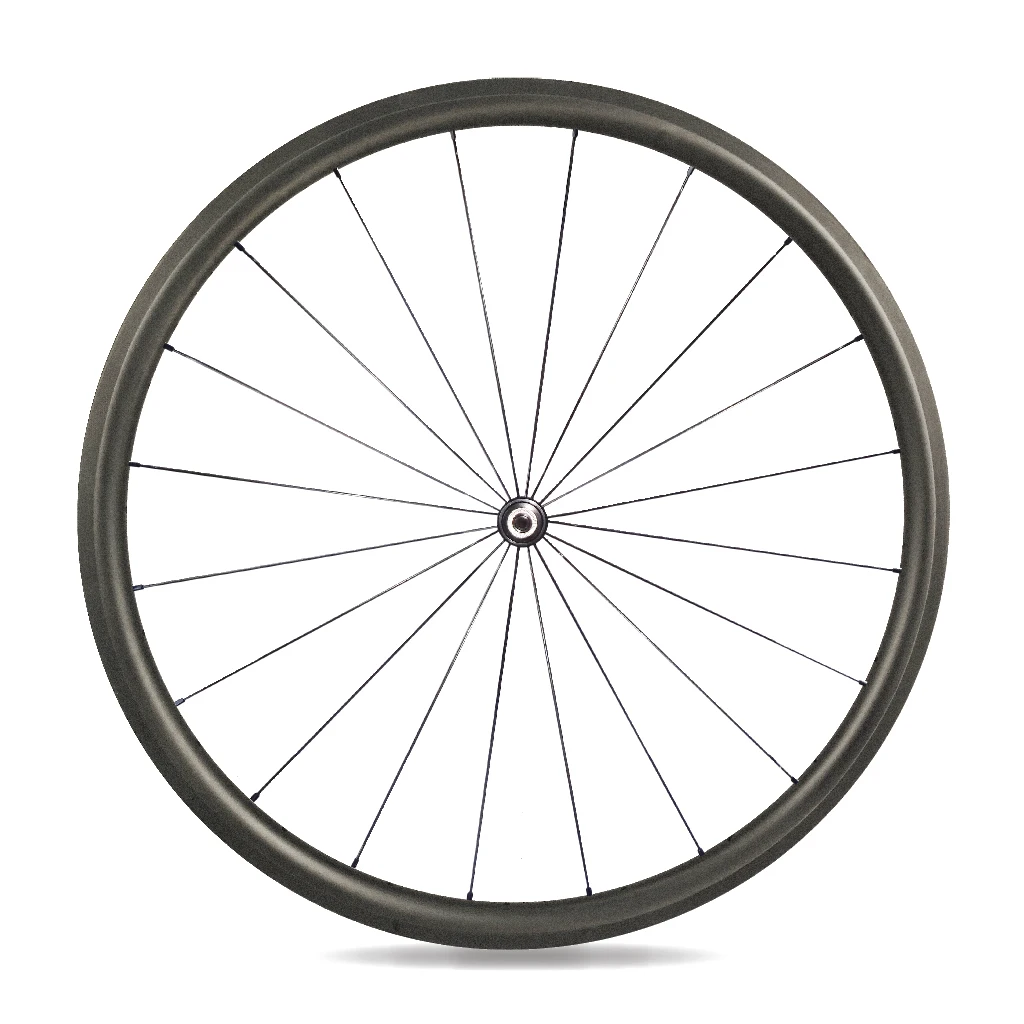

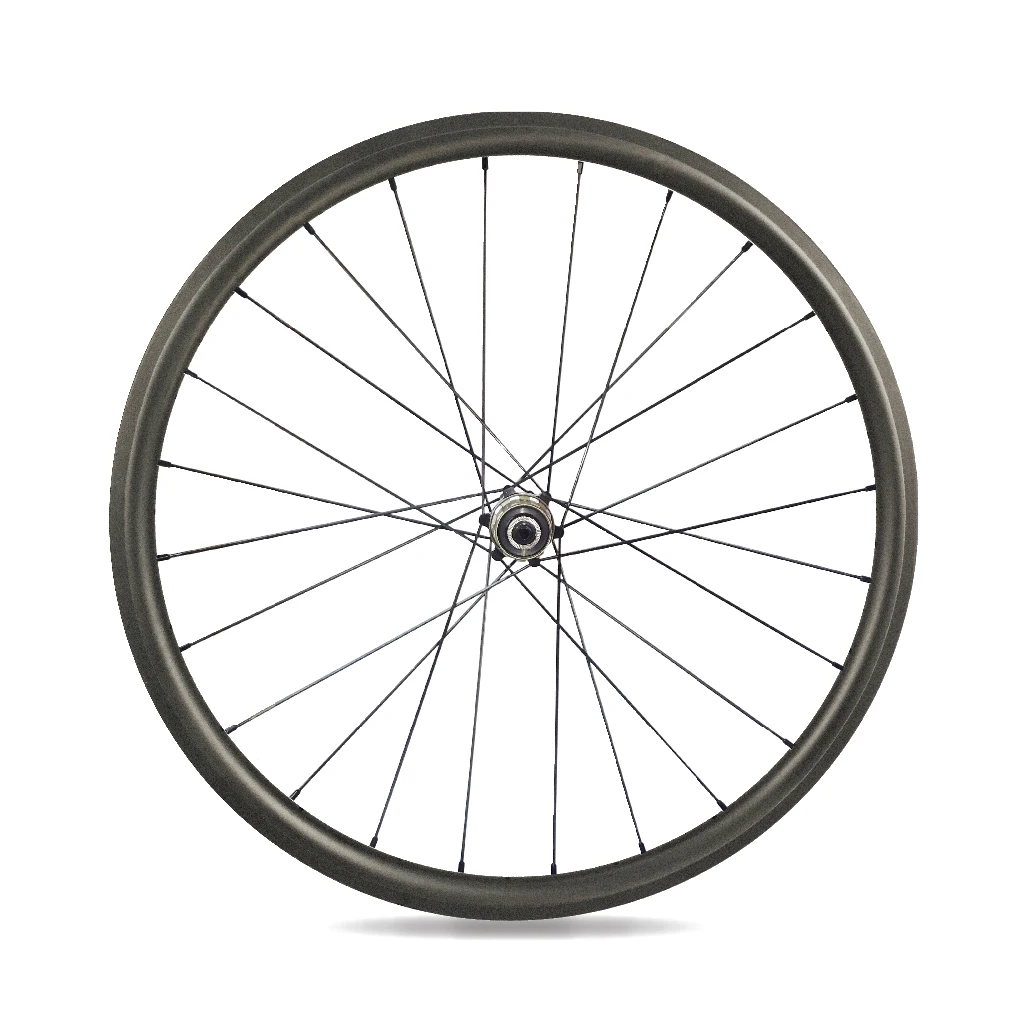

7 Tiger 28mm Wide TT Carbon Fiber Fat Wheels 700x25c Tire Road Bike Rim Brake Clincher Wheelset 30mm
- Category: >>>
- Supplier: Kuashan 7-Tiger Trade Co. Ltd.
Share on (1600466339428):
Product Overview
Description
Specification
Carbon gravel bike wheelset 31mm wide 50mm depth tubeless tubular rim with Novatec D411CB 412CB Hub
FEATURES
Carbon gravel wheelset an optimized blend of weight, strength and durability
The Dual Directional Design profile cuts drag at the tire-leading and rim-leading edges
18/21mm inner rim width (28 / 25mm outer) for added tyre support to suit larger-volume road and gravel tyres
Tubeless Ready rims allow for quick transition to a tubeless system
Rim:
Rim outer width: 28/25mm
Innver width: 21/18mm
Rim depth: 30mm
Diameter: 700C

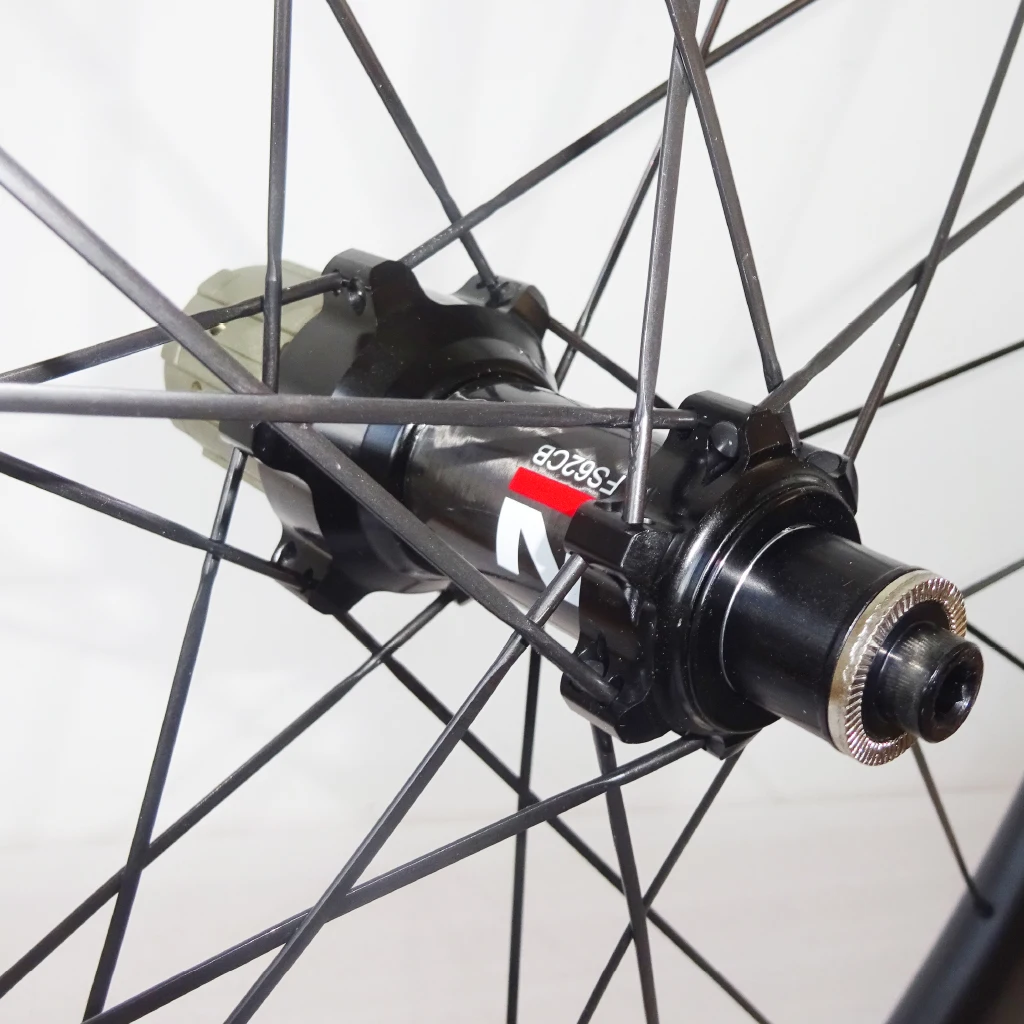

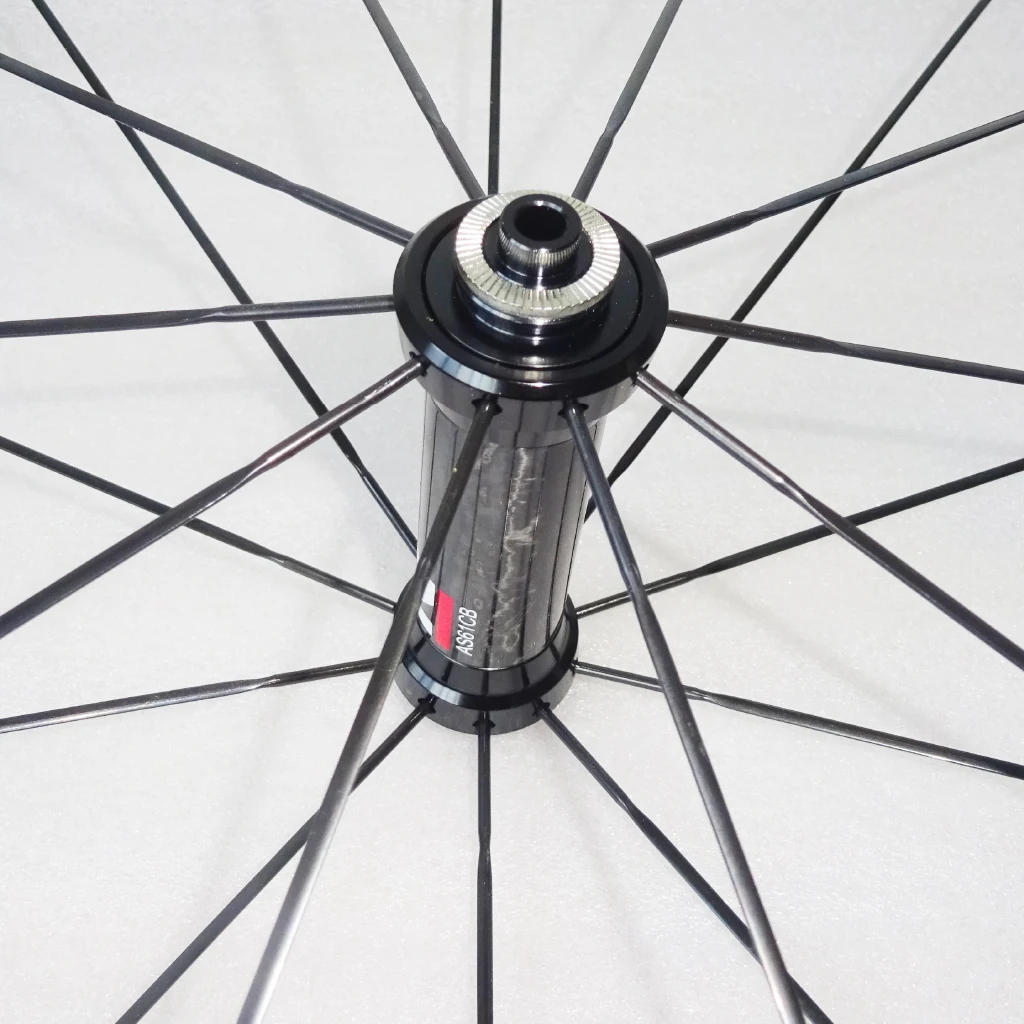

Hub:
Rim brake carbon fiber bicycle hub
Hub width: Frton 100 x 5mm, rear 130 x 5mm
Spoke count: 20-24
Freehub: HG, XDR
Spoke cross-section: Bladed
Compatible brake type: Rim brake
ANipple Type: Alloy locking
Valve: Presta
Weight:
clincher: 1300+/-5% grams, CN474 spoke
Tubular: 1230+/-5% grams, CN474 Spoke,
IF you want lighter spokes, please contact us.
Carbon gravel wheelset an optimized blend of weight, strength and durability
The Dual Directional Design profile cuts drag at the tire-leading and rim-leading edges
18/21mm inner rim width (28 / 25mm outer) for added tyre support to suit larger-volume road and gravel tyres
Tubeless Ready rims allow for quick transition to a tubeless system
Rim:
Rim outer width: 28/25mm
Innver width: 21/18mm
Rim depth: 30mm
Diameter: 700C
Hub:
Rim brake carbon fiber bicycle hub
Hub width: Frton 100 x 5mm, rear 130 x 5mm
Spoke count: 20-24
Freehub: HG, XDR
Spoke cross-section: Bladed
Compatible brake type: Rim brake
ANipple Type: Alloy locking
Valve: Presta
Weight:
clincher: 1300+/-5% grams, CN474 spoke
Tubular: 1230+/-5% grams, CN474 Spoke,
IF you want lighter spokes, please contact us.
Product Description
Products Description
.Rims wide: | 21mm, 23mm, 25mm, 28mm, 31mm | ||||||
.Size: | 700C | ||||||
.Use | Road / Gravel /Triathlon / Allraod / CX | ||||||

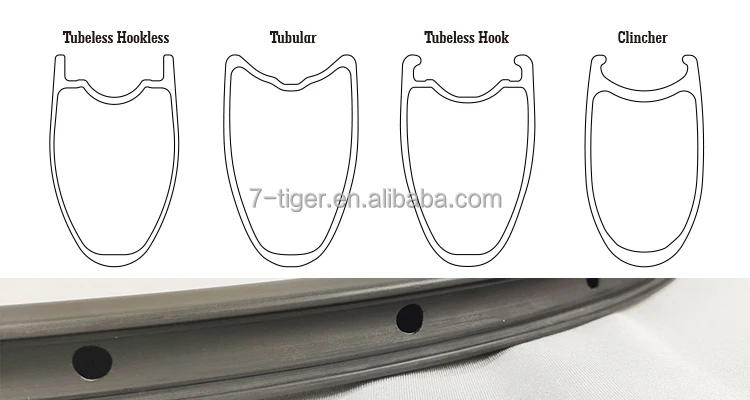

.Type: | Clincher/tubeless/tubular | ||||||
.Material | Toray T700 50% + T800 50% carbon fibre | ||||||
.Brake | Rim brake ( Basalt, 3K Twill, UD, AC1,AC3), Disc brake ( None brake edge) | ||||||
.Depth: | 20mm,30mm,35mm,38mm,40mm,45mm,50mm,55mm,60mm,65mm,80mm,88mm | ||||||
.Spoke holes: | 16/18/20/21/24/28/32H | ||||||
.ERD & Weight | 20mm height = 600mm, Tubular 270+/-15g, Clincher 400+/-15g | ||||||
30mm height = 580mm, Tubular 285+/-15g, Clincher 360+/-15g | |||||||
35mm height = 580mm, Tubular 300+/-15g, Clincher 360+/-15g | |||||||
38mm height = 564mm, Tubular 305+/-15g, Clincher 385+/-15g | |||||||
40mm height = 560mm, Tubular 350+/-15g, Clincher 390+/-15g | |||||||
45mm height = 550mm, Tubular 335+/-15g, Clincher 415+/-15g | |||||||
50mm height = 540mm, Tubular 350+/-15g, Clincher 430+/-15g | |||||||
55mm height = 530mm, Tubular 405+/-15g, Clincher 460+/-15g | |||||||
60mm height = 520mm, Tubular 420+/-15g, Clincher 480+/-15g | |||||||
80mm height = 480mm, Tubular 460+/-15g, Clincher 630+/-15g | |||||||
88mm height = 464mm, Tubular 480+/-15g, Clincher 650+/-15g | |||||||
.Spoke Hole Angle: | ±7° | ||||||
.Standard: | En Standard | ||||||
.Assembly Hole Dia: | 8.5mm | ||||||
.Spoke Hole Dia: | 4.5mm | ||||||
.Valve Hole Dia: | 6.5mm | ||||||
.Roundess: | <0.25mm | ||||||
.Flatness: | <0.15mm | ||||||
.Weight limit: | <100kg | ||||||
.Spoke Tension: | 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear | ||||||
.Tyre Pressure: | 130psi recommended max | ||||||
.Tire: | 23C~38C recommended | ||||||
Product packaging
1. Choose your bicyle parts
You can choose the bicycle accessories you like through our catalog. We have a rich carbon fiber accessories.
2. Build the bike wheels
We have professional bicycle wheel assemblers who use pneumatic tools to ensure that each spoke has even tension
3. Package the Wheels by carton
For long-distance transportation, we use the best carton materials, and the packaging of each wheel is reinforced, so you can
purchase with confidence.
purchase with confidence.

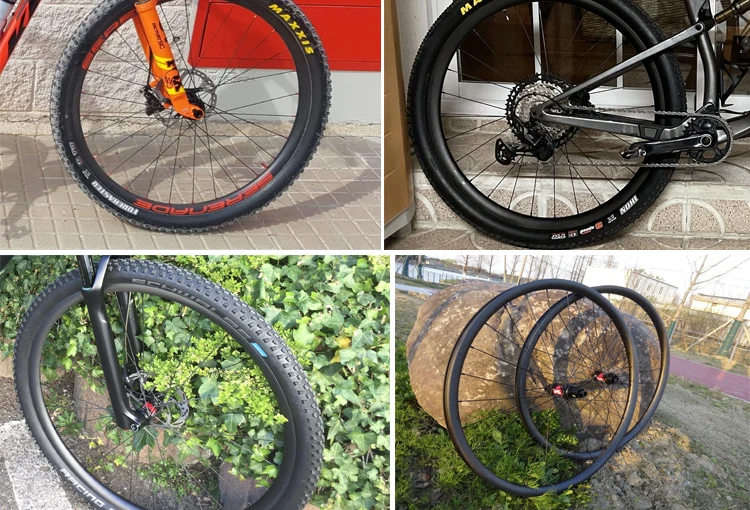

Customer feedback
We have many years of sales experience and can provide European repair services. Thank you for your choice.
7-Tiger bicycles will provide you with good service.
7-Tiger bicycles will provide you with good service.
How to choose your shipping method?
After we confirm your product list, we will quote according to the actual situation.
DHL/ UPS is the fastest and safest transportation method. If you are in Europe, you can choose the DPD transportation method. If you are in Asia, you can choose EMS. All products, excluding shipping costs, please consult our colleagues before ordering.
