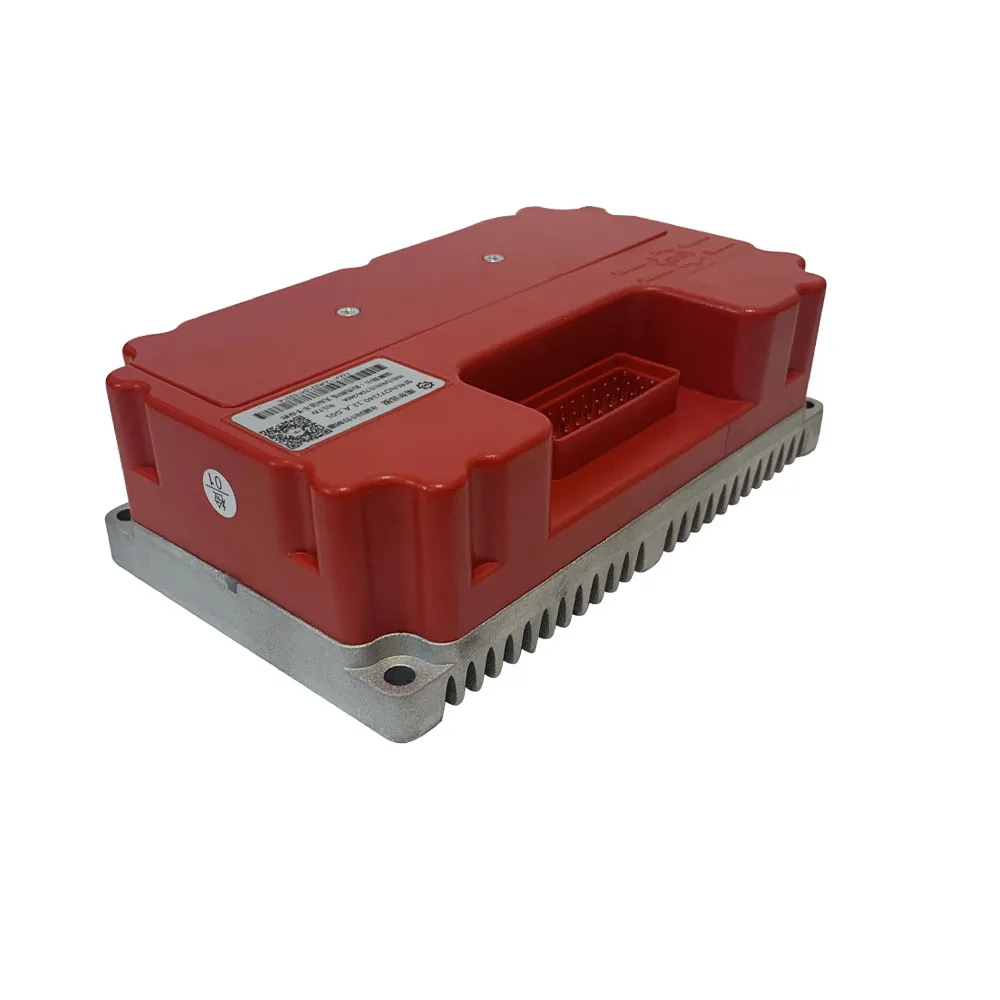

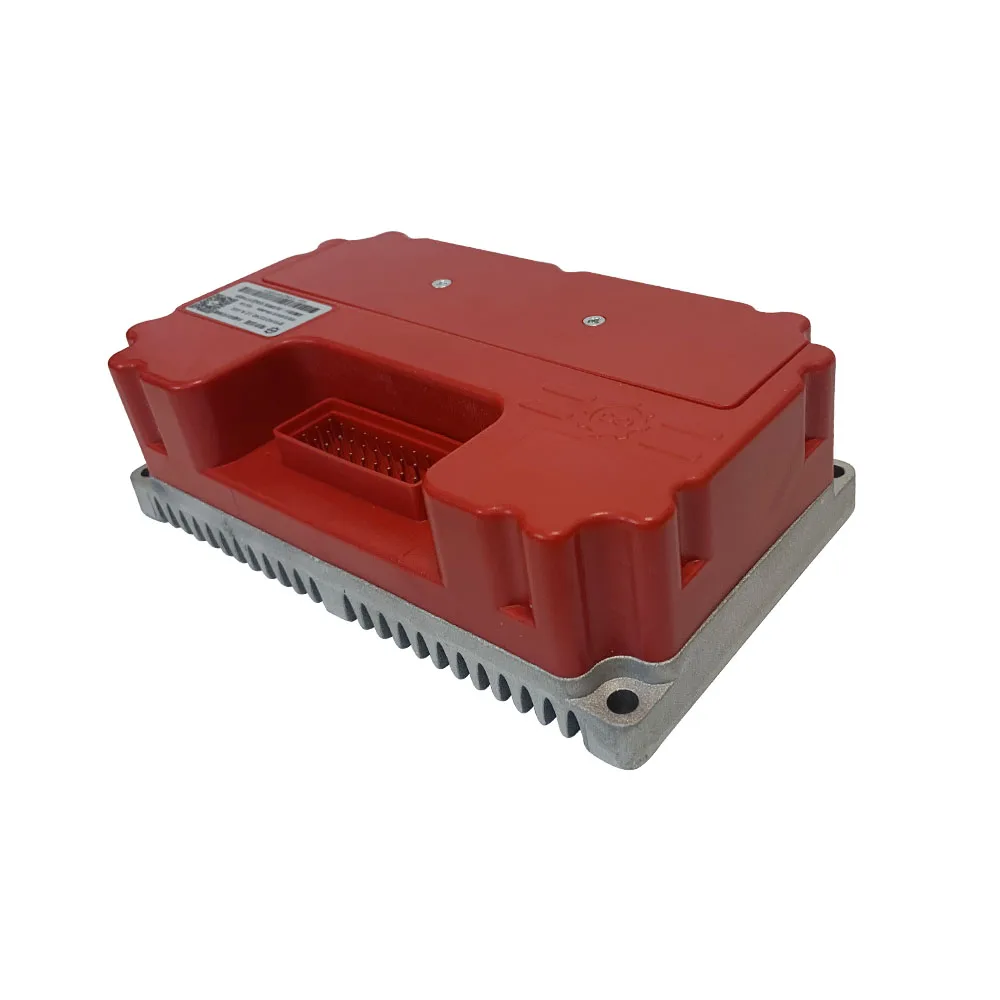

Fardriver DC Motor Controller 60v/72v/96v 1500W ND72300 BLDC Speed Controller for Electric Scooter dc motor controller 72v
- Category: >>>
- Supplier: Wuxi Junteng Import And Export Co. Ltd.
Share on (1600466519451):
Product Overview
Description
Product Description
72V 2000W Electric Motorcycle Controller for Brushless Hub Motor

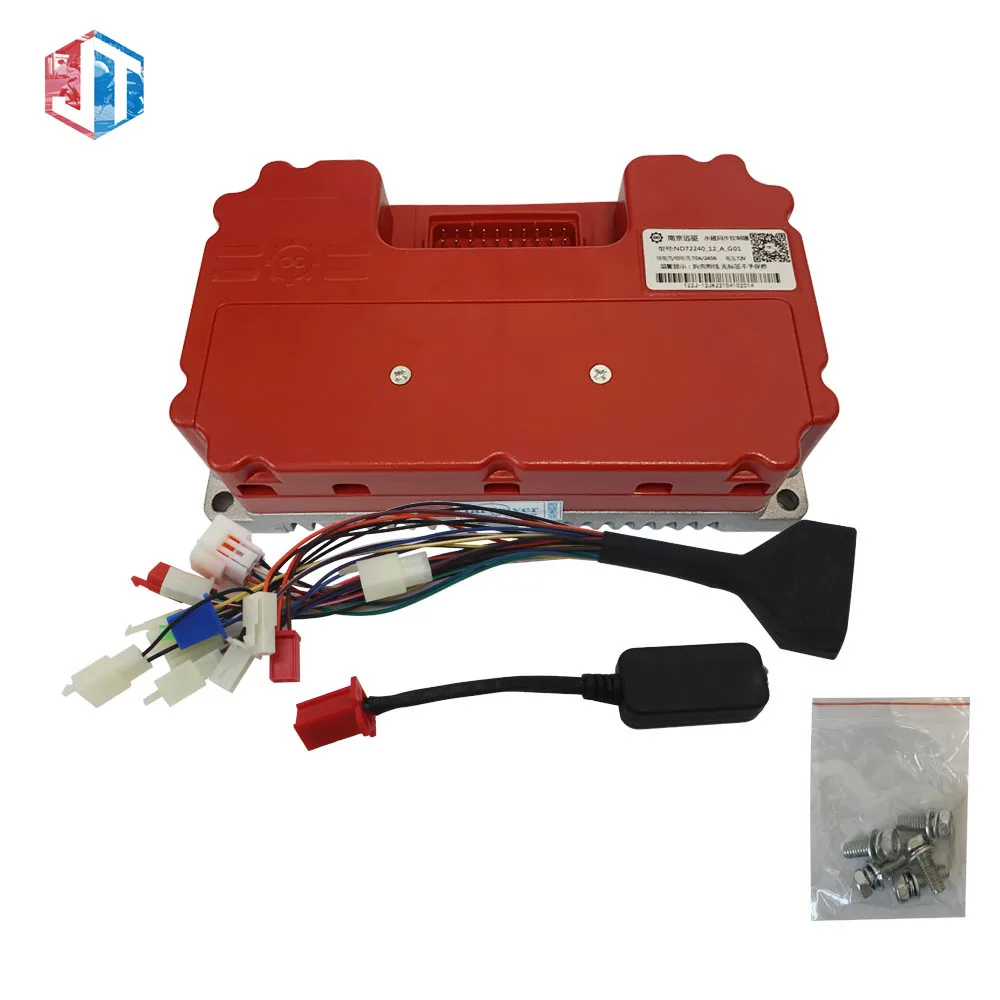

The Package for ND96240 Controller Including:
1 piece Controller ND96240 1 piece Programmable Cable for PC or wireless module for Cell Phone
1 piece Complete wiring 1 piece
Software(Will be sent by Email)
1 piece Controller ND96240 1 piece Programmable Cable for PC or wireless module for Cell Phone
1 piece Complete wiring 1 piece
Software(Will be sent by Email)
Specification
item | Electric Motorcycle Controller |
Place of Origin | China |
Jiangsu | |
Brand Name | FarDriver |
Model Number | ND72300 |
Product Name | Brushless Hub Motor Controller |
Control Method | Dual current loop true vector control |
Rated Out Power | 1500W-2000W |
Controller Type | Sine Wave FOC Controller |
Voltage | 60-96V |
Operating Temperature | -30℃~+55℃ |

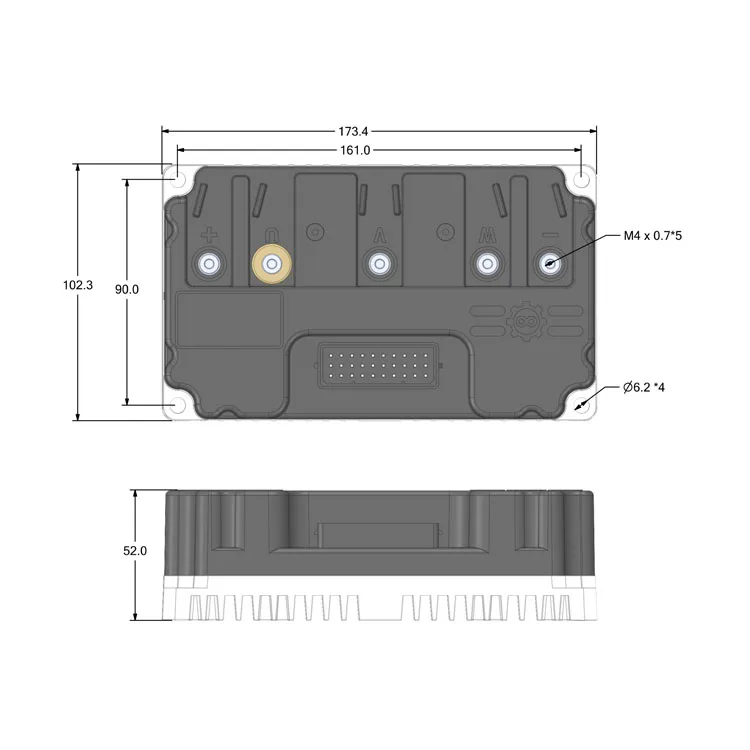

Size | 190mm*110mm*85mm |
Features: The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end

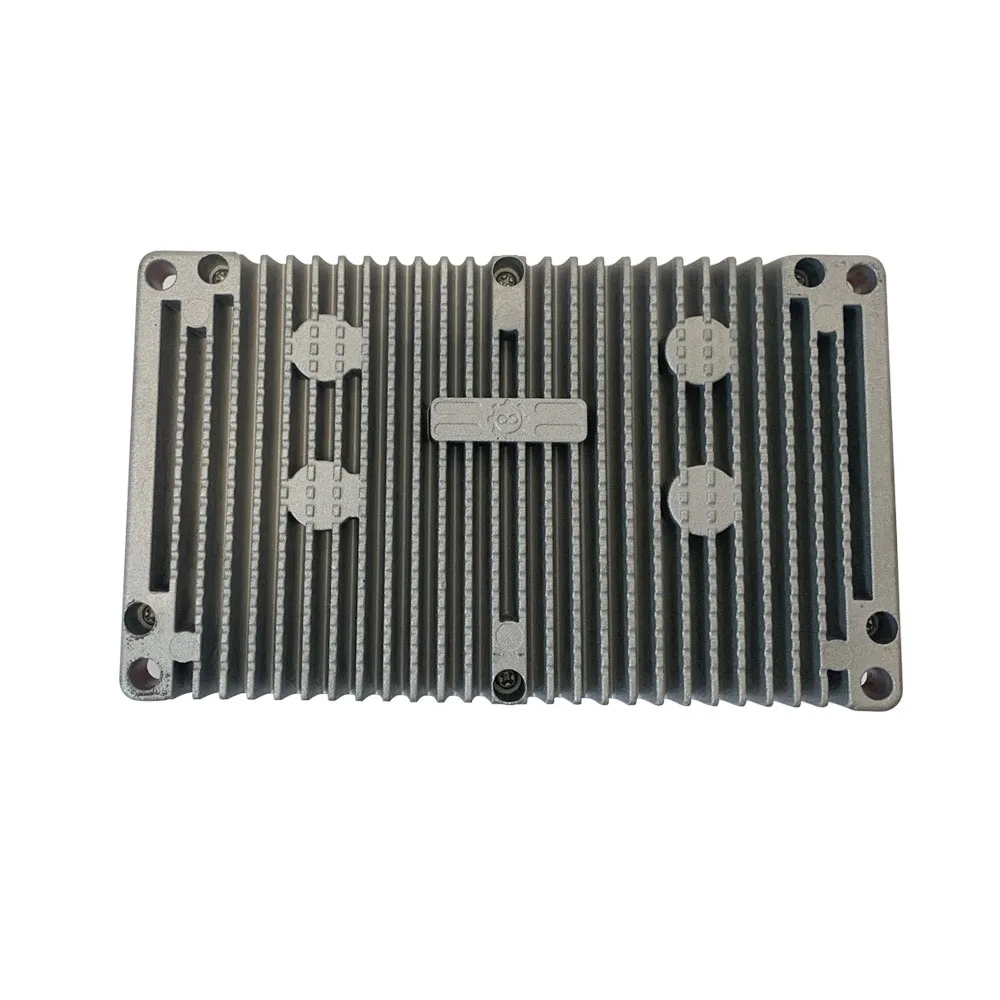

electric tricycles. Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure,
the hardware architecture and software implementation are perfectly matched and refined.
Rich software parameter configuration：
*Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online.
* The maximum speed of forward and backward, economic speed can be set.
* The overall bus current and phase current can be set.
* The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.
Perfect protection function：Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc.
Ensure the safety of vehicle driving control Items
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end
electric tricycles. Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure,
the hardware architecture and software implementation are perfectly matched and refined.
Rich software parameter configuration：
*Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online.
* The maximum speed of forward and backward, economic speed can be set.
* The overall bus current and phase current can be set.
* The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.
Perfect protection function：Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc.
Ensure the safety of vehicle driving control Items
Company Profile
We specialize in making HUB MOTOR and GARDEN PRODUCT .One-Stop Hub Motor System Solution Supplier . Our aim is to provide you satisfied hub motor and garden items with quality products,reasonable price and good service,Hope to let consumer's life is full of elegance,beauty and fun.We have our own factory with 60 experienced skill workers located in Wuxi and several cooperative factories.We warmly welcome you to work together! to create brilliant business and friendly relationship on equal and mutual benefit. MAKE THE WORLD MORE BEAUTIFUL AND FUNNY . 2022, We start new enterprise , the Electric vehicle modified hub motor , speed controller and other associated electronics , warmly welcome you to communicate and cooperate .
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on the
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can you print our logo and OEM packing?
R: We can print your logo and custom made package.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on the
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can you print our logo and OEM packing?
R: We can print your logo and custom made package.
