Product Overview
Description
Product Overview

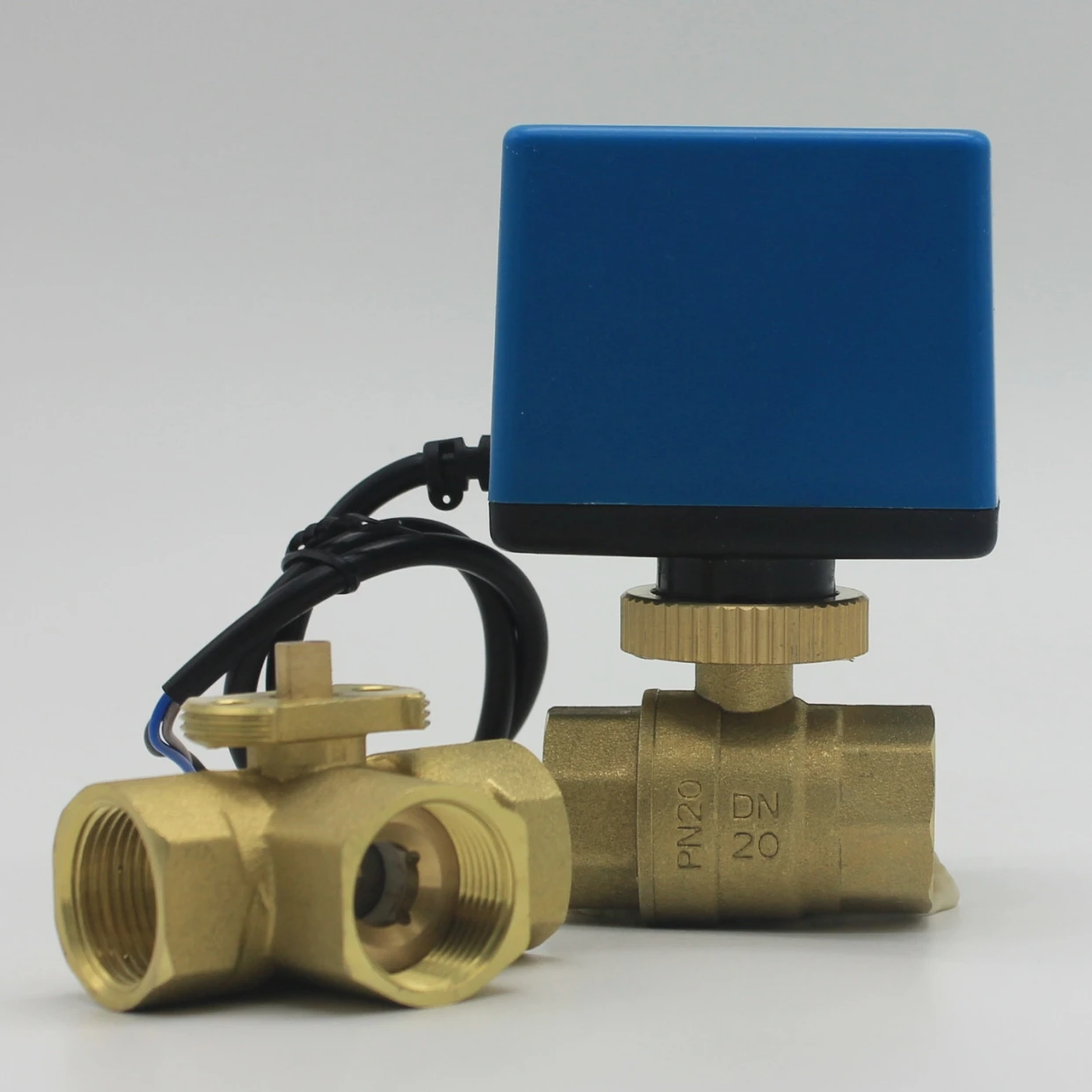

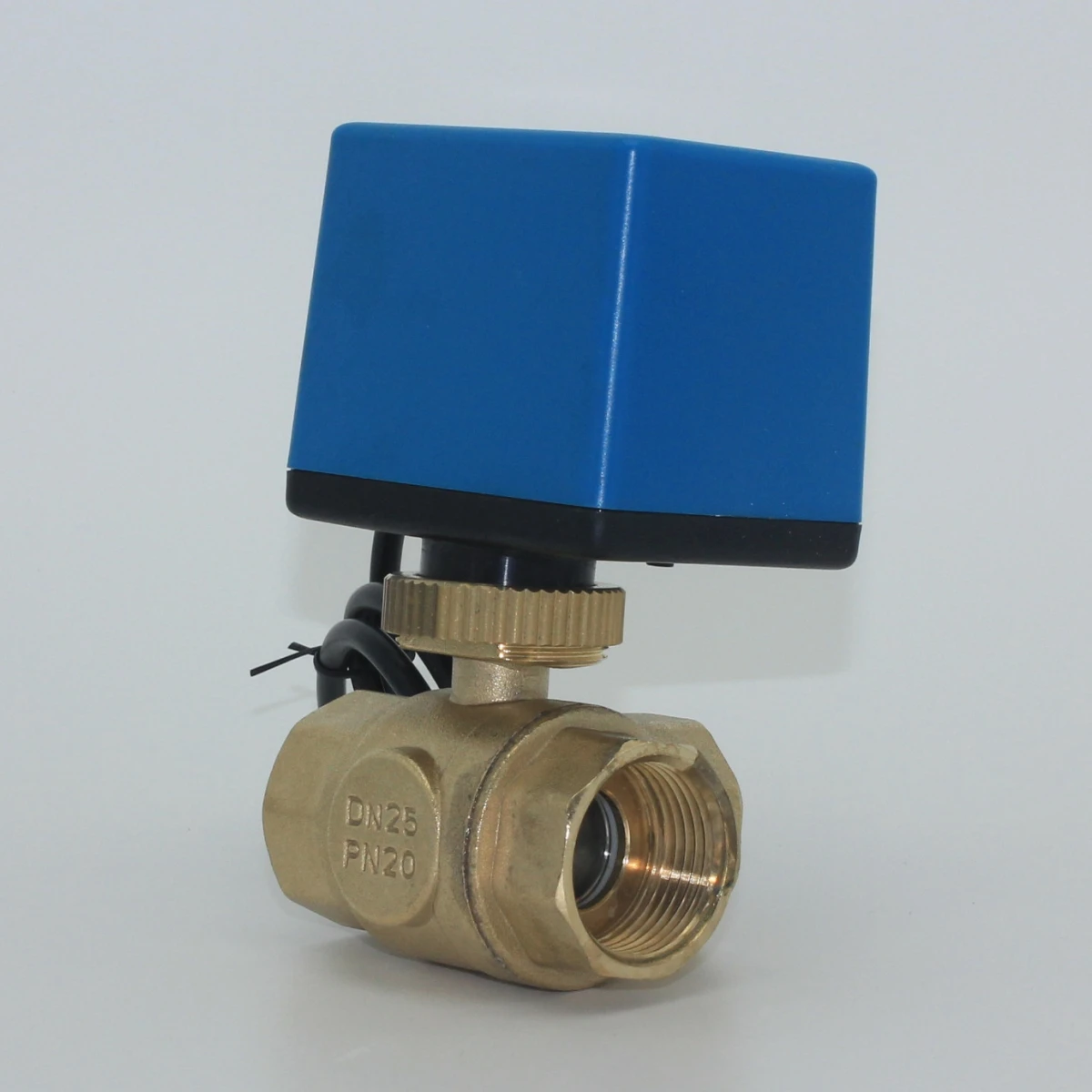

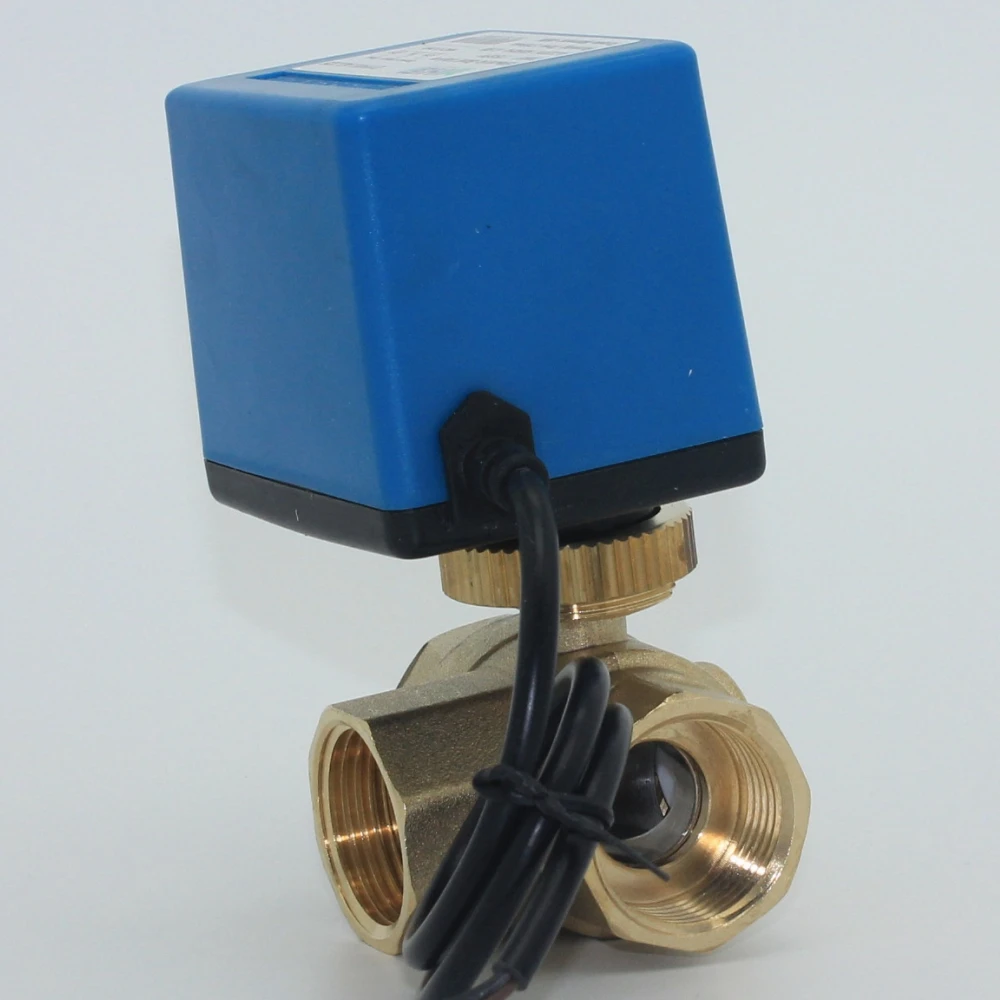

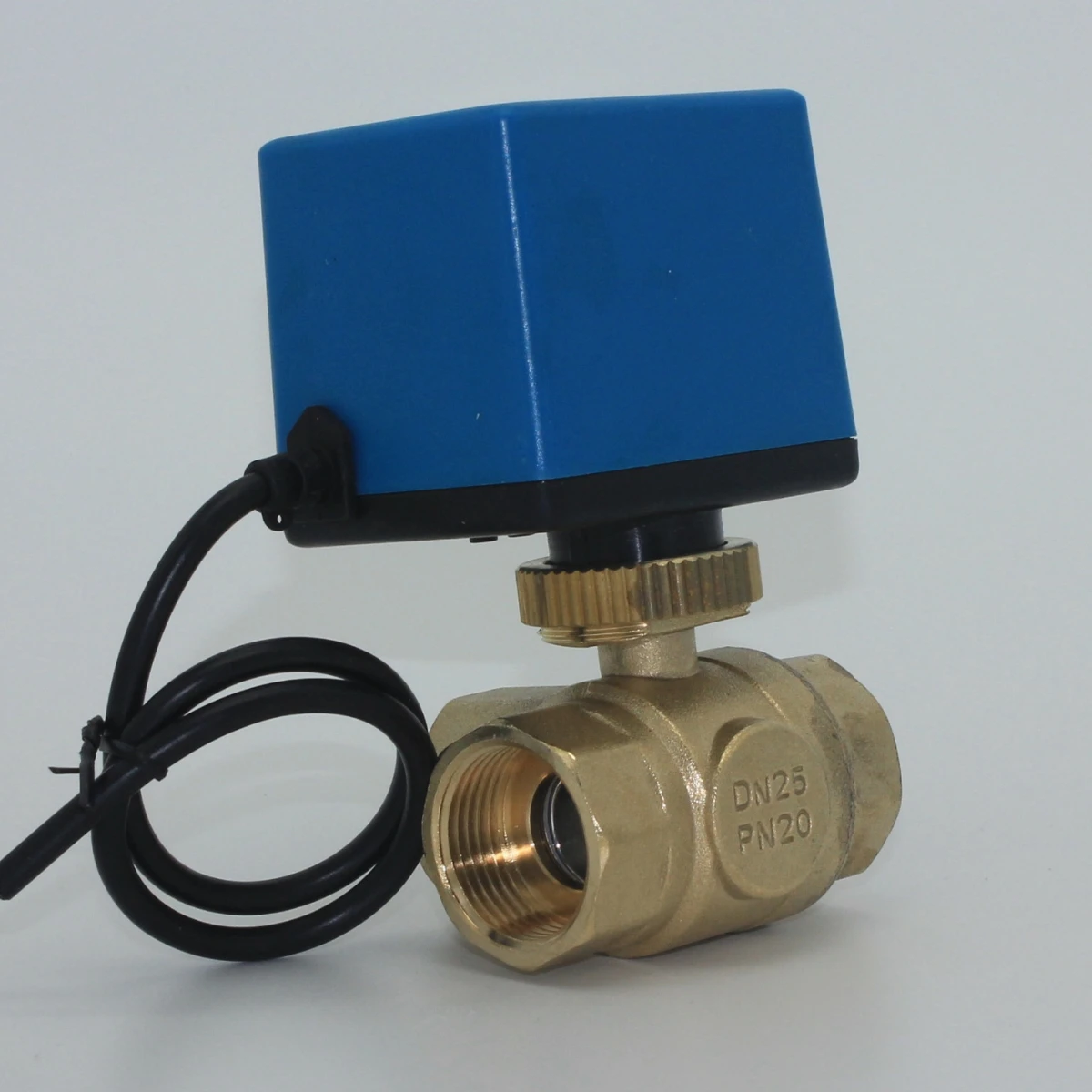

DYH07.A2 Motorized Ball Valve
DYH07.A2 series motorized ball valve is widely used in on/off and floating water control application, which is consist of brass ball valve body and actuator which driven by synchronous motor rotate 90°, built-in limited switch to accurate cut power off while valve fully opened or fully closed.
FEATURES AT A GLANCE
High quality synchronous motor, long life usage
Fire retardant ABS plastic cover
Steel gear assembly, with big torque
High temperature forged brass valve body
High ingress protection (IP54)
Fire retardant ABS plastic cover
Steel gear assembly, with big torque
High temperature forged brass valve body
High ingress protection (IP54)
Compact construction for easy installation
Low power, low noise, light weight, long life, easy maintenance
Low power, low noise, light weight, long life, easy maintenance
The power head can be replaced without disturbing the valve body or draining the system
On-Off or floating controlling optional
2 way and 3 way side
DN15 to DN32
2 way and 3 way side
DN15 to DN32
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Item No. | DYH07.A2.215 | DYH07.A2.315 | DYH07.A2.220 | DYH07.A2.320 | DYH07.A2.225 | DYH07.A2.325 | DYH07.A2.232 | ||||||
Voltage Supply | AC24V/AC220V±10%, 50/60Hz | ||||||||||||
Power Consumption | 6.5W | ||||||||||||
Torque | 4Nm | ||||||||||||
Control Mode | On-Off or 3-point floating | ||||||||||||
Run time | Open<15s Close<15s | ||||||||||||
Action Type | 2-Way | 3-Way | 2-Way | 3-Way | 2-Way | 3-Way | 2-Way | ||||||
Rate Pressure | 1.6MPa | ||||||||||||
Services Medium | Chilled and or Hot Water, Up to 50% Glycol | ||||||||||||

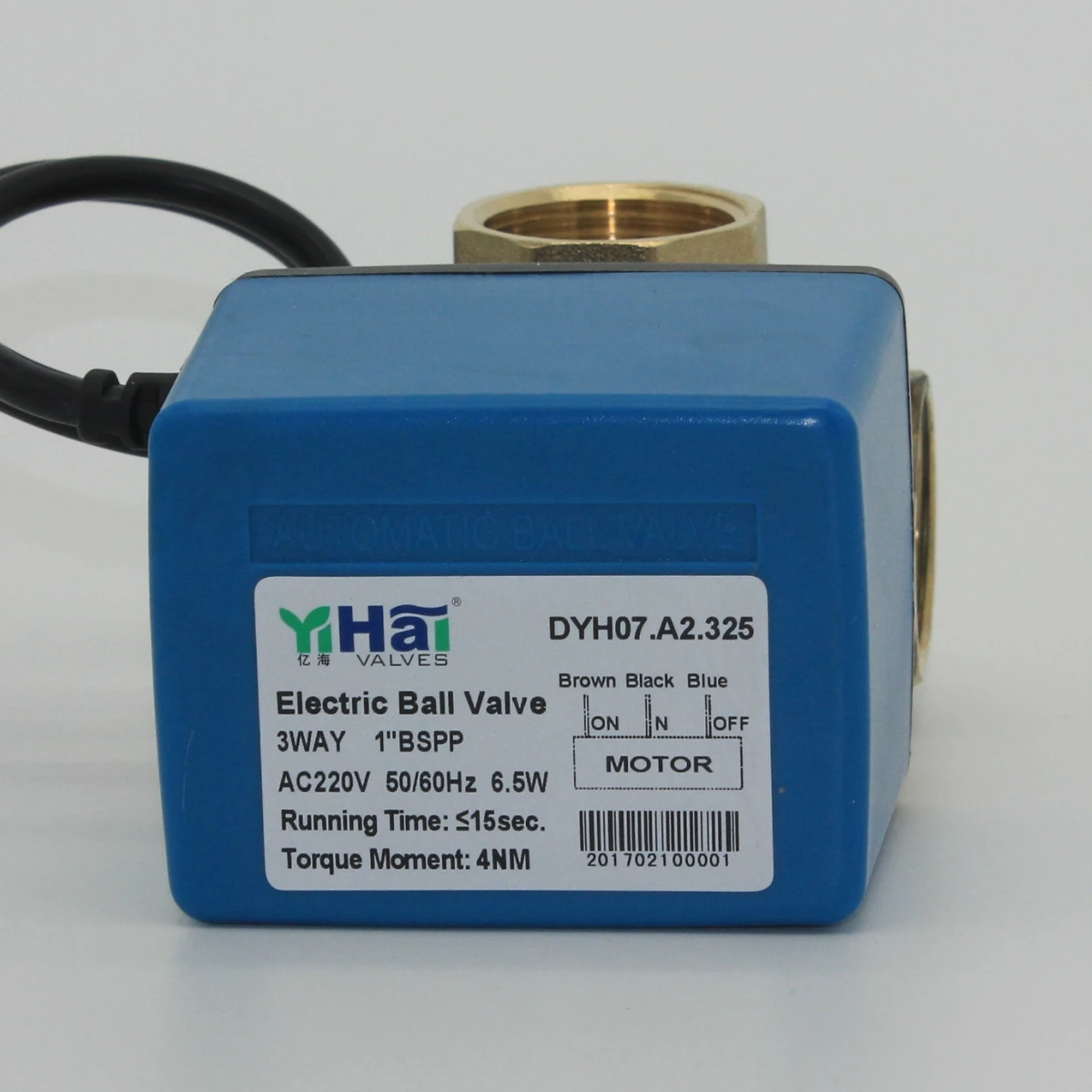

Lead Supply | 3 Core(Brown, Blue, Black) | ||||||||||||
Environment Temperature | 0℃（32℉）-50℃（122℉） non condensing | ||||||||||||
Fluid Temperature | 0℃（32℉）-94℃（203℉） | ||||||||||||
Material | Valve Body: Forged Brass Valve Stem: brass Valve Core: SS(304) Valve Seal: EPDM | ||||||||||||
DN Size | DN15 | DN15 | DN20 | DN20 | DN25 | DN25 | DN32 | ||||||
End Connection | BSPP / NPT Internal Threaded | ||||||||||||
Size(Inch) | 1/2” | 1/2” | 3/4” | 3/4” | 1” | 1” | 1-1/4” | ||||||
Kv (Cv) Value | 4.0（4.7） | 4.0（4.7） | 7.0（8.2） | 7.0（8.2） | 12.0（14.0） | 12.0（14.0） | 19.0 (22.0) | ||||||

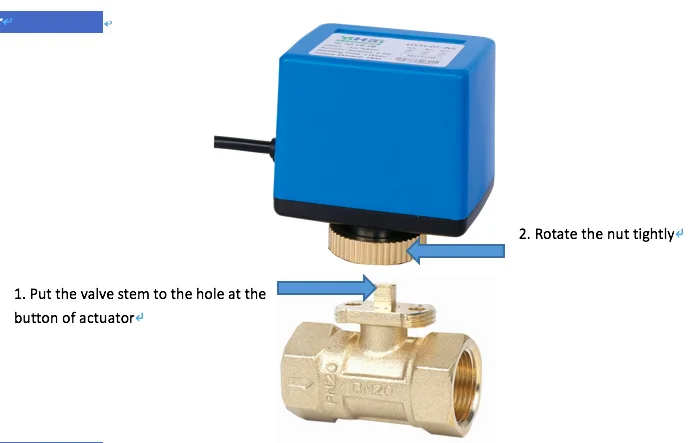

Installations
1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The valve should be installed somewhere easy to install and maintain.
5. Horizontal installation, that means the motor should be in the above of valve body to avoid humidity.
6. 3 way connection as flowing, 2 way connection no direction.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The valve should be installed somewhere easy to install and maintain.
5. Horizontal installation, that means the motor should be in the above of valve body to avoid humidity.
6. 3 way connection as flowing, 2 way connection no direction.
