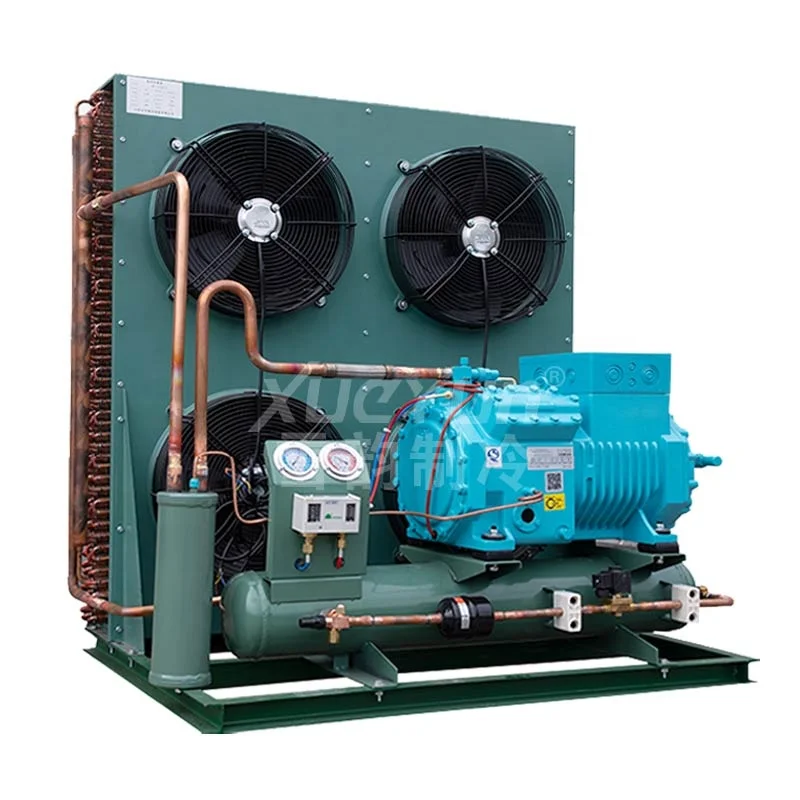

High Quality Compressor Medium And High Temperature Series Compressors Refrigeration Air Cooled Condensing Units
- Category: >>>
- Supplier: Chongqing Xueyun Refrigeration Equipment Co. Ltd.
Share on (1600466736773):
Product Overview
Description
VR
Product Description

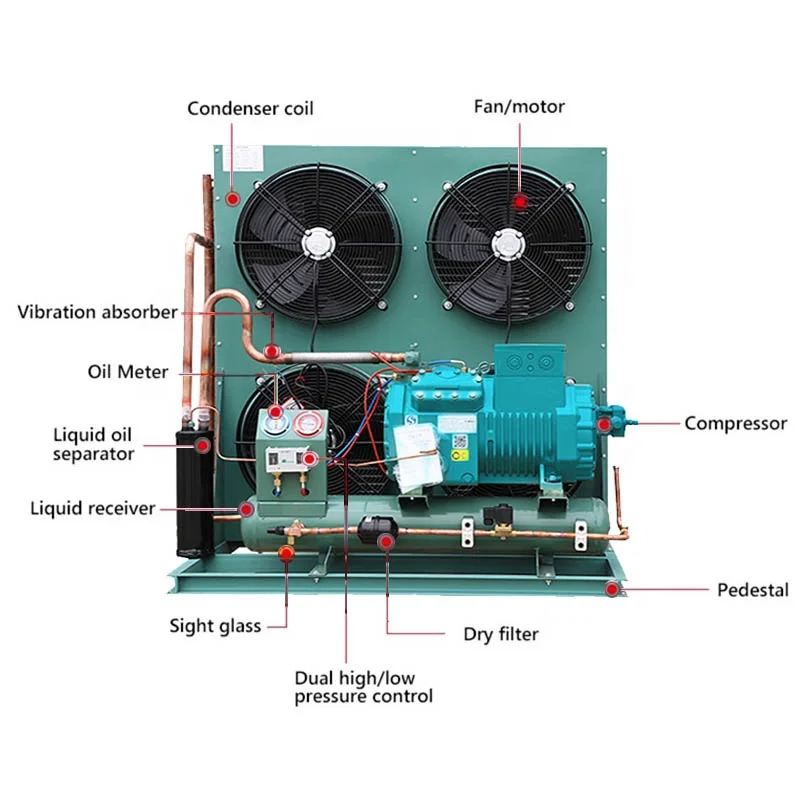

The Condensing Unit include:
Compressor, vibration eliminate, oil filter, condenser, liquid receiver, dry filter, sight glasses, solenoid valve, accumulator (low temperature), pressure controller, high and low pressure guage, water-proof connection box.
If you not sure which model is suitable for you,
We have professional engineer team will provide ideal project to you!
Semi-Hermetic Piston Refrigeration Compressor Parameters | ||||||||||||||
LP / HP | Max. 1.9/3.2 MPa | |||||||||||||
Refrigerant | R22 / R404 | |||||||||||||
Nominal Volt & Frequ.Hz | Can be customize | |||||||||||||
Frequ. Hz | Max.Oper current | Start/Block Current | Displacement m³/h | Rotation Speed r/min | ||||||||||
3HP LOW Tep. BBF4FC-3ZR | 50 | 15.9 | 9.2 | 76.6 | 44.2 | 18.05 | 1450 | |||||||
60 | 15.9 | 9.2 | 76.6 | 44.2 | 21.7 | 1750 | ||||||||
3HP High Tep. BBF2DC-3GR | 50 | 13.5 | 7.8 | 64 | 37 | 13.4 | 1450 | |||||||
60 | 13.5 | 7.8 | 64 | 37 | 16.2 | 1750 | ||||||||
4HP LOW Tep. BBF4EC-4ZR | 50 | 18.5 | 10.7 | 92.7 | 53.5 | 22.72 | 1450 | |||||||
60 | 18.5 | 10.7 | 92.7 | 53.5 | 27.42 | 1750 | ||||||||
4HP High Tep. BBF2CC-4GR | 50 | 16.4 | 9.4 | 76.6 | 44.2 | 16.2 | 1450 | |||||||
60 | 16.4 | 9.4 | 76.6 | 44.2 | 19.6 | 1750 | ||||||||
5HP LOW Tep. BBF4DC-5ZR | 50 | 23.4 | 13.5 | 107.7 | 62.2 | 26.84 | 1450 | |||||||
60 | 23.4 | 13.5 | 107.7 | 62.2 | 32.39 | 1750 | ||||||||
5HP High Tep. BBF4FC-5GR | 50 | 18.7 | 10.8 | 107.7 | 62.2 | 18.05 | 1450 | |||||||
60 | 18.7 | 10.8 | 107.7 | 62.2 | 21.78 | 1750 | ||||||||
6HP LOW Tep. BBF4VC-6ZR | 50 | 14 | 49 | 68 | 34.73 | 1450 | ||||||||
60 | 14 | 14 | 49 | 68 | 41.92 | 147. | ||||||||
6HP High Tep. BBF4FC-6GR | 50 | 22.9 | 13.2 | 107.7 | 62.2 | 22.72 | 1450 | |||||||
60 | 22.9 | 13.2 | 107.7 | 62.2 | 27.42 | 1750 | ||||||||
7HP High Tep. BBF4DC-7GR | 50 | 27.5 | 15.9 | 142.8 | 82.4 | 26.84 | 1450 | |||||||
60 | 27.5 | 15.9 | 142.8 | 82.4 | 32.39 | 1750 | ||||||||
8HP LOW Tep. BBF4TCS-8ZR | 50 | 17 | 49 | 81 | 41.33 | 1450 | ||||||||
60 | 17 | 49 | 81 | 49.88 | 1470 | |||||||||
9HP High Tep. BBF4CC-9GR | 50 | 34.5 | 20 | 142.8 | 82.4 | 32.48 | 1450 | |||||||
60 | 34.5 | 20 | 142.8 | 82.4 | 39.2 | 1470 | ||||||||
10HP LOW Tep. BBF6F-40ZR | 50 | 78 | 180 | 323 | 151.6 | 1450 | ||||||||
60 | 78 | 180 | 323 | 183.0 | 1750 | |||||||||
10HP High Tep. BBF4VCS-10GR | 50 | 21 | 59 | 99 | 34.73 | 1450 | ||||||||
60 | 21 | 59 | 99 | 41.92 | 1750 | |||||||||
12HP LOW Tep. BBF4NCS-12ZR | 50 | 24 | 69 | 113 | 56.25 | 1450 | ||||||||
60 | 24 | 69 | 113 | 67.89 | 1750 | |||||||||
12HP High Tep. BBF4TCS-12GR | 50 | 24 | 69 | 113 | 41.33 | 1450 | ||||||||
60 | 24 | 69 | 113 | 49.88 | 1750 | |||||||||
15HP LOW Tep. BBF4H-15ZR | 50 | 31 | 81 | 132 | 73.6 | 1450 | ||||||||
60 | 31 | 81 | 132 | 88.83 | 1750 | |||||||||
15HP High Tep. BBF4PCS-15GR | 50 | 31 | 81 | 132 | 48.05 | 1450 | ||||||||
60 | 31 | 81 | 132 | 58.53 | 1750 | |||||||||
20HP LOW Tep. BBF4G-20ZR | 50 | 37 | 97 | 158 | 84.50 | 1450 | ||||||||
60 | 37 | 97 | 158 | 101.98 | 1750 | |||||||||
20HP High Tep. BBF4NCS-20GR | 50 | 37 | 97 | 158 | 56.25 | 1450 | ||||||||
60 | 37 | 97 | 158 | 67.89 | 1750 | |||||||||
25HP LOW Tep. BBF6H-25ZR | 50 | 45 | 116 | 193 | 110.5 | 1450 | ||||||||
60 | 45 | 116 | 193 | 133.4 | 1750 | |||||||||
25HP High Tep. BBF4H-25GR | 50 | 45 | 116 | 193 | 73.6 | 1450 | ||||||||
60 | 45 | 116 | 93 | 88.83 | 1750 | |||||||||
30HP LOW Tep. BBF6G-30ZR | 50 | 53 | 135 | 220 | 126.8 | 1450 | ||||||||
60 | 53 | 135 | 220 | 153.0 | 1450 | |||||||||
30HP High Tep. BBF4G-30GR | 50 | 53 | 135 | 220 | 84.5 | 1450 | ||||||||
60 | 53 | 135 | 220 | 101.98 | 1750 | |||||||||
35HP High Tep. BBF6H-35GR | 50 | 61 | 147 | 262 | 110.5 | 1450 | ||||||||
60 | 61 | 147 | 262 | 133.4 | 1750 | |||||||||
40HP LOW Tep. BBF6F-40ZR | 50 | 78 | 180 | 323 | 151.6 | 1450 | ||||||||
60 | 78 | 180 | 323 | 183.0 | 1750 | |||||||||
40HP High Tep. BBF6G-40GR | 50 | 78 | 180 | 323 | 126.8 | 1450 | ||||||||
60 | 78 | 180 | 323 | 153.0 | 1750 | |||||||||
50HP High Tep. BBF6F-50GR | 50 | 92 | 226 | 404 | 151.6 | 1450 | ||||||||
60 | 92 | 226 | 404 | 183.0 | 1750 | |||||||||
Water Cooled Condenser Parameters | ||||||||||||
Heat transfer area | Heat transfer capacity | Exhaust air fan capacity | Motor power | Motor voltage | Fan diameter | |||||||
BNF-70/3504/4Y | 70㎡ | 20.3KM | 4*2670m³/h | 4*135W | 380V | 4*350mm | ||||||
BNF-80/4004/4Y | 80㎡ | 23.2KM | 4*3500m³/h | 4*190W | 380V | 4*400mm | ||||||
BNF-100/4004/4Y | 100㎡ | 29.0KM | 4*3500m³/h | 4*190W | 380V | 4*400mm | ||||||
BNF-150/450/4Y | 150㎡ | 43.5KM | 4*4500m³/h | 4*230W | 380V | 4*450mm | ||||||
BNF-160/4504/4Y | 160㎡ | 46.4KM | 4*4500m³/h | 4*230W | 380V | 4*450mm | ||||||
BNF-180/4504/4Y | 180㎡ | 52.2KM | 4*4500m³/h | 4*230W | 380V | 4*450mm | ||||||
BNF-200/4504/4Y | 200㎡ | 58.0KM | 4*4500m³/h | 4*230W | 380V | 4*450mm | ||||||
BNF-220/4504/4Y | 220㎡ | 63.8KM | 4*6500m³/h | 4*420W | 380V | 4*500mm | ||||||
BNF-240/5004/4Y | 240㎡ | 69.6KM | 4*6500m³/h | 4*420W | 380V | 4*500mm | ||||||
BNF-280/5004/4Y | 280㎡ | 81.5KM | 4*6500m³/h | 4*420W | 380V | 4*500mm | ||||||
Please don't hesitate to contact us for
Free cold storage designs and drawings!

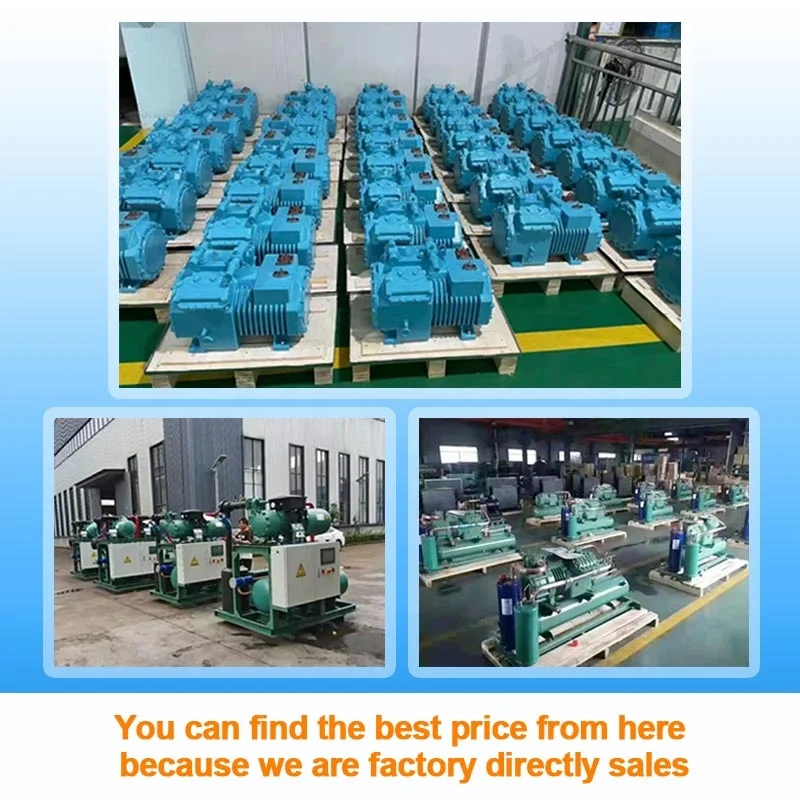

Factory Display
Packing & Delivery
We have a large amount of experience about Wood Packing of cold room.
Company Profile
Xueyun Refrigeration Equipment Co., Ltd., a CCTV broadcast brand, the leader of China's digital innovation cold chain.
It is a modern group company integrating R&D, production, sales, warehouse design and installation of refrigeration equipment such as cold storage, cold room and fresh-keeping storage, freezing and quick-freezing storage.
The company has 25,000 square meters of production plant and dozens of professional and technical personnel.
It has passed the ISO9001 international quality certification and obtained the first-level qualification of the electromechanical equipment installation service. Absorbing advanced management experience and scientific research results at home and abroad,and striving to give customers the best user experience.
