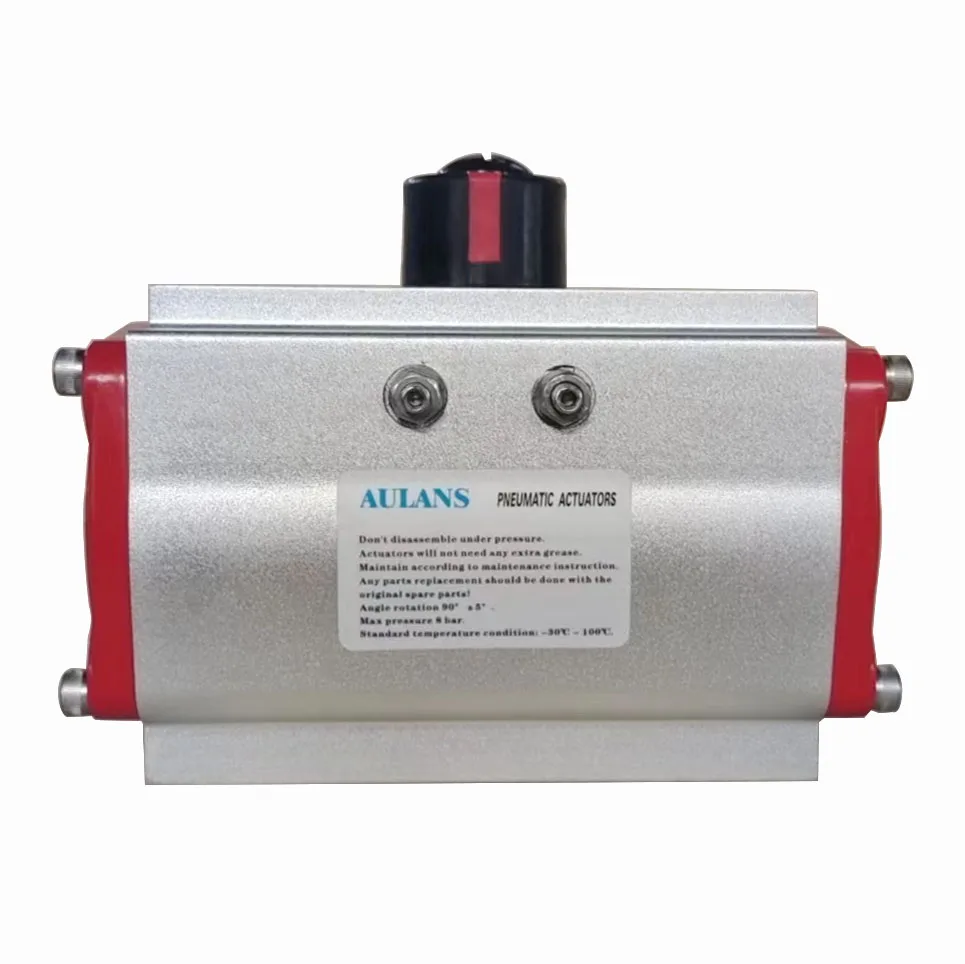

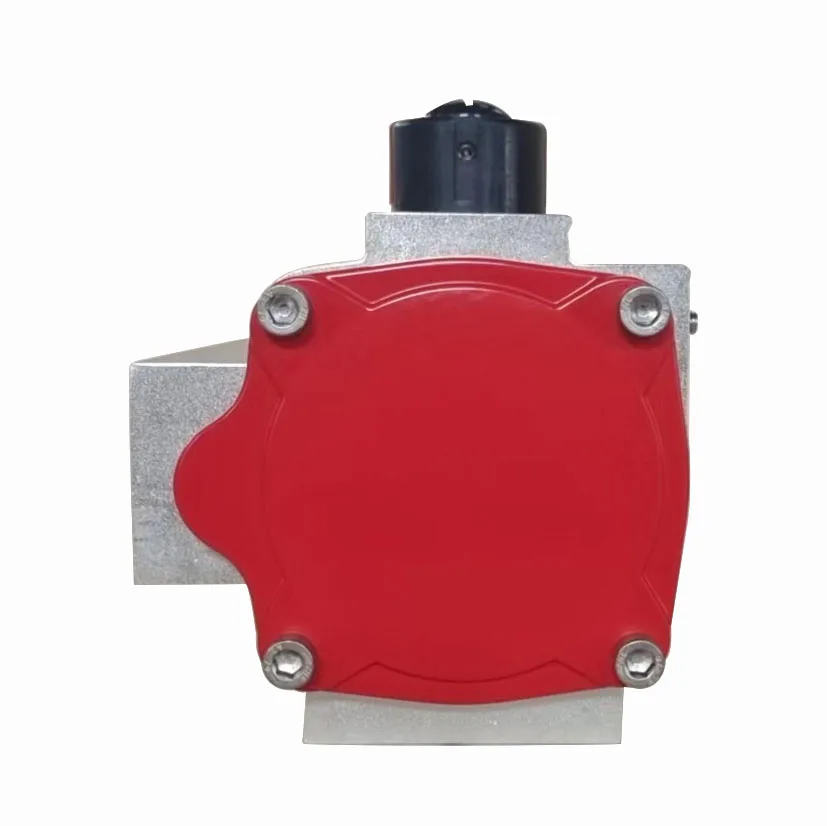

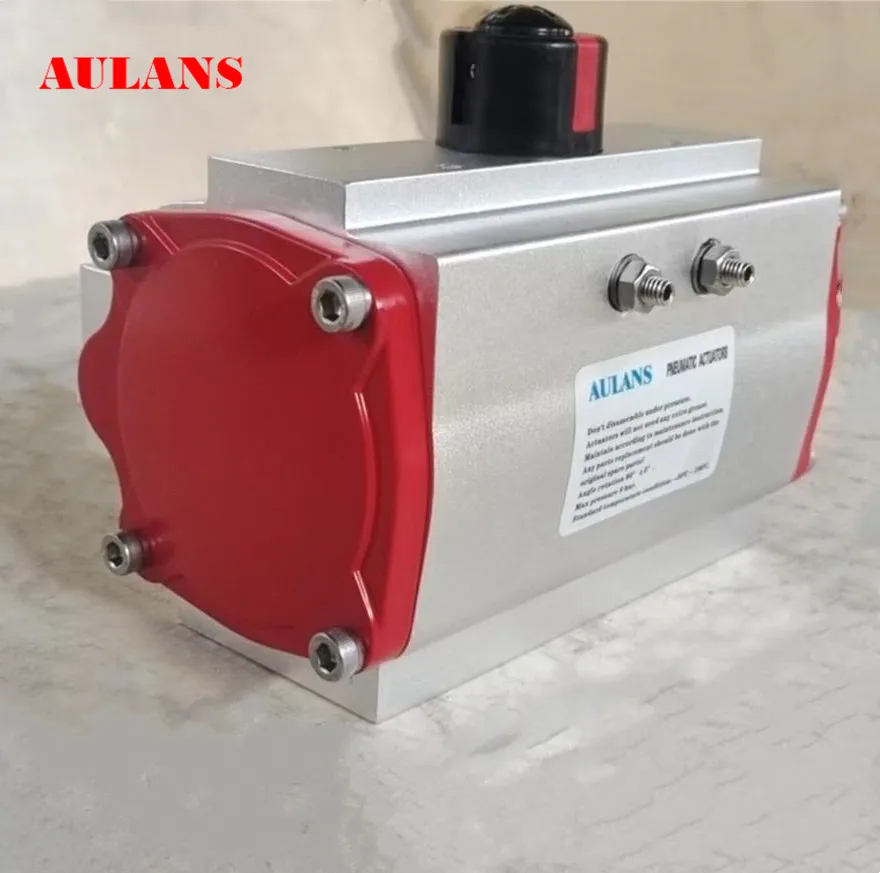

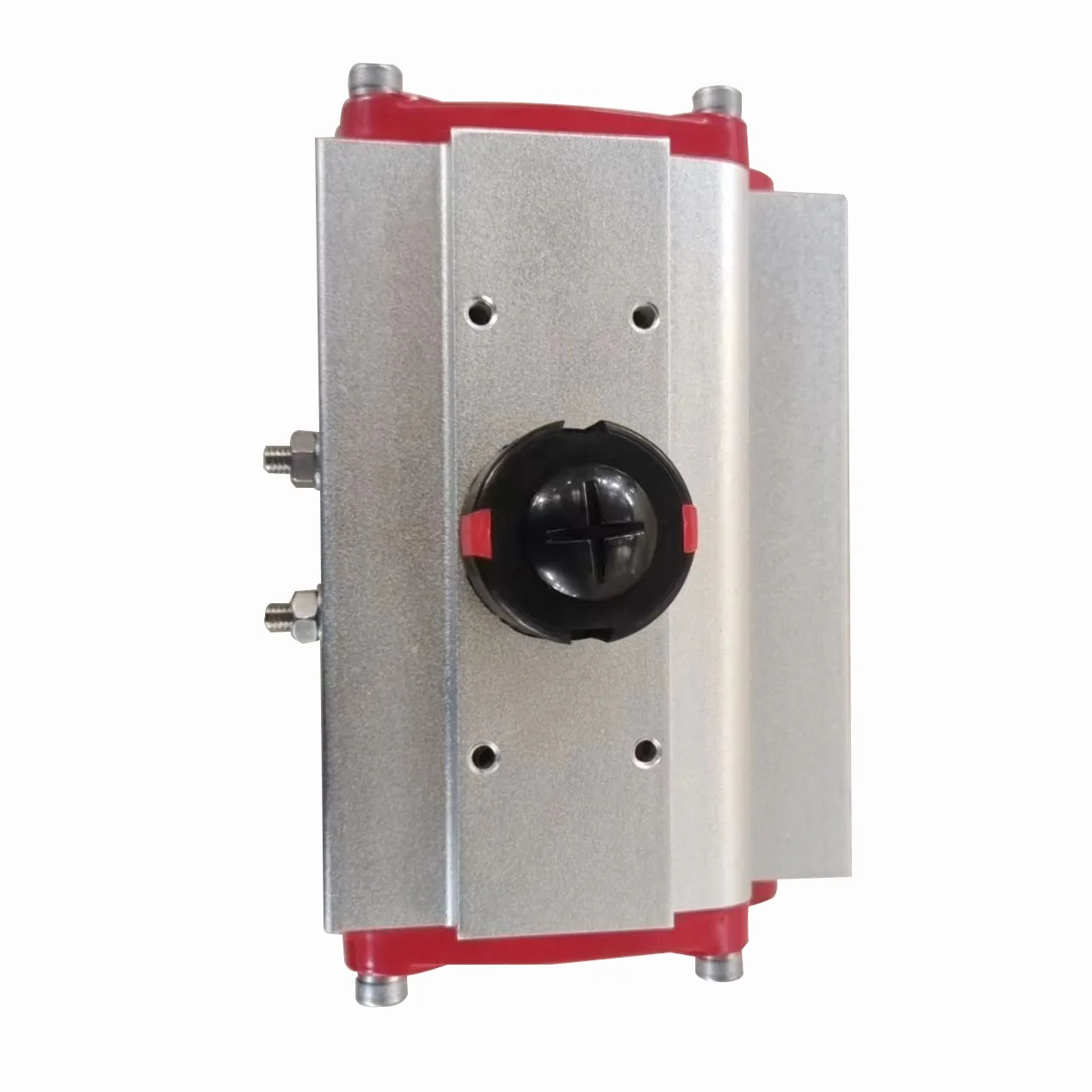

Double / single acting pneumatic control device pneumatic valve actuator Pneumatic Actuator
- Category: >>>
- Supplier: Shanghai Bomo Electromechanical Co. Ltd.
Share on (1600466738905):
Product Overview
Description
Product brand: AULANS | Cylinder block material: alloy aluminum oxidation treatment | |||||||
Structure: double piston gear strip type | Available torque: 27-91.7//NM | |||||||

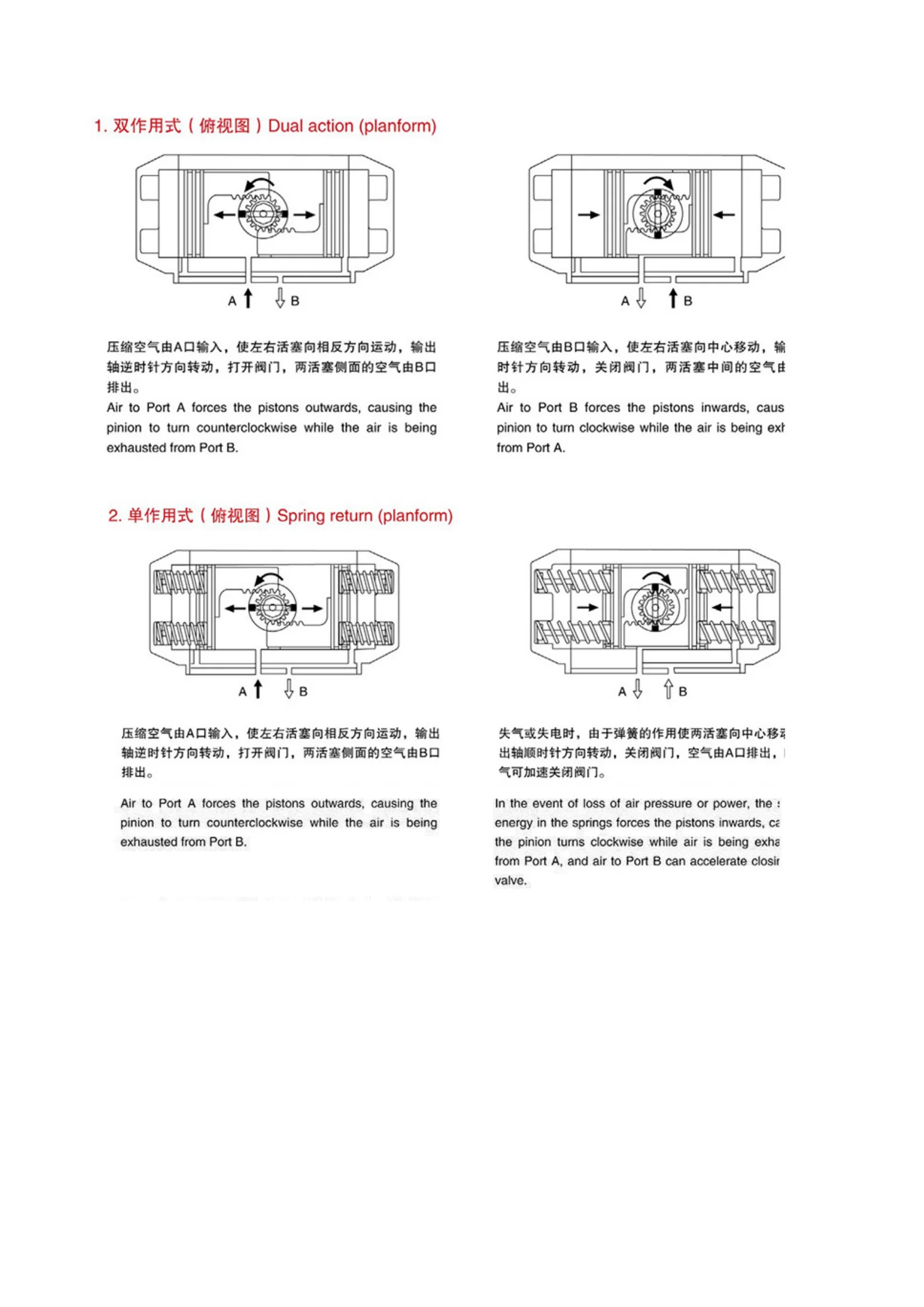

Action stroke: 90 ° angle stroke | Function options: double acting / single acting | |||||||
Optional accessories: limit switch, solenoid valve, filter pressure reducing valve | ||||||||
* Rotation angle:0° to 180° Adjustable angle 0° to 180°
* Air pressure: 2.5~8bar(Double acting), 3~8bar(Single acting)
* Operating ambient temperature: Standard Type:-20°C~+80°C
* High temperature Type: 0°C~+180°C
* Low temperature Type: -45°C~+60°C
* Max Working Pressure: 10bar
* Pressure: 5 to 10 bar
* Work media: Air (PNEUROP/ISO Class 4)

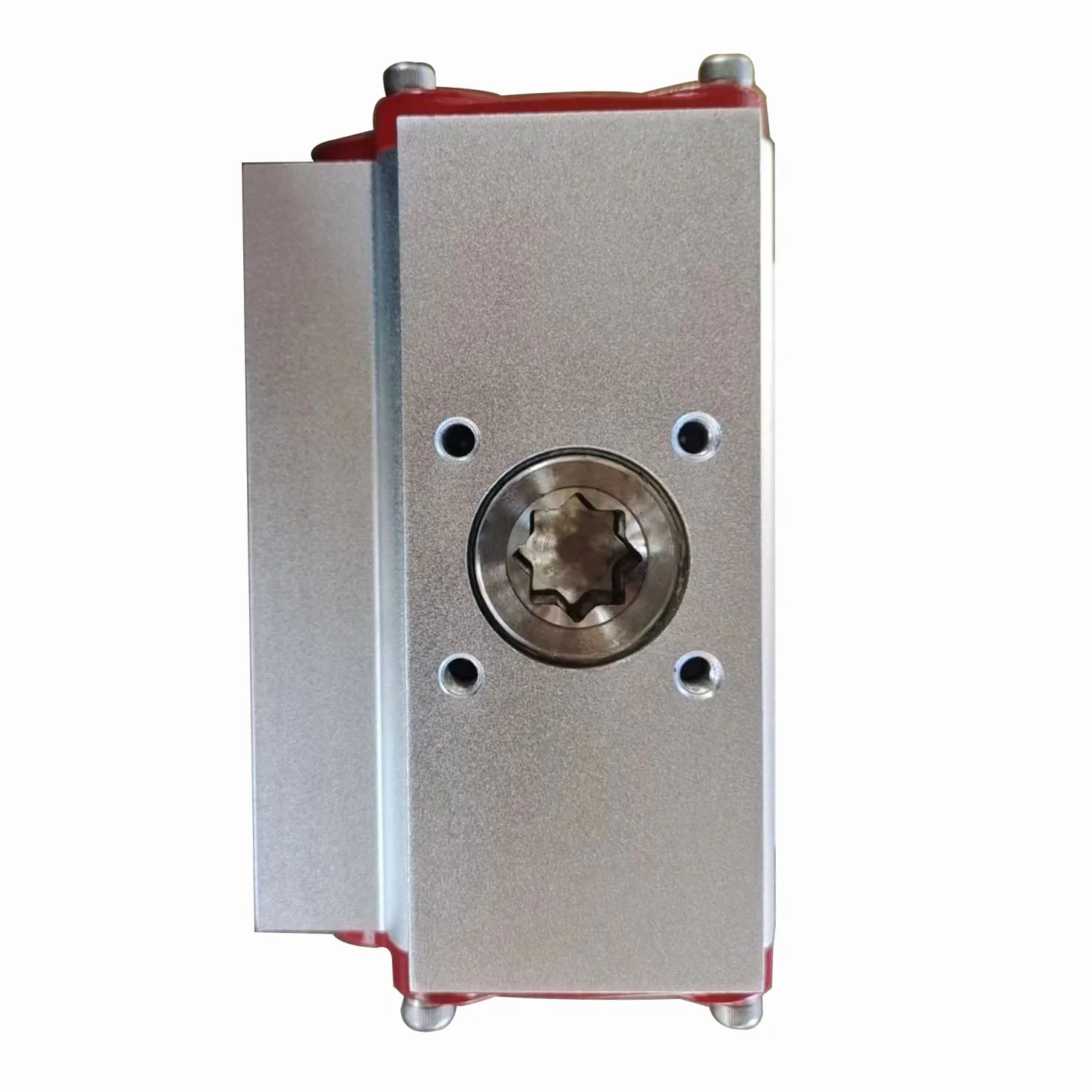

* Connections: ISO 5211 for brackets
* DIN 3337 coupling (star shaped)
* VDI/VDE 3845 for accessories

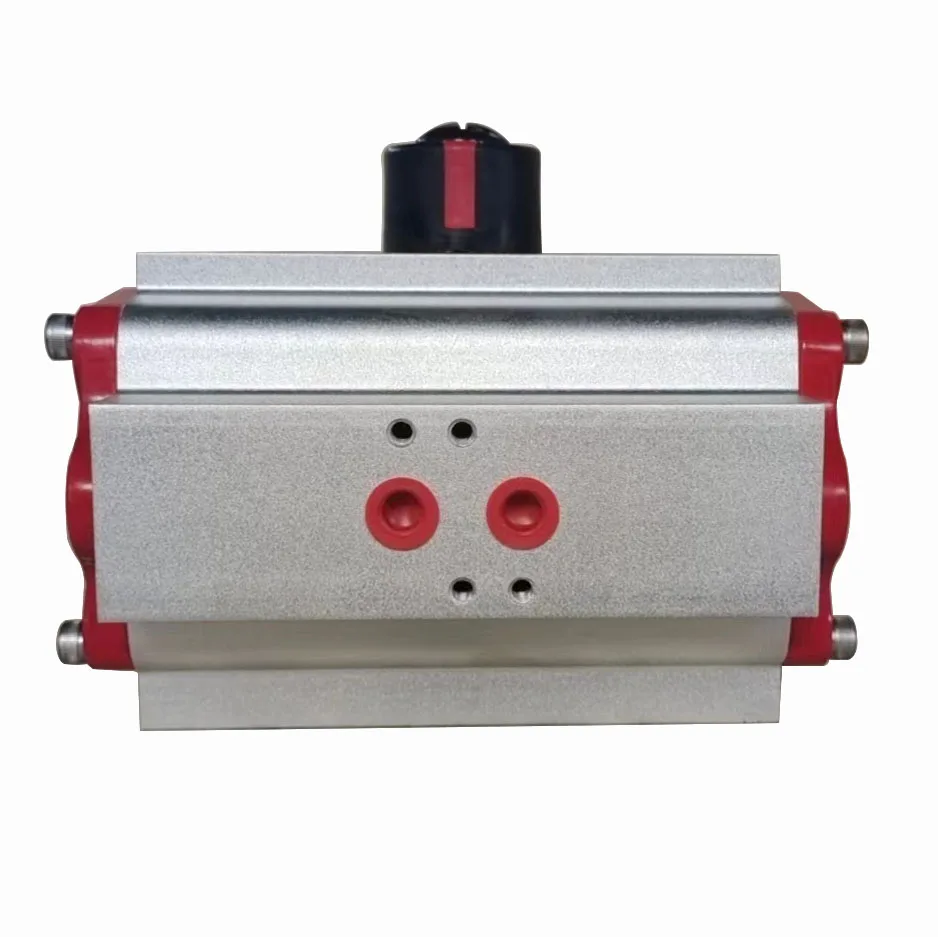

* NAMUR for work media
* Air supply connection:1/8" & 1/4" G type thread.
* Surface material: Hard anodized - 40μm
* Life time: One million times
* Accessories: positioner, Air Filter Regulator, lock up valve, travel switch, handwheel, etc...
* Air pressure: 2.5~8bar(Double acting), 3~8bar(Single acting)
* Operating ambient temperature: Standard Type:-20°C~+80°C
* High temperature Type: 0°C~+180°C
* Low temperature Type: -45°C~+60°C
* Max Working Pressure: 10bar
* Pressure: 5 to 10 bar
* Work media: Air (PNEUROP/ISO Class 4)
* Connections: ISO 5211 for brackets
* DIN 3337 coupling (star shaped)
* VDI/VDE 3845 for accessories
* NAMUR for work media
* Air supply connection:1/8" & 1/4" G type thread.
* Surface material: Hard anodized - 40μm
* Life time: One million times
* Accessories: positioner, Air Filter Regulator, lock up valve, travel switch, handwheel, etc...

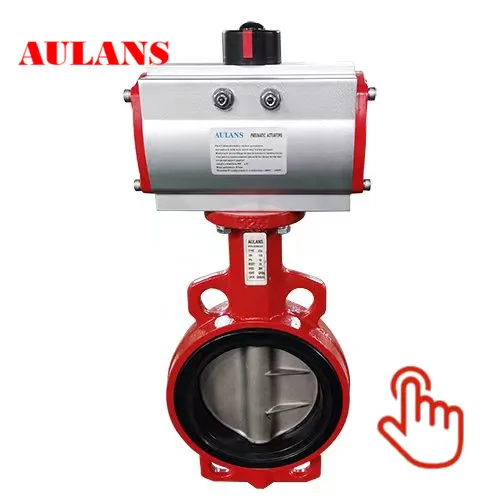

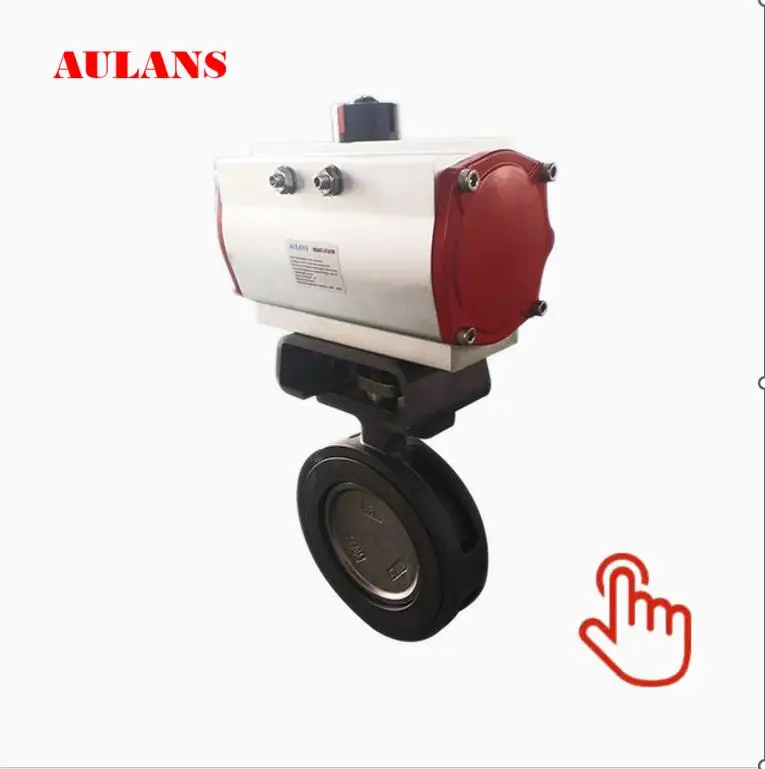

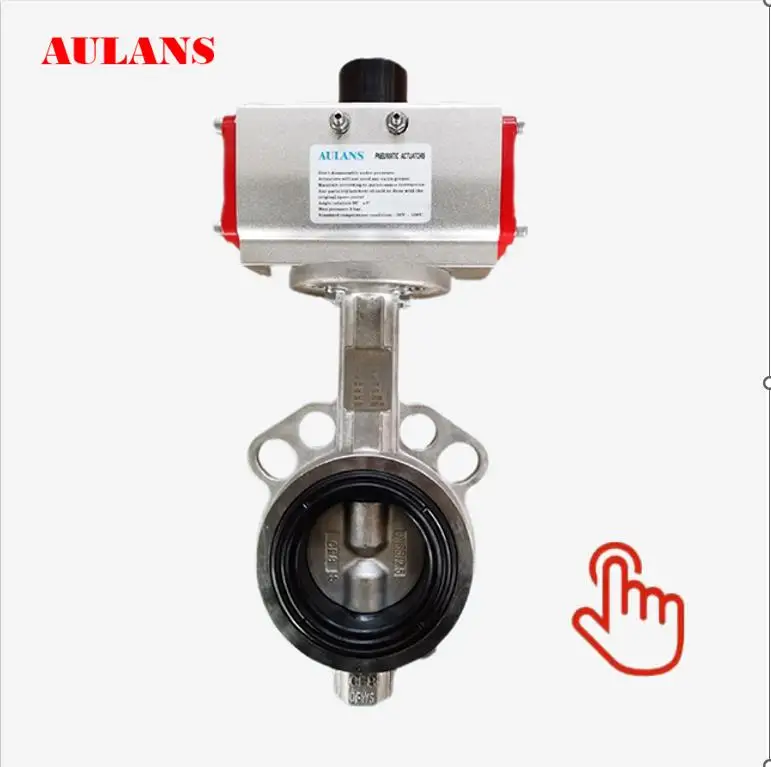

application
Company Profile
Packing & Delivery
FAQ
Q1. Can I have a sample order for valve?
A: Yes, welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 15-20 days to arrive.Airline shipping also optional.
Q3. How to proceed an order for valve?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4. The logo and the color can be customized?
A. Yes, we welcome you to sample custom.
Q5. Any other good service your company can provide?
A. Yes,we can provide good after-sale and fast delivery.
