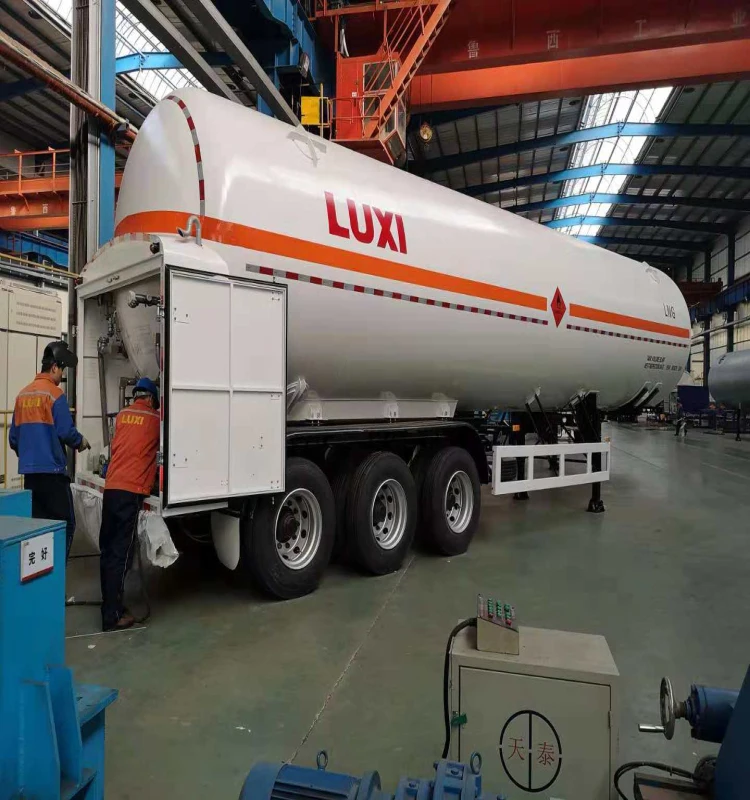

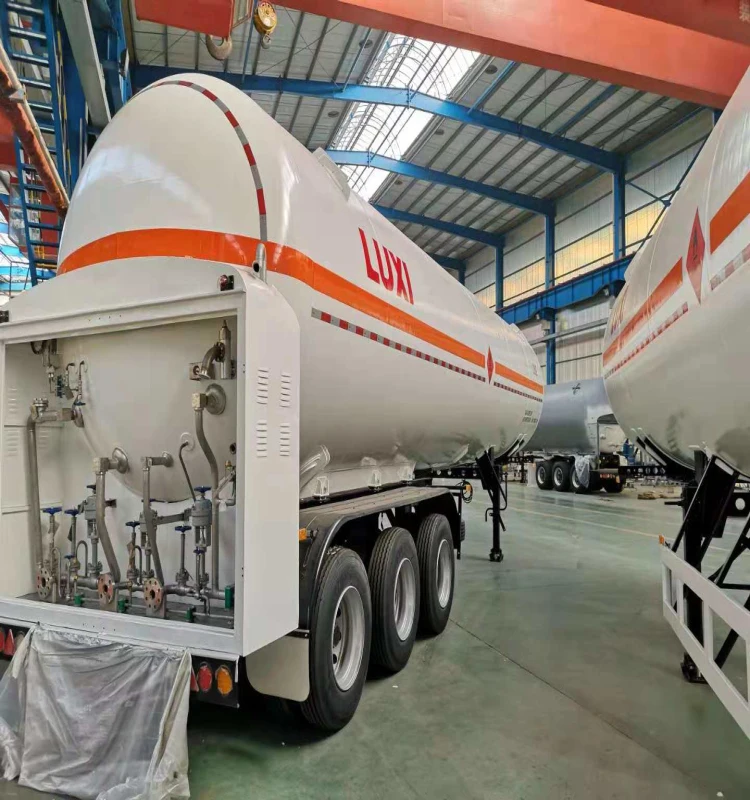

40FT 52.6cubic meter 3 axle LNG semi trailer truck
- Category: >>>
- Supplier: Shandong Hongqiao Energy Equipment Technology Co. Ltd.
Share on (1600466746902):
Product Overview
Description
Used for cryogenic liquid transport and short-time storage
Characteristics:
1. More loading capacity, with optional self booster system to reduce the energy consumption;
2. Easy and convenient to operate and maintance ;
3. Good insulating performance ;
Specification of the 52.6m³Cryogenic Liquid Transport Simi-trailer | ||||
3, Specification of the 52.6m³Cryogenic Liquid Transport Semi-trailer | ||||
No. | MM SIZE (L× W ×H) | 13000×2500×3900 | ||
1 | Working medium | LNG | ||
2 | Design pressure | 0.65Mpa | ||
3 | Design temperature | -196 | ||
4 | Geometric volume | 52.6m³ | ||
5 | Effective volume | 47.34m³ | ||
6 | Safety Valve Set pressure | 0.70~0.72 Mpa | ||
7 | Curb Weight | ~17370kg | ||
8 | Rated load | ~20166kg | ||
9 | Total Weight | ~37536kg | ||
10 | The degree of vacuum sealing | ≤1×10-1 | ||
11 | Static evaporation rate | ≤0.21(liquid nitrogen )OR≤0.17(LNG) | ||
12 | Insulation form | High vacuum multi-layer insulation | ||
13 | Static leak rate | ≤5×10-9(Interlayer total leak and outgassing rate) | ||
14 | Inner Container(Material) | SS30408 | ||
15 | Outer Tank(Material) | Q345R | ||
16 | Standard | GB | ||
