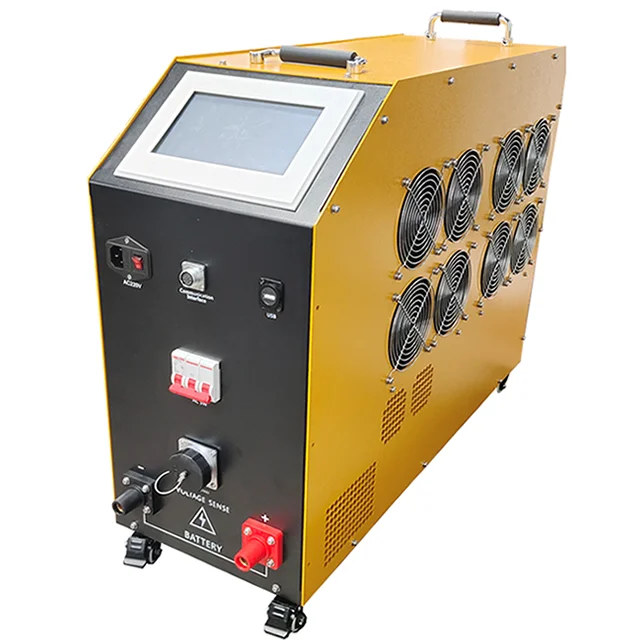

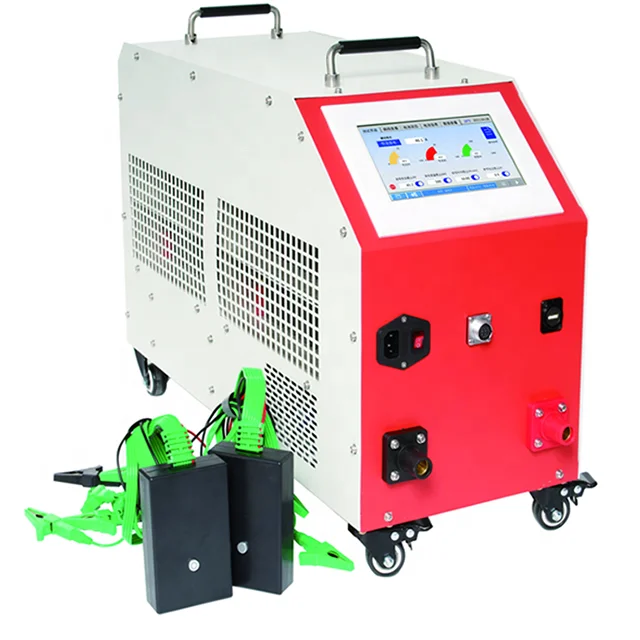

10V 300VDC 0 150A adjustable total voltage and cell voltage monitoring battery Load bank battery discharge Tester
- Category: Battery Testers >>>
- Supplier: Xi'an,Foresight,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
AC Power Supply | 220V Single Phase，Frequency 40－60Hz | ||
DC Voltage | Input voltage10-300Vdc | ||
LCD | 7inchTFT LCD，Touch Screen，Resolution ratio 1024x600 | ||
Data Communication | RS485x1 | ||
Internal Data save | 128MBit | ||
Voltage Resolution | ±0.5%FS+0.1V Max.300V | ||
Current Resolution | ±1%FS+0.1A Max.150A | ||
Pack Voltage resolution | 0.01V | ||
Pack Current Resolution | 0.1A | ||
Discharge current control resolution | ±1%FS | ||
AC Power Supply | 220V Single Phase，Frequency 40－60Hz。 | ||
Discharge voltage range | 10-300Vdc | ||
Discharge current range | Range1: 10-20V 0-40A Adjustable Range2: 20-40V 0-80A Adjustable Range4: 40-60V 0-150A Adjustable Range4: 60-120V 0-100A Adjustable Range5: 120-300V 0-60A Adjustable | ||
Master Protection | Over-Temperature, Over-current、Shutdown protection triggered by out of control current | ||
Emergency stop actuator | High voltage DC switch 300A | ||
reverse polarity protection | Support | ||
Abnormal protection | Power line power down and main cable power down | ||
Over Temperature Protection | Over temperature of resistance box 85 ℃; Radiator overtemperature 75 ℃ | ||
Alarm prompt | LCD display + buzzer | ||
Safety Test | |||
Withstand voltage test | AC input - enclosure: 2200vdc 1min AC input - enclosure | ||
DC input-output: 2200vdc 1min DC input-casing | |||
Cooling mode | Forced Cooling Air | ||
Temperature | Operating temperature range: - 5 ~ 50 ℃; Storage temperature: - 40 ~ 70 ℃ | ||
Humidity | 0~90%（40±2℃） | ||
Altitude | Rated altitude: 2000m | ||
Packing & Delivery

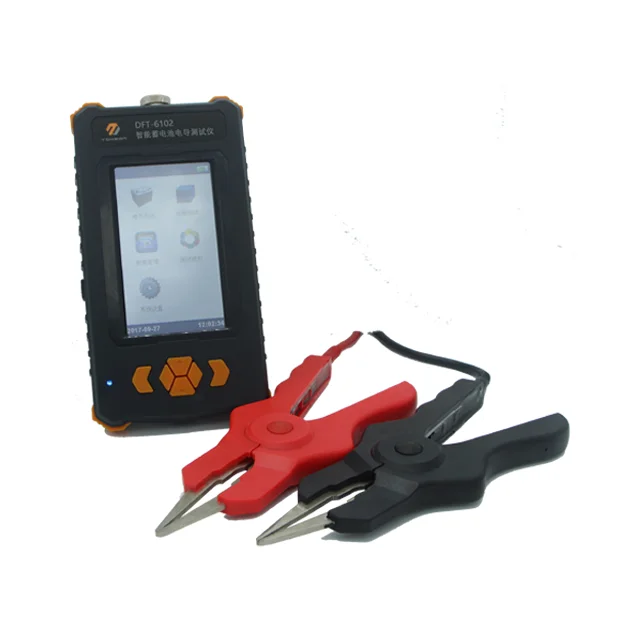

150V-800VDC 0-60A Battery Discharge Tester Battery Impedance Tester
Company Profile

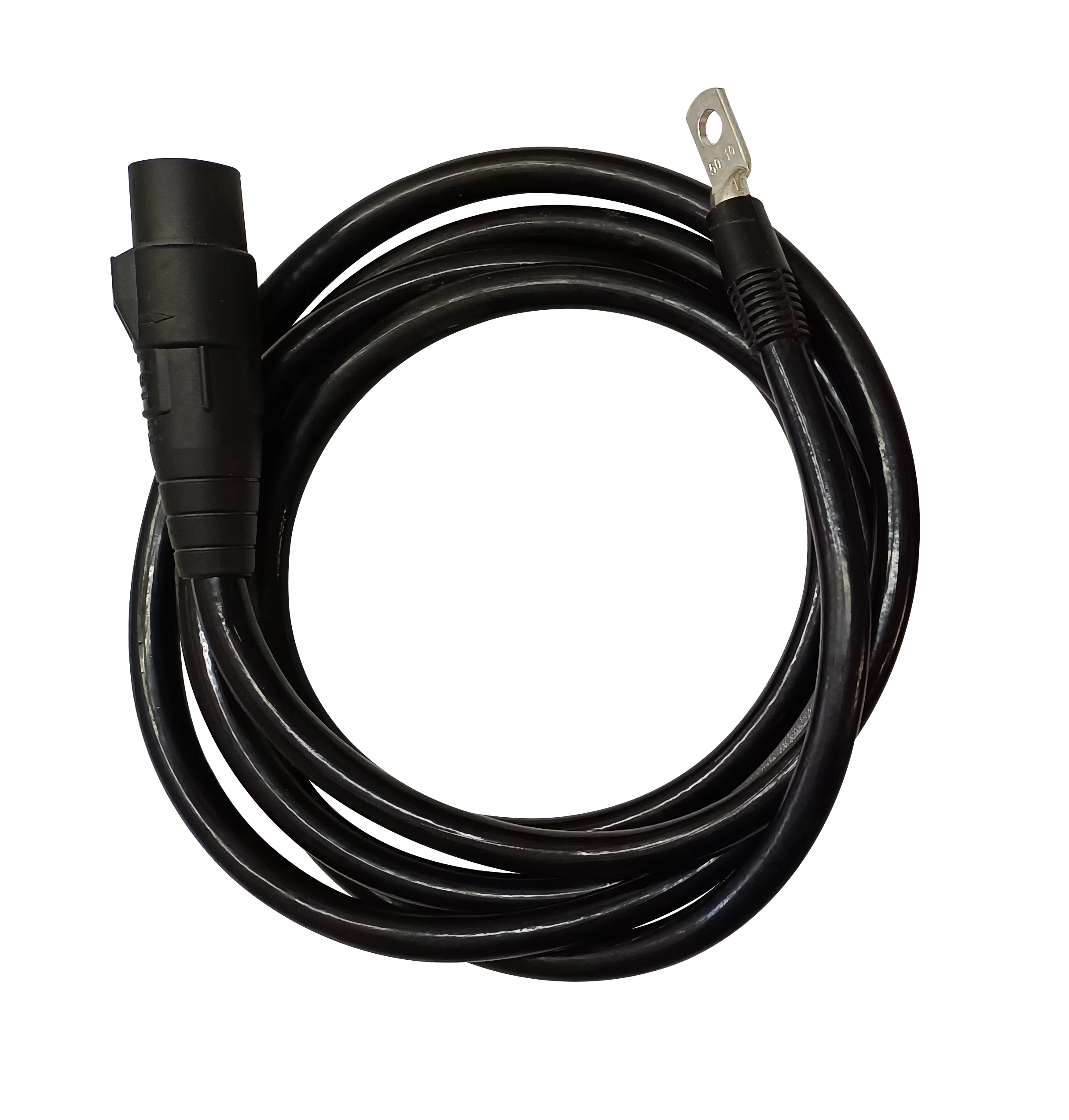

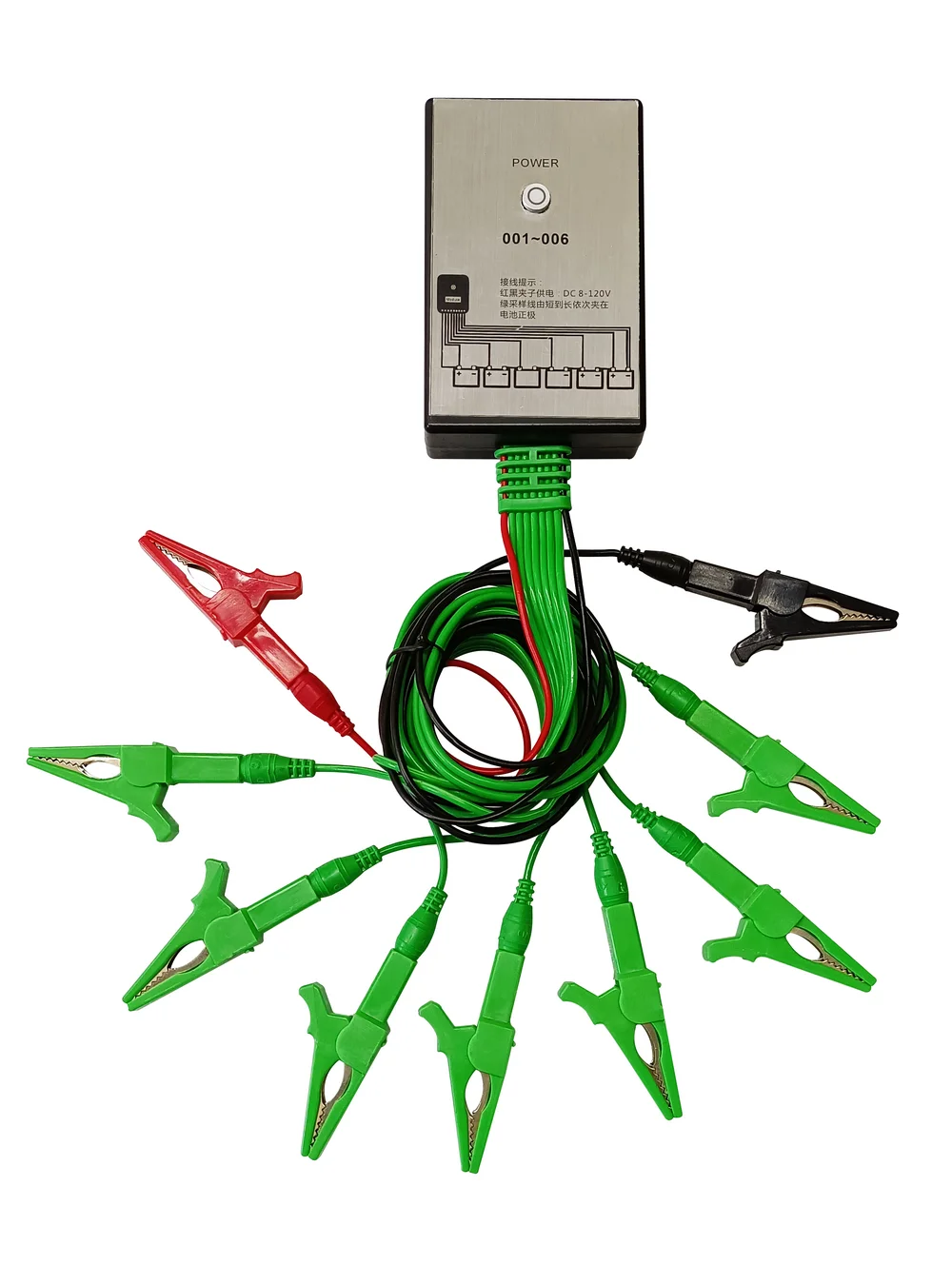

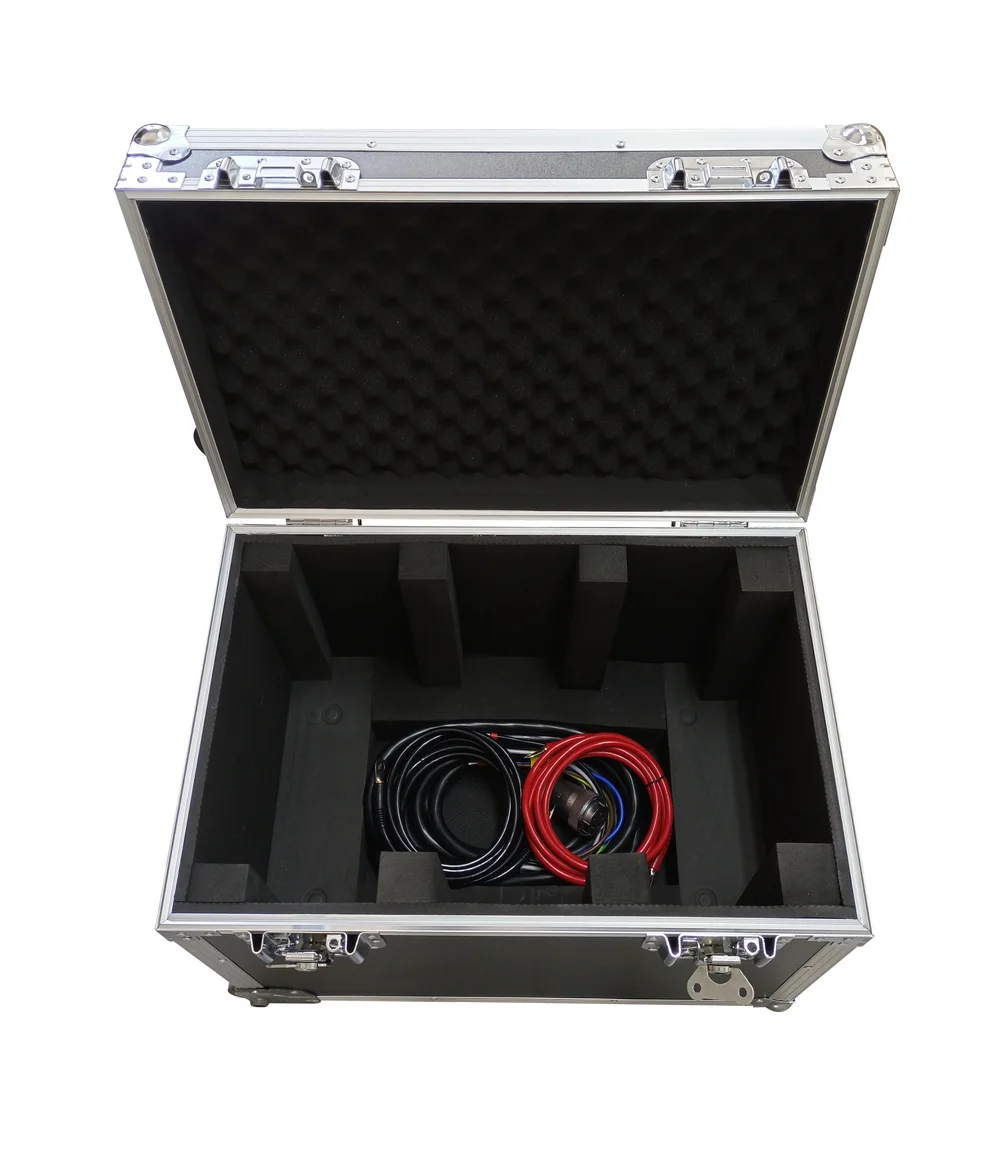

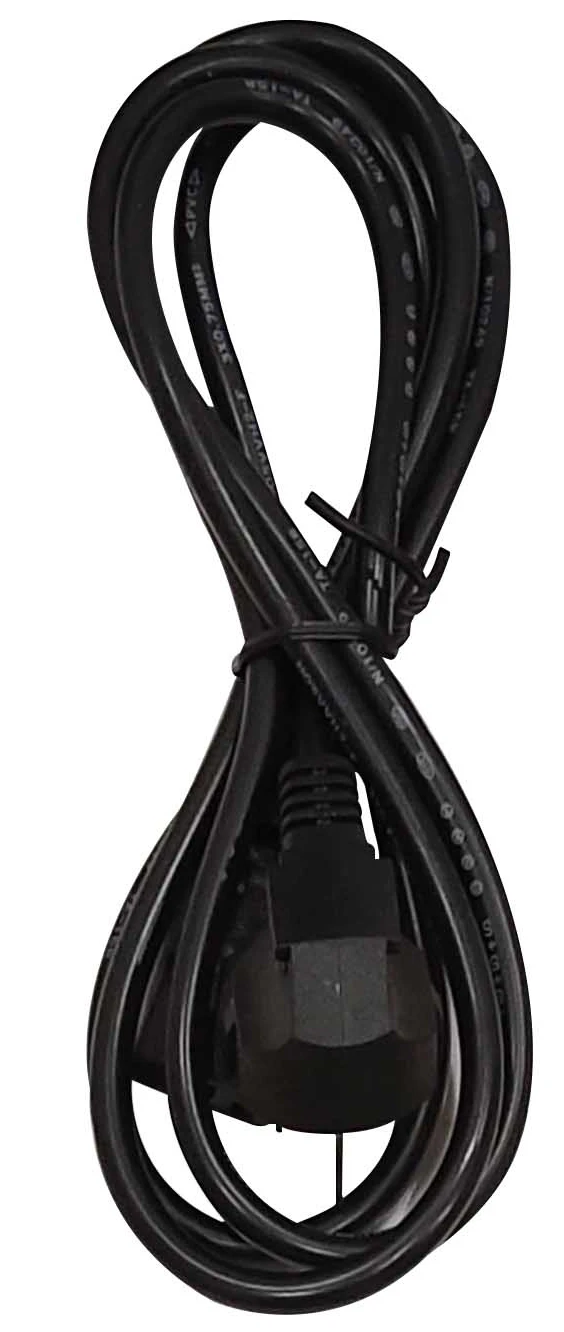

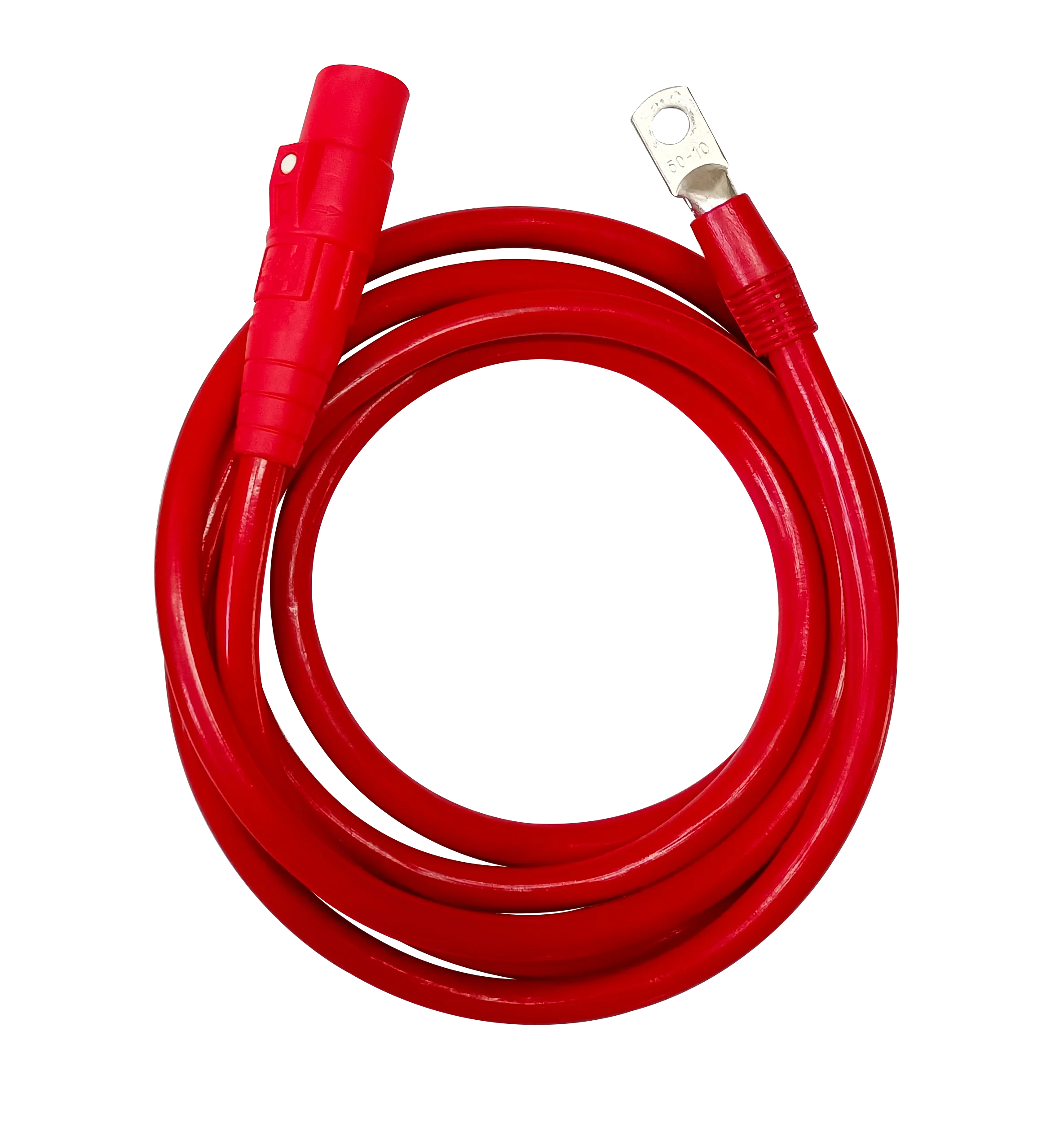

The machine is along with these accessories above ..
