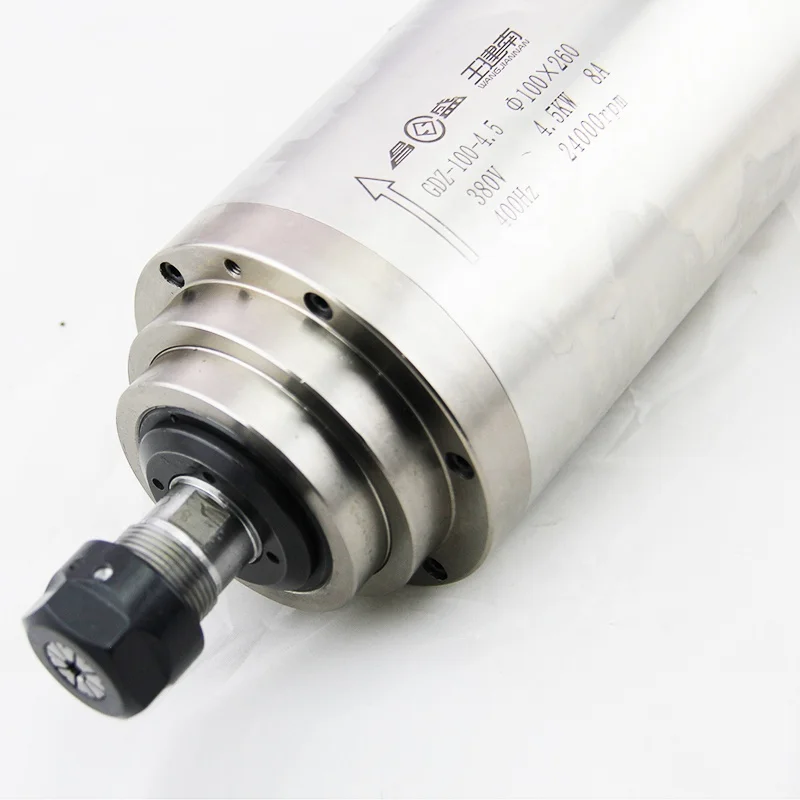

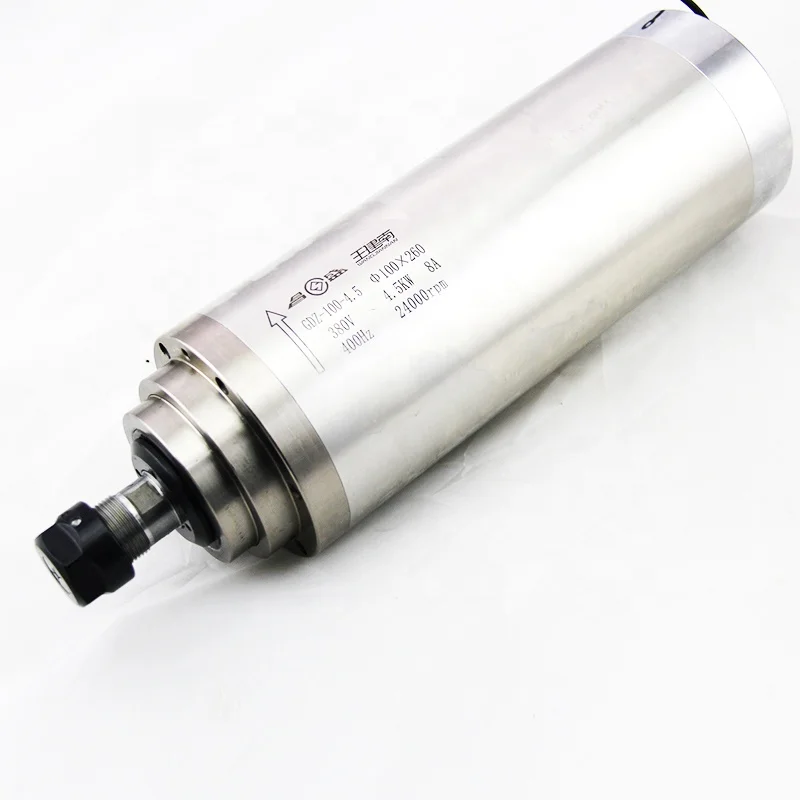

Water Cooled Spindle with er20 Collect 100mm Diameter 4.5kw Spindle Cnc
Water Cooled Spindle with er20 Collect 100mm Diameter 4.5kw Spindle Cnc
Water Cooled Spindle with er20 Collect 100mm Diameter 4.5kw Spindle Cnc
Water Cooled Spindle with er20 Collect 100mm Diameter 4.5kw Spindle Cnc
Water Cooled Spindle with er20 Collect 100mm Diameter 4.5kw Spindle Cnc

Water Cooled Spindle with er20 Collect 100mm Diameter 4.5kw Spindle Cnc

Share on (1600466754878):


Price:$330.00 - $350.00

Quantity:


Product Overview

Description



Product Overview


High speed air cooled spindle
(1)High-precision bearings, high precision, long life.
(2)Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
(3)Work stable ,low noise,enough fatigue strength, Enough abrasive resistance ,vibration resistance,stable size.
(4)With high grade size ,shape,position precision,and quality of surface.
(5) UFC spindle technology stands for quality and effciency,and is well-suited to your grinding,milling,drilling,engraving or
special applications.


PRODUCT SPECIFICATIONS


Model Number
GDZ100-4.5
Operating Speed
24000rpm

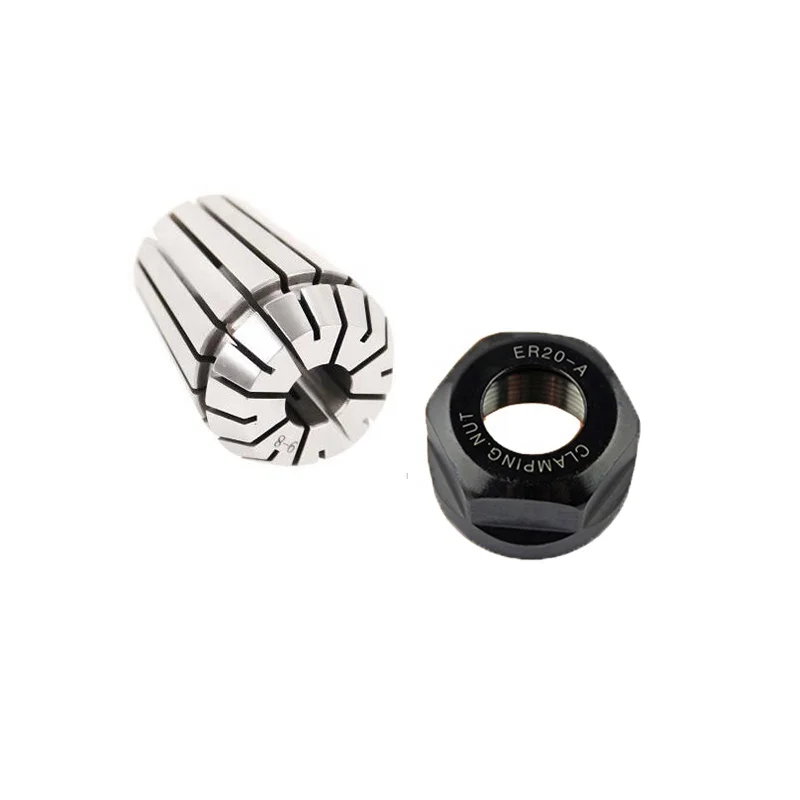

Collet
Er20
Power
4.5kw
Voltage
220/380V
Current
13/8A
Cooling
Water-Cooling
Frequency
400hz
Lub
Grease






Model No.
Cooling type
Power
Voltage
Current
Speed
Collect size
GDZ48-300
Water cooling
0.3kw
75V
4.5A
36000/60000  rpm/min
ER8
GDZ62-1.2
Water cooling
1.2kw
220/178V
4.5/5A
24000/36000/  60000rpm/min
ER11
GDZ65-800A
Water cooling
0.8kw
220V
5A
24000rpm/min
ER11
GDZ65-800A-4
Water cooling
0.8kw
220V
5A
24000rpm/min
ER11
GDZ65-1.5
Water cooling
1.5kw
220V
5.5A
24000rpm/min
ER11
GDZ80-1.5C
Water cooling
1.5kw
220V
5A
24000rpm/min
ER11
GDZ80-1.5E(4)
Water cooling
1.5kw
220V
5A
24000rpm/min
ER11
GDZ80-1.5
Water cooling
1.5kw
220V
5A
24000rpm/min
ER16
GDZ80-1.5-4
Water cooling
1.5kw
220V
5A
24000rpm/min
ER16
GDZ80-2.2B
Water cooling
2.2kw
220/380v
8/5A
24000rpm/min
ER20
GDZ80-2.2B-4
Water cooling
2.2kw
220/380v
8/5A
24000rpm/min
ER20
GDZ85-2.2
Water cooling
2.2kw
220v/380v
8/5A
24000rpm/min
ER20
GDZ100-3
Water cooling
3kw
220v/380v
12/7A
24000rpm/min
ER20
GDZ100-3B
Water cooling
3kw
220v/380v
12/7A
24000rpm/min
ER20
GDZ100-3B stone
Water cooling
3kw
380v
7A
24000rpm/min
ER20
GDZ100-4.5
Water cooling
4.5kw
220v/380v
13/8A
24000rpm/min
ER20
GDZ105-3.2
Water cooling
3.2kw
220/380v
11.3/6.5A
24000rpm/min
ER20
GDZ125-4.5
Water cooling
4.5kw
220/380v
12/8A
24000rpm/min
ER25
GDZ125-5.5
Water cooling
5.5kw
220/380v
12/8A
24000rpm/min
ER25
GDZ125-5.5 stone
Water cooling
5.5kw
220/380
12/8A
24000rpm/min
ER25


Packaging & Shipping






FAQ


Q1：Could you accept OEM and customize?
A1：YES,we can customize for you according to sample or drawing.
Q2：Dose your factory have any certificate?
A2：yes.we have ISO 9001:2008,IQNET and SGS. If you want other like CE,we can do for you.
Q3：Is you company factory or Trade Company?
A3：We have our own factory ;our type is factory + trade.
Q4：What's the delivery time?
A4：It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
Q5：How does your factory do regarding quality control?
A5：Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q6：What's your warranty terms?
A6：We offer different warranty terms for different products. Please contact with us for details.
