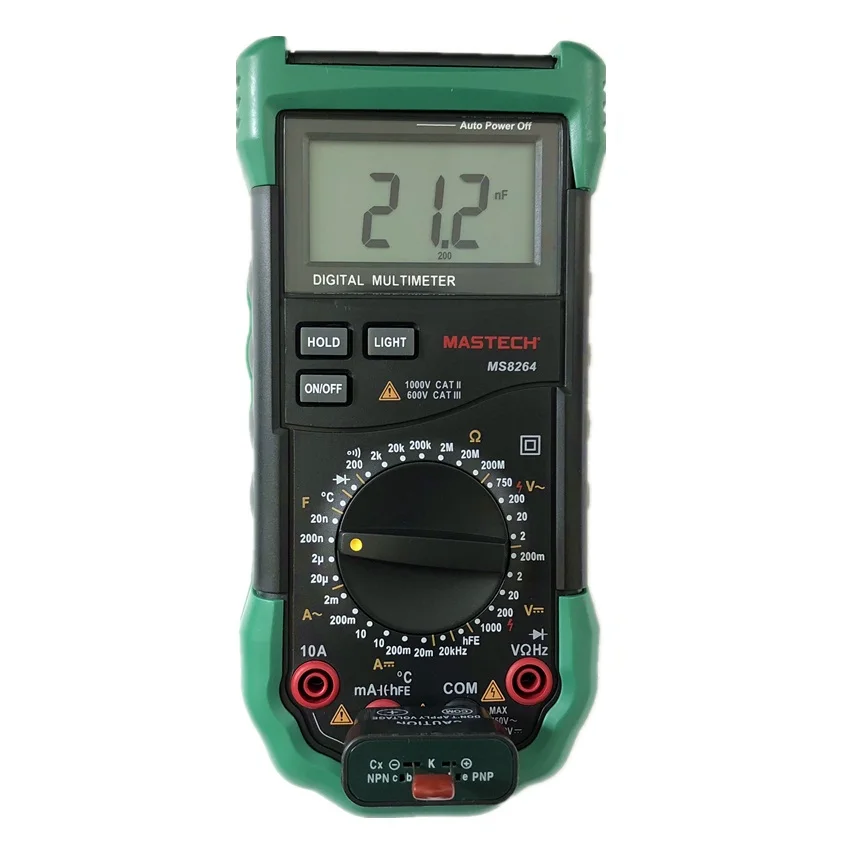

Mastech MS8264 Auto Range Digital Multimeter Full Protection AC/DC Ammeter Voltmeter Ohm Frequency Electrical Tester Diode Test

Share on (1600466766342):


Price:$35.70 - $38.72

Quantity:


Product Overview

Description




Mastech MS8264 Auto Range Digital Multimeter Full Protection AC/DC Ammeter Voltmeter Ohm Frequency Electrical Tester Diode Test












Features:


3 1/2 Digital Multimeter
Safety rating up to CAT.II 1000V/CAT.III 600V
Large 2000 counts LCD display
Tests AC/DC voltage and current, resistance, frequency and capacitance
Test Temperature -20° C~1000° C
Transistor (hFE) check, diode and continuity test
Data hold and display back light
Auto power off
All range protection with resettable fuse









Specification:
DC: 200m/2V/20V/200V+-0.5%,1000V+-0.8%
AC: 2V/20V/200V+-0.8%,750V+-1.2%
DC: 20mA+-0.8%,200mA+-1.5%,10A+-2.0%
AC: 2mA+-1.0%,200mA+-1.8%,10A+-3.0%
Resistance: 200/2k/20k/200k/2Mohm+-0.8%,20Mohm+-1.0%,200Mohm+-5.0%
Capacitance: 20n/200n/2u/20uF+-4.0%
Frequency: 0-20Hz+-1.5%
Temperature: -20° C~1000° C
hEF: 1~1000
Diode test
Continuity test
Sampling rate: 3 times per second
Dimensions:195×92×55mm
Weight: 500g

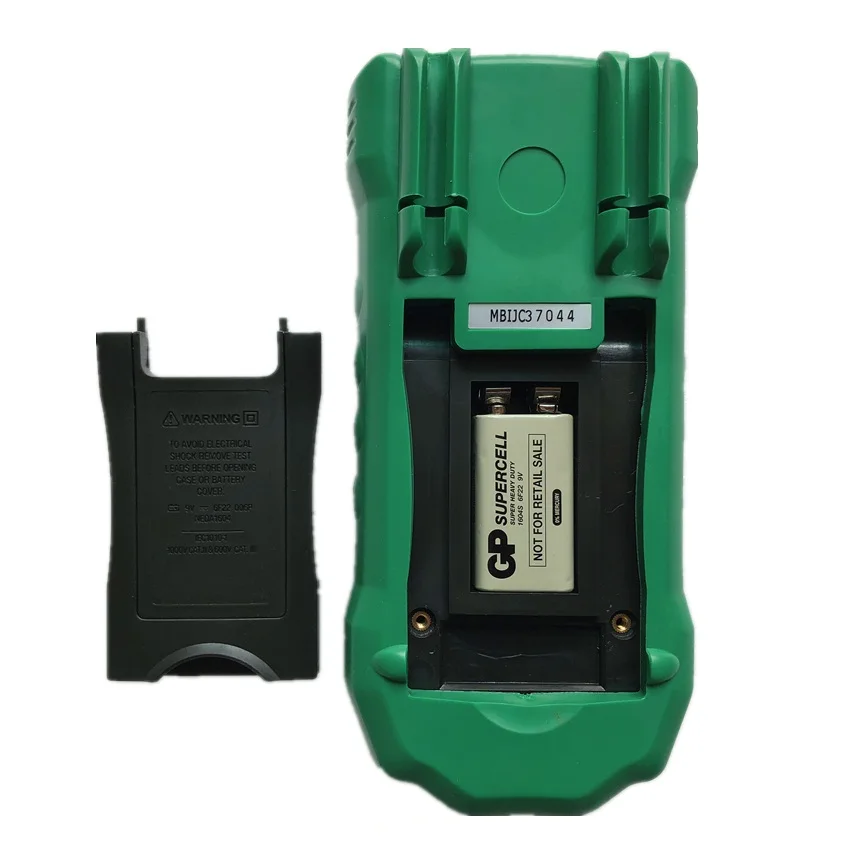

Power: 9V



Pls note that battery is not included in the package due to Post Air Mail request

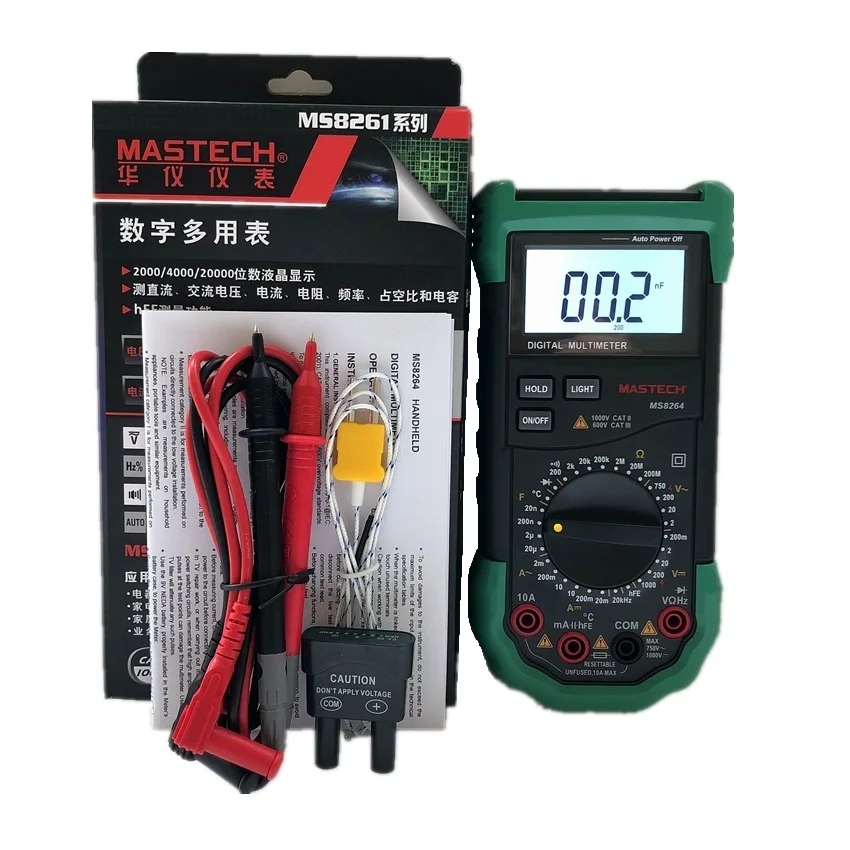

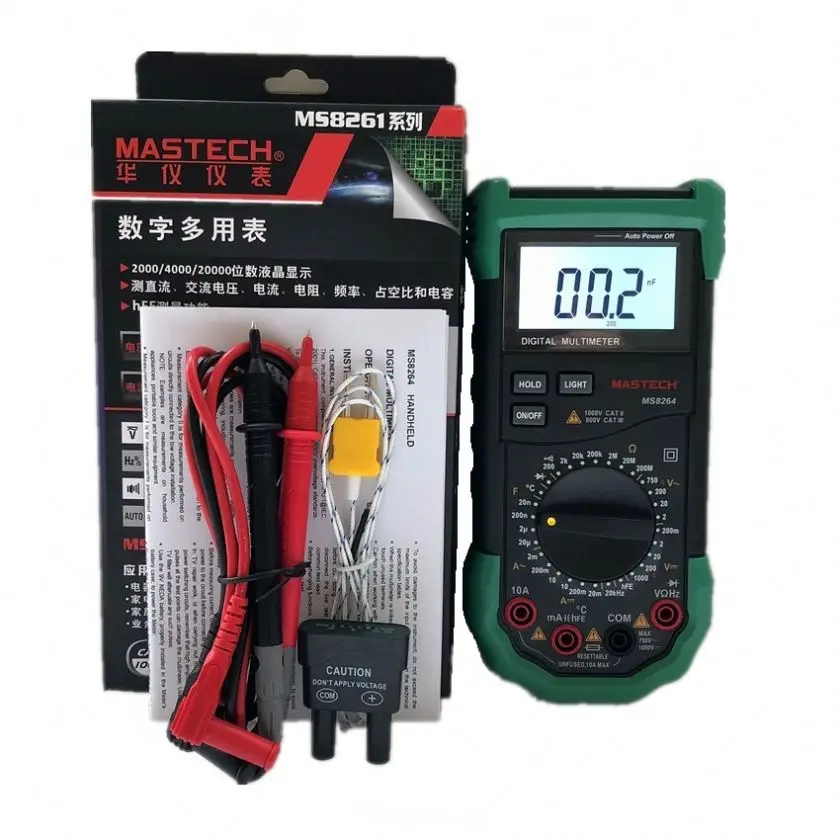

Package includes:


1 * MS8264 Digital Multimeter (with test leads)

1 * K-type thermocouple TP01

1 * User manual
