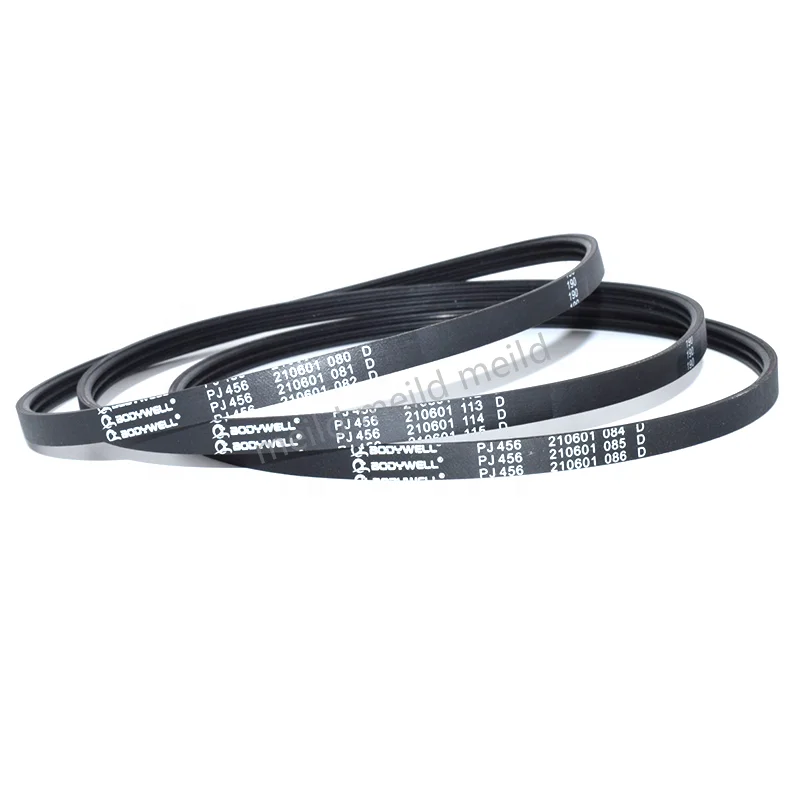

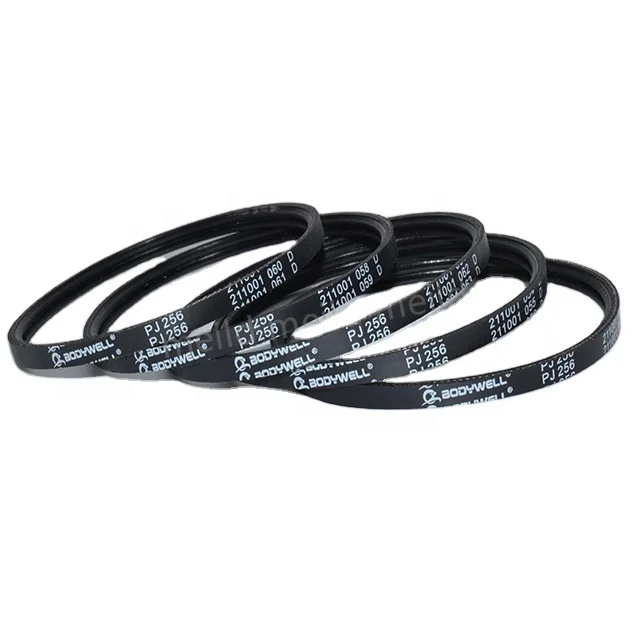

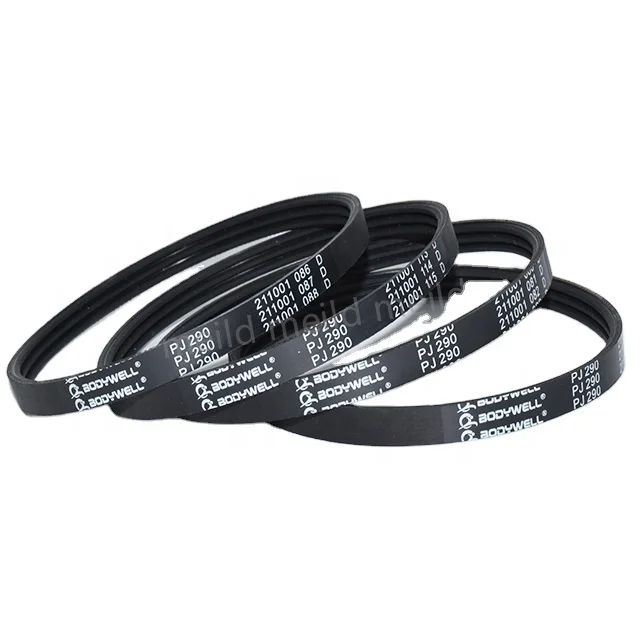

pj456 rubber transmission multi groove belt for conveyor Transmission BeltsMolded Ribbed Belt
- Category: >>>
- Supplier: Kunshan Meilide Industrial Automation Technology Co. Ltd.
Share on (1600466786393):
Product Overview
Description
Product introduction

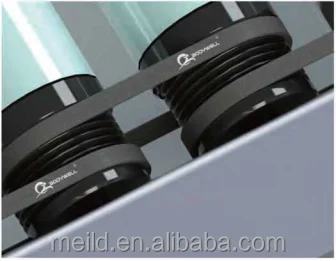

Grooved elastic belt with multiple longitudinal transmission----Bodywell elastic belt
High performance, long life, cost optimization, wide application
High performance, long life, cost optimization, wide application
product structure:
> uses high elastic polyamide resin core wire, belt elasticity increase > widely used, suitable for all kinds of transmission mechanisms and turning lines and other equipment > temperature adaptability range is: -35℃ ~ 120℃
product Features:
Because the belt body adopts high elastic material, it can absorb the vibration and external force impact of the equipment. The belt is added with antistatic material, in line with ISO 1813 standard.
Because the belt body adopts high elastic material, it can absorb the vibration and external force impact of the equipment. The belt is added with antistatic material, in line with ISO 1813 standard.
Product Paramenters
If you have special requirements, please contact us and we will meet your needs.

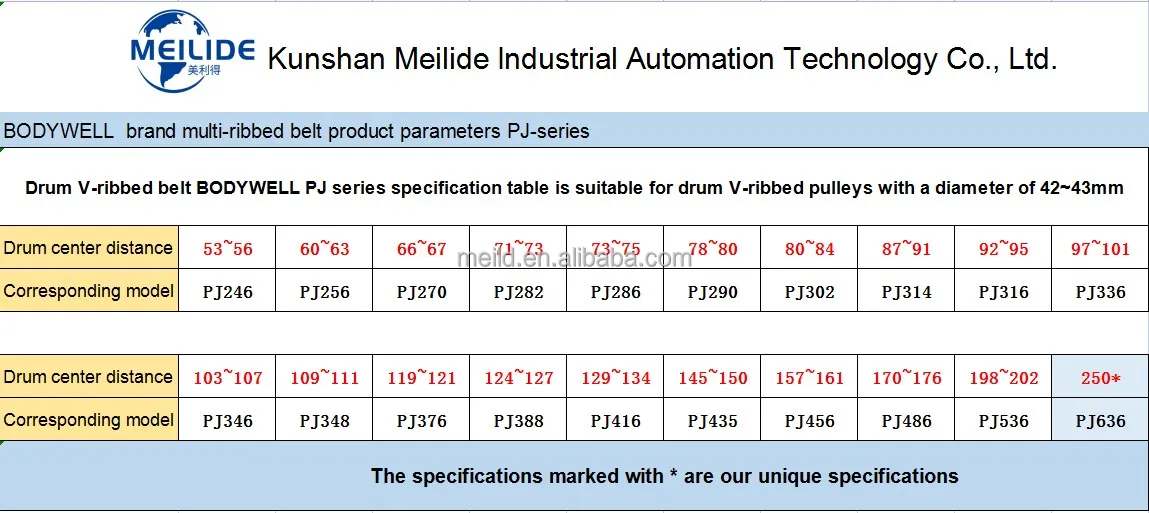

Technical parameters：
PJ type elastic polywedge belt | ||
The thickness of the belt | 3.0mm | |
Minimum pulley diameter | 16mm | |
Maximum linear velocity | 60m/s | |
Line weight | 0.008kg/rib | |
The tension value | 78±16N/rib/span | |
Installation and maintenance
BodyWell ® elastic belt is easy to install; The elastic belt can offset the errors of equipment parts, more practical; No cleaning, no maintenance, no tension, no lubrication, corrosion resistance.
Due to the elastic properties of the lateral tripod, the BodyWell ® belt effectively avoids belt pulsation and significantly reduces noise caused by percussion, vibration, and flapping. Not affected by the speed of operation, to ensure the quiet transmission; With an average life of up to 3 years, the BodyWell belt maintains constant tension without any special maintenance after a quick trial run. The belt can run continuously for 24 hours to improve working efficiency.
Application Advantages:
The > price is low cost
> structure is simple and compact, no tensioning system
> greatly reduces vibration and belt noise
> installed in the fixed center distance mechanism, no need to reverse the tension adjustment of the belt
> belt offsets vibration, reduces impact load on transmission system and improves system life
> structure is simple and compact, no tensioning system
> greatly reduces vibration and belt noise
> installed in the fixed center distance mechanism, no need to reverse the tension adjustment of the belt
> belt offsets vibration, reduces impact load on transmission system and improves system life

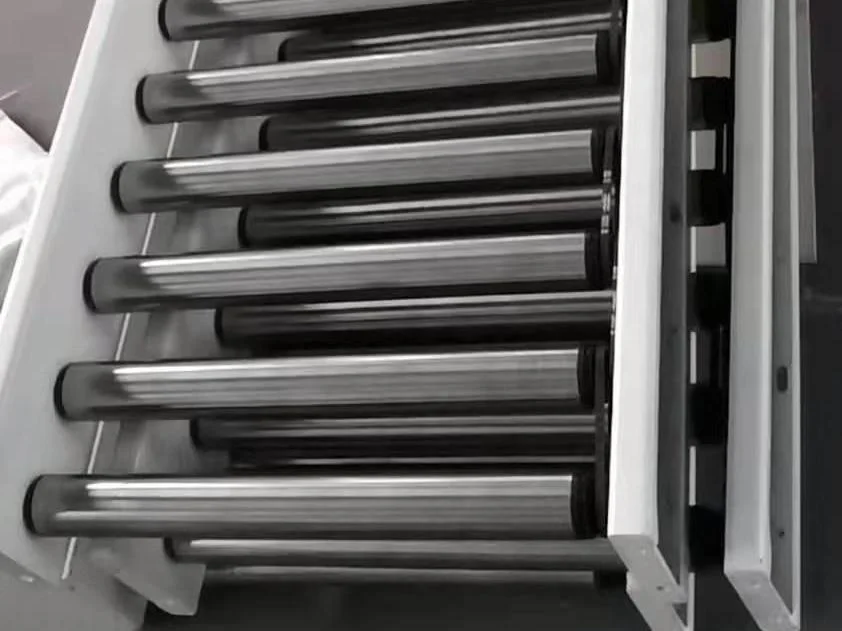

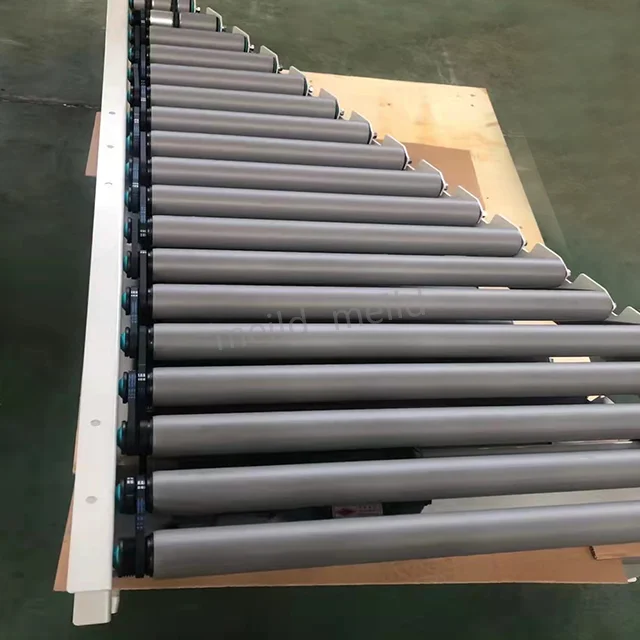

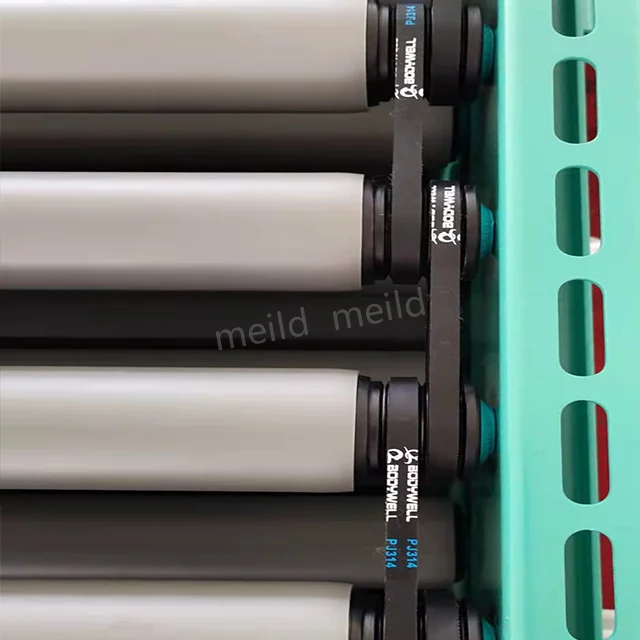

Light load, excellent mechanical properties of BodyWell ® belt, and up to 30 rollers driven by a single motor
Only one motor drives,
The diameter of the drum is 50mm, the pulley is 43mm, the load is 50kg, the power is 55W and the speed is 100RPM

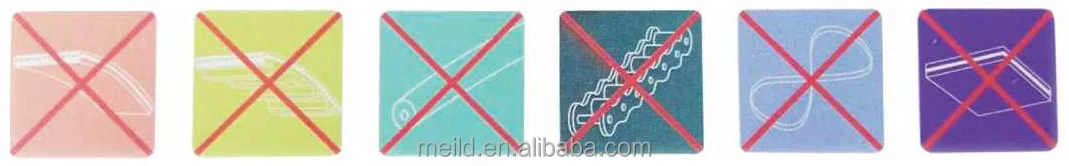

BodyWell ® is a "six in one" type belt that can carry a load of 1kg ~ 400kg and can replace the six processes in the delivery system(Flat belt, round belt, timing belt, torsion belt, tangential belt and chain)
Only one motor drives,
The diameter of the drum is 50mm, the pulley is 43mm, the load is 50kg, the power is 55W and the speed is 100RPM
BodyWell ® is a "six in one" type belt that can carry a load of 1kg ~ 400kg and can replace the six processes in the delivery system(Flat belt, round belt, timing belt, torsion belt, tangential belt and chain)
Power range:
Power range from 55 to 550W and 0.1m /S to 3M/S

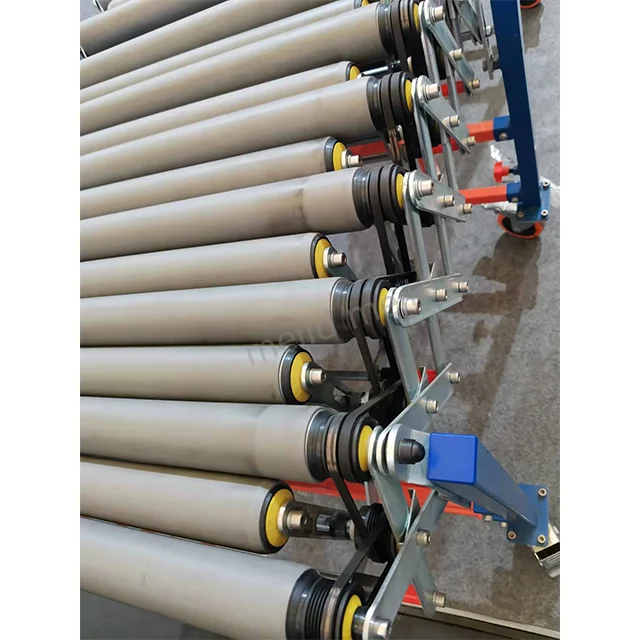

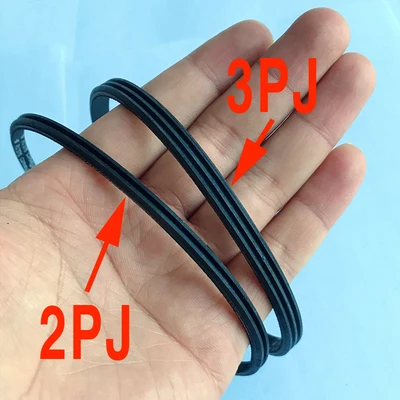

PJ2/3/4 teeth into 1 ~ 400kg light load roller (belt wheel diameter 43mm) conveyor design. It can completely replace the existing round polyurethane belt, and the transmission torque exceeds 4 times to ± O, which can be used in the 10% tilt range.
PJ2/3/4 teeth into 1 ~ 400kg light load roller (belt wheel diameter 43mm) conveyor design. It can completely replace the existing round polyurethane belt, and the transmission torque exceeds 4 times to ± O, which can be used in the 10% tilt range.
