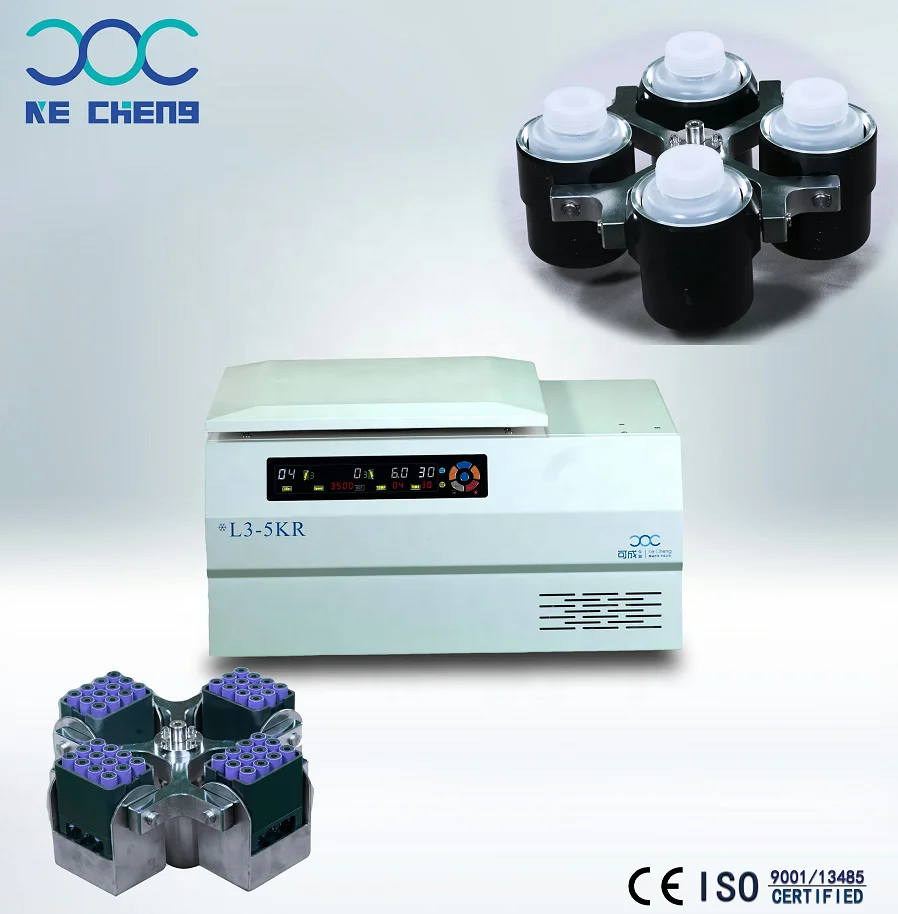

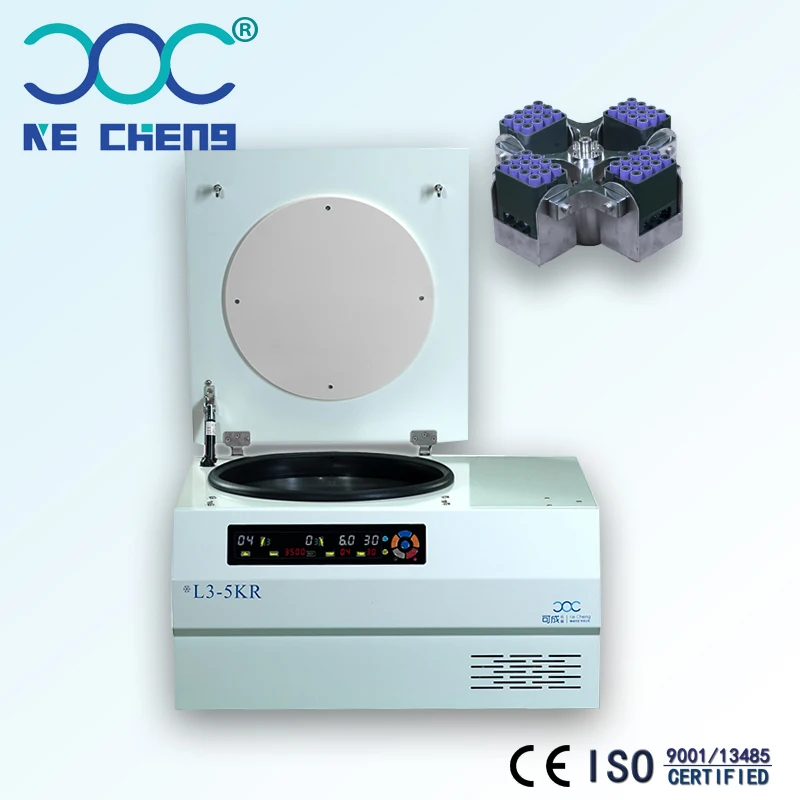

CHENG Hospital and Lab Low Speed Refrigerated Centrifuge Economical Type L3 5KR for Blood Bank

Product Overview

Description

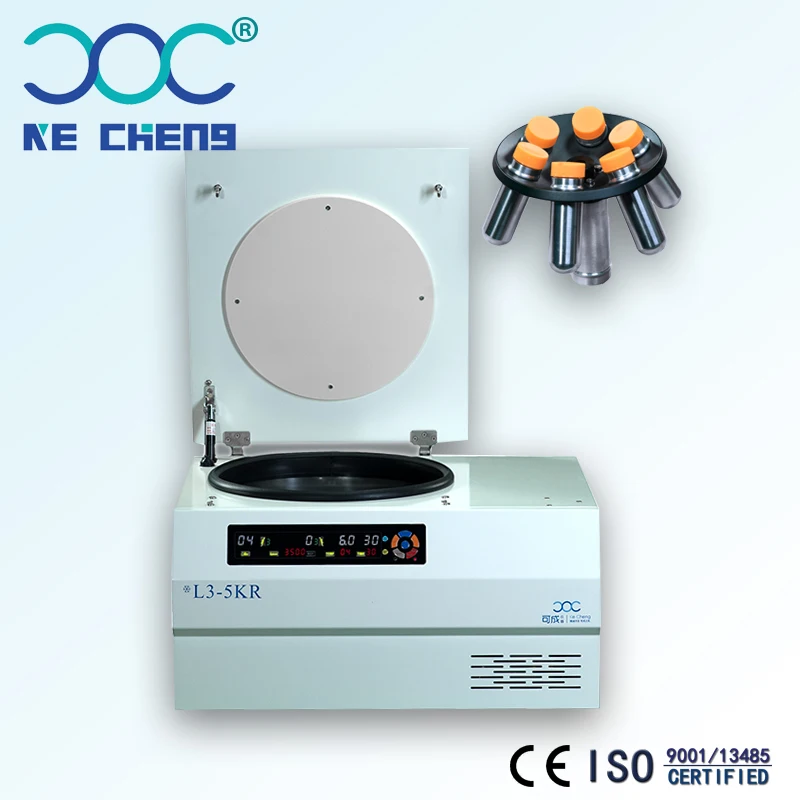

CHENG Hospital and Lab Low Speed Refrigerated Centrifuge Economical Type L3-5KR for Blood Bank

                Low Speed Refrigerated Centrifuge





Production Description





Production Parameter

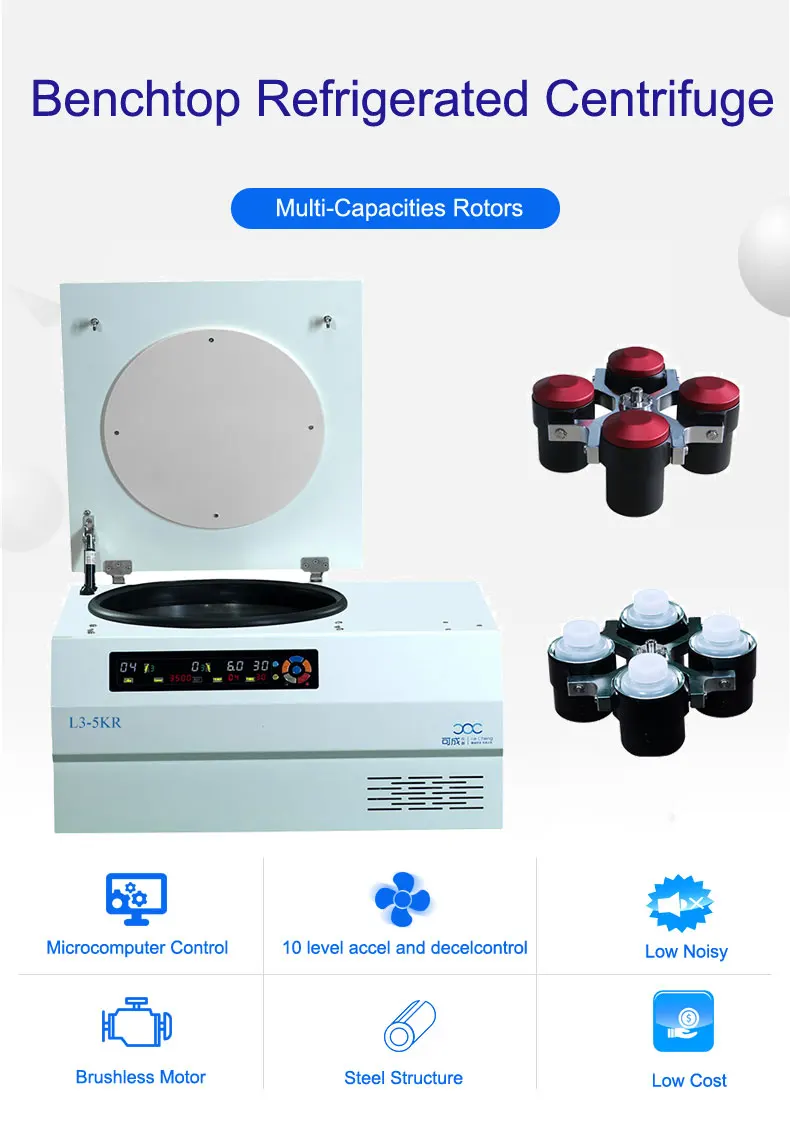

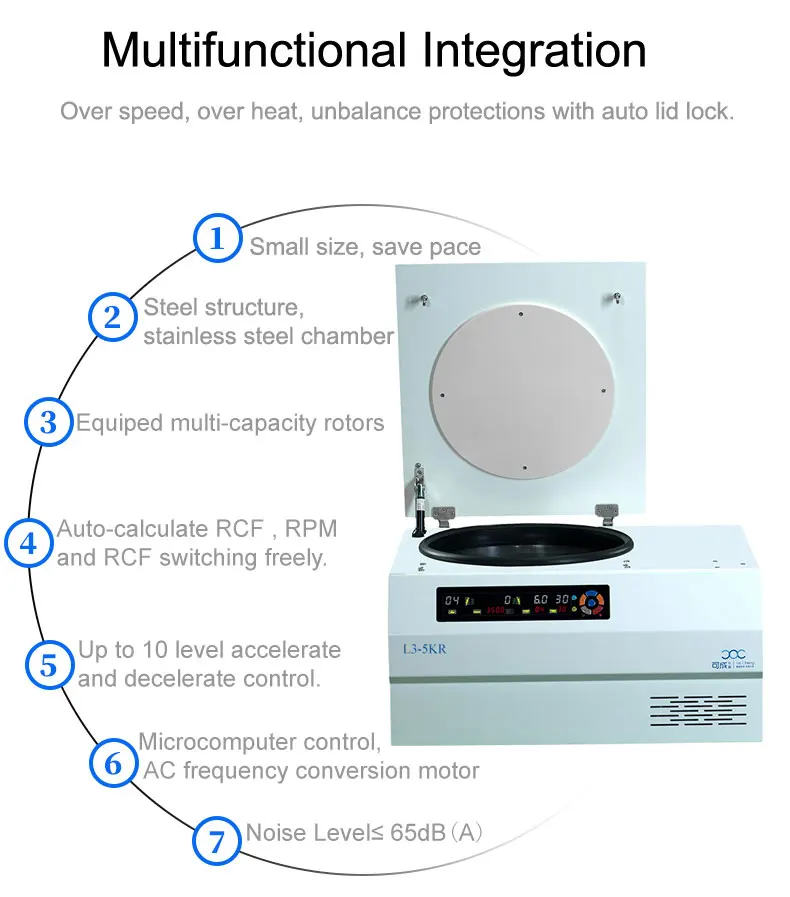

Key Features:

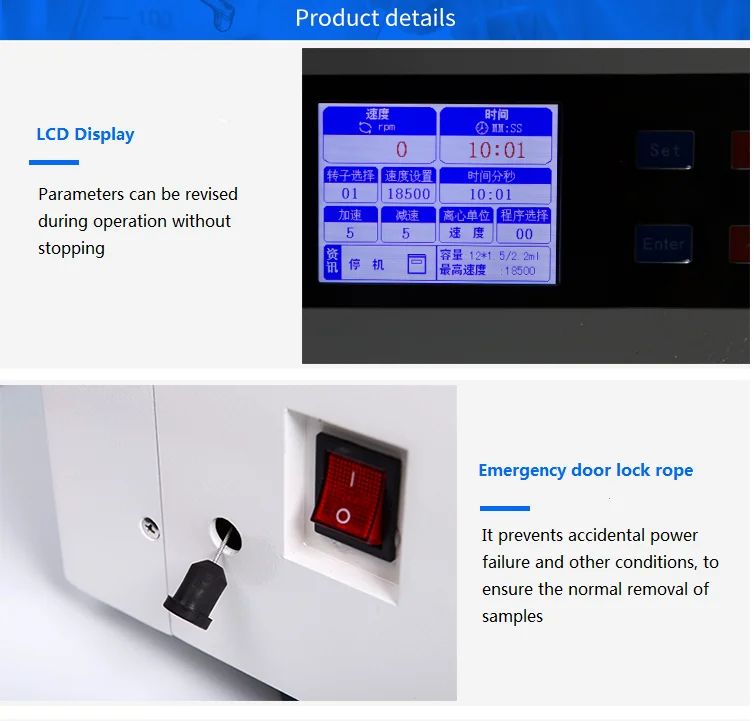

1. Microcomputer control with LED display, driven by AC frequency conversion motor.

2. RCF and speed separately and switching free, automatically calculate RCF.

3. Up to 10 level accelerate and decelerate control.

4. Displayed in seconds when the countdown time is less than one minute.

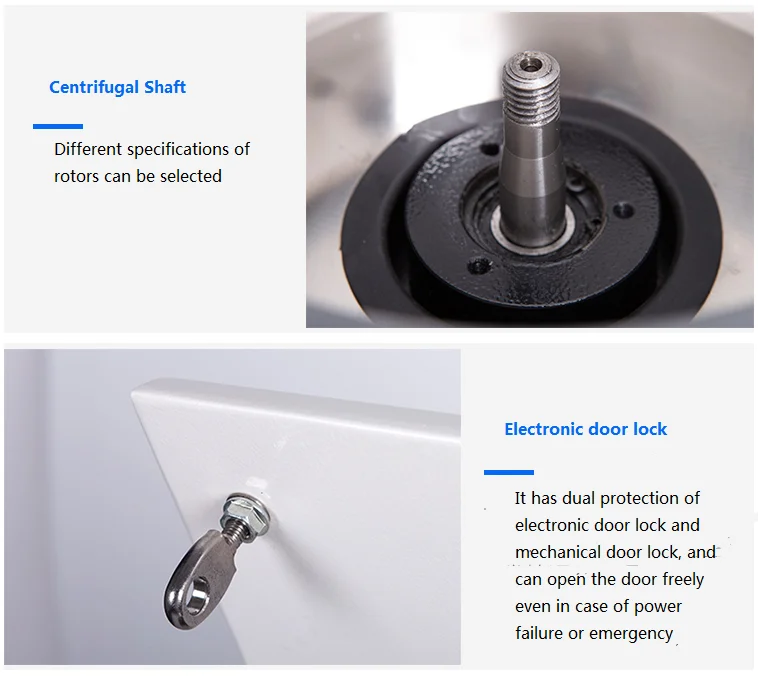

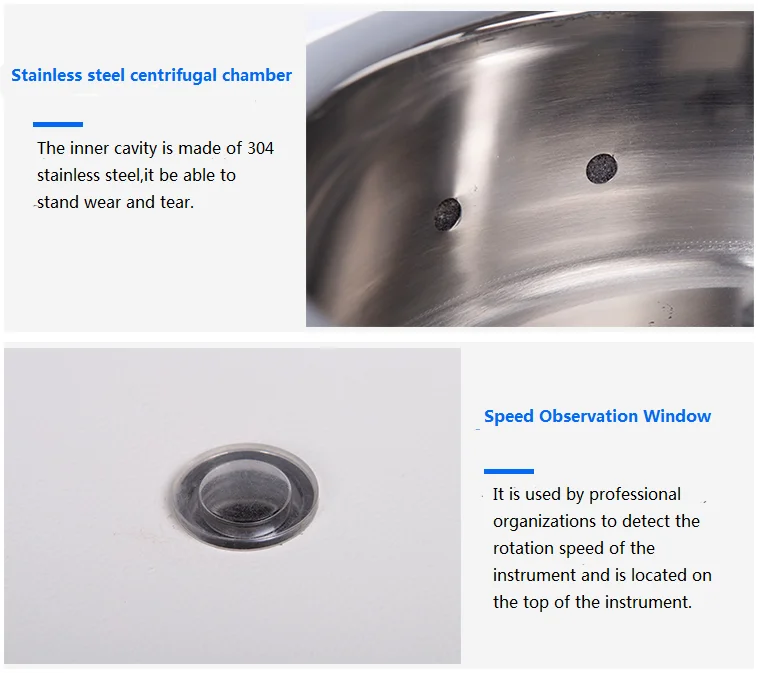

5. Electronic locks with full steel inner cavity protective cover.

6. Imported energy-efficient ECO friendly refrigeration system.

7. One key pre-cooling function.

Applications:

L3-5KR bench top low-speed refrigerated centrifuge can be equipped with variety of rotors and adapters, suitable for separation and purification of radio immunity, clinical medicine, biochemistry, biopharmaceuticals, and blood products. It is an indispensable instrument for centrifugation at hospitals, research institutes and universities.



Technical Parameter:



Model	L3-5KR
Max RPM	5500rpm
Max RCF	4900×g
Max Capacity	4×250ml
Timer	1min~99min
Revolutions/min	±10r/min
Temp Range	-20℃~40℃
Temp Accuracy	±1.0℃
Voltage	AC 220±22V 50Hz 10A
Power	800W
Noise Level	≤ 60dB(A)
Chamber Diameter	Φ380mm
Dimensions (L x W x H)	550×650×365 (mm)
Packaging Dimensions	680×760×465(mm)
Net Weight	70kg



Rotor	No	Capacity	RPM/RCF
Angle Rotor(W)	1	4/6×50ml	5500rpm/ 4900×g
Swing-out Rotor	2	4×50/100ml	5000rpm/4390×g
	3	8×50/100ml	4000rpm/2810×g
	4	16×10/15ml	4000rpm/2810×g
	5	24×10/15ml	4000rpm/2810×g
	6	32×10/15ml	4000rpm/2810×g
	7	48x5/7ml	4000rpm/2810×g
	8	64x5ml	4000rpm/2810×g
	9	4×250ml	4000rpm/3500×g
Micro plates rotor	10	2×2×96 Hole	4000rpm/2300×g
	11	2×2×48 Hole	4000rpm/1700×g
