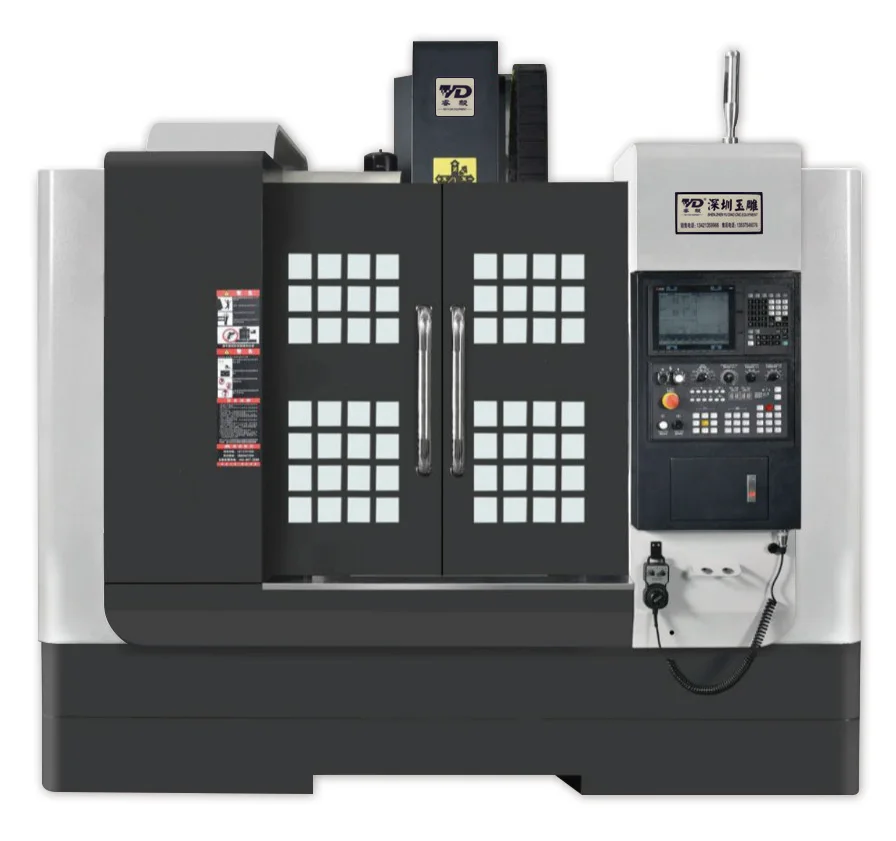

Ry v850 atc high precision metal steel copper aluminum mold precision CNC machining center metal engraving machine
- Category: >>>
- Supplier: Shenzhen Yu Diao Cnc Technology Co. Ltd.
Share on (1600466823339):
Product Overview
Description
Products Description
Product parameters
A | Technical parameters of machine tool： | ||||||||
1 | The machine body and all parts are made of nano castings | ||||||||
2 | Table size | 1000×500mm | |||||||
3 | T-groove (width x quantity x spacing) | 18×4×125mm | |||||||
4 | The largest load | 600KG | |||||||
5 | Maximum feed height | 620mm | |||||||
6 | Distance from spindle face to work | 120－620mm | |||||||
7 | Triaxial travel X/Y/Z | 800/500/500mm | |||||||
8 | The spindle diameter | Ǿ150 | |||||||
9 | Spindle speed | 12000RPM | |||||||
10 | Spindle motor power | 7.5KW | |||||||
11 | Spindle tool library capacity | 24 | |||||||
12 | Tool change time | 1S | |||||||
13 | The spindle taper | BT40 | |||||||
14 | Knife library classes | Servo disc rotation | |||||||
15 | Fast moving rate X/Y/Z | 48/48/48m/Min | |||||||
16 | Processing speed | 6－12m/Min | |||||||
17 | Positioning accuracy | ±0.006/300mm | |||||||
18 | Repetitive positioning accuracy | ±0.006/300mm | |||||||
19 | Machined surface accuracy | ≤Ra1.6 | |||||||
20 | The machining accuracy | ±0.01mm | |||||||
B | 5 axis motion parameters of machine tool： | ||||||||
1 | Angle of rotation of axis A | / | |||||||
2 | Fifth axis C axis rotation Angle | / | |||||||
3 | Turntable response time | / | |||||||
4 | Five-axis linkage mode | / | |||||||
5 | Working voltage | 380V/50HZ±10% | |||||||
6 | Machine size (l * W * H) | 2450×2750×2800mm | |||||||
7 | The body weight | 5000KG | |||||||
C | Machine tool configuration details brand parameters： | ||||||||
1 | The system configuration | Mitsubishi M80B control system | |||||||
2 | The spindle | Taiwan Weilong spindle/Kenturm | |||||||
3 | Ball screw | HIWIN/PMI | |||||||
4 | Linear guide | Taiwan HIWIN/ABBA high precision guide | |||||||
5 | Servo unit | Mitsubishi servo motor | |||||||
6 | Wire rod bearing | Japan/Germany NSK/FAG | |||||||
7 | Switching power supply | France sinade | |||||||
8 | Spindle servo unit | Mitsubishi servo motor7.5KW | |||||||
9 | Lubrication system | China Xiangda automatic | |||||||
10 | coupling | China dacheng | |||||||
11 | The knife instrument | China dacheng | |||||||
12 | The handwheel | China dacheng | |||||||
13 | converter | TaiWan yadeke | |||||||
14 | Spindle cooling system | China snow fung oil cooler with live cabinet cooling | |||||||
15 | Cooling pump head | 24M | |||||||
16 | Disc servo cutter library | TaiWan Shengjie | |||||||
17 | Machine tool processing bin closed | fully enclosed (optional) | |||||||
18 | The equipment can run continuously for a long time | 7*24 hours/week | |||||||
More products

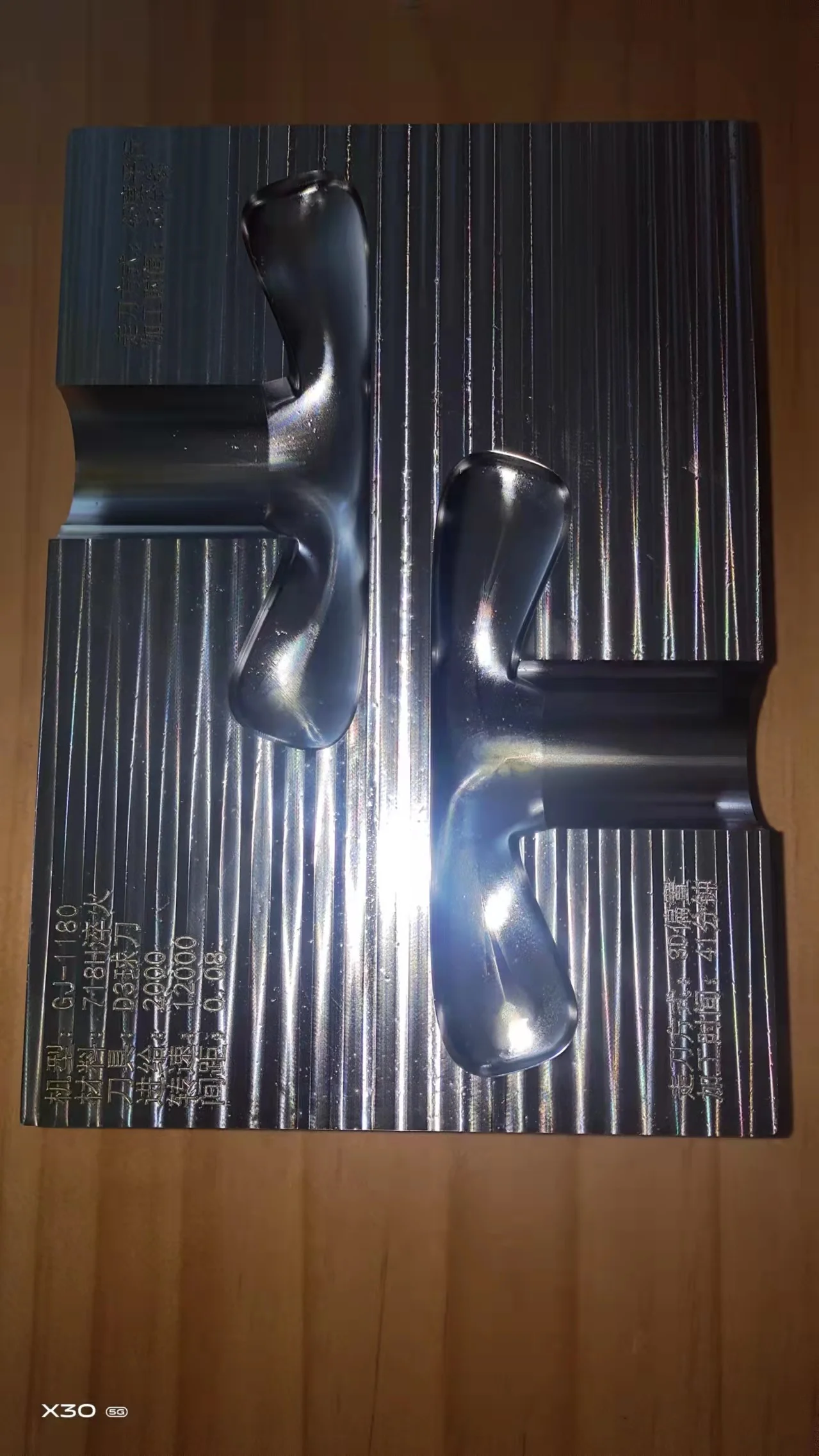

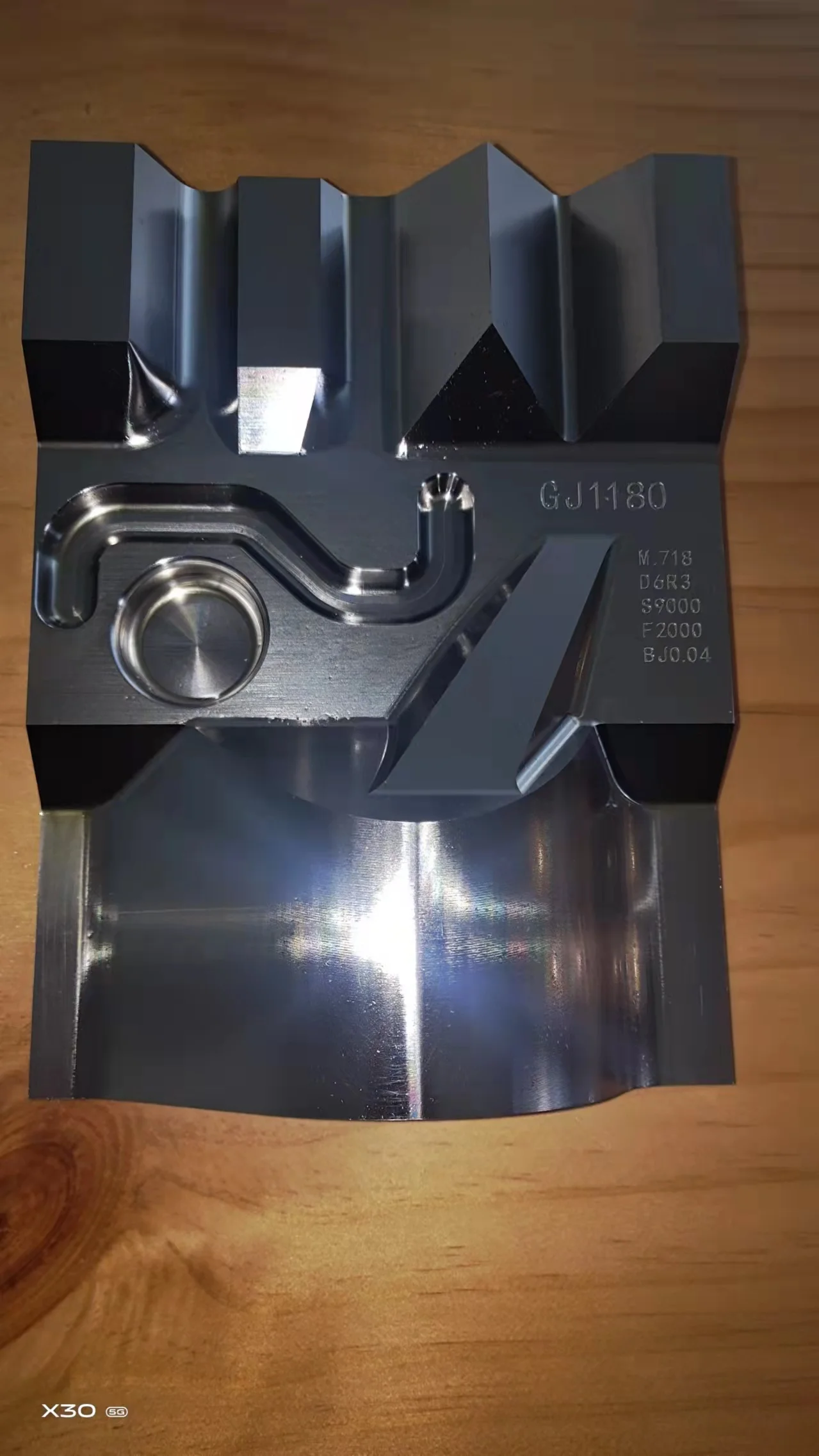

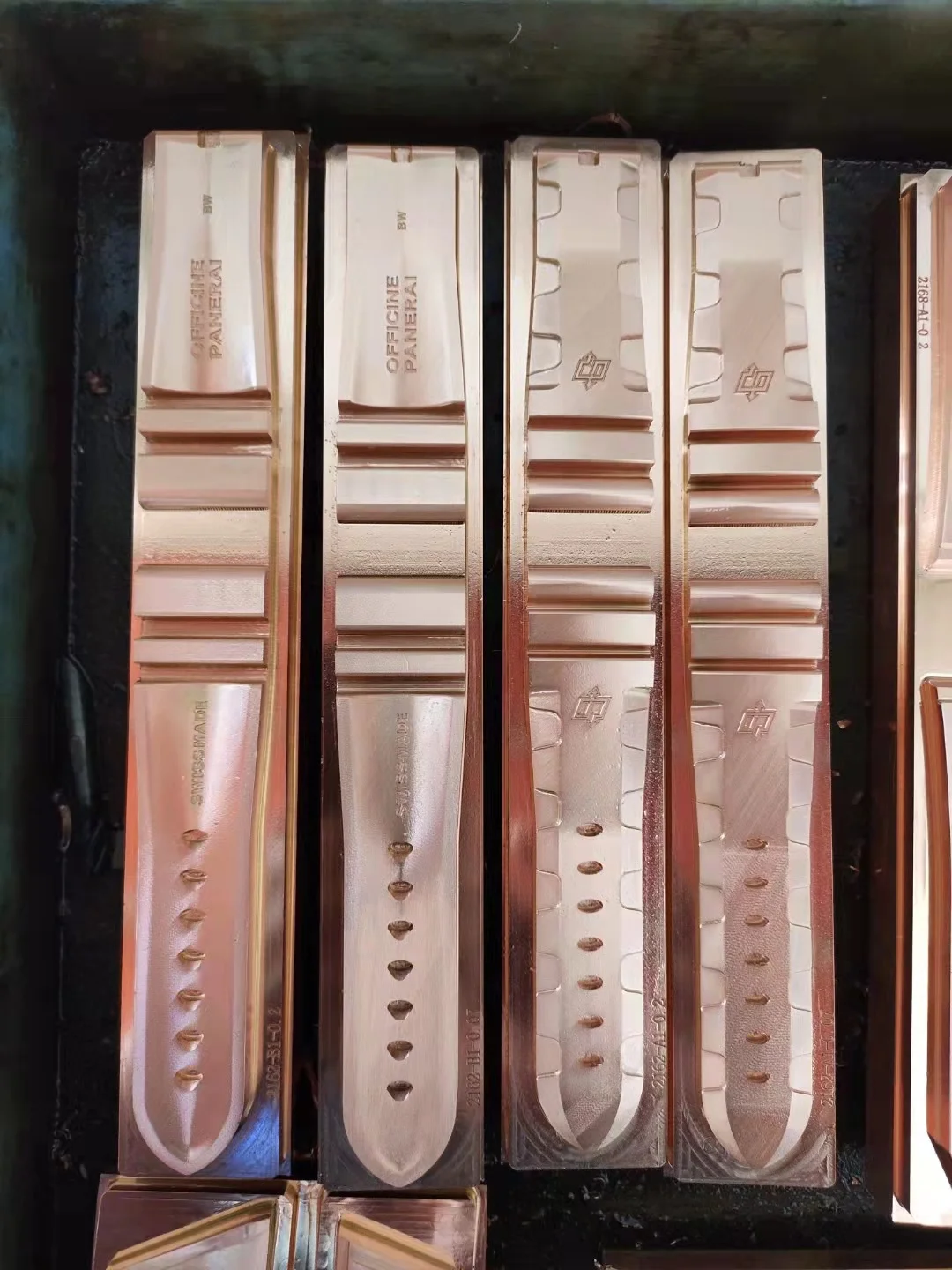

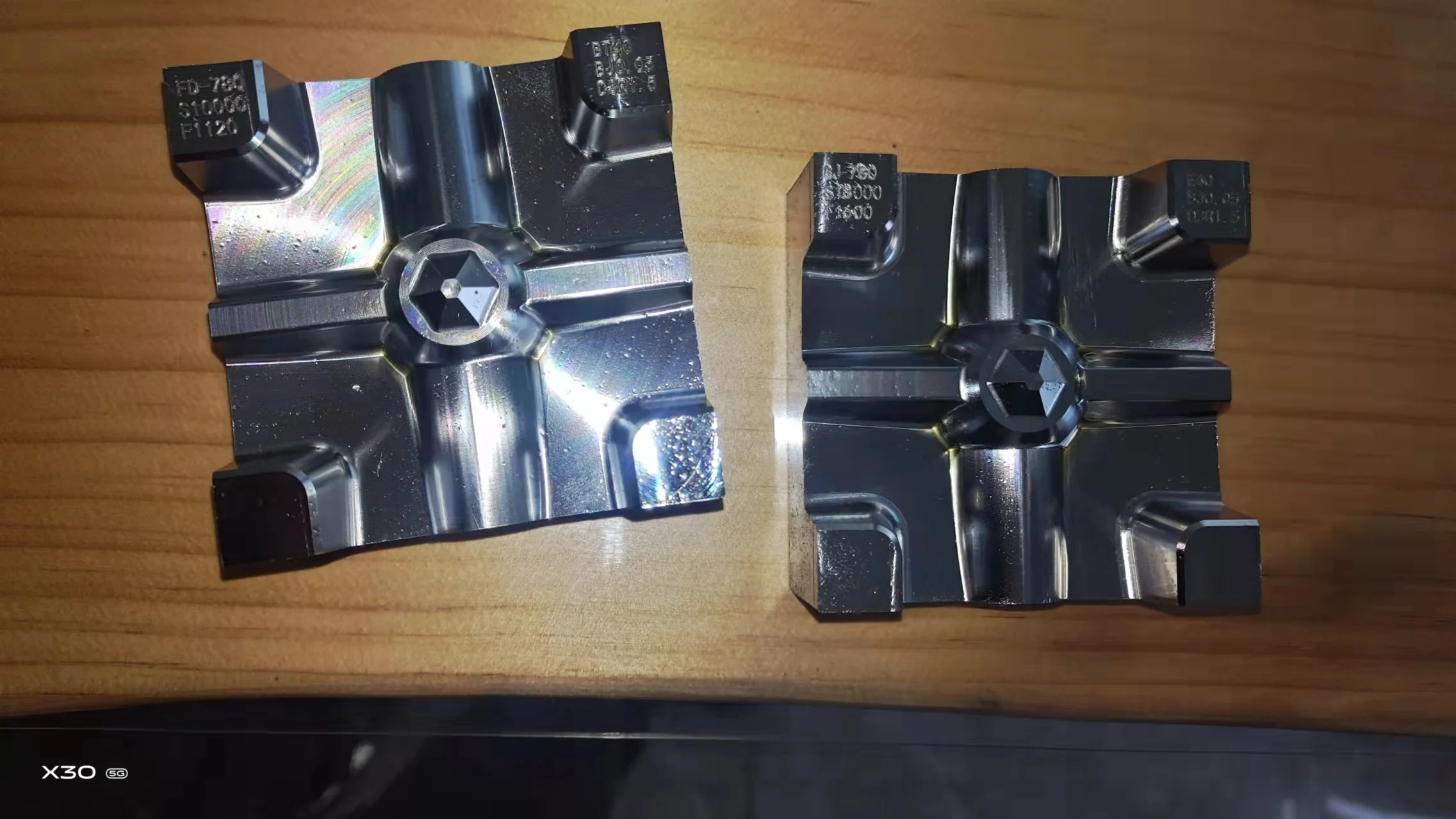

practical application
