Product Overview

Description



Product Description










Single Phase EI lamination
Size
A
B
C
D
E
F
G
H
I
EI-28
28
25
8
4
4
17
21


EI-29.6
29.6
23.65
8
4
6.8
15.4
19.4


EI-30
30
25
10
5
5
15
20


EI-35
35
29.5
10
7.5
7.5
19.5
24.5


EI-38.4
38.4
32.2
12.8
6.4
6.4
19.2
25.7


EI-38.4
38.4
52
12.8
6.4
6.4
38.4
45.5


EI-41
41
27
13
6
8
21
27


EI-42
42
35
14
7
7
21
28
28
35
EI-48
48
40
16
8
8
24
32


EI-50
50
42
14
9
9
25
34


EI-54
54
45
18
9
9
27
36
36
45
EI-57
57
47.5
19
9.5
9.5
28.5
38
38
47.5
EI-60
60
50
20
10
10
30
40
40
50
EI-66
66
55
22
11
11
33
44
44
55
EI-75
75
62.5
25
12.5
12.5
37.5
50


EI-76.2
76.2
63.5
25.4
12.7
12.7
38.1
50.8
50.8
63.5
EI-78
78
65
26
13
13
39
52
52
65
EI-78
78
67
22
14
14
39
53
50
64
EI-84
84
70
28
14
14
42
56
56
70
EI-85.8
85.8
71.5
28.6
14.3
14.3
42.9
57.2
57.2
71.5
EI-96
96
80
32
16
16
48
64
64
80
EI-105
105
87.5
35
17.5
17.5
52.5
70
70
87.5
EI-114
114
95
38
19
19
57
76
76
95
EI-120
120
100
40
20
20
60
80
80
100
EI-132
132
110
44
22
22
66
88
88
110
EI-133.2
133.2
111
44.4
22.2
22.2
66.6
88.8
88.8
111
EI-144
144
124
40
26
26
72
98
92
118
EI-150
150
125
50
25
25
75
100
100
125
EI-152.4
152.4
127
50.8
25.4
25.4
76.2
101.6
101.6
127
EI-162
162
135
54
27
27
81
108
108
135
EI-168
168
140
56
28
28
84
112
112
140
EI-171
171
142.5
57
28.5
28.5
85.5
114
114
142.5
EI-174
174
145
58
29
29
87
116
116
145
EI-180
180
150
60
30
30
90
120
120
150
EI-182
182
157
56
30
33
91
124
124
157
EI-192
192
160
64
32
32
96
128
128
160
EI-210
210
175
70
35
35
105
140
140
175
EI-240
240
200
80
40
40
120
160
160
200

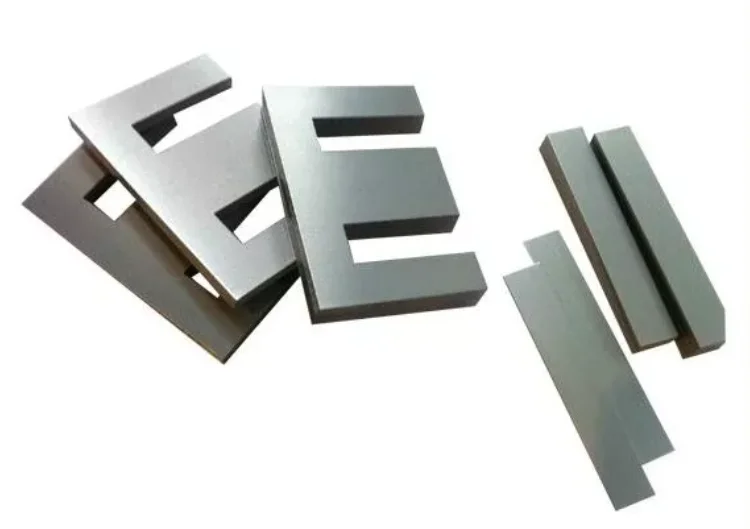

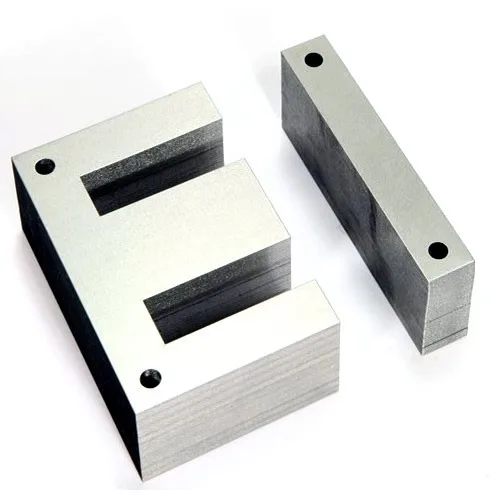

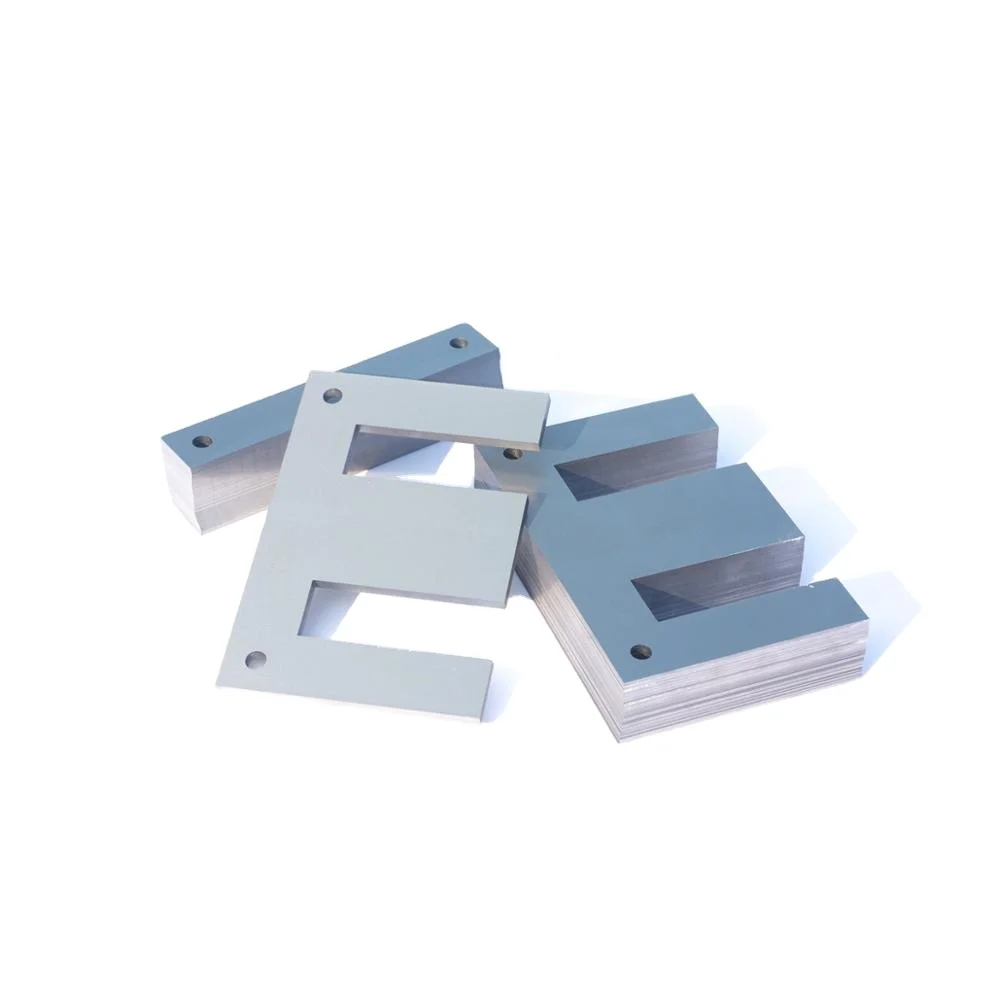

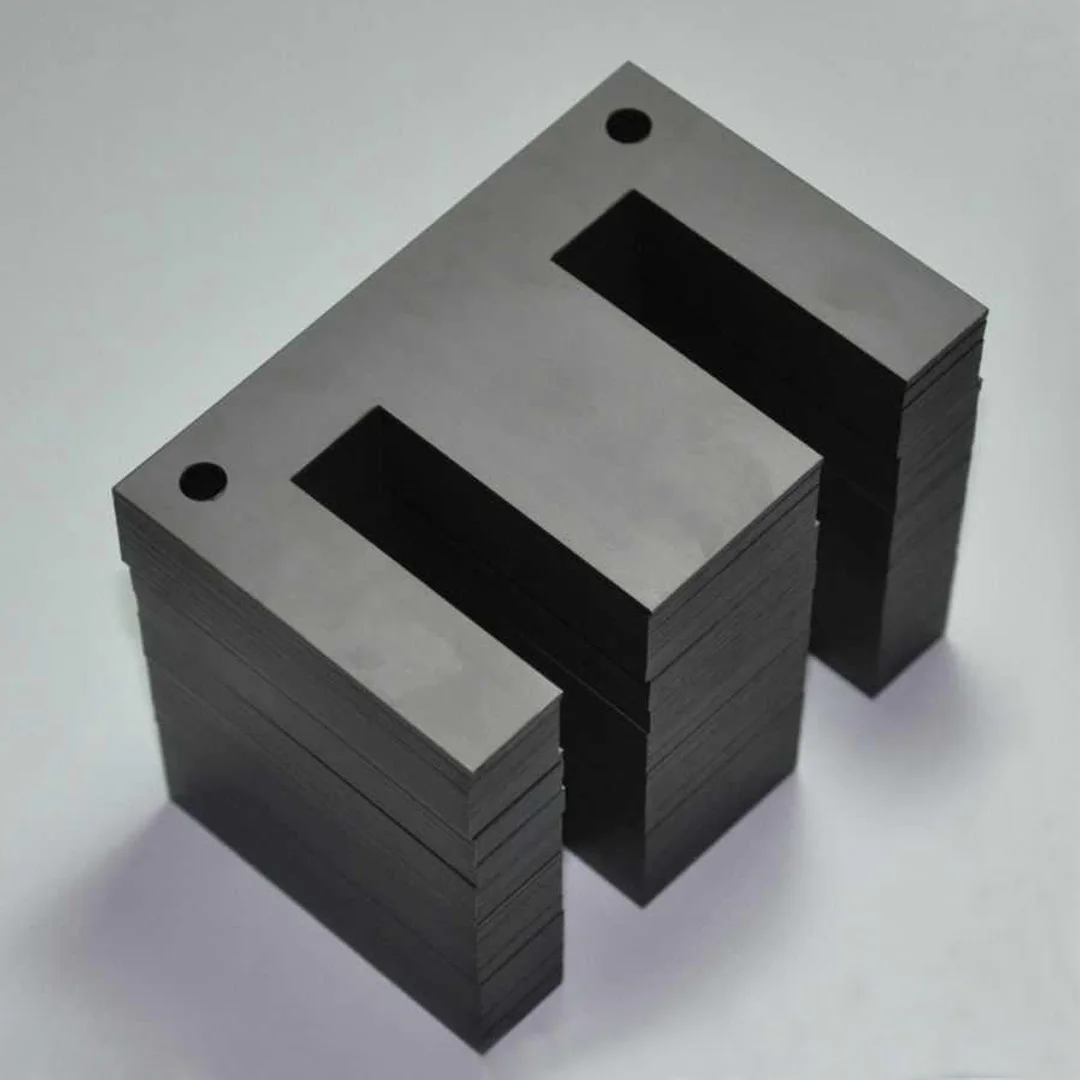

EI transformer lamination is made by Cold-rolled non-oriented electrical silicon steel sheet (CRNGO) or Cold-rolled oriented electric silicon steel sheet (CRGO), the thickness is from 0.23mm-0.5mm.

Specification:
Single phase:
EI core: EI 19,EI 30, EI 35, EI 41, EI 48, EI 57, EI 60, EI 66, EI 75, EI 76.2, EI 78, EI 84, EI 85.8, EI 96, EI 105, EI 108, EI114, EI120, EI 126, EI 133.2, EI 150, EI 152.4, EI 162 EI 168, EI 171, EI 174, EI 180, EI 192, EI 190.5, EI 210, EI 240, EI 270, EI 300,EI 360.

UI lamination: UI 16, UI 22, UI 25, UI 27, UI 38, UI 40, UI 45, UI 50, UI 60, UI 70, UI 80, UI 90,UI 100.

Three phase EI core:
3PEI 13, 3PEI 17.5, 3PEI 20, 3PEI 22, 3PEI 25, 3PEI 27, 3PEI 28, 3PEI 29, 3PEI 30, 3PEI 30.5, 3PEI 32, 3PEI 35, 3PEI 36, 3PEI
38,3PEI 40, 3PEI 44, 3PEI 45, 3PEI 50, 3PEI 56, 3PEI 60, 3PEI 61, 3PEI 70, 3PEI 80, 3PEI 90, 3PEI 100, 3PEI 120.
