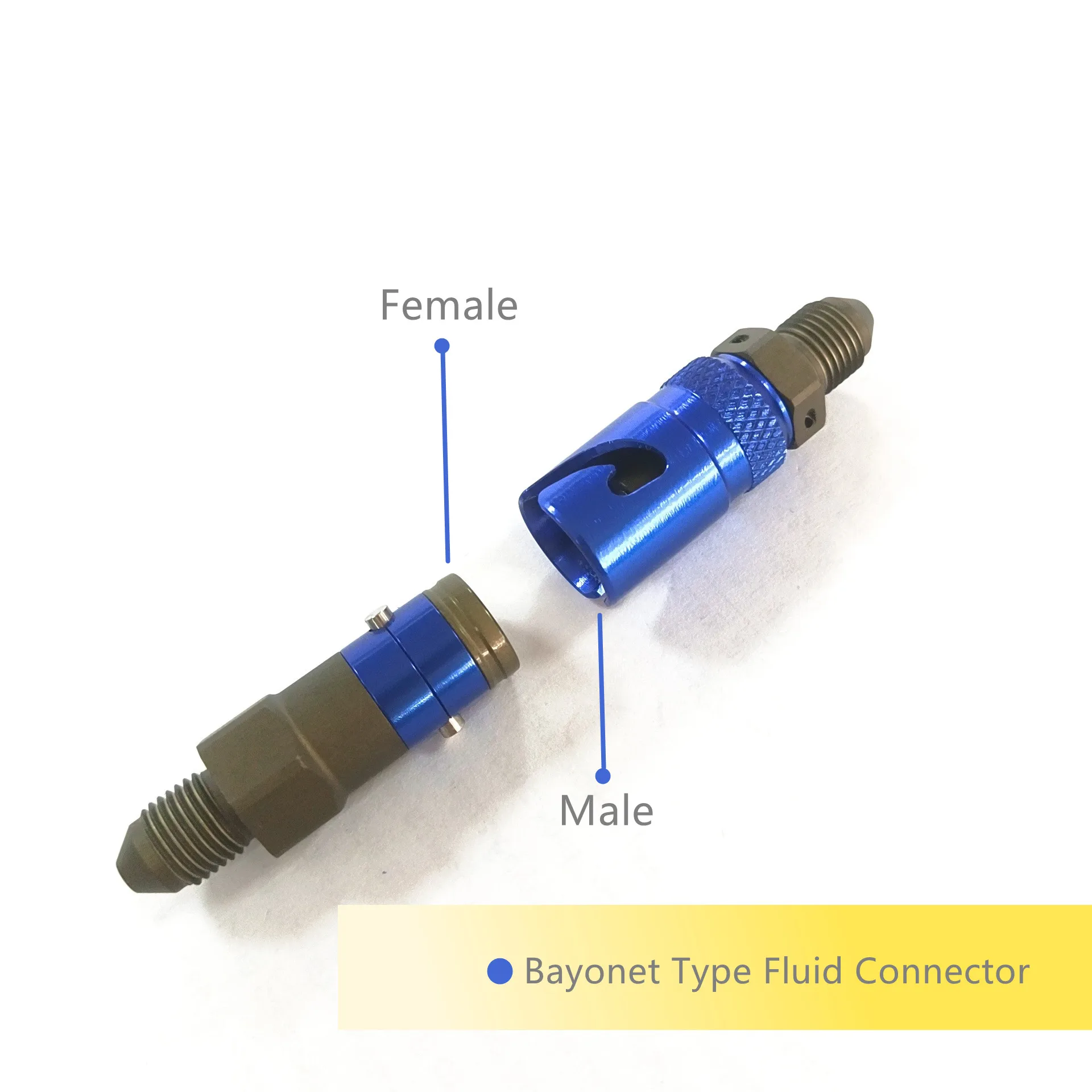

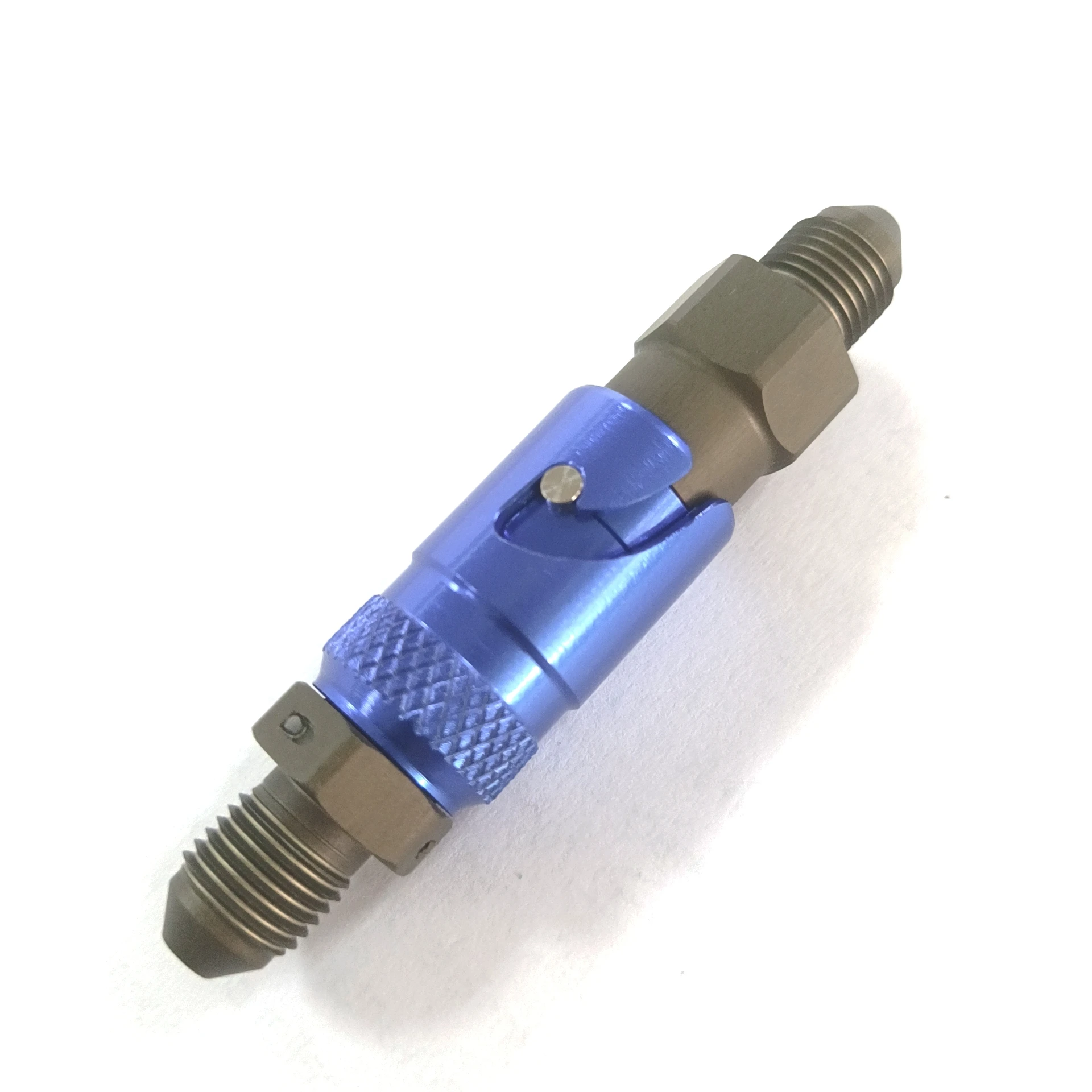

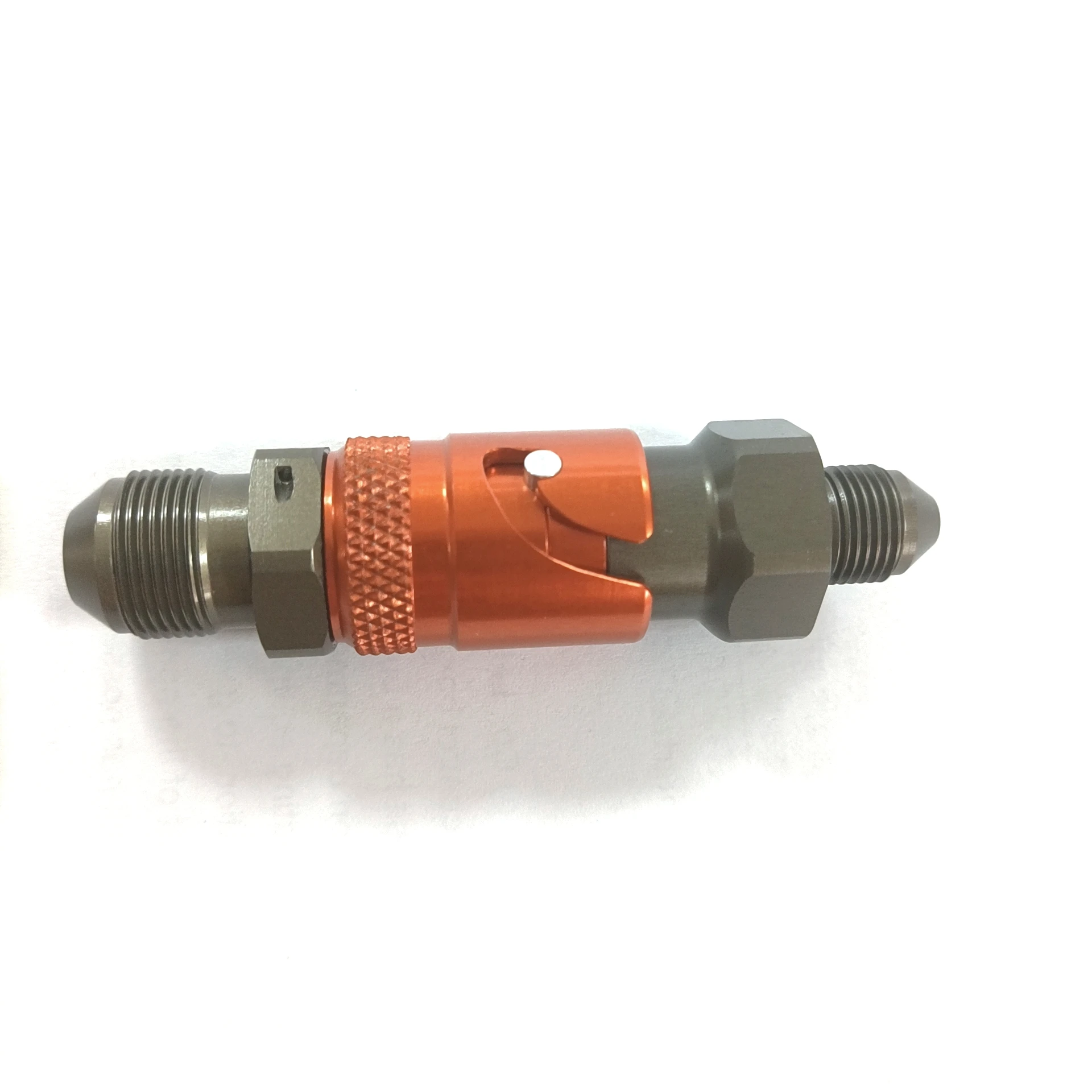

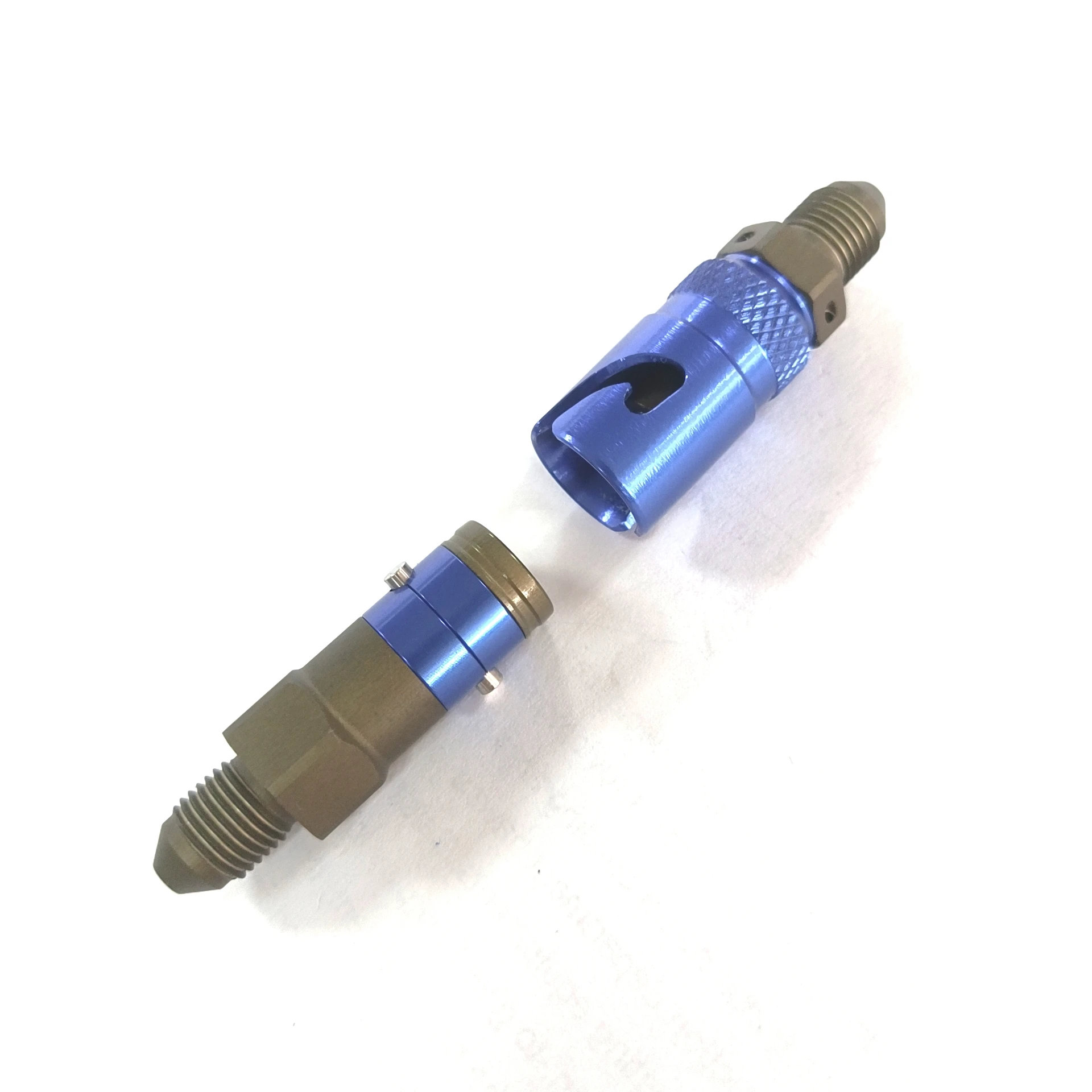

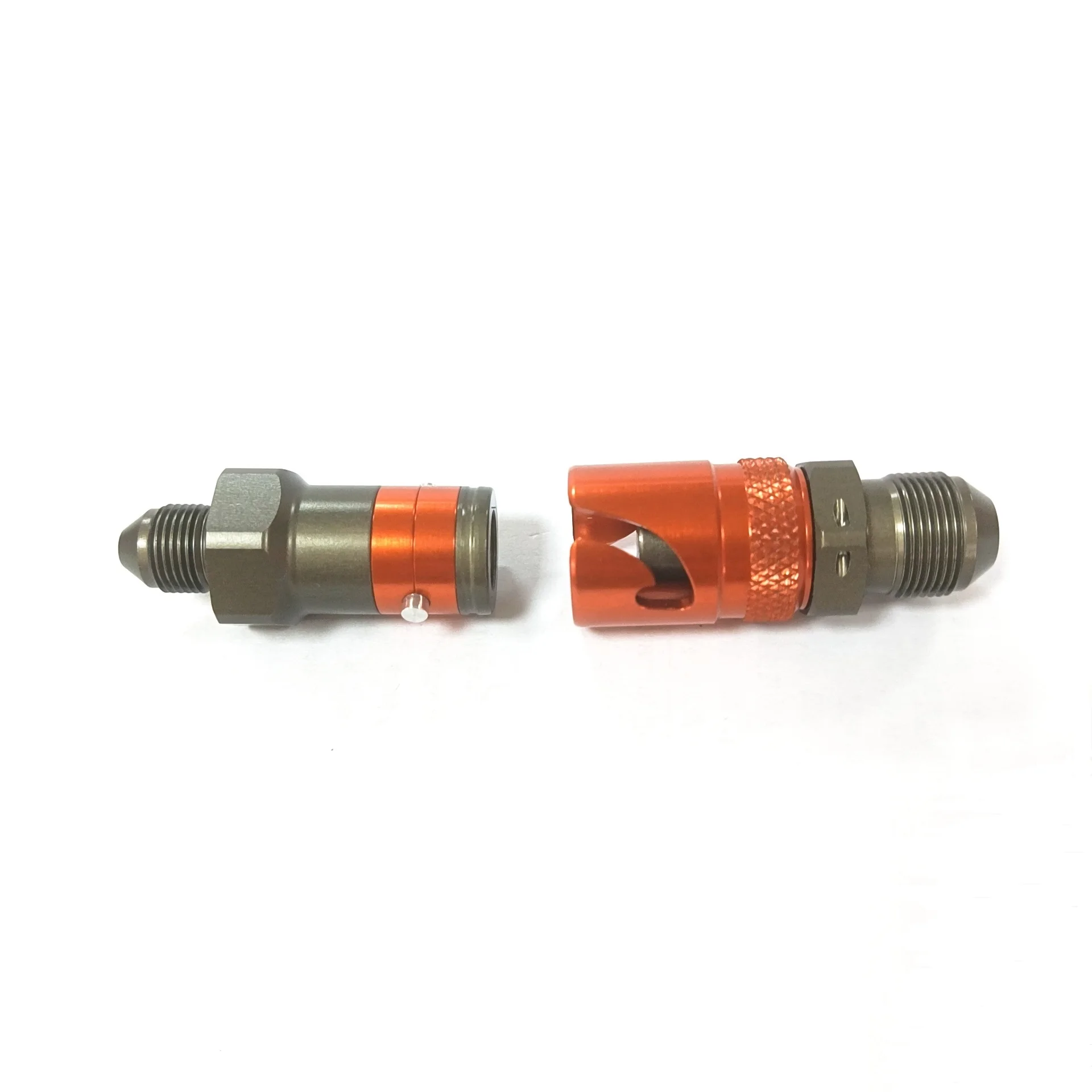

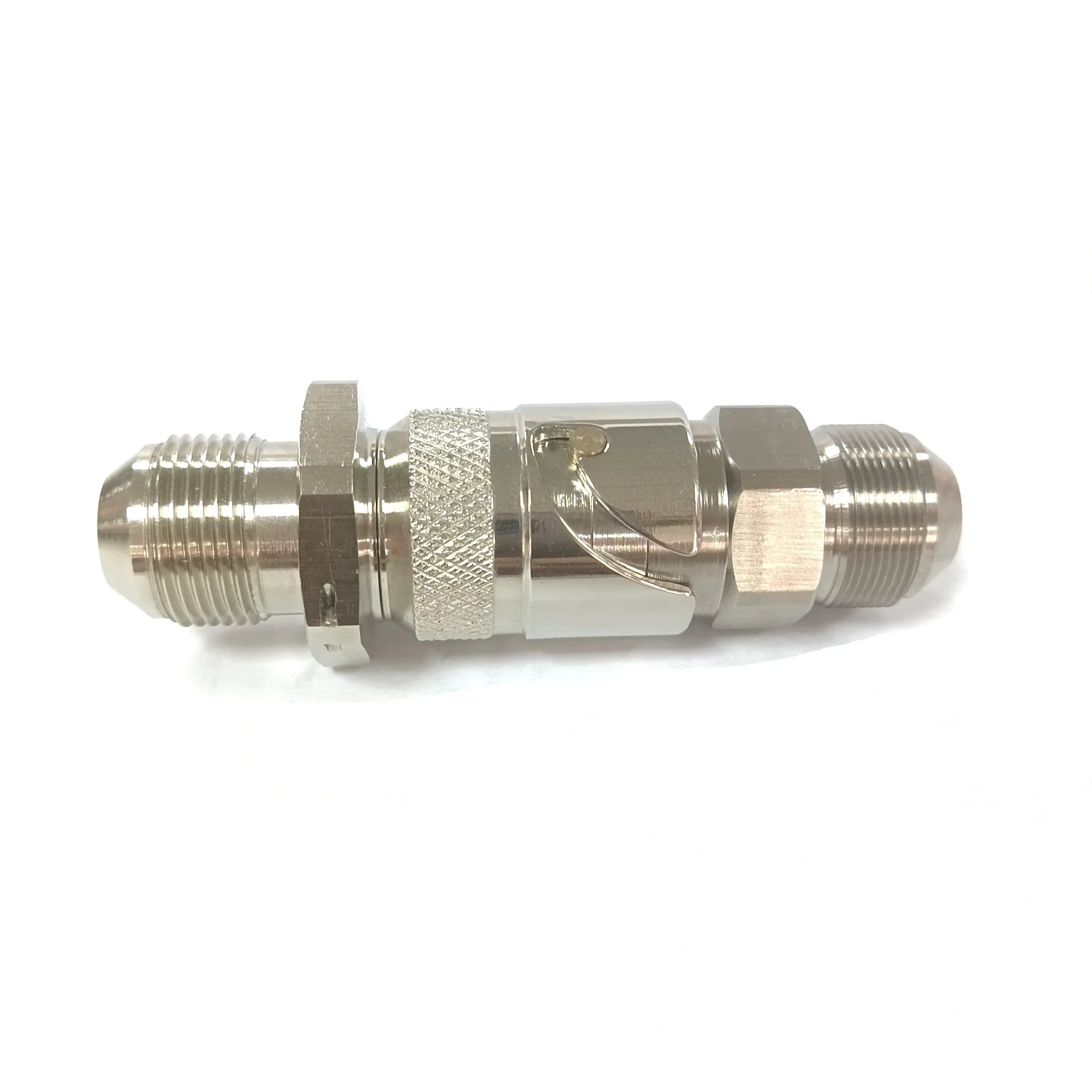

Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector
Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector
Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector
Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector
Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector
Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector
Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector

Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector

Share on (1600466887736):


Price:

Quantity:


Product Overview

Description







Product Description

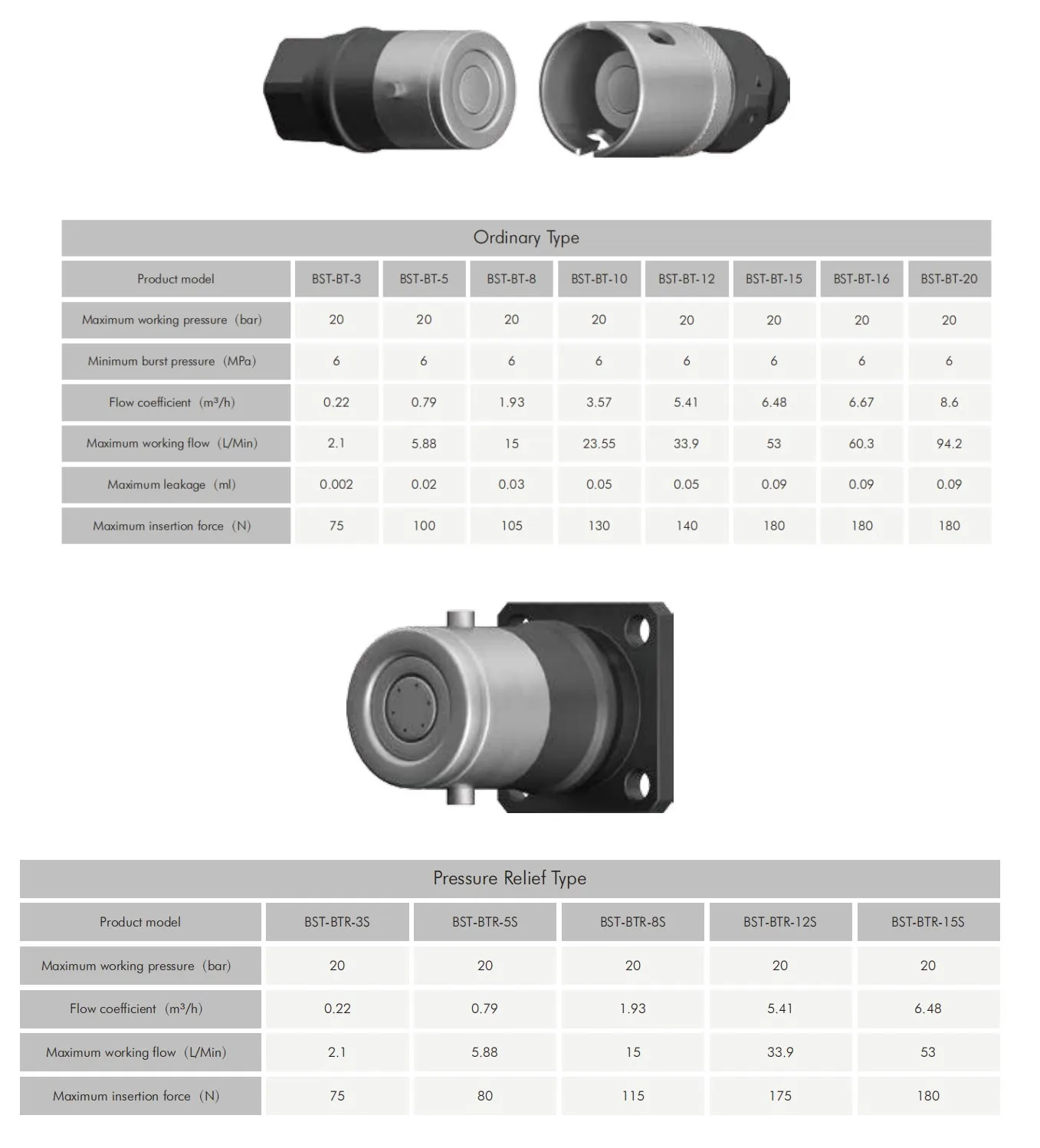

Specification


Item

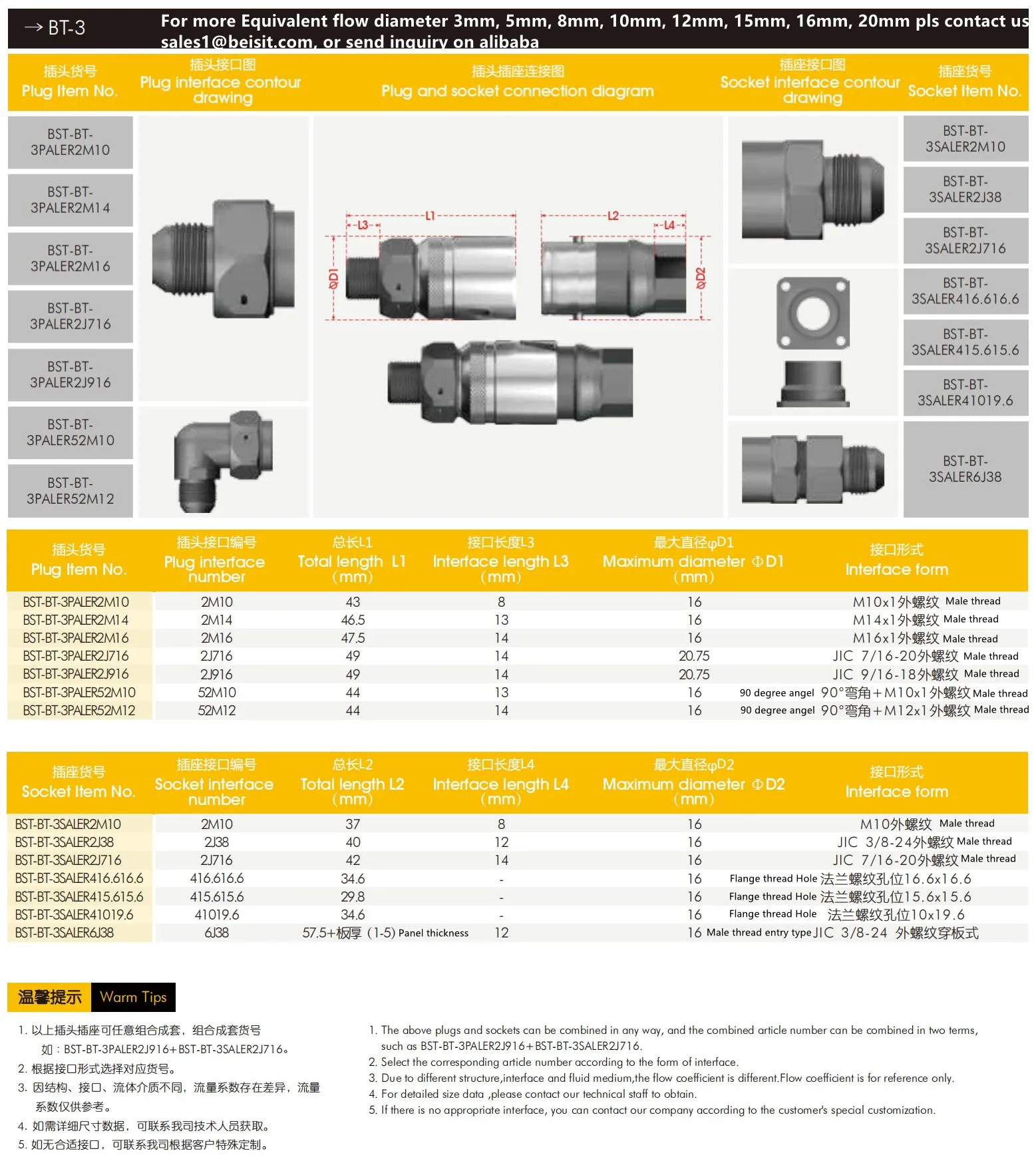

Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector BT-3
Warranty
1 year
Working Temperature
-55℃-+95℃
Alternating humidity and heat
240h
Salt spray test
≥168h
Mating cycle
1000 times of plugging
Body material
Brass nickel plating, aluminum alloy, stainless steel
Sealing material
Nitrile rubber, EPDM rubber, fluorosilicone rubber, fluorine-carbon rubber
Vibration test
According to GJB360B-2009 method 214, the connector is subjected to 1MPa pressure without leakage
Impact test
According to GJB360B-2009 method 213, the connector is subjected to 1MPa pressure without leakage

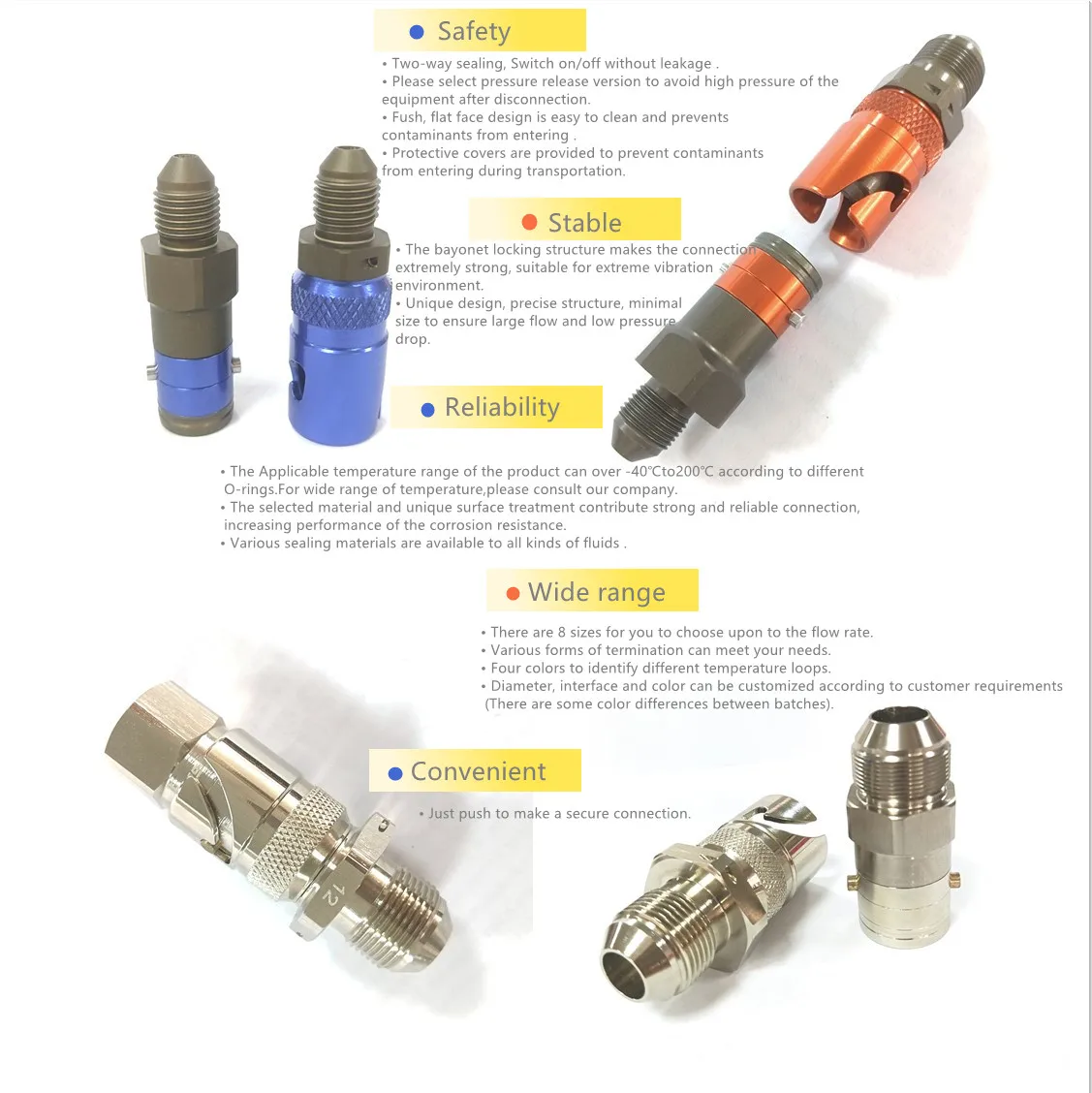

Bayonet Type Fluid Connctor Hydraulic couplings
Push-Pull Type Fluid Connector Hydraulic couplings
Self-locking Fluid Connector Hydraulic couplings


BLIND INSERTION TYPE Fluid Connector Hydraulic couplings
BLIND INSERTION TYPE Fluid Connector Hydraulic couplings
Fluid Connector Hydraulic couplings With Hose Assembled

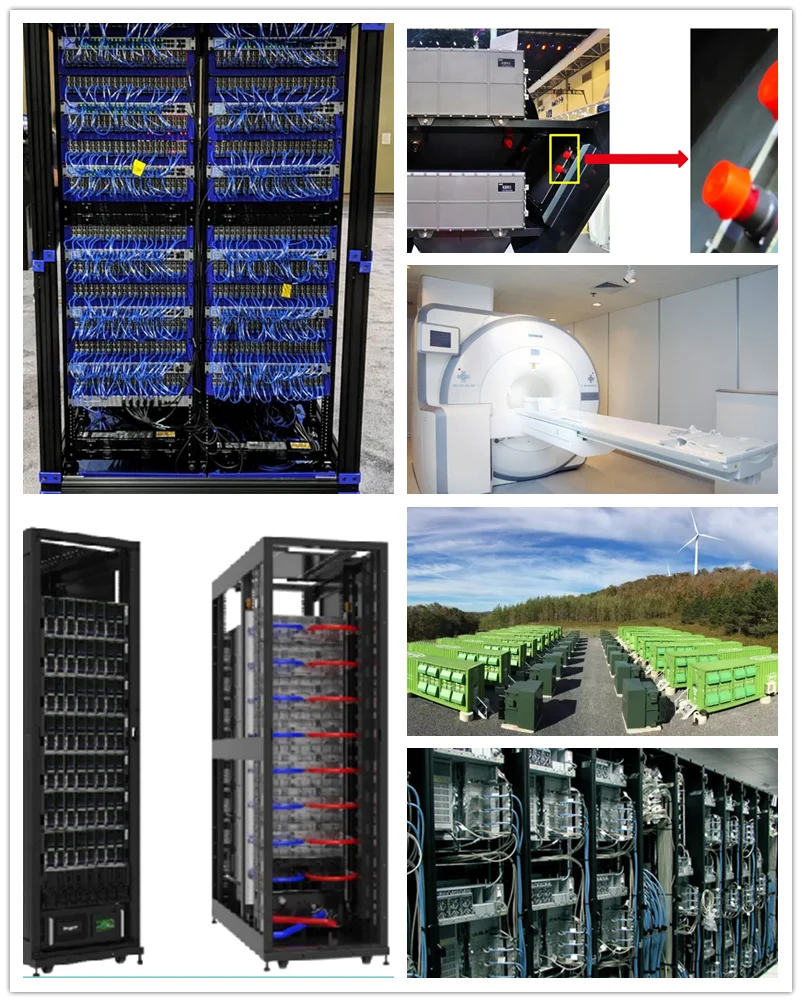

Fluid Connector Application Field


Military，Aviation
Communication
Rail transit, wind power generation, photovoltaic power generation and power transmission
New energy vehicles
Medical Equipment
Radar, TR components，transmitter，REceiver
Electronic components integrated in chips such as CPU, GPU and memory dissipate heat
IGBT module
IGBT cooling for battery, charging system and electric drive system
Pipe connection of liquid cooling system




Packing & Delivery




For Aluminum Dry Brake Hydraulic Coupling Quick Release Disconnect Hose Adapter Fittings Bayonet Type Fluid Connector.
A. Common Packing: Certain Quantity +PolyBag + Label + Export Carton
B. Common Packing: Certain Quantity +Colorful Inner Box + Label +Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.

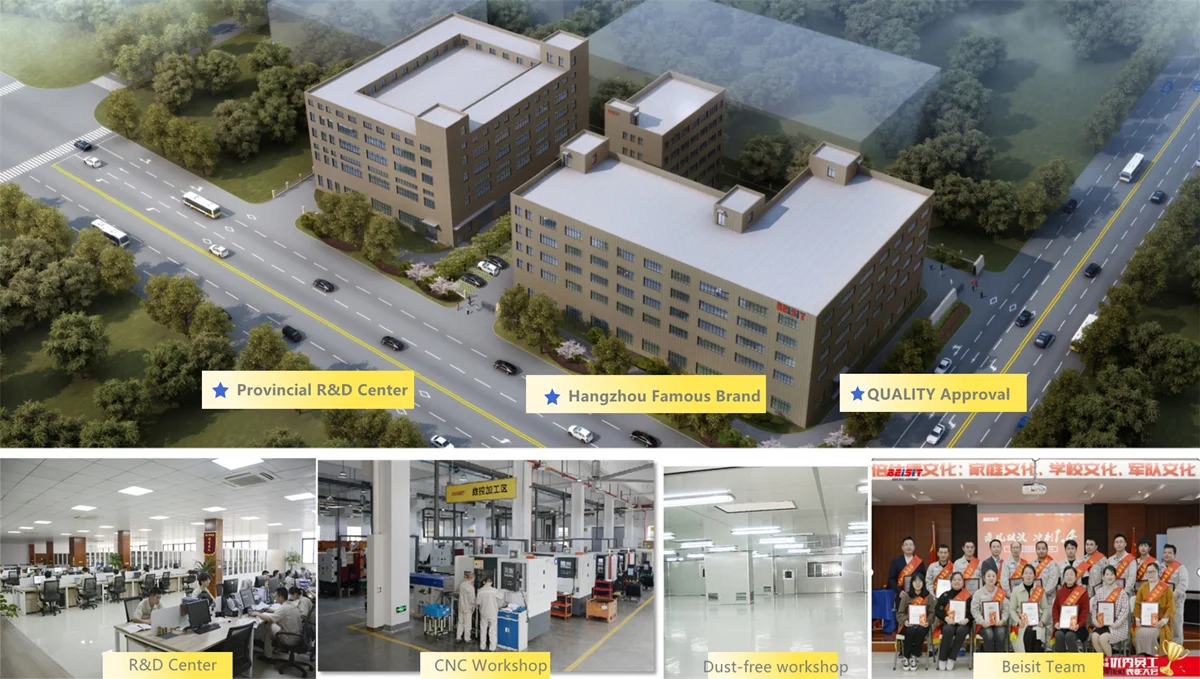

Company Profile


Beisit is a famous brand for high quality electric connectors. We foucs on electric connectors manufacturing for more than 19 years. Our products have UL, CE, CCC, VDE, TUV, SGS, ROHS, REACH, ATEX, IECEx etc certificated. And company pass IATF16949, ISO/TS22163 , ISO9001 、ISO14001, ISO45001, BSCI, GOST certificated. Our partners like ABB, Phoenix, BYD, HUAWEI, Panasonic and so on.

Date of Establishment: 2009, history since 2003.
Factory Size : 22300㎡
Main Equipment :
24 full computer numerical control injection machines,
2 rubber hot-press machines
26 CNC machines
41 test equipment
1 nickel electroplating production line
1 metal plate line
Employees : 220 (Technical staff accounted for more than 25%)

Main Products : Industrial cable connectors, Fluid connectors ,integrated and whole
set technical connection solution

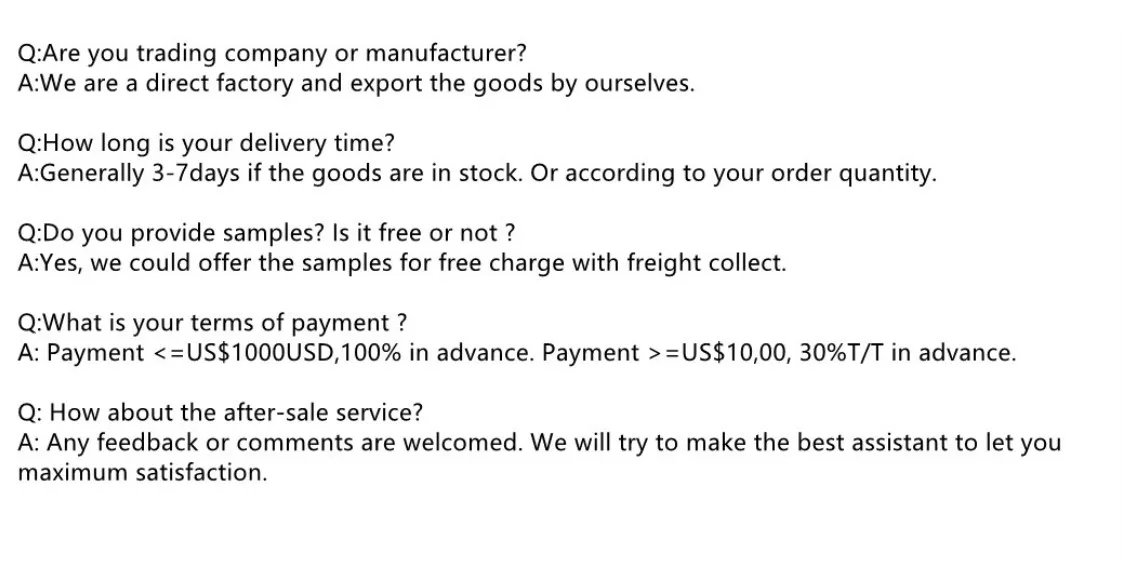

FAQ
