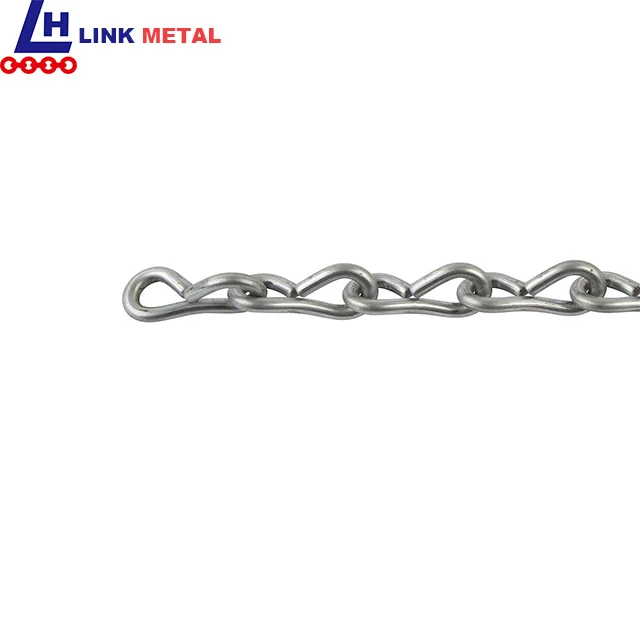

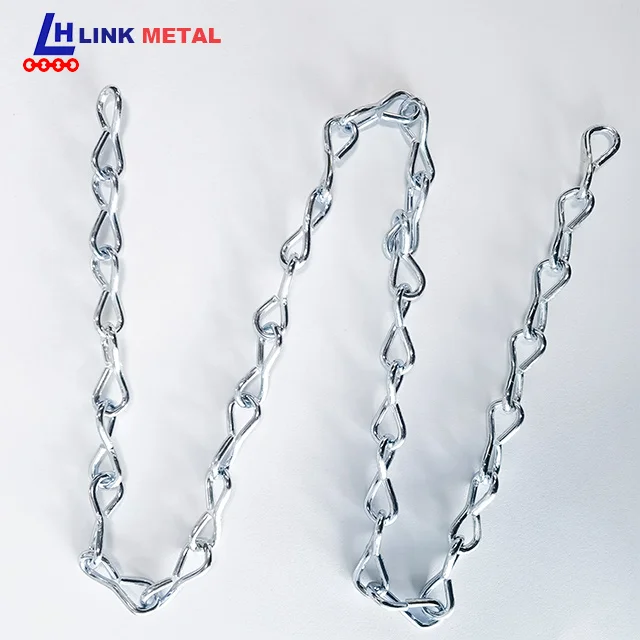

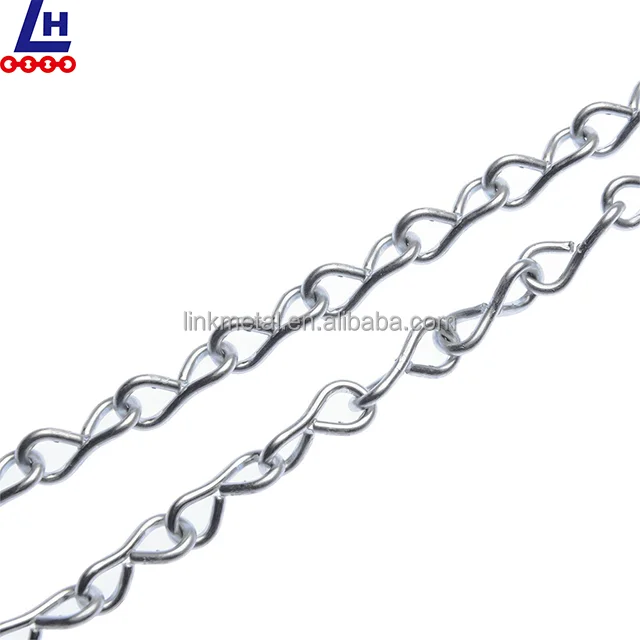

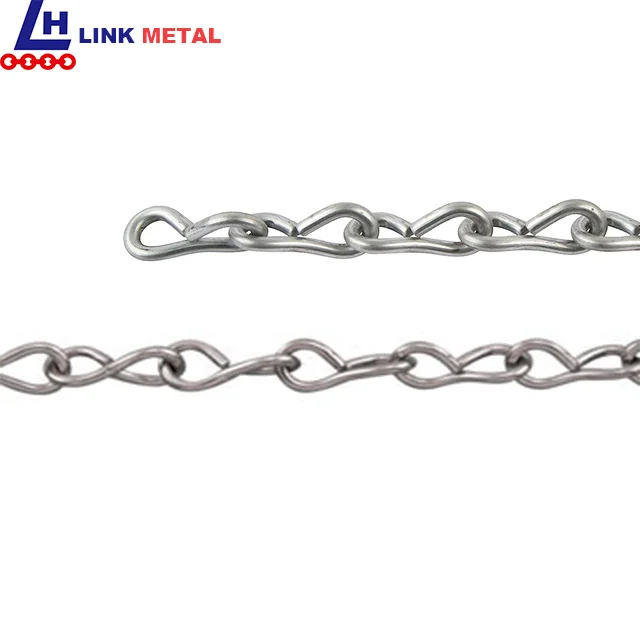

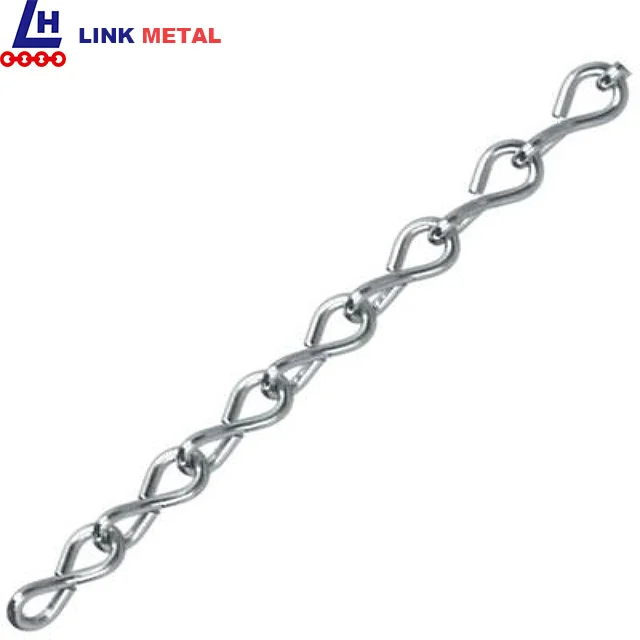

2.8mm Chain Factory Supply Galvanized Or Stainless Steel Weldless Standard Single Jack Chain
- Category: >>>
- Supplier: Nantong Link Metal Products Co. Ltd.
Share on (1600466896087):
Product Overview
Description
Product Description
zinc plated carbon steel handbag chain decorative chain jack chain
TIPS
Single jack chain is ideal for hanging signs, lighting fixtures, flower pots, scales, children’s toys & novelties. Single jack chain complies fully with all requirements of the U.S. National Association of Chain Manufacturer’s (NACMS) specifications.
* Type 304 stainless steel, bright zinc & brass plated finishes available
* Do not use for overhead lifting
* Do not use for overhead lifting
Products details
304 Stainless Steel:
Part # | Trade Size | Size (mm) | A (in) | B (in) | C (in) | WLL (lb) | BL (lb) | Wt per 100 Ft (lb) |
S0621-0000 | #18 | 1.20 | 0.05 | 0.39 | 0.12 | 5 | 20 | 1.85 |
S0621-0001 | #16 | 1.60 | 0.06 | 0.52 | 0.15 | 10 | 40 | 3.00 |
S0621-0002 | #14 | 2.00 | 0.08 | 0.63 | 0.20 | 16 | 65 | 5.00 |
S0621-0003 | #12 | 2.50 | 0.10 | 0.75 | 0.23 | 29 | 115 | 8.50 |
S0621-0004 | #10 | 3.30 | 0.13 | 0.85 | 0.31 | 43 | 170 | 14.70 |
Bright Zinc or Brass Plated:

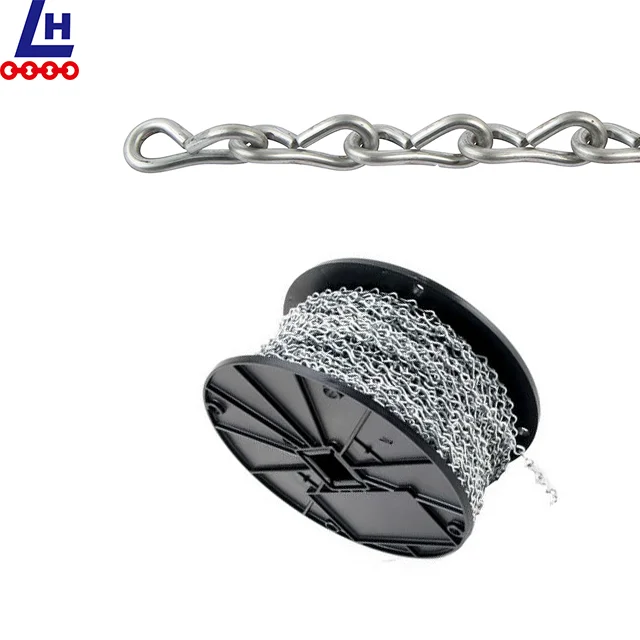

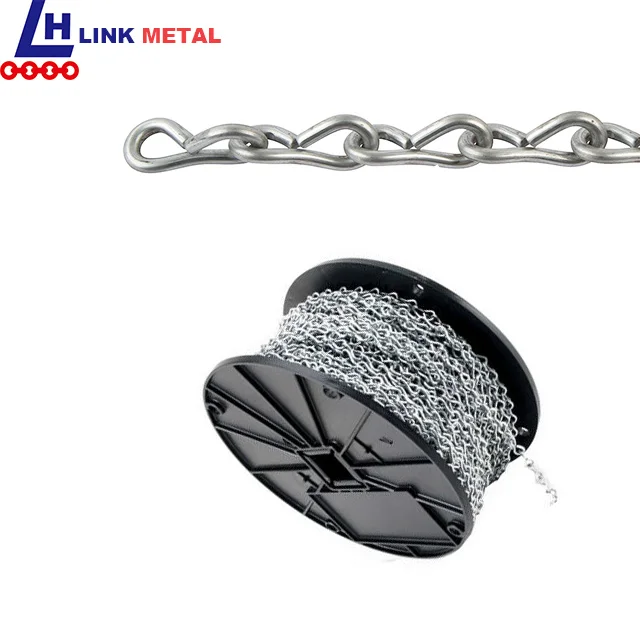

Part # | Surface Finish | Trade Size | Size (mm) | Dia (in) | WLL (lb) | Length/ Reel (ft) | Wt/ Reel (lb) |
CHRSJZ201C | Bright Zinc | #20 | 0.80 | – | – | 100 | – |
CHRSJZ181C | Bright Zinc | #18 | 1.20 | 0.05 | – | 100 | – |
CHRSJZ16250 | Bright Zinc | #16 | 1.60 | 0.06 | 250 | 10 | 8 |
CHRSJZ142C | Bright Zinc | #14 | 2.00 | 0.08 | 16 | 200 | 10 |
CHRSJZ121C | Bright Zinc | #12 | 2.50 | 0.11 | 29 | 100 | 8 |
CHRSJZ101C | Bright Zinc | #10 | 3.30 | 0.14 | 43 | 100 | 15 |
CHRSJBP16250 | Brass Plated | #16 | 1.60 | 0.06 | 10 | 250 | 8 |
CHRSJBP142C | Brass Plated | #14 | 2.00 | 0.08 | 16 | 200 | 10 |
CHRSJBP121C | Brass Plated | #12 | 2.50 | 0.11 | 29 | 100 | 9 |
CHRSJBP101C | Brass Plated | #10 | 3.30 | 0.14 | 43 | 100 | 15 |
We can offer u all kinds of link chain:
1)DIN5685A/C,DIN764,DIN763,DIN766,DIN5686 Link Chain2)Ordinary Short,Medium Link Chain
3)Korean Standard Link Chain
4)ASTM80 Standard Link Chain
5)Norwegian Standard Link Chain
6)Australian Standard Link Chain
7)NACM1990 Standard Link Chain
8)NACM1996/2003 Standard Link Chain
9)Animal Link Chain
10)Stainless Steel Link Chain
11)Weldless Link Chain
12)G80 Link Chain
13)G43 Link Chain
Surface
Hot-dip
Electric Galvanized
Painted
Self-color
Blackened
plastic coating
Product packaging
1.50KG Per Bunny Bag+Bamboo/Wooden/Plywood/Iron Pallet
2.120KG-500KG Per Iron Drum + Pallet
3.20KG-50KG Per Plastic Drum+ Pallet
4.25KG-500KG Per Carton
5.Any Way According to Your Request.
3.20KG-50KG Per Plastic Drum+ Pallet
4.25KG-500KG Per Carton
5.Any Way According to Your Request.
Company Profile
ABOUT US
Nantong Link Metal Products Co., Ltd is a specialized manufacture of various kinds of steel link chains.It was established in 1996 with total area of 30000m2. Currently there are more than 200 employees.The factory has a professional technician team for nearly 20 years chain industry working experience.
Production capacity
The products mainly fall into three parts,one is high tensile chains from 6mm to 30mm,another is stainless steel chains from 1.5mm to 50mm,the other is commercial chain from 1.5mm to 30mm.These products are widely used in lifting,coal mining,fishing,shipping
and so on.Besides,we can produce any nonstandard link chains according to client's requirements and drawings.
and so on.Besides,we can produce any nonstandard link chains according to client's requirements and drawings.
