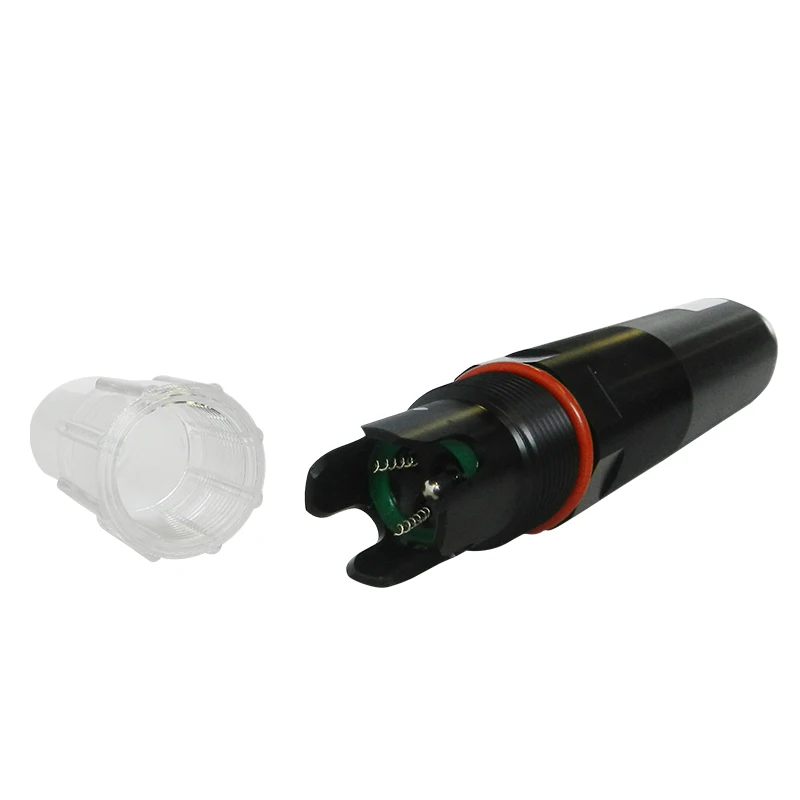

Veinasa YLJ06 Portable Digital Free Probe Online Residual Chlorine Electrode Detector Meter Sensor for Drinking Water
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (1600466897026):
Product Overview
Description

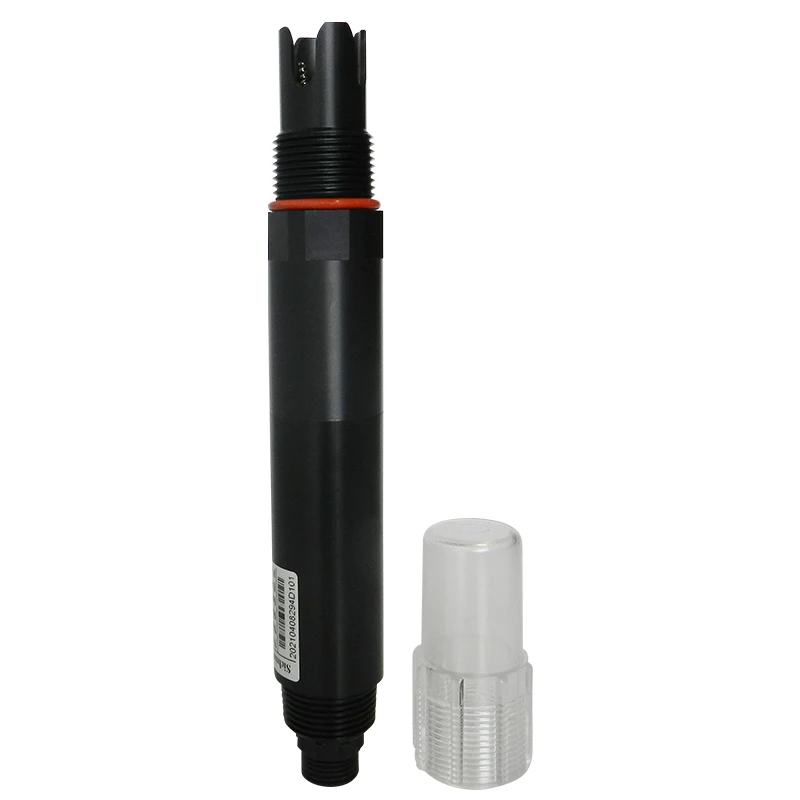

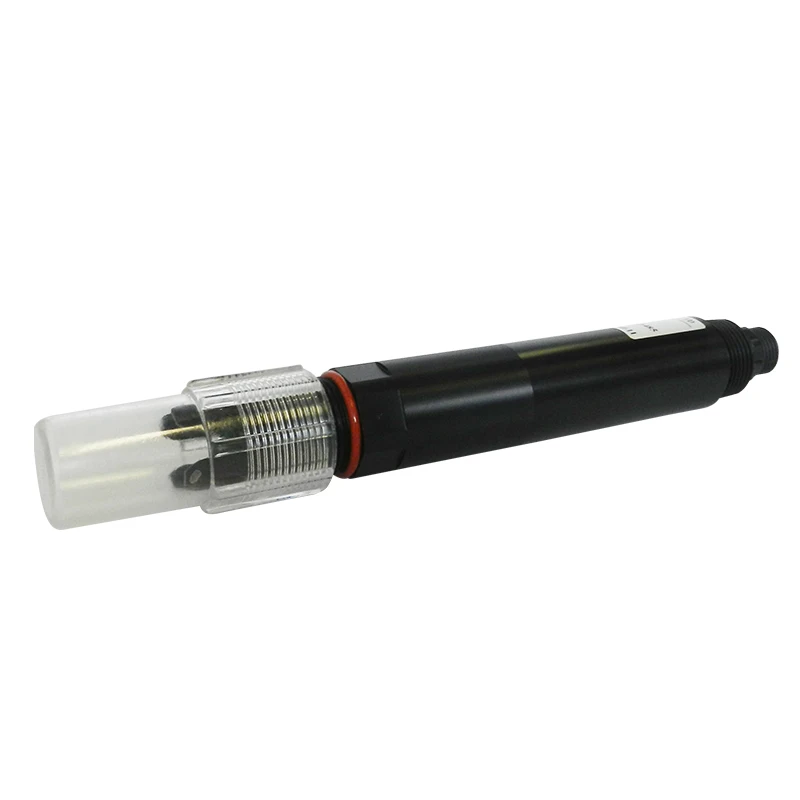

Veinasa-YLJ06 Portable Digital Free Probe Online Residual Chlorine Electrode Detector Meter Sensor for Drinking Water
Products Description
Veinasa-YLJ06 Portable Digital Free Probe Online Residual Chlorine Electrode Detector Meter Sensor for Drinking Water is used for continuous monitoring of residual chlorine content in aqueous solution in drinking water treatment plants, canning plants, drinking water distribution networks, swimming pools, cooling circulating water, water quality treatment engineering and so on.
Sensor Parameters
Model | Veinasa-YLJ06 |
Measuring principle | Constant voltage method |
Range ability | 0～2.000mg/L(HClO) |
Resolution | 0.001mg/L |
Precision | ±5% or ±0.05mg/L |
Calibration function | Two-point calibration (zero and slope) |
Working pressure | ＜0.1MPa |
pH range of the medium | 4～9 pH |
Temperature compensation | Automatic temperature compensation (Pt100) |
Signal output | RS-485 bus, Modbus/RTU protocol |
Material | Polyacetal resin, PTFE, gold, silver, conductive rubber |
Working temperature | 5～50℃ |
Installation mode | Circulation pool installation |
Size | 30×233mm |
Velocity of flow | 30～60L/h |
Response time | <30S |
Source | 12～24VDC±10% |
Protection grade | IP68 |

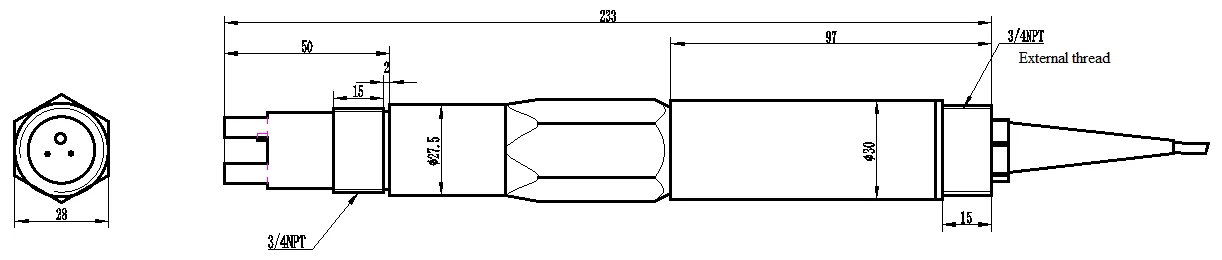

Dimensional Drawing
Characteristics of Veinasa-YLJ06 Portable Digital Free Probe Online Residual Chlorine Electrode Detector Meter Sensor for Drinking Water
1.Compact size and light weight
2.WIth fast response speed and high precision
3.Can be connected with flow cell, IP68 waterproof
4.Easy to install and simple to use

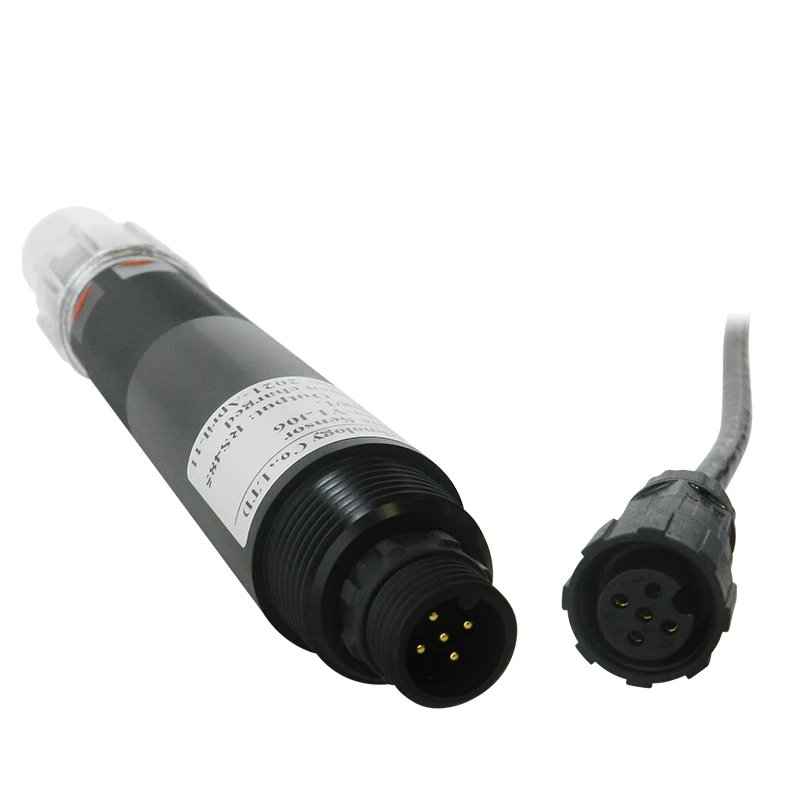

Installation and Wiring Method
Installation
Using the matching circulation pool installation, the electrode and the circulation pool are installed closely to ensure that the electrode measurement part is placed in the area near the inlet of the circulation pool, and the flow rate should not be aligned to the outlet as far as possible to ensure the steady flow rate. It is suggested that the flow rate should be controlled at 30 ≤ 60L / h to ensure the accuracy of the test.Wiring Method
After the wiring is completed, it should be carefully checked to avoid the wrong connection before the power is turned on.

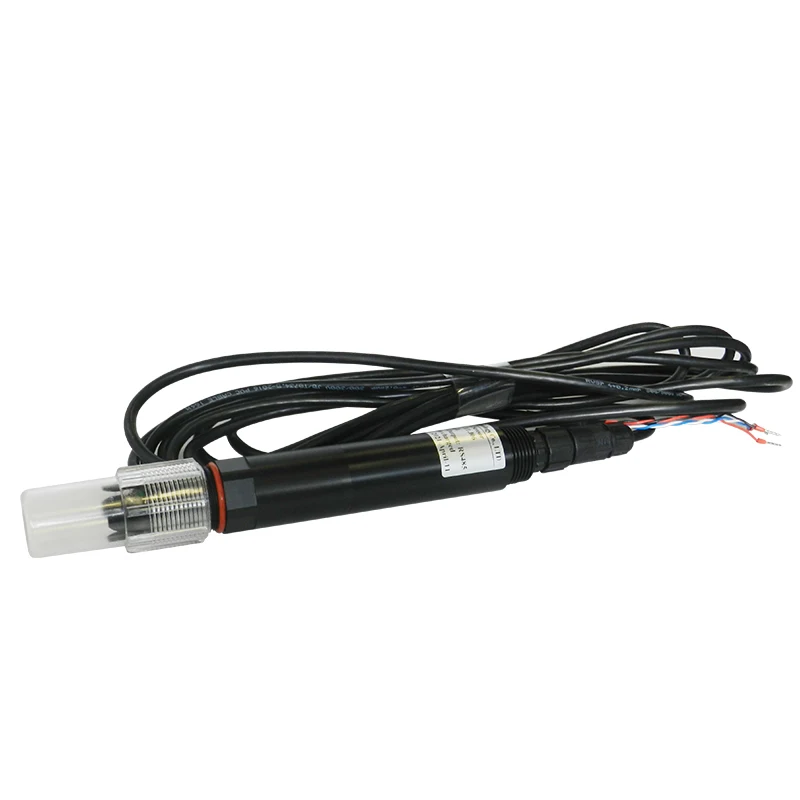

Cable specification: Considering that the cable is immersed in water (including sea water) or exposed to air for a long time, the cable has a certain corrosion resistance. The Φ 6 mm, joint of cable outer diameter needs waterproof treatment.
a)Red wire-power cord（12～24VDC）
b)Black wire-ground wire（GND）
c)Blue Line-485A
d)White Line-485B
Bare wire-shield line
b)Black wire-ground wire（GND）
c)Blue Line-485A
d)White Line-485B
Bare wire-shield line
After the wiring is completed, it should be carefully checked to avoid the wrong connection before the power is turned on.
Cable specification: Considering that the cable is immersed in water (including sea water) or exposed to air for a long time, the cable has a certain corrosion resistance. The Φ 6 mm, joint of cable outer diameter needs waterproof treatment.
Application case
Major application fields of Veinasa-YLJ06 Portable Digital Free Probe Online Residual Chlorine Electrode Detector Meter Sensor for Drinking Water:
1.Aquaculture
2.Water source monitoring
3.Sewage treatment
4.Hydroponic system
1.Aquaculture
2.Water source monitoring
3.Sewage treatment
4.Hydroponic system
5.Swimming pools,
6.Cooling circulating water
7.Water quality treatment engineering and so on.
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are a professional factory/manufacturer of water quality sensors. We also have hot sale and widely used water quality sensor Veinasa-PH.
A: Yes, we are a professional factory/manufacturer of water quality sensors. We also have hot sale and widely used water quality sensor Veinasa-PH.
Q: What are the power supply output and common signal output?
A: The common power supply output and signal output are 12～24VDC±10% and RS485 respectively. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Online Residual Chlorine Sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
A: The common power supply output and signal output are 12～24VDC±10% and RS485 respectively. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Online Residual Chlorine Sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
