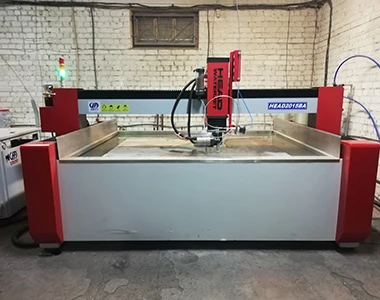

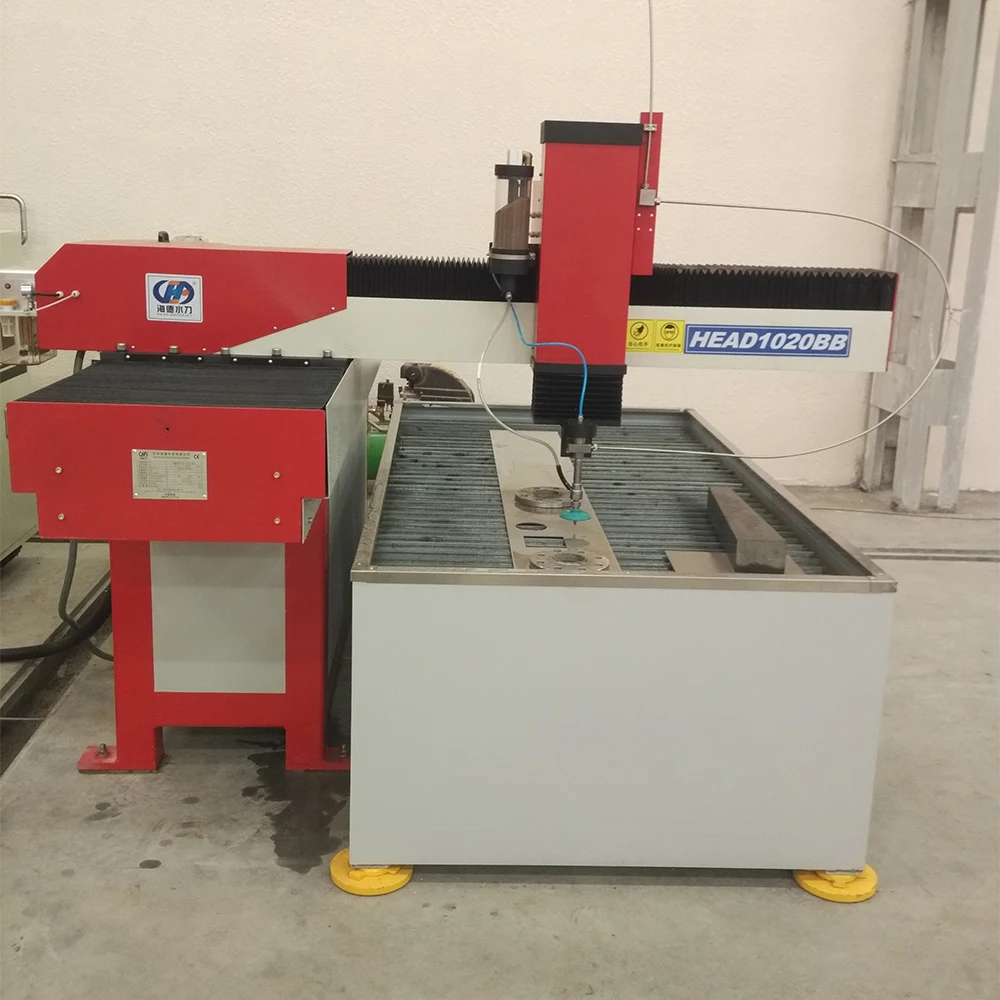

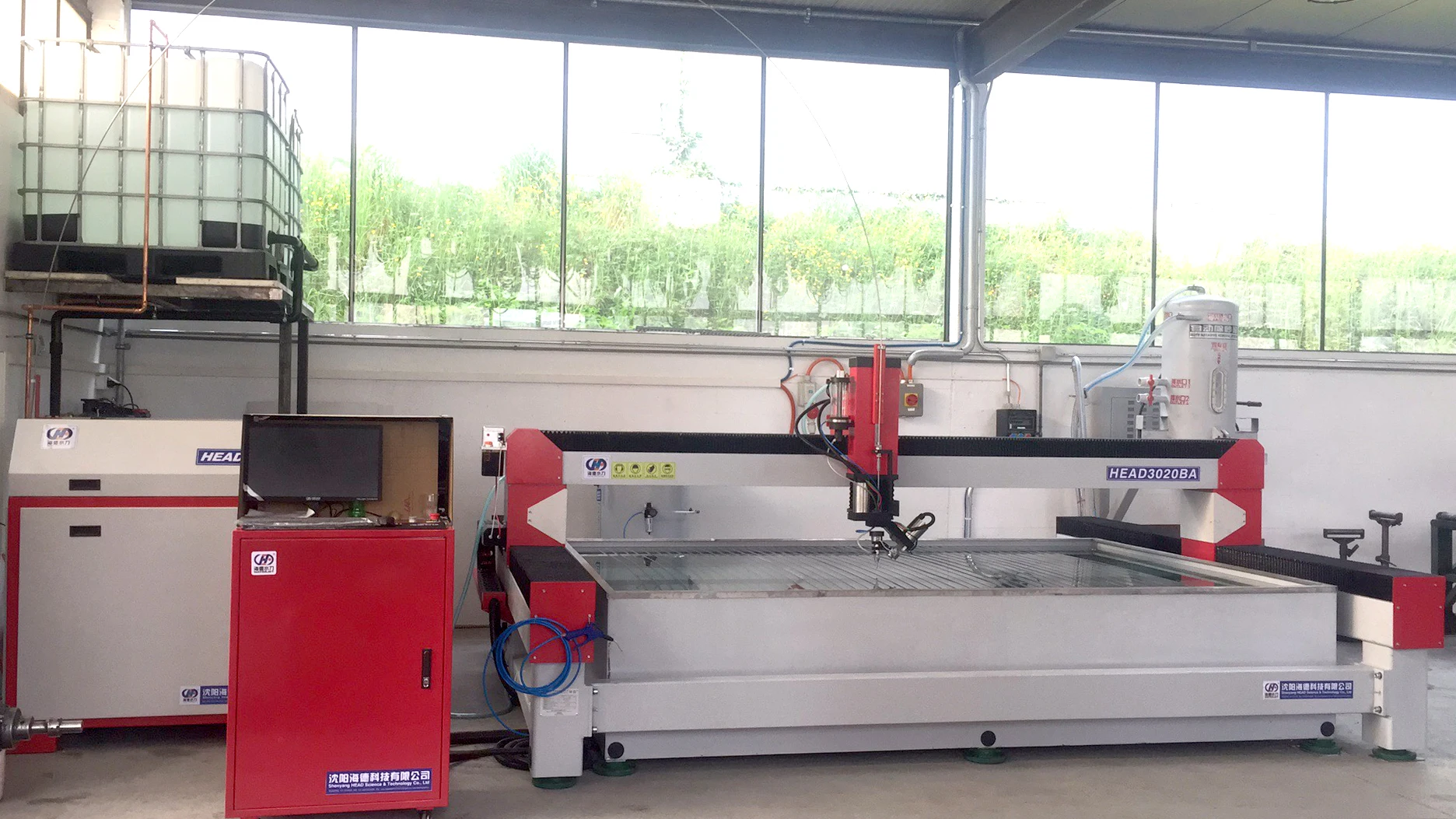

water jet cutting machines price
- Category: >>>
- Supplier: Shenyang Head Science and Technology Corporation Limited
Share on (1600466897239):
Product Overview
Description
Product Description
Characteristics of our waterjet cutting machine
Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture.
Features
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "Made in USA".
• User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan). Which gives you trouble free operation & long life of parts.
• Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db
• Electrical wiring design and meet European EU standards
SPECIFICATIONS FOR WATER JET CUTTING MACHINE | ||||||
Max. pressure | 380-420MPA | |||||
Max. flow rate | 3.7L / min | |||||
Electrical source voltage | 3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP | |||||
Max. diameter of nozzle / orifice | 1.02mm / 0.33mm | |||||
Max. delivery capacity of oil pump | 106L / min | |||||
Drive type | Yaskawa Servo Drive | |||||
Max cutting heads | 1-10 cutting heads (1 for standard machine) | |||||
\t\t\t\t\t\t\t\t\tMachine parts show \t\t\t\t\t\t\t
water jet software
* To control all the cutting process
* Shanghai "WEIHONG"brand
* Easy to operate in just 8 hours to learn
* Shanghai "WEIHONG"brand
* Easy to operate in just 8 hours to learn
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Why Choose Us

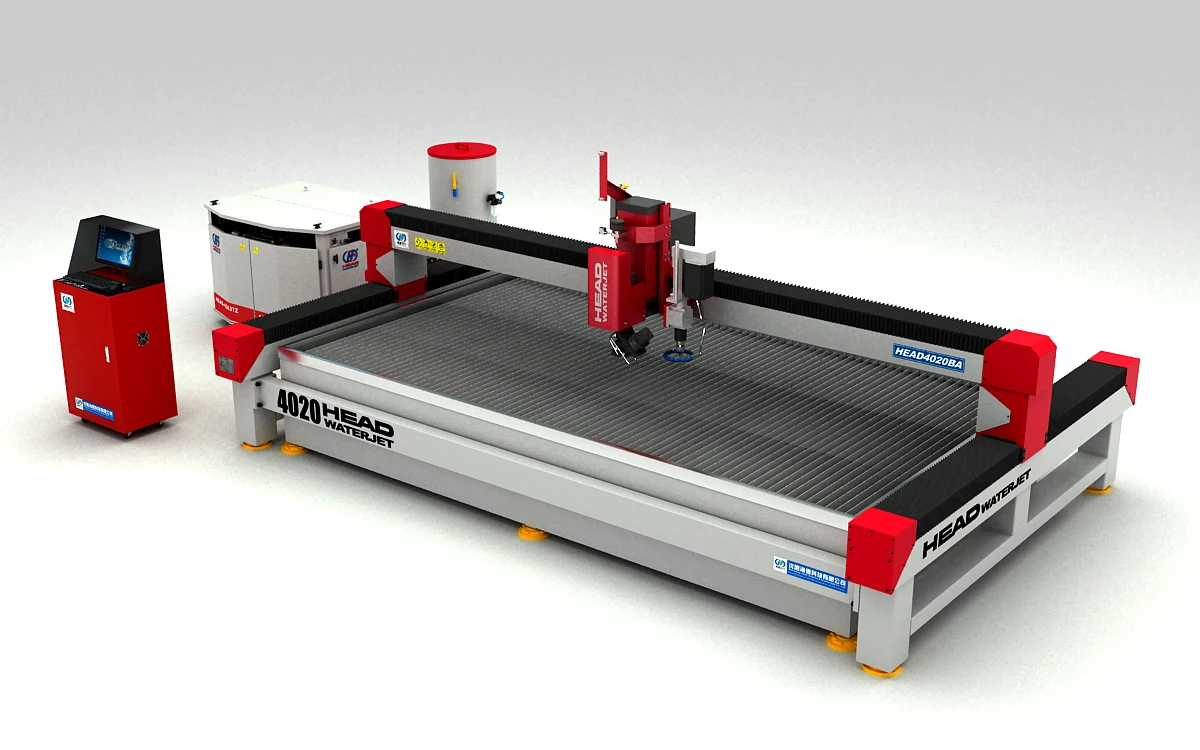

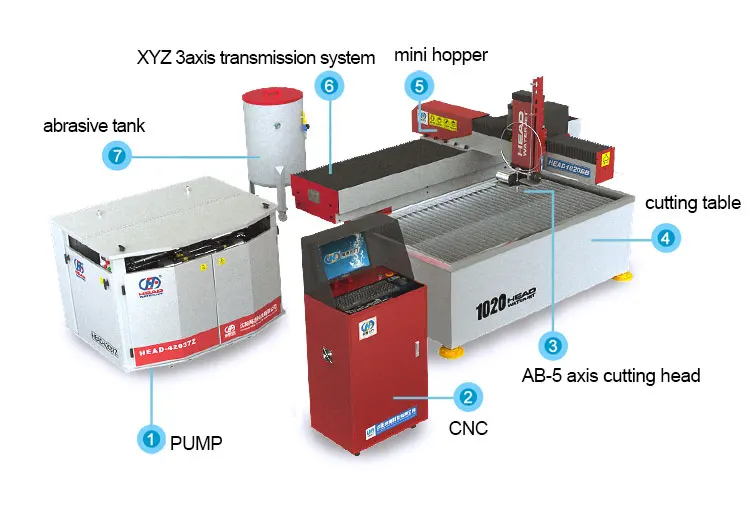

The complete set of waterjet equipment includes：HEAD4020BA CNC cutting platform, CNC system, ultra-high voltage generator, cutting head system（Optional 5AB/5AC 5axis cutting head） HEAD auto abrasive feeder system.

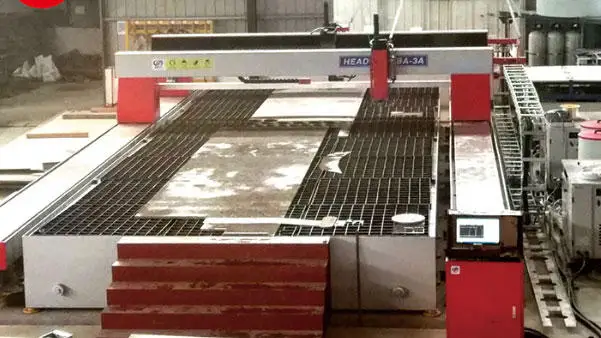

HEAD Waterjet independently developed 4500*10000mm large-scale water cutting equipment, which is the largest water cutting platform in China. The most important reason for customers to choose us is that Head has the strongest R&D and design team. The perfect delivery of customized cutting equipment
HEAD WATERJET has the complete produce and fabrication system, which has over 4000CBM factory and office, which can meet the Standardized 5s process Modular Production request, and can guarantee Quality and Quantity. Safe and Civilized according to Specifications, Process Operation,and Standard Acceptance.

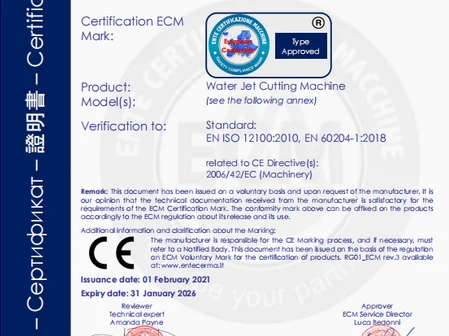

Our company has the complete organizational structure, we have over 70 employees+30 global cooperative agents and engineers, and has the complete marketing, service, research and develop and production system which can supply the complete and on time service. We have ISO/EAC/CE/SGS/Alibaba Golden Supplier Certificate.

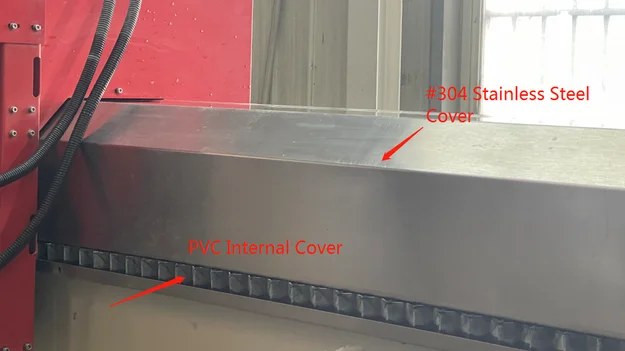

Double water and dust proof : pvc covers ( inner ) and stainless steel covers
for both X and Y axis

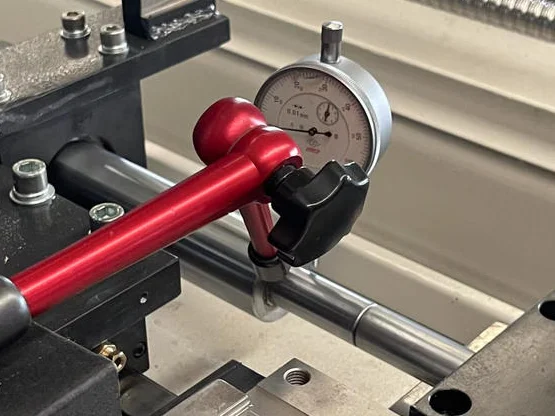

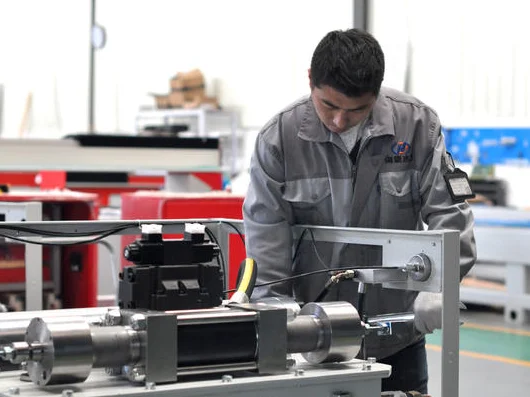

HEAD has 120 quality inspections and 80 durability test, which can guarantee the complete process technology and quality control. Heavy base body with vibration aging treatment after welding , in order to pretent the machine from shape out after Long working time. Milling by CNc Without vibration during machine working

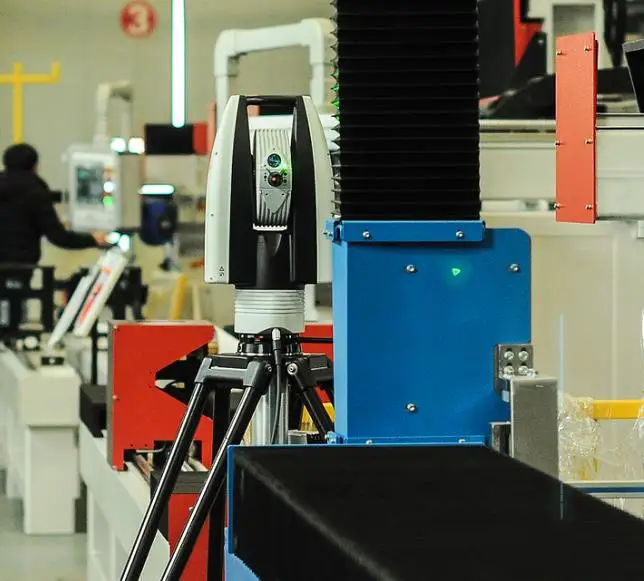

Machine's X,Y lead screw's accuracy is calibrated and compensated by Renishaw Laser Interferometer system.
Service & FAQ
>>>Try to Read This -------Our Service
1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
\t\t\t\t\t\t\t\t\tAbout our company \t\t\t\t\t\t\t
Packing & Delivery
Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !
