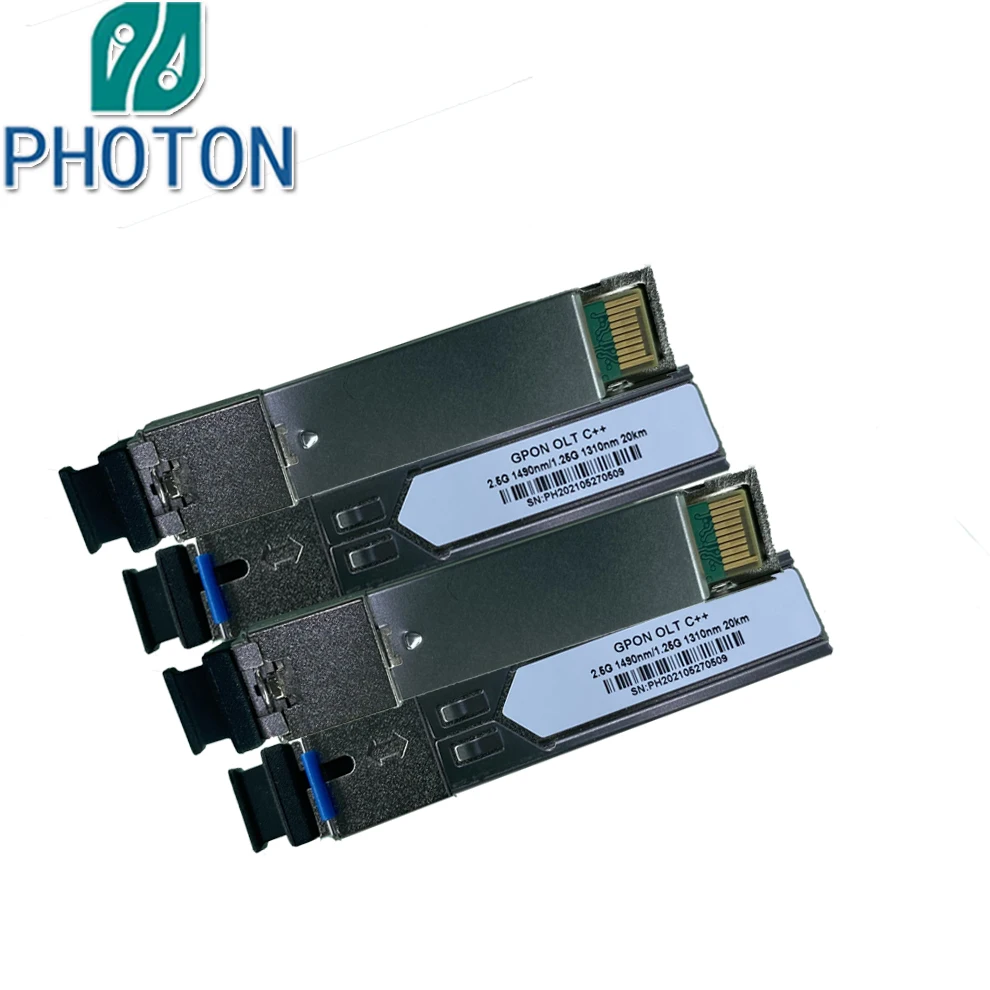

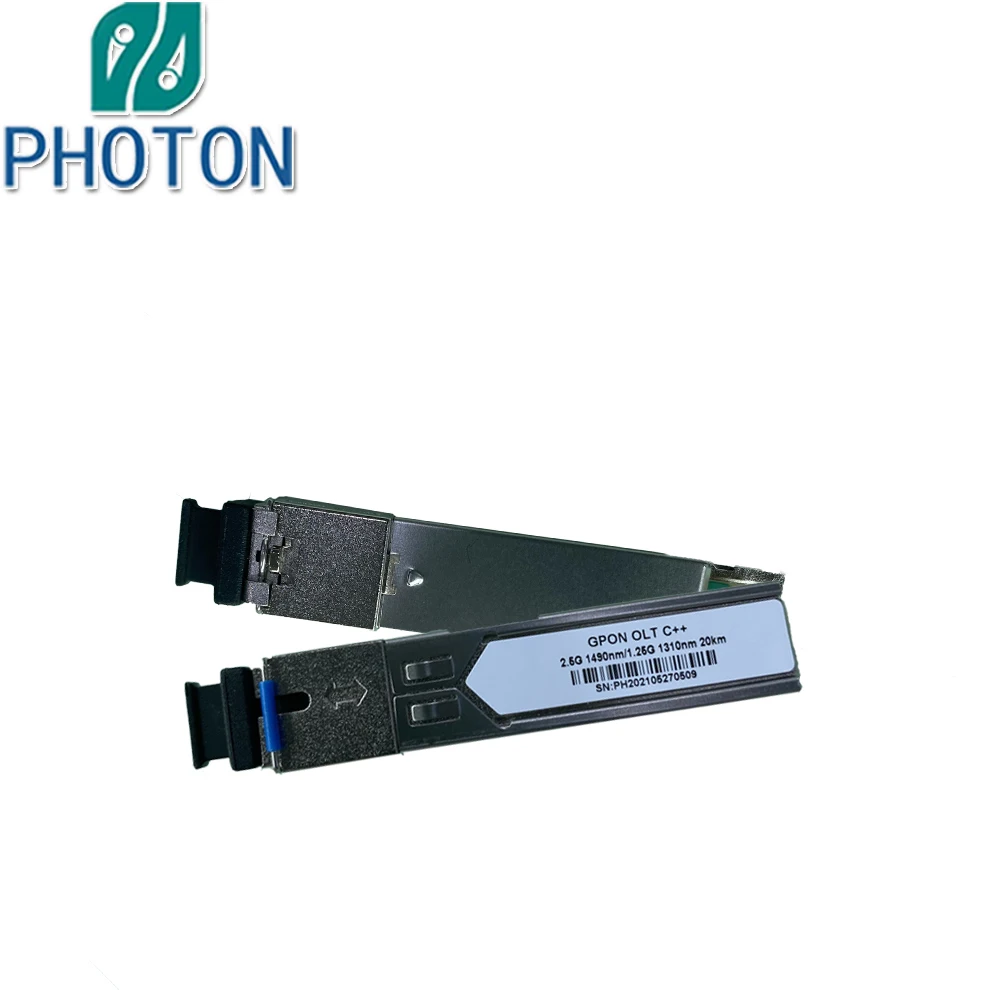

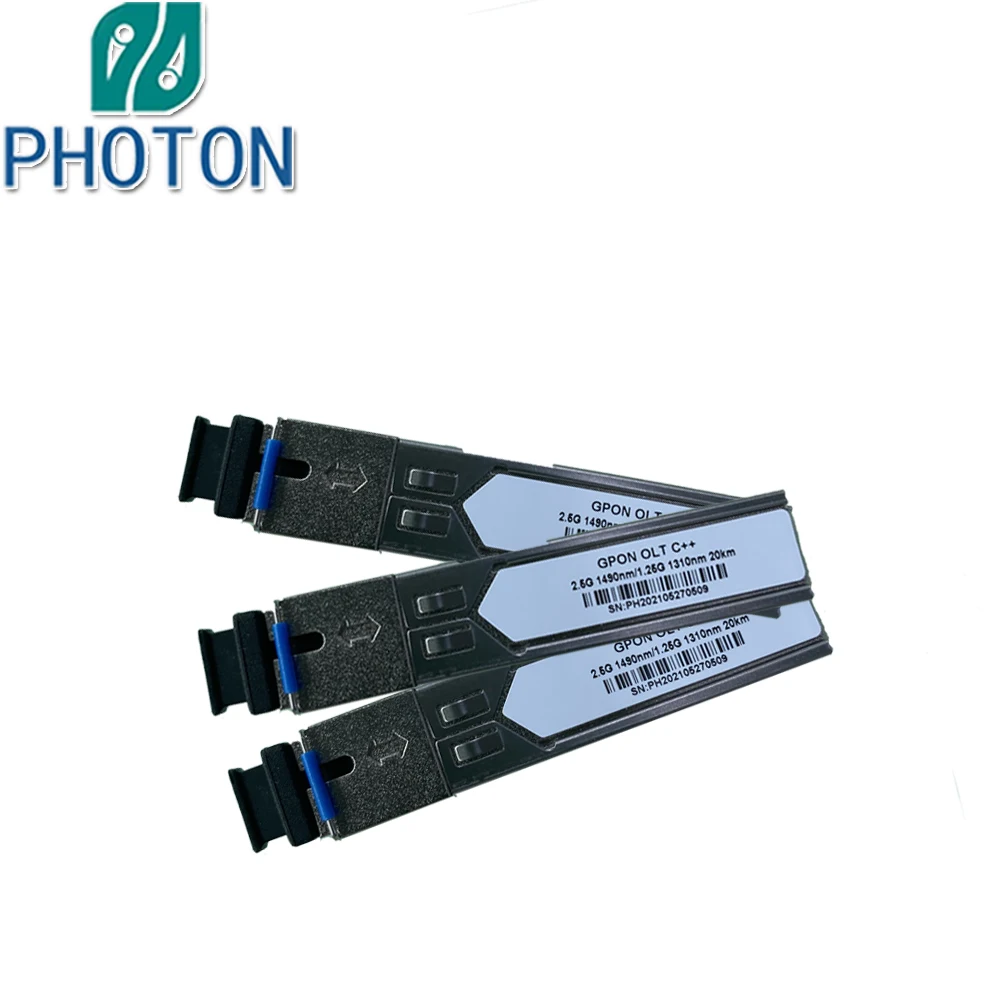

Gpon Olt SFP 20 km long distance Tx1490nm Rx1310nm Class C transceptor aruba SFP

Product Overview

Description

Gpon Olt SFP 20 km long distance Tx1490nm Rx1310nm Class C++ transceptor aruba



ØSFP with SC/PC Connector Transceiver
Ø1490 nm DFB Tx with isolator
Ø1310 nm APD Rx
ØDigital diagnostics SFF-8472 Compliant
Ø2488 Mbps continuous mode Transmission
Ø1244 Mbps Burst mode receiver Data Rate
ØRX Fast Burst Mode Detection
ØProvide fast RSSI function
ØOperation case temperature: 0~70°C
ØClass C++ link budget
ØComply with ITU-T G984.2 Amendment 1
ØComplies with RoHS directive (2002/95/EC)

2.Application

ØGPON OLT Class C++

ØFTTx

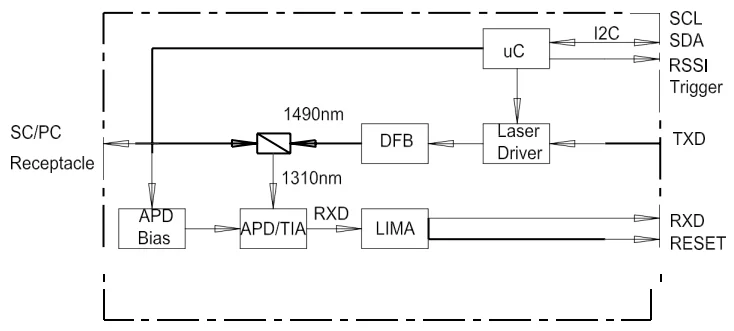

3.Function Diagram

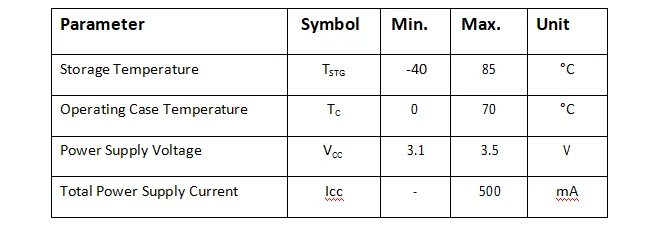

4.Recommended Operating Conditions

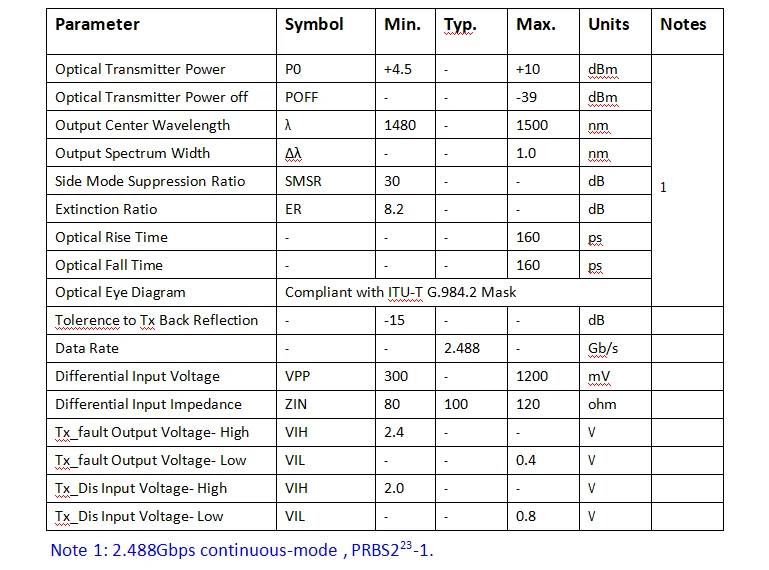

5.Transmitter Characteristics

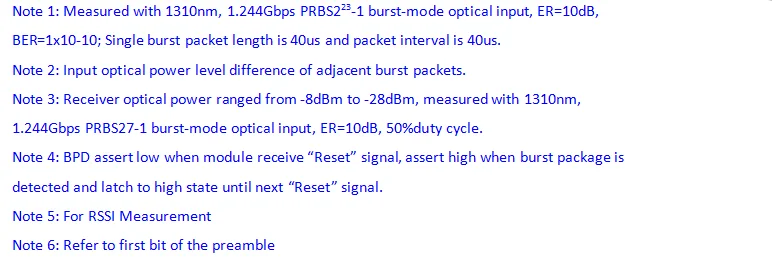

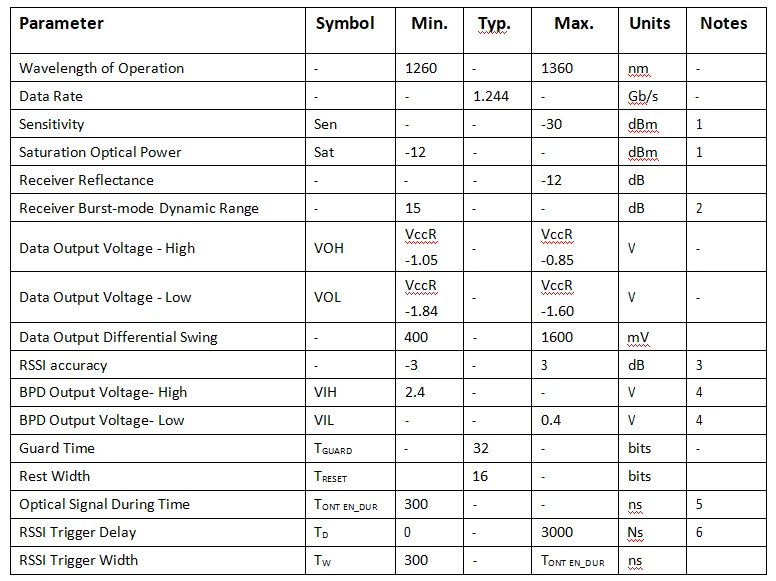

6.Receiver Characteristics

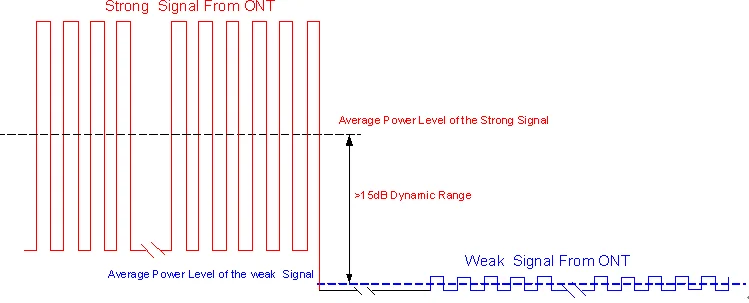

7.Burst Mode Receiver Dynamic Range

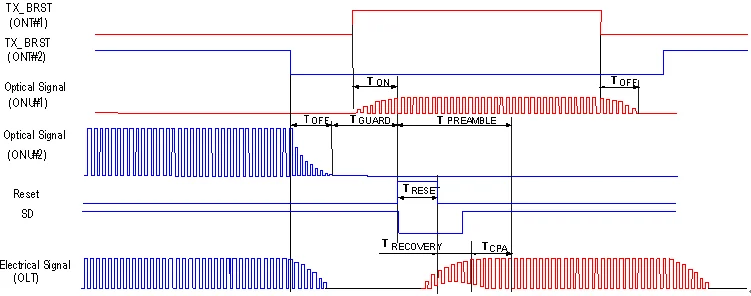

8.Timing Parameter Definitions in Burst Mode Sequence

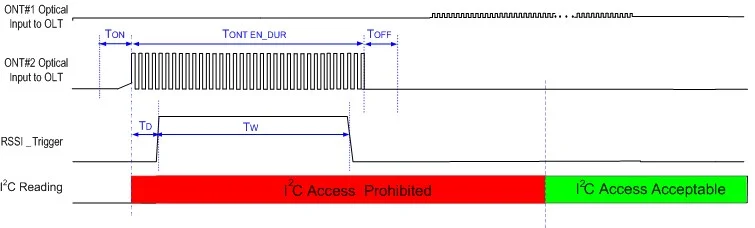

9.RSSI Timing Sequence

10.Digital Diagnostic Monitoring Accuracy

Parameter	Accuracy	Units	Notes
Transceiver Temperature	±3	°C	Temperature sensor
Power Supply Voltage	±3	%	Vcc=3.13~3.47V
TX Bias Current	±10	mA
TX Optical Power	±3	dB	Average Power
Rx Power	±3	dB

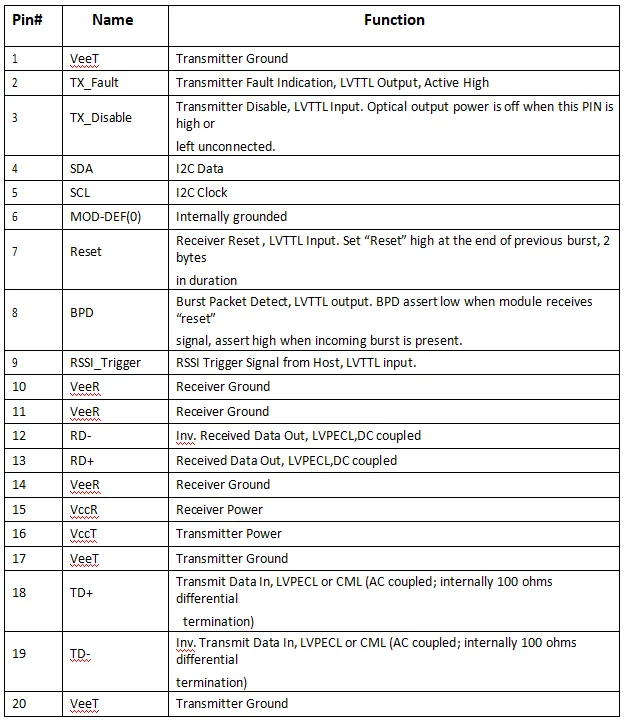

11.Pin Definitions

12.Related products

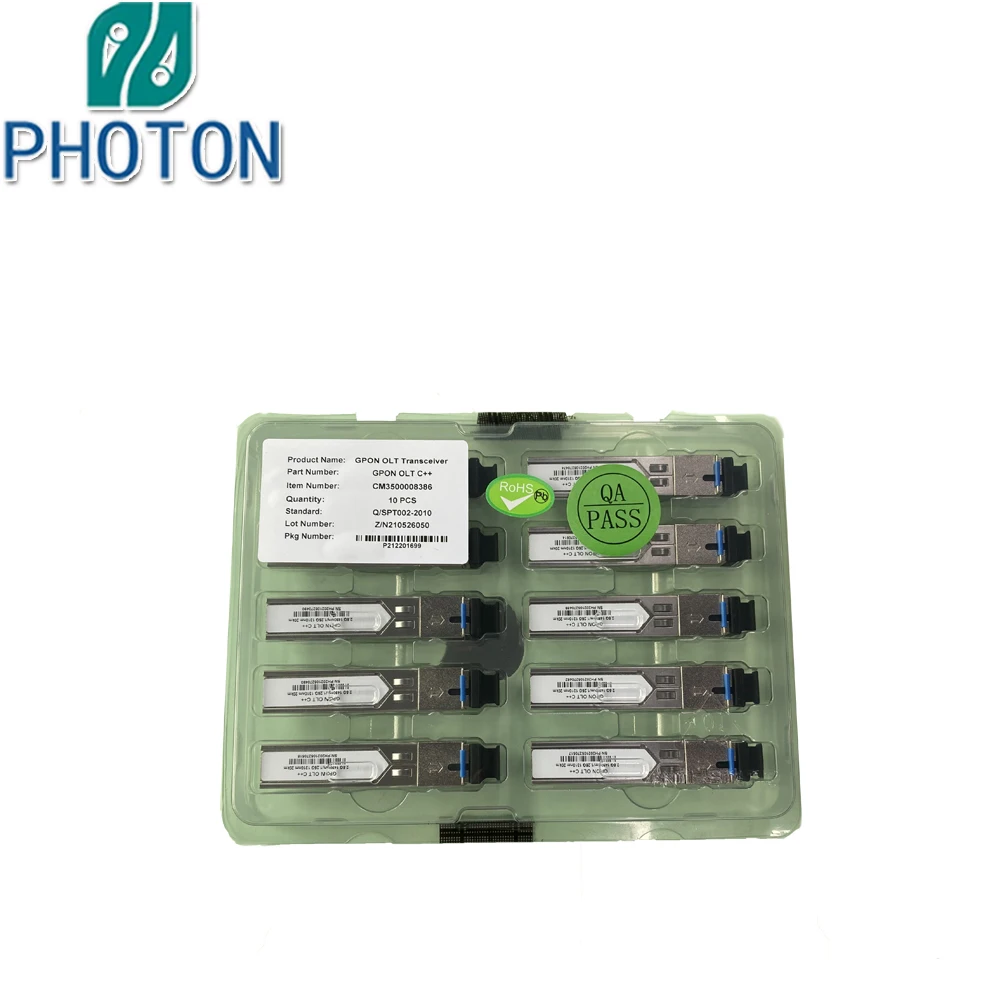

Ø Packaging: standard carton which suitable for air/ sea transportation.
