iron sheet metal bending machine nc Hydraulic Press Brake Bending machine OEM

Product Overview

Description

Hydraulic Plate Press Brake



Functions and Characteristics:

1. Steel- welded construction, standard upper and lower dies,vibration to eliminate inner stress,hydraulic transmission system,foot pedal with emergency stop.with high strength and good rigidity.



2.Hydraulic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar to maintain synchronization, with high precision.



3.Motorized-adjusting device for backgauge and ram’s stroke, DRO for backgague and ram stroke.



4.Deflection compensation unit installed under the worktable.



5.Manual crowned lower die holder is adopted for the machine above 250 tons.



6.DRO to display the values of back gauge and ram stroke.



Optional Available:

1	Color of the machine .
2	Hydraulic system can be made in China or in Italy brand (ATOS) or Germany brand (Bosch).
3	Common screws or ball screws can be available.
4	DRO, CNC system.
5	Weld or non weld joint point.
6	Front light protection.
7	Lower die plate support.



Sales Issue and Sales Service:

a.	Delivery Time	25-30 days after receiving deposit or L/C.
b.	Payment Terms	30% deposit in advance 70% before shipment, or 100% L/C at sight.
c.	Guarantee	14 months after shipment.
d.	Service	Return air ticket and economic food and hotel should be supplied by customer when needs training or installing.

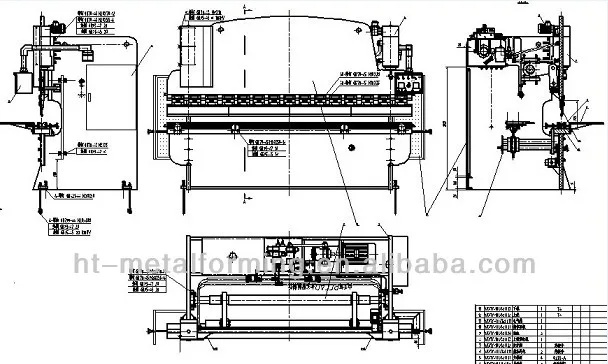

Plate Press brake Machine Structure Chart:

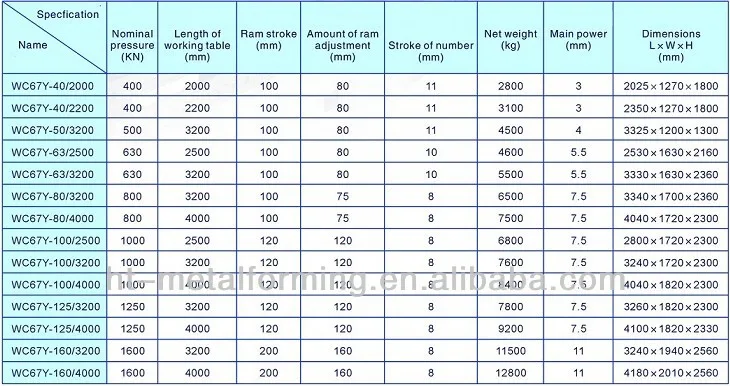

Main Technical Data:
