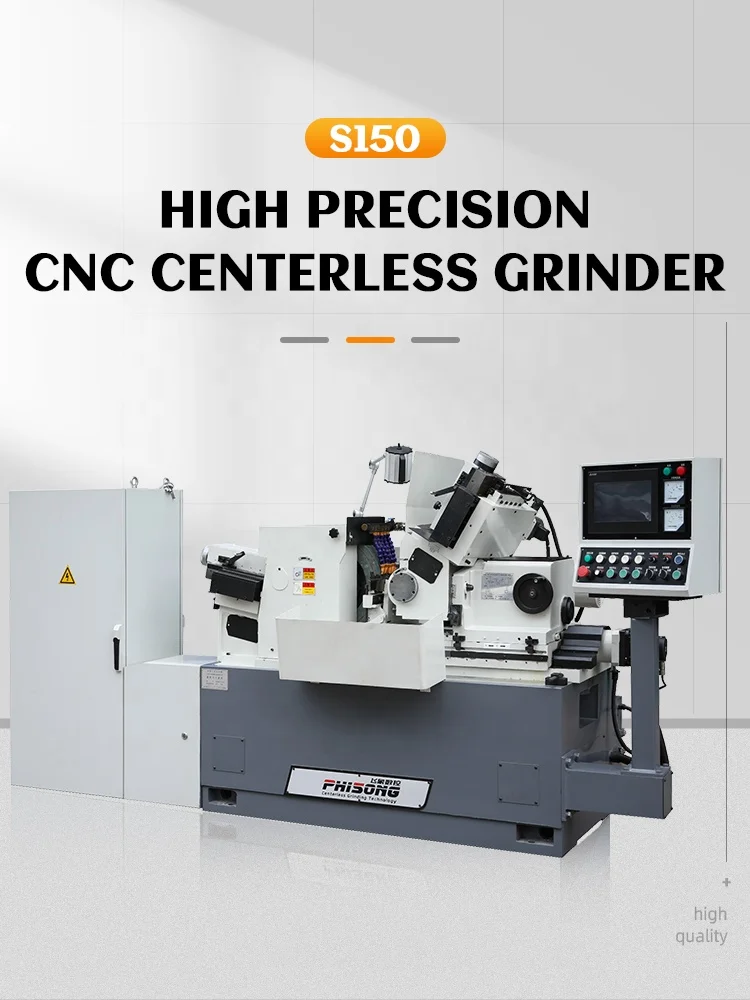

S150 High precision CNC centerless grinder with Easy maintenance, simple operation and high quality
- Category: >>>
- Supplier: Wuxi Mingxu Machinery Equipment Co. Ltd.
Share on (1600466912642):
Product Overview
Description
Products Description
Above prices are in advance, the specific price please ask customer service
Product Paramenters
Technical parameter | S150 |

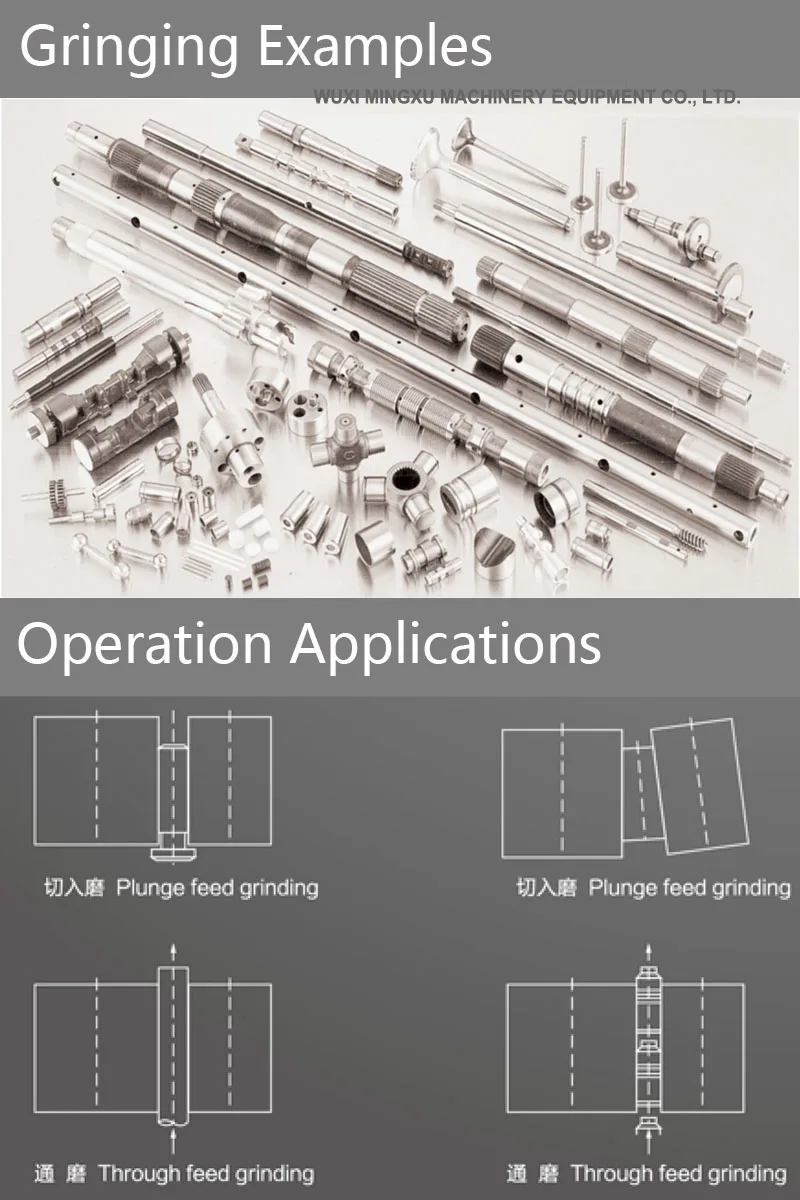

Plunge-feed | |
（1）Grinding diameter | 2~45mm |
（2）Max grinding length | 145mm |
Through-feed | |
(1)Grinding diameter | 2~45mm |
Grinding wheel specification | PSA400*150(200)*203mm |
Regulating wheel specification | P250*150(200)*127mm |
Grinding wheel speed | 1625r/min |
Regulating wheel speed(stepless) | 10-200r/min |
Regulating wheel frame swivel angle | |
(1)Vertical | -2°- +5° |
(2)Horizontal | -1°- +3° |
Regulating wheel min feed amount | 0.001mm |
Grinding wheel dresser min feed amount | 0.001mm |
Height from centerline of gri.wheel & reg.wheel to workrest | 190mm |
Cooling water flow | 25L/min |
Total power | |
(1)Grinding wheel motor | 11KW |
(2)Regulating wheel motor | 1.5KW |
(3)Water pump motor | 0.25KW |
(4)Lubrication pump motor | 0.09KW |
(5)Magnetic coolant separator motor | 0.18KW |
Power supply | 3N50HZ380V |
Machine Dimension | 2600*1900*1500mm |
Machine weight | ≈ 3000KG |
Accuracy(Standard bars) | |
(1)Roundness. | 0.001mm |
(2)Cylindricity | 0.0018mm |
(3)Roughness | Ra0.16μm |
Technical parameter | ||
Plunge-feed | ||
（1）Grinding diameter | 2~60mm | 2~60mm |
（2）Max grinding length | 190mm | 240mm |
Through-feed | ||
(1)Grinding diameter | 2~60mm | 2~60mm |
Grinding wheel specification | P500*200*305mm | P500*200(250)*305mm |
Regulating wheel specification | P350*200*203mm | P350*200(250)*203mm |
Grinding wheel speed | 1338r/min | 1338r/min |
Regulating wheel speed(stepless) | 10-200r/min | 10-200r/min |
Regulating wheel frame swivel angle | ||
(1)Vertical | -20°- +5° | -20°+5° |
(2)Horizontal | -1°~+3° | -1°~+3° |
Regulating wheel min feed amount | 0.001mm | 0.001mm |
Grinding wheel dresser min feed amount | 0.001mm | 0.001mm |
Height from centerline of gri.wheel & reg.wheel to workrest | 200mm | 200mm |
Cooling water flow | 50L/min | 50L/min |
Total power | ||
(1)Grinding wheel motor | 18.5KW | 15/18.5KW |
(2)Regulating wheel motor | 3KW | 3KW |
(3)Water pump motor | 0.25KW | 0.25KW |
(4)Lubrication pump motor | 0.09KW | 0.09KW |
(5)Magnetic coolant separator motor | 0.18KW | 0.18KW |
Power supply | 3N50HZ380V | 3N50HZ380V |
Machine Dimension | 2800*2500*1600mm | 2800*2500*1600mm |
Machine weight | ≈5000Kg | ≈ 6000Kg |
Accuracy(Standard bars) | ||
(1)Roundness. | 0.001mm | 0.001mm |
(2)Cylindricity | 0.0018mm | 0.0018mm |
(3)Roughness | Ra0.16μm | Ra0.16μm |
