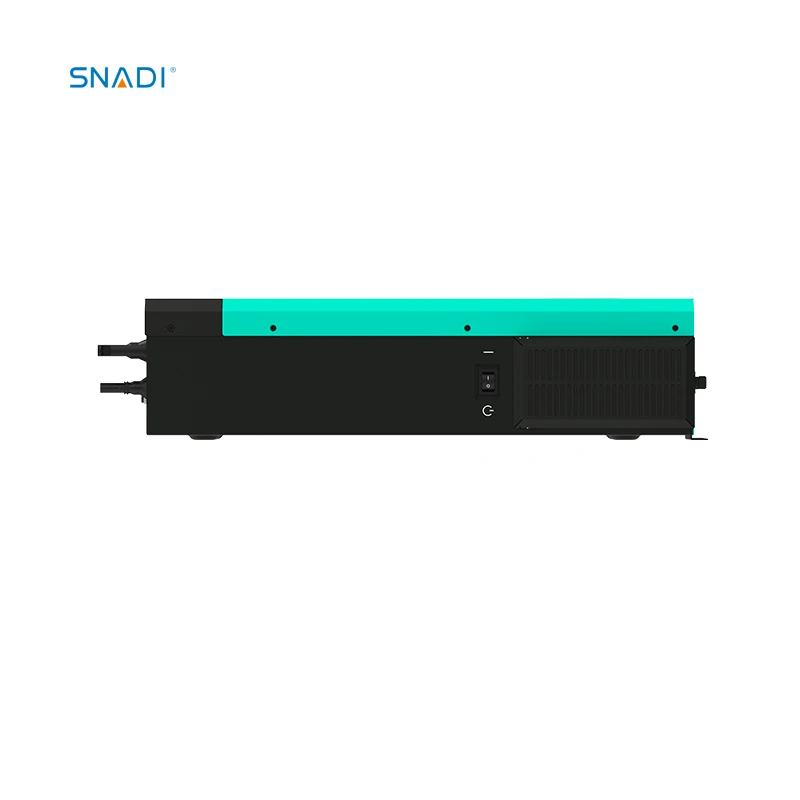

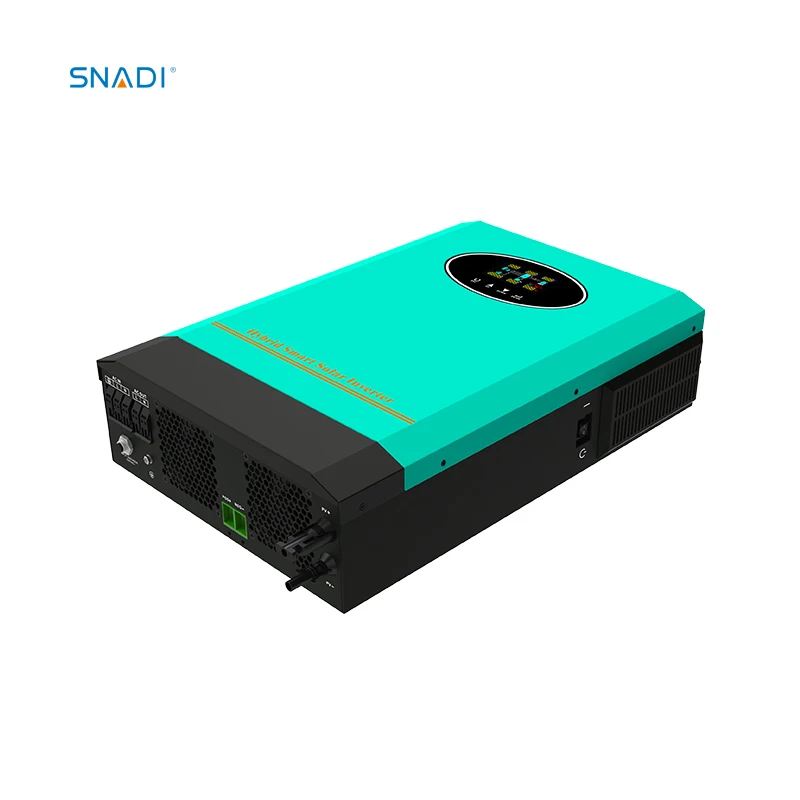

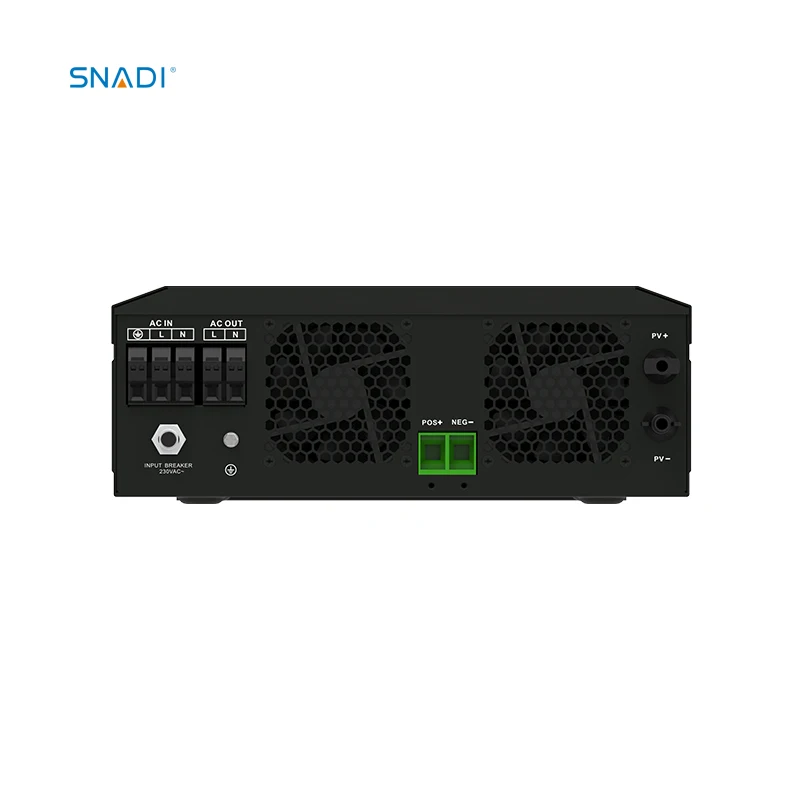

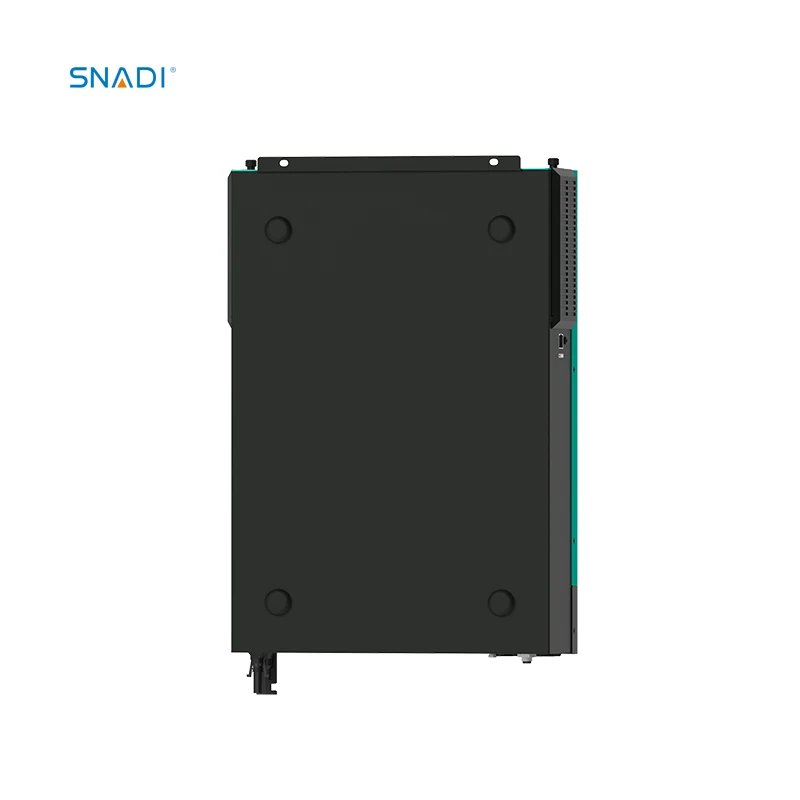

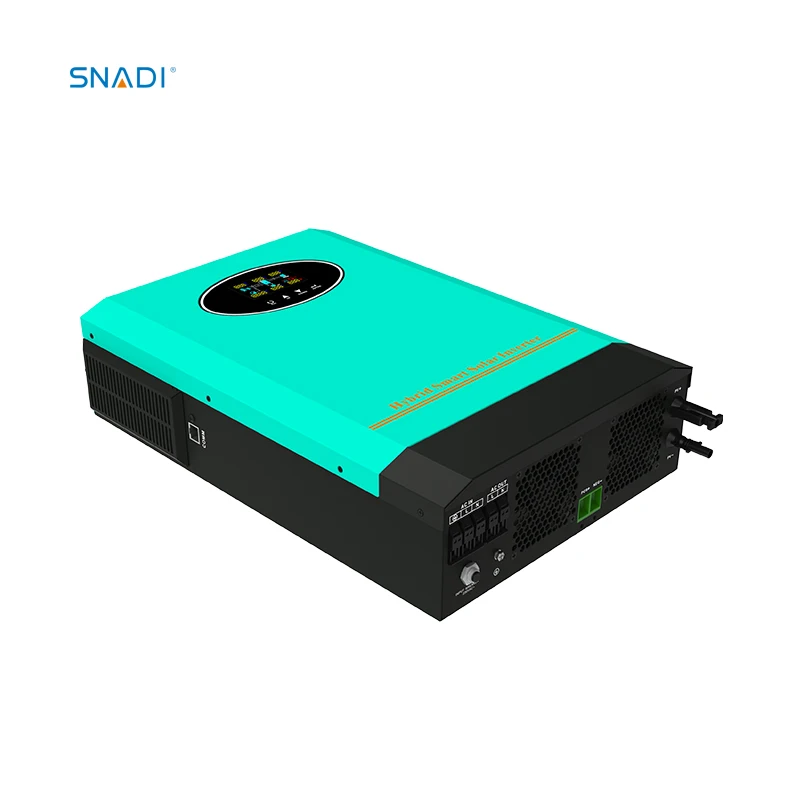

SNADI Hybrid Solar Inverter 6.2kw 6200w 48VDC Solar Off Grid Tie Inverters Parallel Operation With MPPT Charge Controller
- Category: >>>
- Supplier: Foshan Snat Energy Electrical Technology Co. Ltd.
Share on (1600466913933):
Product Overview
Description
Welcome to be our distributor
Product Description
Model：NKHY | 3.6KW PLUS | 6.2KW PLUS | ||
Phase | Single Phase | |||
Maximum PV Input Power | 6200W | 6500W | ||
Rated Output Power | 3600W | 6200W | ||
Maximum Solar Charging Current | 120A | |||
Grid-tie Operation | ||||
PV Input（DC） | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VAC/500VAC | |||
Start-up Voltage/Initial Feeding Voltage | 90VAC/120VAC | |||
MPPT Voltage Range | 90VAC-450VAC | |||
Number of MPPT Trackers/Maximum Iuput Current | 1/27A | |||
Grid Output（AC） | ||||
Nominal Output Voltage | 200/230/240VAC | |||
Output Voltage Range | 195.5VAC-253VAC | |||
Nominal Output Current | 15.7A | 27A | ||
Power Factor | >0.99 | |||
Feed-in Grid Frequency Range | 49-51±1Hz | |||
Efficiency | ||||
Maximum Conversion Efficiency | 97% | |||
Two Load Output Power（V2.0） | ||||
Full Load | 3600W | 6200W | ||
Maximum Main Load | 3600W | 6200W | ||
Maximum Second Load(battery mode) | 1200W | 2067W | ||
Main Load Cut Off Voltage | 22VDC | 44VDC | ||
Main Load Return Voltage | 24VDC | 48VDC | ||
Off Grid Operation | ||||
AC Input | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||
Maximum AC Input Current | 30A | 40A | ||
Nominal Operating Frequency | 50/60Hz | |||
Super Power | 7200VA | 12400VA | ||
PV Input(DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 90VDC-450VDC | |||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||
Battery Mode Output(AC) | ||||
Nominal Output Voltage | 24VDC | 48VDC | ||
Output Waveform | Pure sine wave | |||
Efficiency（DC to AC） | 94% | |||

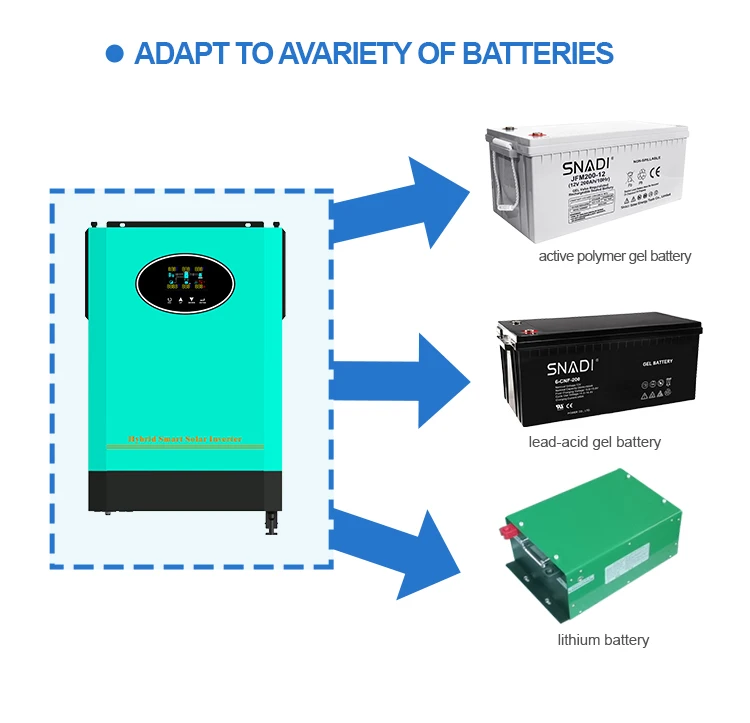

Battery & Charger | ||||
Nominal DC Voltage | 24VDC | 48VDC | ||
Maximum Solar Charging Current | 120A | |||
Maximum AC Charging Current | 100A | |||
Maximum battery Currrent | 125A | 150A | ||
General | ||||
Physical | ||||
Dimension.Dx Wx H(mm) | 420*310*110 | |||
Net Weight(kgs) | 10 | 11 | ||
Interface | ||||

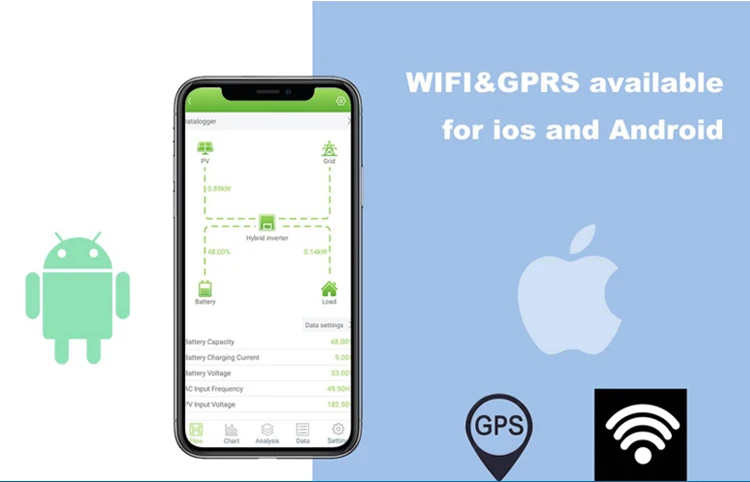

Communication Port | RS232/WIFI/BMS | |||
Environment | ||||
Humidity | 0-90% | |||
Operating Temperature | ‘-10 to 50℃ | |||
Product Advantages

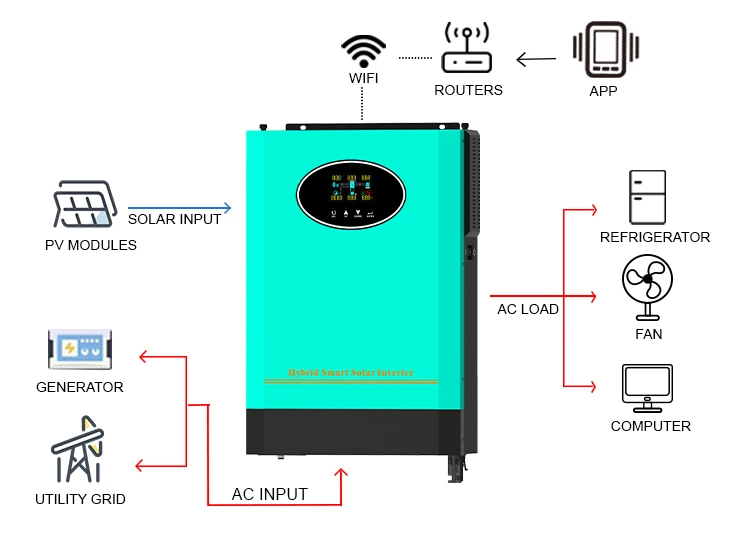

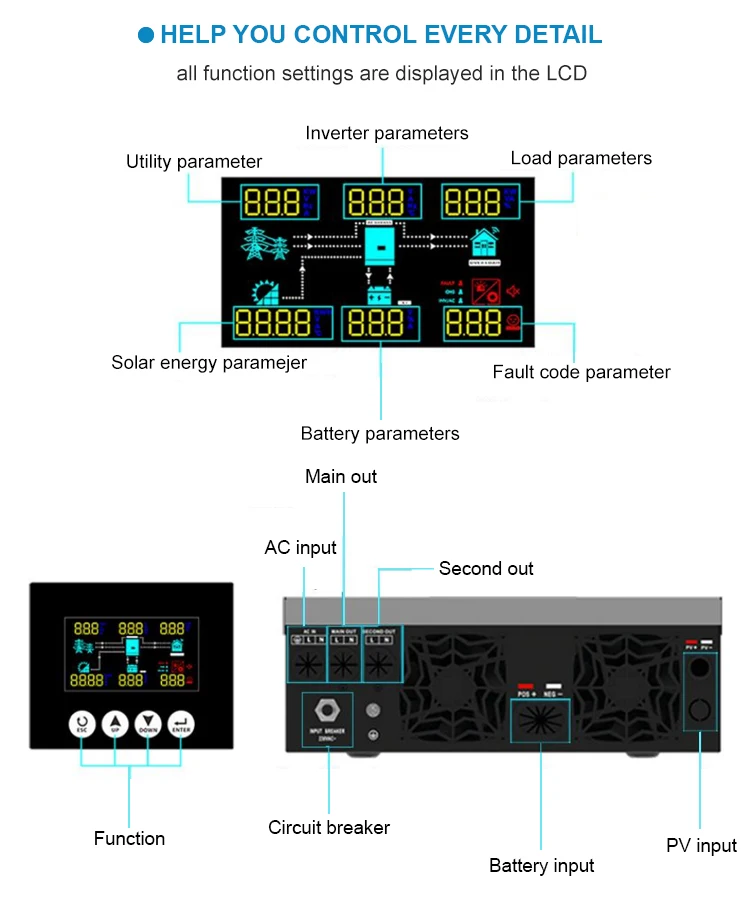

· Connection mode

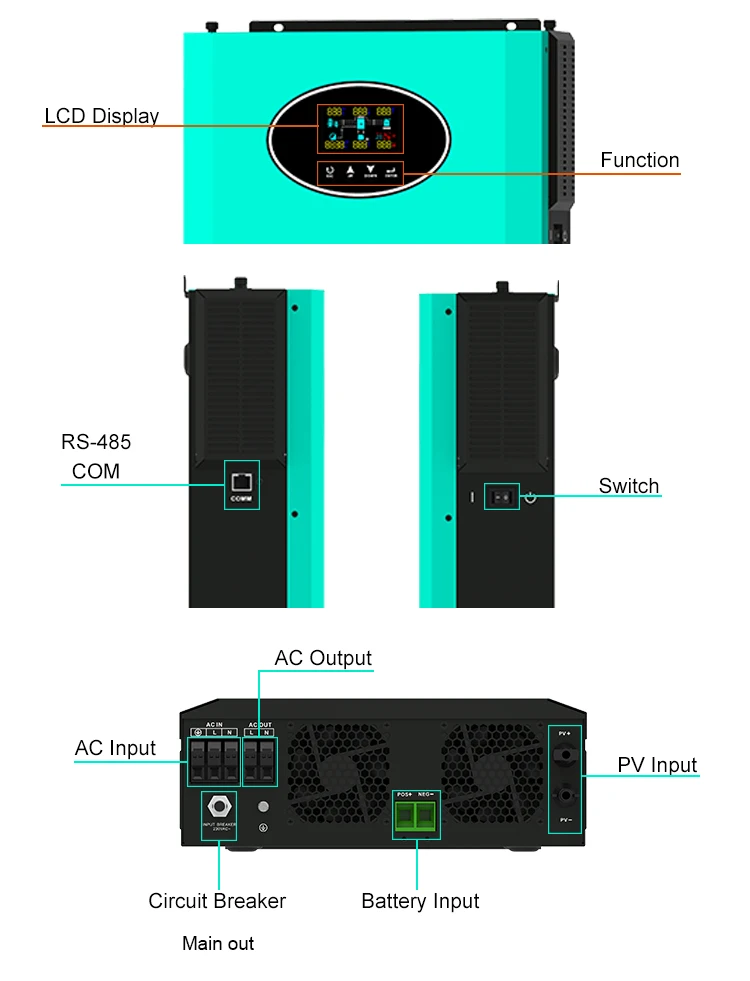

Product Details
· Pure sine wave output
The electrical waveform output of PH1800 is pure sine wave, which has the same quality as practical power supply or household power supply. This waveform is suitable for most electrical equipment, appliances and tools. This pure sine wave unit provides more functions than an improved sine wave inverter because it has a cleaner form of power. Pure sine wave can also reduce the noise generated when applying electrical appliances to a limited extent.
Company information
FAQ
Q1 MOQ
A MOQ form our conpany is required 1 unit.
Q2 Are you manufacturer or trading company?
A We are professional manufacturer since 2004.
Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar power system in accordance with customers' special requirements.
Q4 How long is your delivery time?
A Within 15 days.
Q5 How about your after sales service?
A Our quality warranty for 1-2 years,any parts will be shipped for free during warranty period.
