Product Overview

Description

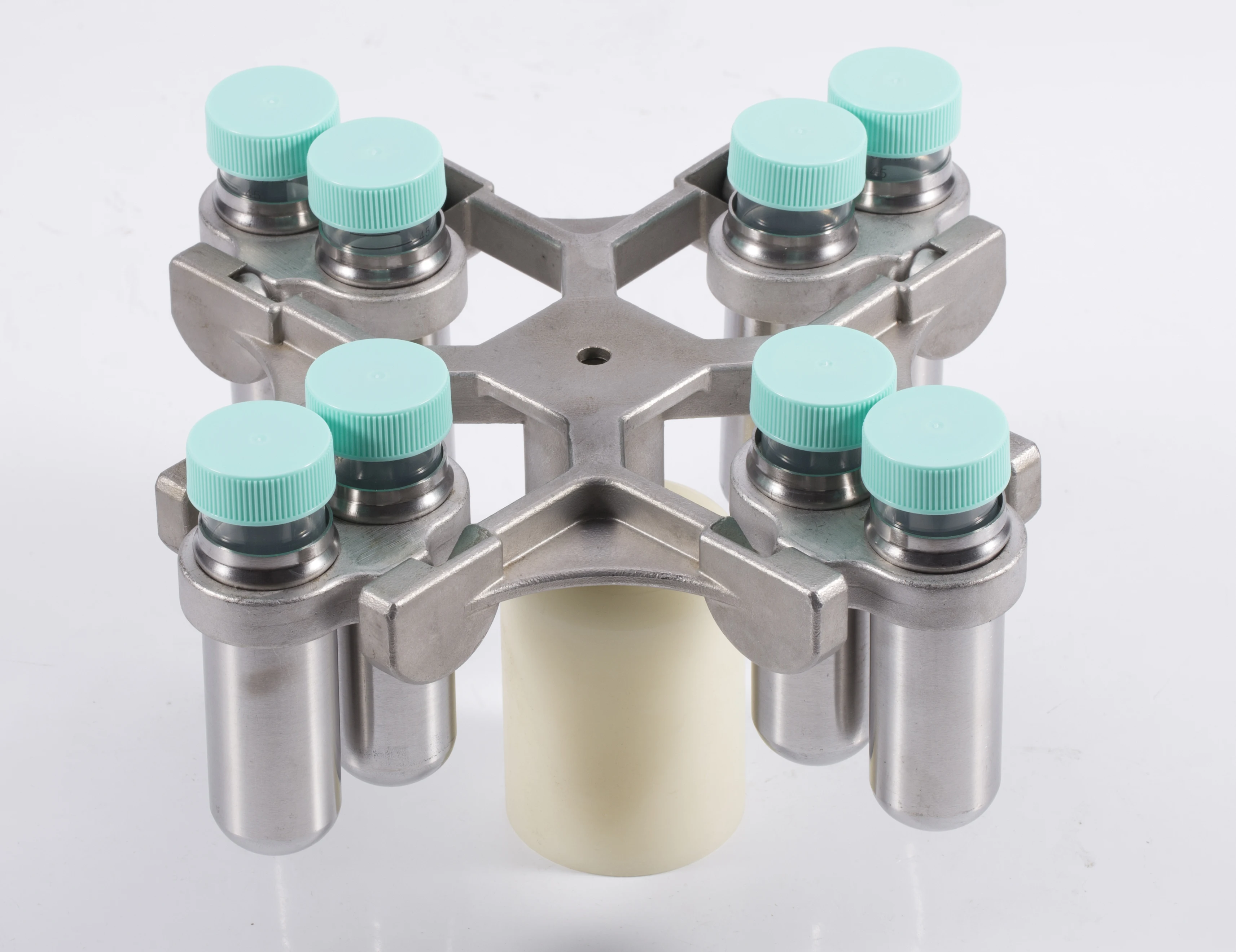

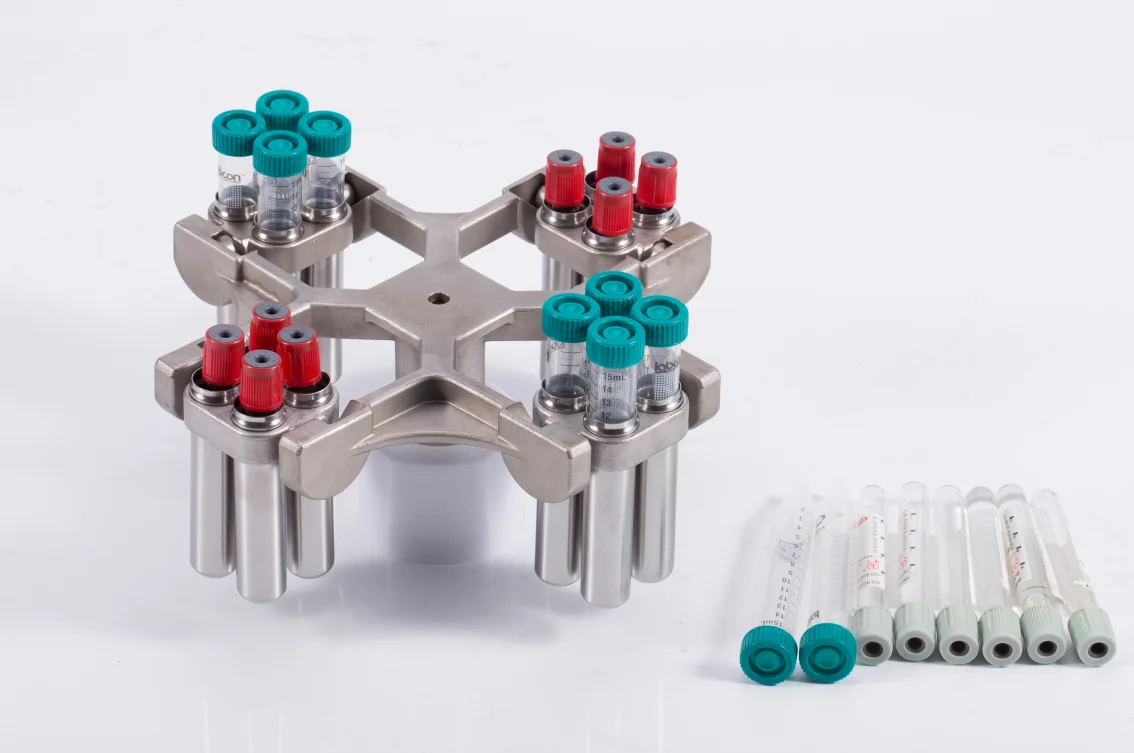

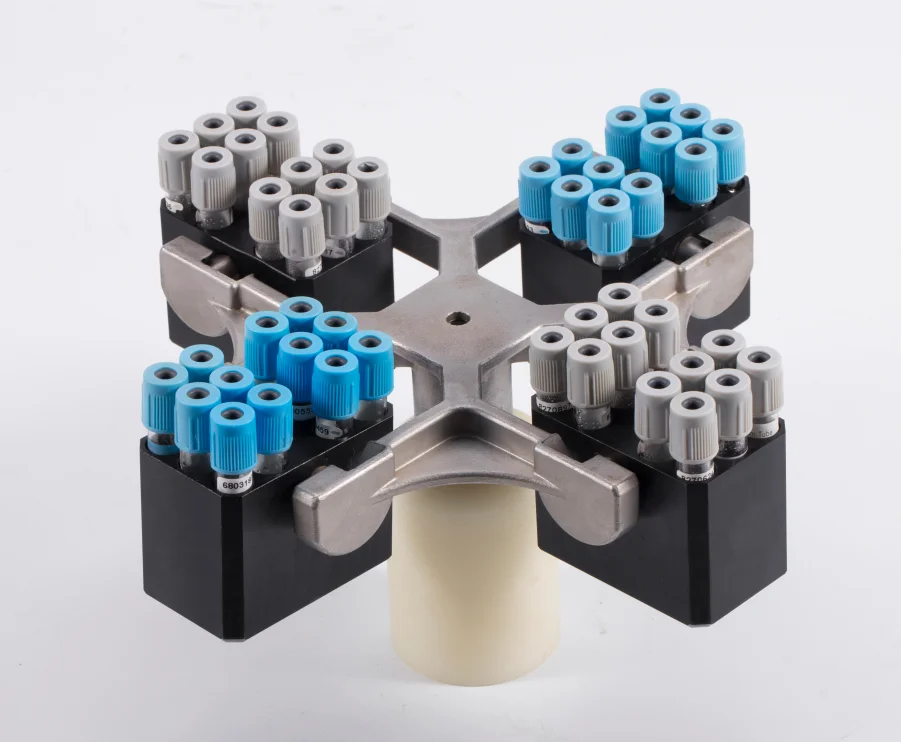

4000rpm swing out rotor 16, 24, 32, 48 tubes medical lab centrifuge for 5ml,7ml,10ml blood tubes 15ml,50ml conical tubes





Features:

1. Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.

2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.

3. Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

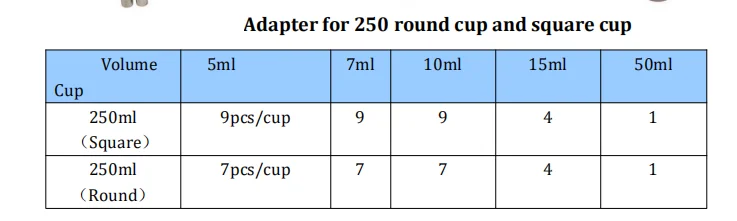

4. Adapters are available by experiment requirements.

5. 3 tiers protection steel cover, safe and reliable.

6. TUV CE EMC certificate.



TD5 Technical Parameter:

Max. Speed	5000rpm
Max. RCF	4730×g
Max. Capacity	4×250ml
Time Range	0~99min
RPM/RCF Convert	Yes
Noise (dB)	≤ 58
Temperature	Normal
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	/
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Size (W x D x Hmm)	570×400×320mm
Net Weight(Kg)	35KG
Certificates	CE,ISO & Calibration report are available

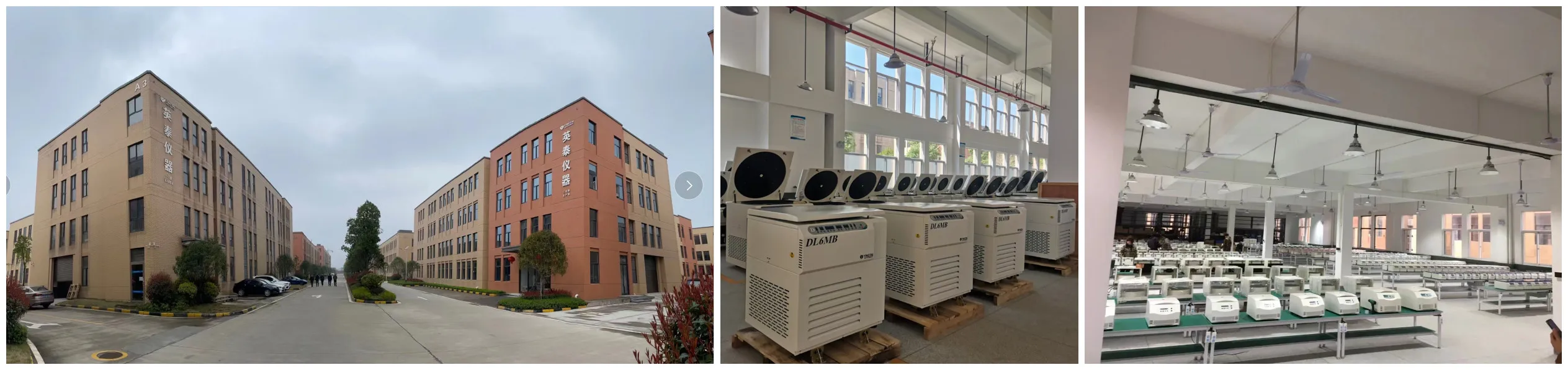

Our factory:

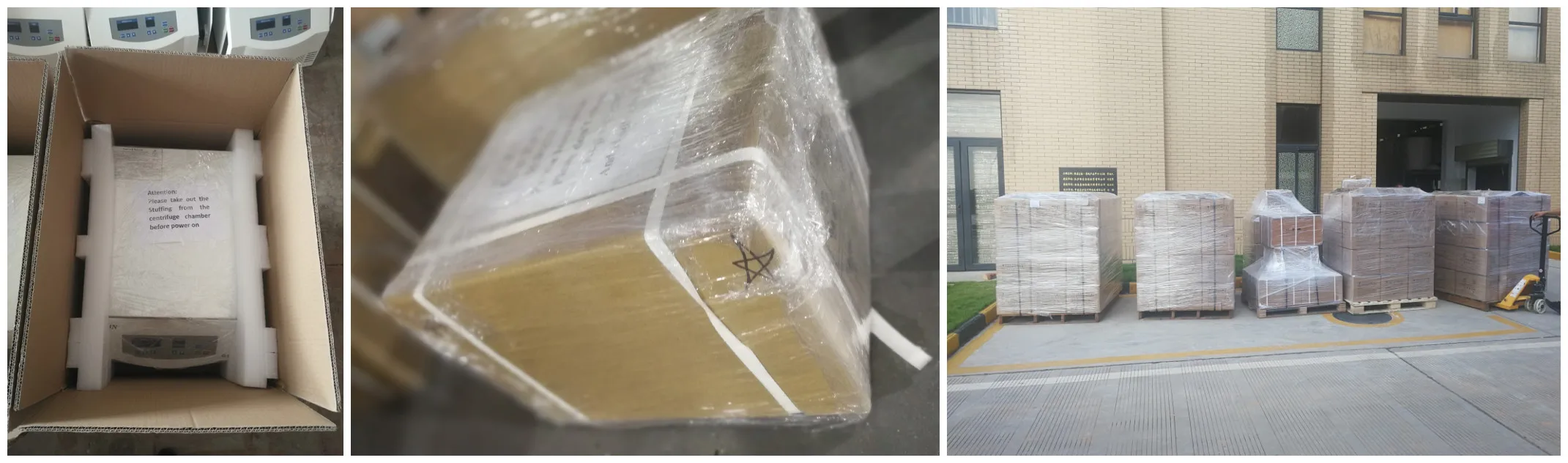

Our shipment:
