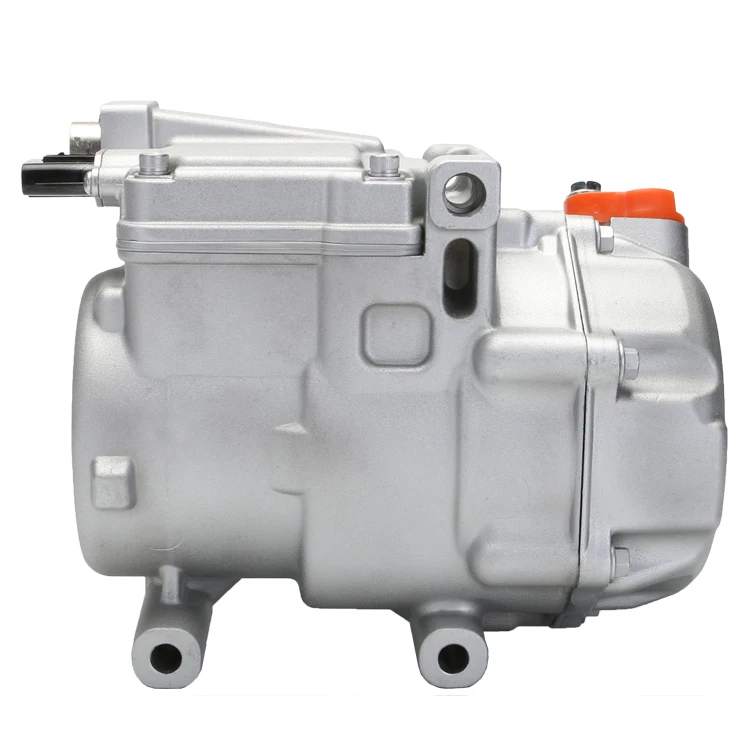

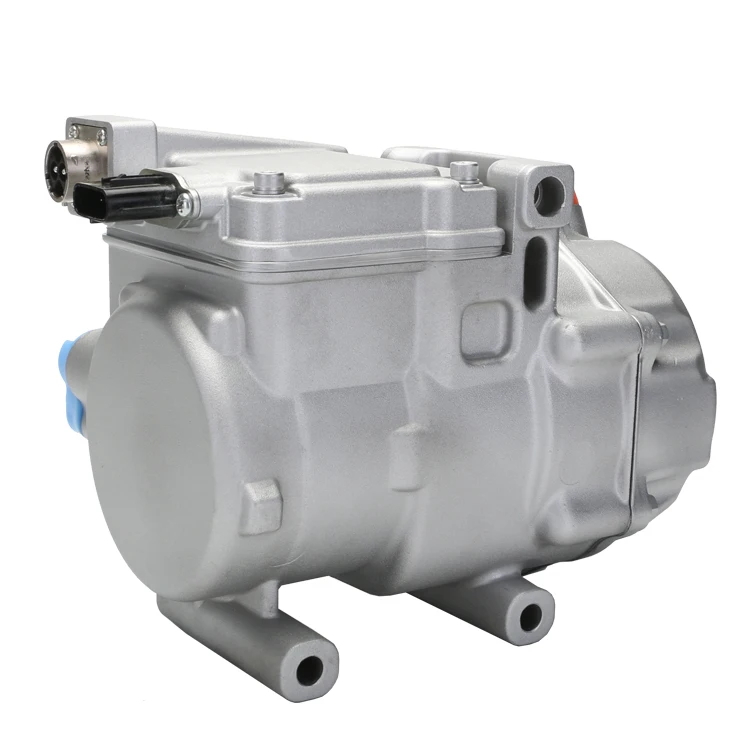

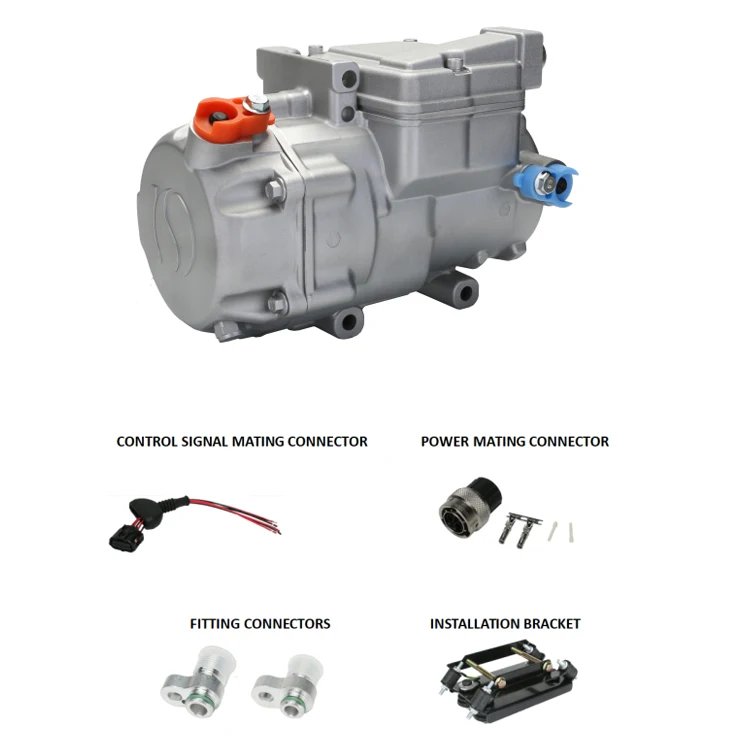

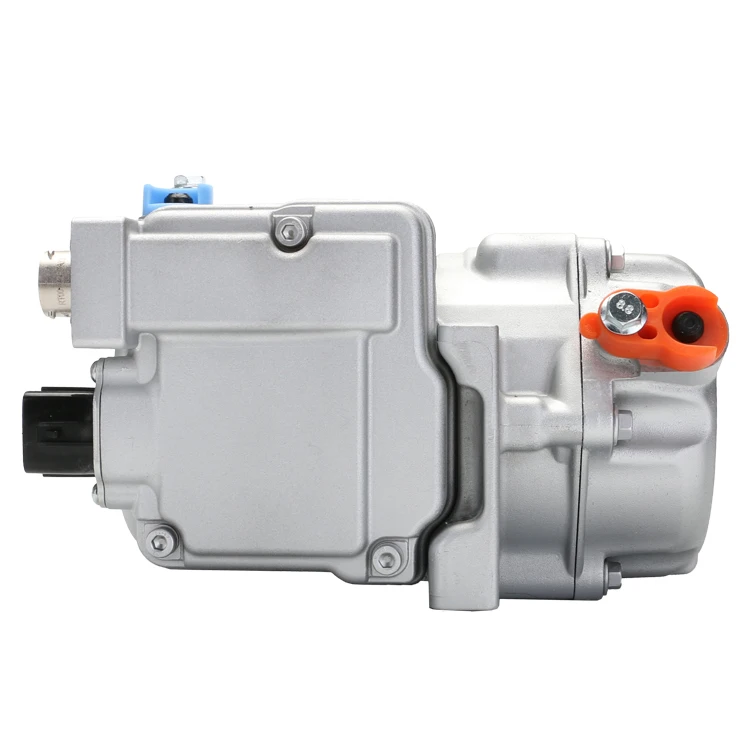

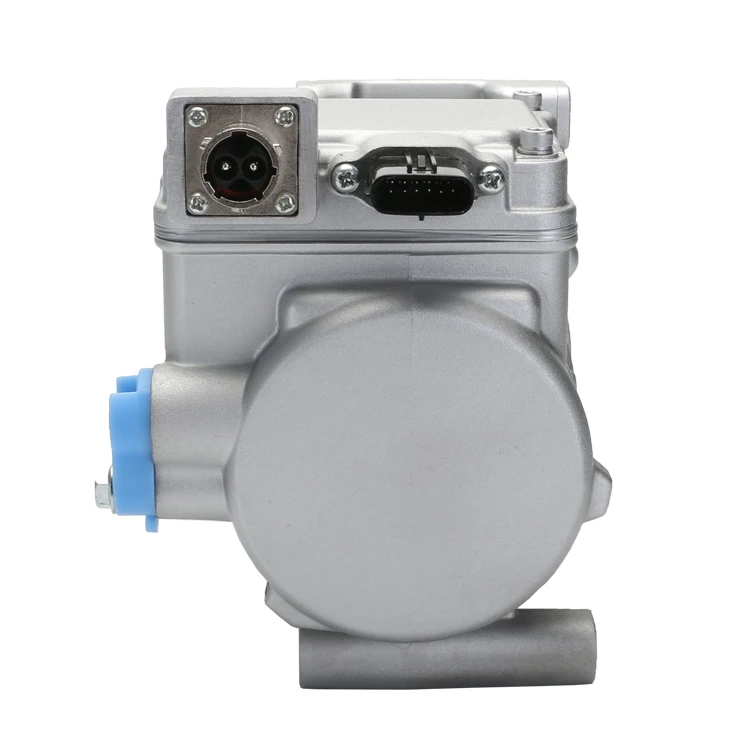

18cc 312v R134a dc air conditioner A/C electric compressor for electric cars vehicle truck ev mini bus universal type automotive
- Category: >>>
- Supplier: Guangdong Posung New Energy Technology Co. Ltd.
Share on (1600466940775):
Product Overview
Description
Specification
Model | PD2-18 |
Displacement (ml/r) | 18cc |
Dimension (mm) | 187*123*155 |
Refrigerant | R134a/ R1234yf |
Speed Range (rpm) | 1500 - 6000 |
Voltage Level | 12v/ 24v/ 48v/ 60v/ 72v/ 80v/ 96v/ 115v/ 144v/ 312v/ 380v |
Max. Cooling Capacity (kw/ Btu) | 3.65/ 12454 |
C.O.P | 2.65 |
Net Weight (kg) | 4.8 |
Hi-pot and leakage current | < 5 mA (0.5KV) |
Insulated Resistance | 20 MΩ |
Sound Level (dB) | ≤ 76 (A) |
Relief Valve Pressure | 4.0 Mpa (G) |
Waterproof Level | IP 67 |
Tightness | ≤ 5g/ year |
Motor Type | Three-phase PMSM |

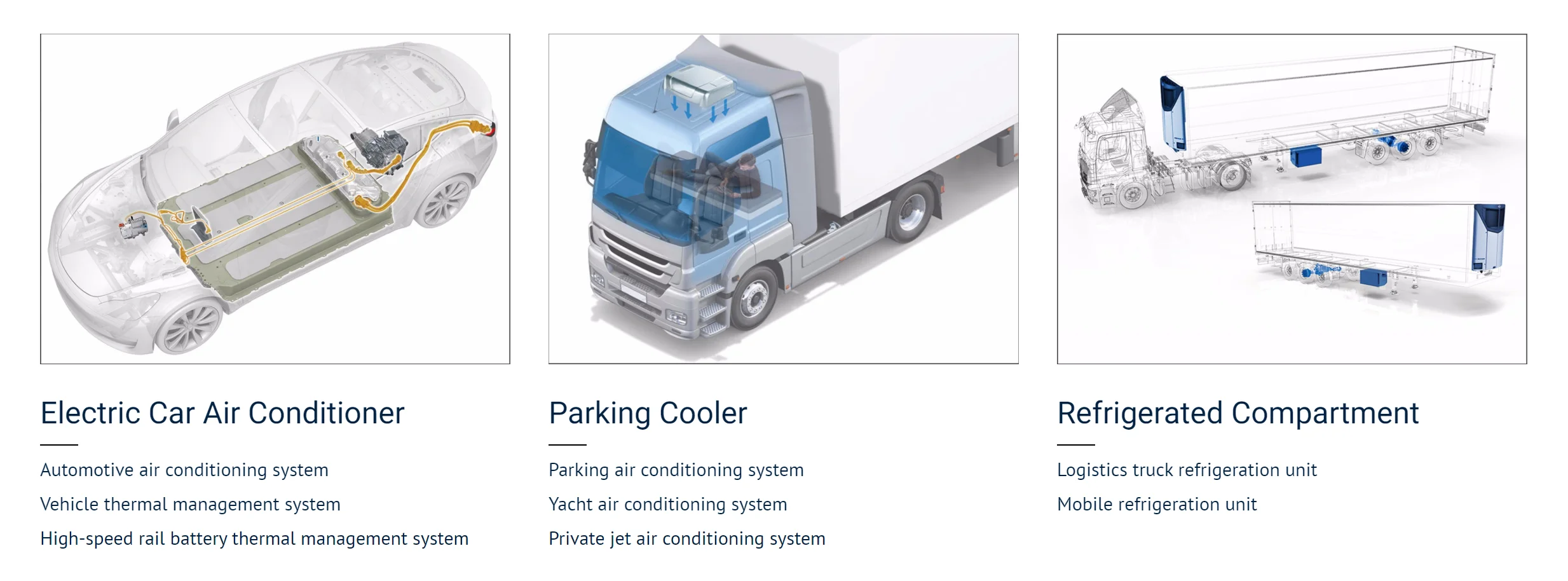

Scope Of Application

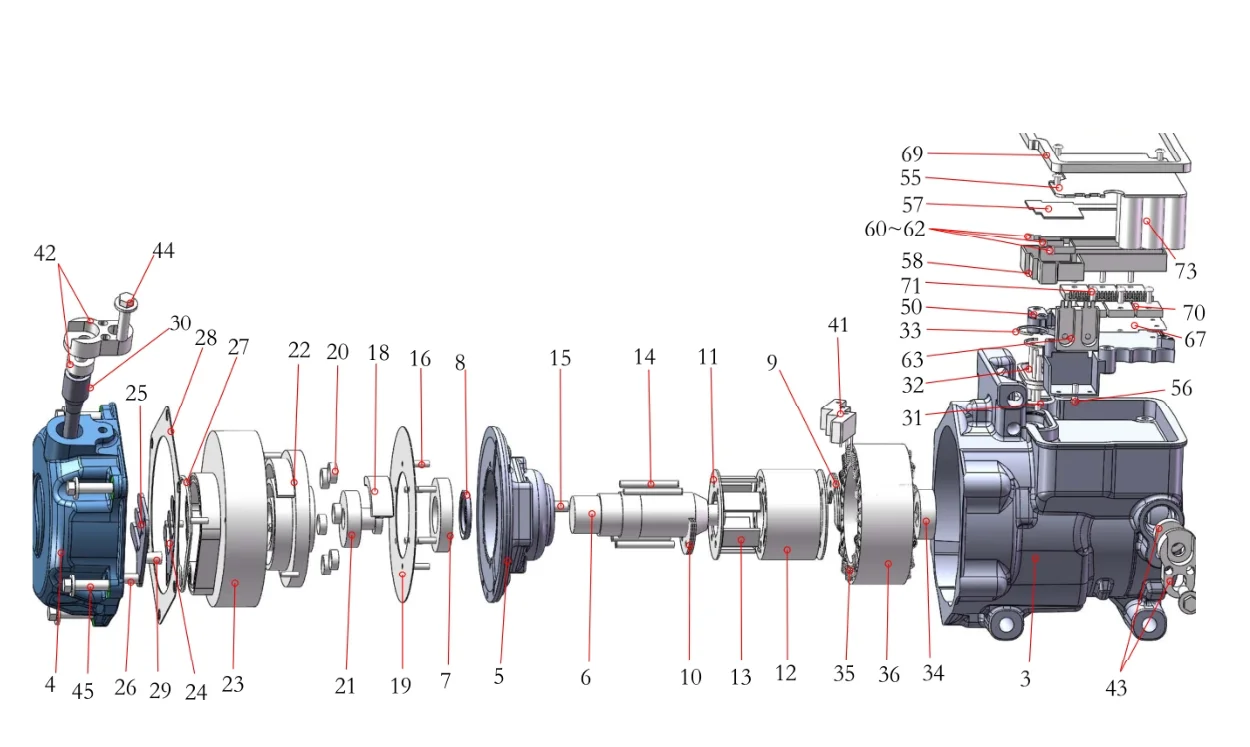

Explosive View
Before & After Packaging

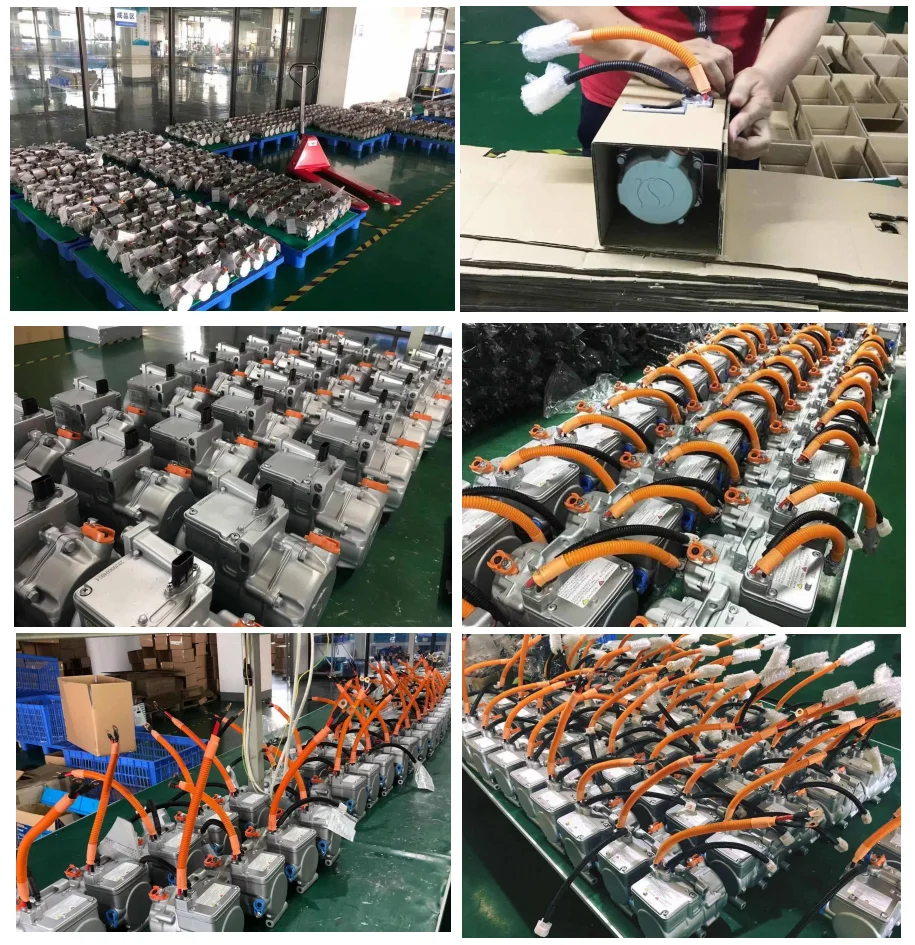

BEFORE PACKING
CARTON FOR 1 PCS
Size: 26mm*21mm*27mm
Weight: 7.0 KG
CARTON FOR 2 PCS
Size: 43.5mm*26mm*28.5mm
Weight: 15.0 KG
CARTON FOR 3 PCS
Size: 64mm*27mm*30mm
Weight: 22.5 KG
Delivery
DELIVERY BY TRUCKS OR CONTAINERS
Payments & International Delivery
International Express by DHL, UPS, FEDEX, TNT, EMS.
Air Freight, Sea Freight, Railway Transport are available.

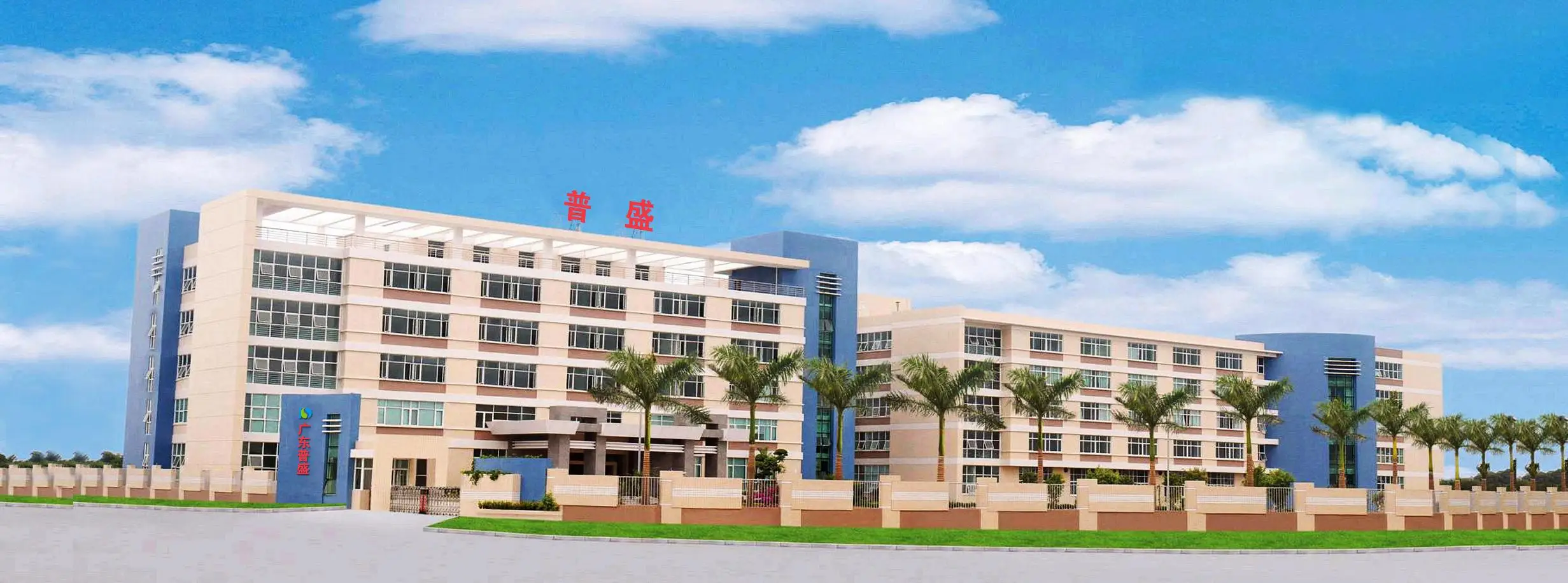

Company Profile
About Us
Guangdong Posung New Energy Technology Co., LTD is a leading manufacture that specializes in the research, development, production, and sales of D.C. scroll compressors. Our product is mainly used in electric cars, hybrid cars, various types of trucks, as well as specialty engineering vehicles. Ten years of early technology research and development, production and manufacturing and market accumulation have given us a leading edge in the field of new energy vehicles.
Posung produces D.C. frequency-converted electric scroll compressors. Our proprietary product features a smaller body size that’s minimal noise, highly efficient, consistent in quality, environmental friendly, and energy saving. Posung’s products are protected by full intellectual property rights, and we also hold multiple patents.
Posung is a true visionary in our transportation’s evolution into the world of electric and hybrid vehicles, and we achieve this by strictly focusing on producing better products and forging strong relationships with all major manufactures within our industry.
At Posung, we look forward to providing customers worldwide with excellent products and stellar service.
Posung produces D.C. frequency-converted electric scroll compressors. Our proprietary product features a smaller body size that’s minimal noise, highly efficient, consistent in quality, environmental friendly, and energy saving. Posung’s products are protected by full intellectual property rights, and we also hold multiple patents.
According to the displacement, there are 14CC, 18CC, 28CC, and 34CC series. The working voltage range is from 12V to 380V.
Posung is a true visionary in our transportation’s evolution into the world of electric and hybrid vehicles, and we achieve this by strictly focusing on producing better products and forging strong relationships with all major manufactures within our industry.
At Posung, we look forward to providing customers worldwide with excellent products and stellar service.
Production And Testing Equipment：

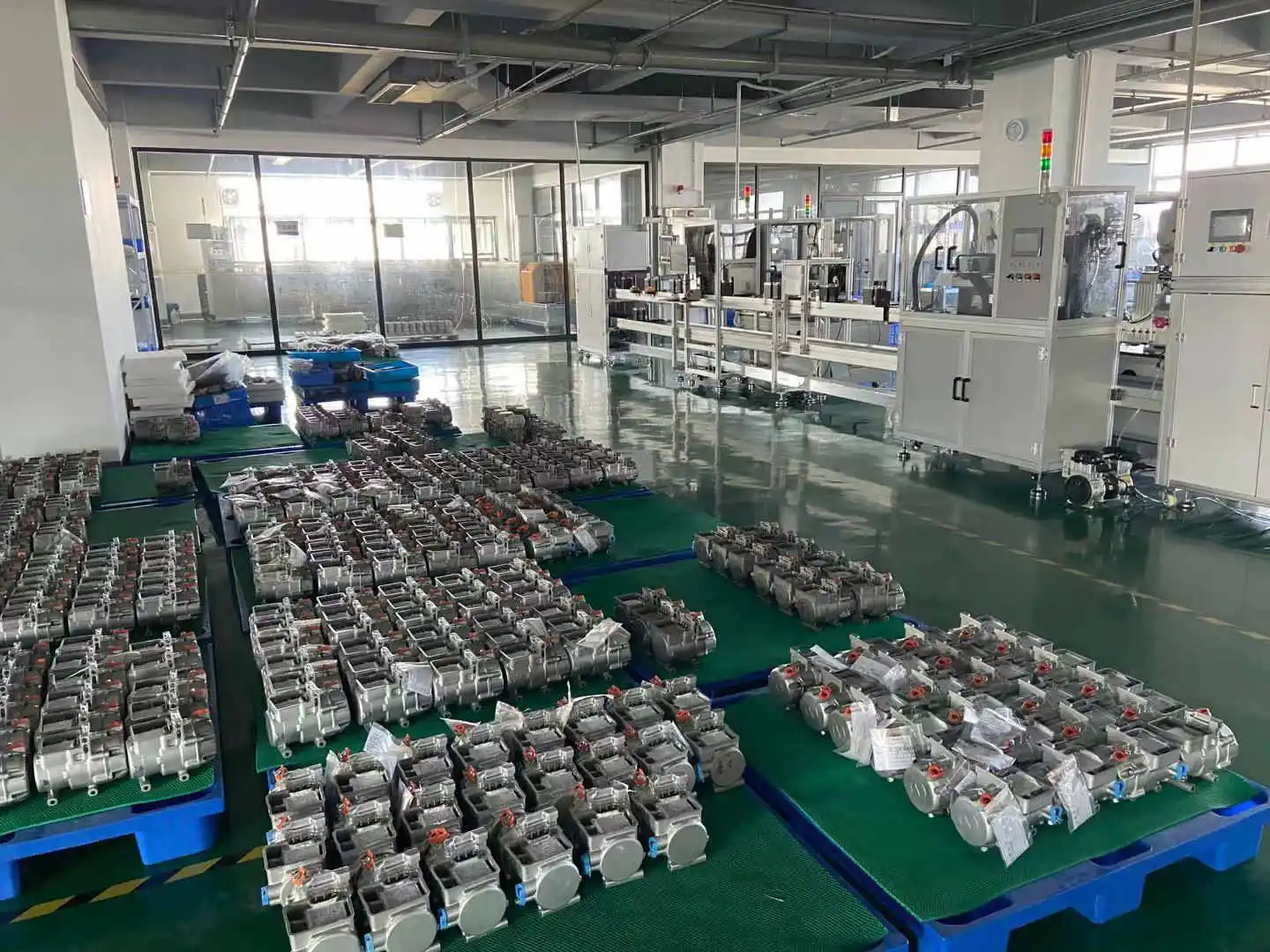

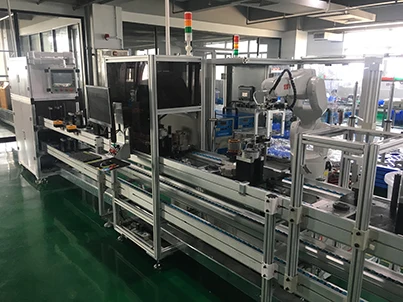

● Automated Assembly Line

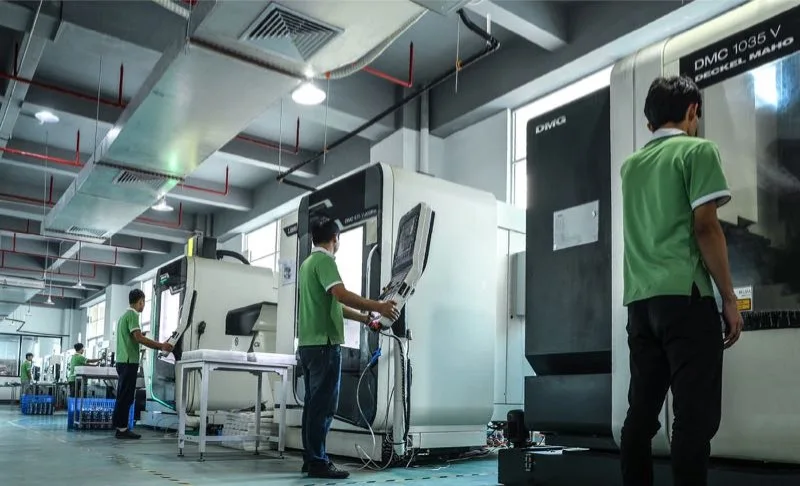

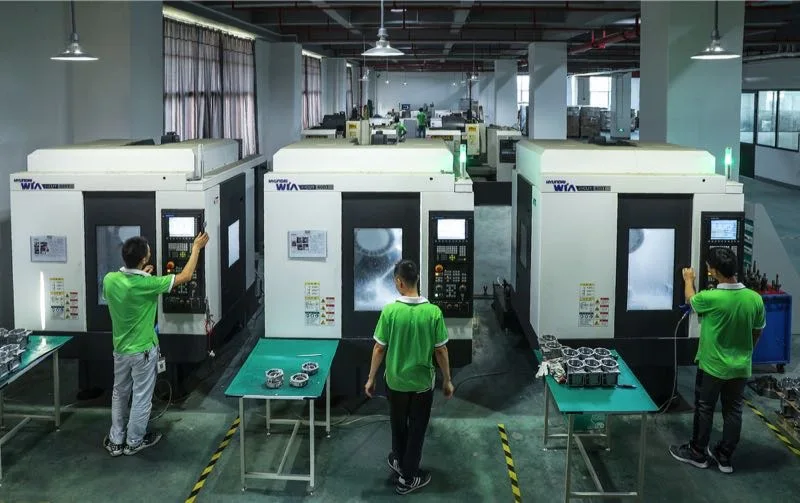

● German CNC Machine
● Korean CNC Machine

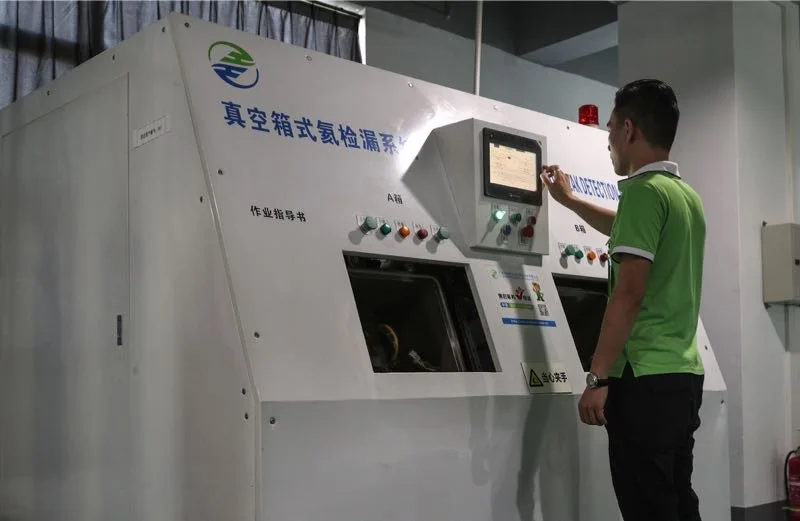

● Vacuum Helium Inspection System

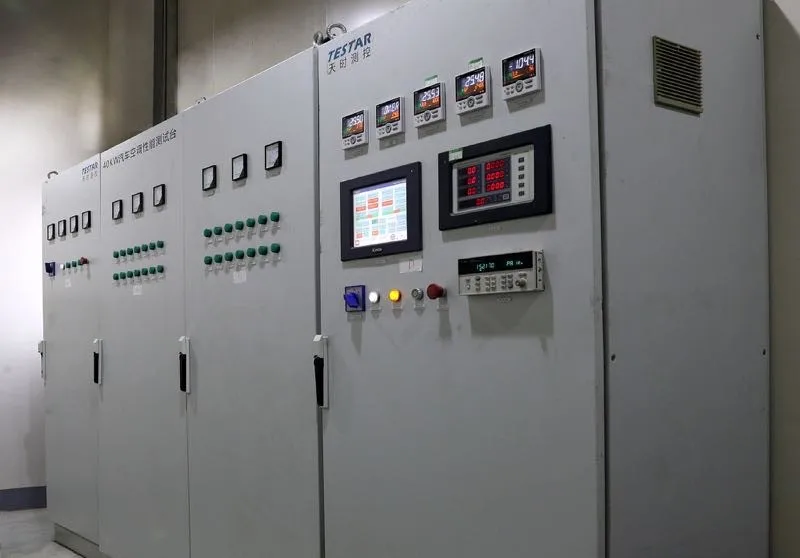

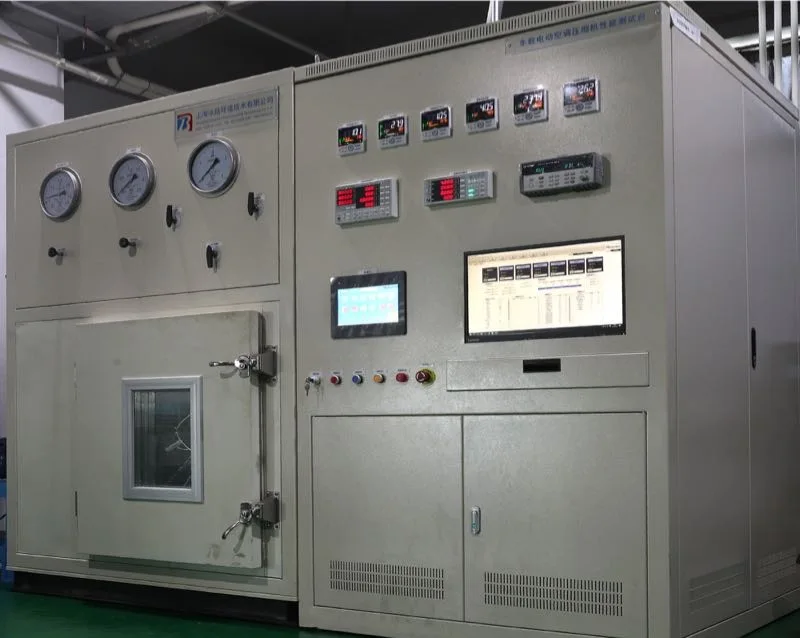

● Electric Compressor Performance Test System

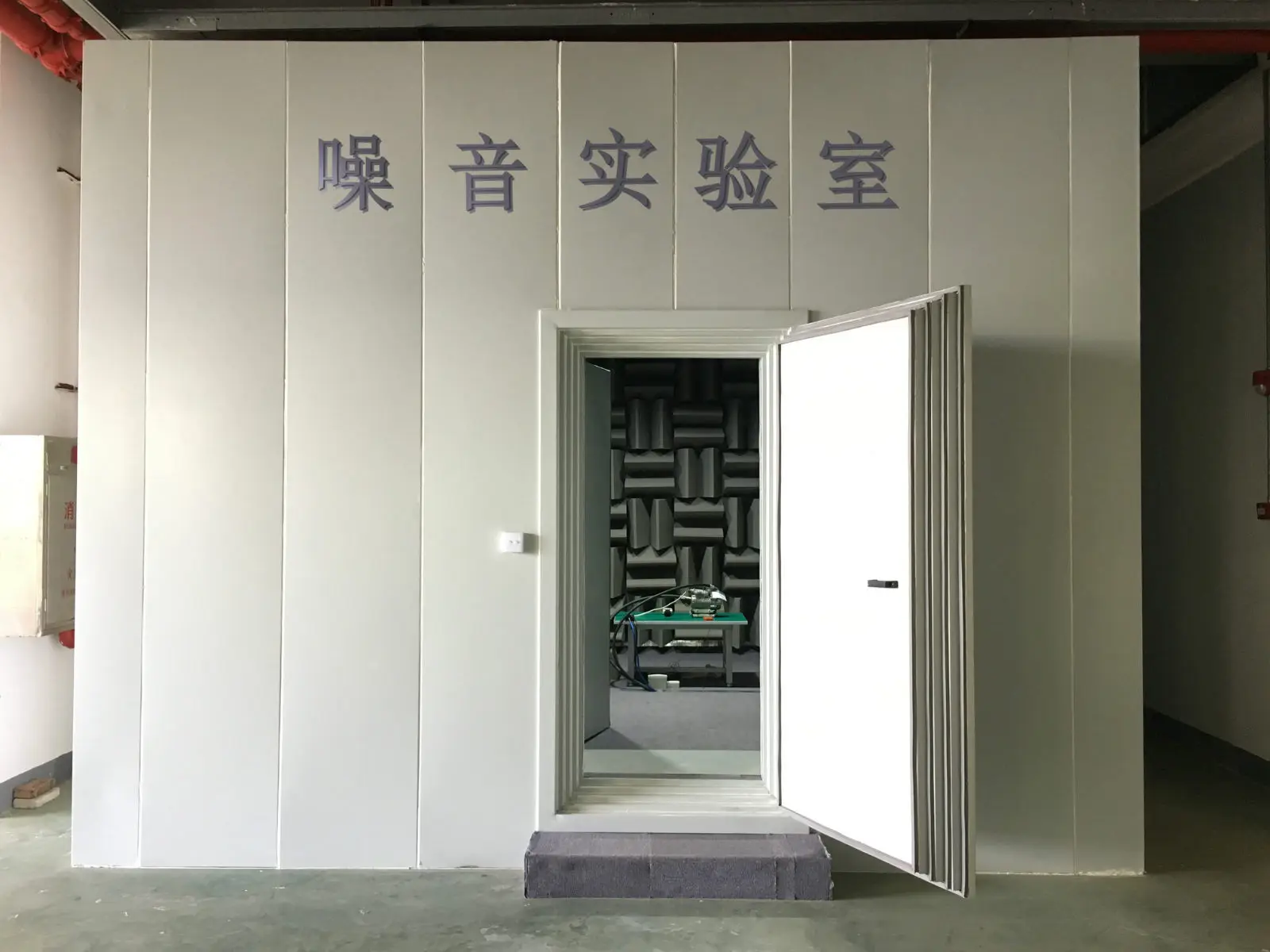

● Noise Laboratory

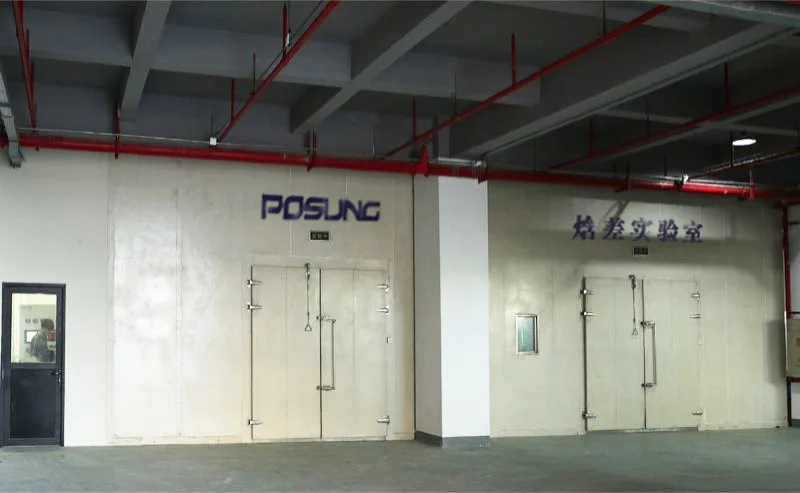

● Air Conditioning Performance Enthalpy Laboratory
● German CNC Machine
● Korean CNC Machine
● Vacuum Helium Inspection System
● Electric Compressor Performance Test System
● Noise Laboratory
● Air Conditioning Performance Enthalpy Laboratory

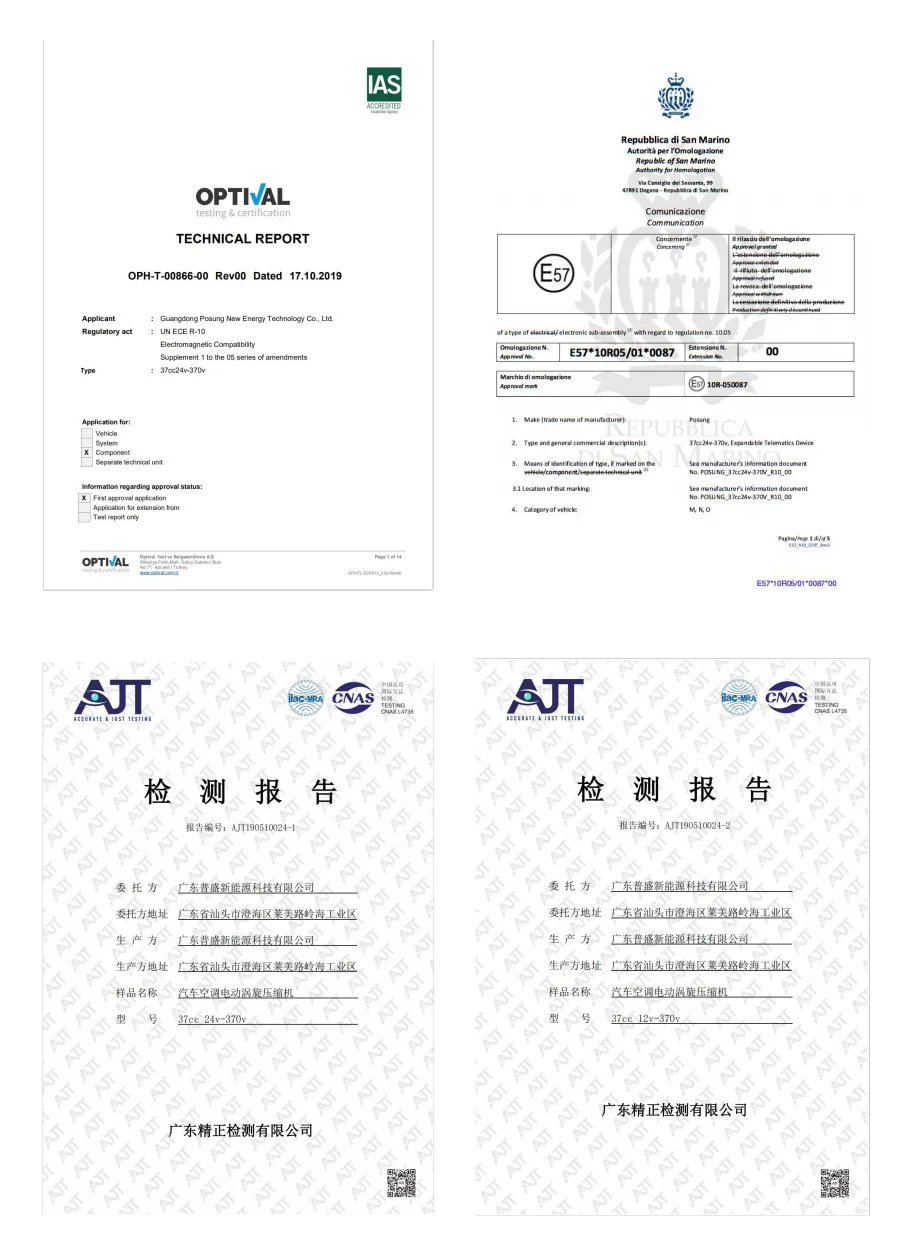

Certifications
IATF 16949:2016
ISO 9001:2015
EMC TECHNICAL REPORT
E-MARK R10CEC

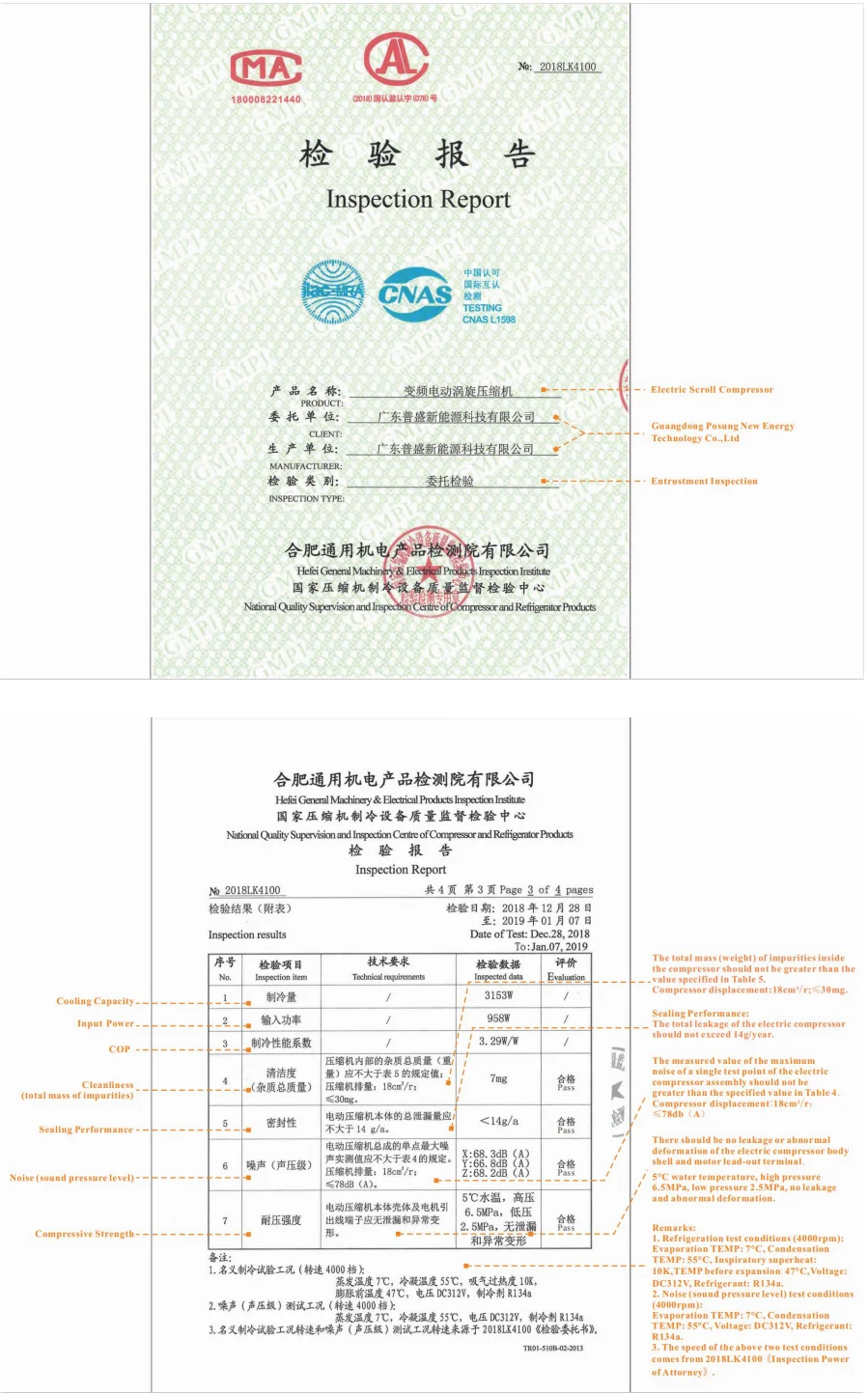

PERFORMANCE REPORT FROM NATIONAL INSPECTION CENTER
LETTER OF PATENT
