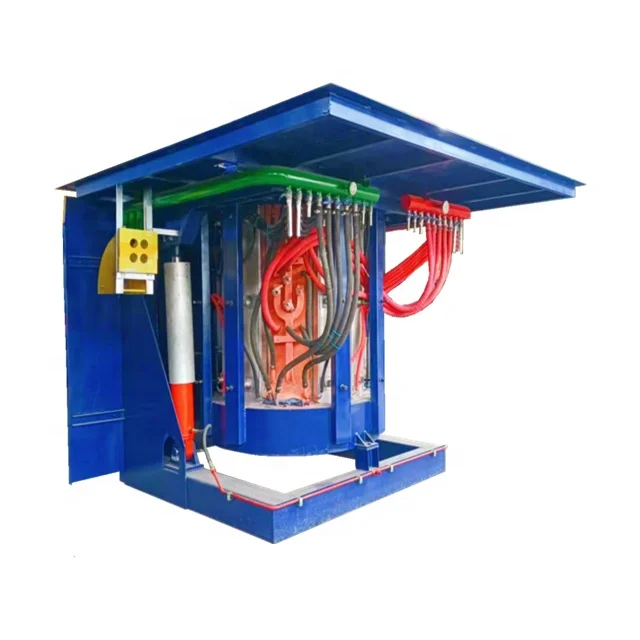

Induction Copper Coil for Foundry Melting Iron Heating Steel T3 T2 Copper Bobbin Custom 1 Ton 3 Ton 5 Ton Induction Furnace Coil
- Category: >>>
- Supplier: Astec Equipments Co. Ltd.
Share on (1600466941545):
Product Overview
Description
Products Description
Copper Mould Tube | Size (mm) | Thickness (mm) | Design or Taylor-MadeODM & OEM |
Square copper tube | 20x20 or custom | 5 or custom | Exactly follow your drawing and requirement |
Rectangular copper tube | 35x20 or custom | 5 or custom | Exactly follow your drawing and requirement |
Round copper tube | φ15 or custom | 2 or custom | Exactly follow your drawing and requirement |
How to improve the service life of IF coil?
Induction furnace coil is very core part induction melting furnace, how to enhance the service life time of copper coil?
1. cooling water is soft water or pure water;
2. input water temperature control ≤45 ℃;
3. regularly washing coil tube inside;
4. timely repair welding when making new furnace lining.
More details click chat now with supplier!
Product Application

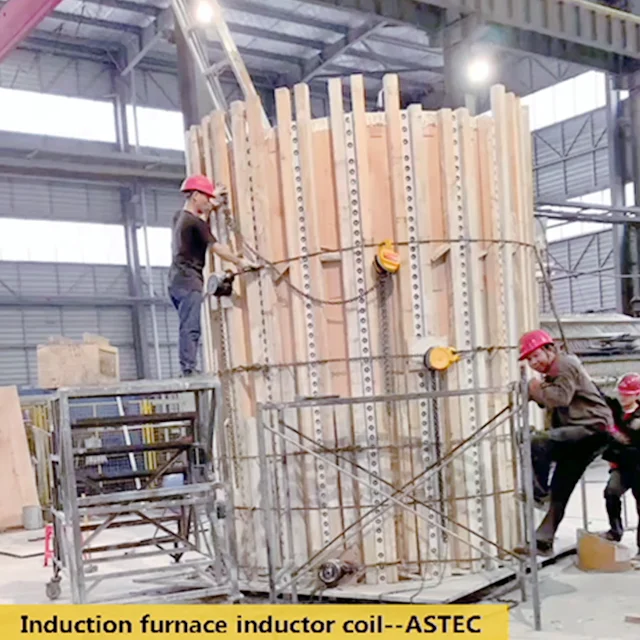

The induction coil of 60 t medium frequency smelting furnace is made of special 10 mm thick high-quality copper tube:
copper content of coil tube: ≥ 99.99%,
tensile strength: 225 kg / cm,
elongation rate: 48%,
hardness: HB 35,
insulation resistance of less than 1kV: ≥ 0.45 MΩ,
insulation resistance of above 1kV: ≥ 0.9 MΩ.
The thick wall induction coil has a larger current carrying section, so the coil resistance is low and more electric energy is applied to smelting. In addition, because the wall thickness is uniform, the strength is higher, the strength of the coil structure is better, and the bearing capacity of the molten steel is stronger. The induction coil structure is not easily damaged by arc and deformation expansion. The open space between each turn of the induction coil improves the electrical efficiency. All wiring copper bars are silver plated, making the conductivity and cooling effect more excellent
Cooperative Customers
Aboutu Us
Certifications

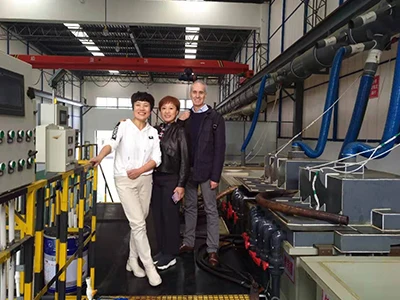

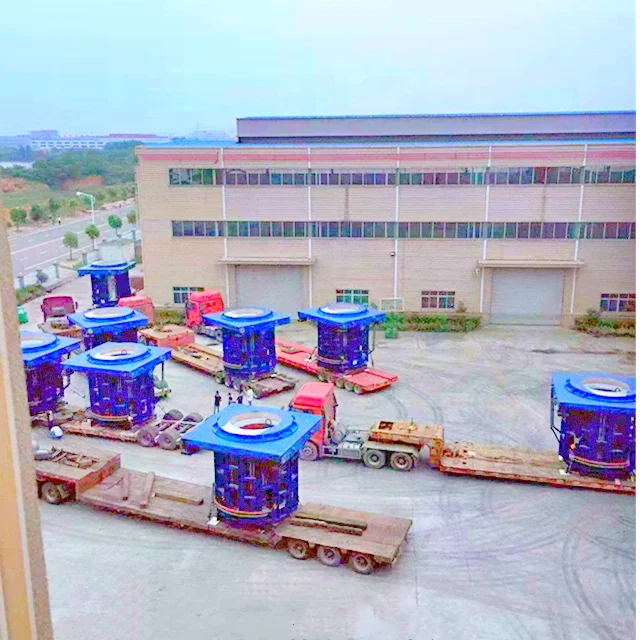

Customer Photos
Packing

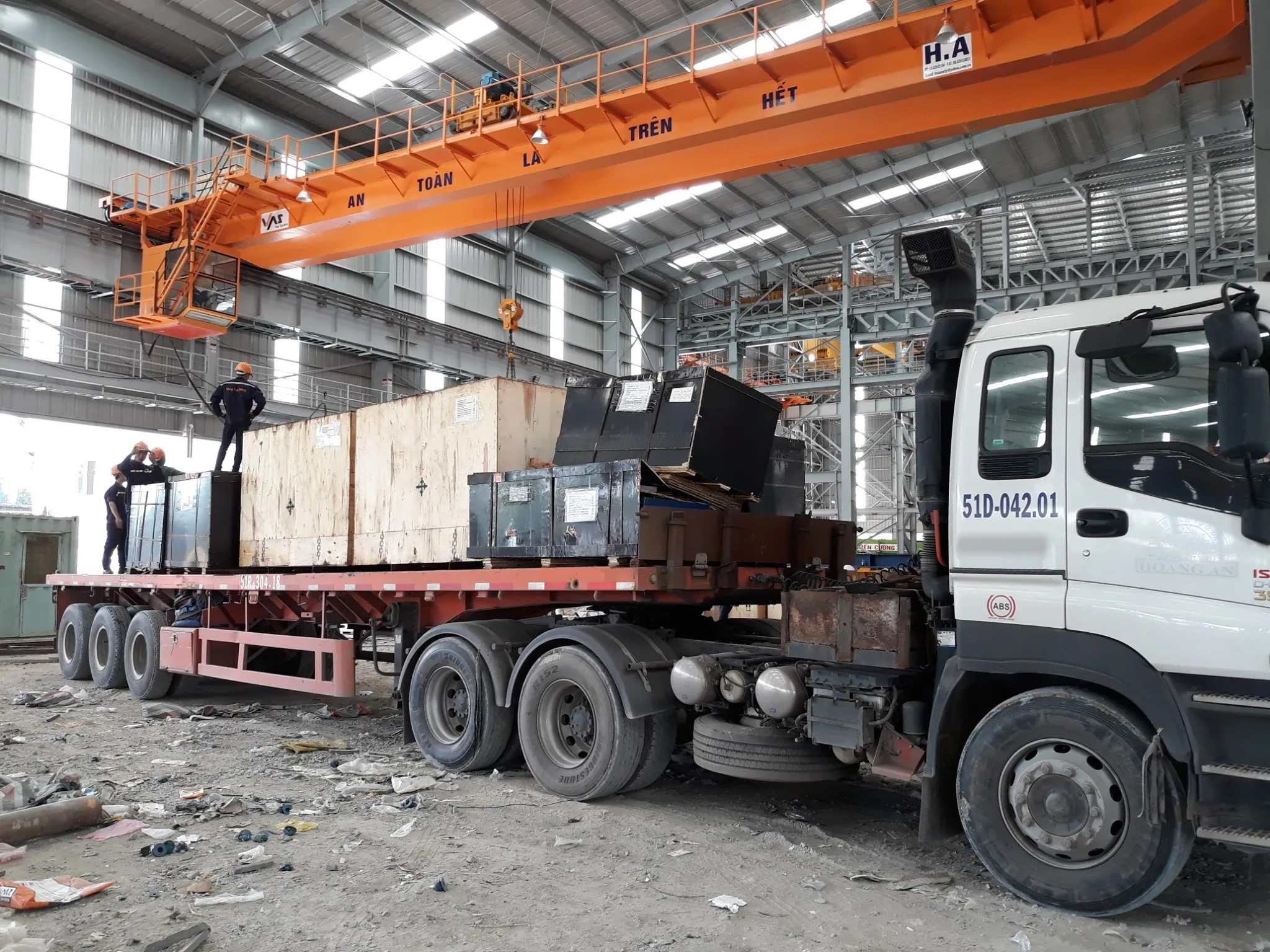

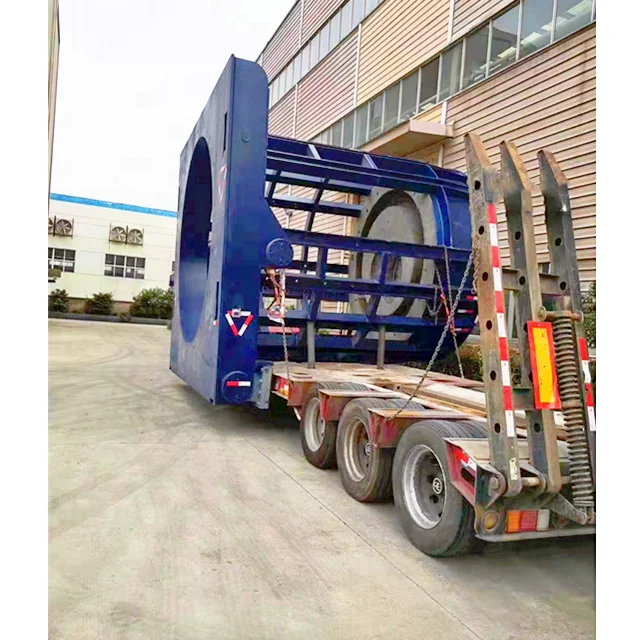

Transportation and Payment
