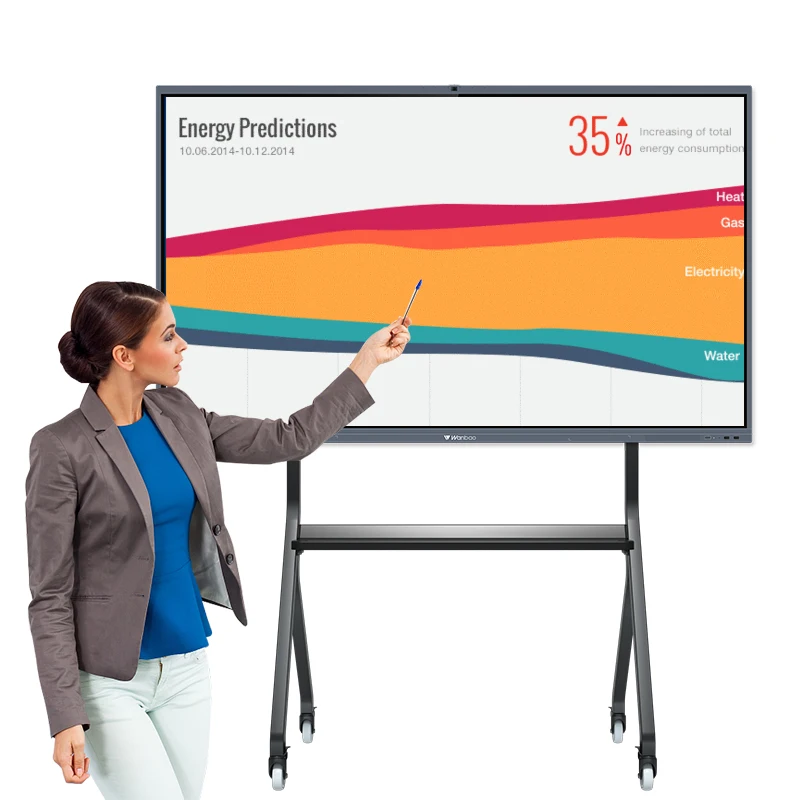

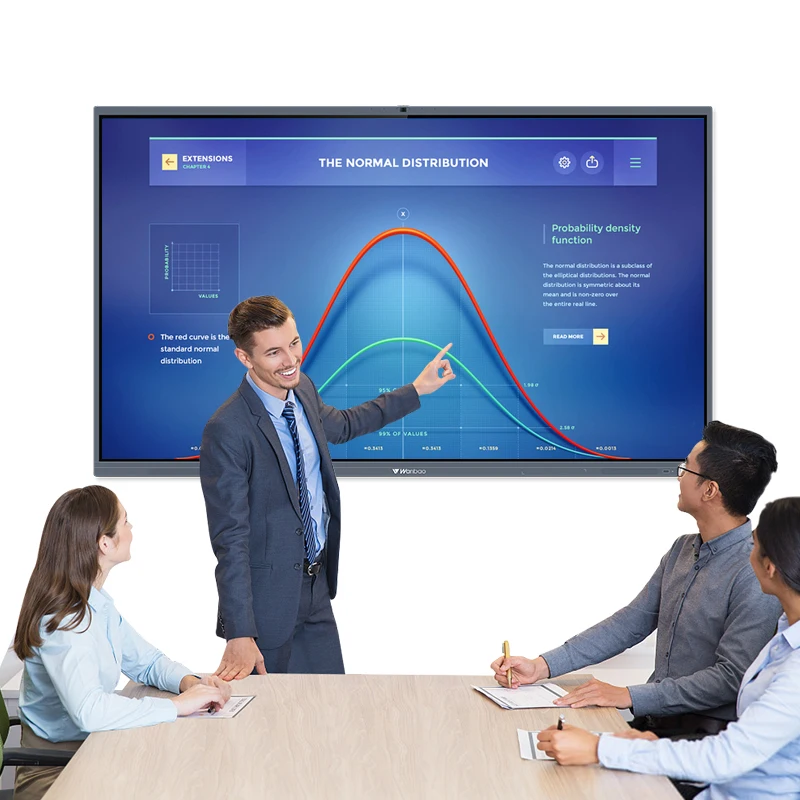

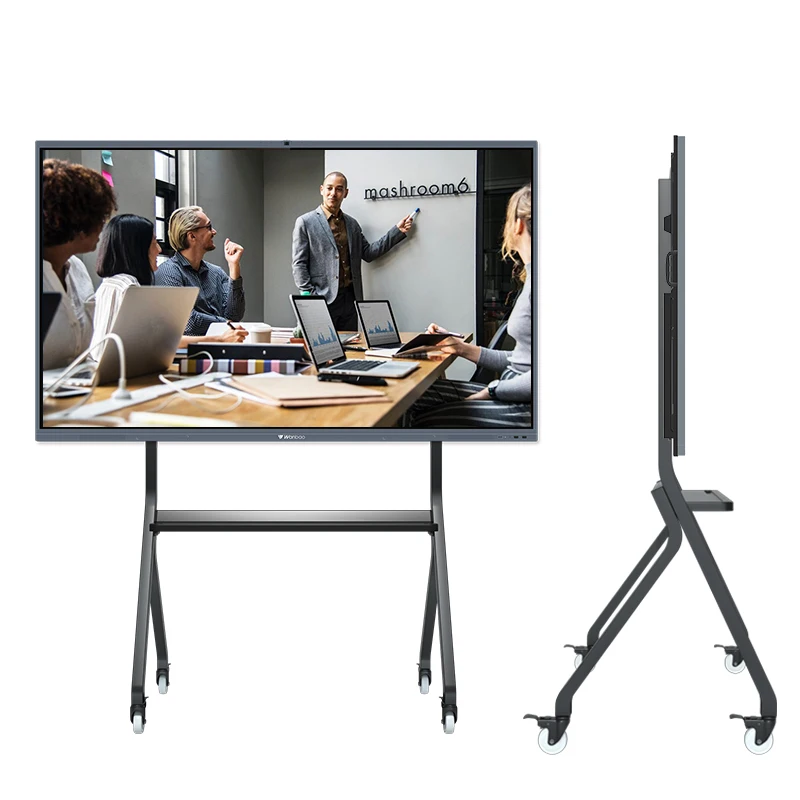

H7P 75 inchtouch interactive display smart board interactivensmartboard interactive whiteboard interactive display education
- Category: >>>
- Supplier: Guangdong Deyuan Technology Co. Ltd.
Share on (1600466973469):
Product Overview
Description
Company Profile
PRODUCT
interactive display ,smart board interactive,smartboard interactive whiteboard, interactive display education
Enterprise
Guangdong Deyuan Technology Co., Ltd. is professional manufacturer for LED TV since 2006.We offer OEM and OEM service in the business and eduation interactive whiteboard for over 5 years.We can offer professional products with excellent function as you need.Our factory is qualified with ISO9001 quality management system.Your inquiry is highly welcome.Contact us now.
Product Description
interactive whiteboard is more and more used as smart boad for teching as the computer is used widely in the world.
It is smart board euduction for the schools and teaching.

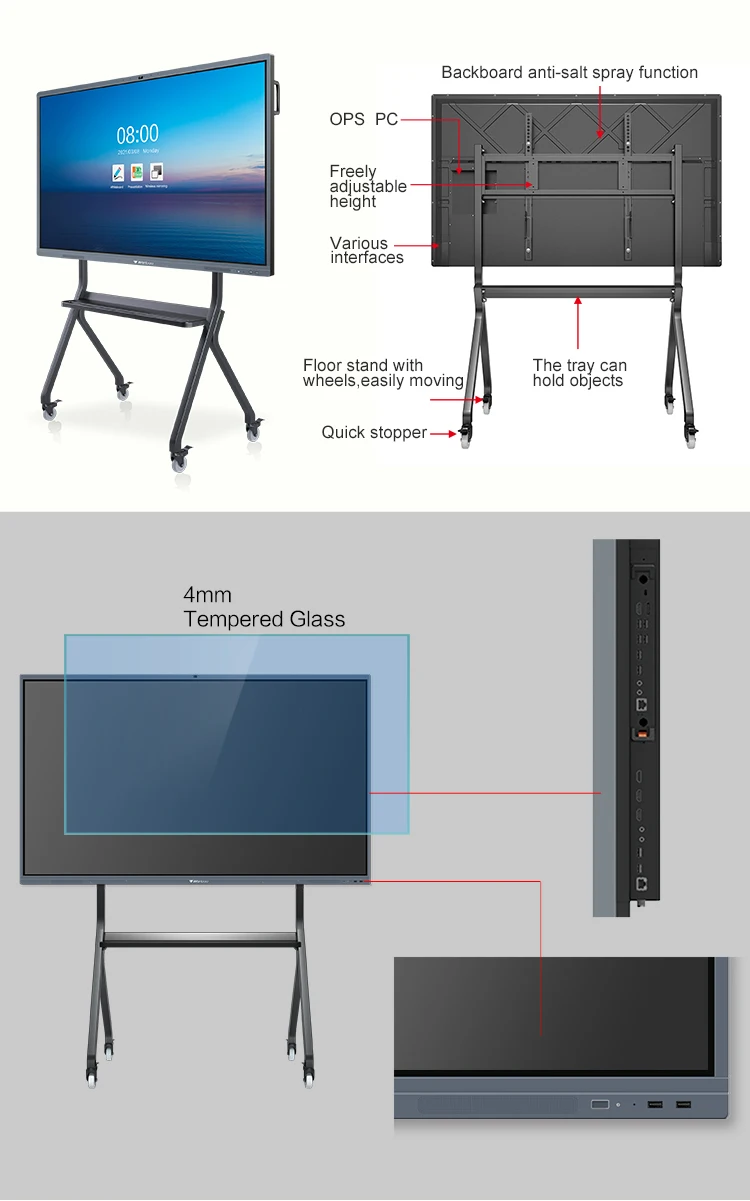

Design Features
1. It adopts all-aluminum alloy frame structure, anodized surface technology, ultra-narrow frame, rounded corner design.
2. 4mm anti-glare tempered glass.
3. Support 20 points IR touch writing experience.
4. The OPS host module adopts a pluggable structure design, which is convenient for inspection, maintenance and upgrade.
5. Dual-channel PC/Android shared interface, 1 TOUCH-USB, 1 HDMI interface for users to expand
6. One-key start button: Power, Input, Menu, V+, V-, ECO, Home, and independently configured OPS computer channel switching buttons, easy to understand and operate.
7. Built-in 8 mega pixels camera, six-array microphone, 8m pickup distance.
8. The machine intelligently senses the changes in the ambient light and lighting then automatically adjusts the screen brightness to achieve the best display effect in different lighting environments, effectively protecting the eyesight of teachers and students, and achieving energy-saving effects.
9. Intelligently identify the signal source, and automatically jump into the port channel when the external signal is received.
10. Support the pull-up touch menu at the bottom machine, full-channel annotation, board in board, two-color writing, brightness adjustment, screen shots, and quick whiteboard operations and etc.
11. Smart cloud annotation, QR code scanning and sharing, mobile screen projection, wireless screen, remote meeting, VIP reception and other functions.
12. Laser making logo.
2. 4mm anti-glare tempered glass.
3. Support 20 points IR touch writing experience.
4. The OPS host module adopts a pluggable structure design, which is convenient for inspection, maintenance and upgrade.
5. Dual-channel PC/Android shared interface, 1 TOUCH-USB, 1 HDMI interface for users to expand
6. One-key start button: Power, Input, Menu, V+, V-, ECO, Home, and independently configured OPS computer channel switching buttons, easy to understand and operate.
7. Built-in 8 mega pixels camera, six-array microphone, 8m pickup distance.
8. The machine intelligently senses the changes in the ambient light and lighting then automatically adjusts the screen brightness to achieve the best display effect in different lighting environments, effectively protecting the eyesight of teachers and students, and achieving energy-saving effects.
9. Intelligently identify the signal source, and automatically jump into the port channel when the external signal is received.
10. Support the pull-up touch menu at the bottom machine, full-channel annotation, board in board, two-color writing, brightness adjustment, screen shots, and quick whiteboard operations and etc.
11. Smart cloud annotation, QR code scanning and sharing, mobile screen projection, wireless screen, remote meeting, VIP reception and other functions.
12. Laser making logo.
Screen parameters | ||||||||
Size | 65” | 75” | 86” | 100” | ||||
Type | ADS | |||||||
Response time | 8 ms | |||||||
Display ratio | 16:9 | |||||||
Display size (mm) | 1428×804 | 1650×928 | 1895×1066 | 2159×1214 | ||||
Resolution | 3840（H）×2160（V） | |||||||
Pixel pitch (mm) | 0.372×0.372 | 0.429×0.429 | 0.4935×0. 4935 | 0.5622×0. 5622 | ||||
Refresh rate | 60Hz | 60Hz | 60Hz | 120Hz | ||||
Color brightness | 1.07B(10bit) | |||||||
Color gamut | 72% | |||||||
Contrast ratio | 4000:1 | 1100:1 | 1200:1 | 1200:1 | ||||
Viewing angle | 178°(H/V) | |||||||
Backlight | DLED | |||||||
Screen brightness | 350cd/m2 | 350cd/m2 | 330cd/m2 | 350cd/m2 | ||||
lifetime | ≥30000h | |||||||

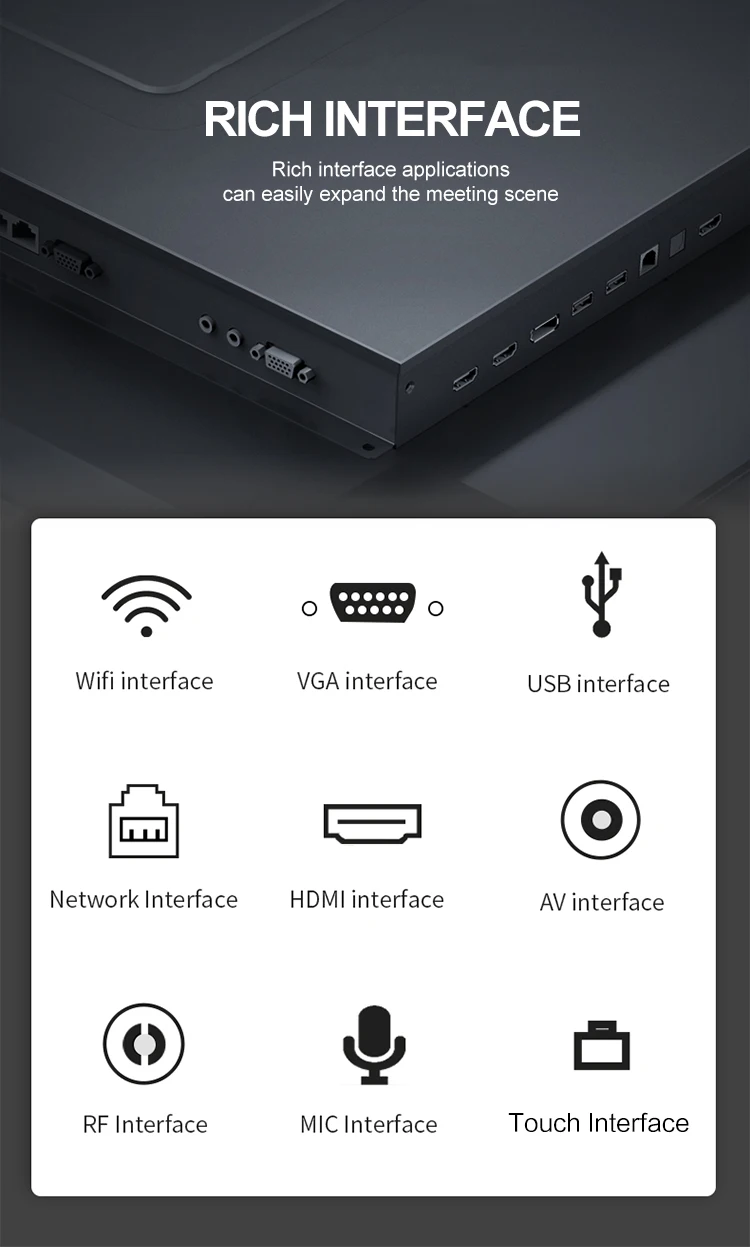

Interface | ||||||||||
HDMI in | 3 | USB 2.0 | 3 | Touch | 2 | |||||
HDMI out | 1 | USB 3.0 | 3 | VGA in | 1 | |||||
Audio in | 1 | SPDIF | 1 | RS232 | 1 | |||||
Audio out | 1 | RJ45 in | 1 | |||||||
Wifi | ||
Version | 802.11 a/b/g/n/ac | |
Operating frequency | 2.4GHz/5GHz | |
Operating distance | 0~12m | |
RAM | 4GB | |
Remark | Realize this function through the wireless module SI02 | |
Power | ||||||||
Size | 65” | 75” | 86” | 100” | ||||
Power input 100-240V~50/60Hz | 2.5A | 3.0A | 5.0A | 7.5A | ||||
Power consumption | 250W | 300W | 500W | 750W | ||||
Standby power consumption | ≤0.5W | |||||||
Many different size for decation smart board with meeting the request of client
Size | ||||||||||
Size | 55" | 65" | 75" | 86" | 100" | |||||
Display size （inch/mm) | 1210×680 | 1428×804 | 1650×928 | 1895×1066 | 2159×1214 | |||||
Overall size/Weight W×D×H（mm）/kg | 1262×782×85 /26 | 1489×906×89 /37.5 | 1710×1029×89 /52.3 | 1957×1169×90 /69.8 | 2245×1323×90 /102 | |||||
Packing size/Weight W×D×H（mm）/kg | 1428×220×878 /36 | 1656×204×1050 /49.8 | 1886×210×1196 /66.2 | 2134×210×1334 /89.4 | 2483×376×1493 /136 | |||||
QTY of containers(pcs) 20'GP/40'GP/40'HQ | 102/236/254 | 79/183/197 | 59/137/148 | 53/123/133 | 20/47/50 | |||||
Environmental factory | ||
Operating Temperature | 0℃~40℃ | |
Operating humidity | 10%~90%RH | |
Storage temperature | -20℃~60℃ | |
Storage humidity | 10%~90%RH | |
Altitude | ≤5000m | |
PC system (optional) | ||||||
PC Model | MT31 | |||||
PC Type | Ultra-thin pluggable Intel Core series modular computer | |||||
CPU Configuration | i5，DDR4 8GB，M.2 solid state drive 128GB (SSD) | |||||
i7，DDR4 16GB，M.2 solid state drive 256GB (SSD) | ||||||
Graphics | Integrated Intel® HD Graphics | |||||
Sound card | Integrated HD stereo sound card | |||||
Built-in system | Windows 10 Enterprise Edition | |||||
HDMI output | 1 | USB 2.0 | 2 | |||
USB 3.0 | 2 | Microphone input | 1 | |||
Audio out | 1 | PC interface | 120 pins | |||
Application Scenario

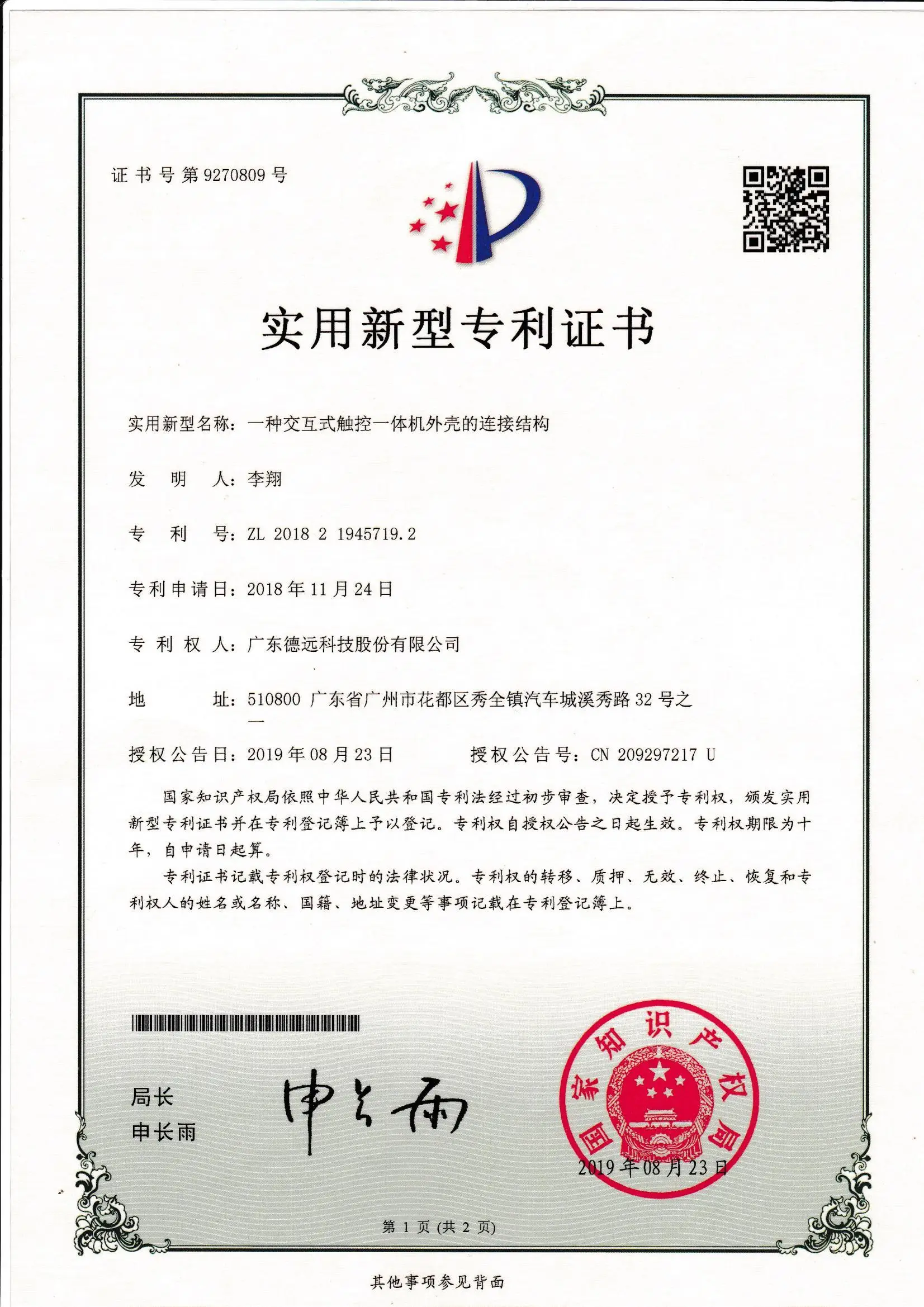

Certifications
Making process
Exhibition
FAQ
Q:Are you the factory or the trading company?
A:we are the factory in Huadu District, Guangzhou, near the Guangzhou Baiyun International Airport. OEM or ODM service (including moulding and software system) are provided by us.
Q: What's your MOQ?
A: Generally, our FOB MOQ is 5-10 sets(It depends on the models), but small sample order 1pcs is acceptable.
Q: How long is delivery time?
A: Normally, the delivery time is 5-15 days according to the order quantity/ model/ size of the screens.
Q : Do you have inventory?
A : In order to ensure the delivery time, we usually have 1000 UNITS of various size and model for normal model per month.
Q: How long is the warranty for the product?
A:The warranty period is 1 YEAR for complete machine, but our open cell are A grade LG screen, service life usually is 8-10 years.
Provided 1% spare parts: ISO:9001 international quality management system certificated, provide free spare parts to do the
maintenance if there are defects in the warranty period.
Q:What payment method your company accept?
A:We accept most of the payment methods, it is mainly by TT/Western Union.
A:we are the factory in Huadu District, Guangzhou, near the Guangzhou Baiyun International Airport. OEM or ODM service (including moulding and software system) are provided by us.
Q: What's your MOQ?
A: Generally, our FOB MOQ is 5-10 sets(It depends on the models), but small sample order 1pcs is acceptable.
Q: How long is delivery time?
A: Normally, the delivery time is 5-15 days according to the order quantity/ model/ size of the screens.
Q : Do you have inventory?
A : In order to ensure the delivery time, we usually have 1000 UNITS of various size and model for normal model per month.
Q: How long is the warranty for the product?
A:The warranty period is 1 YEAR for complete machine, but our open cell are A grade LG screen, service life usually is 8-10 years.
Provided 1% spare parts: ISO:9001 international quality management system certificated, provide free spare parts to do the
maintenance if there are defects in the warranty period.
Q:What payment method your company accept?
A:We accept most of the payment methods, it is mainly by TT/Western Union.
