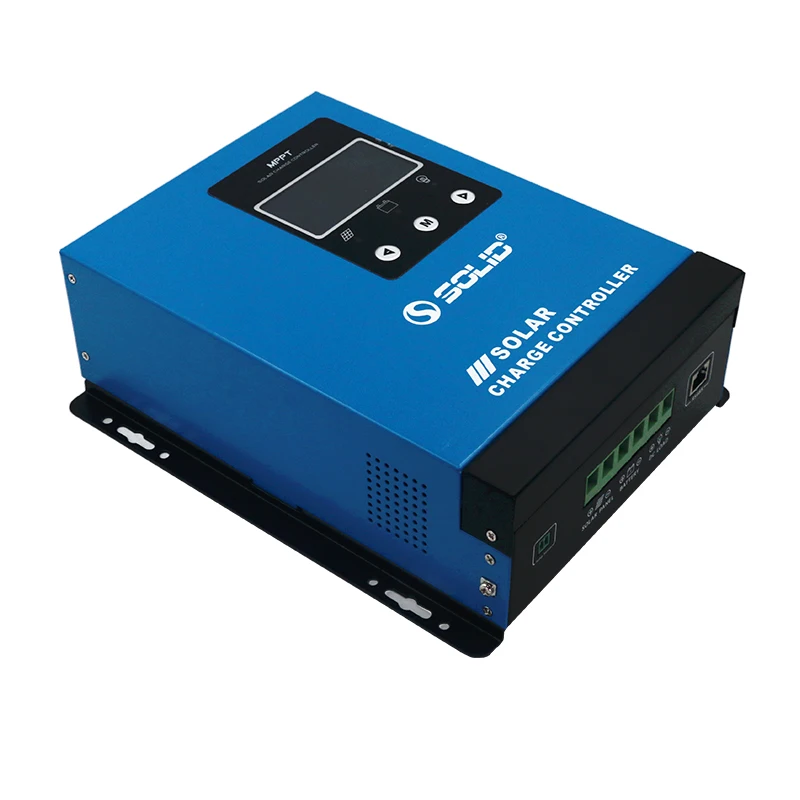

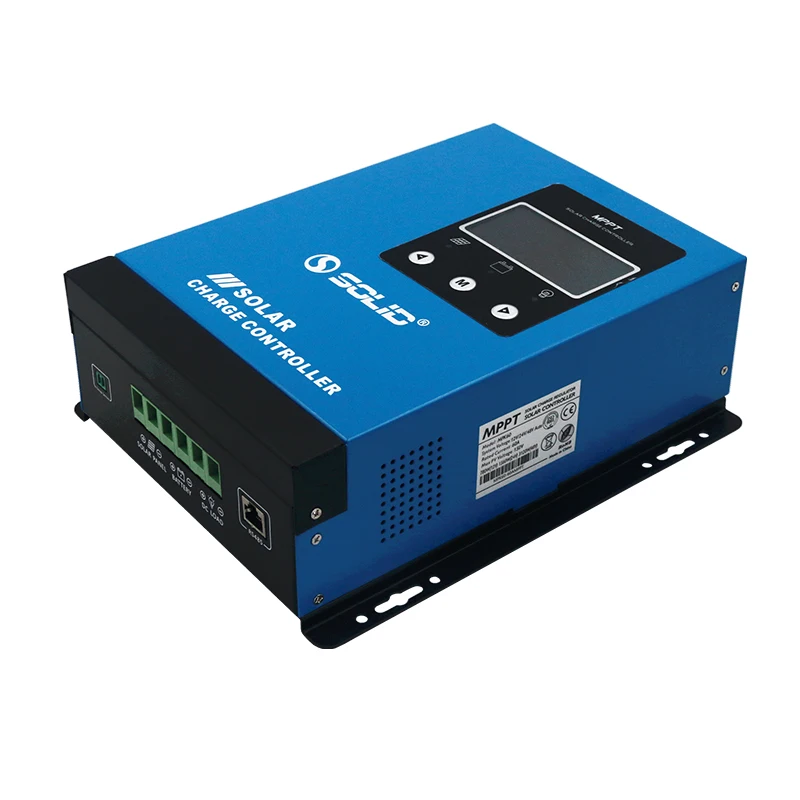

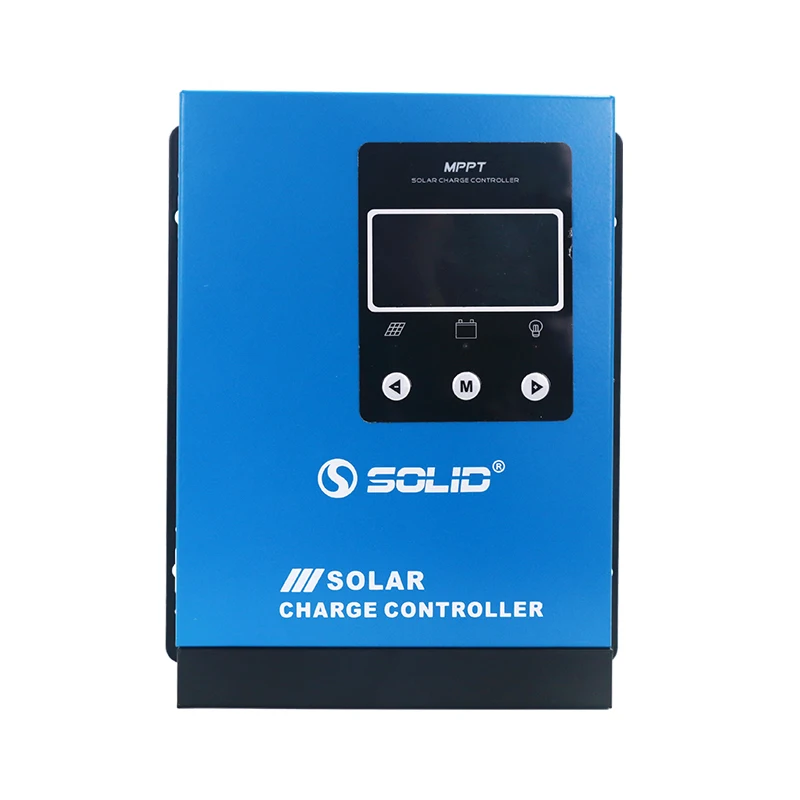

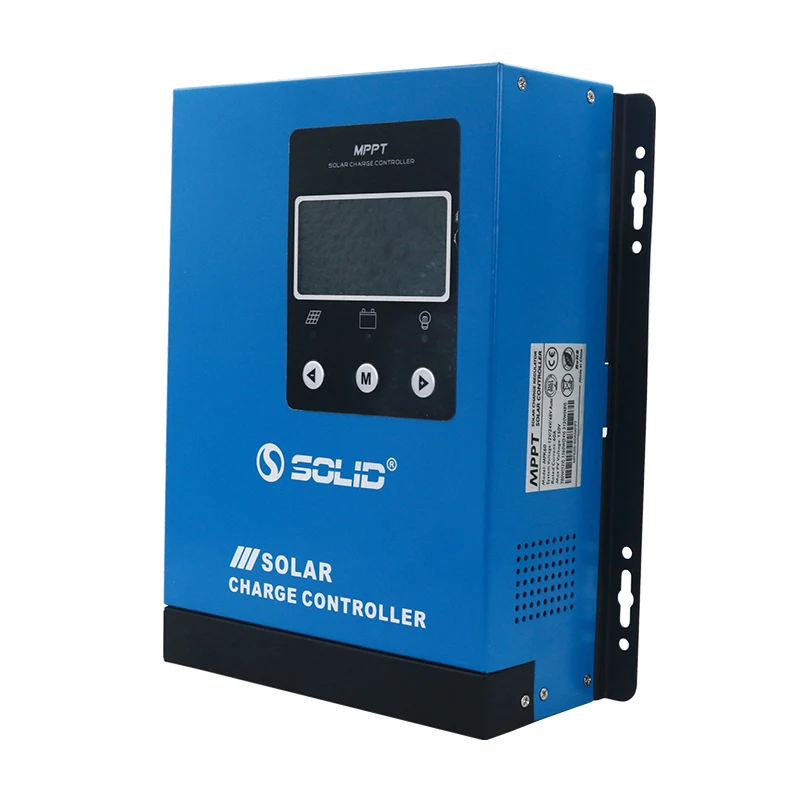

MPPT Solar Charge Controller 12V/24V/36V/48V 80A 100A Solar Input 150V Charger Regulator 14.4v li ion Solar Charge Controller
MPPT Solar Charge Controller 12V/24V/36V/48V 80A 100A Solar Input 150V Charger Regulator 14.4v li-ion Solar Charge Controller
MPPT Solar Charge Controller 12V/24V/36V/48V 80A 100A Solar Input 150V Charger Regulator 14.4v li-ion Solar Charge Controller
MPPT Solar Charge Controller 12V/24V/36V/48V 80A 100A Solar Input 150V Charger Regulator 14.4v li-ion Solar Charge Controller
MPPT Solar Charge Controller 12V/24V/36V/48V 80A 100A Solar Input 150V Charger Regulator 14.4v li-ion Solar Charge Controller
MPPT Solar Charge Controller 12V/24V/36V/48V 80A 100A Solar Input 150V Charger Regulator 14.4v li-ion Solar Charge Controller

MPPT Solar Charge Controller 12V/24V/36V/48V 80A 100A Solar Input 150V Charger Regulator 14.4v li ion Solar Charge Controller

Share on (1600466975045):


Price:

Quantity:


Product Overview

Description





14.4v li-ion solar charge controller
lifepo4 solar charge controller












Product features:
1.12V/24V system voltage automatically recognized.
2.Maximum Power Point Tracking technology,the tracking efficiency can be high as 99%.
3. With temperature compensation employed, charging parameters can be automatically adjusted.

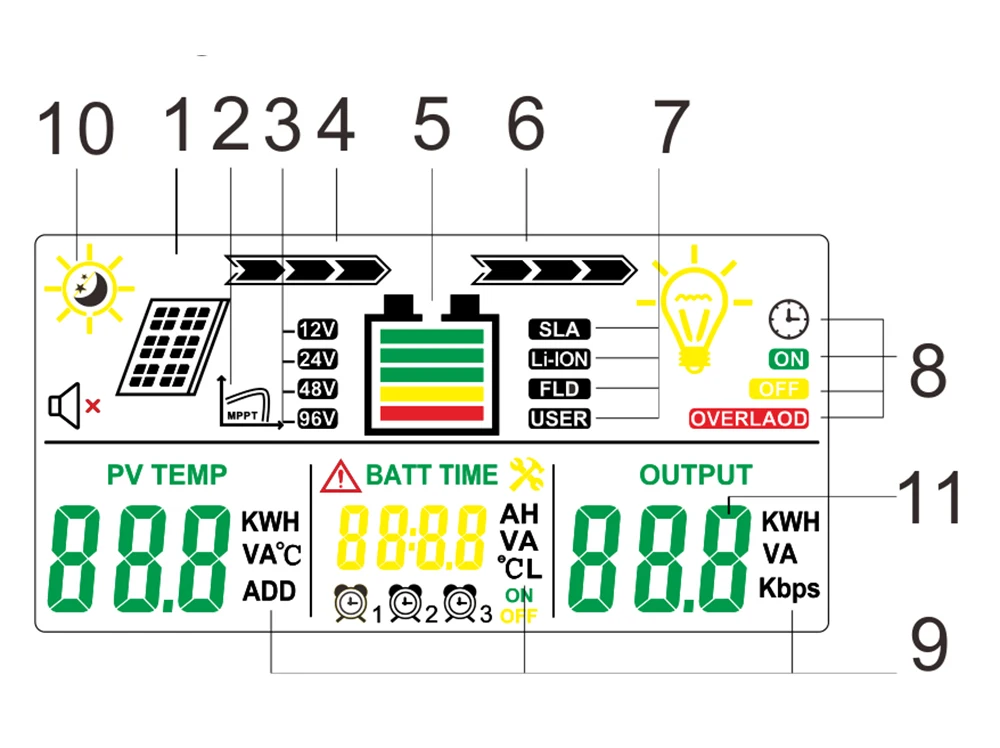

4. LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify
system faults.

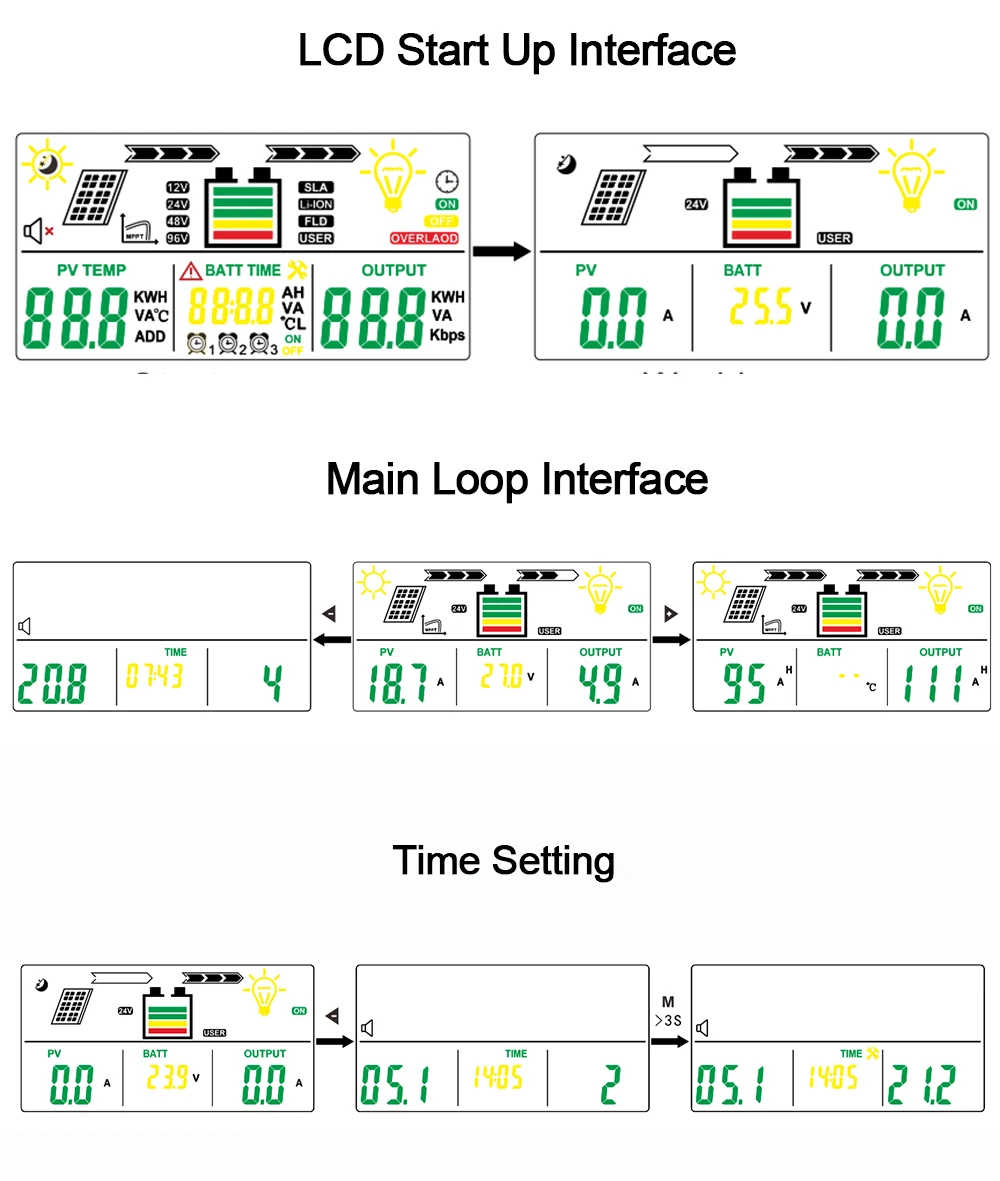

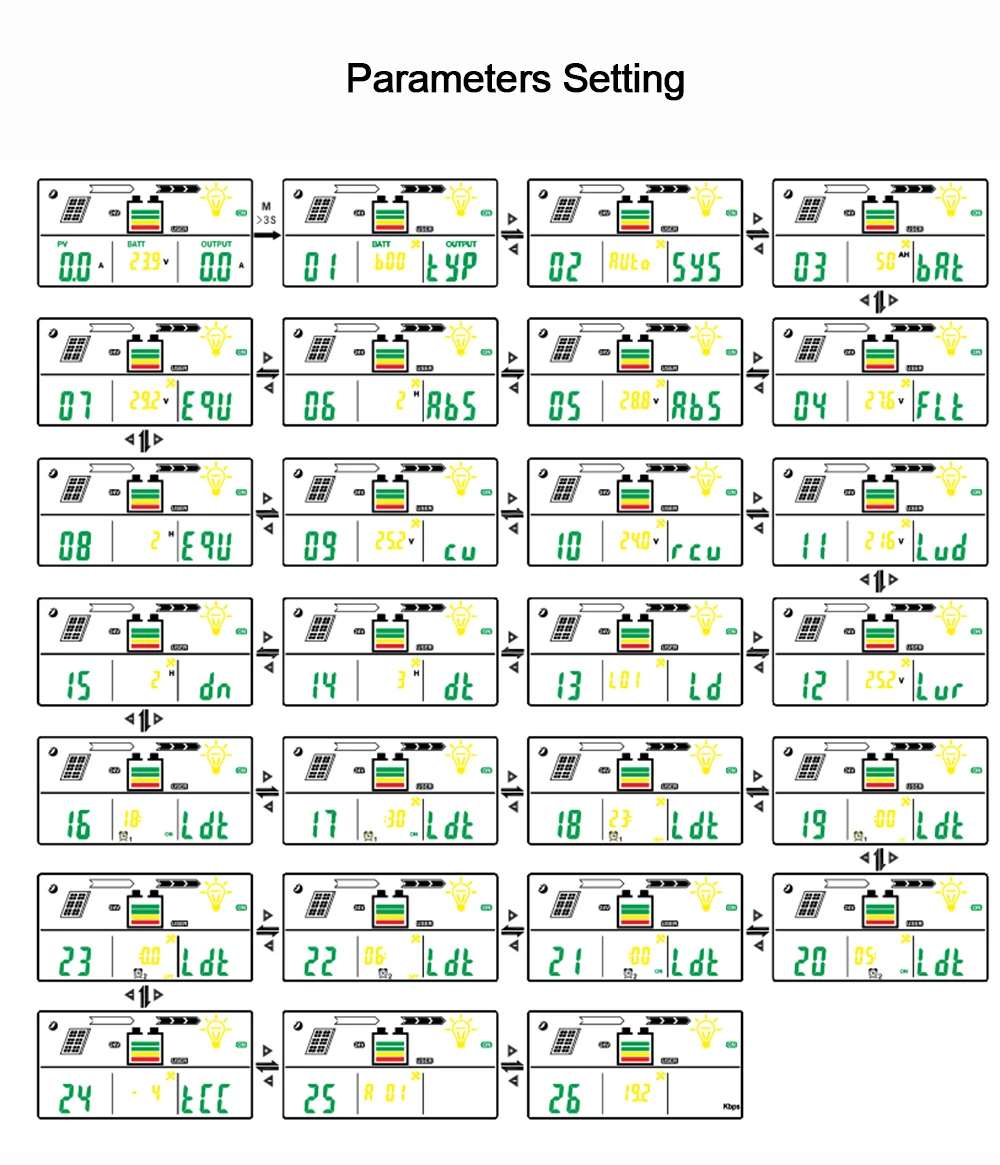

5.The controller is equipped with an LCD screen with which users can not only check device operating data and
statuses, but also modify controller parameters.
6.The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions.
7. Featuring a temperature compensation function, the controller can automatically adjust charging and discharging
parameters in order to extend the battery's service life



Model
MPK30
MPK40
MPK80
MPK100
Input
Max.PV open circuit voltage
150V (at the lowest temperature);138V(at a standard temperature of 25℃)
Minimum PV voltage
20V/40V/60V/80V
Rated charge current
30A
40A
80A
100A
Output
System voltage
12V/24V/36V/48V
Rated discharge current
15A
20A
40A
40A
Float charge
13.8V/27.6V/41.4V/55.2V
Absorption charge
14.4V/28.8V/43.2V/57.6V
Equalization
14.6V/29.2V/43.8V/58.4V
Load disconnection(LVD)
10.8V/21.6V/32.4V/43.2V
Load reconnection(LVR)
12.6V/25.2V/37.8V/50.4V
Load control mode
Normal,light control,light and time control,reverse light control
Light control point voltage
5V/10V/15V/20V

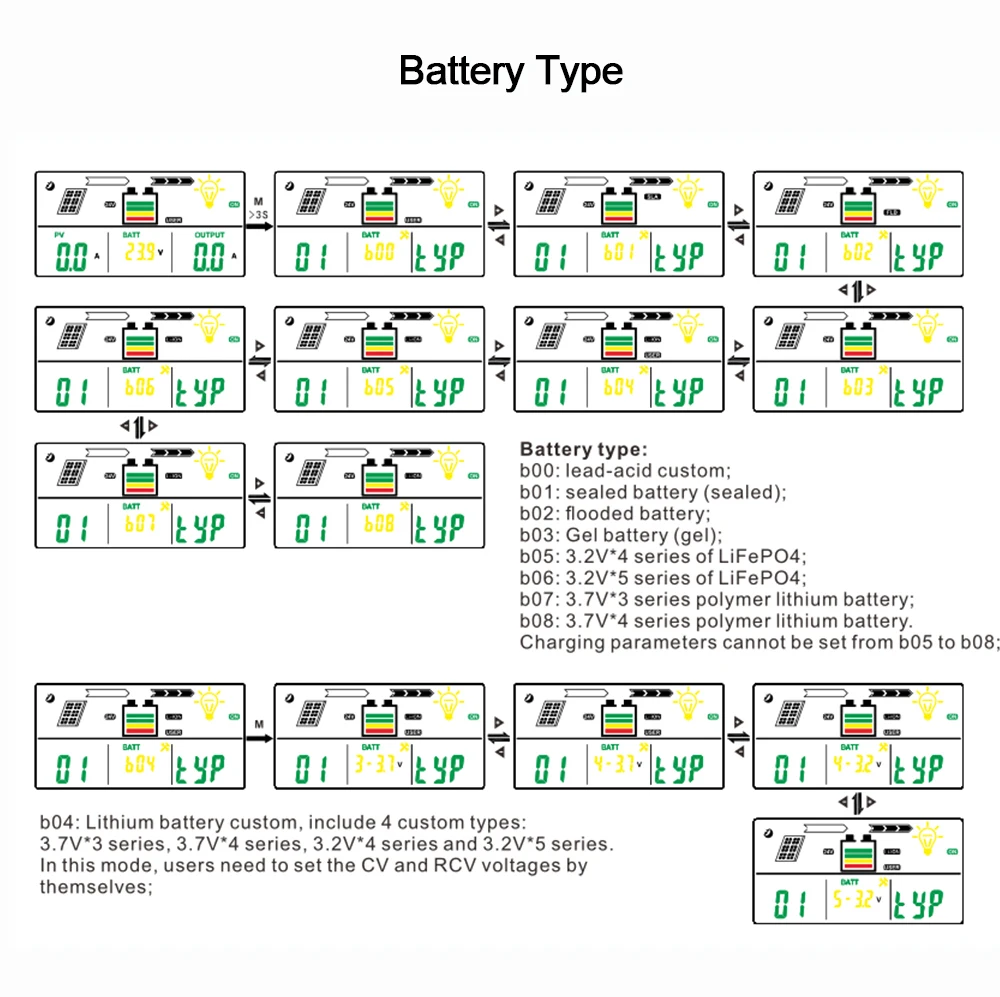

Battery type
GEL,SLD,FLD,USR(default),lithium battery customization 3 series 3.7V,4 series 3.7V
Other
Human interface
Color LCD with backlight,3 buttons
Cooling mode
Aluminum alloy heat sink and cooling fan

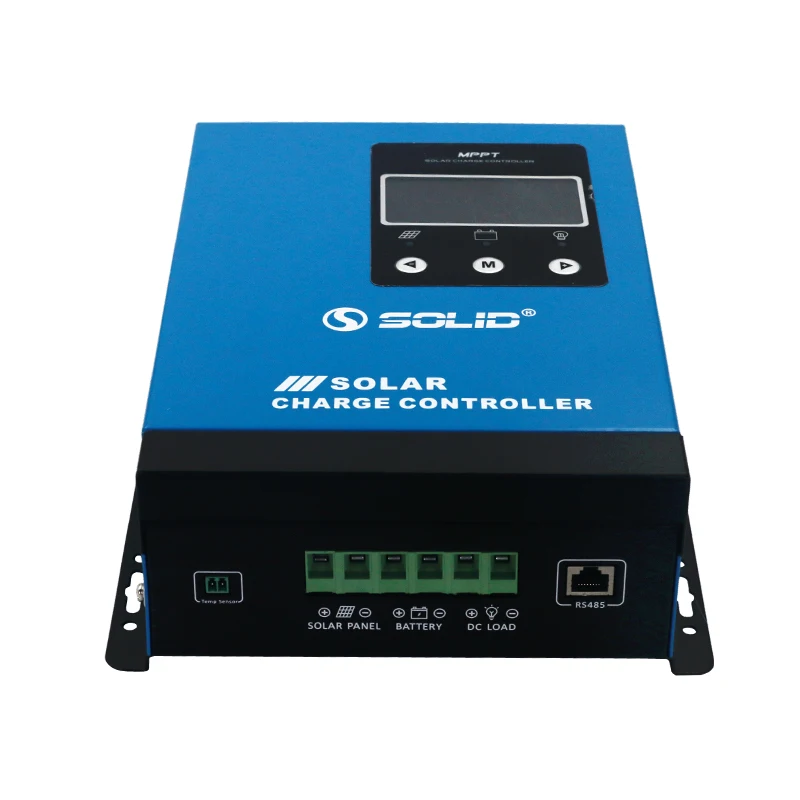

Wiring
High current copper terminal
Communication
RS485,RJ45 port
Working temperature range
-20℃～+55℃
Storage temperature range
-30℃～+80℃
Size
220*200*83mm
340*240*108mm
Weight
2.8kg
4.7kg












FAQ:
Q1:As a manufacturer,what kind of products do you produce?
A1:We mainly produce DC To AC Power Inverter,Solar Hybrid Inverter,Solar Charge Controller,Single Phase&3 Phase Voltage Regulator(Voltage Stabilizer),AC To DC Battery Charger,Inverter With Charger(stand-by UPS) etc.

Q2:How many years of warranty do you provide for your product?
A2:Usually we provide 2 years of warranty for all our products,during this period,when there is something wrong with the
product,we replace or fix the product for free based on actual situation ,and we provide lifetime maintenance guidance.

Q3:Talking about power inverter,about the modified sine wave and pure sine wave,the resistive load and inductive load,what’s the difference and relation between them?
A3: Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
As to inductive load,it refers to the application of electromagnetic induction's principle, produced by high-power electrical
products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.

Q4:What do you think your advantage is?
A4:Same quality level,we offer a better price;Same price level,we provide more reliable quality.Try a sample to test,then you will know we are not just saying it.

Q5:What about your OEM&ODM customization service?
A5:We can put your logo on the product based on a MOQ;You can give us your idea about your own product’s designing-including products’ appearance,function and packaging,our engineer and designing team will do for you.
