Use Drag Chain System Copper Wire Control Cable High Flexible Pvc Flexible Wire Resistance To Bending Corrosion Resistant Cable

Share on (1600467003238):


Price:$42.00 - $98.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Model Number
TRVV-TRVVP
Type
TRVV-1
Place of Origin
China
Shandong
Brand Name
YanChang
Number of Conductors
2
Model Number
TRVV, TRVV TRVVP TRVVSP
Type
insulated
Application
Industrial, Electrical Equipment
Conductor Material
Copper
Conductor Type
flexible
Insulation Material
PVC
Product name
300/500V Soft Flexible control drag chain of cable TRVV
Voltage
300/500V
Jacket Material
Special PVC
Certification
CCC ISO BV CE


300/500V Soft Flexible control drag chain of cable TRVV
Product Description

Application
It is suitable for power and control system of roberts and widely used in free bending or moving drag chain system without strong
stress, no matter in dry or wet rooms.

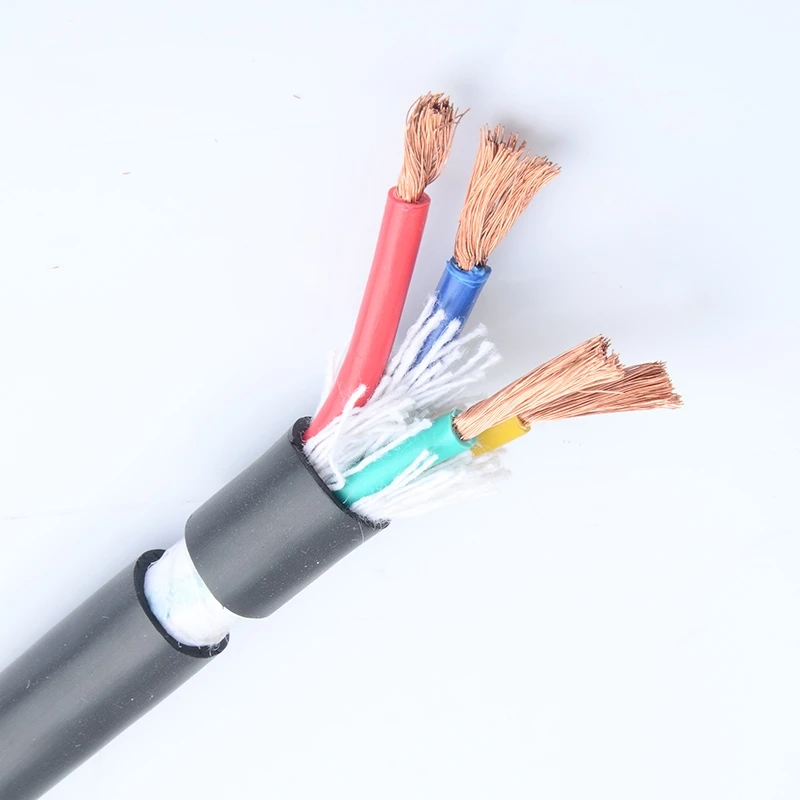

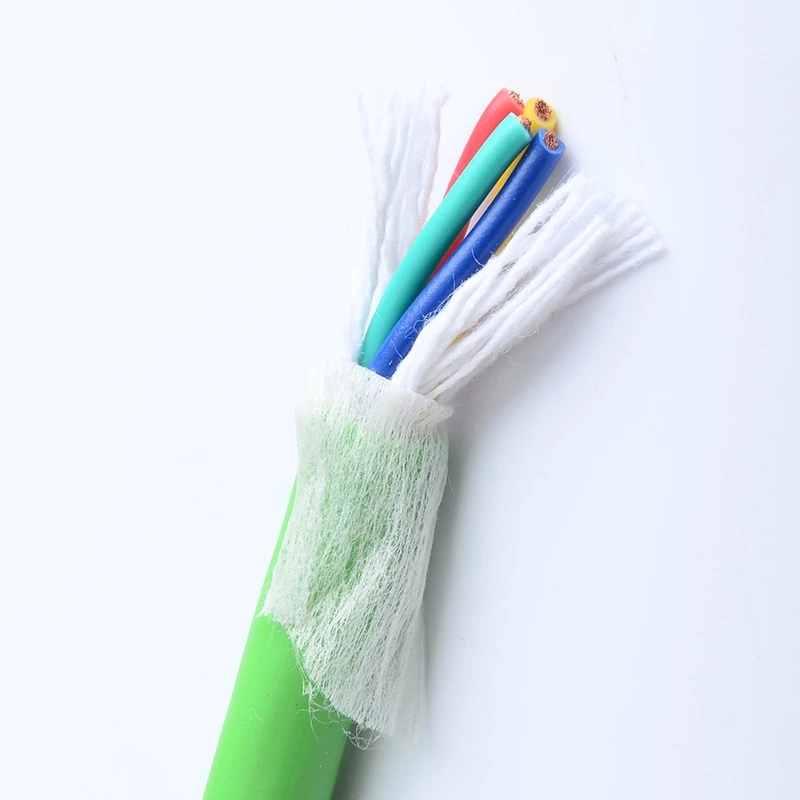

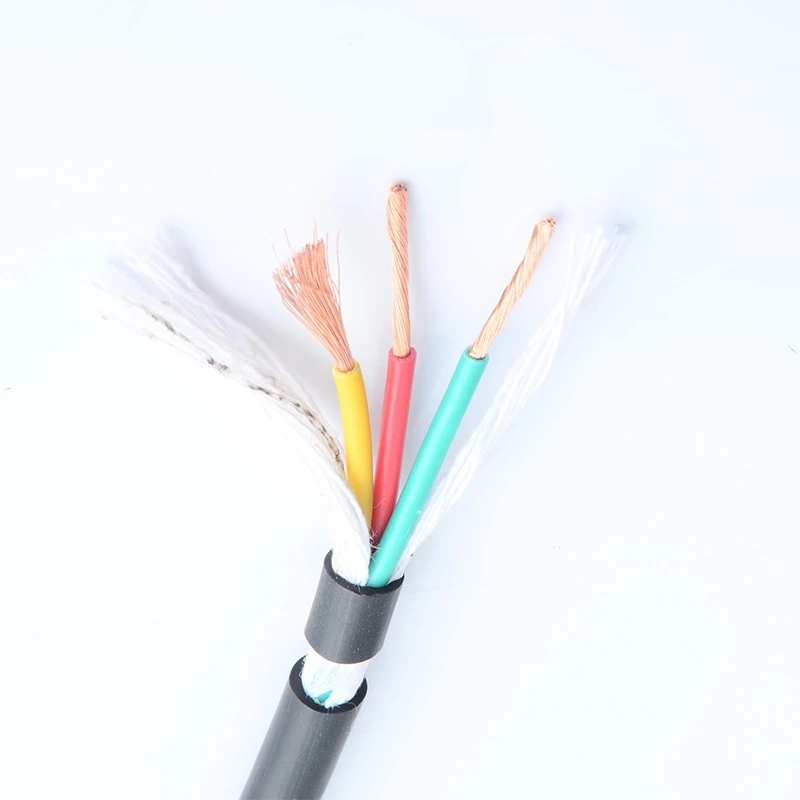

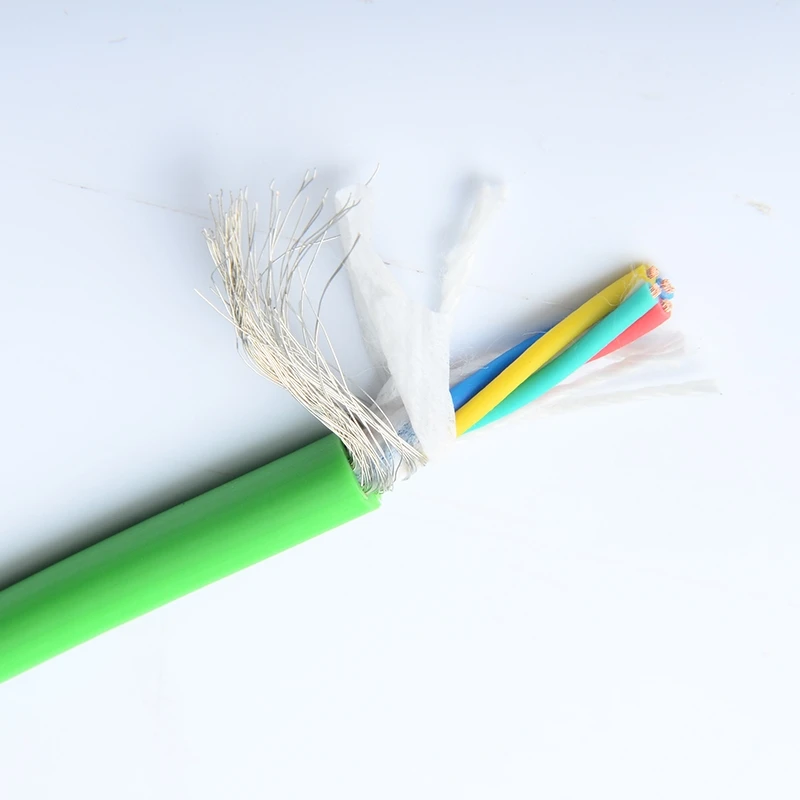

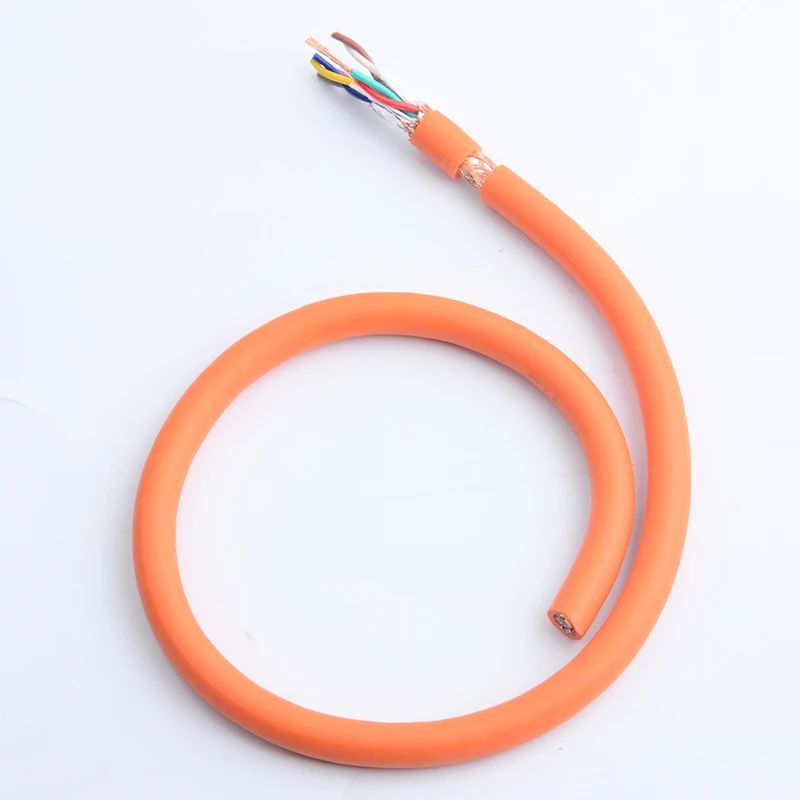

Sectional view & structure

1ConductorIn acc. With VDE0295 Class 6
2Insulation layer
Special low viscosity PVC mixture
3Filler
Special tensile strength core
4Outer sheath
Special low viscosity wear resistant PVC mixture

Technical data
Operating voltage: 0.14 mm2: 350 V , >= 0.25 mm2: 500 V
Insulation resistance:> 20 MOhm x kmMinimum bend radius: movable installation, 15x cable outer diameter, fixed installation 6x
cable outer diameter
Operating Temperature Range: Movable installation: - 5 ° C to +0 ° C fixed installation: -40 ° C to +80 ° C
Flame-retardant characteristics: PVC self-extinguishing and flame retardant to meet IEC60332-1 specified inAnti-radiation
intensity: up to 80 × 106cJ/kg


Packing & Delivery




100m/roll on pallet or as customer's requirments
