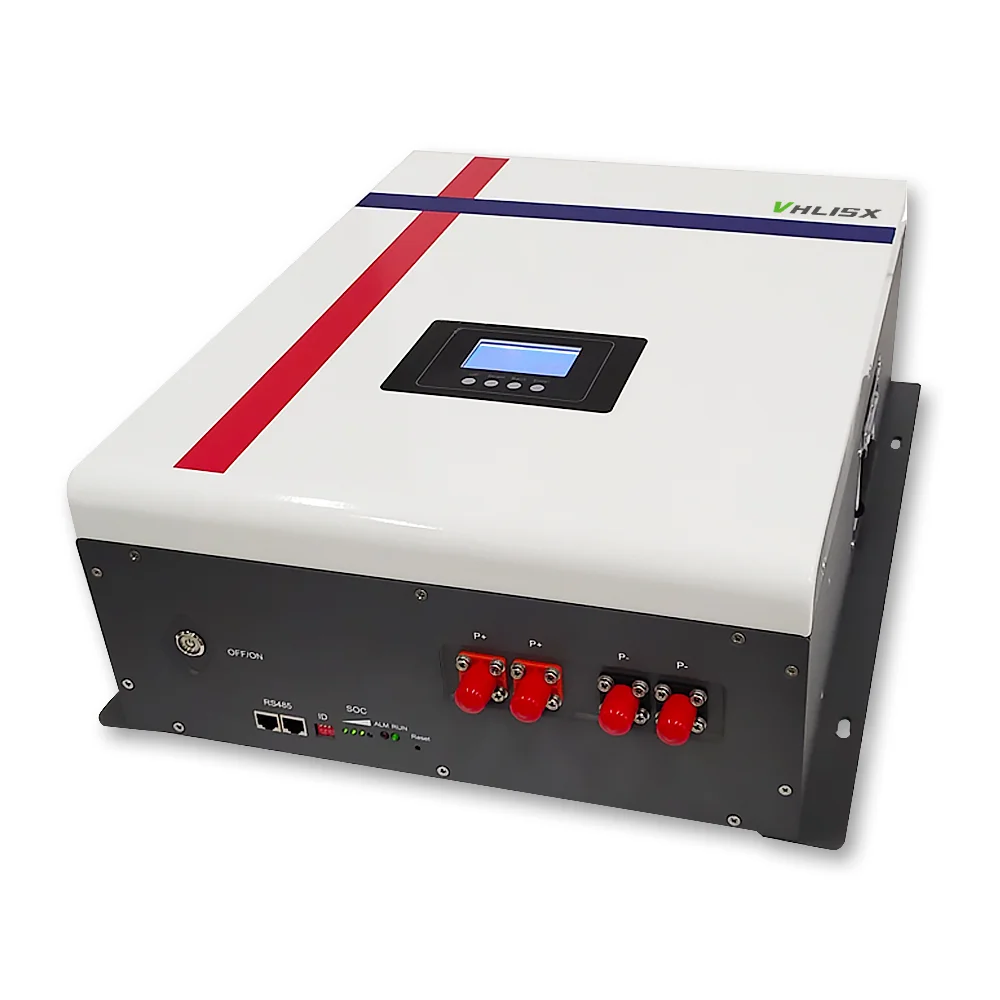

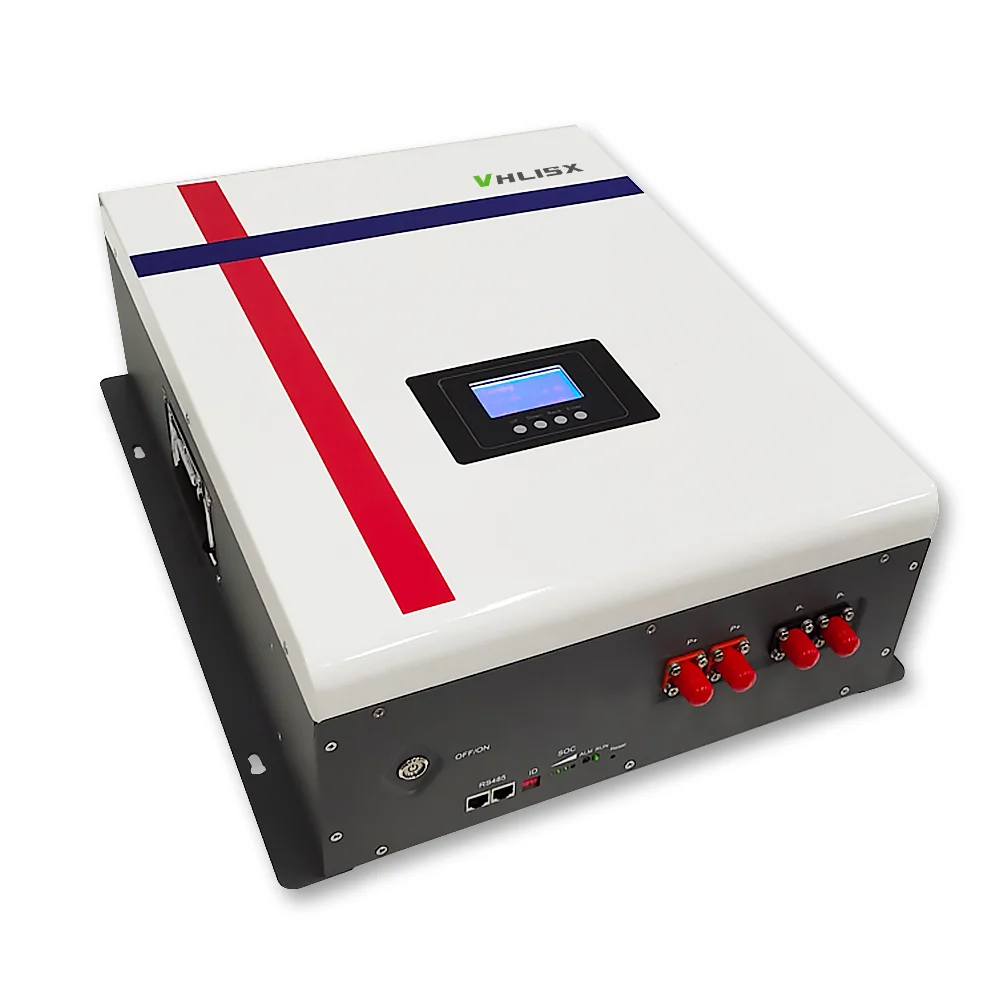

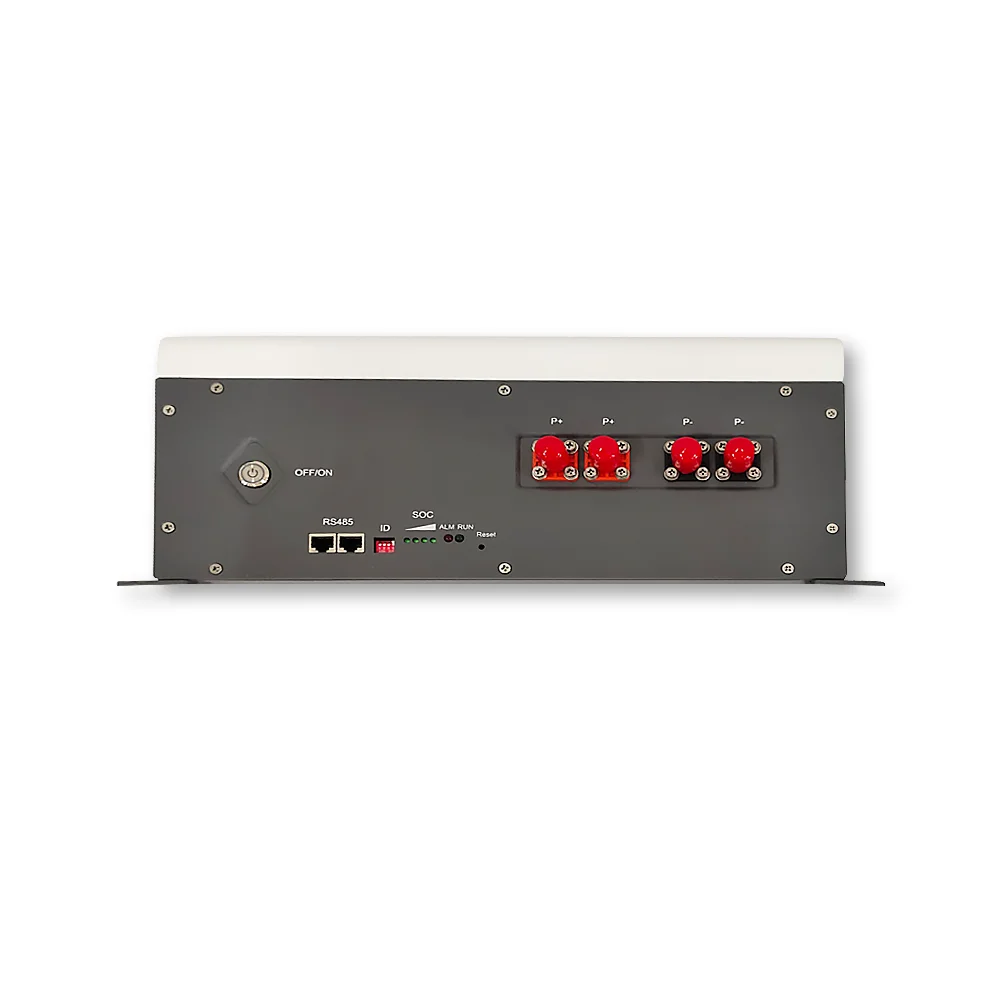

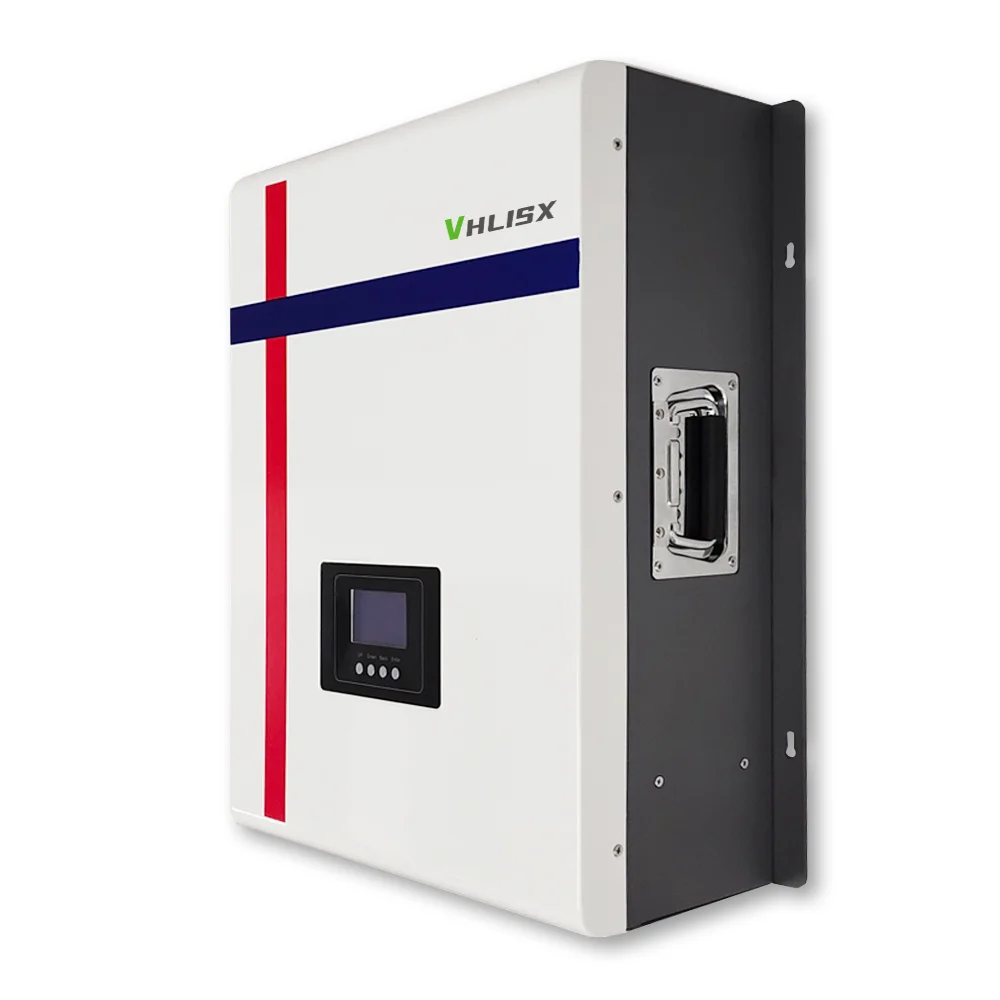

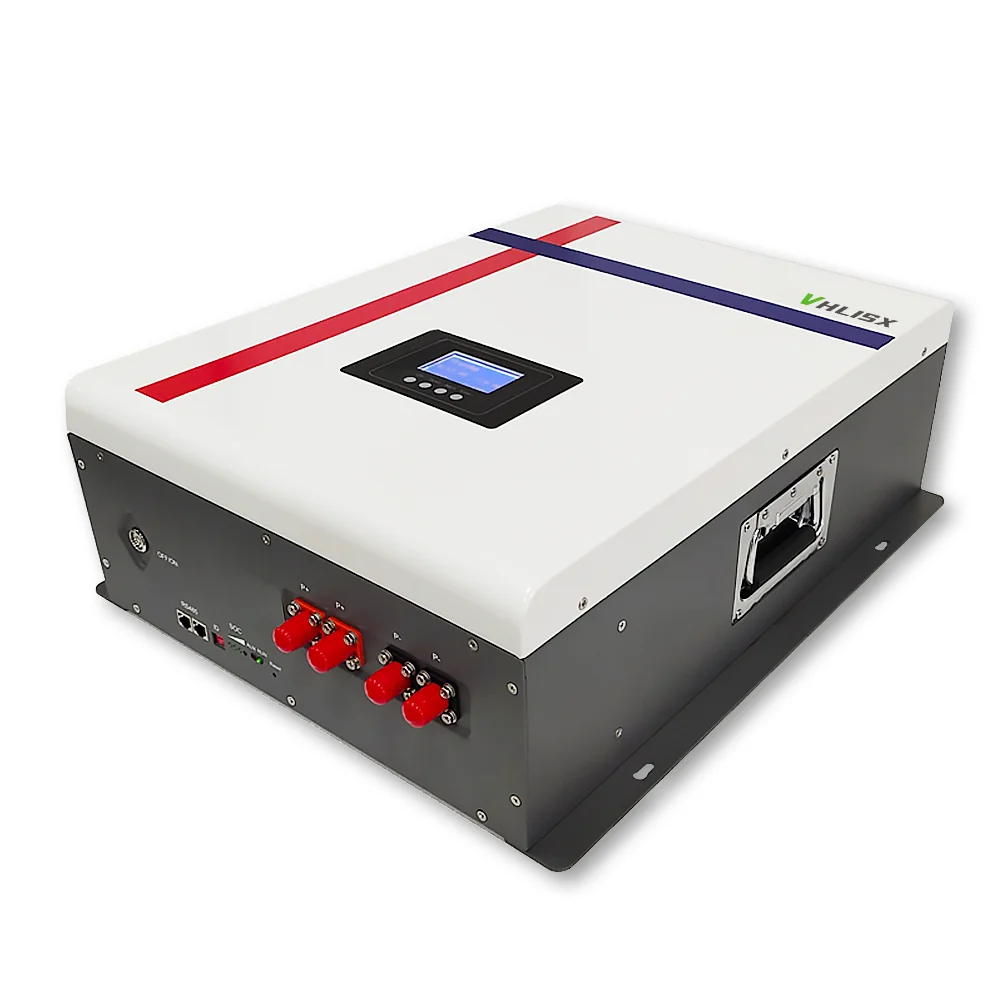

Solar Energy 10kw LifePO4 Battery 48V 200Ah Power Wall Rechargeable LiFePO4 Lithium Battery Pack

Share on (1600467003967):


Price:$680.00 - $780.00

Quantity:


Product Overview

Description



Product Description

Solar Energy Stroage 51.2V 100Ah 150Ah 200Ah lifepo4 5kwh 7.5kwh 10kwh lifepo4 Powerwall Battery Pack





















































































































Model



Module



Powerwall



Voltage&Capacity



48V 50AH



48V 100Ah



48V 150Ah



48V 200Ah



Display



LCD Optional



LCD



LCD



LCD



BMS



Built-in BMS



Built-in BMS



Built-in BMS



Built-in BMS



Cycles LiFe



6000Cycles



Warranty



10 Years



Communication



CAN/RS485



Operation Voltage Range



40.5V~54.75V



Charge Voltage



54V/58V



Charge Mode



0.2C to 54V, then 54V,charge current to 0.02C (CC/CV)



Max Charge Current



50A



100A



100A



100A



Discharge Cut Off Voltage



40V



40V



40V



40V



Standard Discharge Current



20A



50A



50A



50A



Max Discharge Current



50A



100A



100A



100A



Charge Temperature



0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity



Discharge Temperature



-20 ℃ to 55℃ (-4F to 131F) @60±25% Relative Humidity



Dimension [H*W*D, mm]



Customized



680*495*185



680*495*185



680*495*185



Battery Pack Weight



30KGS



68KGS



95KGS



108KGS



Alarms



Battery Operation/Out of Battery/System fault



Pros

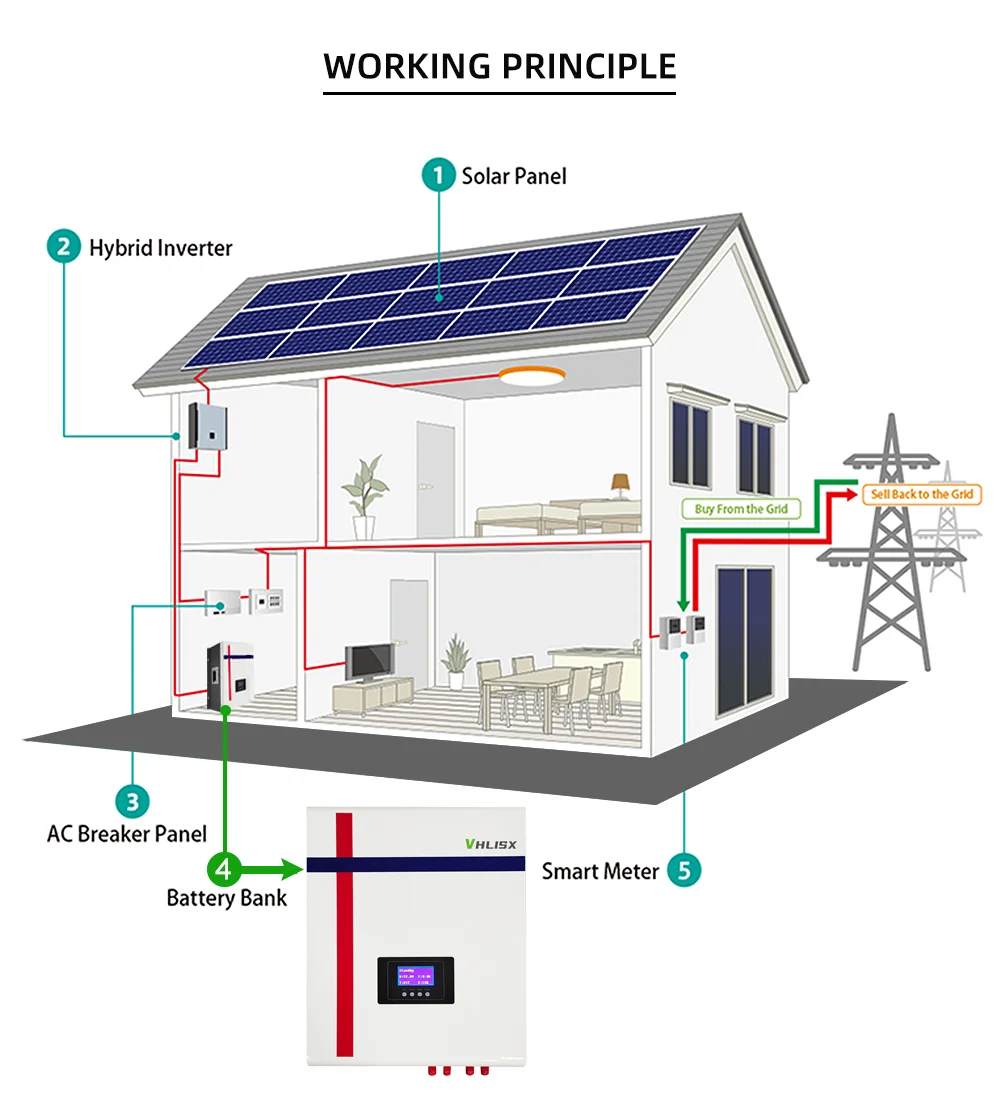

Applied in off-grid and hybrid system, Compact Design, Modular Expansion

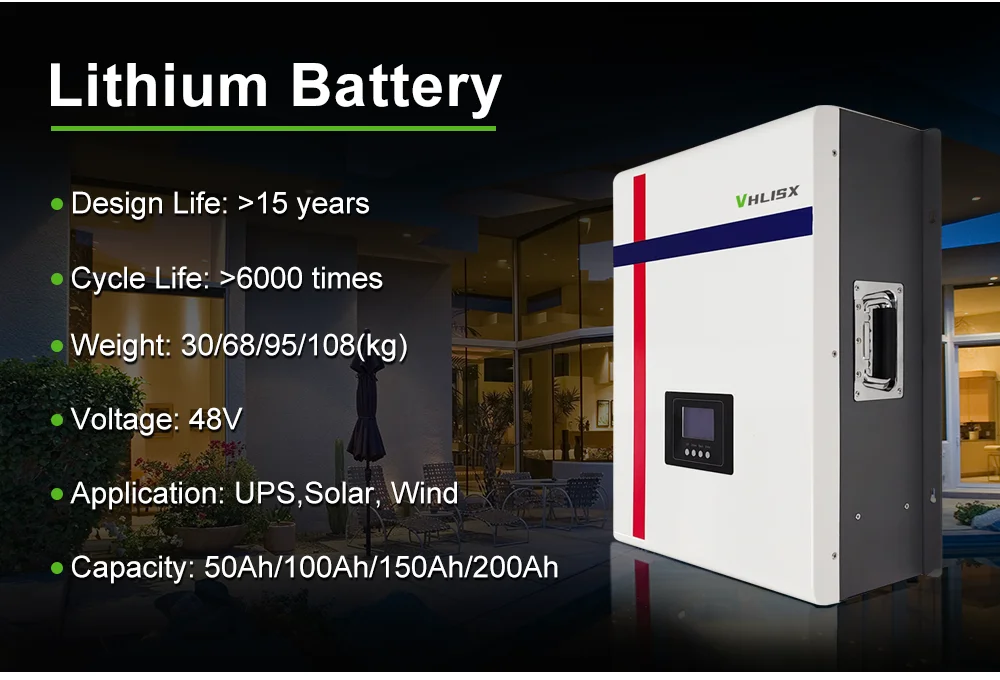

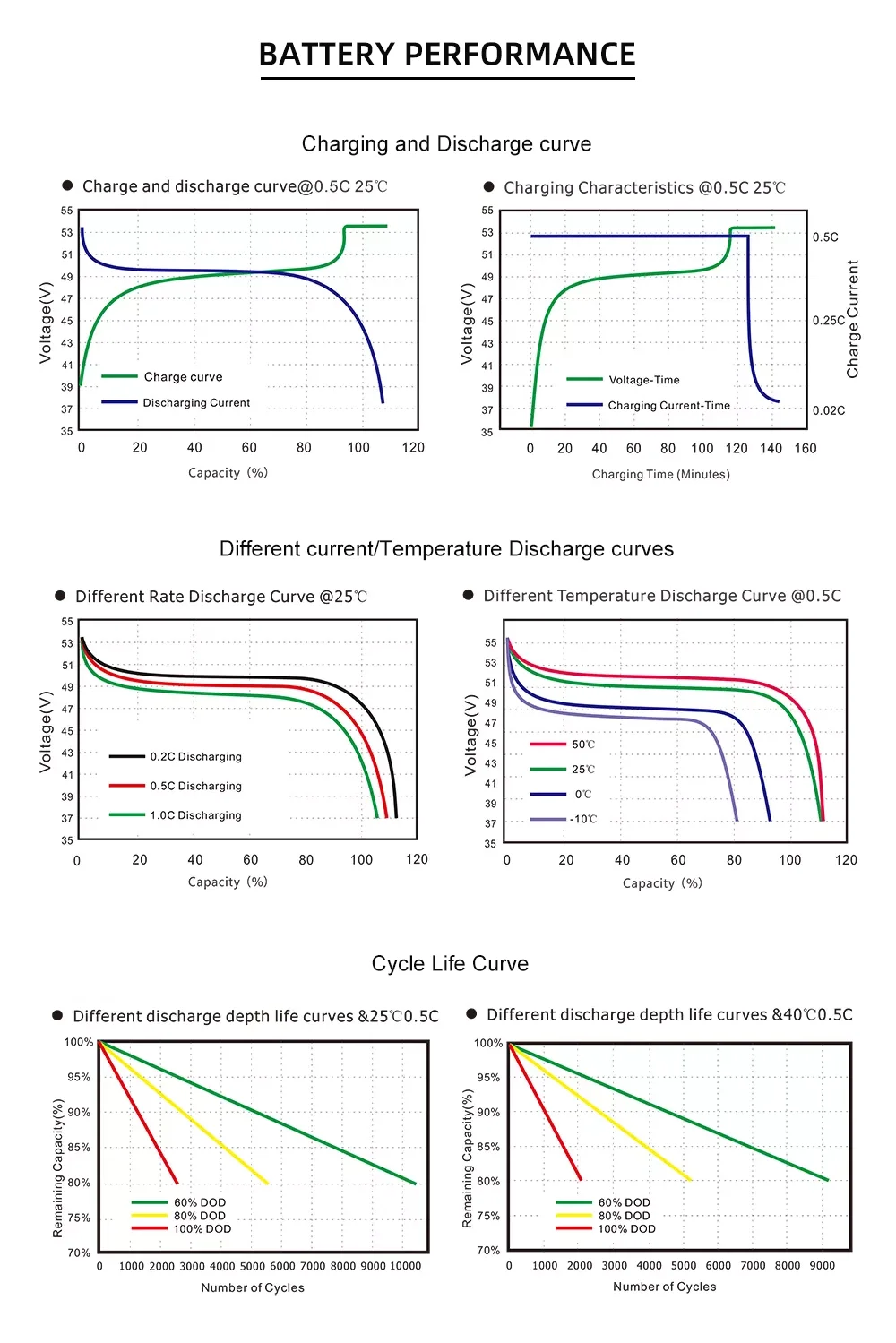

Product Images

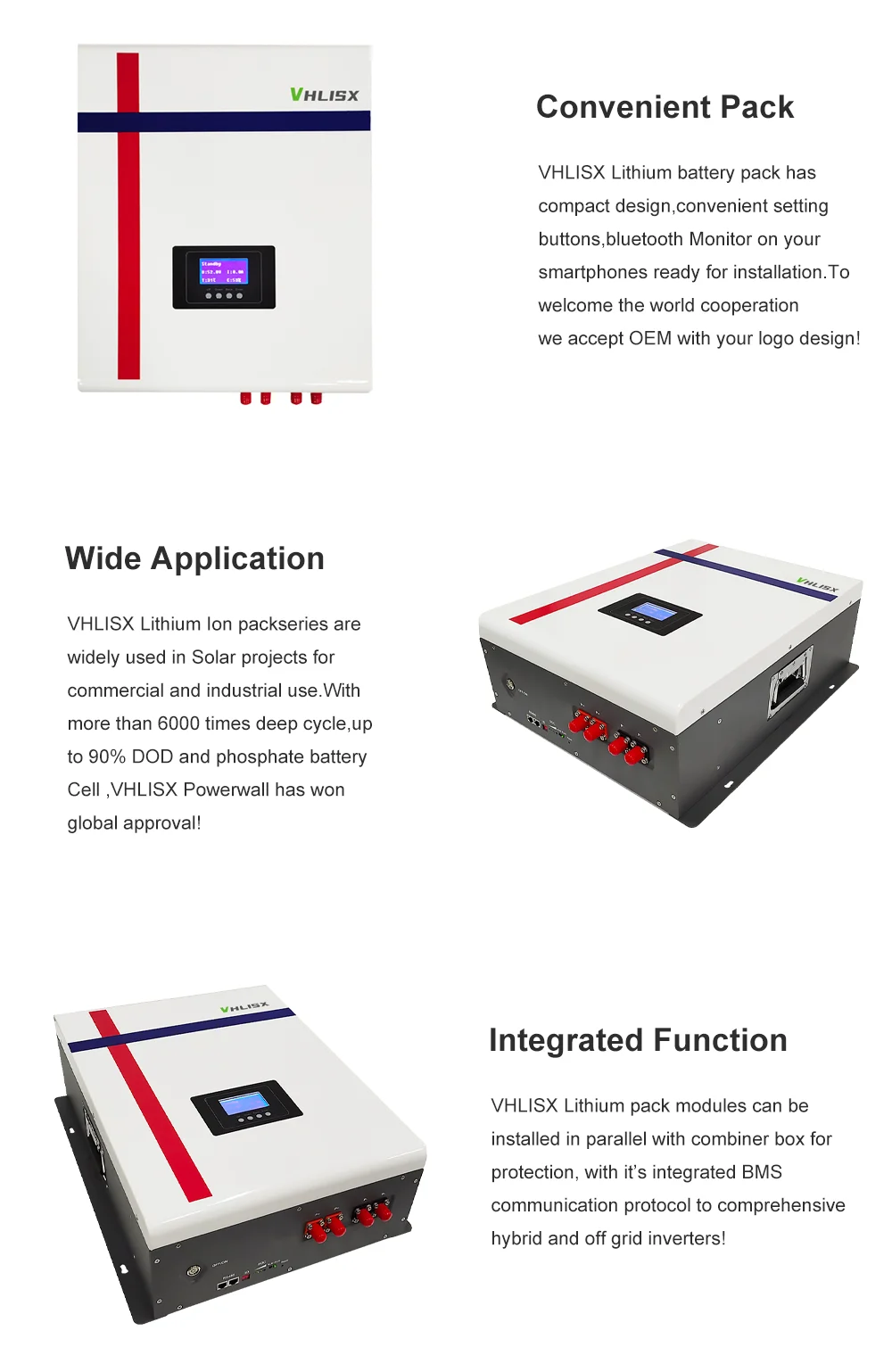

 NEW-detail_14NEW-detail_02NEW-detail_04NEW-detail_06NEW-detail_08NEW-detail_09

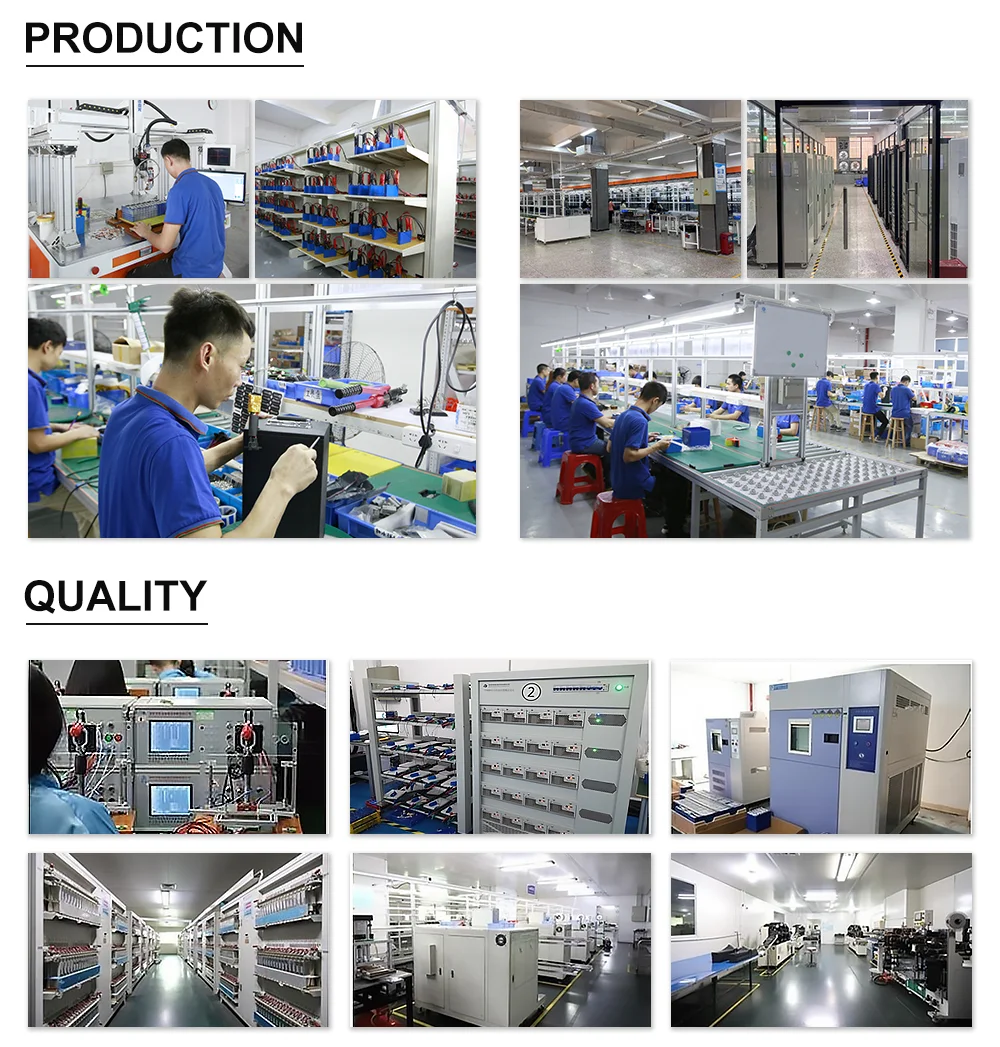

Company Profile


12v300ah_1112v300ah_1312v300ah_1412v300ah_1512v300ah_16





Packaging & Shipping


12v300ah_17








FAQ


Q1: What are there included for a battery or pack, may I buy charger from you?
A1: Battery case, BMS, battery pack, can buy customzied connector, charger.





Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger


current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.





Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payement, bulk in 10-25 days depends on the quantity.
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.





Q4. What is your warranty?
A4: We offer 1-5 years warranty for all our battery pack for different situation. We ensure at least 3000 cycle life for the LiFePO4 battery pack, which means, after 3000@80% DOD, there will still around 60% capacityt left. You can use it for at least 10 years for normal 1 time charge and discharge everyday.





Q5: Can I customize the size of battery?
A5: Of course yes if yourquantity MOQ workable.





Q6: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.





Q7: How’s the package?
A7: Normally are cartons, but also we can pack it according to your requirements.








Q8. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A8: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.





Q9. Can we use it for car engine?
A9: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
