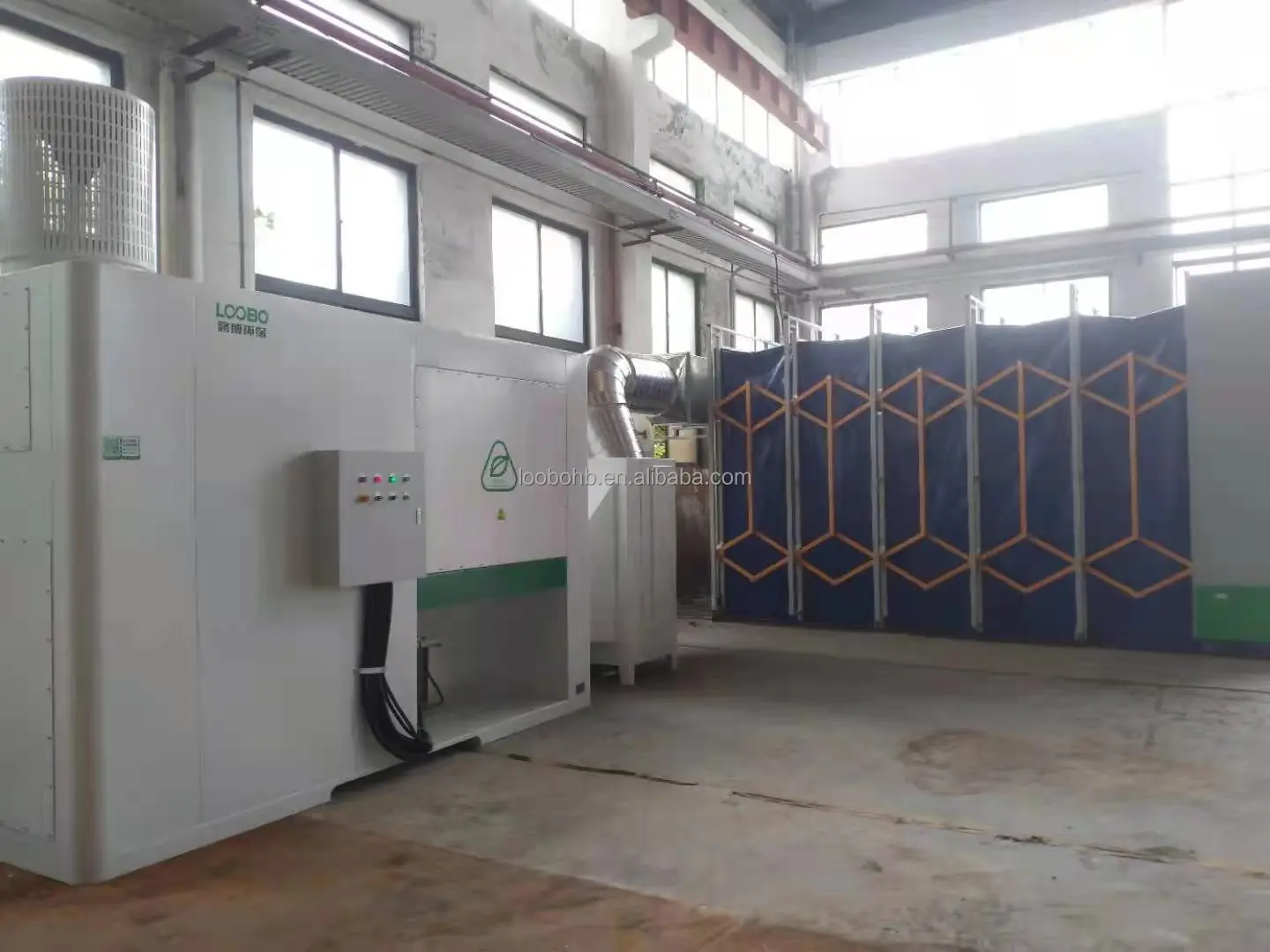

Plasma cutting dust collector for plasma table air filtration with cartridge filter and automatic cleaning system
- Category: >>>
- Supplier: Qingdao Loobo Environmental Protection Technology Co. Ltd.
Share on (1600467004106):
Product Overview
Description
Product Description

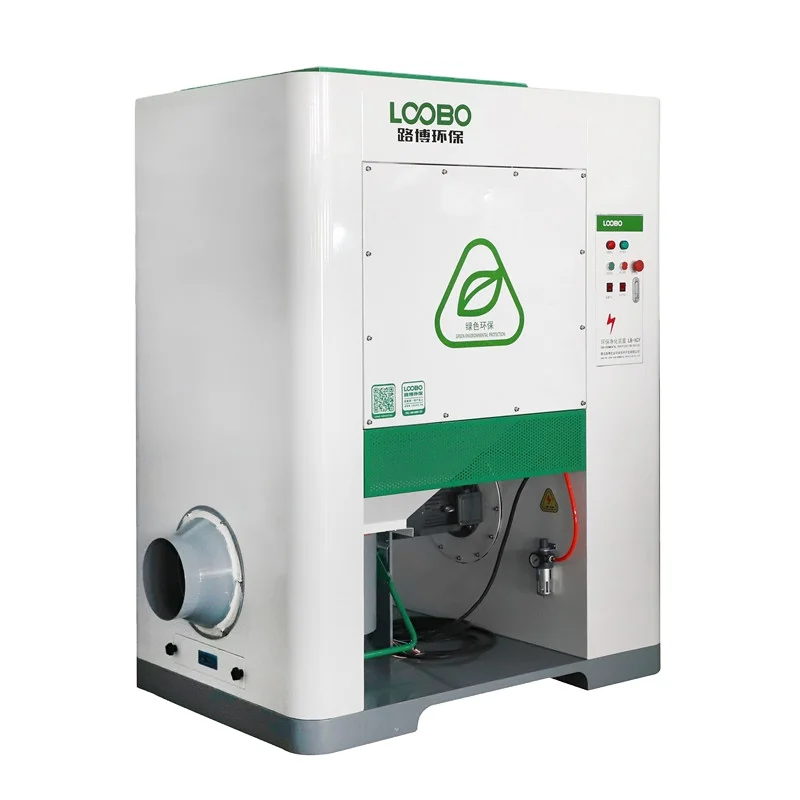

LB-XCY series compact cartridge filter dust collector with built in fan system and electric control system.
Description:
The integrated machine of filter cartridge and dust collector has compact and reasonable structural design and adopts the built-in structure of fan. It covers a small area and can be placed indoors or outdoors. A series of specifications and models have been developed to meet the requirements of different working conditions on site. Whether it is a large welding or polishing workshop or a welding center, a robot welding production line, a plasma, a laser cutting and blanking production line, etc., suitable product models can be found. Our technology designs the best smoke capture device and pipeline system according to different site working conditions of customers.
Structure:
Mainly consist of: fire proof high efficiency filter cartridge, fan, imported motor, electronic control system and so on.
Feature:
1 Dust generated in the process of welding, cutting and polishing enters into the purifier through the suction pipe under the action of negative pressure. The Martian dust is separated by a fire screen before entering the chamber, while the residual heat is blocked
2 The flow plate is evenly distributed in the purification chamber, so as to be better purified by the filter cylinder.Larger
particles of soot are produced by gravity
3 Use the bottom to sink into the dust bucket, and the fine particles of floating dust under the action of suction by the filter
cartridge filtration.When the inner and outer pressure of the filter cylinder is different
4 When the set value is reached, the electromagnetic pulse valve opens, and the filter barrel is sprayed to clear the ash instantaneously without stopping the machine, and the pressure difference changes after the cleaning Small, dust remover continues to maintain the status of dust collection.
5 Flame cutting, laser cutting and plasma cutting.
The integrated machine of filter cartridge and dust collector has compact and reasonable structural design and adopts the built-in structure of fan. It covers a small area and can be placed indoors or outdoors. A series of specifications and models have been developed to meet the requirements of different working conditions on site. Whether it is a large welding or polishing workshop or a welding center, a robot welding production line, a plasma, a laser cutting and blanking production line, etc., suitable product models can be found. Our technology designs the best smoke capture device and pipeline system according to different site working conditions of customers.
Structure:
Mainly consist of: fire proof high efficiency filter cartridge, fan, imported motor, electronic control system and so on.
Feature:
1 Dust generated in the process of welding, cutting and polishing enters into the purifier through the suction pipe under the action of negative pressure. The Martian dust is separated by a fire screen before entering the chamber, while the residual heat is blocked
2 The flow plate is evenly distributed in the purification chamber, so as to be better purified by the filter cylinder.Larger
particles of soot are produced by gravity
3 Use the bottom to sink into the dust bucket, and the fine particles of floating dust under the action of suction by the filter
cartridge filtration.When the inner and outer pressure of the filter cylinder is different
4 When the set value is reached, the electromagnetic pulse valve opens, and the filter barrel is sprayed to clear the ash instantaneously without stopping the machine, and the pressure difference changes after the cleaning Small, dust remover continues to maintain the status of dust collection.
5 Flame cutting, laser cutting and plasma cutting.
Type | Airflow (m³/h) | Power (KW) | Size(mm) | Filter Nos(piece) | Filter size(mm) | Inset/Out set size(mm) |
LB-XCY-4 | 3000-4500 | 3.0 | 1500*1050*1950 | 4 | Φ325*660 | φ250 |
LB-XCY-6 | 4000-6500 | 5.5 | 1800*1050*1950 | 6 | Φ325*660 | φ300 |
LB-XCY-8 | 6000-8500 | 7.5 | 2210*1050*2000 | 8 | Φ325*660 | φ350 |
LB-XCY-12 | 8000-11000 | 11 | 2550*1400*2200 | 12 | Φ325*660 | φ400 |
LB-XCY-15 | 10000-13000 | 15 | 2930*1400*2200 | 15 | Φ325*660 | φ450 |
LB-XCY-15S | 13000-16000 | 18.5 | 2930*1400*2540 | 15 | Φ325*1000 | φ500 |
LB-XCY-20S | 18000-21000 | 22 | 2930*1800*2540 | 20 | Φ325*1000 | φ550 |
Cases:
222

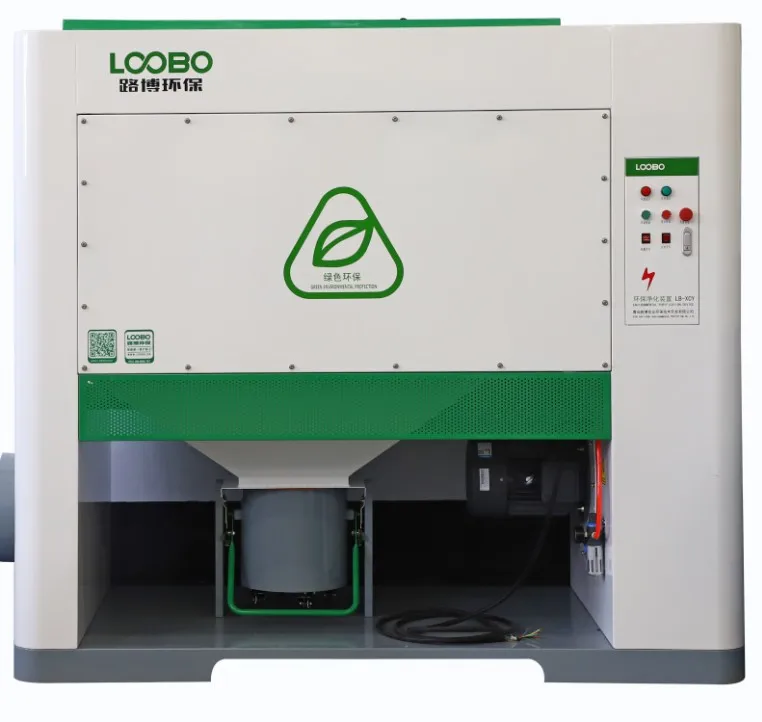

The all in one dust collector main has two colors,one is white, another is blue. Besides, we also can make the colour based on your need;

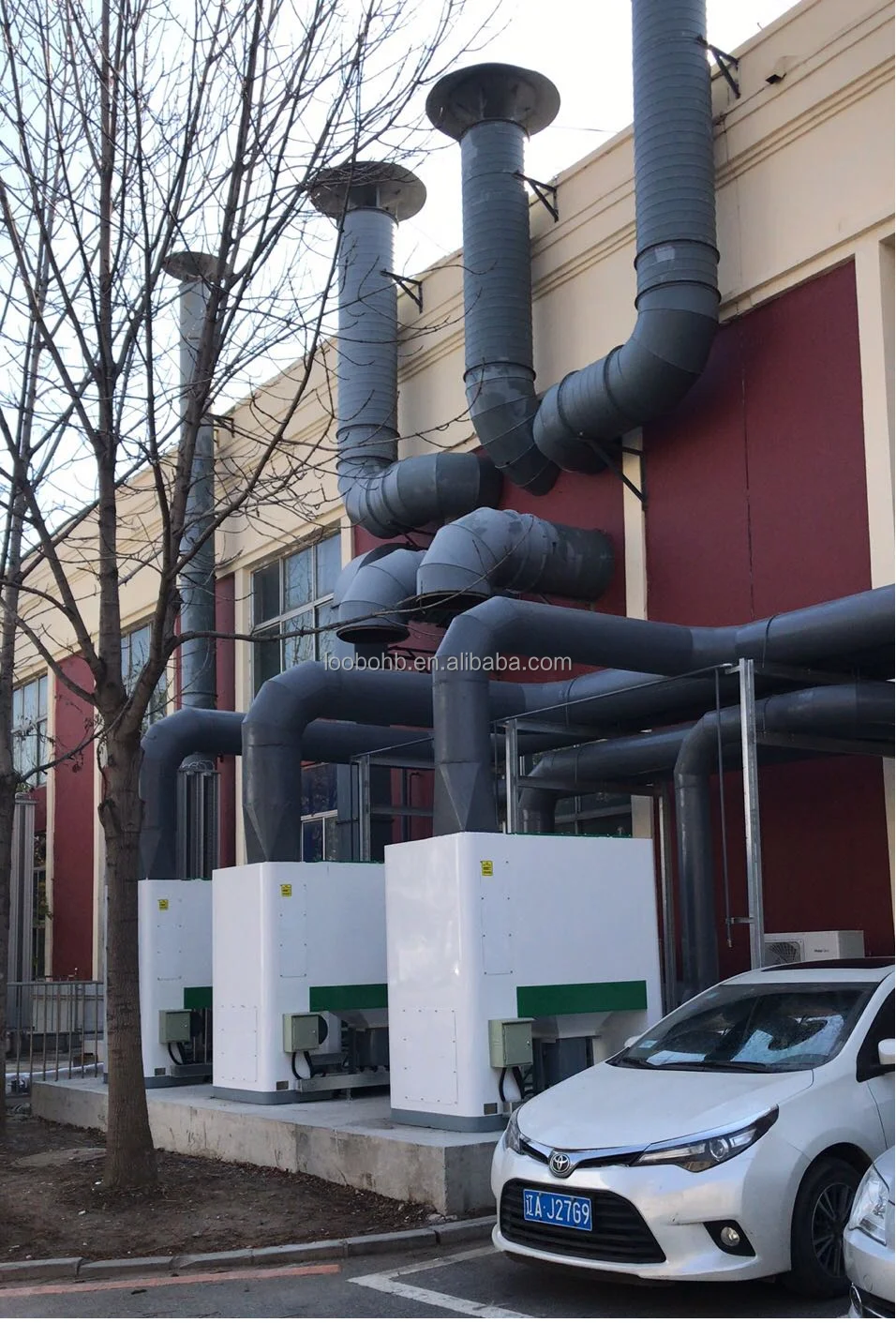

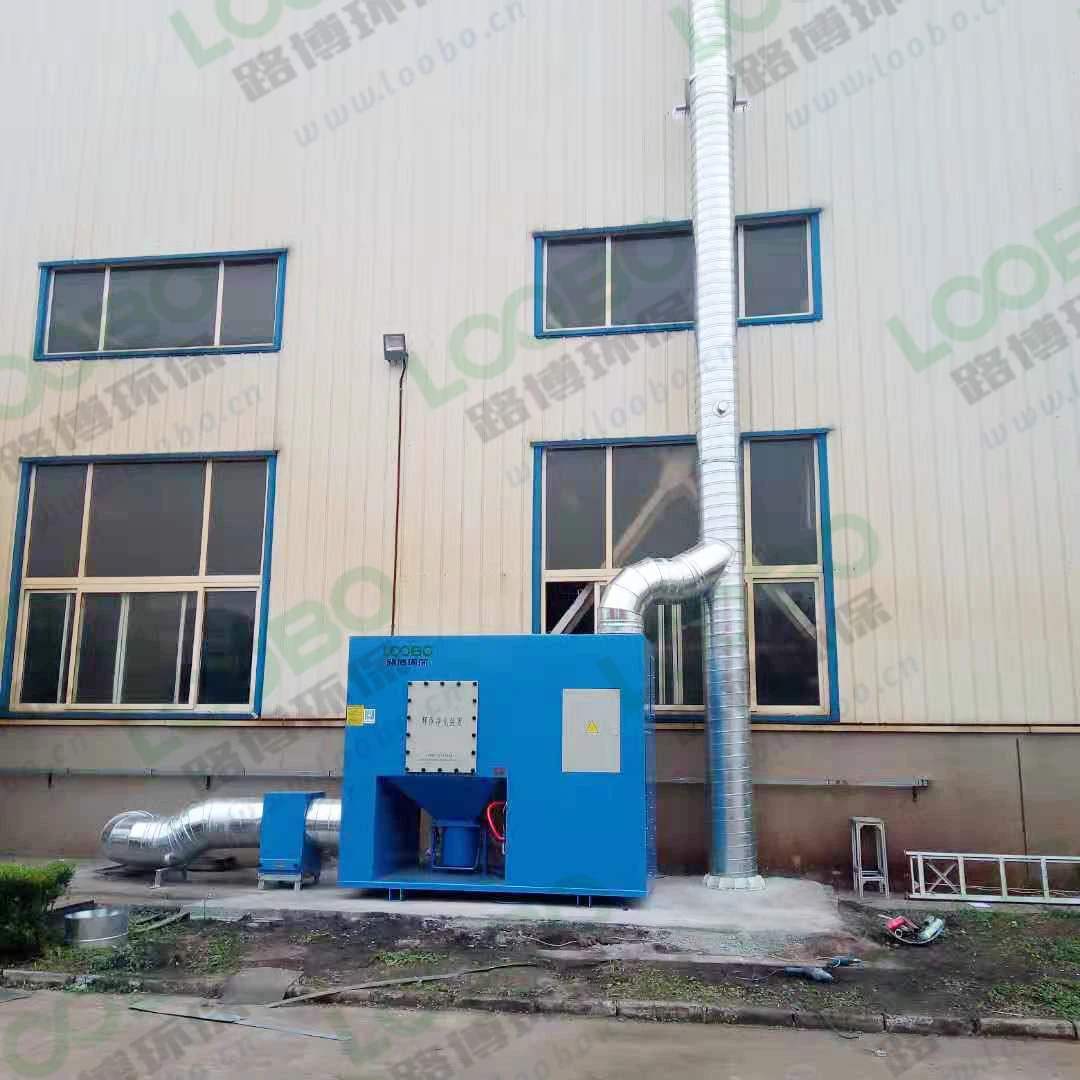

The all in one dust collector not only can stay in factory, but also can be installed out factory.

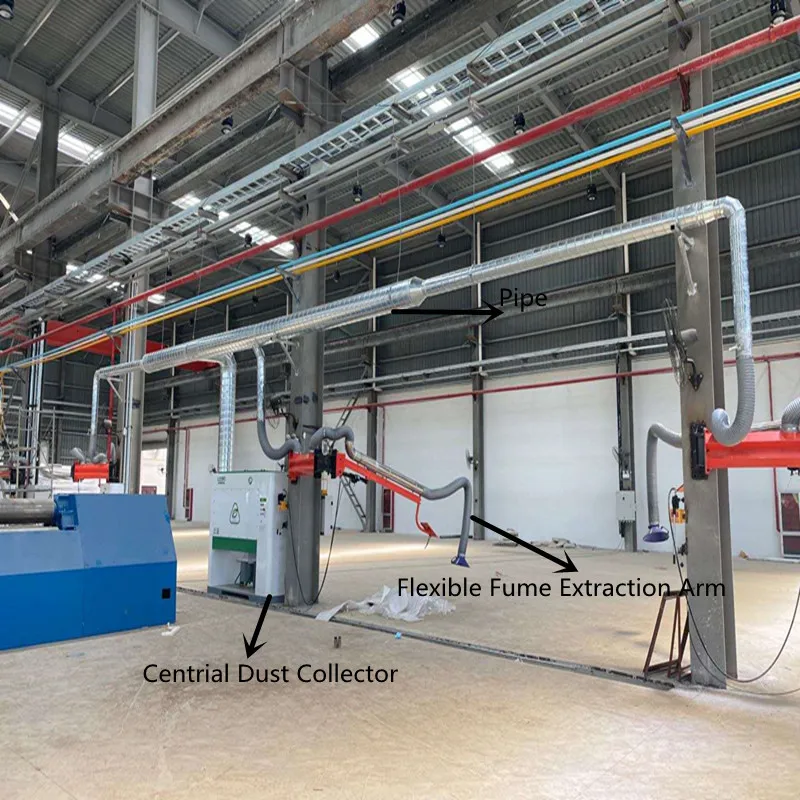

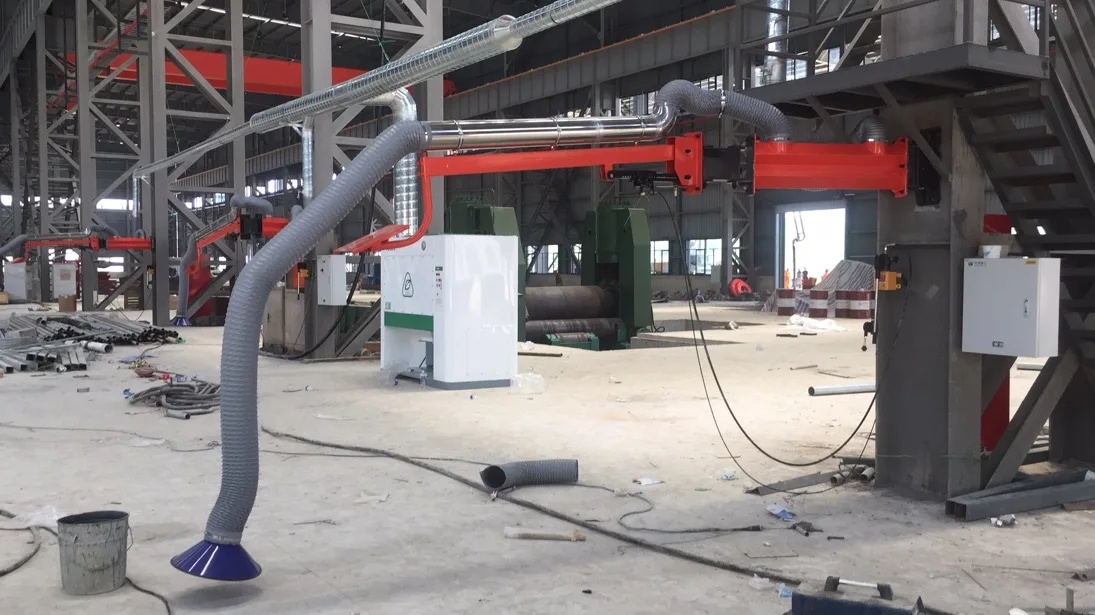

Dust collector with fume extraction arm
The LB-XCY dust collector can contact with pipe and fume arm system to collect fume, then clean the air and discharge the cleaned air to the factory

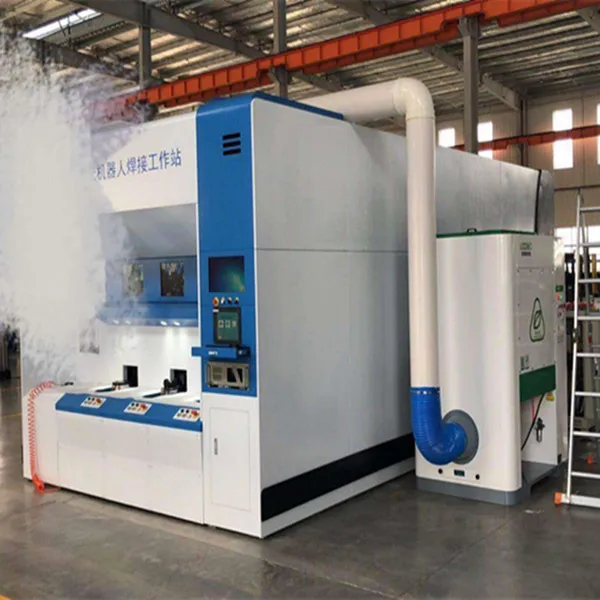

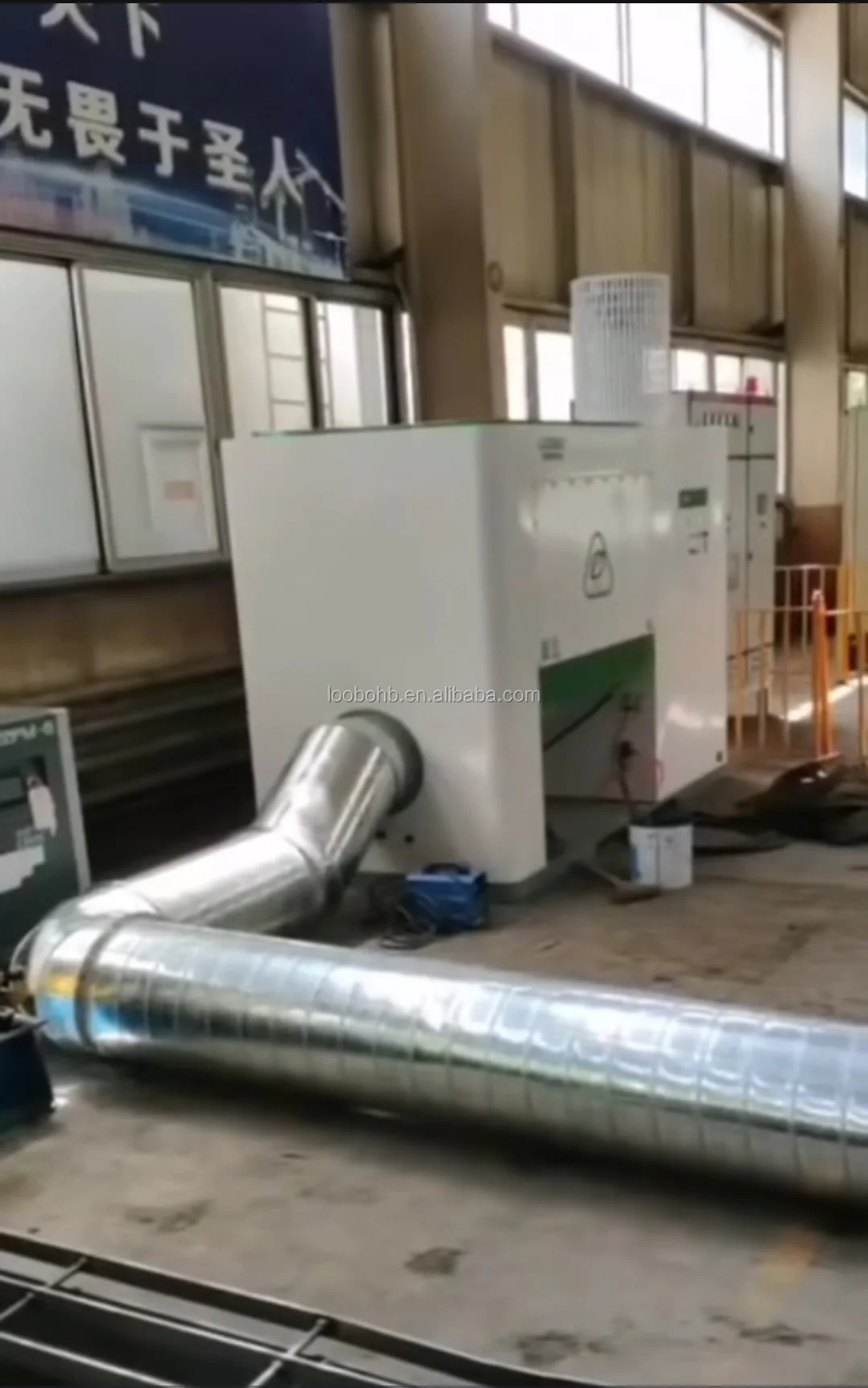

Dust collector use for the cutting machine
The LB-XCY dust collectr can use for the cutting machine, which can move together with the cutting machine

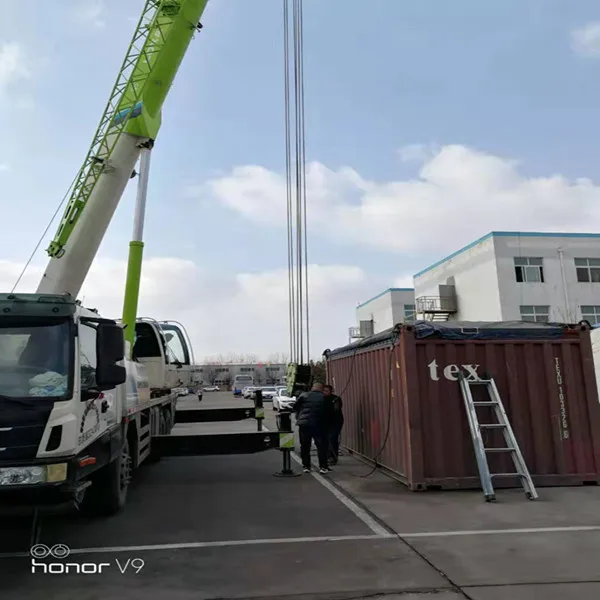

Packing & Delivery

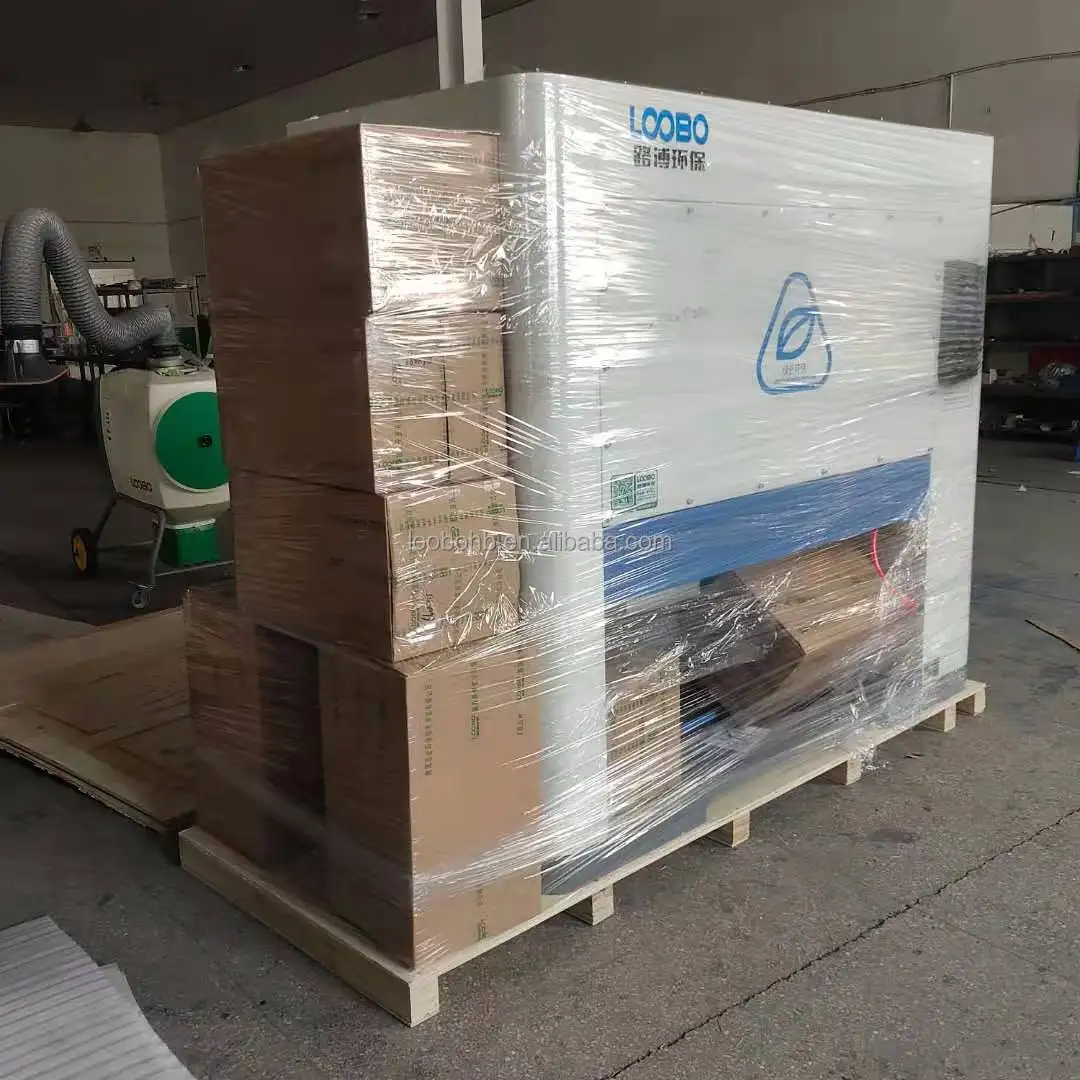

Wooden packgaing
Delivery by sea or air based on customers' request
