Product Overview
Description
Product Overview
River channel dredging pump sand mud remove pump

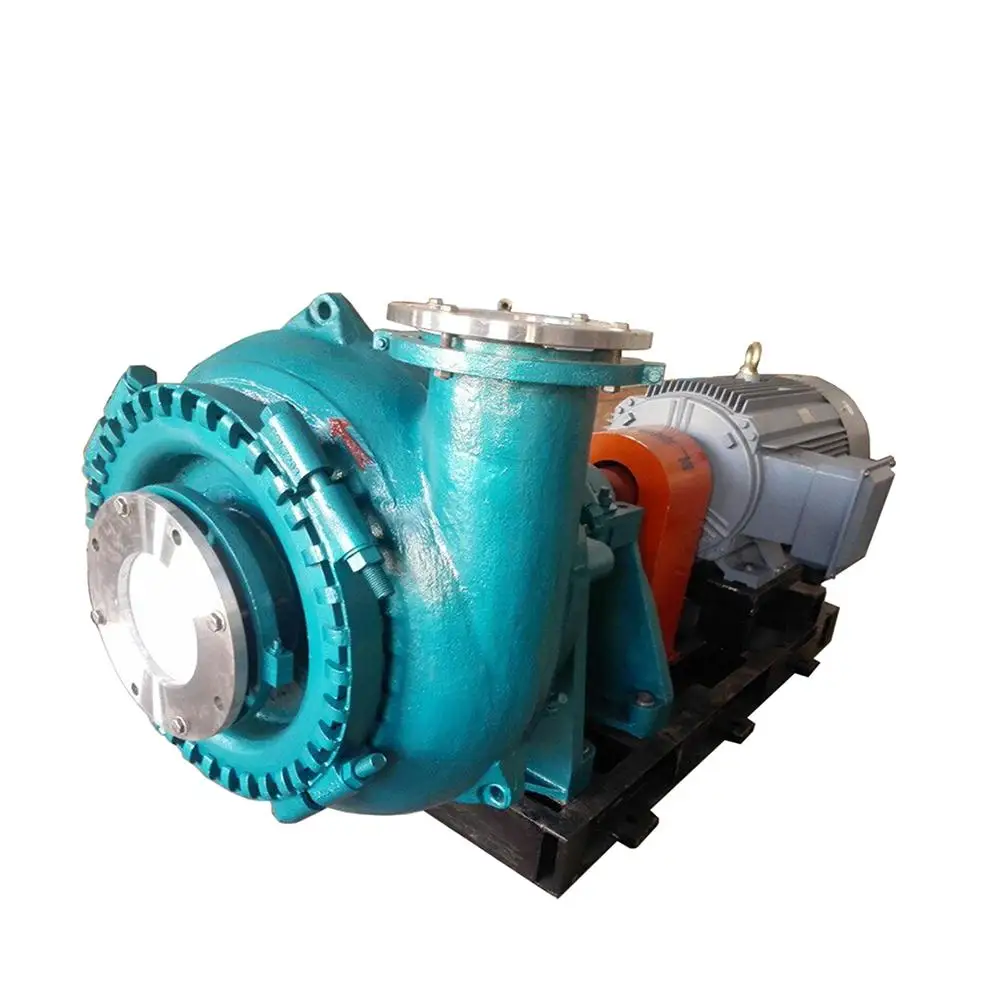

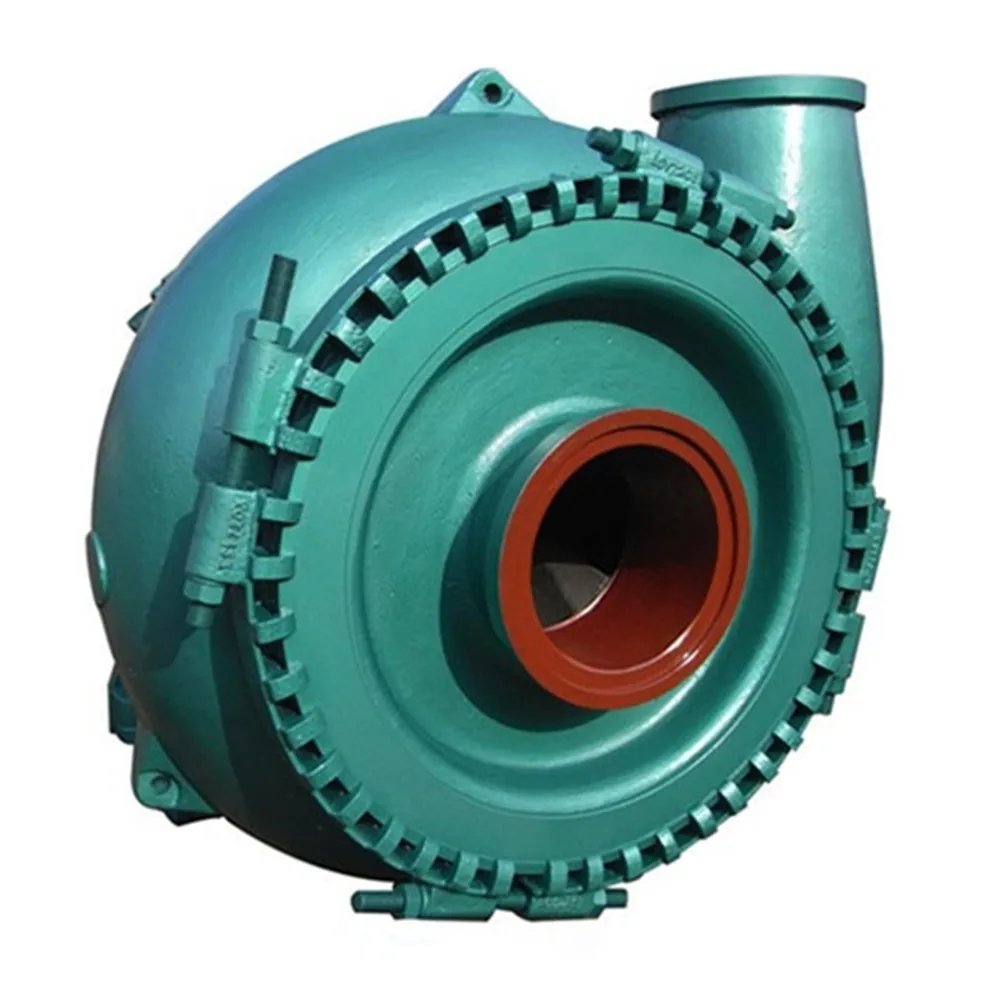

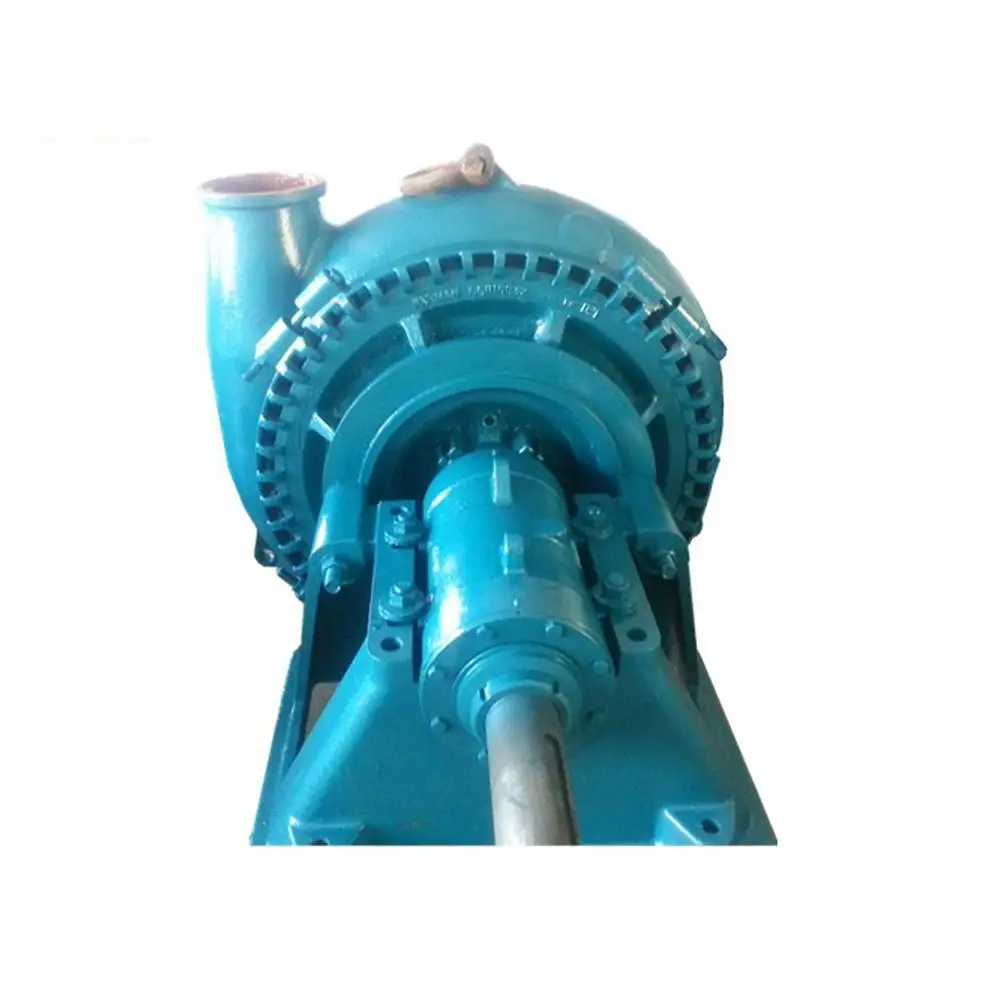

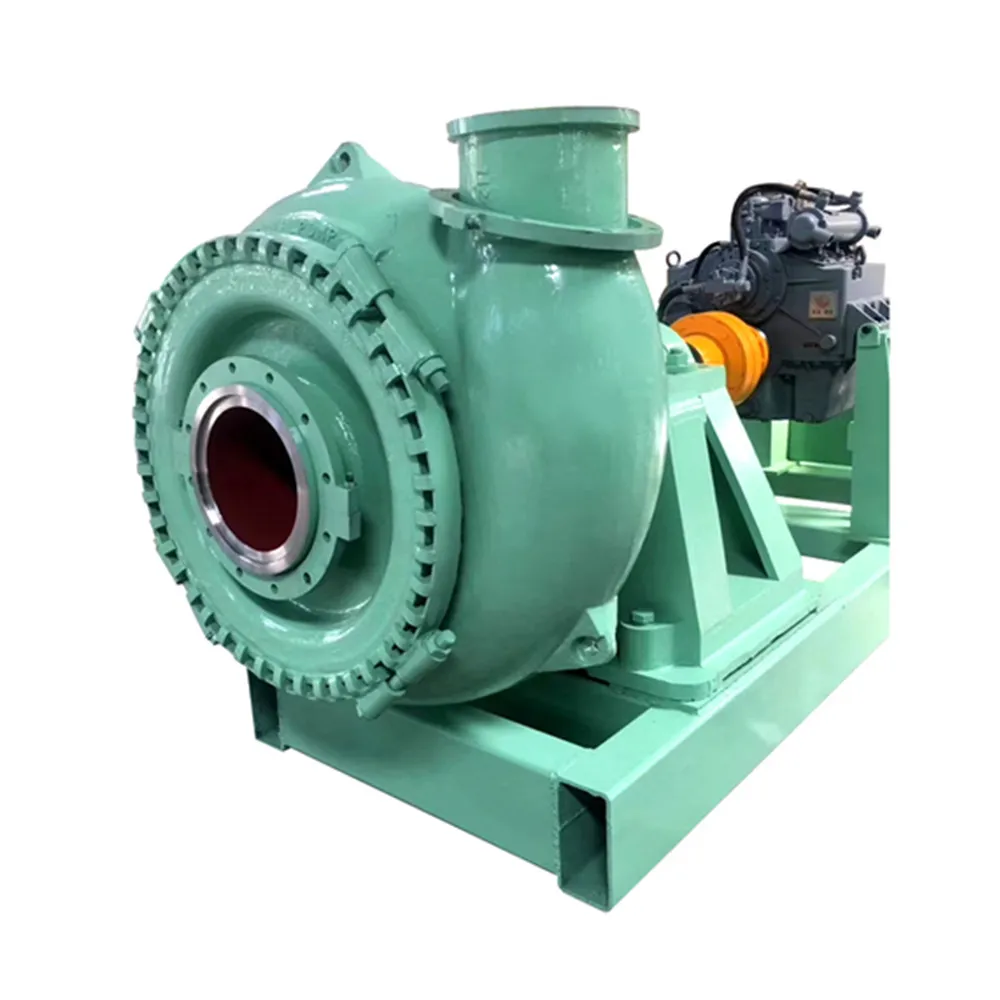

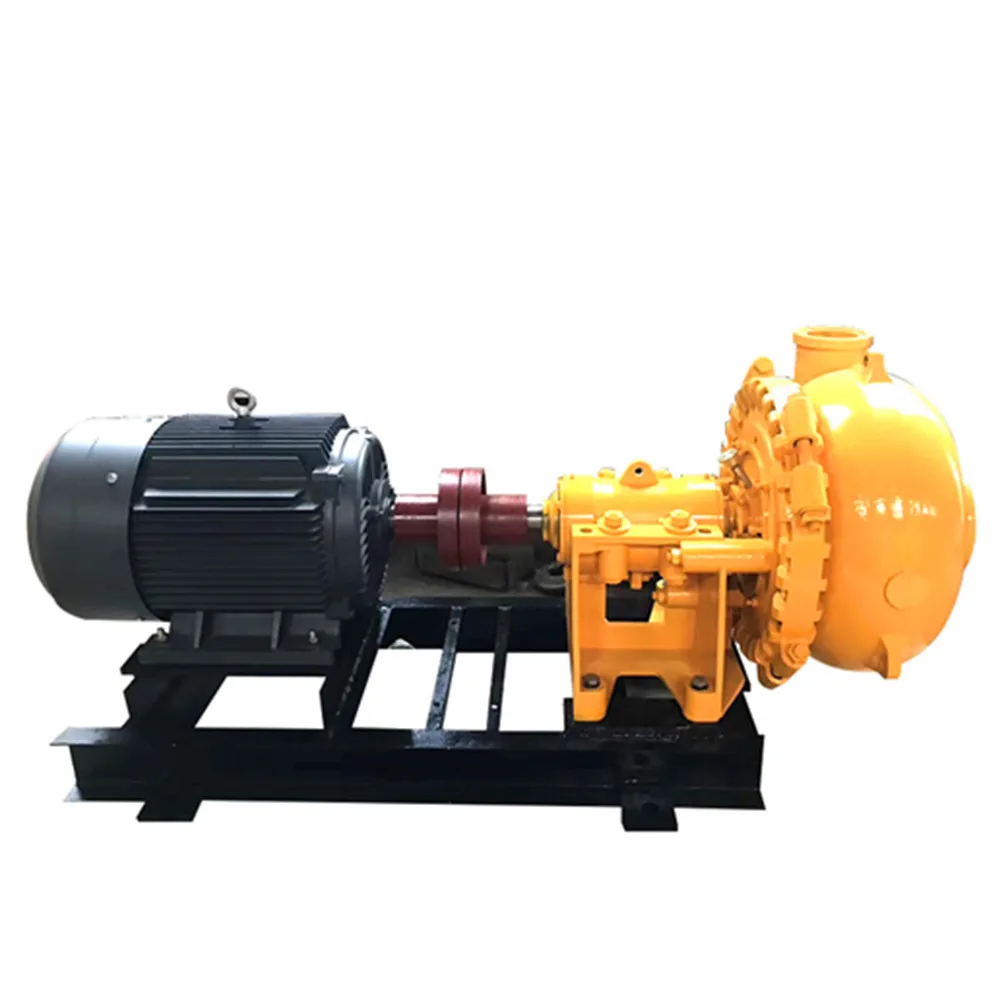

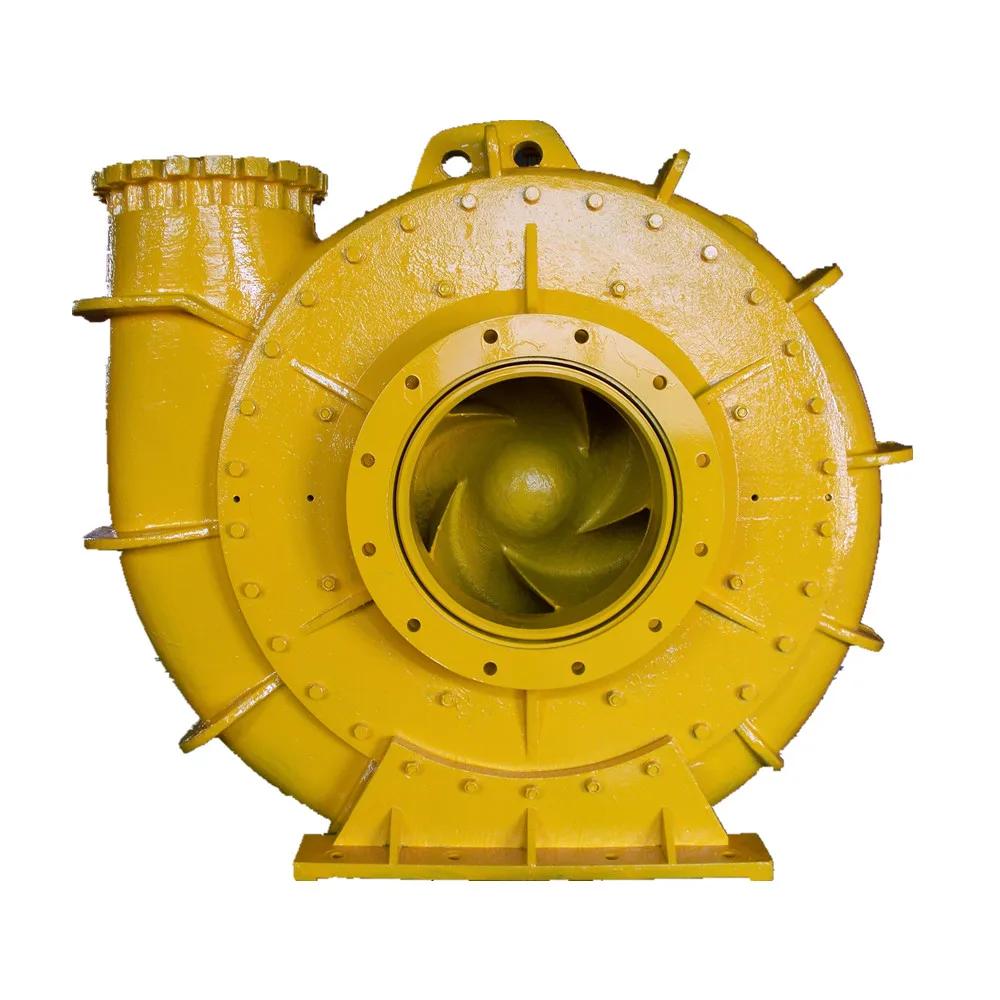

1. G(H) pump is horizontal cantilevered single-casing centrifugal gravel slurry pump.
2. G(H) type pump adopts clamp bands clamping pump body and the cover of the pump
3. The discharge direction of gravel slurry pump can be oriented in any direction of 360.
4. The wet-parts are made of Ni-hard and high chromium alloys.

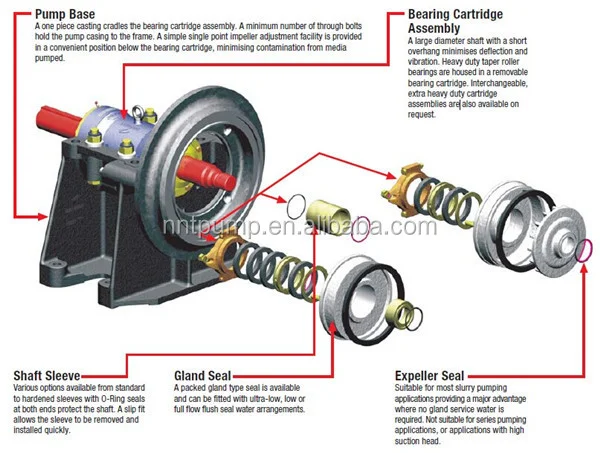

5. Bearing components use cylindrical structure, easy to adjust the gap between the impeller and pump body.
It can be removed in the way of the whole when maintenance.Bearing adopt oil lubrication.
6. Shaft seal: packing seal, expeller seal,mechanical seal
2. G(H) type pump adopts clamp bands clamping pump body and the cover of the pump
3. The discharge direction of gravel slurry pump can be oriented in any direction of 360.
4. The wet-parts are made of Ni-hard and high chromium alloys.
5. Bearing components use cylindrical structure, easy to adjust the gap between the impeller and pump body.
It can be removed in the way of the whole when maintenance.Bearing adopt oil lubrication.
6. Shaft seal: packing seal, expeller seal,mechanical seal

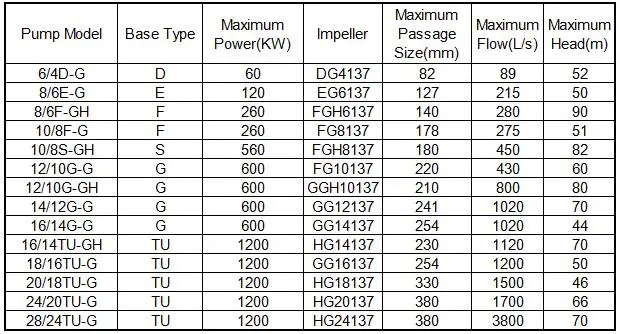

FEATURES AT A GLANCE
Outlet: 4-24 inch
Capacity: 60-4000 m3/h
Head: 6-82 m
Material: Cr27 Ultra chrome alloy
Casing: Single casing
Power : Electric Motor, Diesel Engine, etc.
Application: Sand mining, River dredging,
Mining slurry delivery, etc.
Right elevation
Left elevation
Front elevation

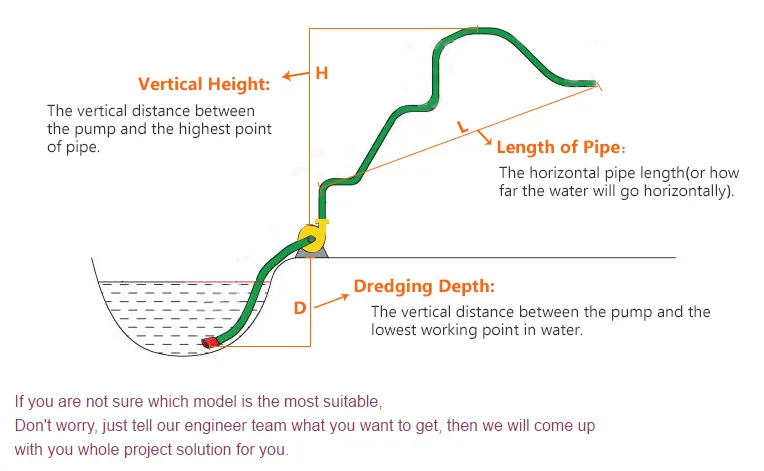

Pump Discharge Head Guide
If you dont have idea about pump discharge head , please provide us the H, L, D dimensions , we will calculate discharge head for your project .
