Полностью автоматическая машина для резки бумаги A4 A3 HQJ без упаковки
- Category: >>>
- Supplier: Ruian Lingfeng Machinery Co. Ltd.
Share on (1600467010229):
Product Overview
Description

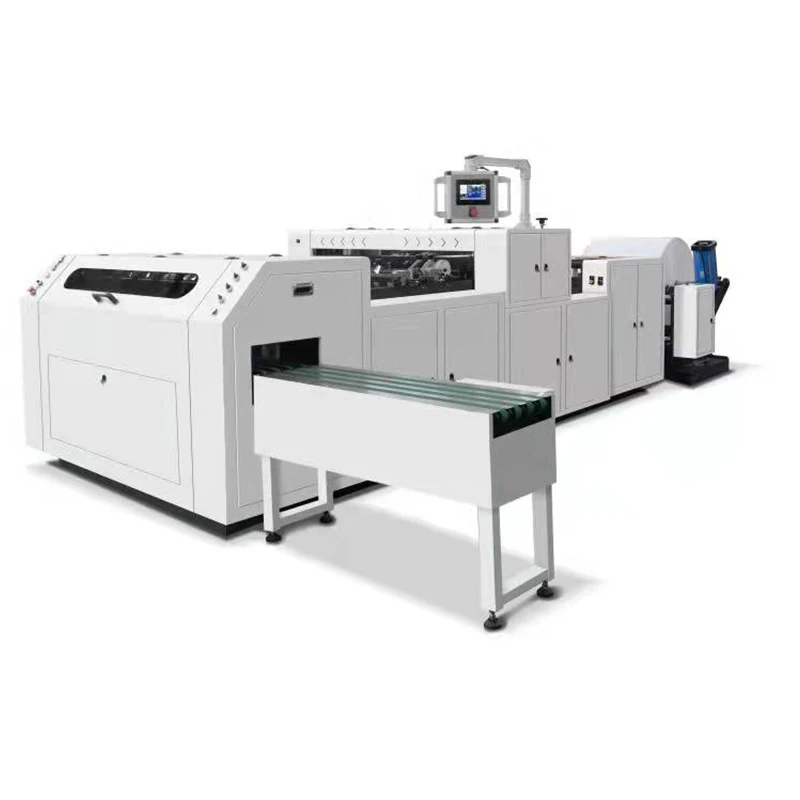

Full Automatic A4 Paper Cutting Machine without Wrapping
Feature:
This Machine suitable for 70-80 gsm thickness reels a4 copy paper
This machine model professional suitable for manufacturing a4 paper product.
1) This Machine adopt Servo Motor (INVT,CHINA),PLC(Panasonic,Japan) Touch Screen (Weinview,Taiwan China)control system, auto counting quantity, auto stop when reached your set quantity , auto tension control and auto conveyor belt etc function.
2) Machine Standard Unwinding device adopt auto pneumatic loading system(Standard 3 inch air shaft), it can loading 1.2Ton roll weight.

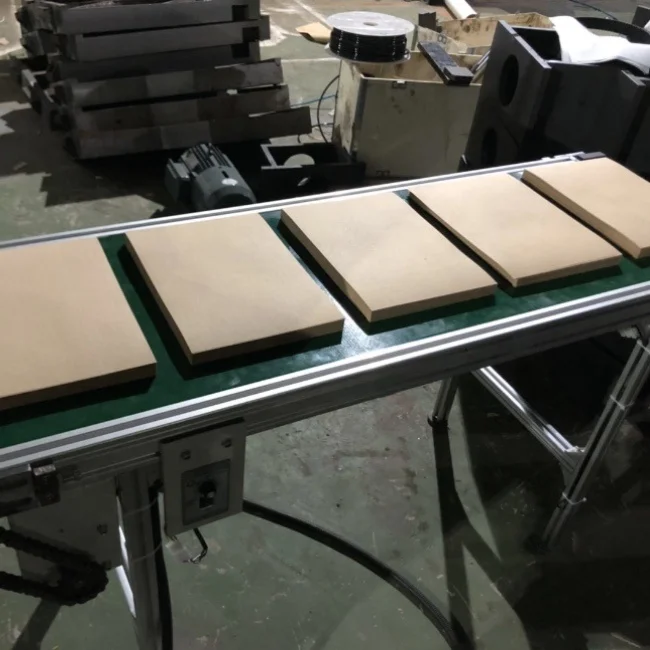

3) Machine Conveyor device adopt newest technology to guarantee delivery a4 paper quality and effect.
4) Paper cutting device adopt high precision and quality Germany cutting blade to guarantee durability and use life.
5) Machine have slitting blade for slitting jumbo width material to get Multi A4 paper size.
Suggestion customer purchase 1056mm width jumbo a4 paper roll. it can guarantee max.Producing capacity.
6) Machine has Three Motor (One Servo Motor to control cutting length, One Normal Motor to control cutting blade move, One Normal Motor to control material feeding)
Specification:
| Model | HQJ-A4-1100-One Roll no wrapping |
| Maximum Cutting Width | 1100mm |
| Cutting Size | A3A4 Size |
| Wrapping Size | A4 Size |
| Cutting Precision | ±0.2mm |
| Material Thickness | 70-80 gsm |
| Capacity | Max.90 Reams per hours( A4 Paper Roll please use 1056mm width) |
| Machine Size | 6000*4500*1900mm |
| Voltage | 380V50HZ |
| Machine Weight | 3000KG |

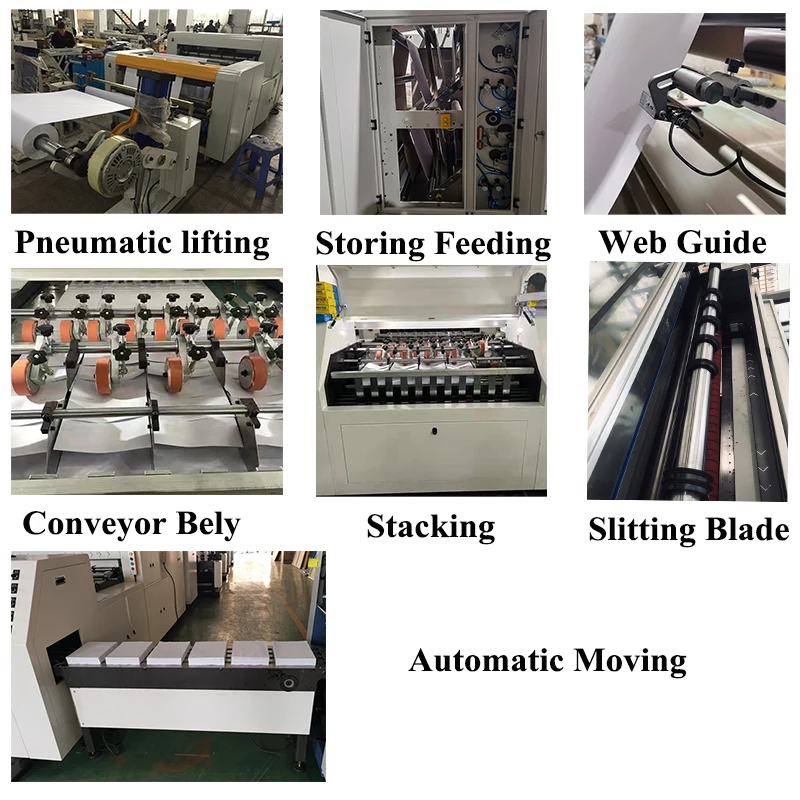

Machine Details:
Packaging:
Company Information
1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.
6.OWNNER WORKSHOP
FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
