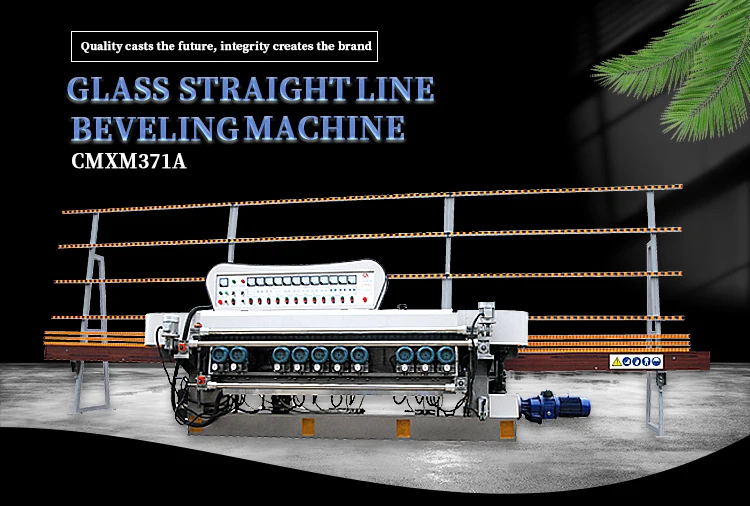

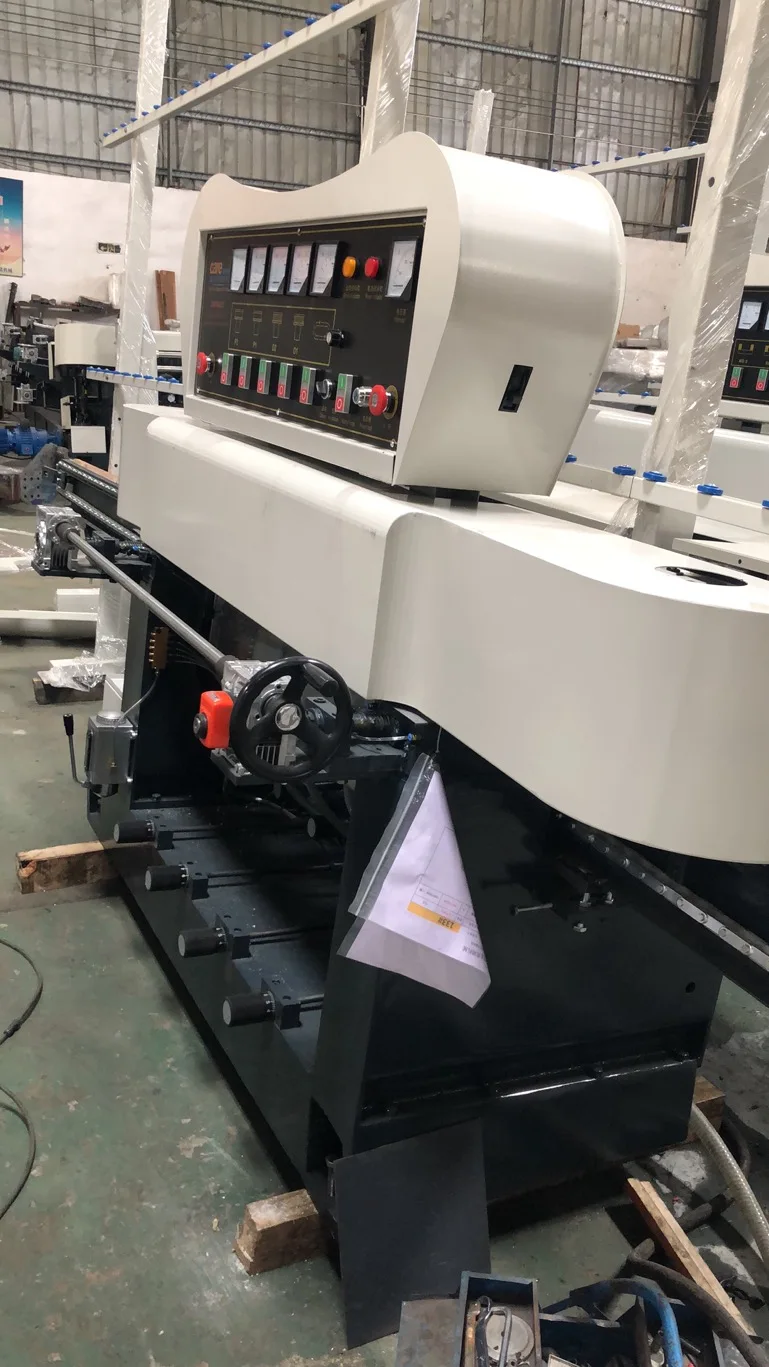

Vertical glass straight bevel edging machine
- Category: >>>
- Supplier: Jinan Care Machinery Technology Co. Ltd.
Share on (1600467013056):
Product Overview
Description

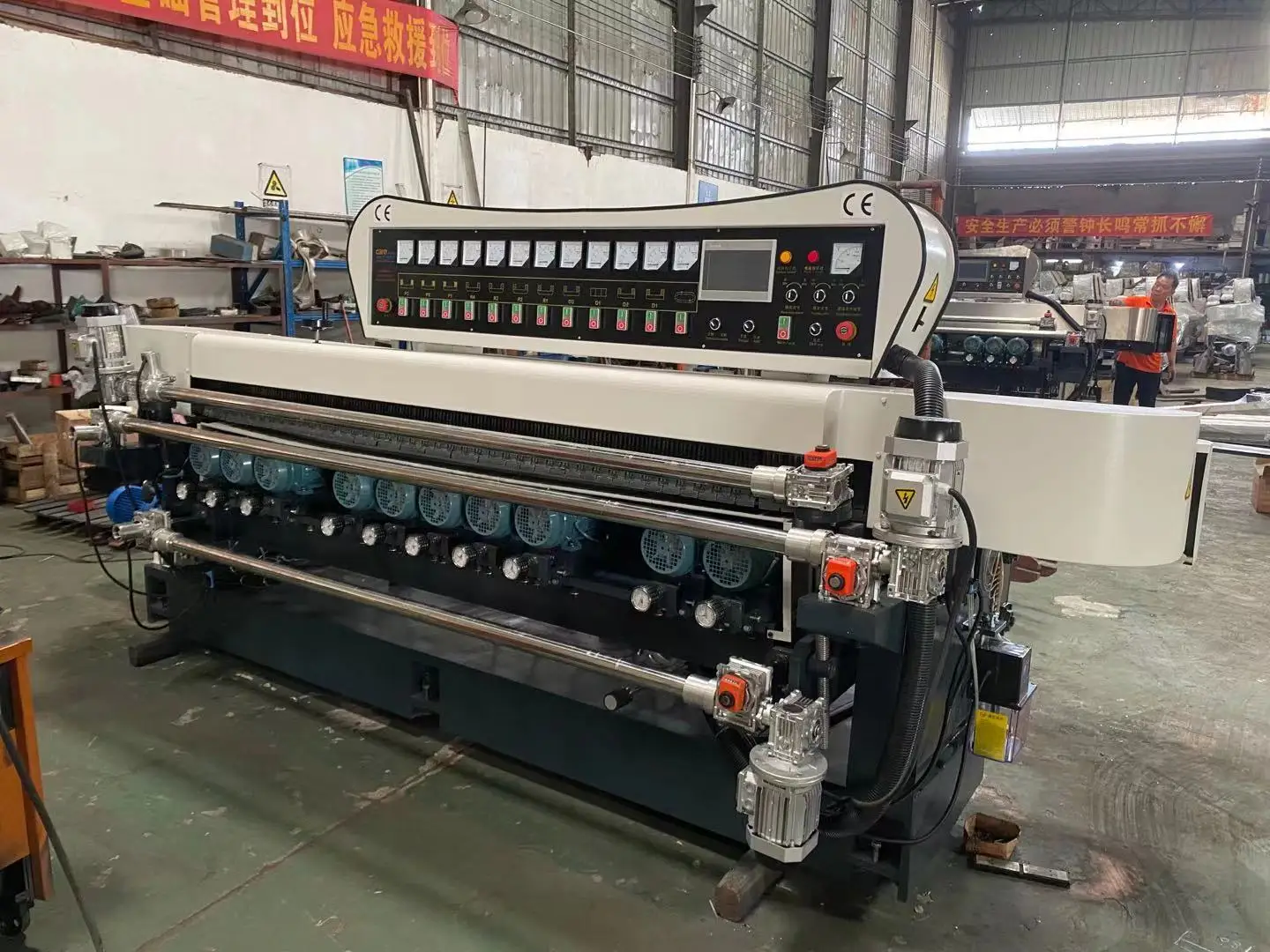

Vertical glass straight bevel edging machine
Video Display
Product Features
1. Using PLC to control glass processing thickness, angle and height.
2. Suitable for grinding flat glass with different bevel edge.
3. The coarse grinding, fine grinding and polishing can be finished at one time.
4. The front pressing plate can be adjusted by lifting system according to glass size.
5. The pressing plates are using with thicker steel plate, which make machine more stronger, transmit steadier and in higher working precision.
6. Working speed can be adjusted at will by continuously variable mechanism transmission, this make operation very easy. 7.Mitsubishi PLC system.
8.PU synchronous belt transmission chain.
9.Raw carbon treatment press plates.
10.Stainless steel water tanks ( cooling & polishing tank both).
Recommend Products
Why Choose Us
Products Description
Foundation, beams & bracket are heavy duty cast steel, annealing treatment. Stable, will never deformation and Ensure high process precision.

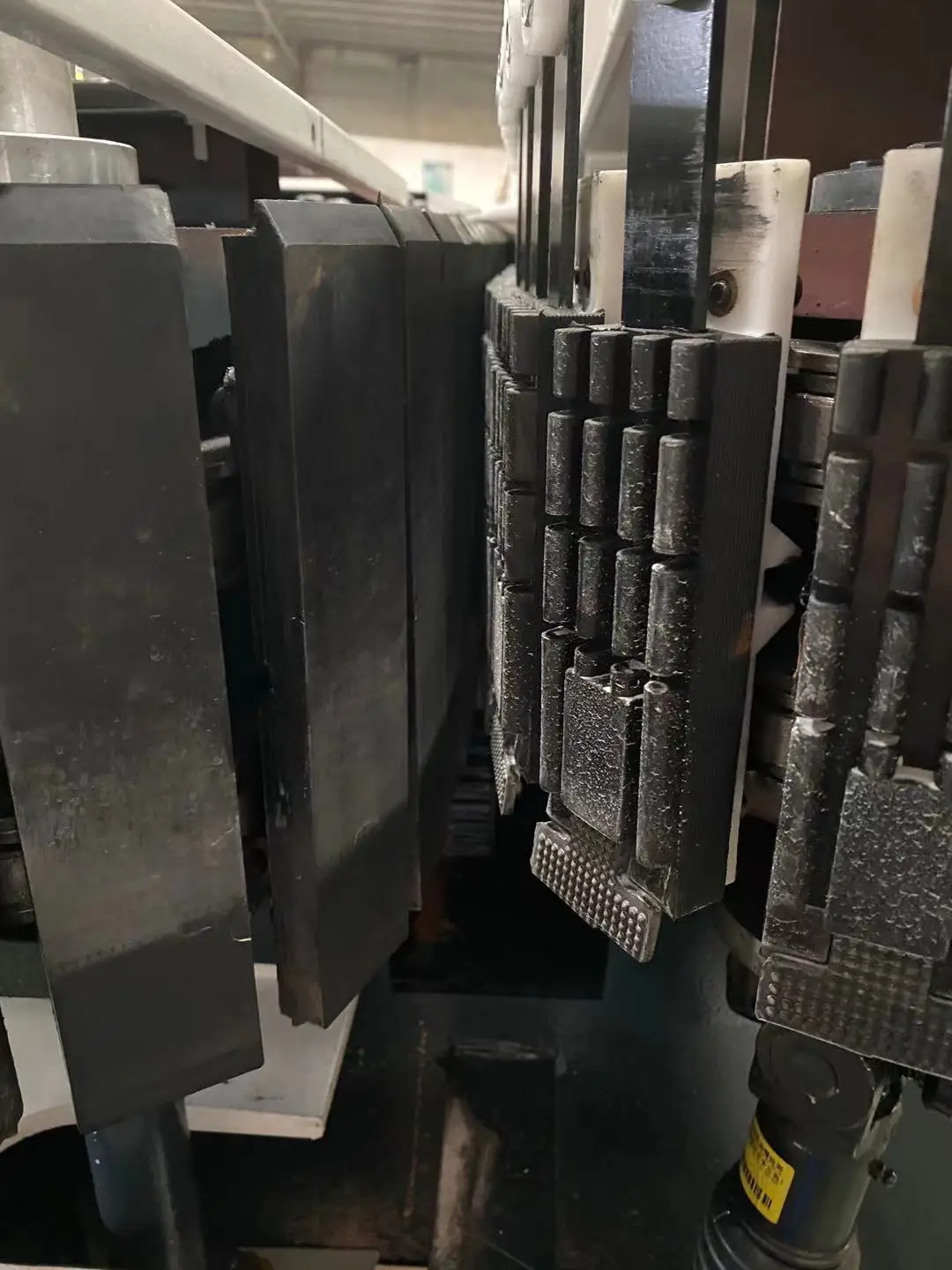

Big ball rolling press plates chains, strong and stable.
All the spindles are CDQC motors. Best quality provide.

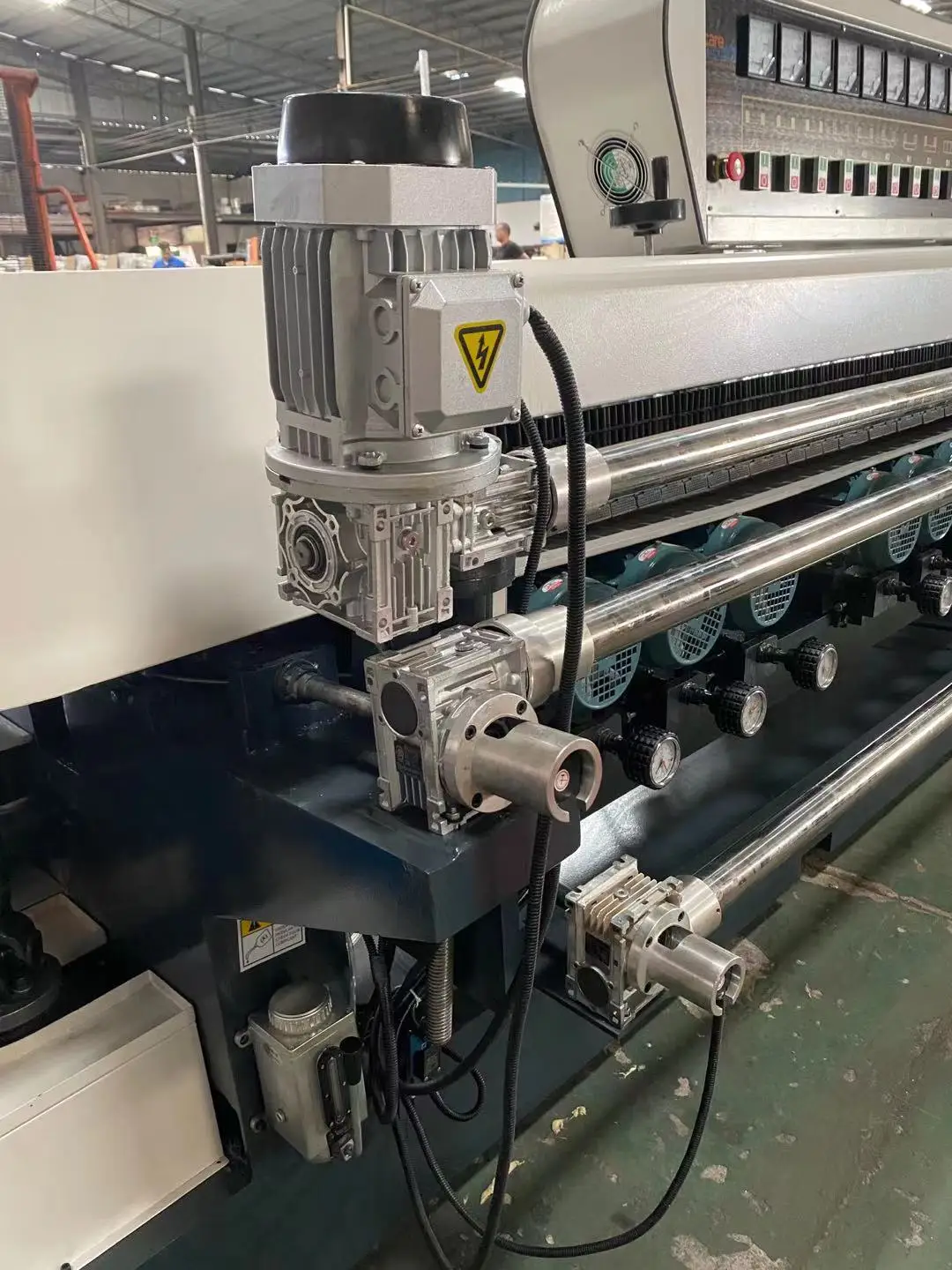

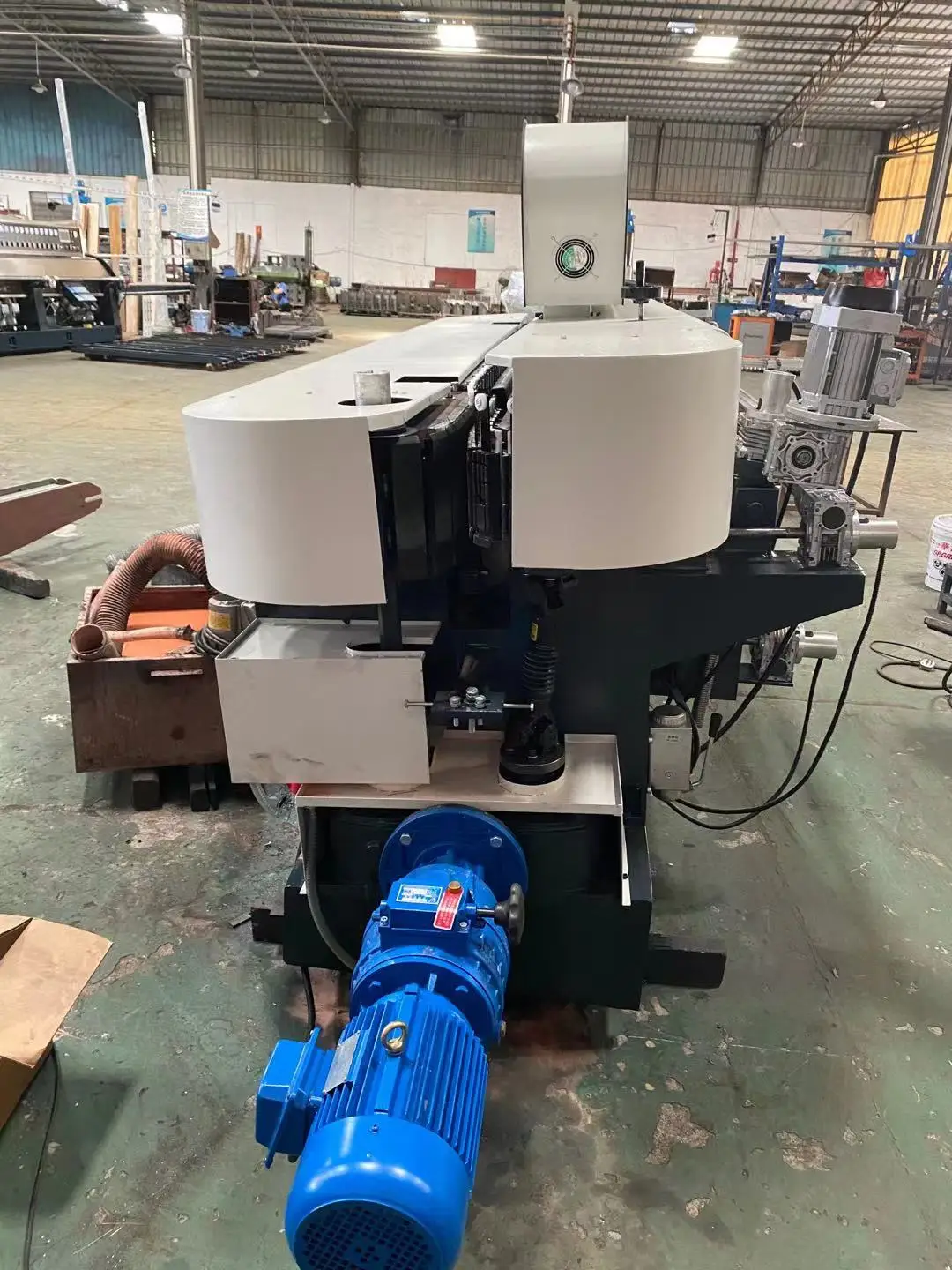

High quality stepless speed change motor. Working speed can adjut 0.5-5m/min.
Schneider electrical components
High quality, Neat wiring layout, ease of maintenance and management.
High quality, Neat wiring layout, ease of maintenance and management.
PLC/ Manual control system optional, make process more Faster, accurate, efficiency and easier.
Product Parameters
Model | CMXM261A | CMXM271A | CMXM371A | ||
Motor No. | 9 | 10 | 11 | ||
voltage | 380v/50Hz | ||||
Power | 22.7kw | ||||
Glass thickness | 3-19mm | ||||
Feeding speed | 0.5-5m/min | ||||
Bevel angle | 0°-35° | ||||
Max bevel width | 35mm | ||||
Min size | 30x30mm | ||||
Weight of machine | 4000kg | ||||
Overall size(LxWxH) | 6800x1300x2500mm | ||||
