Underground Mining Dump Truck 20 ton | Ore Truck UK 20
- Category: >>>
- Supplier: Yantai Hunk Machinery Co. Ltd.
Share on (1600467029213):
Product Overview
Description

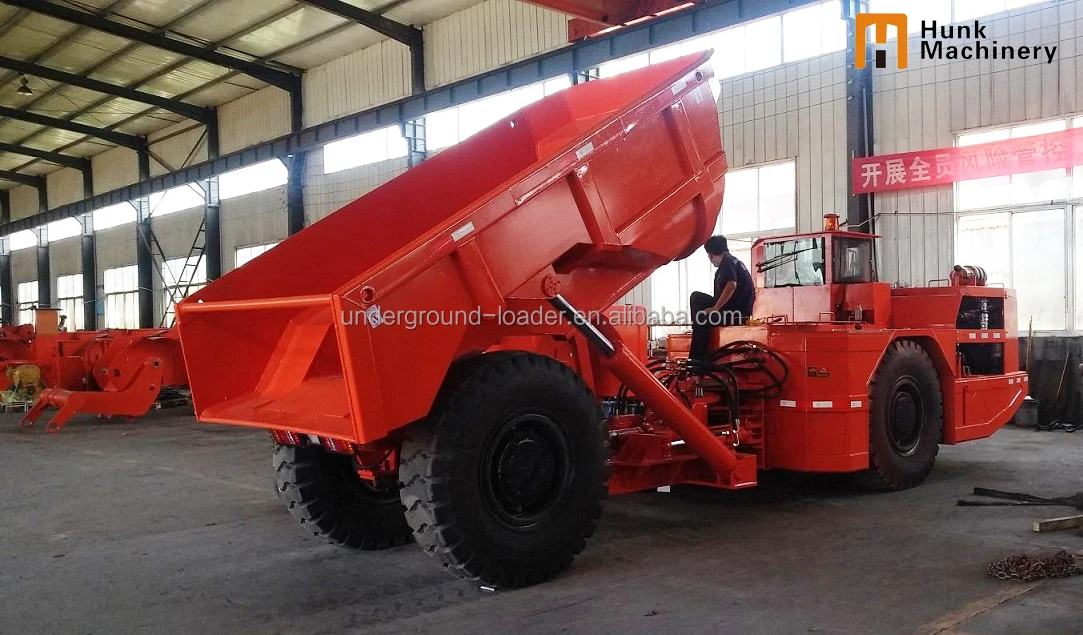

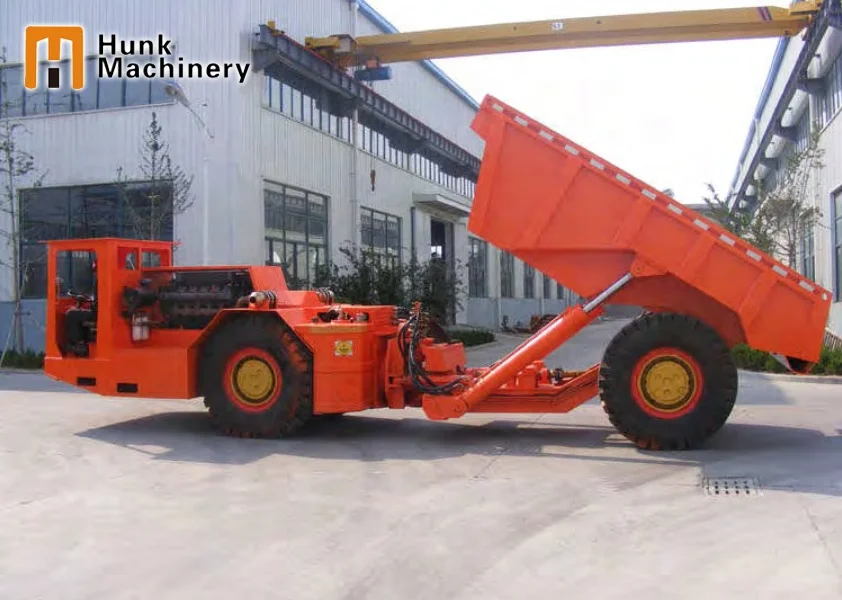

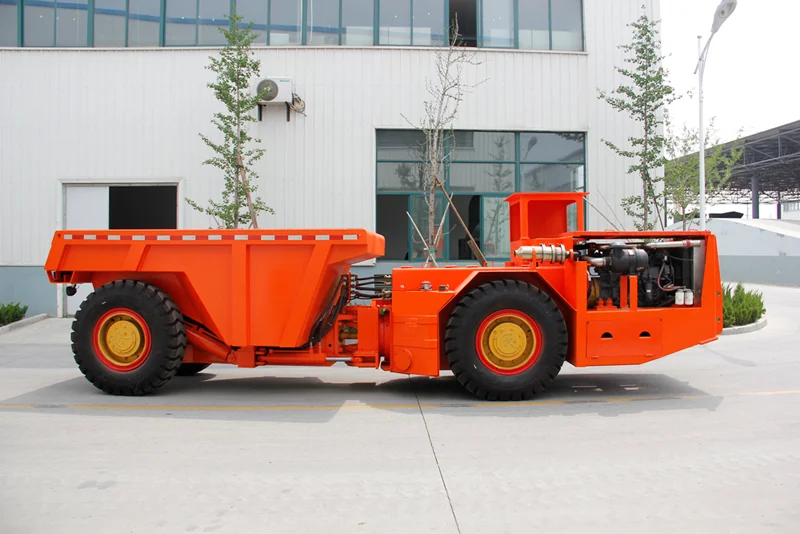

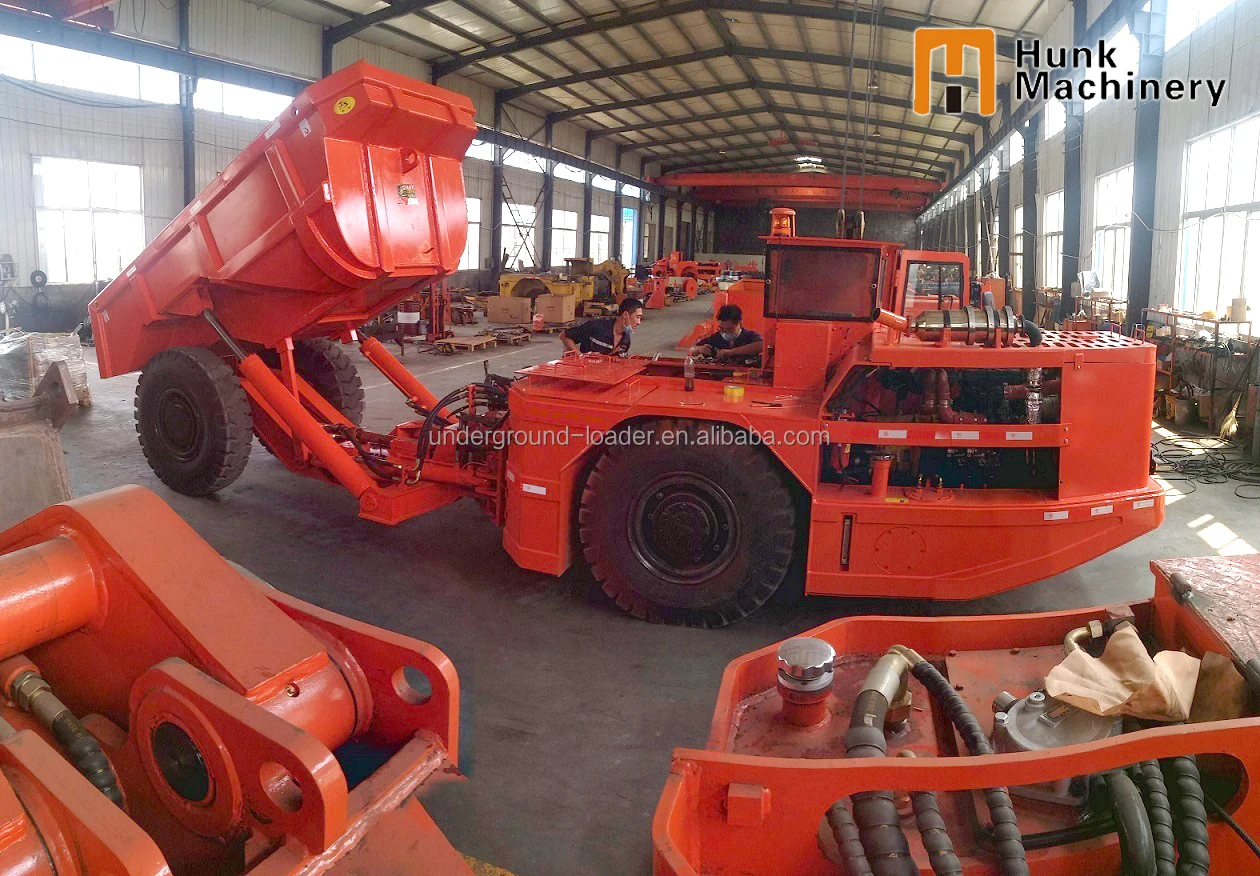

HKUK-20 Underground Mining Dumper Truck
Technical Characteristics:
Adopt DANA torque converter and power shift transmission.
SAHR brake(Spring Applied Hydraulic Released)
Adopt slewing bearing connect with rear frame to swing,so greatly reduce the failure rate.
Technical Parameter
Technical Parameters of 20 tons Underground Mining Dumper Truck:
| Diesel Engine | German Deutz |
| Hydraulic Torque Converter | Dana |
| Power Shift Transmission | Dana |
| Drive Train | No-spin differential |
| Braking system | SAHR(Spring Applied Hydraulic Released) |
| Bucket Capacity | 10m3(13.33yd3) |
| Rated Loading Capacity | 20000kgs |
| Carriage Loading Angel | 70° |
| Discharging Height | 2165mm |
| Max Traction | 232KN |
| Max Climbing Ability | 15° |
Running Speed | First Gear 0-3.8KM/H Second Gear 0-7.6KM/H Third Gear 0-14KM/H Forth Gear 0-25KM/H |
| Min.Turning Radius | 8220mm(Outer) 4980mm(Inner) |
Dimensions(transport) | Length 8980mm Width 2280mm Height 2400mm |
| Weight | 20000kgs |

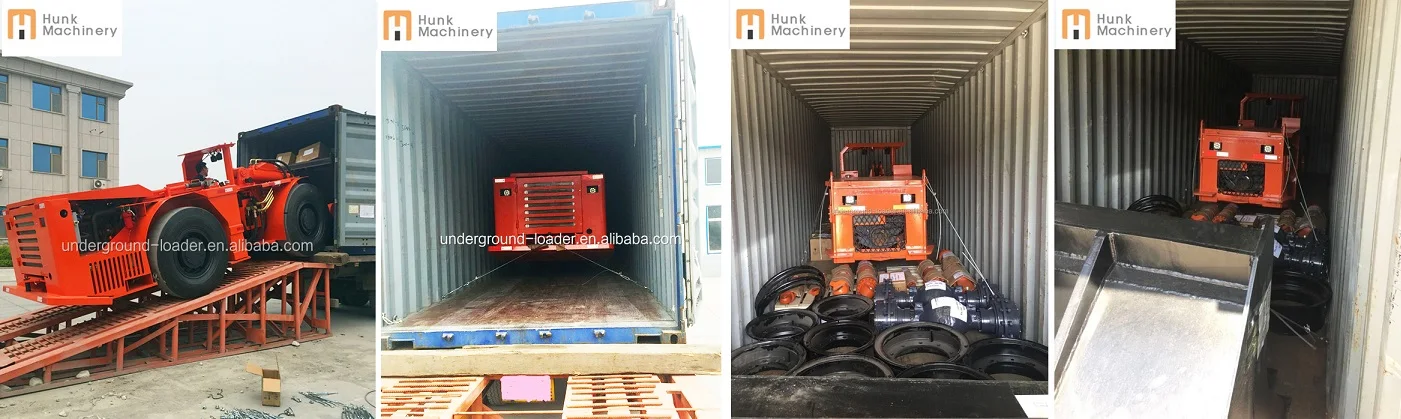

Packaging & Shipping
After loading on the truck or in the container, we will fixed the machine with the rope to avoid the moving and damage during transportation. If our customer required, we can also pack the machine in the plywood box for transportation.
Company Information
Yantai Hunk Mining Machinery Co.,Ltd is located in Yantai City, Shandong Povince, where the scenery is beautiful. transportation is convenient.
Our company is specialized in designing and manufacturing underground scrapers, spare parts for trackless mining equipment at home and abroad. After years of efforts, we formed a set of scientific management system, absorbed the advanced technology of the famous underground scrapers worldwide, we strictly keep JB/T5500-2004, JB/T5501-2004 and GB25518-2010 standards for producing.

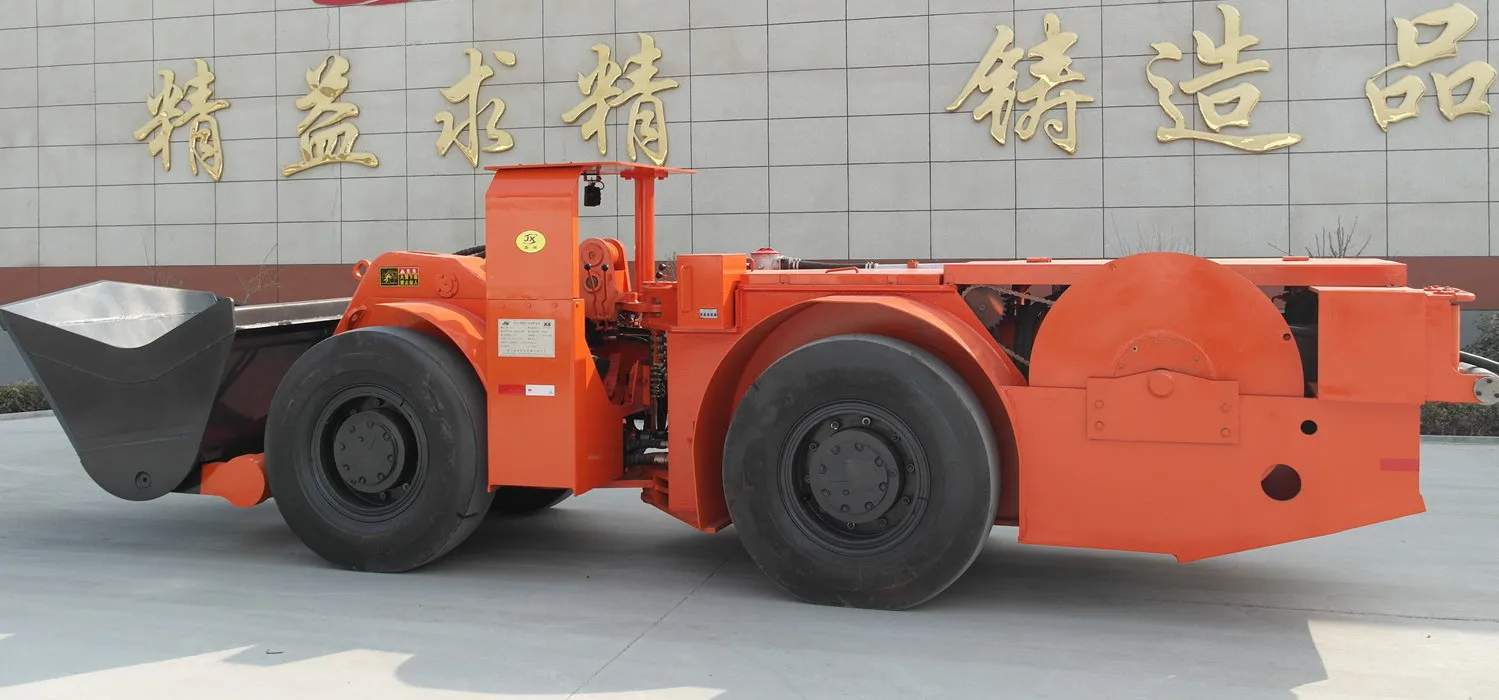

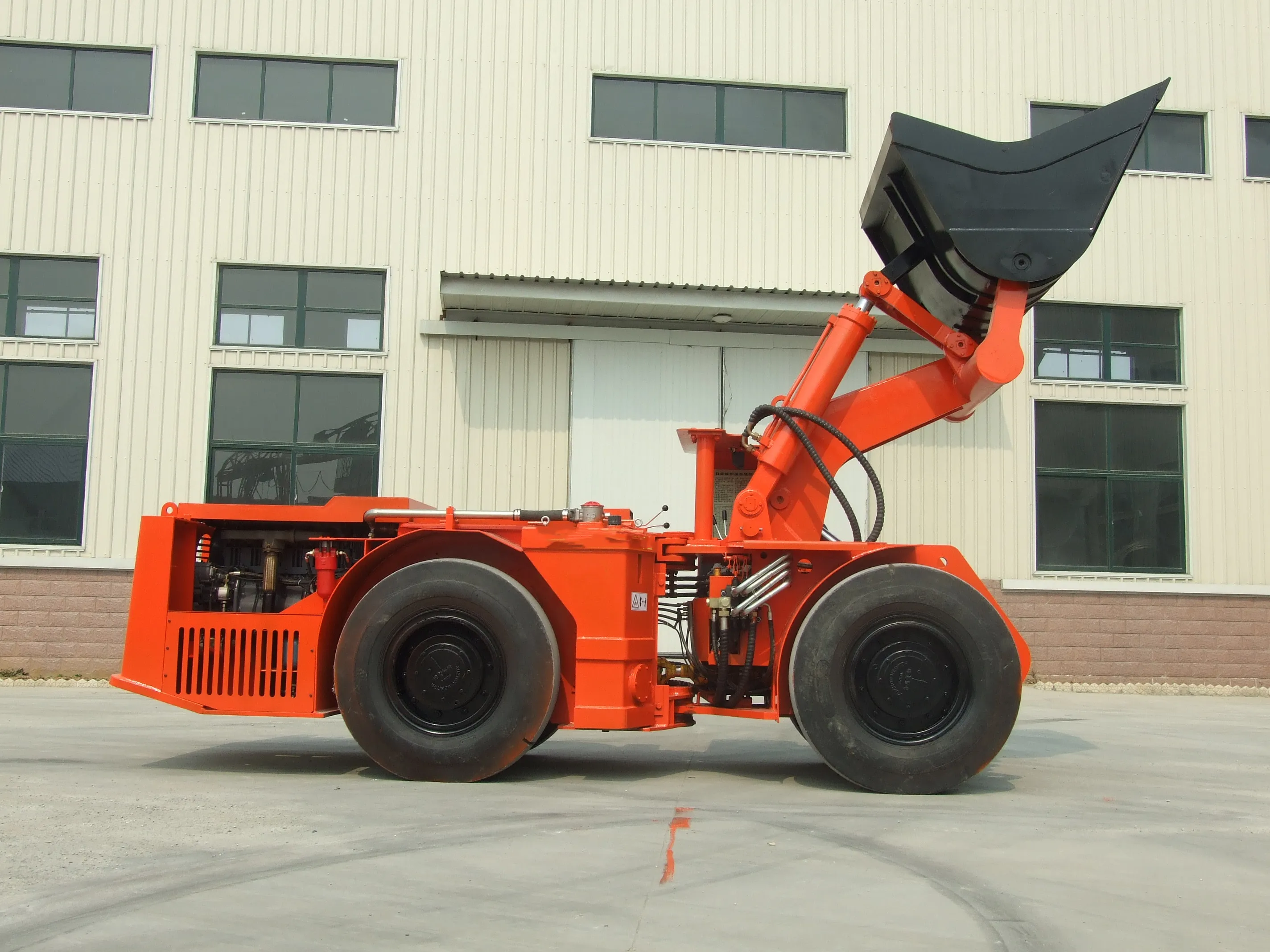

Up to now, our company has successfully launched the electric and diesel scrapers, ranging from 1 cbm to 4cbm. We also have Ore trucks. Now we are developing the scrapers for coal mine use, remote control type scrapers and many other products.
Depending on our fine machining process, strong technical team, and modern equipment, we are looking forward to serving all customers with our sincerity and quality.
