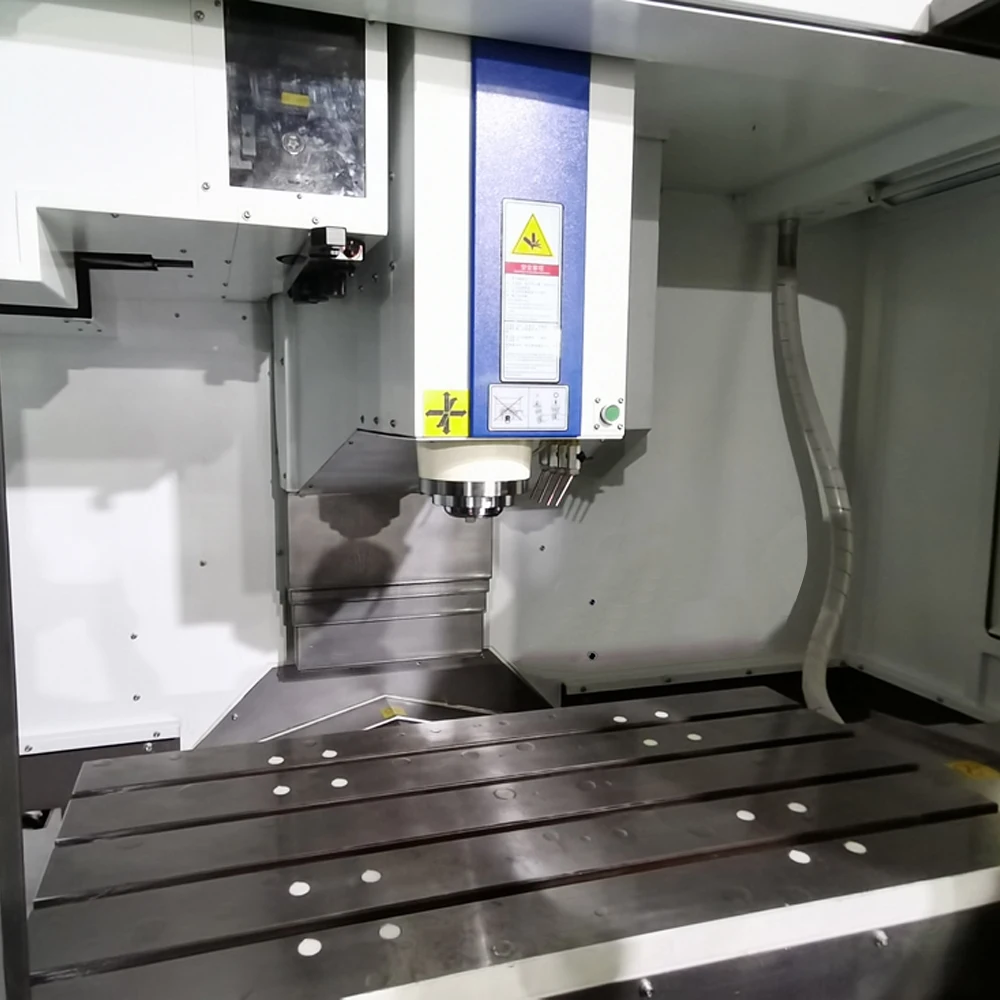

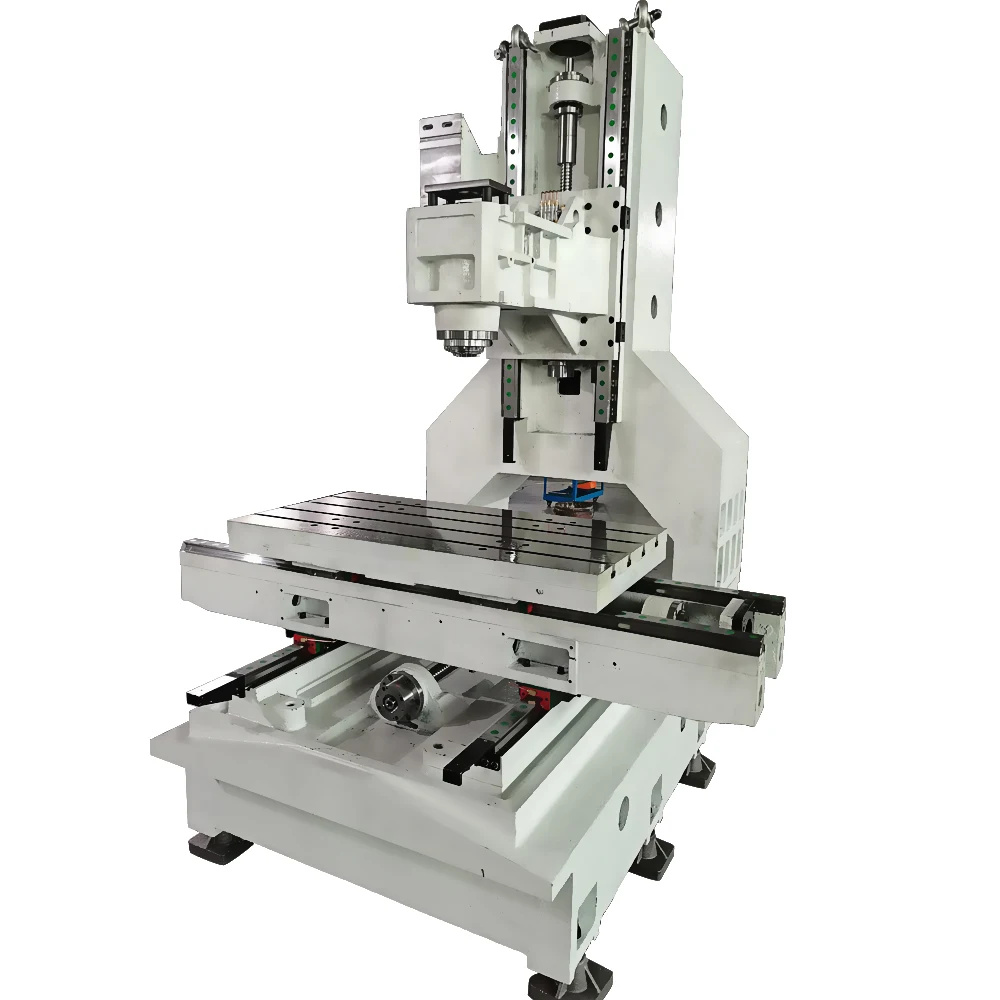

MUNZER V1160 Taiwan Fanuc controller system CNC Vertical Machining Center VMC machine
- Category: >>>
- Supplier: Munzer Technology Co. Ltd.
Share on (1600467040539):
Product Overview
Description

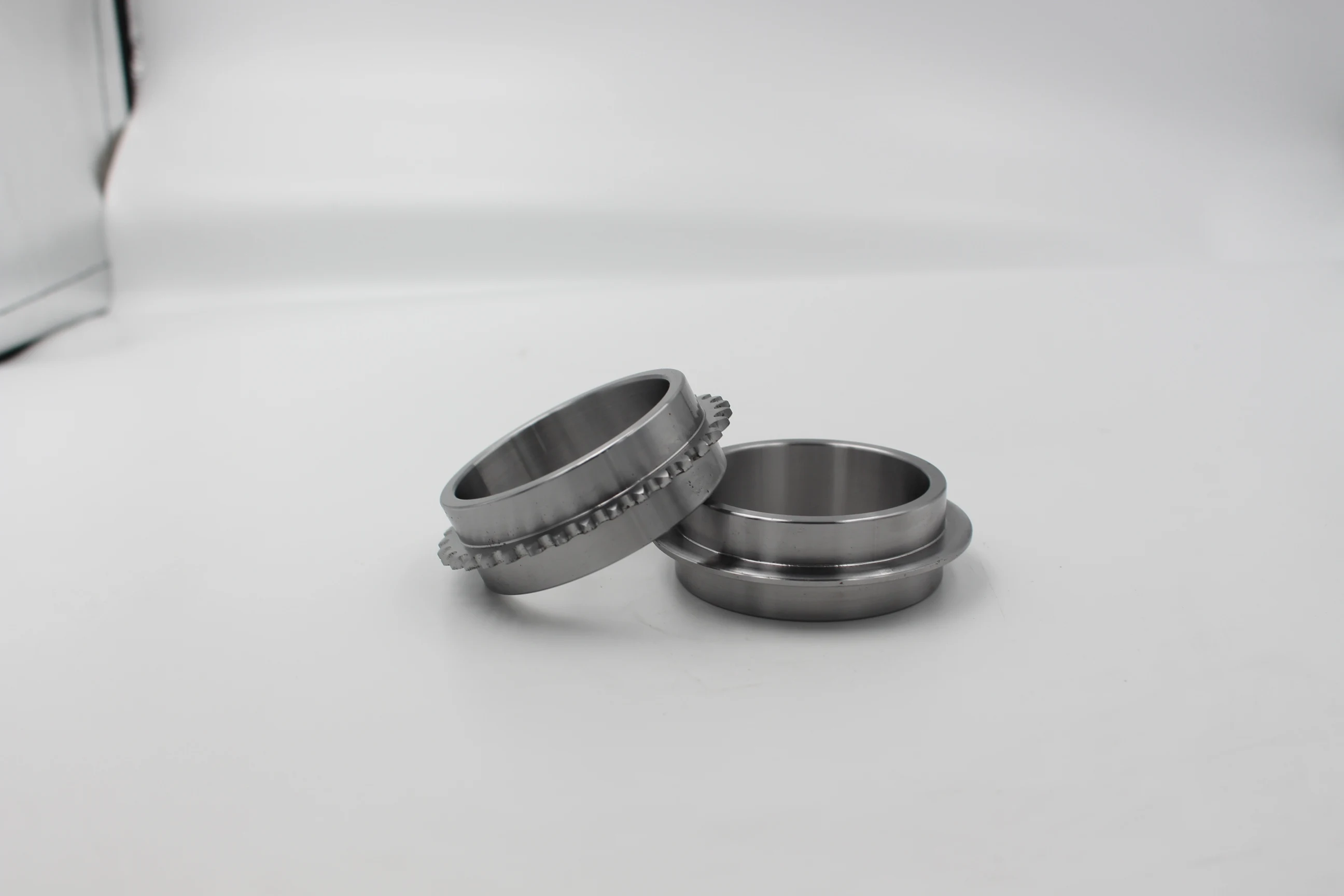

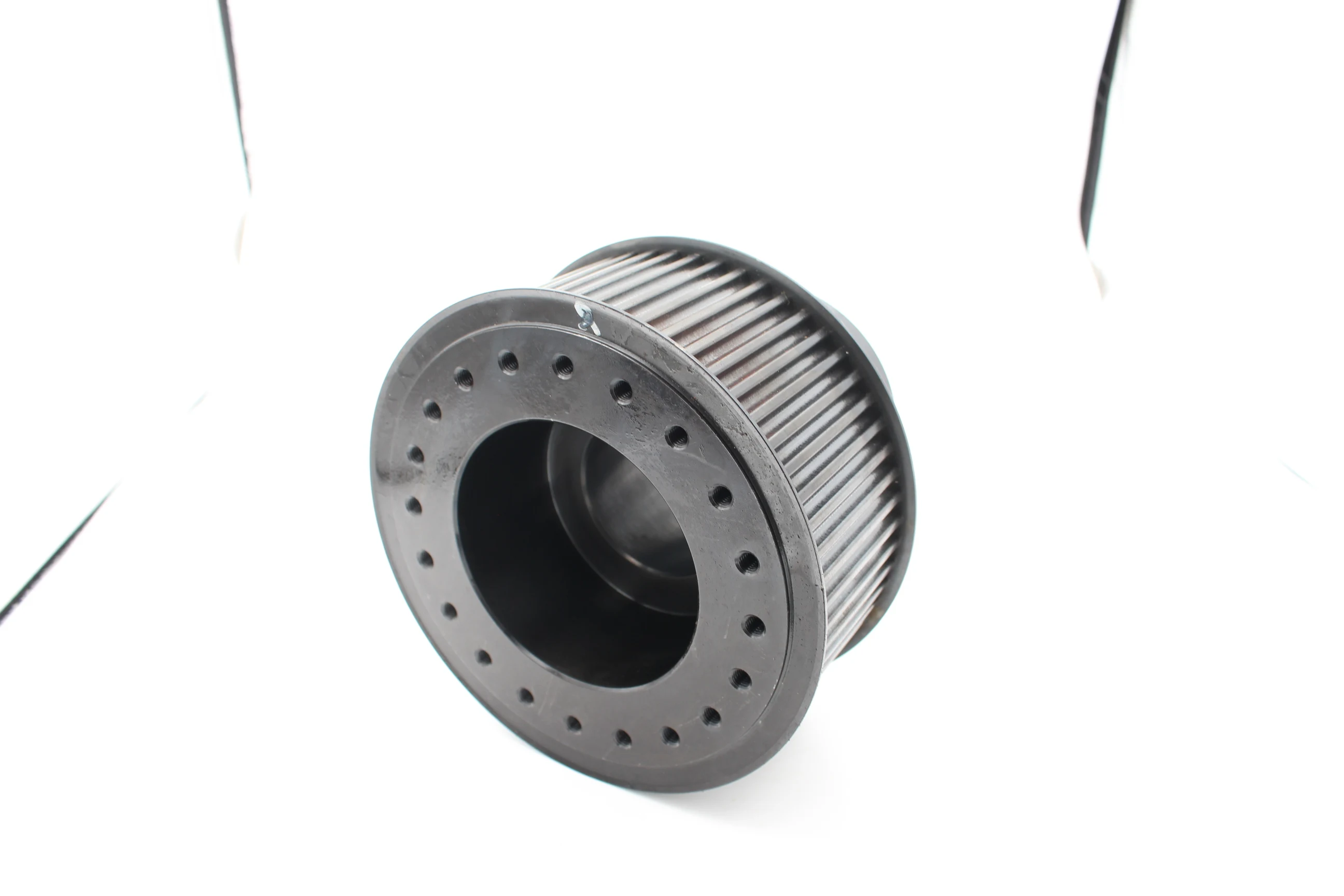

Processed products
Content | unit | V1160 | ||
Machining scope | X axis travel | mm | 1100 | |
Y axis travel | mm | 600 | ||
Z axis travel | mm | 600 | ||
Spindle center to column surface | mm | 650 | ||
Spindle nose to table distance | mm | 120-720 | ||
Table | Table size | mm | 1200*600 | |
Max. loading | kg | 800 | ||
T-shot (No. * width * pitch) | mm | 5*18*100 | ||
Spindle | Spindle tool shank | - | BT40 | |
Max. speed | rpm | 8000 | ||
Spindle torque | N.m | 47/70 | ||
Spindle motor | kw | 11 | ||
Feed rates | rapid reverse X/Y/Z | m/min | 36/36/30 | |
cutting feedrate X/Y/Z | m/min | 10 | ||
Accuracy | Positioning | mm | ±0.005 | |
repeatability | mm | ±0.003 | ||
Dimension | Machine weight | t | 6.5 | |
L*W*H | mm | 3200*2700*3000 | ||
Others | ATC capacity | T | 24 | |
controller system | - | Fanuc 0i MF | ||
Munzer focus one design, manufacturer and distribution of advanced metal-cutting machine tool solutions.
As manufacturing demands, we bring innovation and expand our collet and workholding options to many demanding applications.
As manufacturing demands, we bring innovation and expand our collet and workholding options to many demanding applications.
